*New Model* NC Programmable & Auto Feed, 620mm x 440mm 0 ~ 60 Mitre Cut - Bundle Clamping Included

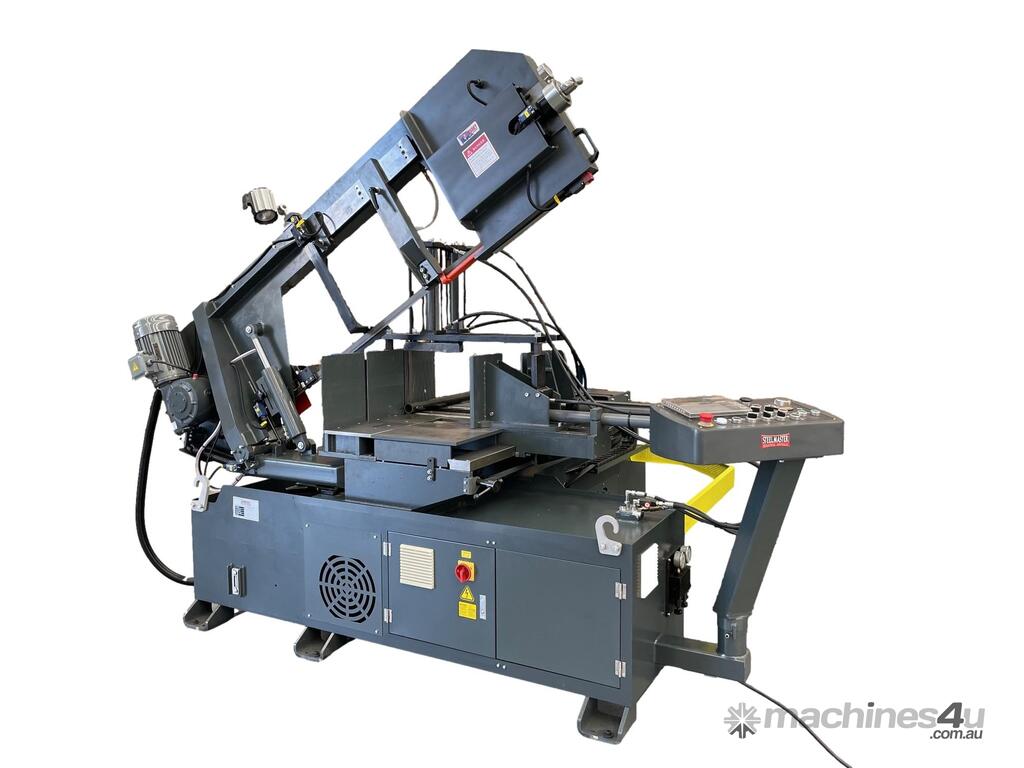

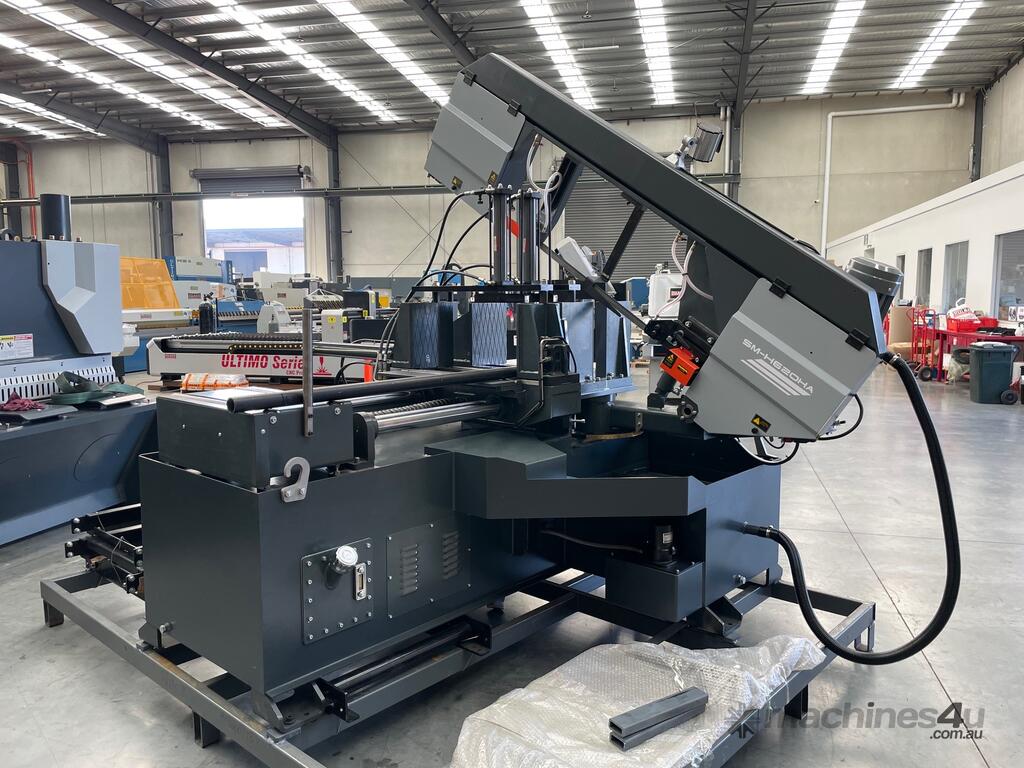

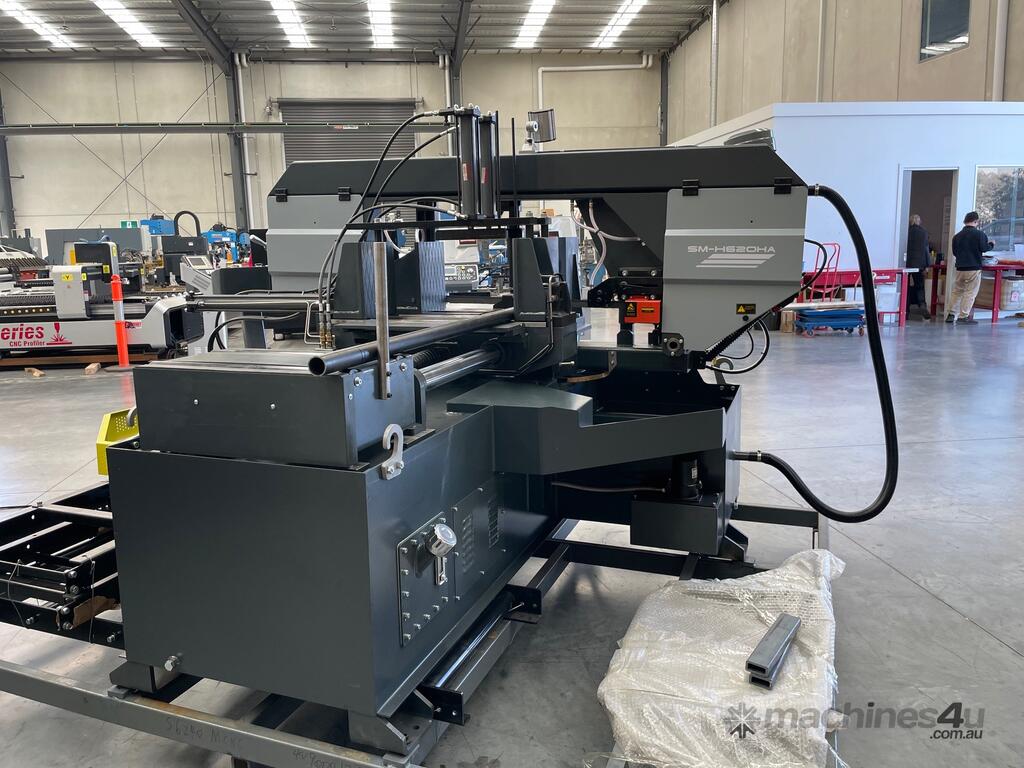

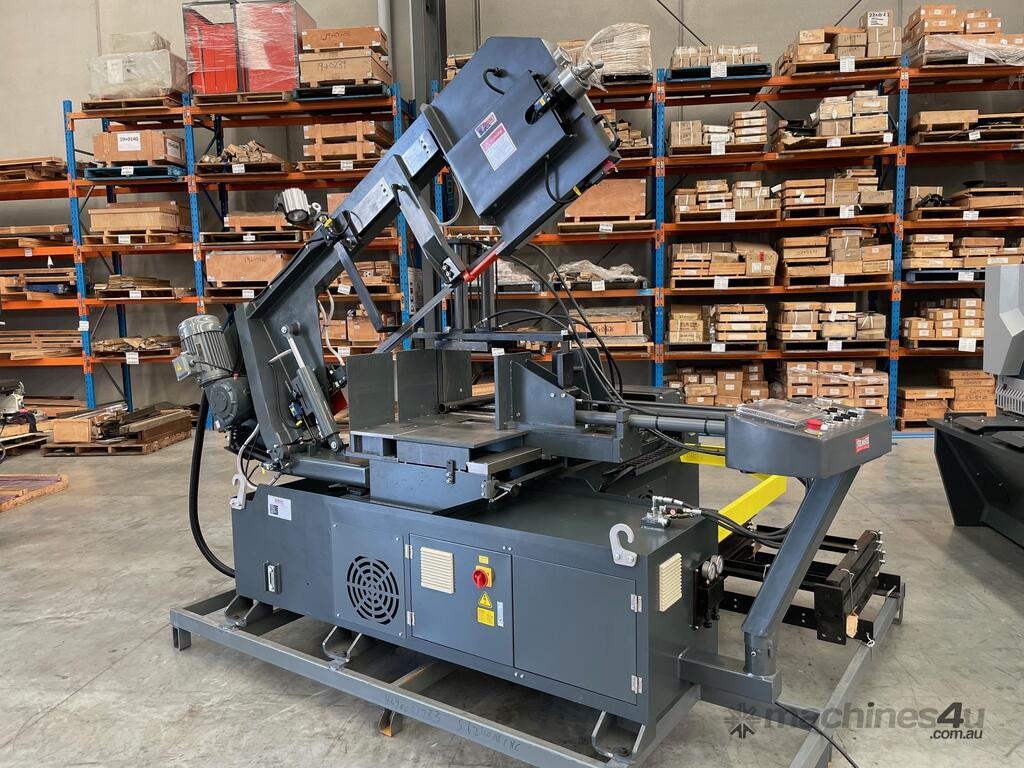

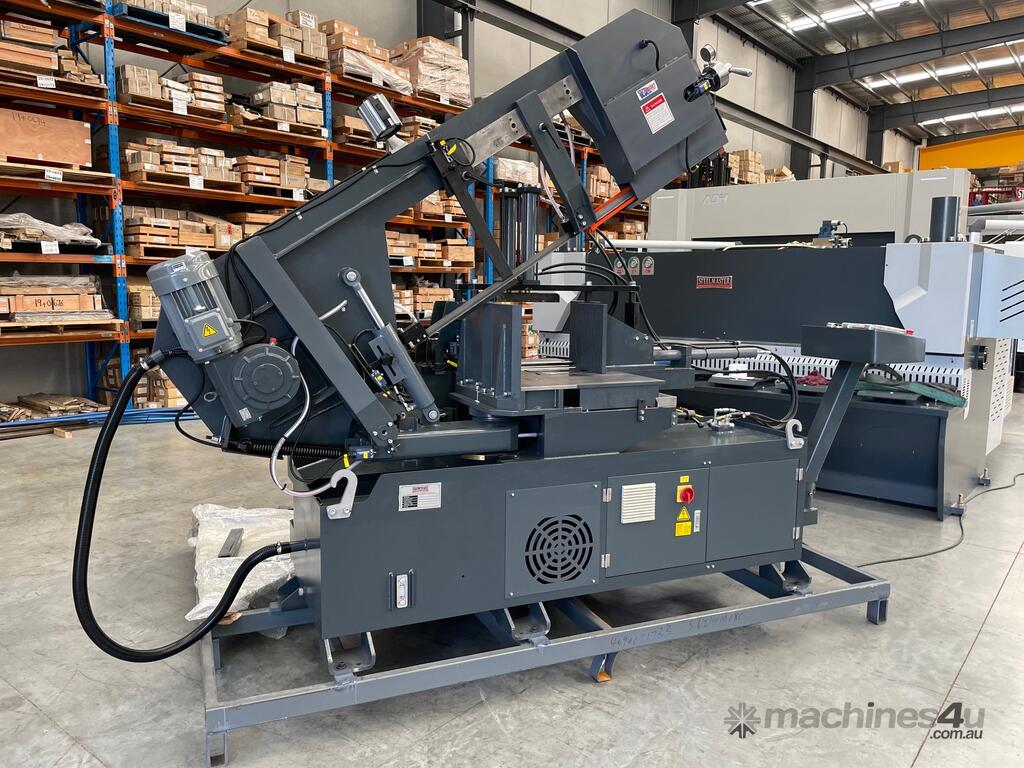

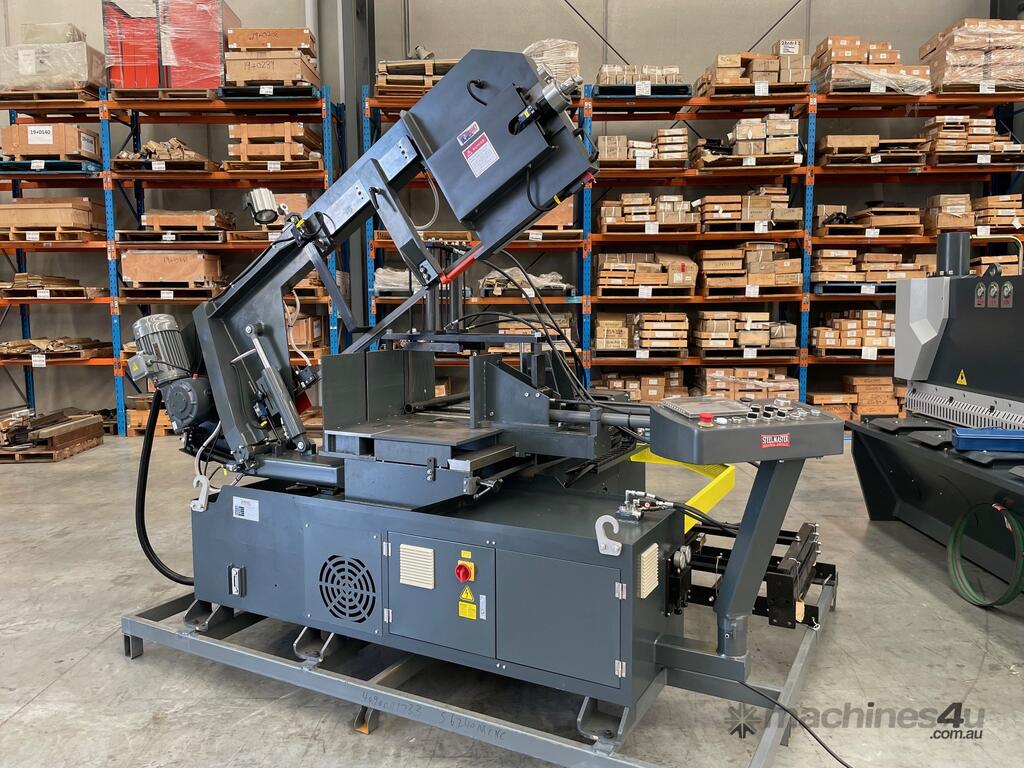

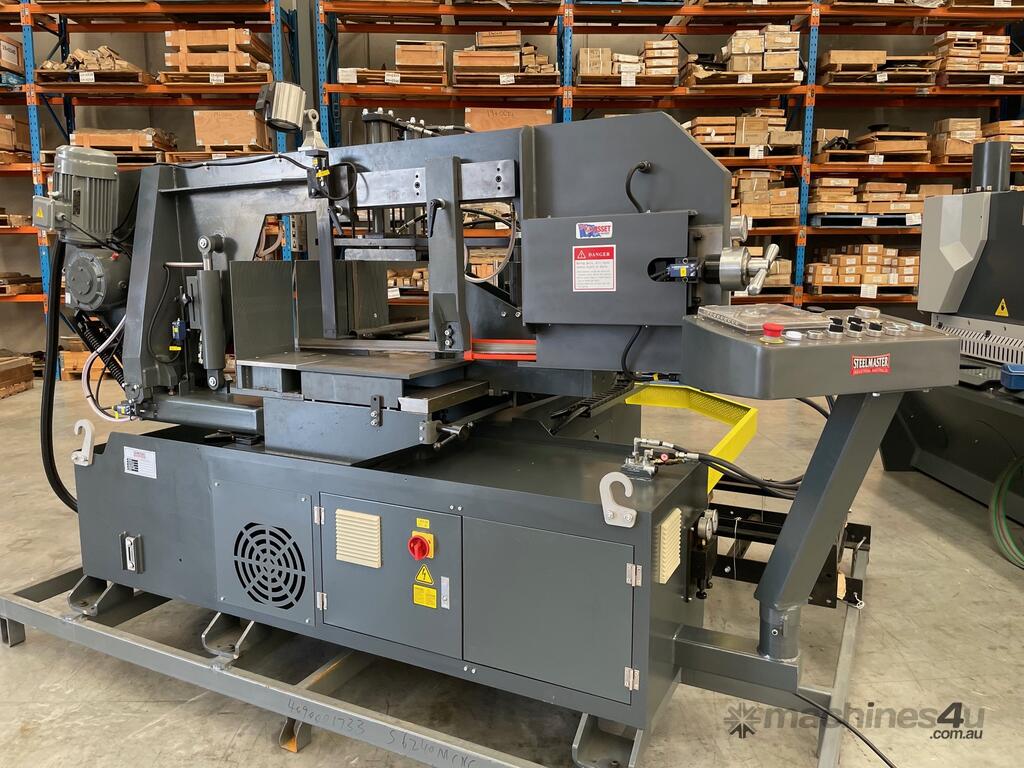

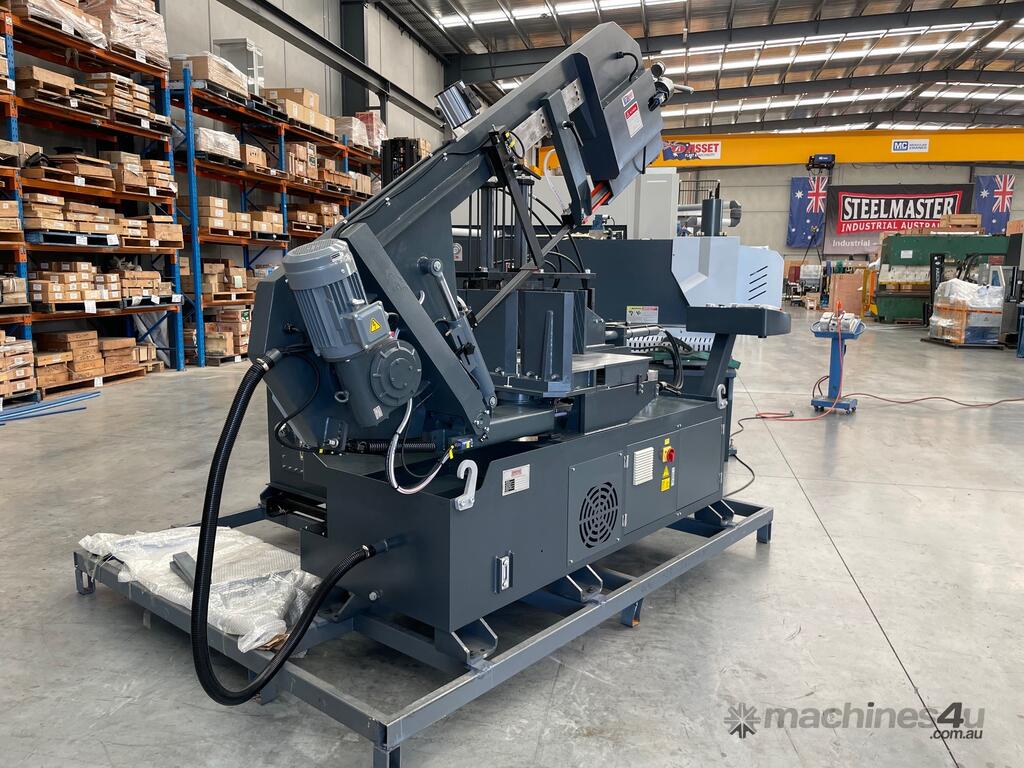

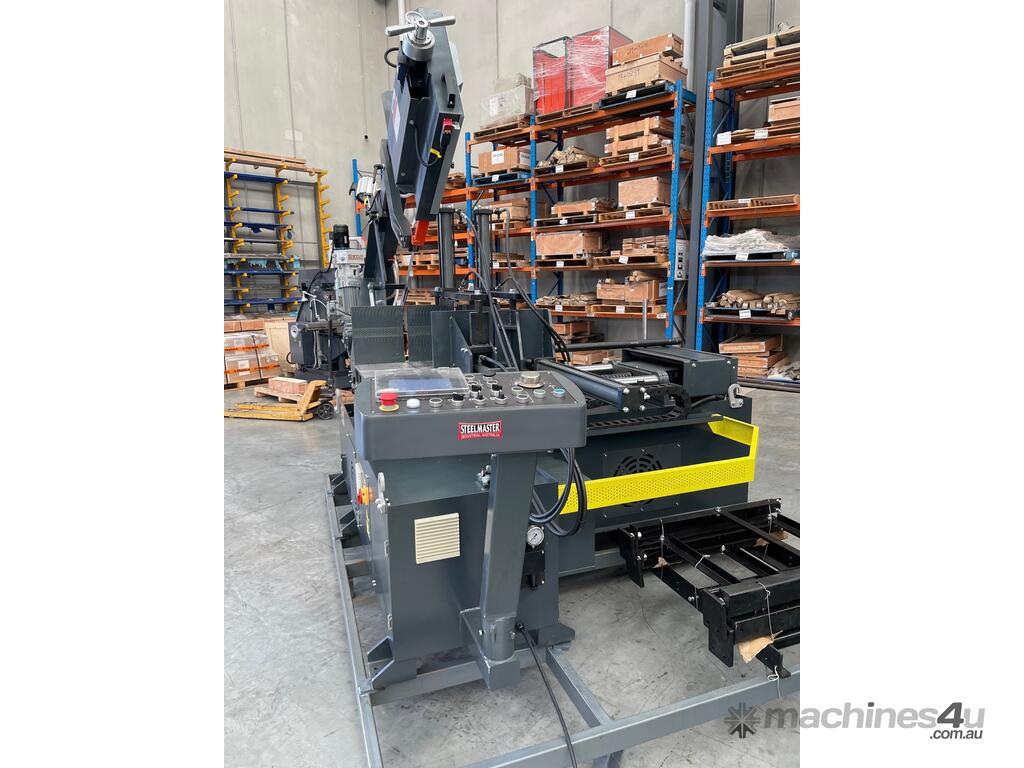

620mm x 440mm NC Auto Mitre Cut STEELMASTER 620 FULL AUTO FEED MITRE BANDSAW
Now Fitted With Bundle Clamp FREE

Description
This Large Capacity Heavy Duty full featured automatic Mitre-Cutting Bandsaw is so feature packed, we dont know where to start! Offering precision auto feed cutting capacity via linear guides, twin hydraulic vice, tungsten guides, NC controller, mitre cutting to 60°, duarable 34mm blade, variable speed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else.
Set and forget! Metalworking production shops should take a good look at this!

Features
our STEELMASTER mitre cutting auto series offers you the all-in-one solution
heavy duty capacity capable of processing all types of material including packs at full automatic speed
mitre cutting from 0° ~ 60° provides the operator with total flexibility

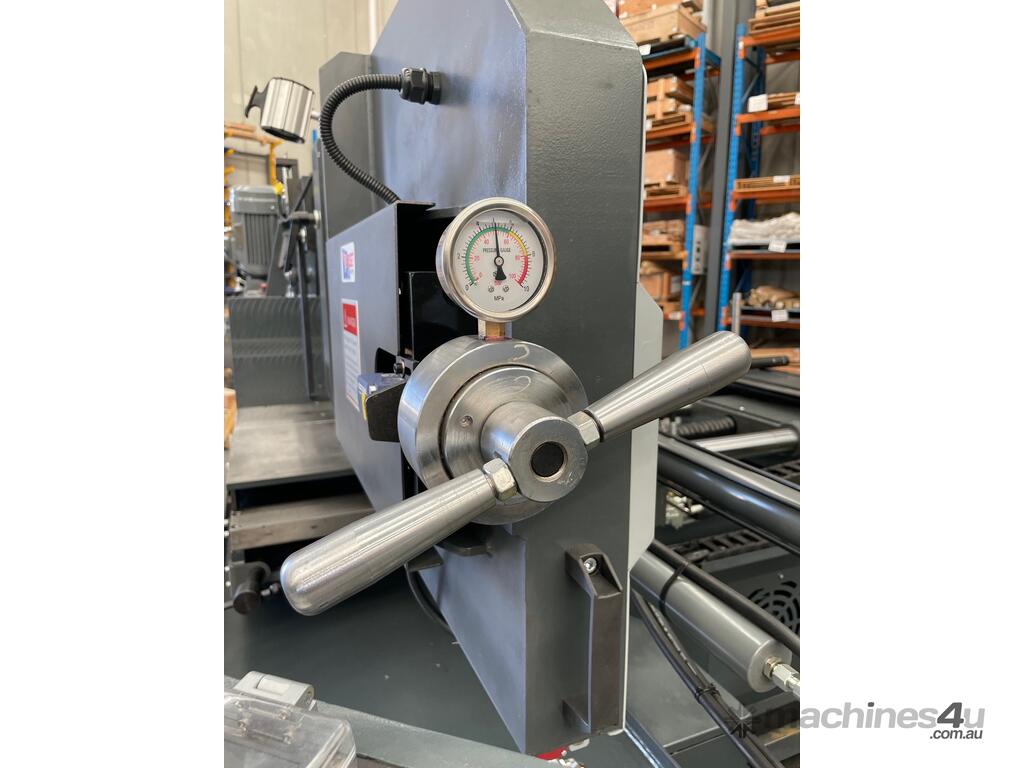

vice pressure regulator and variable speed blade control system
twin hydraulic vice operation standard
strong construction design

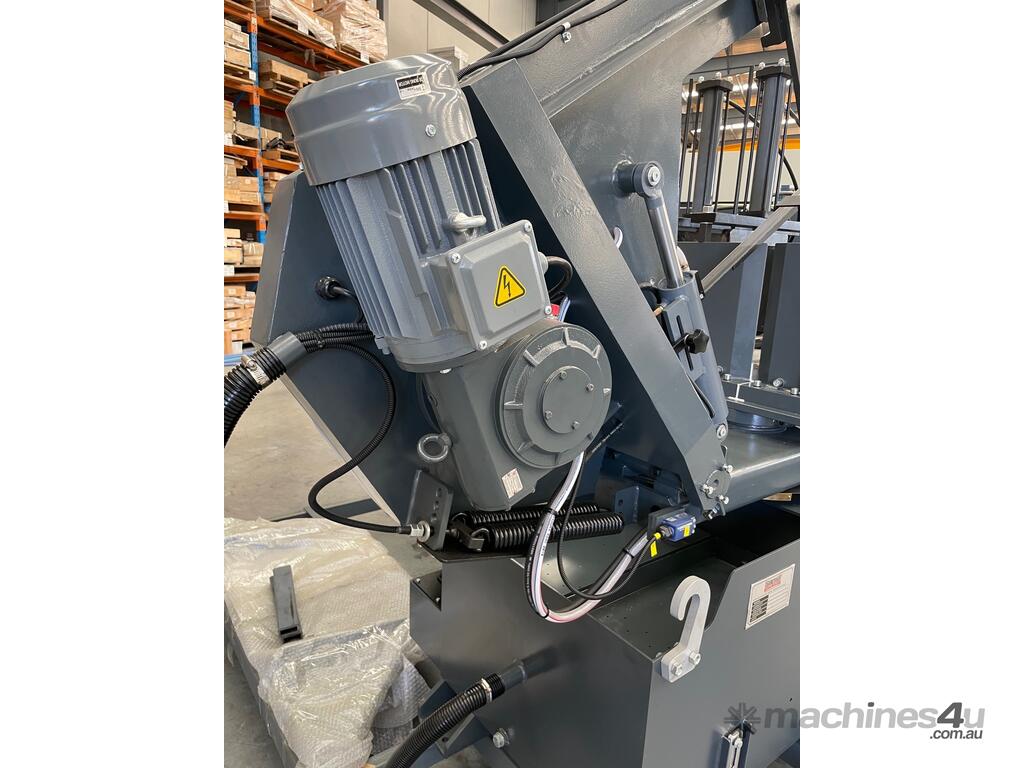

heavy duty motors
tungsten carbide blade guides
coolant system for increased efficiency
auto cut-off switch

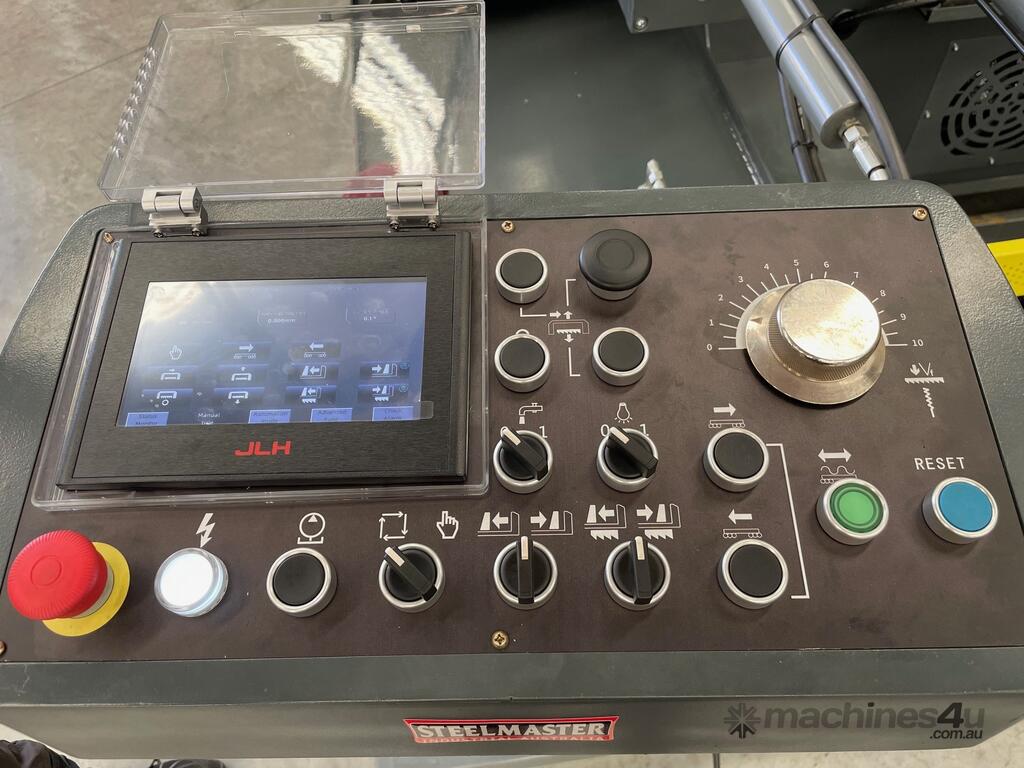

centralised control panel
CE compliant

Specifications:
Voltage Volt 3 Phase
Notes & Accessories:
Equipment & Accessories Supplied:
Fitted blade, tool kit, operation manual.

Dimensions:
Length: 2500 (mm)
Width: 1900 (mm)
Height: 1450 (mm)
Weight: 1450 (kg)

Features
Mitre cutting to 60 degrees

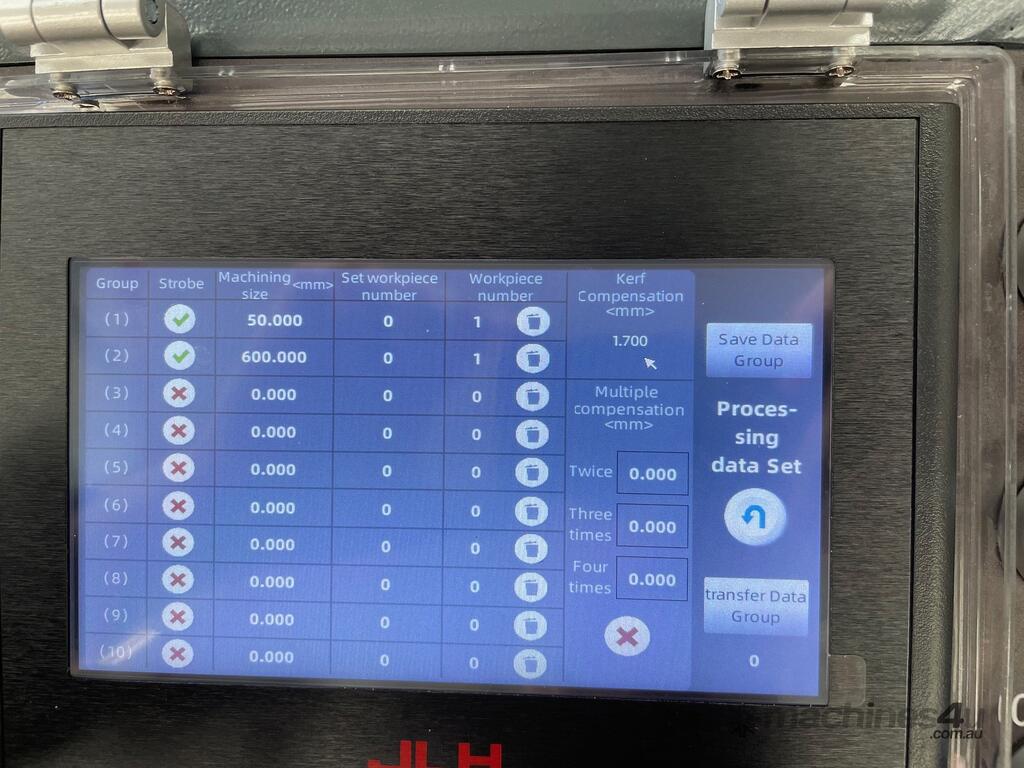

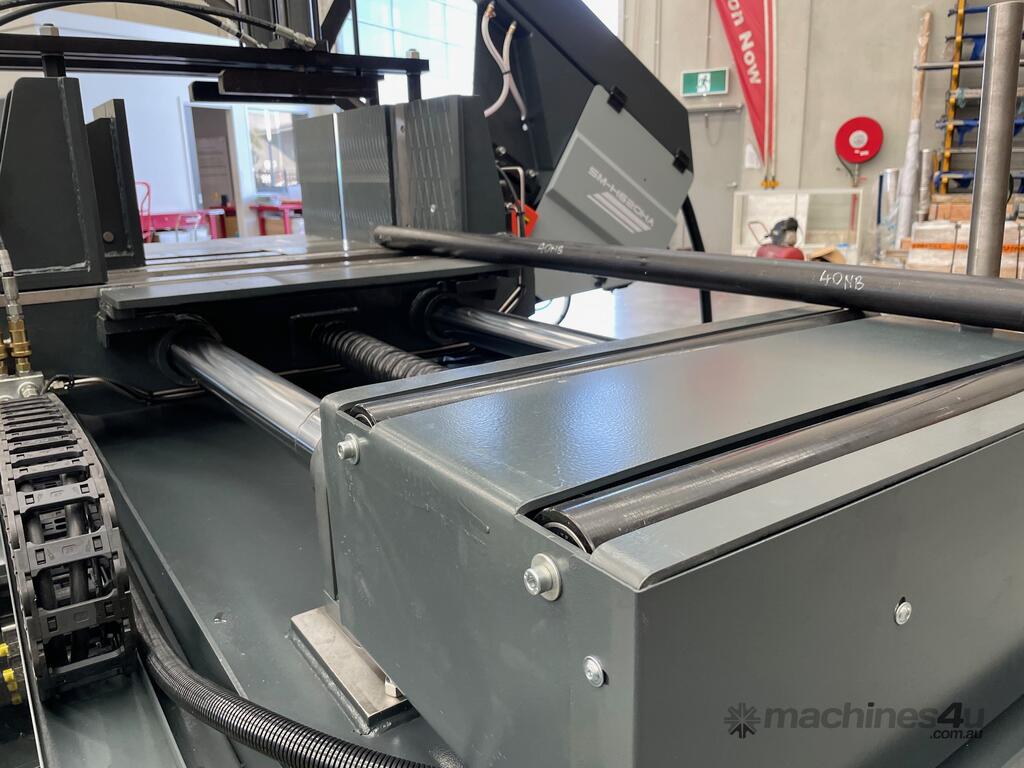

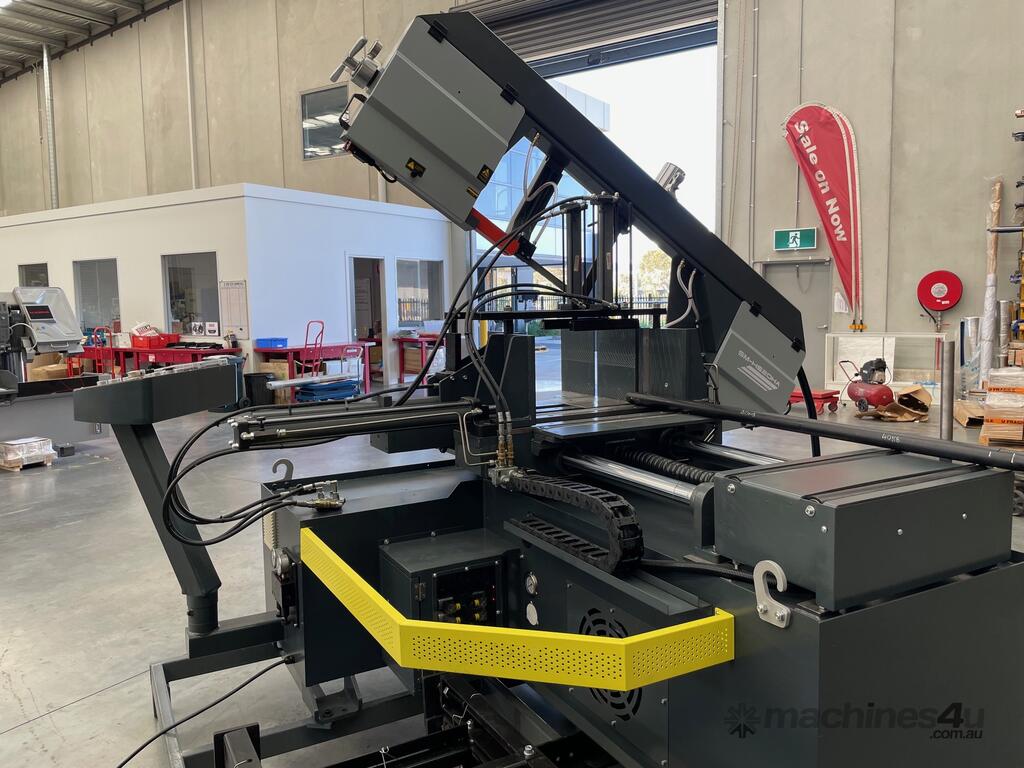

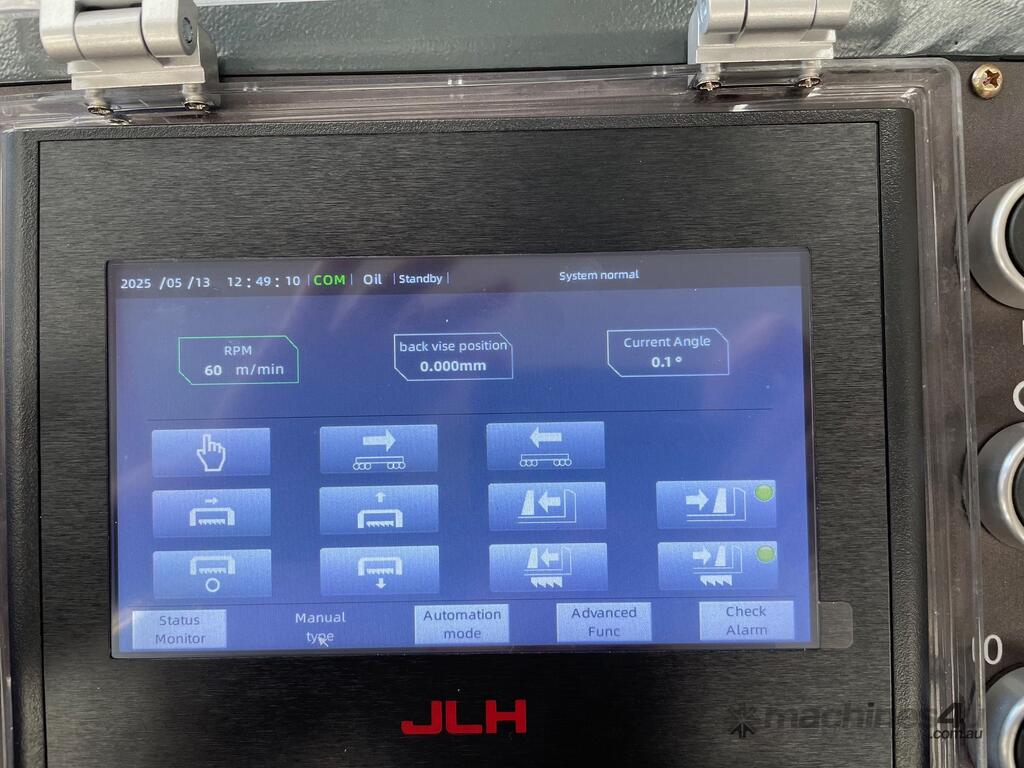

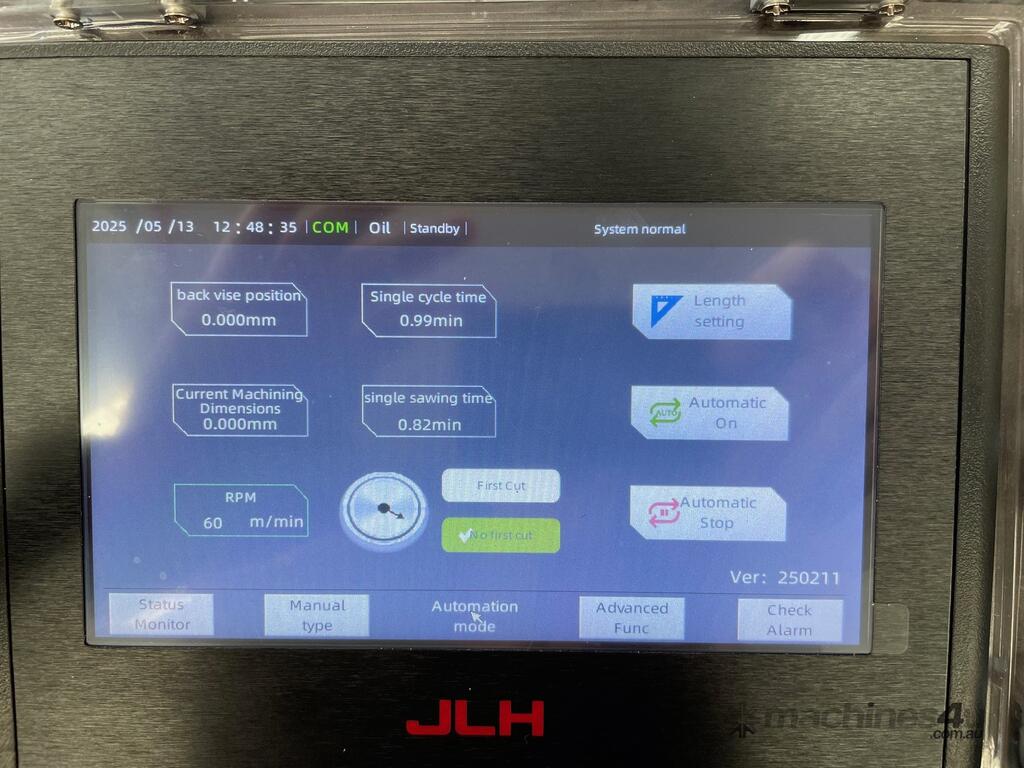

Delta NC Auto Feed

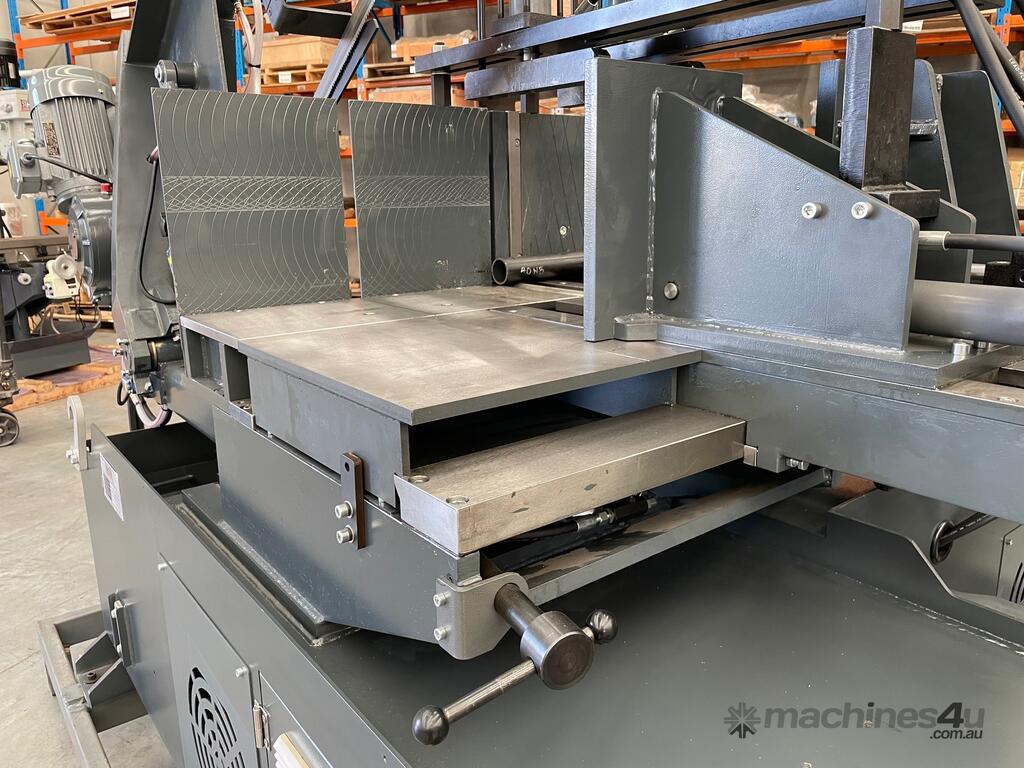

Hydraulic Front & Rear Vice Clamping

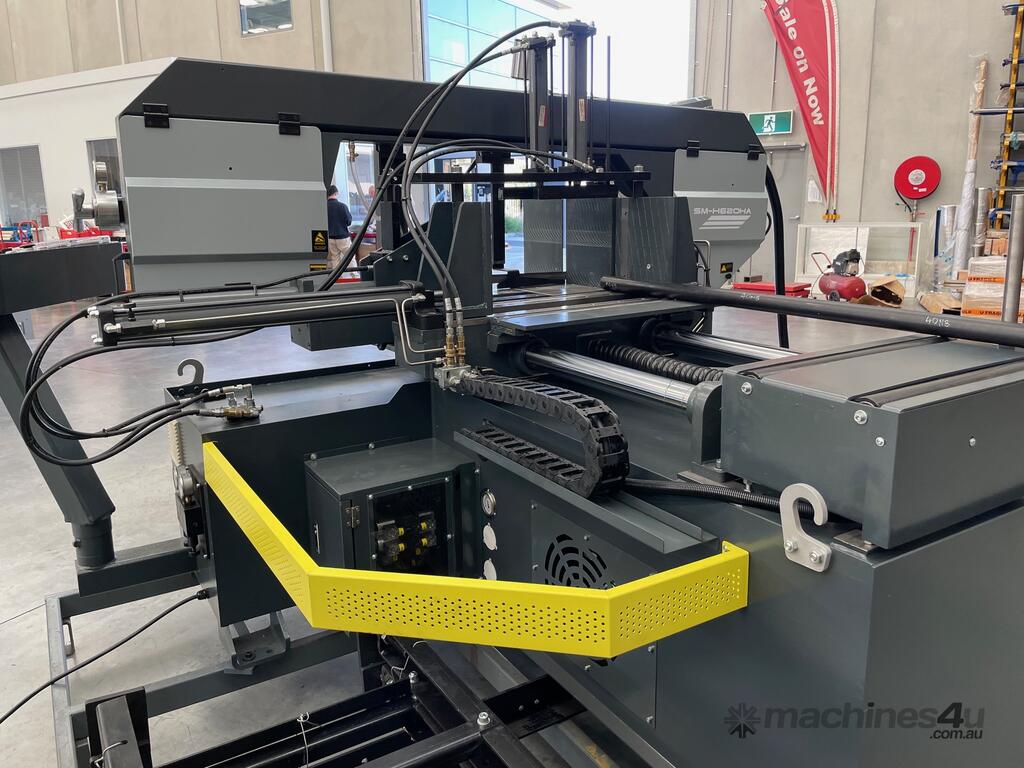

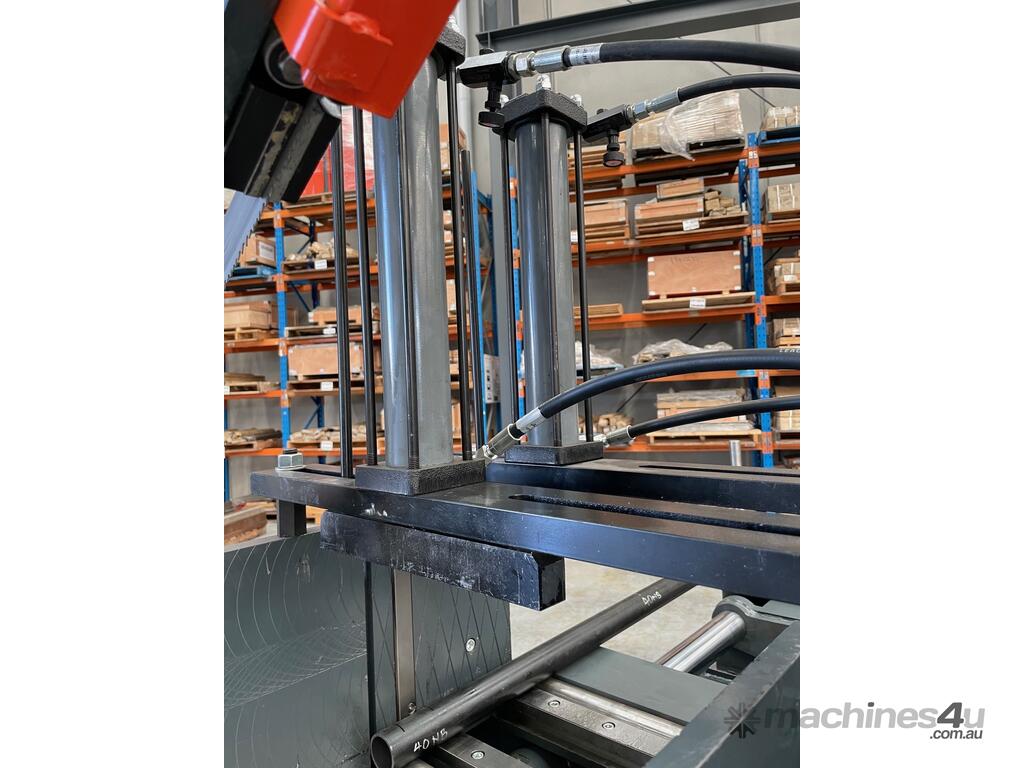

Bundle Clamp Fitted

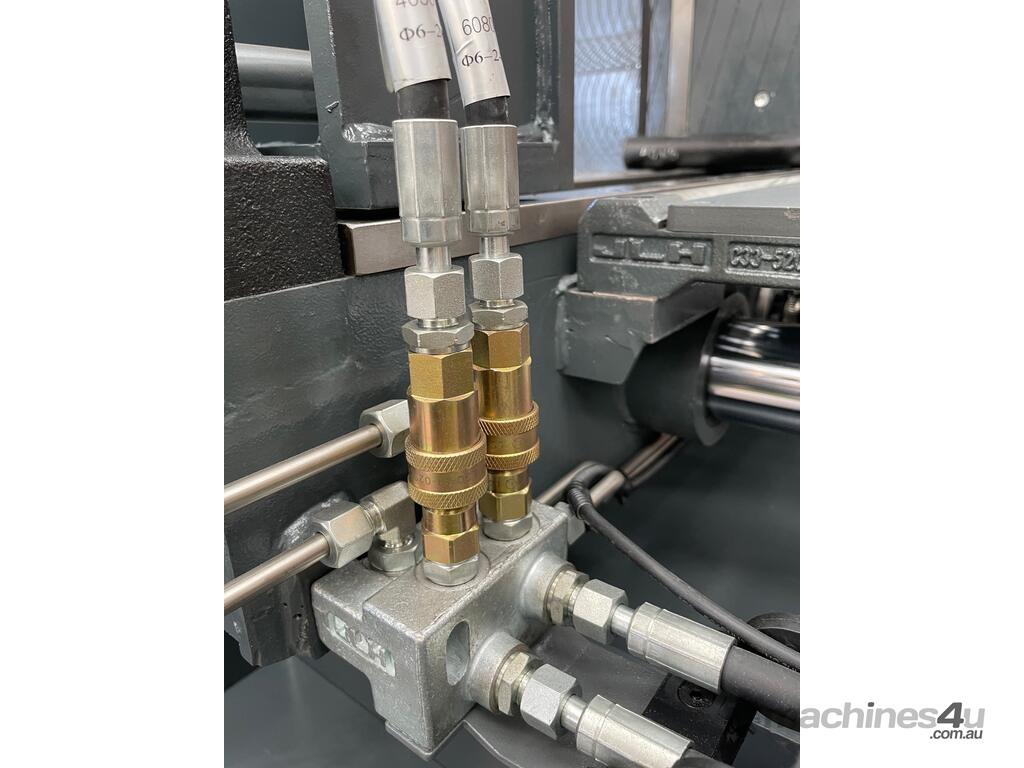

Quick Connect Hydraulic Fittings
Blade Breakage Detector

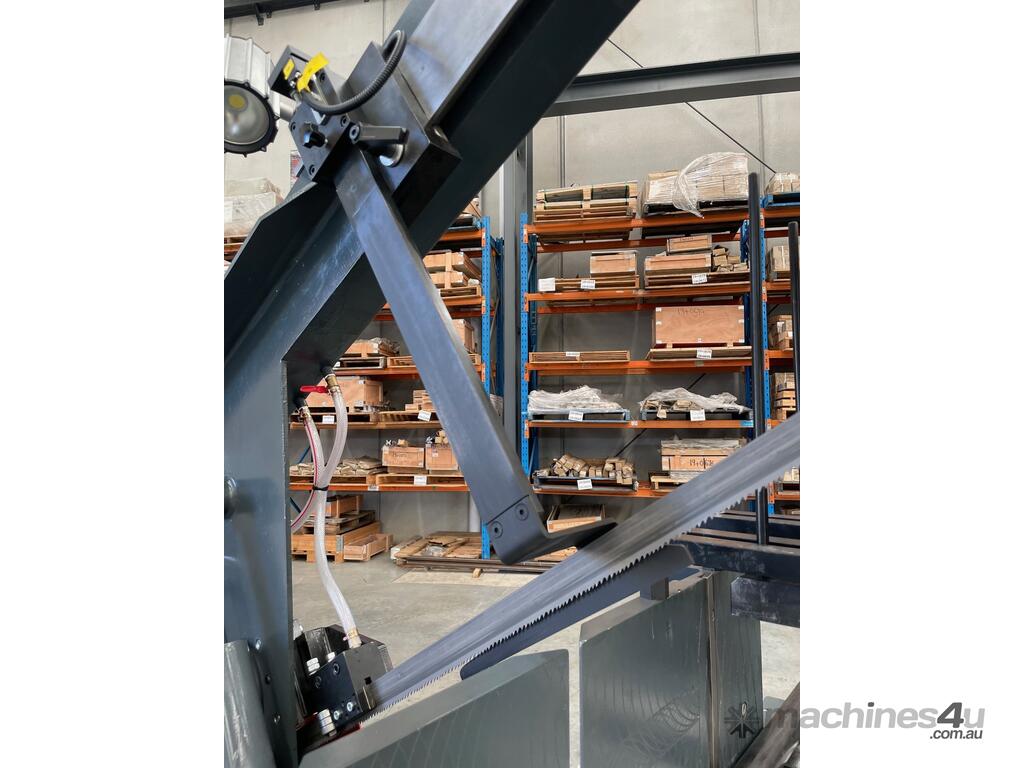

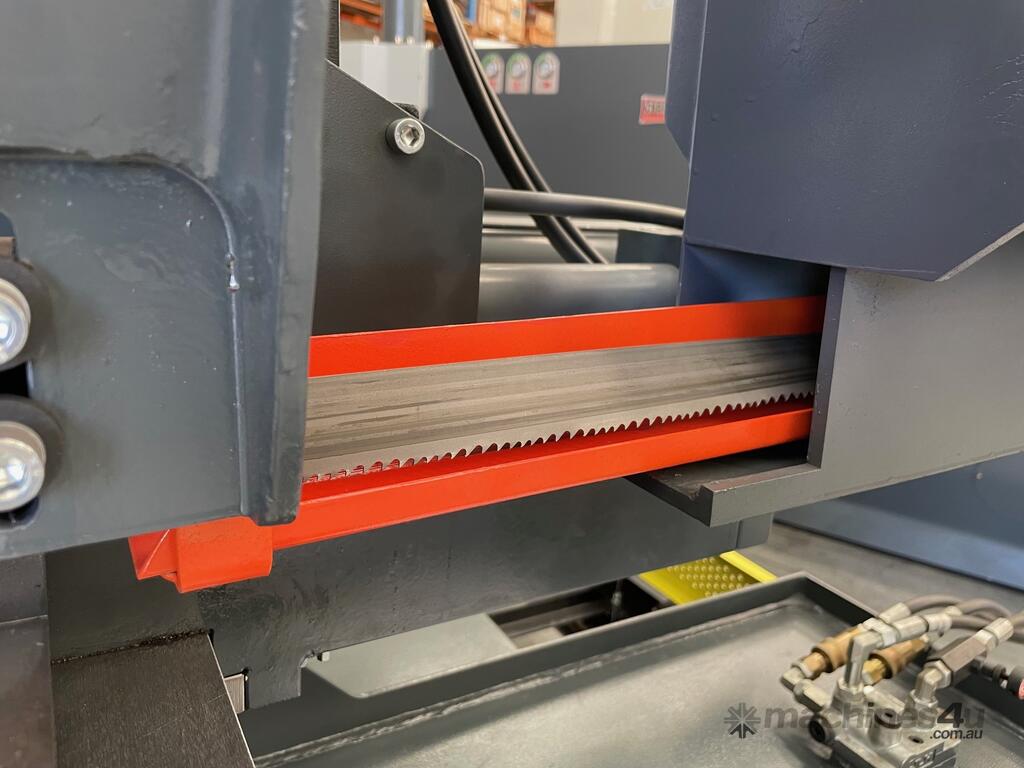

Durable 34mm wide blade.
Variable hydraulic down feed system for the automatic
continuous lowering of the saw frame
Automatic beam return
Variable blade speed enables cutting on a variety of materials

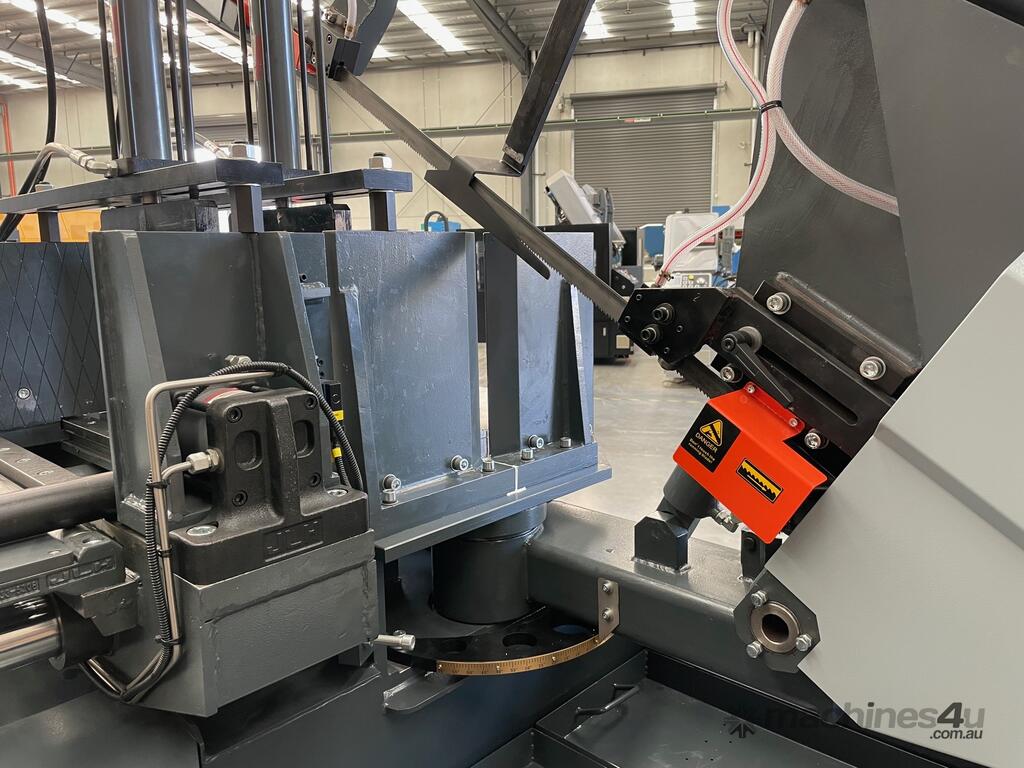

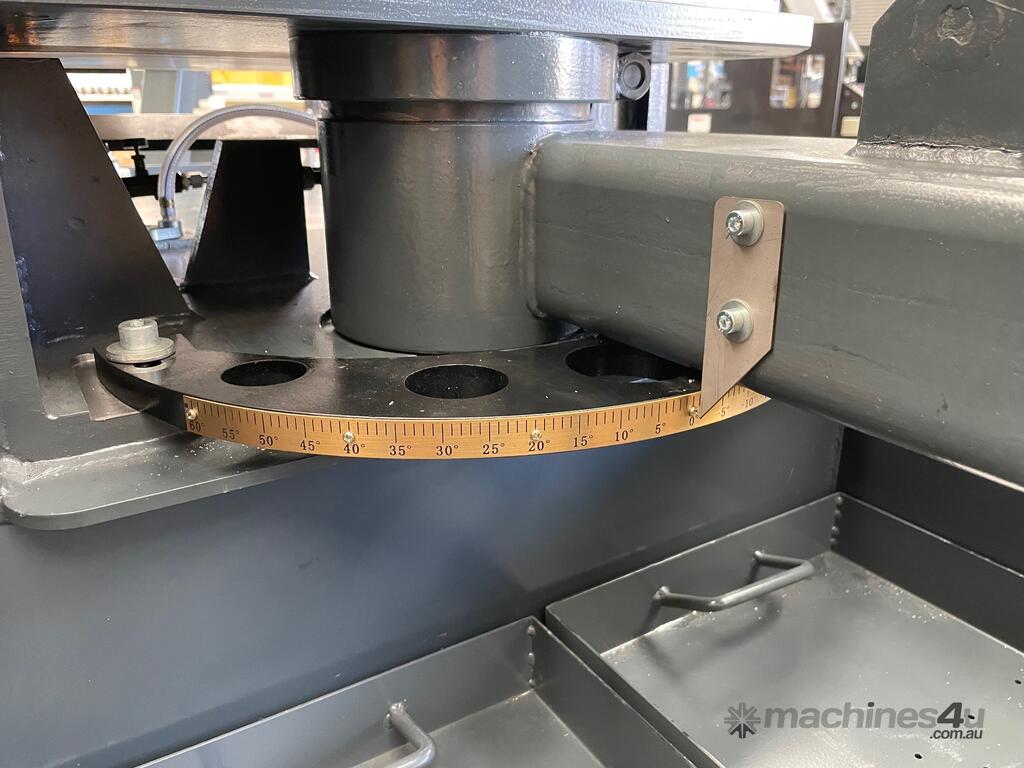

Mitre Angle setting and display
Hydraulic vide clamping standard
Vibration free, low noise operation ensures clean cutting and
high accuracy maintained
Tunsten carbide blade guides.
Stand and coolant system included
Quick action mitre adjustment
CE compliant

Technical Data
Cutting capacities ø (w x h)

Round 90° 450mm
60° 350mm (L) 350mm (R)
45° 400mm (L) 400mm (R)

Square 90° 450mm x 450mm
60° 280mm (L) 300mm (R)
45° 400mm (L) 450mm (R)

Rectangle 90° 620mm x 440mm
60° 300mm x 250mm
45° 510mm x 300mm

Solid rnd/sq 90° 450mm
Beam return auto
Blade size 5200mm x 34mm x 1.1mm

Speed range: 20 ~ 90m/min
Table working height650mm
Motor power 3.75 / kw/V

Optional Accessories

Motorized conveyors
RontgenB I-METAL BANDSAW Blades

Model to Suit Length x Width x Thickness Pitch

#######################################
