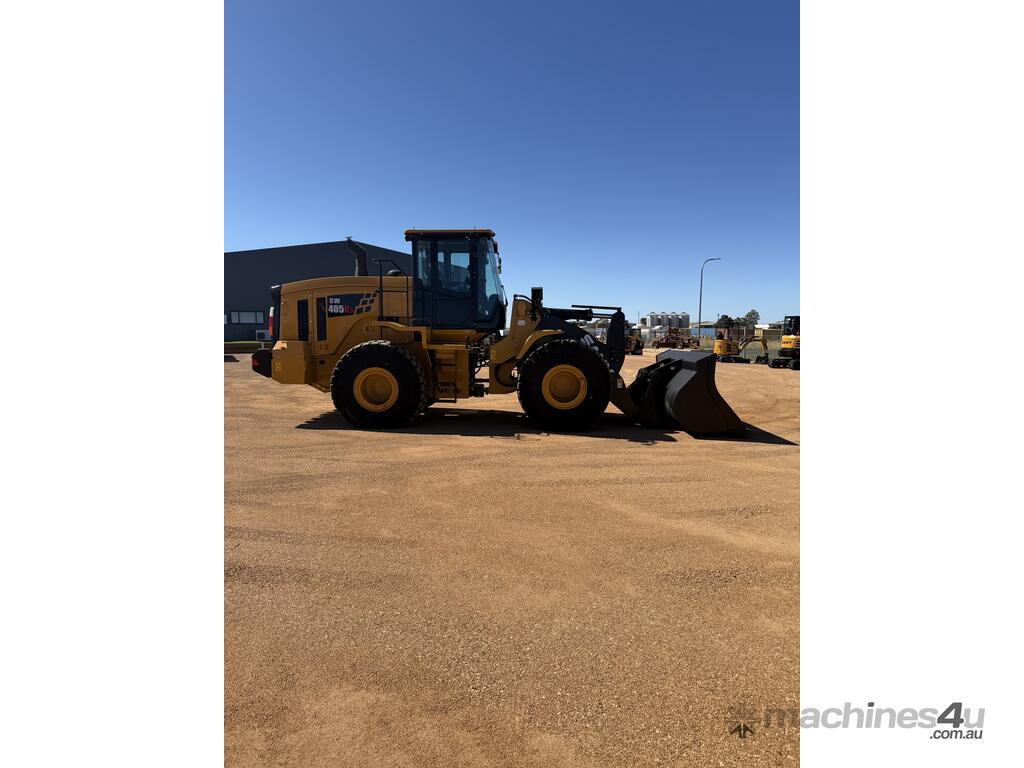

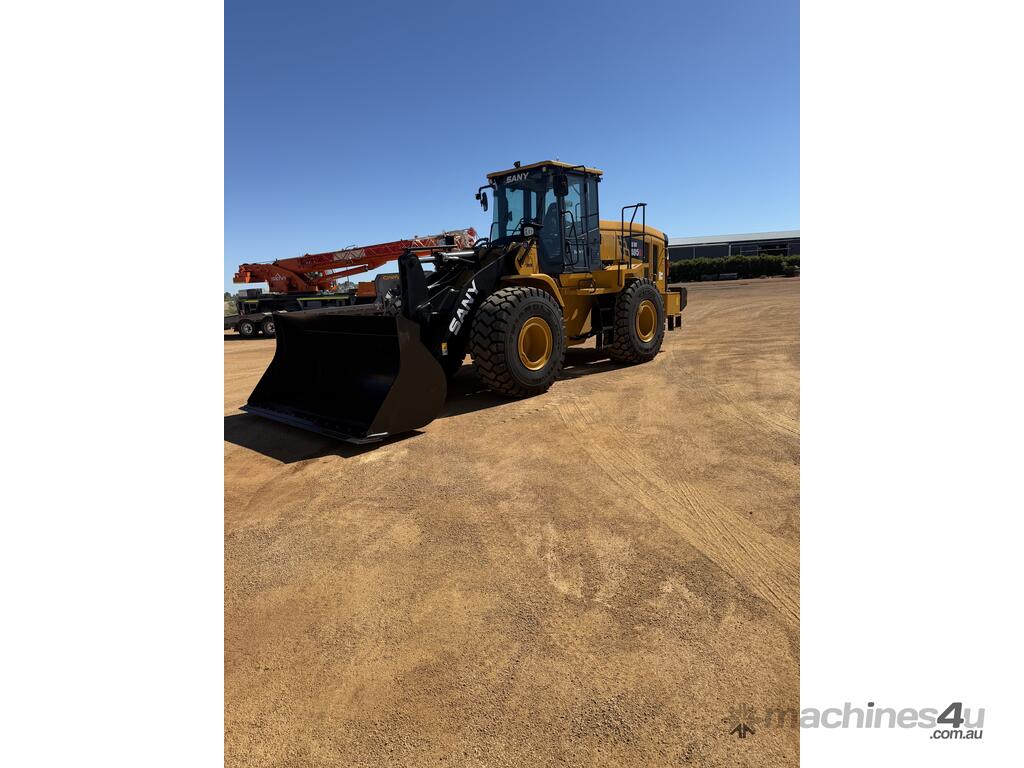

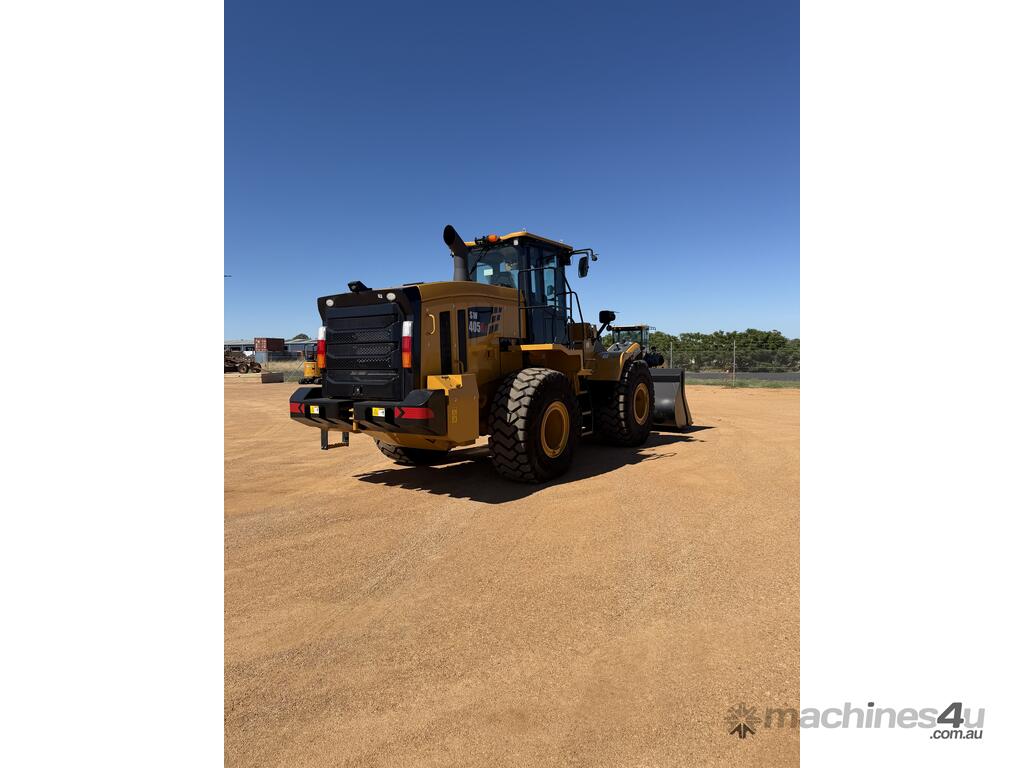

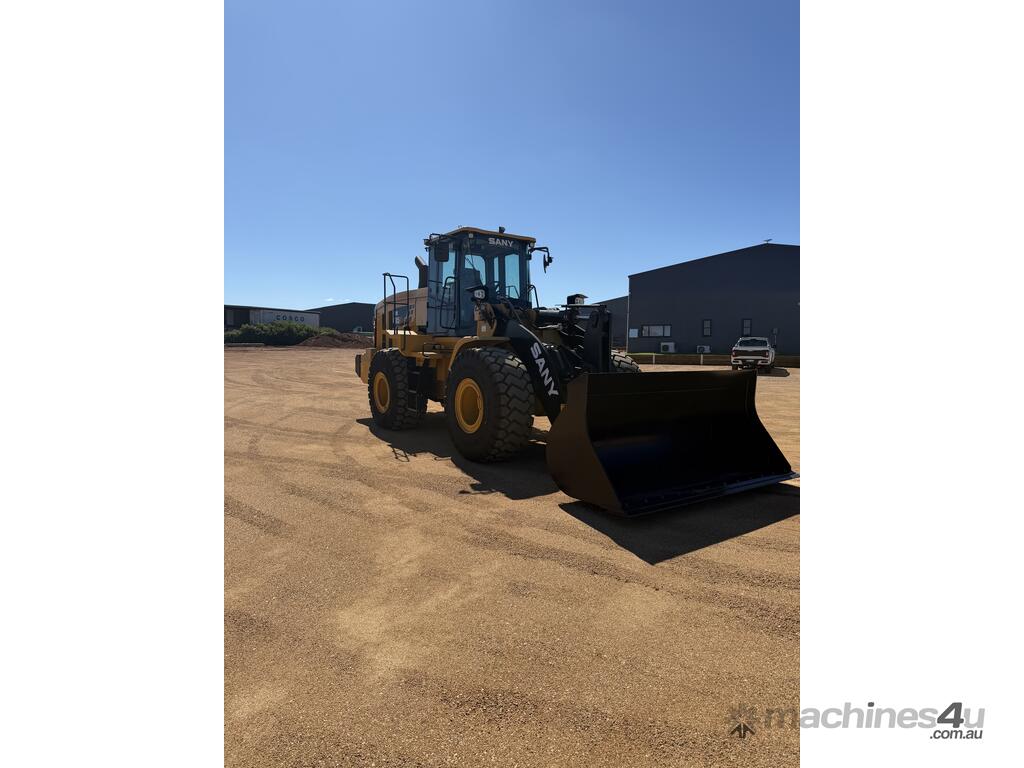

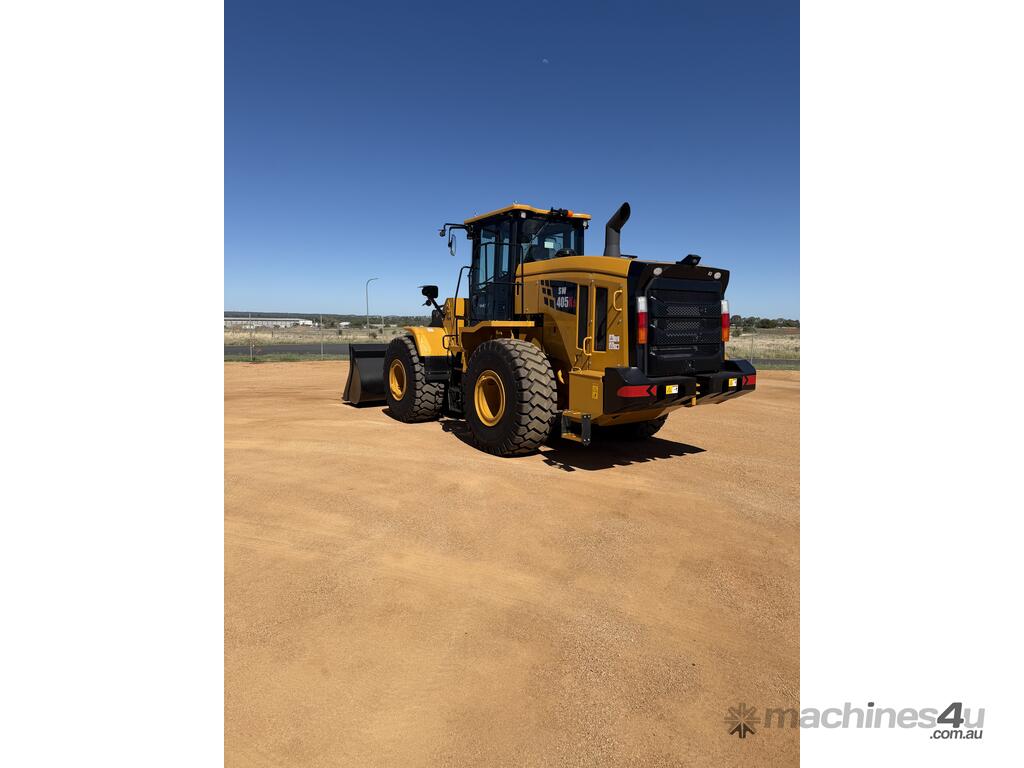

New SANY SW405K Wheeled Loader

SANY SW405K Wheel Loader – Ready for Work

EX DEMO MODEL - PRICED TO SELL ASAP

Available now is the powerful SANY SW405K wheel loader, a heavy-duty machine designed for productivity, reliability and operator comfort. With strong lifting performance and modern technology, this loader is ideal for quarry, construction, earthmoving and material handling applications.

5 YEARS / 5,000 HOUR WARRANTY

Key Performance Specs

• Operating Weight: 18,500 kg
• Engine: Deutz TCD7.8 (EU Stage 5)
• Gross Power: 195 kW
• Rated Power: 170 kW
• Max Gross Torque: 1308 Nm
• Bucket Capacity: 3.2 m³
• Breakout Force: 180 kN


Lifting Performance

• Straight Turn Tipping Load: 14,500 kg
• Full Turn Tipping Load: 13,100 kg
• Dump Clearance (max lift, 45° dump): 3,100 mm
• Reach at Max Lift & 45° Discharge: 1,185 mm


Hydraulic System

• Max Flow: 306.6 L/min
• Max Pressure: 28 MPa


Hydraulic Cycle Times

• Raise: 5.4 sec
• Dump: 1.9 sec
• Float Down: 3.3 sec
• Total Cycle Time: 10.6 sec


Transmission

• Shift Modes: Automatic, Manual, Kick Down
• Forward Gear 1–4: 7.3 / 13.5 / 26 / 40 km/h
• Reverse Gear 1–3: 7.3 / 13.5 / 26 km/h


Standard Features

• Boom Suspension System
• Locking Differential Axle
• Automatic Transmission Kick Down
• Bucket Self-Levelling and Return to Dig
• SANYLive Telematics
• Single Joystick Control
• Third Function Hydraulics
• Reversible Fan
• 360° View Camera


Service Capacities

• Fuel Tank: 300 L
• Cooling System: 43 L
• Engine Crankcase: 23 L
• Transmission: 35 L
• Front Axle: 28 L
• Rear Axle: 28 L
• Hydraulic Tank: 290 L
• DEF Tank: 20 L


Overall Dimensions

• Ground Clearance: 430 mm
• Height to Top of Cab: 3,580 mm
• Wheelbase: 3,200 mm
• Shipping Length (with bucket): 8,180 mm
• Machine Width: 2,300 mm
• Bucket Width: 3,015 mm
• Articulation Angle: 40°
