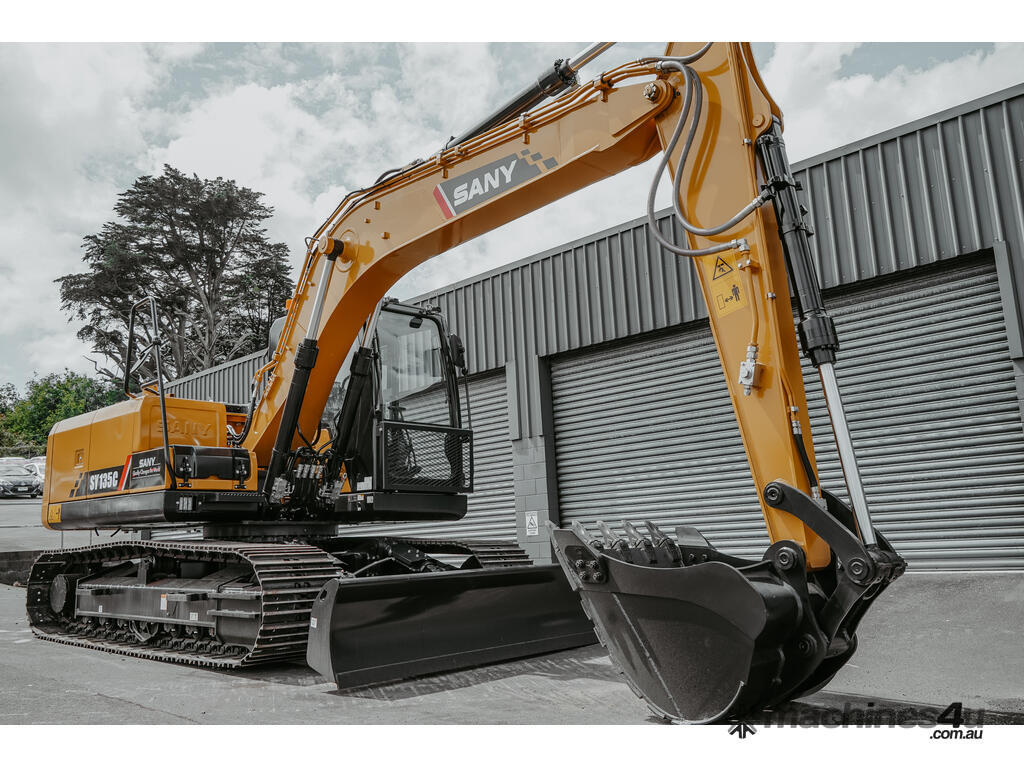

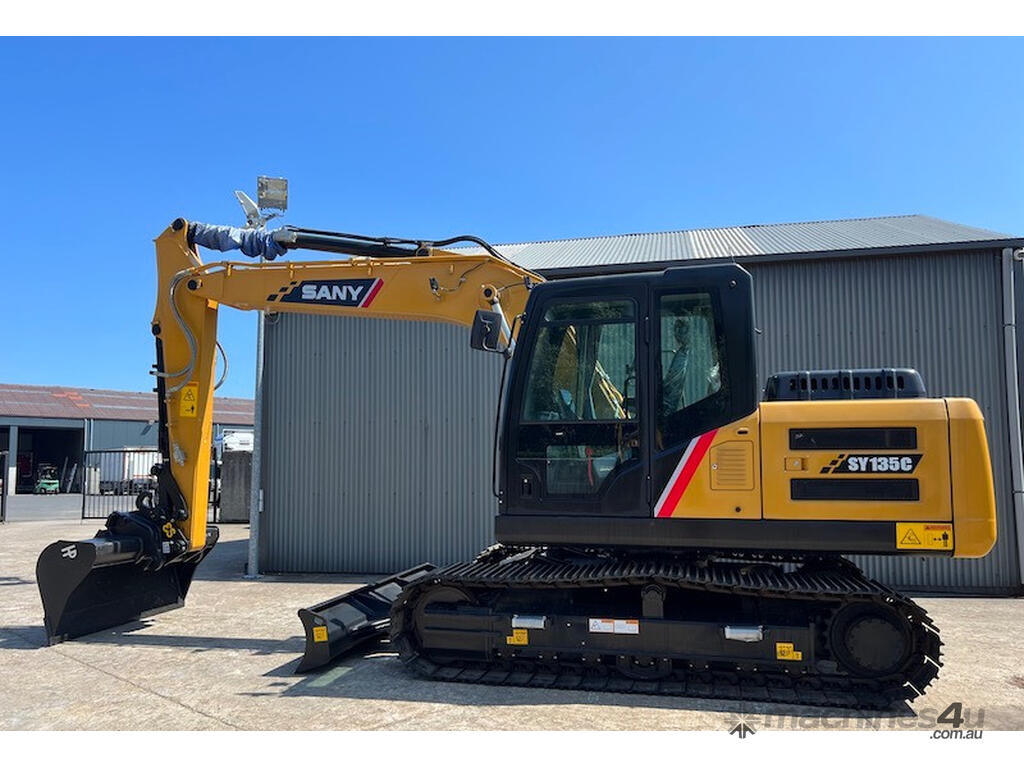

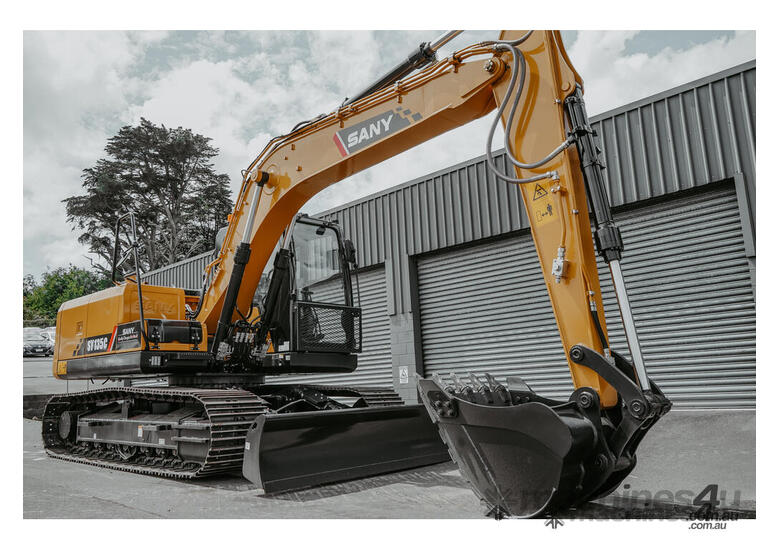

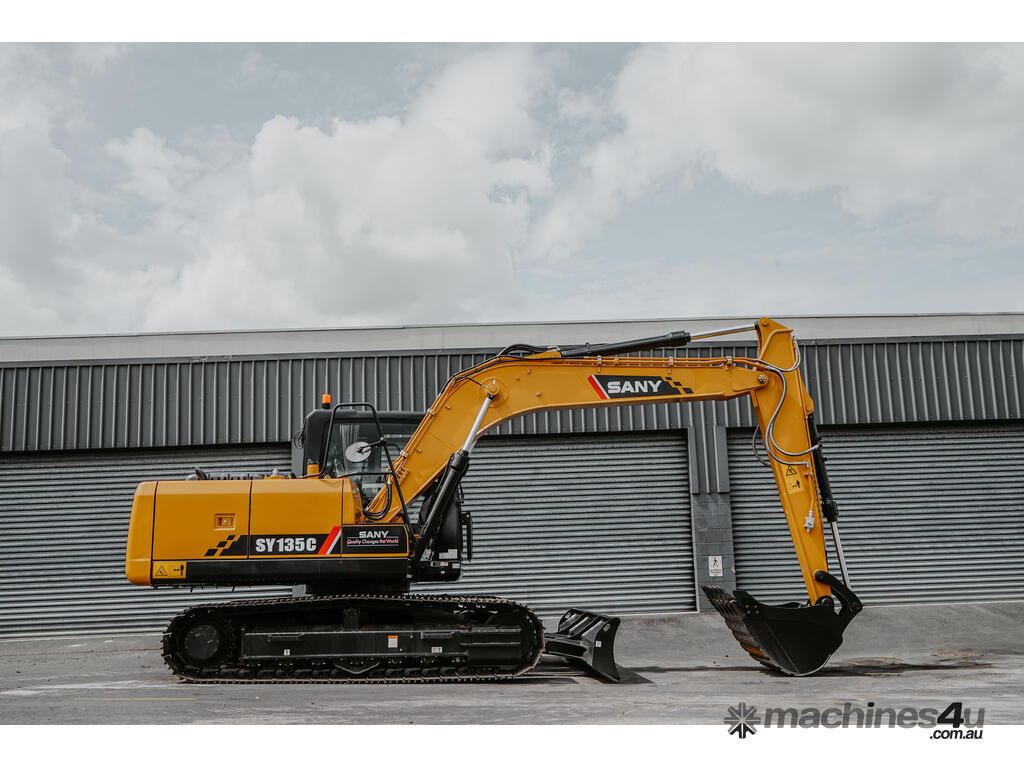

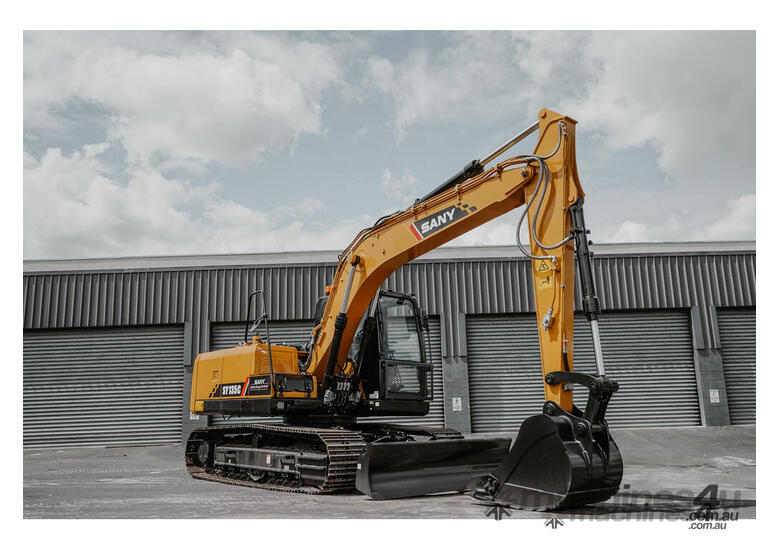

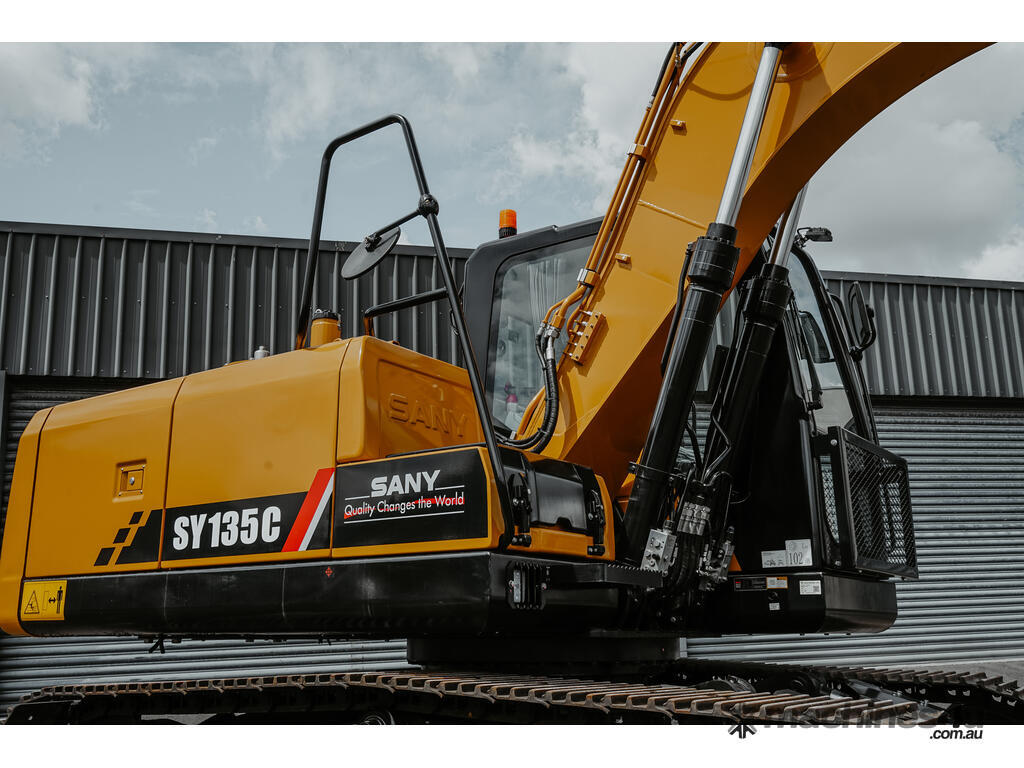

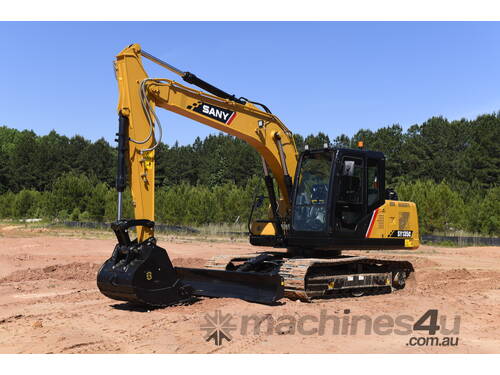

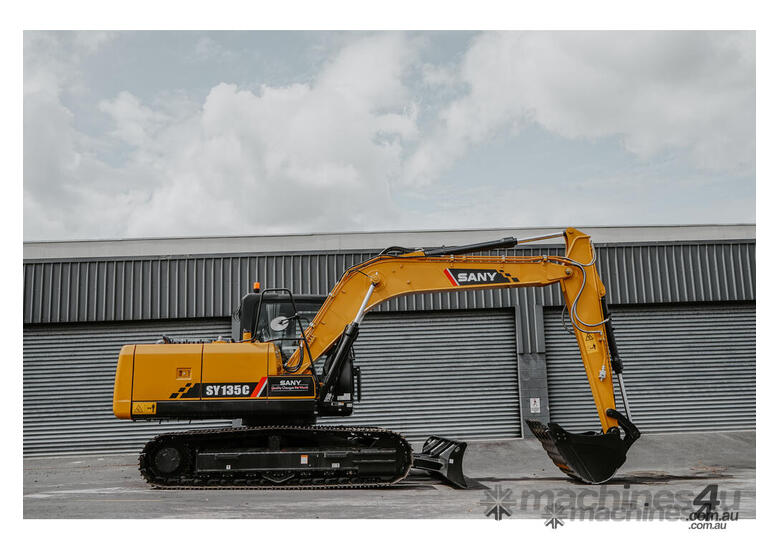

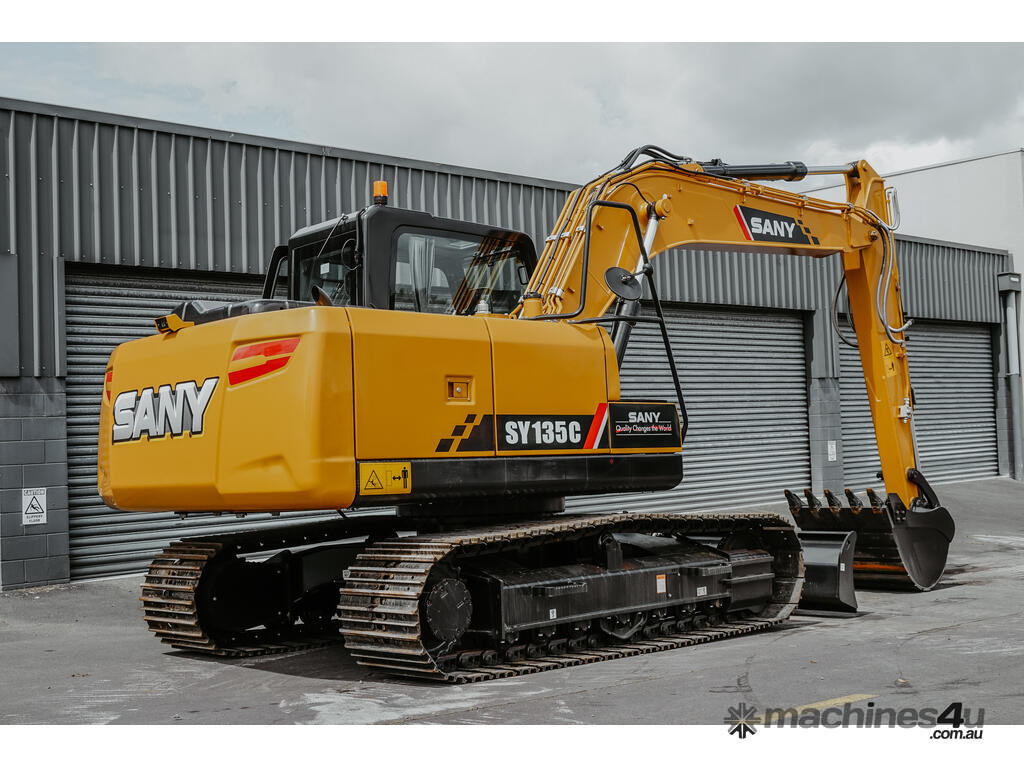

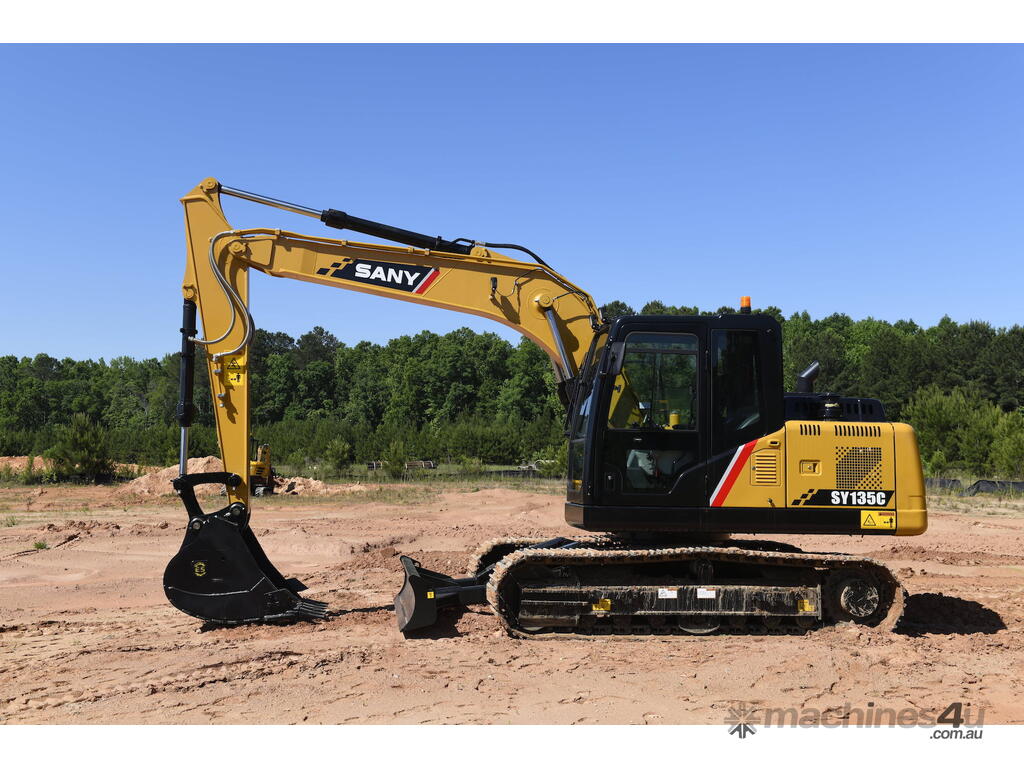

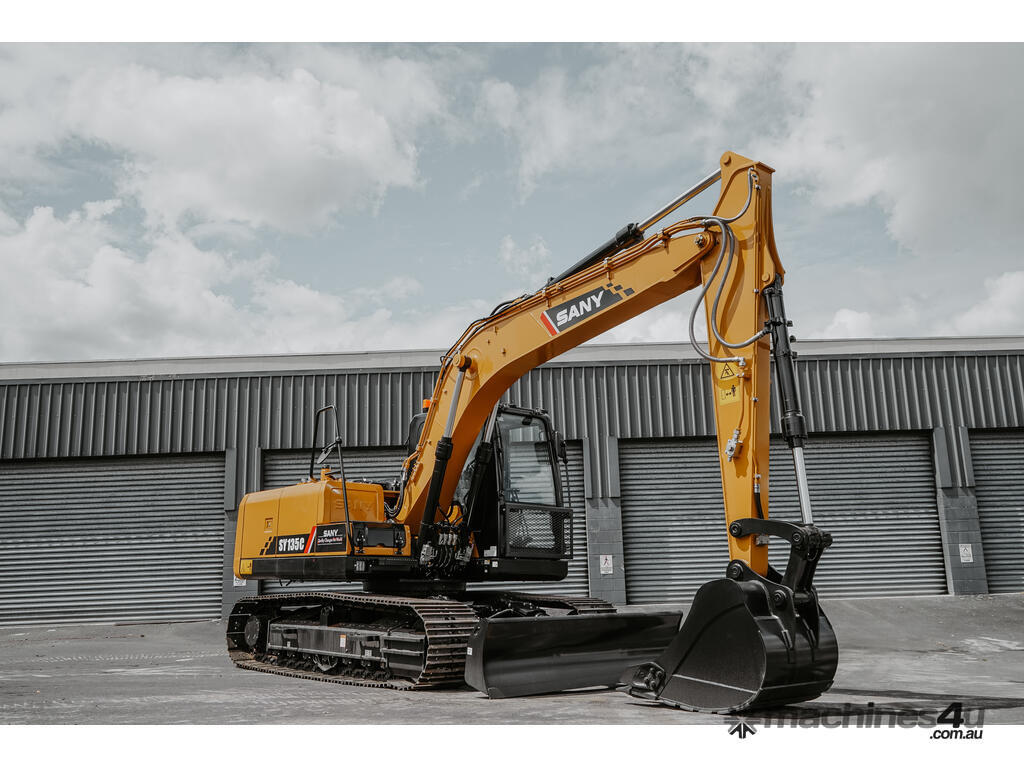

New Sany Sy135C excavator

5YR/5000HR key component factory warranty.

SANY SY135C – 15-Tonne Compact Excavator
The SANY SY135C is a 15-tonne compact excavator engineered for exceptional performance, efficiency, and operator comfort. Powered by a robust Isuzu 4JJ1X engine delivering 78.5 kW, it offers impressive digging capabilities with a maximum digging depth of 5.5 meters and a bucket breakout force of 92.7 kN .

Key Features:

Powerful Performance: Equipped with an advanced hydraulic system and auto-throttle function, the SY135C ensures smooth, precise operation while optimizing fuel efficiency .

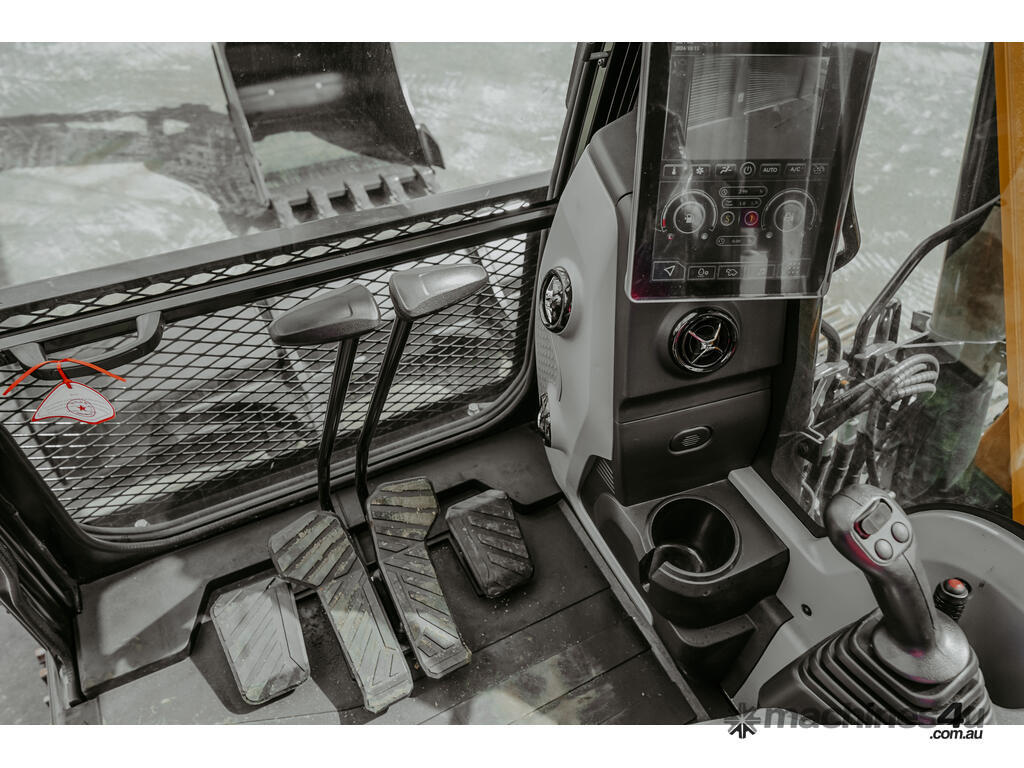

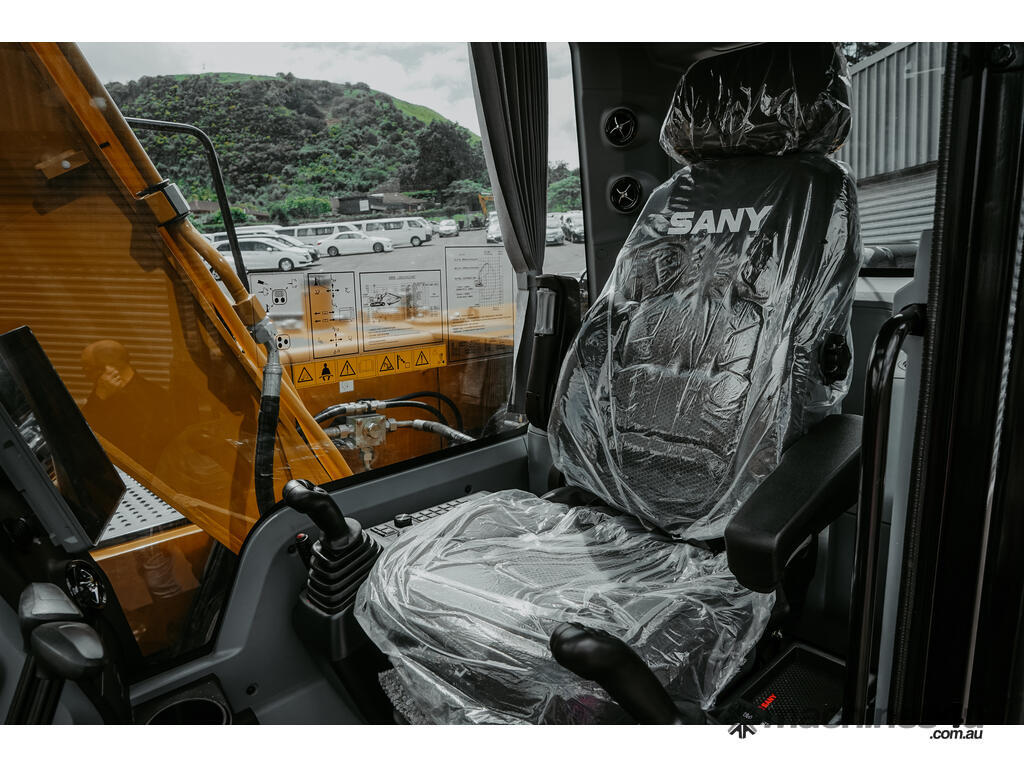

Operator Comfort: The spacious cab features an air-suspension seat and automatic climate control, reducing operator fatigue and enhancing productivity .


Durability: Built with a reinforced structure and high-quality components, the SY135C is designed for longevity and reliability in demanding conditions .

Ease of Maintenance: The machine's design allows for easy access to key components, simplifying maintenance procedures and reducing downtime .

Whether you're involved in road construction, landscaping, or demolition, the SANY SY135C delivers the power and precision needed to get the job done efficiently.

ENGINE
Displacement 2.999L
Engine model Isuzu Tier 3
Rated power 73/2000 kW/rpm

OPERATION RANGE
Height at min. swing radius 6500 mm
Max. depth of blade down
Max. digging depth 5510 mm
Max. digging height 8685mm
Max. digging reach 8290 mm
Max. dumping height 6180 mm
Max. excavating distance
Max. ground clearance of blade up
Max. vertical digging depth 4890 mm
Min. swing radius 2500 mm
Operating weight 13800kg

DIMENSIONS
Blade height 2740 mm
Cab height
Min. ground clearance 425 mm
Tail swing radius 2240mm
Track length 3665mm
Transport height 2815 mm
Transport length 7700 mm
Transport width 2550mm
Upper width 2490 mm

UNDERCARRIAGE/WORKING DEVICE
Arm length 2.5m
Boom length 4.6m
Bucket capacity 0.6 m³
Roller gauge
Track gauge 1990mm
Track width 450 mm

PERFORMANCE
Arm digging force 66kN
Bucket digging force 92.7kN
Cooling system 22L/5.8gal
Engine oil 15 L
Fuel tank capacity 240 L
Gradeability 35°
Ground pressure 41.7kPa
Hydraulic tank capacity 150 L
Swing speed 12rpm
Travel speed 5.5/3.5km/h

HYDRAULIC SYSTEM
Hydraulic motors - swing 12rpm
Hydraulic motors - travel 3.5/5.5km/h
Main pump - maximum flow 242.0L/min
