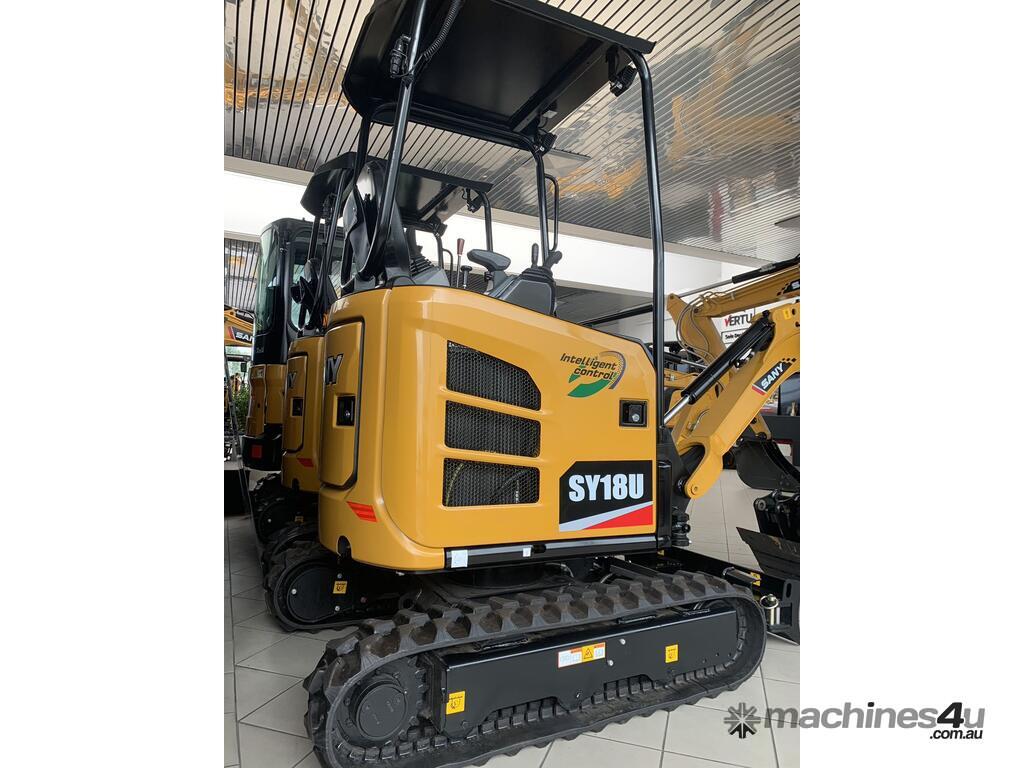

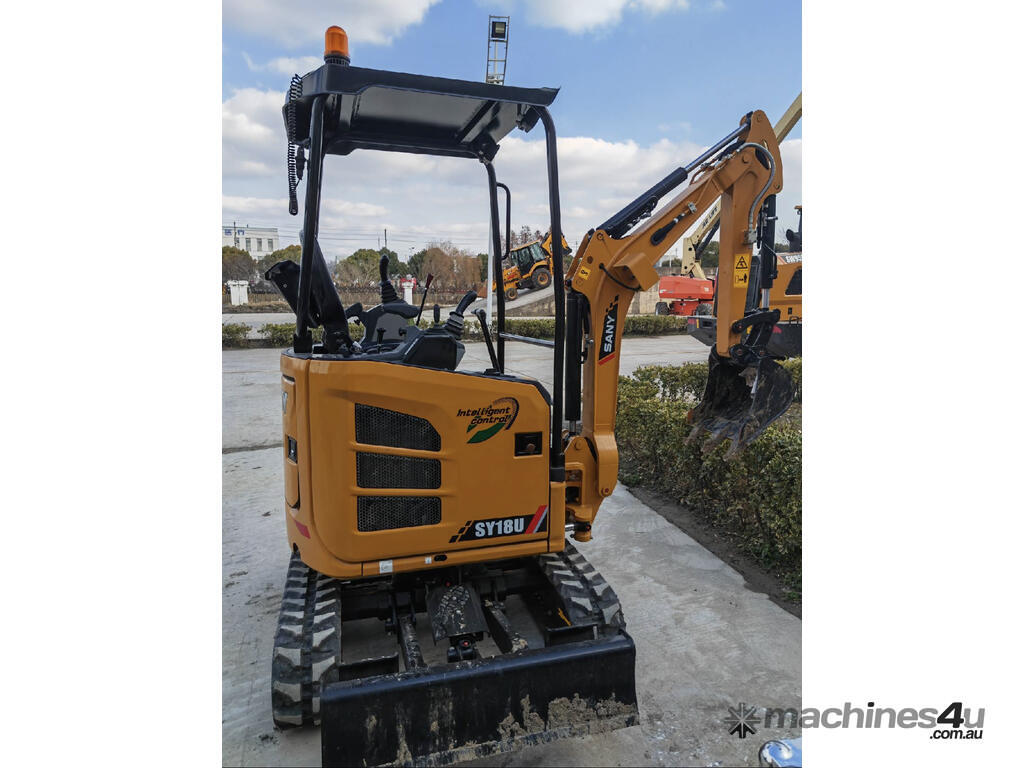

New Sany Sy18U excavator

1.9T Zero Swing Excavator Package

+ SY18U Canopy Excavator
+ Manual Hitch
+ 300mm GP Bucket
† 450mm GP Bucket
+ 1m Mud Bucket

The SANY SY18U is a versatile multi-purpose mini excavator weighing 1,925kg and has an upper width of only 980 mm. With a reduced swing design and retractable undercarriage, the SY18U suits a wide range of applications. It can easily drive through narrow passages and spaces, especially with the 1925kg weight, making transportation easier between different sites. The short tail swing is also ideal for tight job sites and confined spaces.

-Built with pride and with components from brands you know and trust, like Yanmar, Kawasaki, Cummins, Rexroth and Isuzu.
-Similar to Yanmar & Kubota Excavators

DIMENSIONS
Transport Length: 3515mm
Transport Width: 980/1350mm
Transport Height: 2370mm
Top Width: 980mm
Dozer Blade Height: 270mm
Standard Track Shoe Width: 230mm
Track Gauge: 750/1120mm
Minimum Ground Clearance: 160mm
Tail Swing Radius: 675mm
Track Ground Length: 1225mm
Track Length: 1580mm
Right/Left Offset Distance of Boom: 400/625mm

PERFORMANCE PARAMETER
Operating Weight: 1925kg
Bucket Volume: 0.04m3
Engine Power: 4.6kW/2400rpm
Traveling Speed (High/Low): 4.0/3km/h
Swing Speed: 10rpm
Gradeability: 58%
Ground Pressure: 30kPa
Bucket Digging Force: 16.6kN
Arm Digging Force: 9.2kN

WORKING AREA
Maximum Digging Height: 3410mm
Maximum Dumping Height: 2350mm
Maximum Digging Depth: 2385mm
Maximum Vertical Wall Digging Depth: 2010mm
Maximum Digging Reach: 4010mm
Minimum Swing Radius: 1705mm
Maximum Height at Minimum Swing: 2550mm
Dozer Blade Max Height: 310mm
Dozer Blade Max Depth: 320mm
