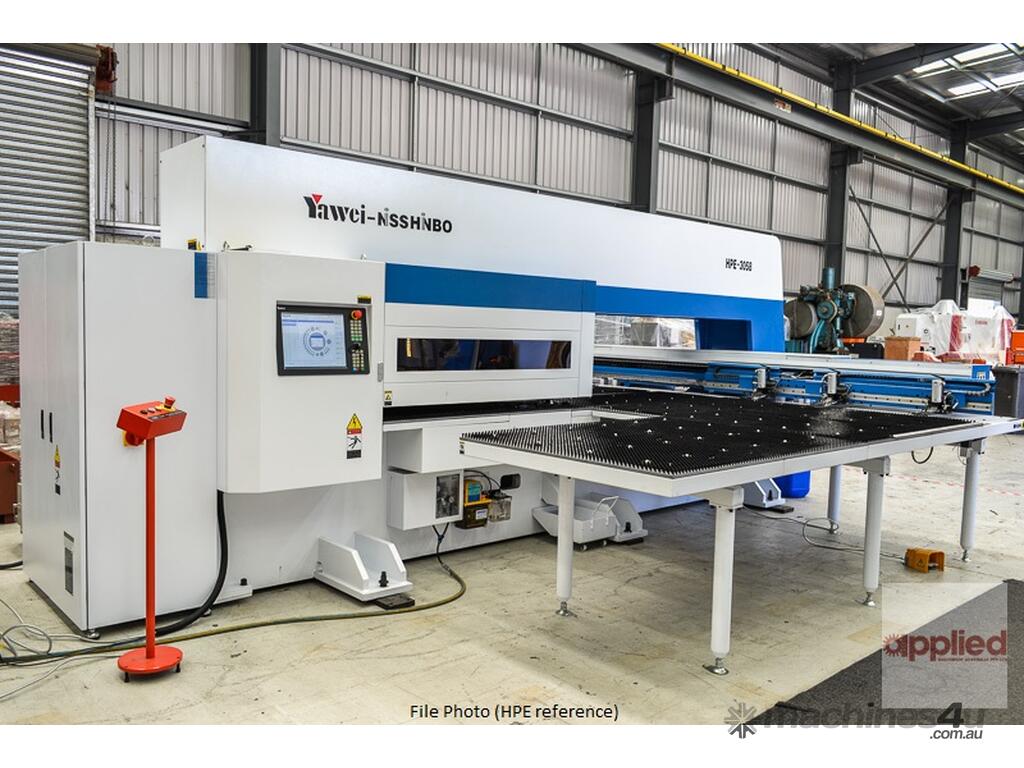

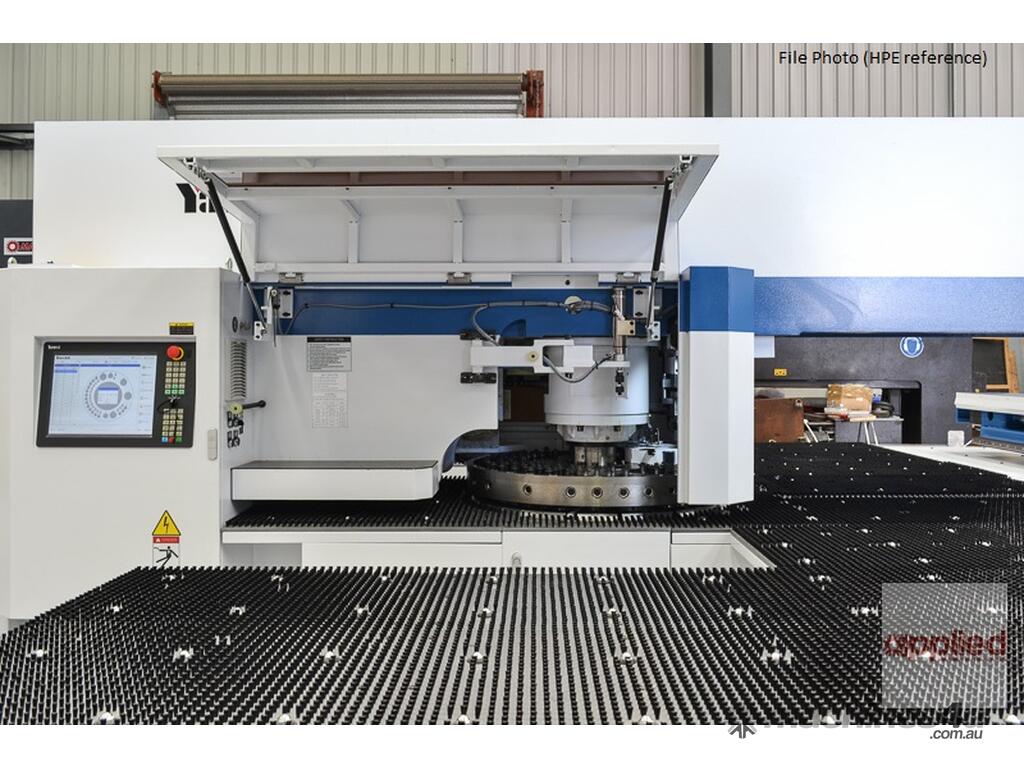

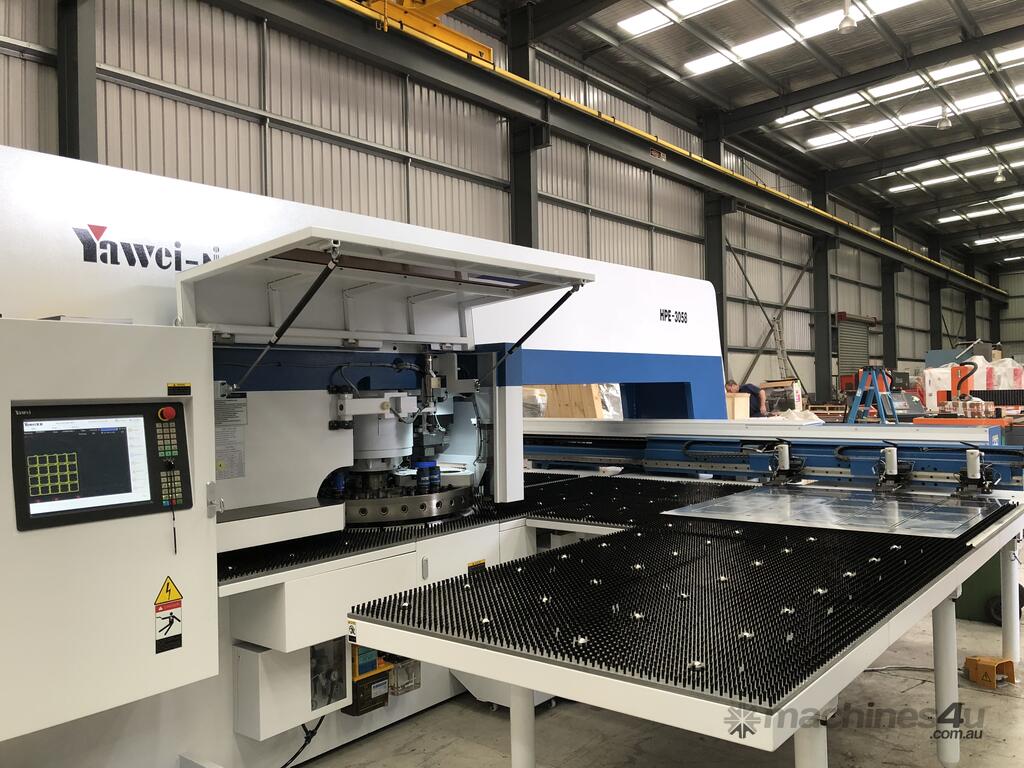

New Yawei HPE-3058 Servo Drive CNC Turret Punch Press. Siemens 840D and more.

Yawei's HPE series servo driven CNC turret punch presses are one of the most popular we sell in Australia.

This machine has an upgraded turret, featuring 40 tool stations, including two auto index D-stations for maximum flexibility with your punching work.

With a large 1500 x 2500mm sheet capacity (with repositioning), Siemens 840D CNC and fast punching rates, the benefits of the HPE really stack up.


--------------------------
NEW Yawei HPE-3058 Servo CNC Turret Punch Press.

Features include:

- 30 ton punching force
- LUSTSP servo punching system (Germany)
- 1500 x 2500mm axis travel
- 102m/min axis travel rate (X and Y)
- 400hpm punch frequency (25.4mm pitch and 6mm stroke)
- 1500 x 5000mm maximum sheet size (with one repositioning)
- 6.35mm maximum sheet thickness

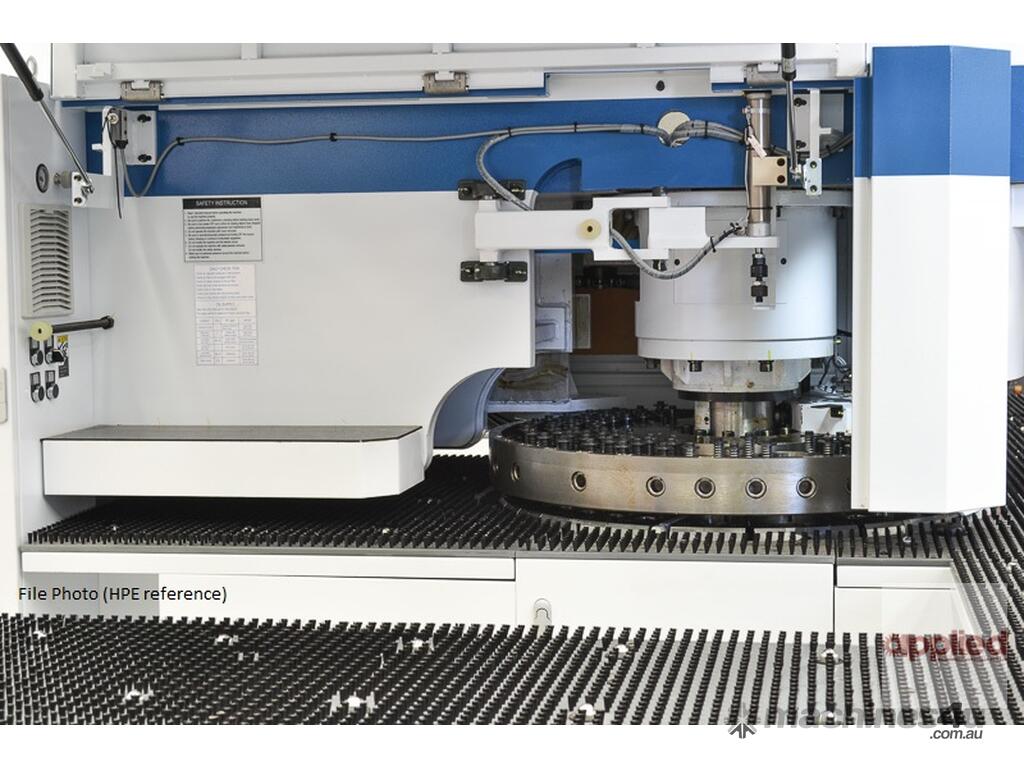

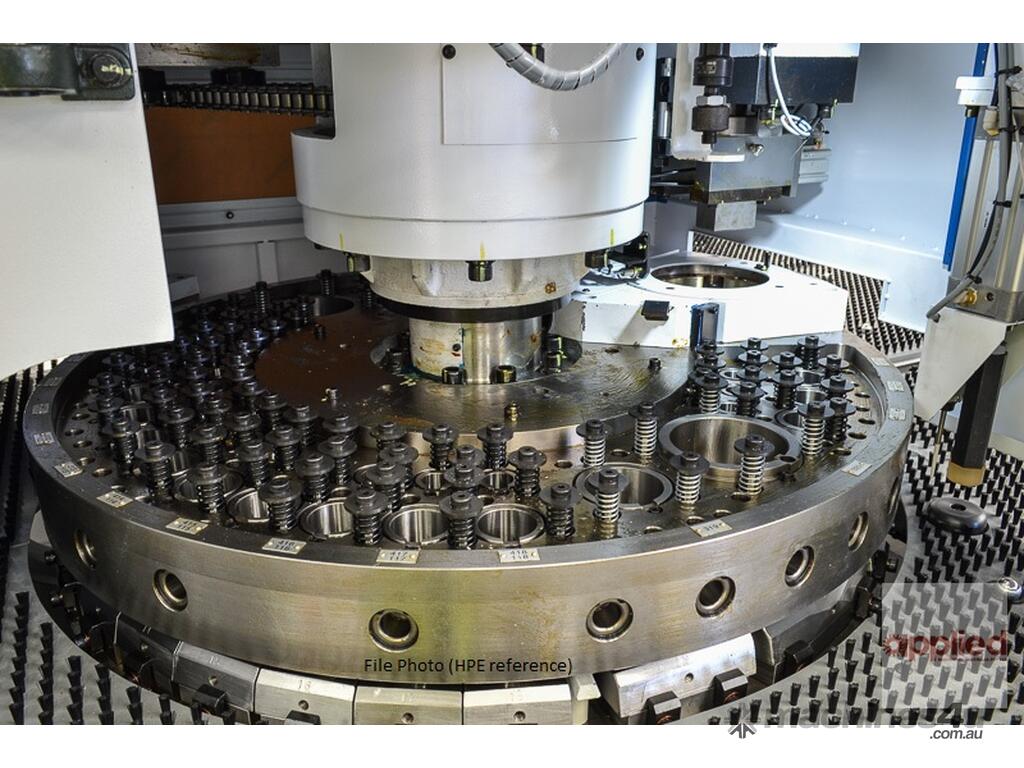

- 40 station turret with 2 auto index (D)
- 1500spm

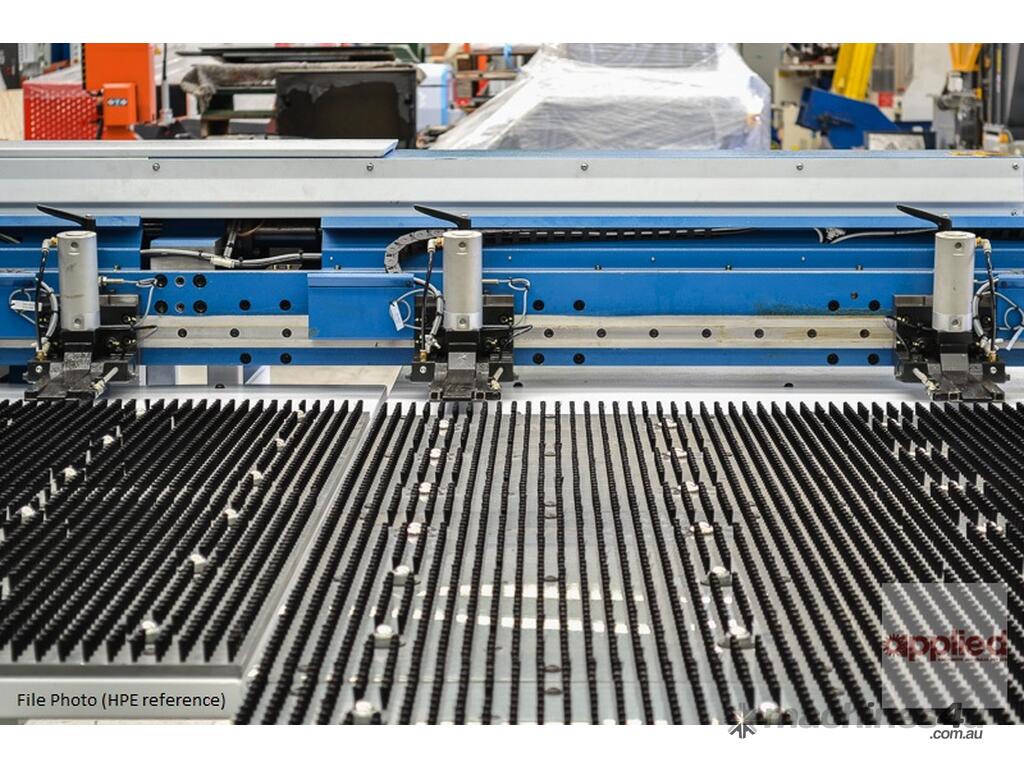

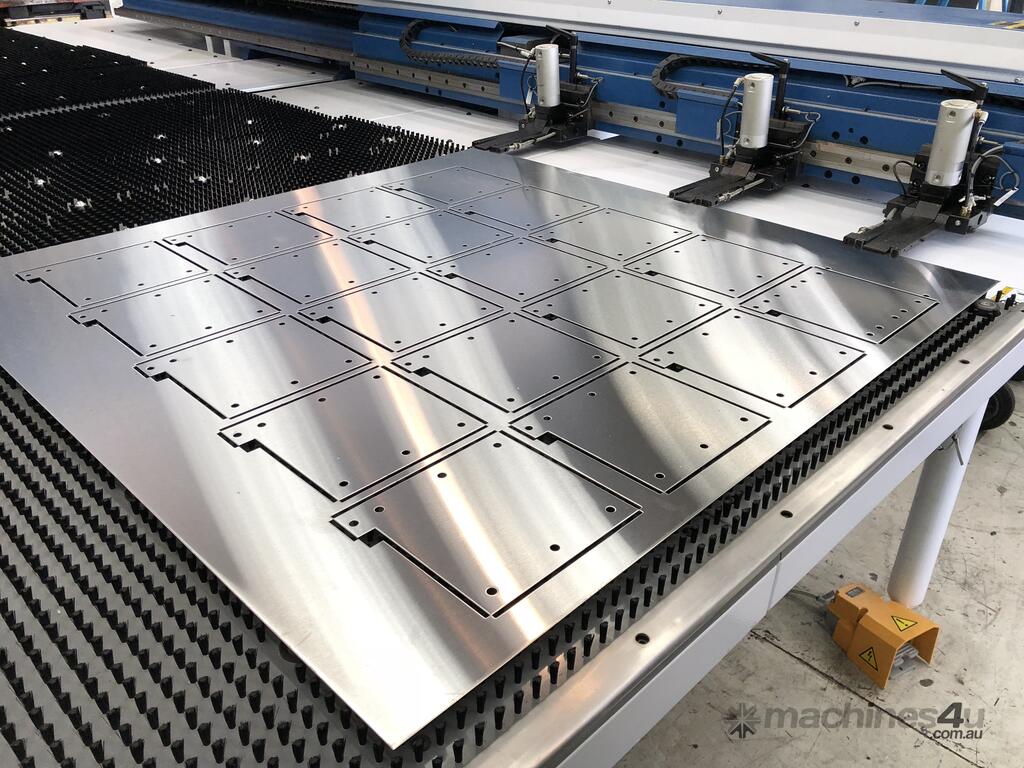

- 3 moveable pneumatic clamps
- automatic x gauge block

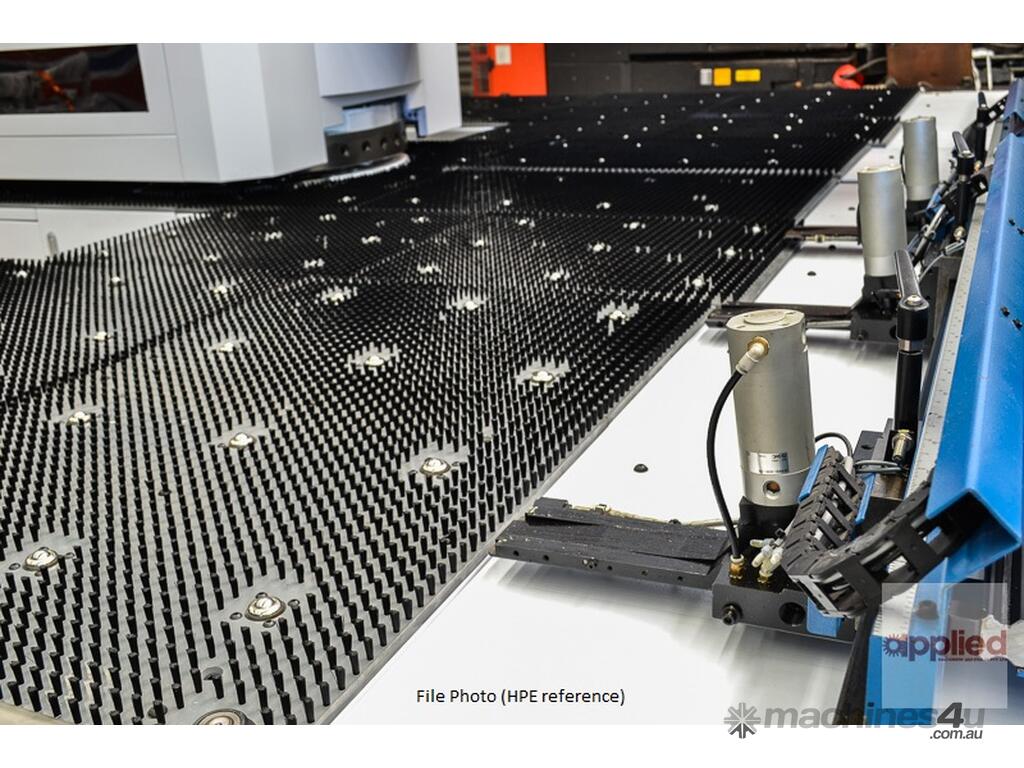

- brush table
- strip away detection
- automatic lubrication system

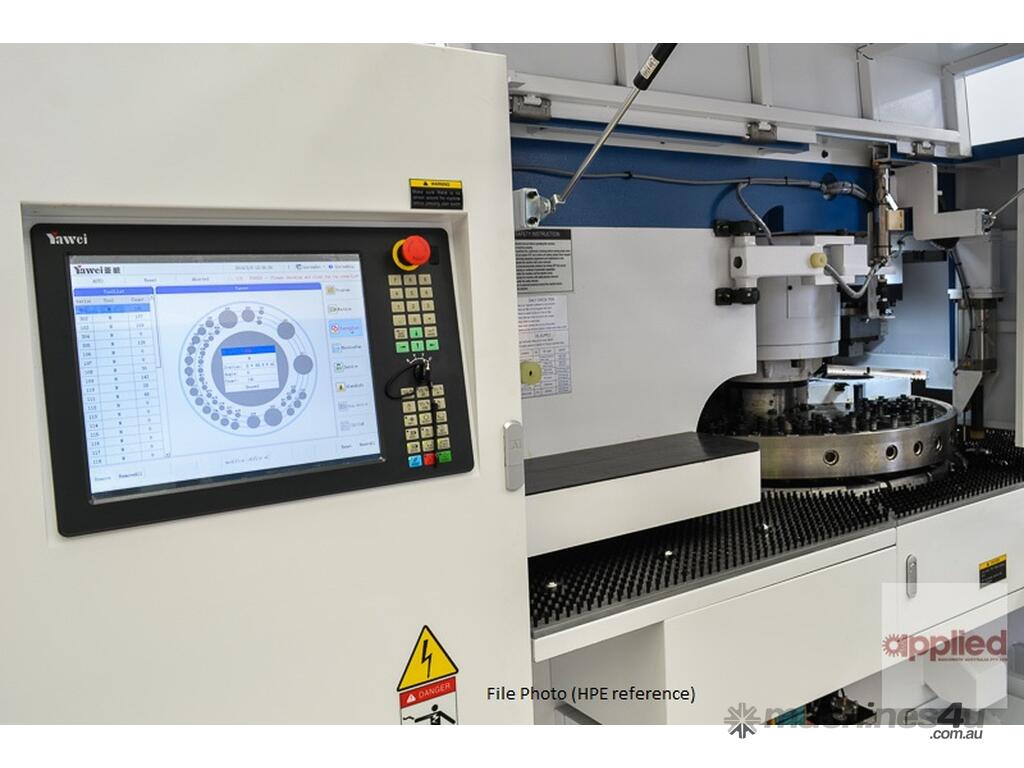

- Siemens 840D CNC control system
- 5 axes CNC: X, Y, Z, T, C
- Tool hoisting device
- 5.1kW/h working power
- 0.9kW/h standby power
- machine weight: 19000kg
- machine size: 5830 x 5000 x 2250mm (LxWxH)
--------------------------
