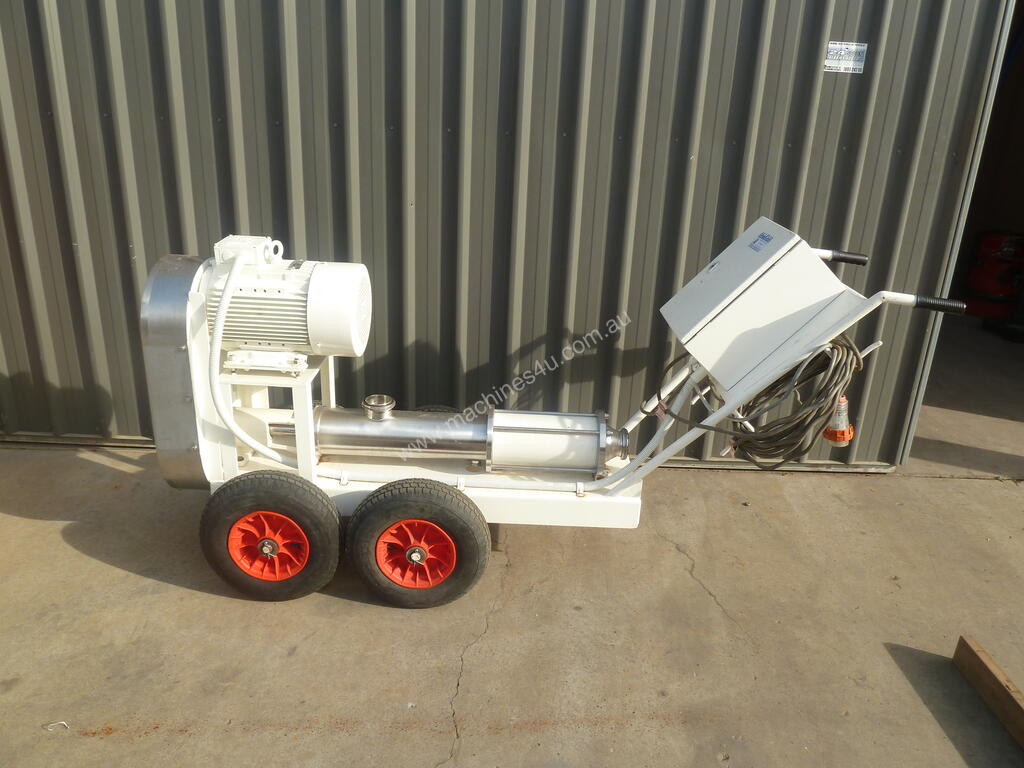

Nova Rotor STO60 Helical Rotor Wine Trolley Pump

BUILT FOR WINERIES & BEVERAGE TRANSFER

The Nova Rotor STO60 is a helical rotor trolley pump designed for winery and beverage transfer. Equipped with a 5.5 kW variable-speed motor and remote pendant control, it provides precise flow control and safe operation from a distance — even from the top of a tank. With capacity up to 20 tonnes per hour, it delivers smooth, reliable pumping for must, juice, and liquid transfer.

Key Benefits
• Variable speed drive for precise flow control
• Portable trolley design for flexible site use
• Remote pendant control for safe, convenient operation

Key Specifications
• Pump Type: Helical rotor (progressive cavity)
• Motor: 5.5 kW, variable speed
• Control: Remote wired pendant
• Connections: 3” BSM sanitary fittings
• Max Flow: 20 m³/h (approx. 20 tonnes/hr)
• Nominal Duty: 19 m³/h 3 bar
• Max Pressure: 6 bar / 600 kPa
• Condition: Excellent
• Reference No.: J759
• RRP: $7,900

Applications
• Wineries — must, juice, and finished wine transfer
• Beverage production requiring gentle, controlled pumping
• Food and processing plants needing progressive cavity transfer

Why Nova Rotor?
Trusted in the wine and beverage sector, Nova Rotor pumps deliver smooth, low-shear transfer to protect product quality while providing reliable, high-capacity performance.

Enquire today for pricing, lead times, or to arrange an inspection.
