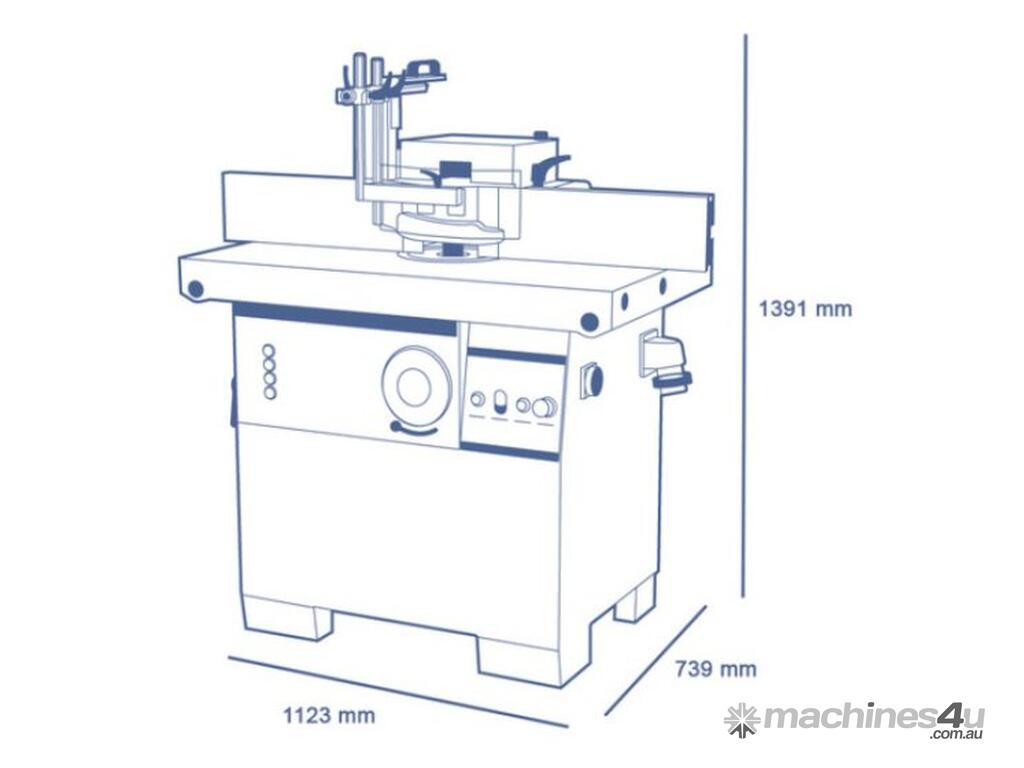

Nova TF100 Spindle Moulder

Easy-to-use, productivity and efficiency, flexibility are the main advantages of the nova tf 100. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. The spindle moulder fence with mechanical programming guarantees maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

-The 4 standard speeds of the shaper are ideal for any type of machining, from shaping to routing, with the possibility to fit tools up to 250 mm (9.81”) of diameter
-The side handles make it easy to remove and reposition the spindle moulder fence from the worktable
-Aluminium tables instead of wooden tables for fence with connecting bars between the two tables
-Electric speed display dial
-Reverse spindle rotation with electrical interlocking for reverse operation

Additional Information

Maximum stability and rigidity in all working conditions,
thanks to a large spindle moulder column made entirely of cast iron. The shaper spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust

The spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimetre in positioning the tables so that no more test runs are required to get the desired result

The operator easily adjusts the unit movement due to the hand wheel with mechanical decimal readout located on the front of the machine for a precise and reliable machine’

Technical features NOVA TF 100

Worktable dimension (with carriage as optional device) [mm] 1080×655
Spindle moulder shaft tilting –
Spindle moulder shaft height diam. 30-35 (40-50) [mm] 125 (125)
Spindle base projection from worktable [mm] 2
Spindle base projection from worktable with interchangeable spindle [mm] 38
Max. tool diameter retractable under worktable (45°) [mm] 240×80
External diameter of exhaust outlet (spindle moulder hood) [mm] 120
External diameter of exhaust outlet on base [mm] 120
