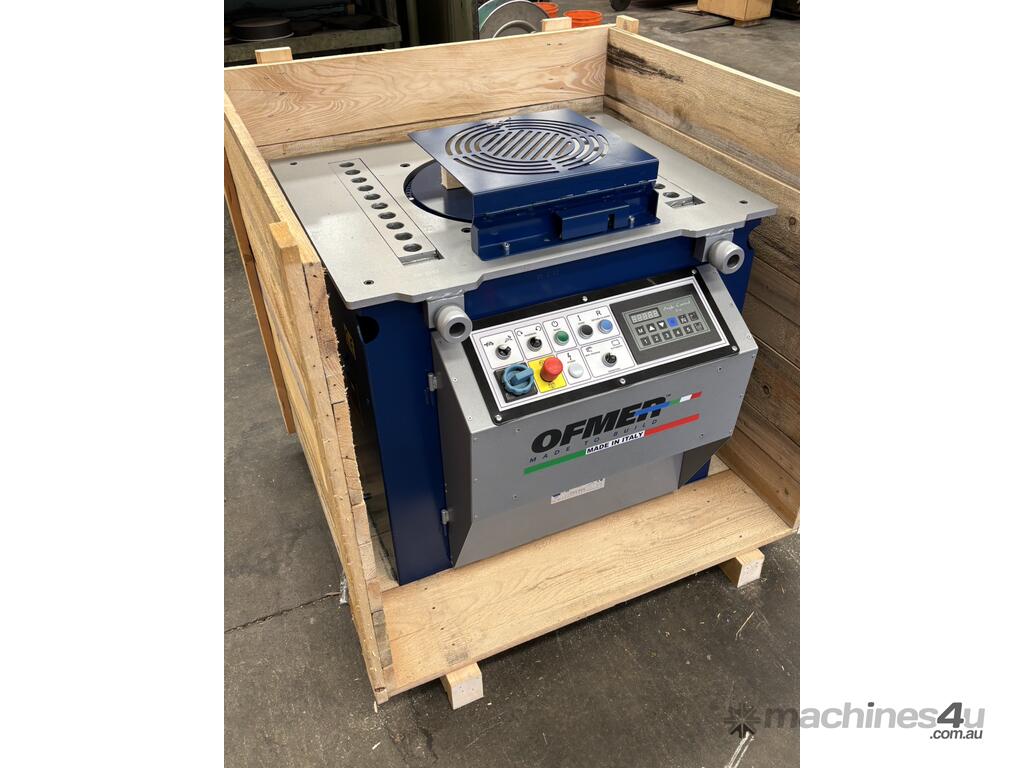

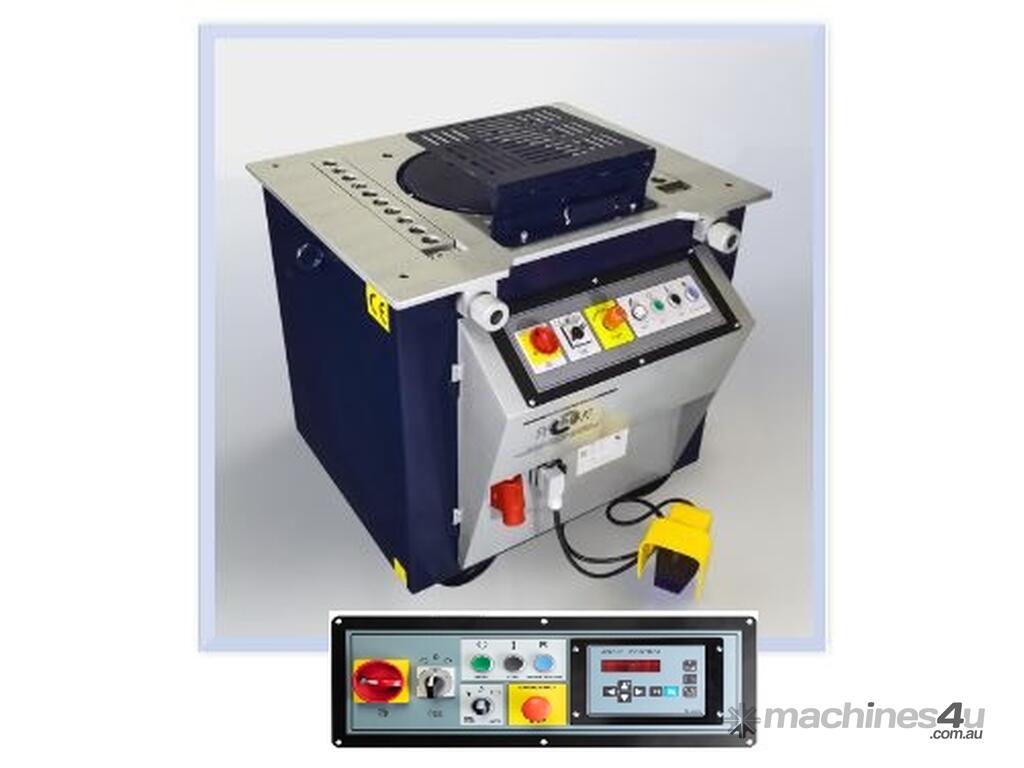

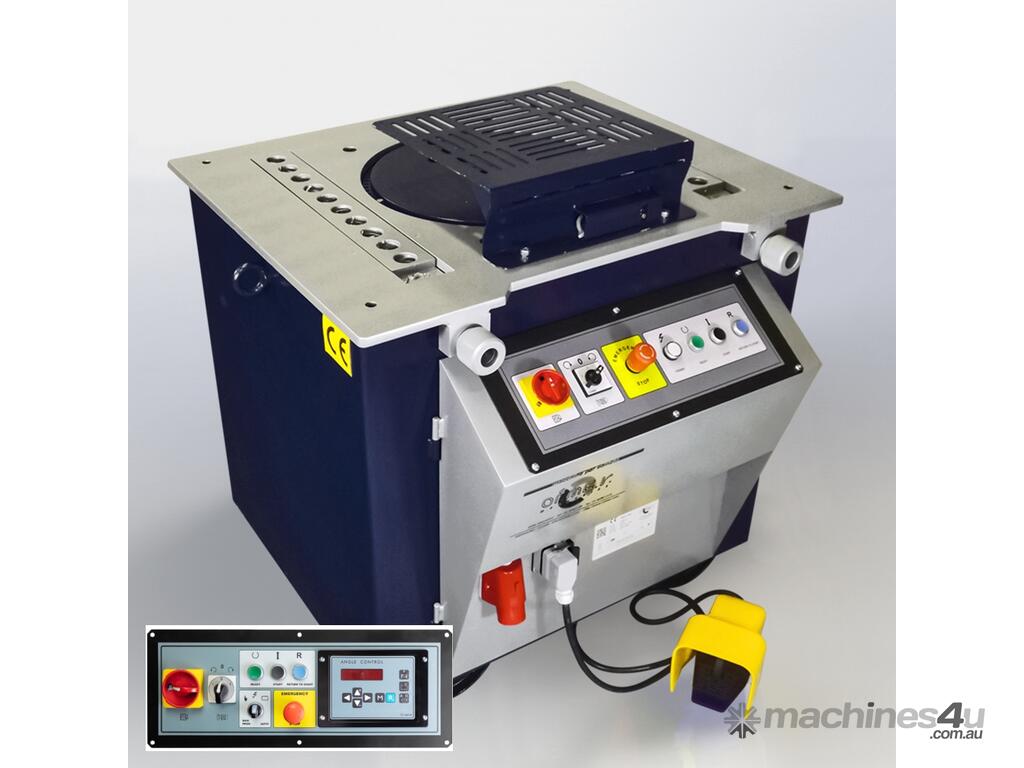

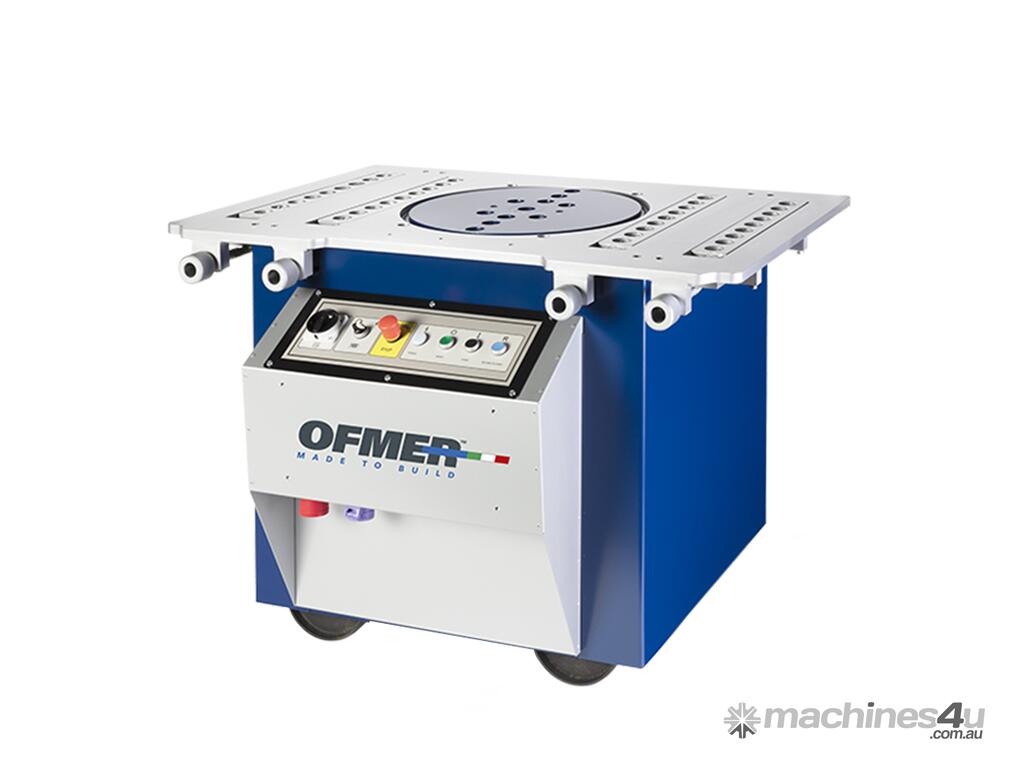

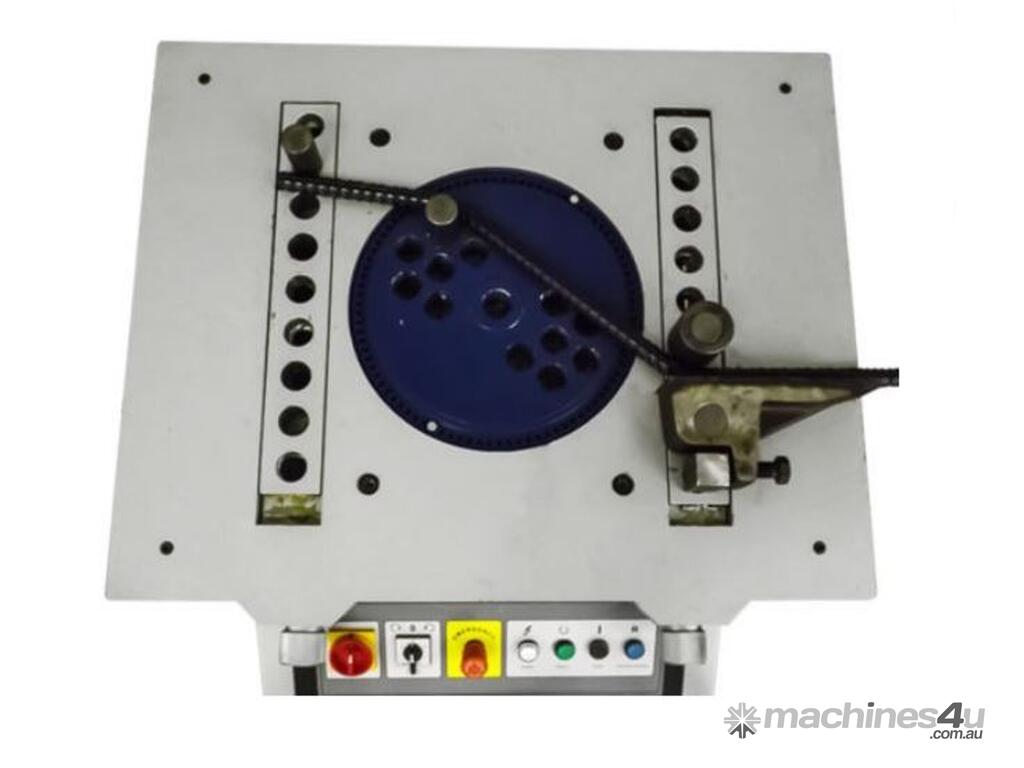

OFMER Rebar Bending Machine model: P44 EVO [Italian Made]

Rebar Bending machine for concrete reinforcing rebar, for high volumes of production.

In Stock with Angle Control:

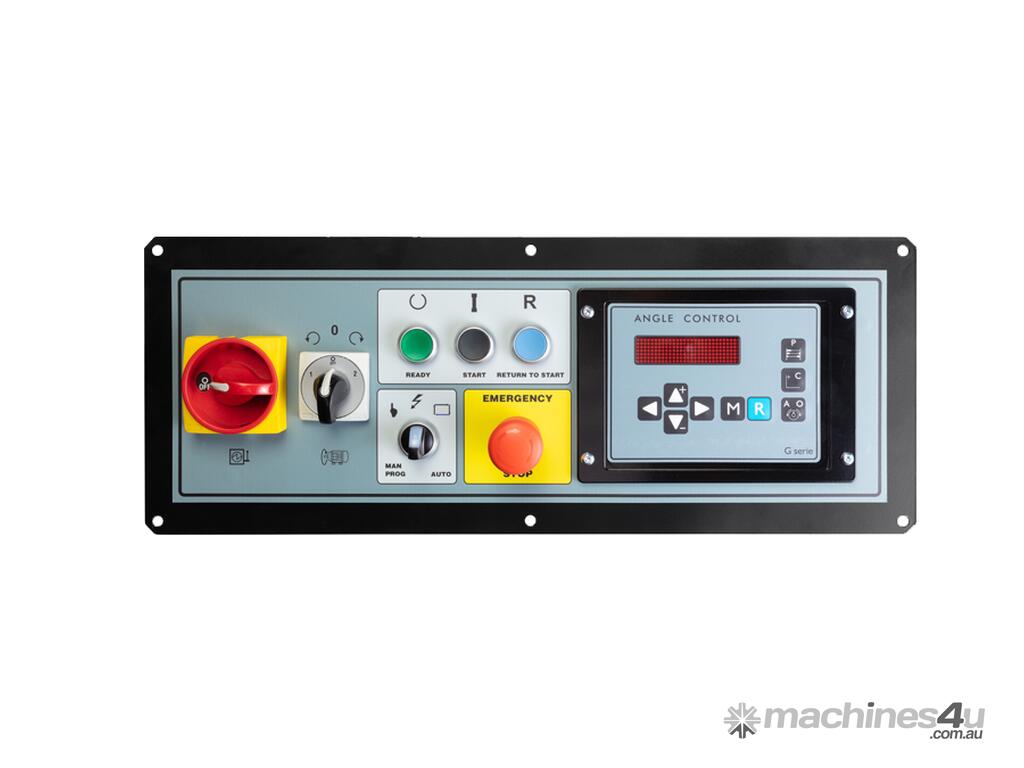

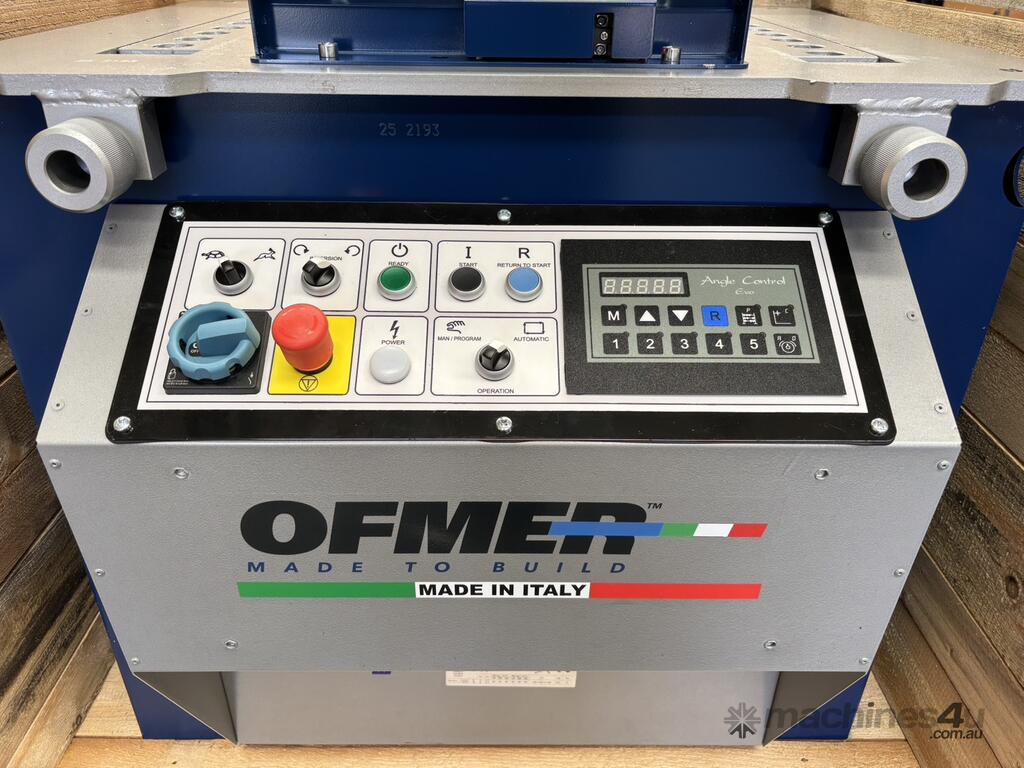

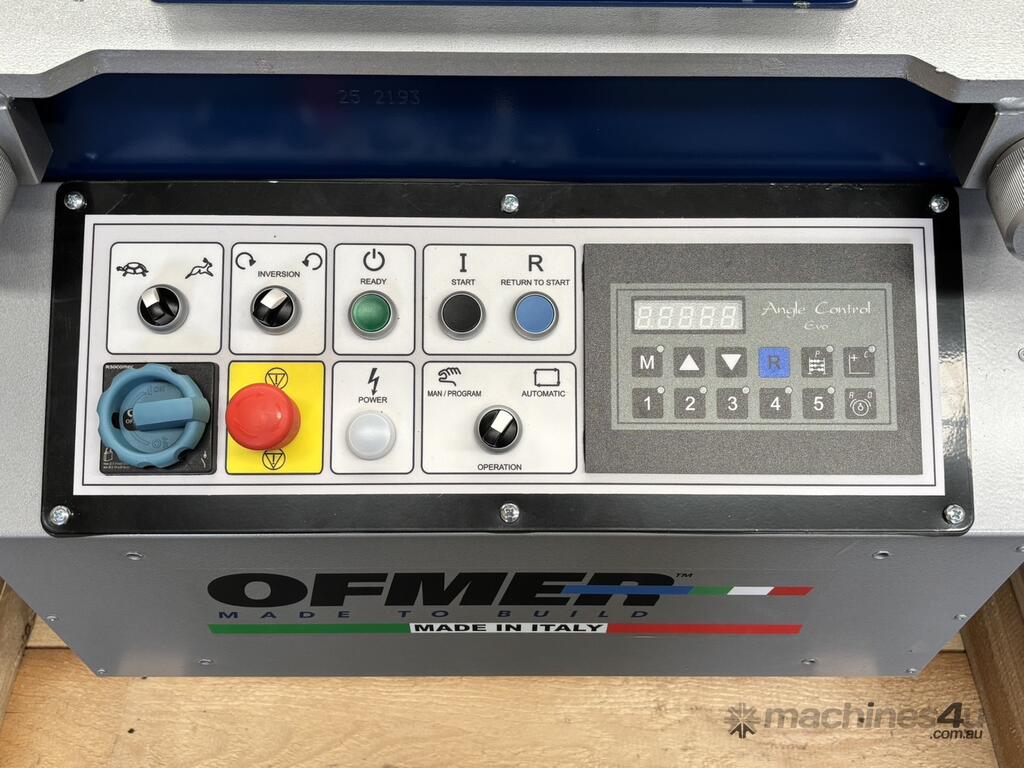

The Angle Control is an advanced electronic programmer. Built with cutting-edge techniques and circuits, and in compliance with operator safety standards, this panel allows the storage of up to 10 bending angles in any sequence, ensuring impeccable precision thanks to a reader capable of stopping the machine as soon as the desired angle is reached.

Bending capacity:

1 rod Ø38 mm (1.50 in) / res. 65 kg/mm²
1 rod Ø36 mm (1.42 in) / res. 85 kg/mm²

Dimensions: cm 105 x 95 x 89H

Available only in three-phase version

- Remote Foot Switch
- One Speed Bending Motor

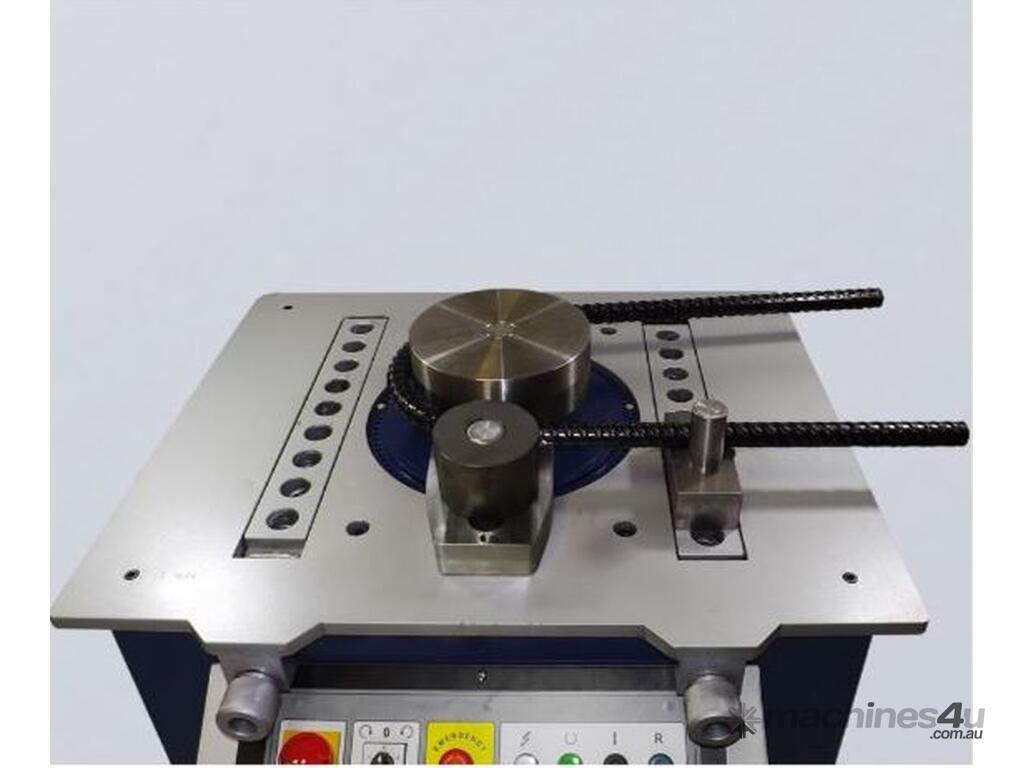

- Stirrup Bending Pin

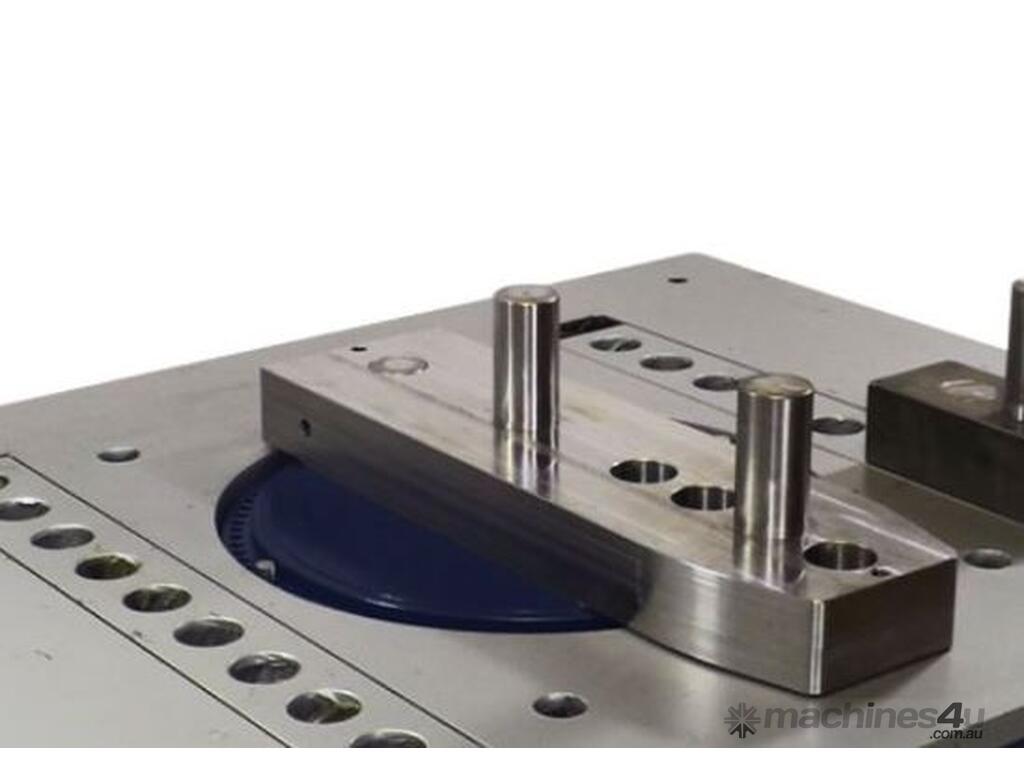

- 3 x Bush Holding Pins
- 1x Hardened Square Pin
- 1x Checking Block
- Bending Cover with Interlock

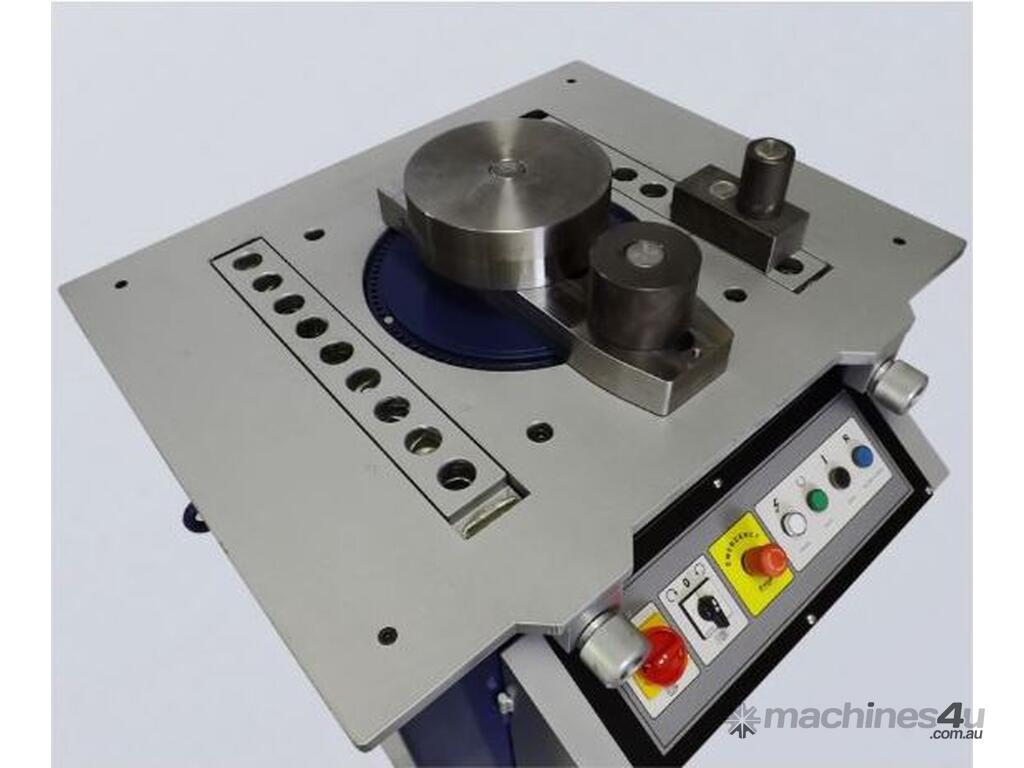

- Set of 6 Bushes (50, 60,70, 80, 95, 120mm Dia)
- Capacity 85 kg/mm2 – 1 x 36mm Dia, 2 x 28mm Dia and 3 x 22mm Dia
- Bending speed – 6 Turns per Minute
- Self-Braking Motor – 4HP/3Kw
- Weight - 500Kg.

Option For Above:

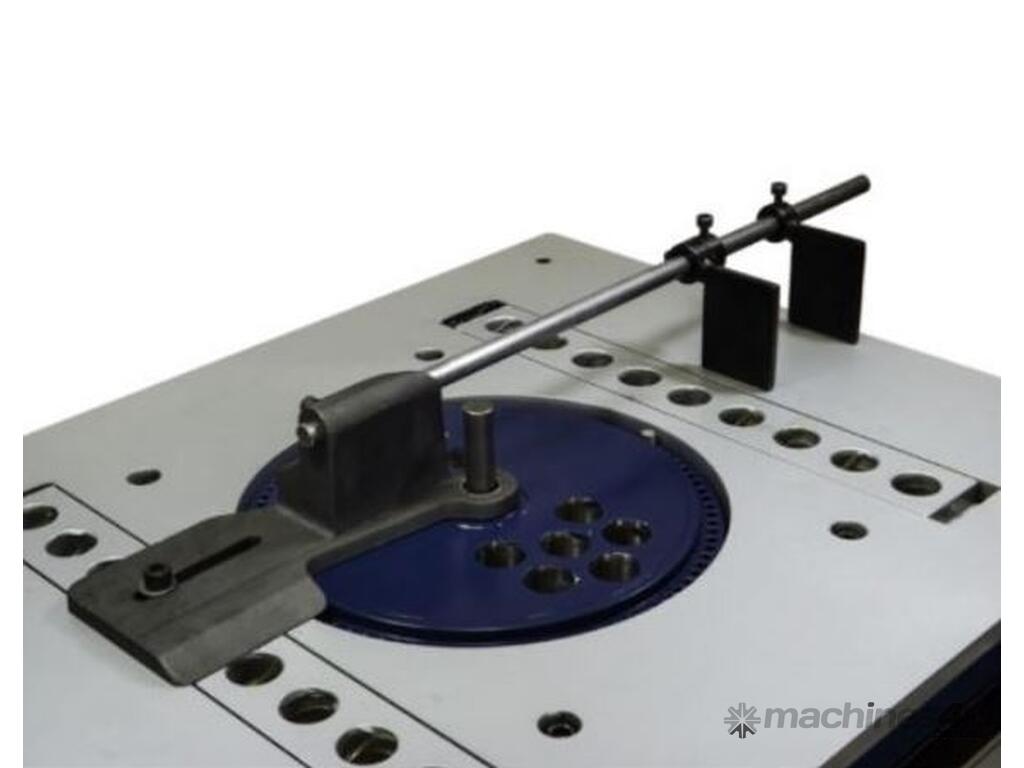

- Stirrup Linear Measurer Device

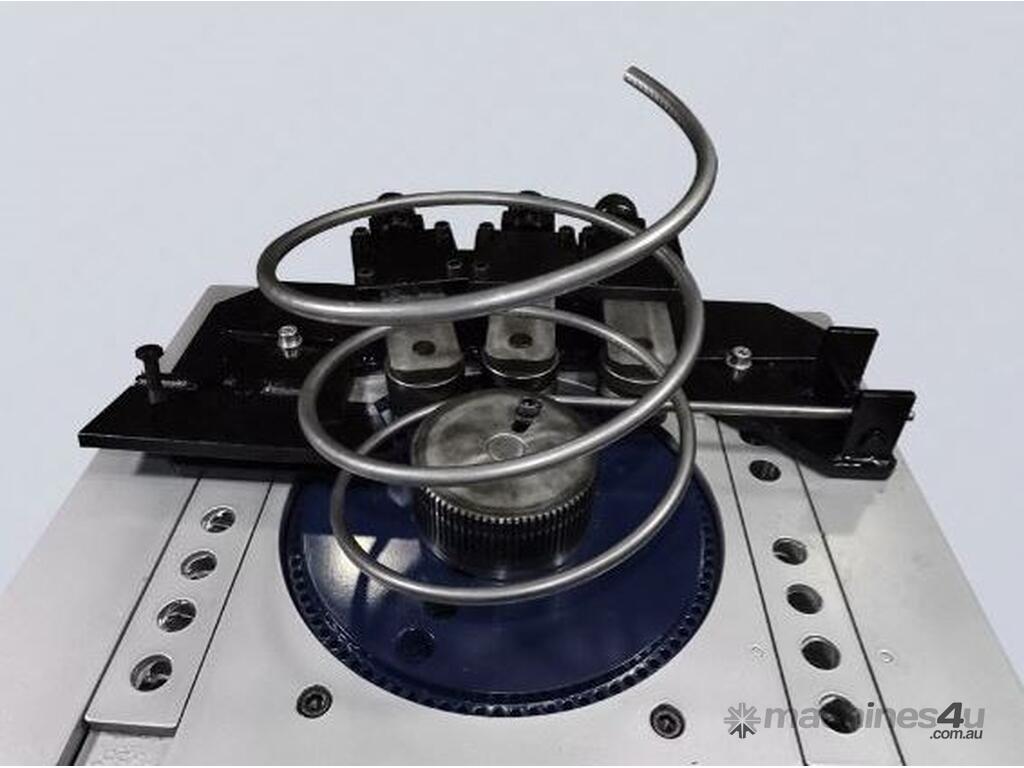

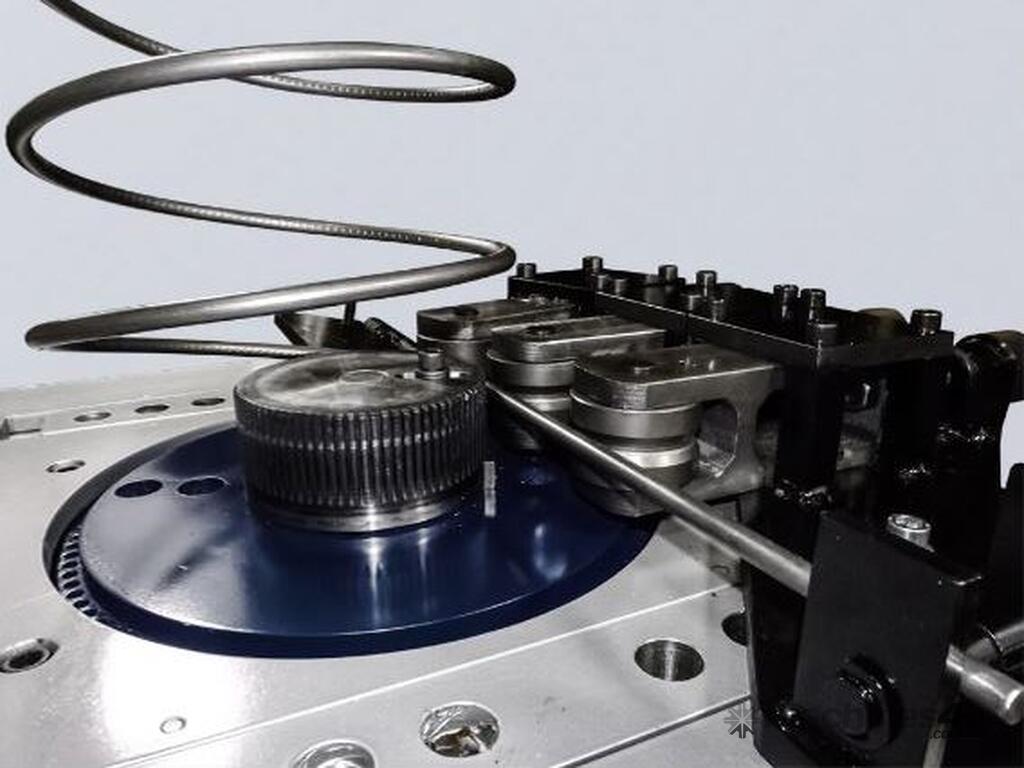

- Spiral device
- Digital Angle Control

The OFMER Range

 Ofmer are a well-respected Italian manufacturer of concrete reinforcement cutting and bending equipment used on construction sites, precast fabrication companies and rebar manufacturing facilities.
