OFMER - Rebar Combined Machines Evo Series [Made in Italy]

OFMER - Rebar Combined Machines Evo Series

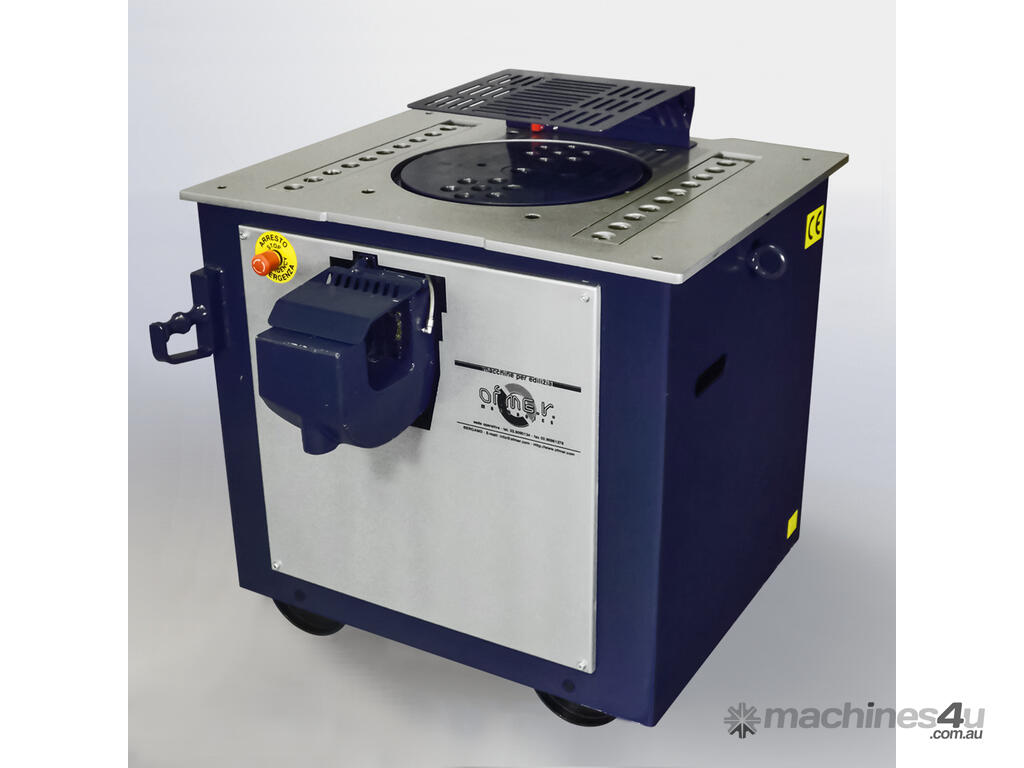

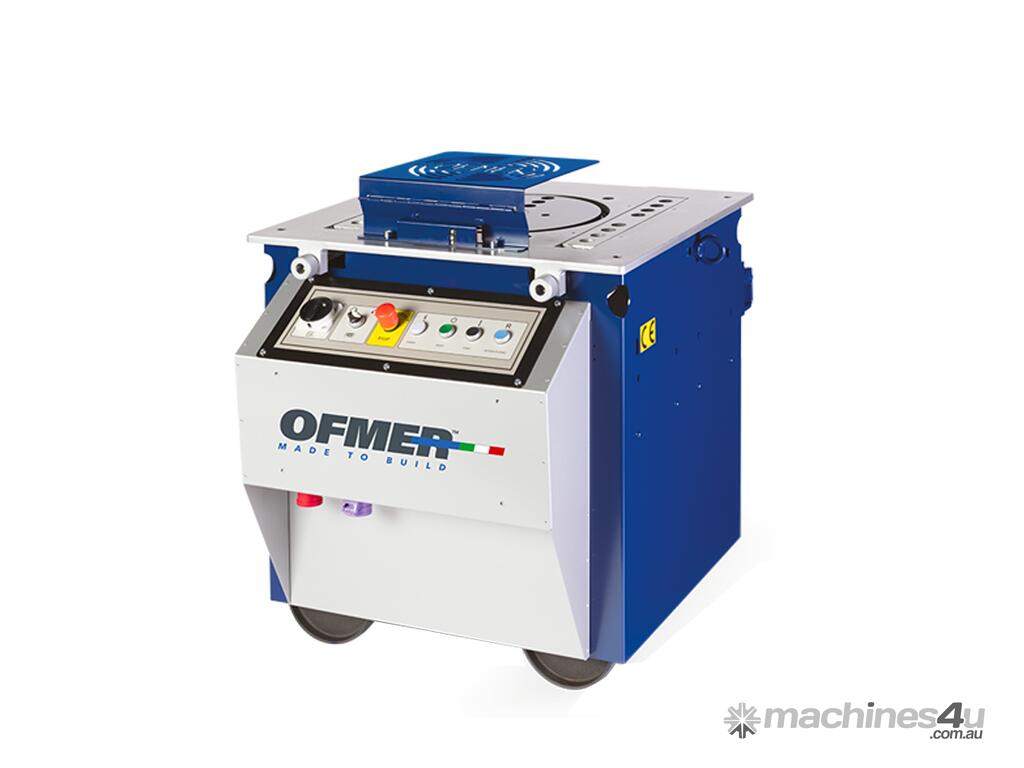

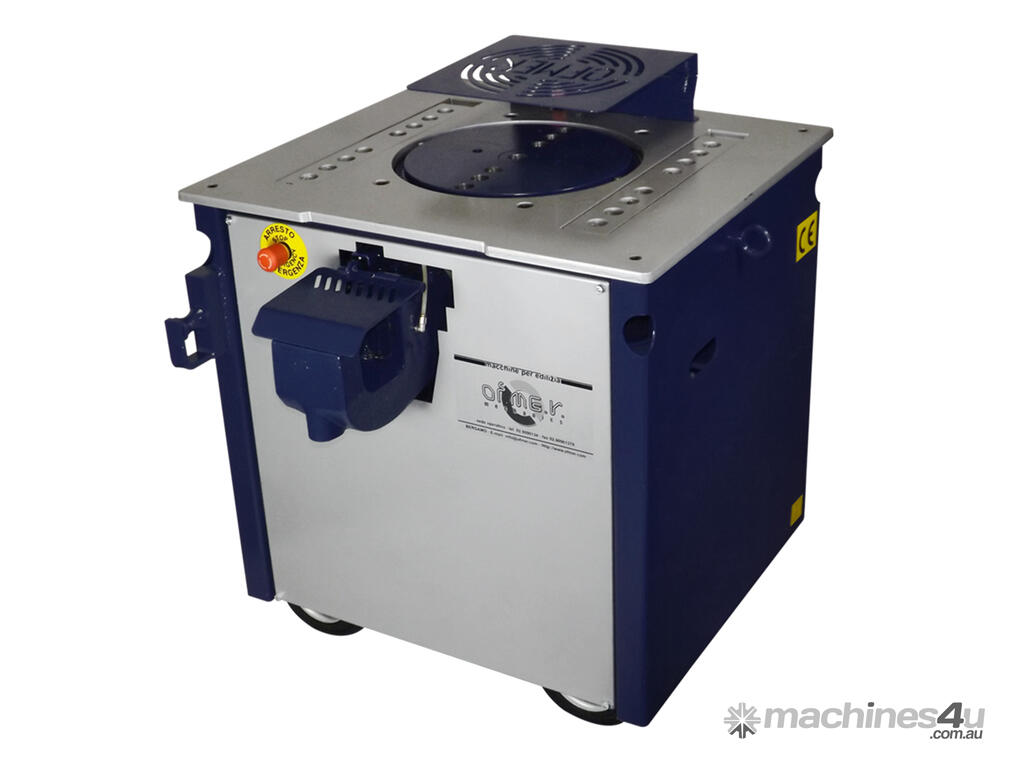

The possibility to cut and bend concrete reinforcing steel rods with one only product is given by the combined machines: affordable and not bulky solutions, ideal for construction sites with a rather limited volume of work.

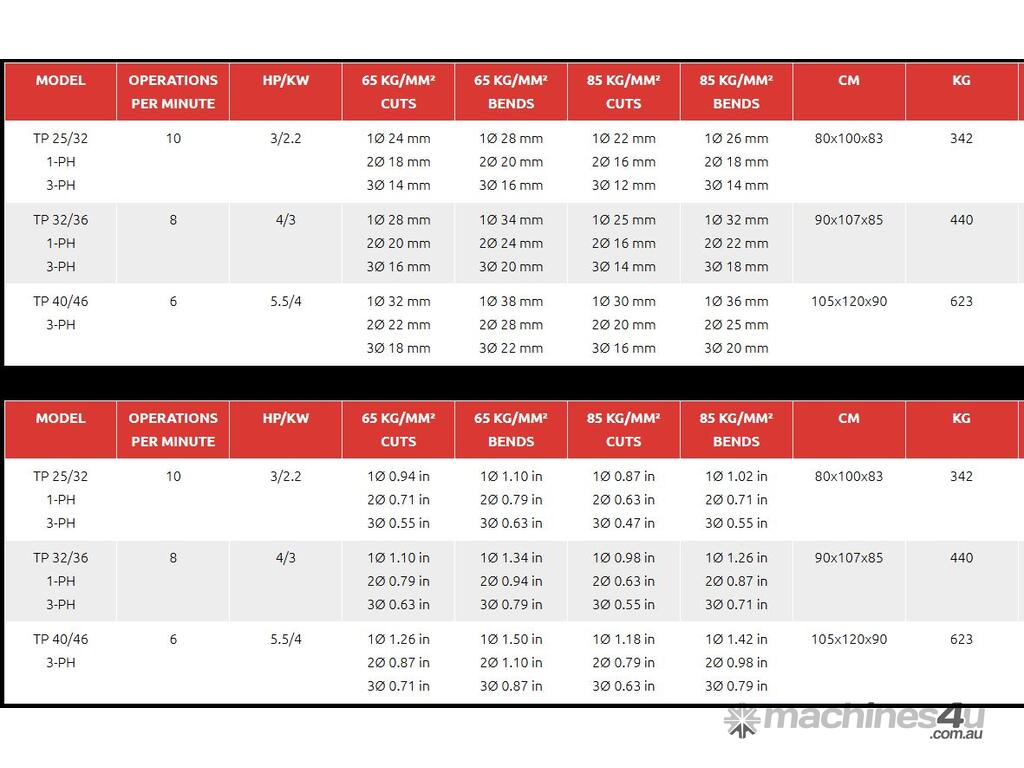

The Evo Series of Rebar Combined Machines is available in 3 different models, as necessary.
- TP25/32 EVO (1-3 phase)
- TP32/36 EVO CE (1-3 phase)
- TP40/46 EVO CE (3 phase)

Key features:
- The combined cutting and bending machine is the ideal solution for construction sites with low working volumes, allowing iron to be cut and bent with a single machine.
- Reduction box and cutting arm that form a single block of spheroidal cast iron, guaranteeing maximum solidity and resistance without welding.
- Gears and pinions made of special hardened steel that work constantly in an oil bath in the gearbox, ensuring maximum durability.

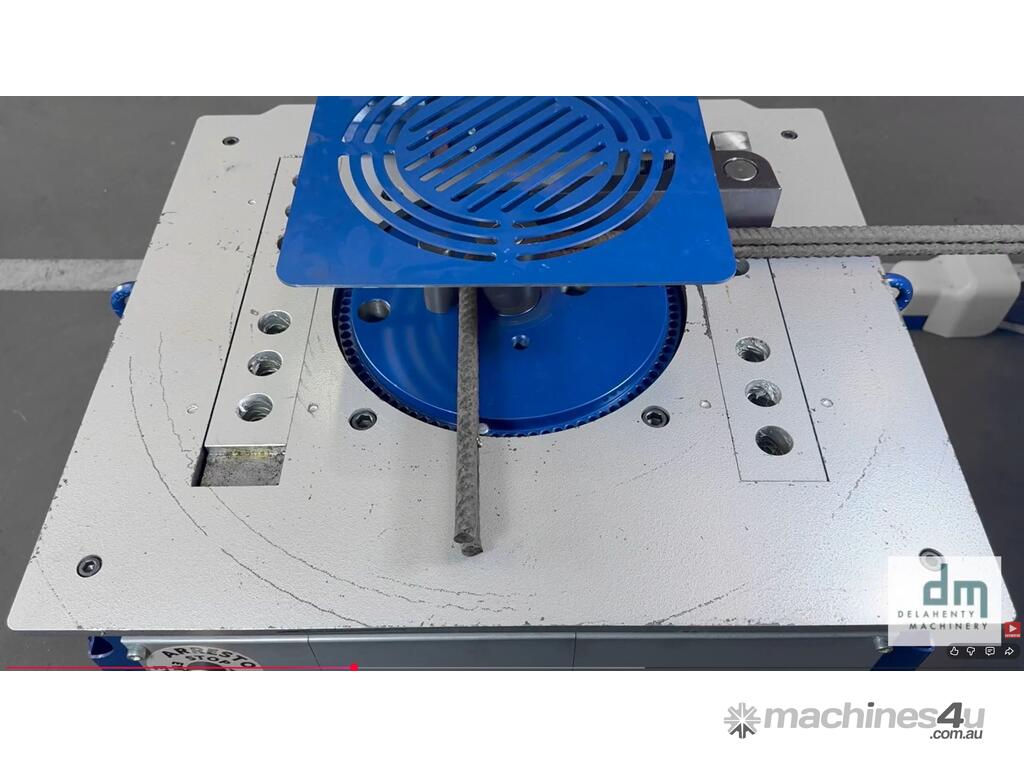

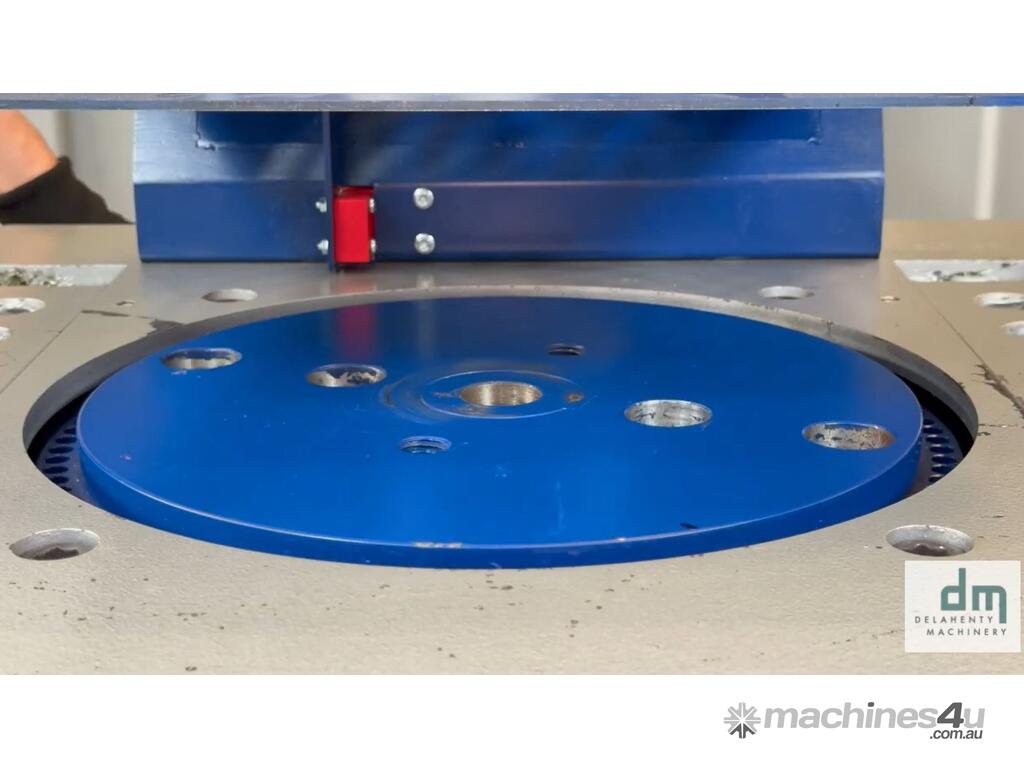

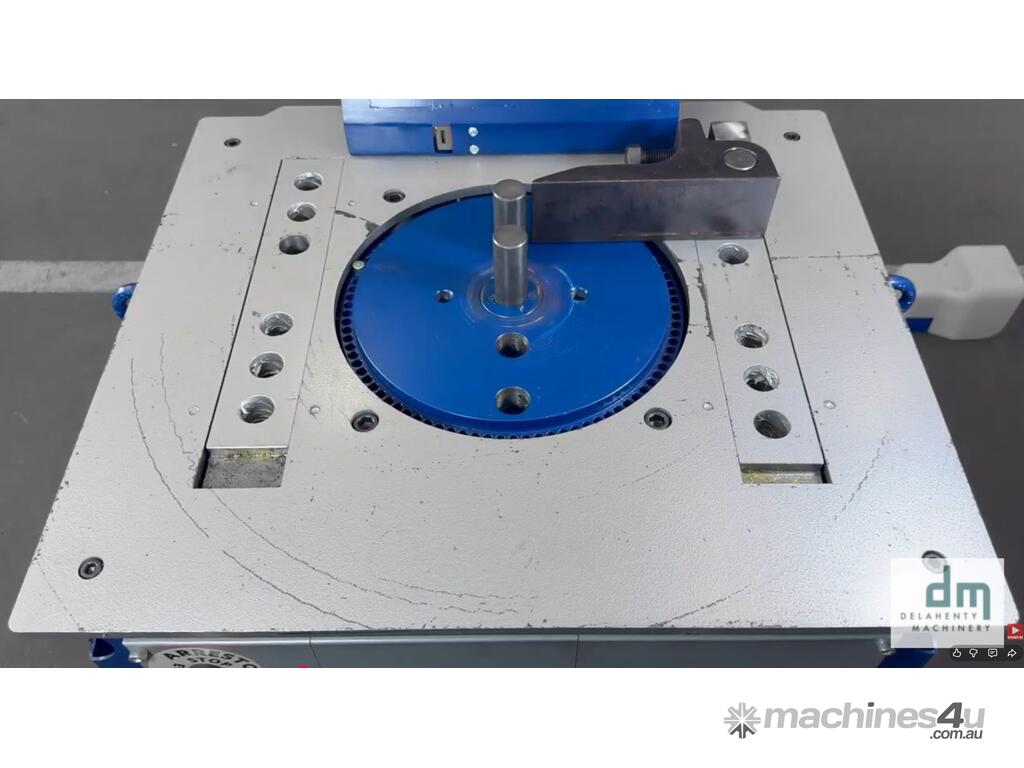

- Enlarged turntable allows for larger bending radii.

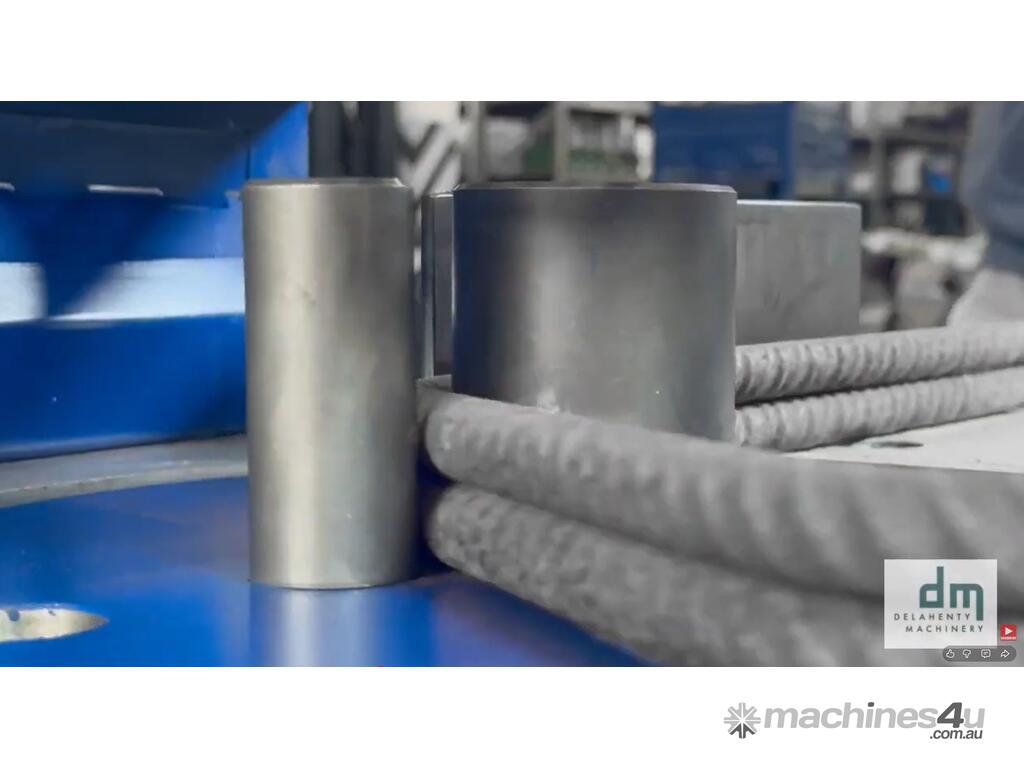

- Long trolleys to perform the "double fold".
- Self-braking motors made in Italy to maximise the working capacities of each unit.
- Easy maintenance: formidable, high-performance and easy-to-maintain machines, to which we give a two-year warranty on all mechanical parts.

Standard Equipment:

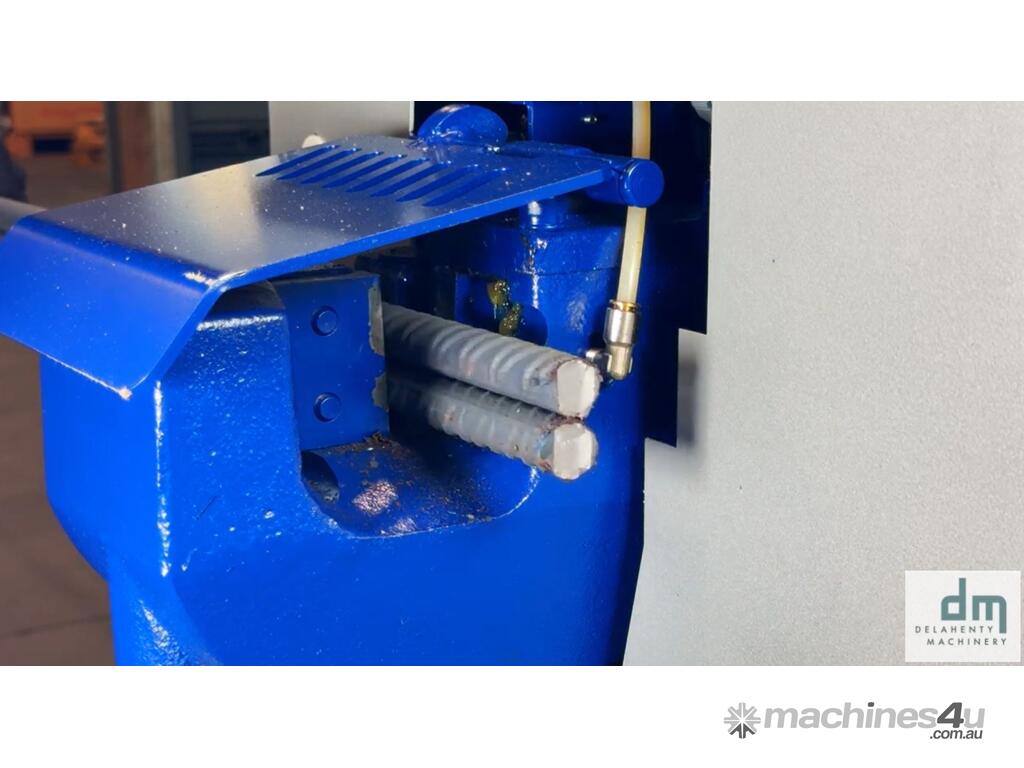

- Two blades in hardened steel, already fixed on the machine;

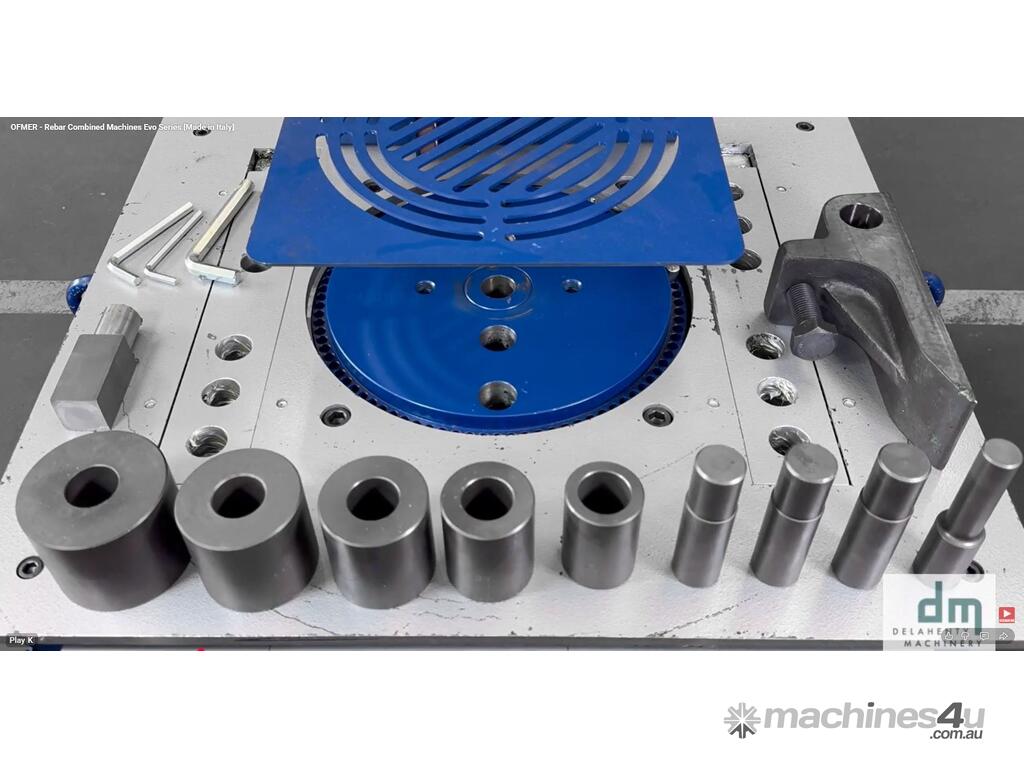

- A set of Allen keys, for ordinary maintenance;
- A set of wheels, for the machine handling;
- An industrial plug, that guarantees the electrical connection;

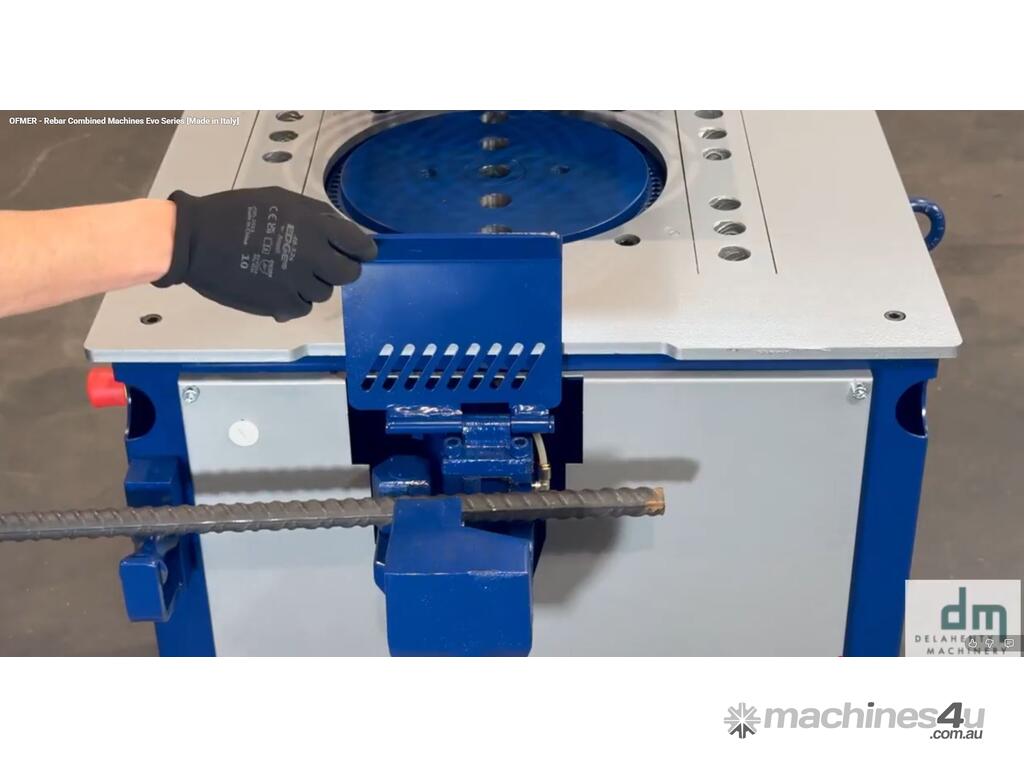

- A bar sliding device, that helps the movement of the rods toward the zone of cut;
- Simplified lubrication system, that allows to grease the components that need in very easy and rapid way;

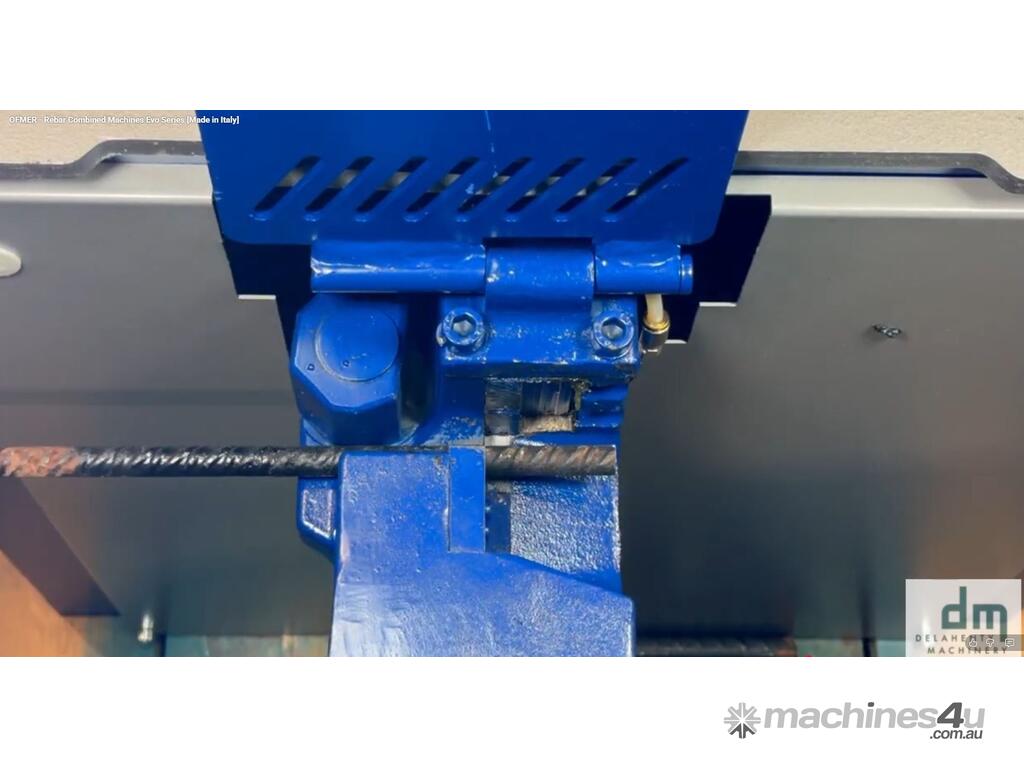

- Screw locator, that permits to perfectly align the rods in the zone of cut and obtain exactly perpendicular cuts;
- Besides, on request in phase of order, it’s possible to install on all Evo rebar cutting machines a base in carpentry, that permits to raise the zone of cut to work in an ergonomic position. It also allows the optional movable pedal application, otherwise not applicable.
- In the design and construction of the mechanical rebar cutting machines have been adopted criteria and arrangements suitable to satisfy the essential safety requisites foreseen by the Machines Directive 98/37/CEE.
