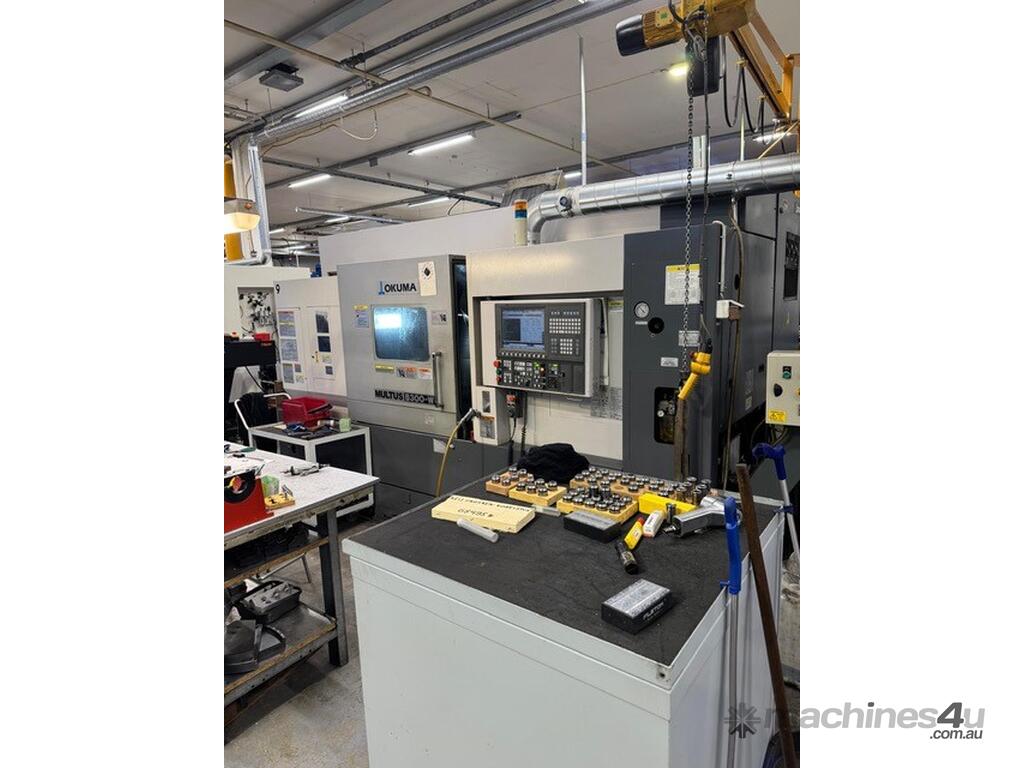

The Okuma Multus B300-W CNC lathe (2008 model) features a 10-inch chuck, a 62mm bar capacity, a 24.8-inch swing, and a turning diameter of 17.72 inches.
The machine uses the Okuma OSP-P-200L CNC control and has a 5,000 RPM spindle speed. It also includes live tooling capabilities with C-axis and Y-axis movement, a 15 HP live tooling motor, and a live tooling speed range of 90-6000 RPM.
Serial: 128820 (HSK-tool holders, chip conveyor, manuals, etc)
X-axis: 580mm.
Y-axis: +80/-80mm
Z-Axis: 935mm.
B-axis: -30 / +195° rotation.
B-Axis Indexing: 0.001"
W-axis: 1000mm
CNC Control: Okuma OSP-P-200L.
Spindle Speed: up to 5,000rpm.
Main Spindle: 250mm chuck, 62mm bore, A2-8 nose, 20 HP motor.
Sub-Spindle: 20 HP motor, 38-5,000rpm.
Live Tooling: C-axis and Y-axis movement, 15 HP motor, 90-6,000rpm.
Tool Changer: 60 tool ATC.
Workpiece Size: Max machining diameter of 630mm. Max swing over saddle of 630mm. Max working distance between spindles of 900mm.
Our machinery store has 8 overhead cranes, a heavy duty container packing fork lift and other fork lifts to 20 tons. Therefore our expert staff and equipment can arrange your shipping reliably and efficiently.
