OMAC F155 Reel-Stands — Reel lifting & braking stands (70 - 200 kN)

Overview

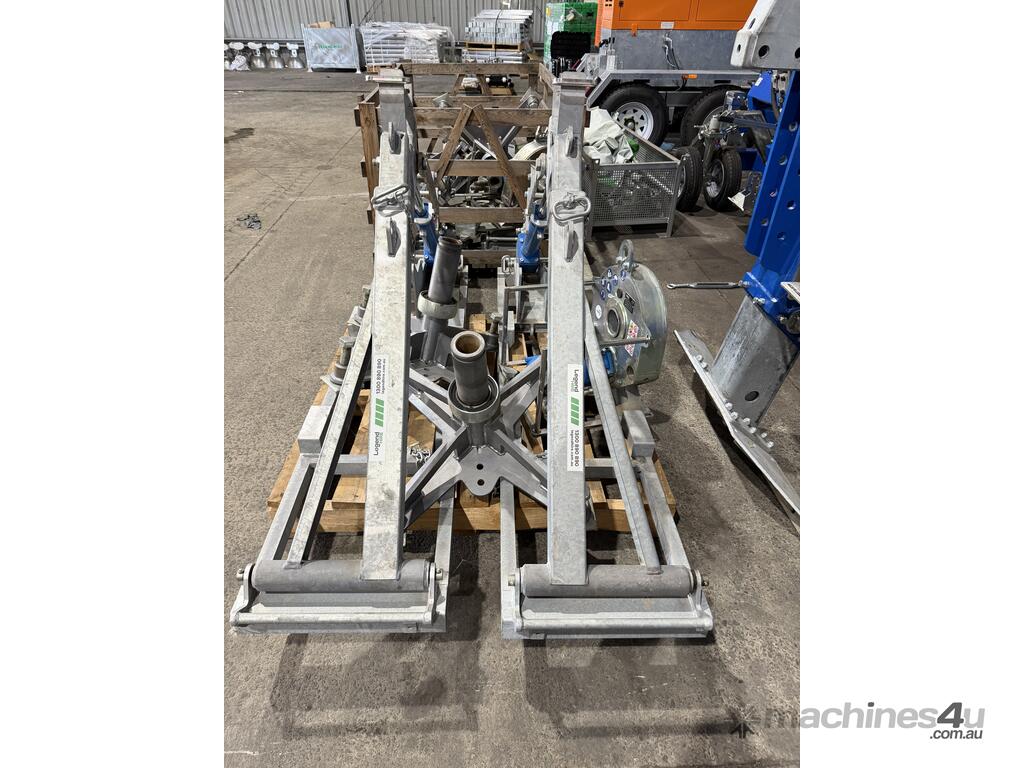

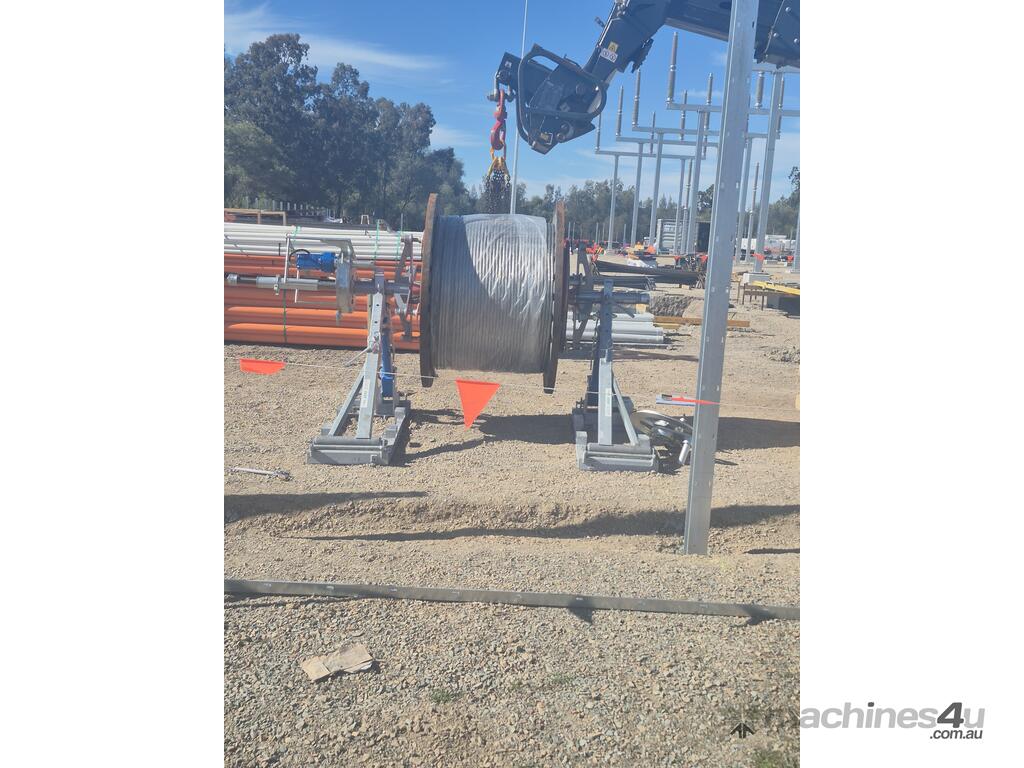

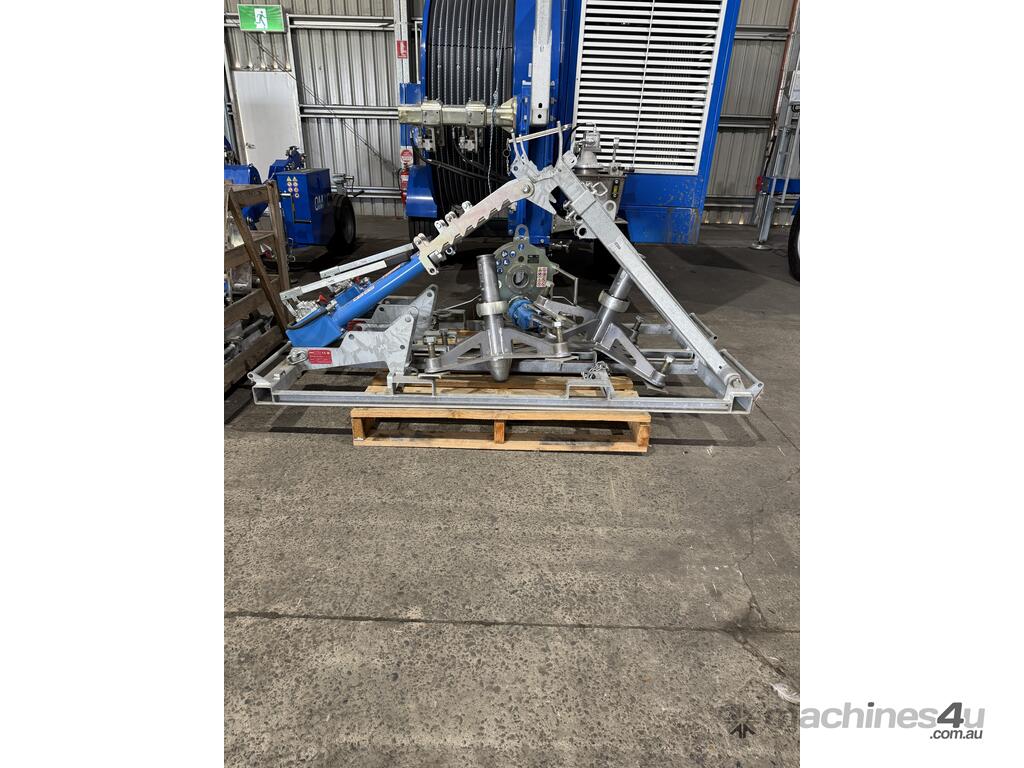

The OMAC F155 reel-stands are rugged, site-ready stands designed for lifting and braking reels while stringing conductors and cables. Supplied in pairs, the F155 range covers reel diameters from 1.00 m up to 4.00 m and pair capacities from 7,000 daN to 20,000 daN (70 ? 200 kN). Stands are height-adjustable independently, fitted with a self-braking disk brake and mechanical safe-stops. Optional hydraulic drive, rope winders and enhanced braking are available for controlled recovery and release operations on site.

A-en-3

Key features

Self-braking disk brake (standard) with option for double-brake configuration.

Each stand can be raised/lowered independently by hydraulic hand pump.

Mechanical safe-stops mounted on the jack arm for secure operation.

Side supports with ball joints and spindle complete with accessories.

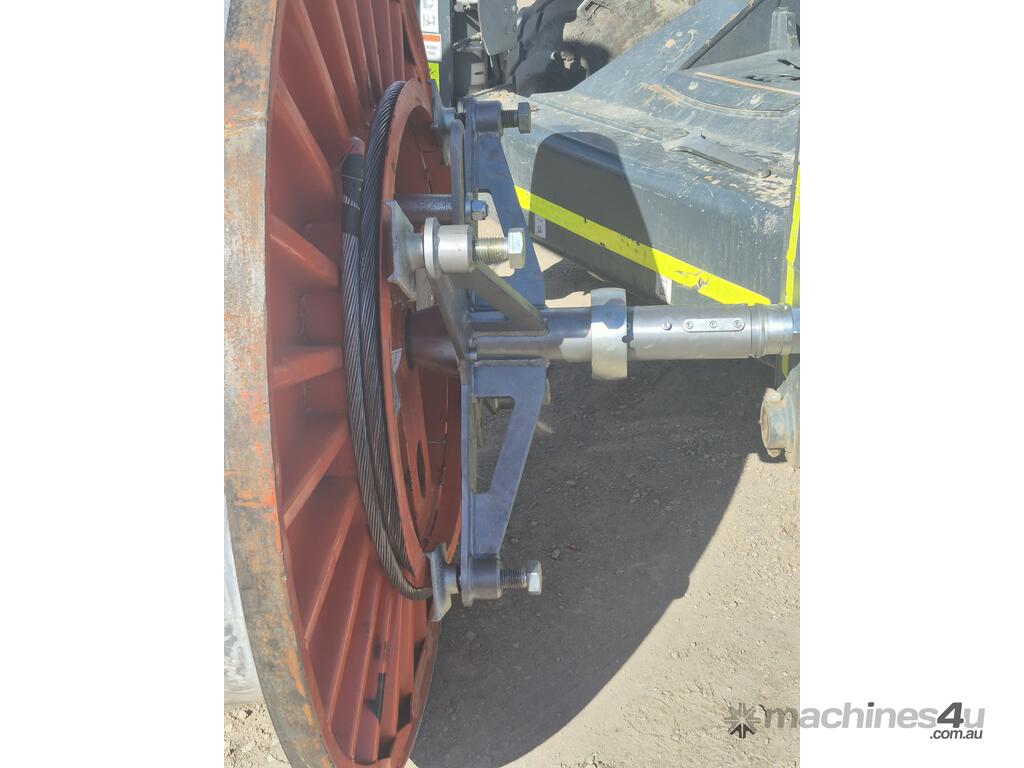

Conical bushes for wooden reels (diameter on demand).

Welded & painted steel framework with attachments for anchoring.

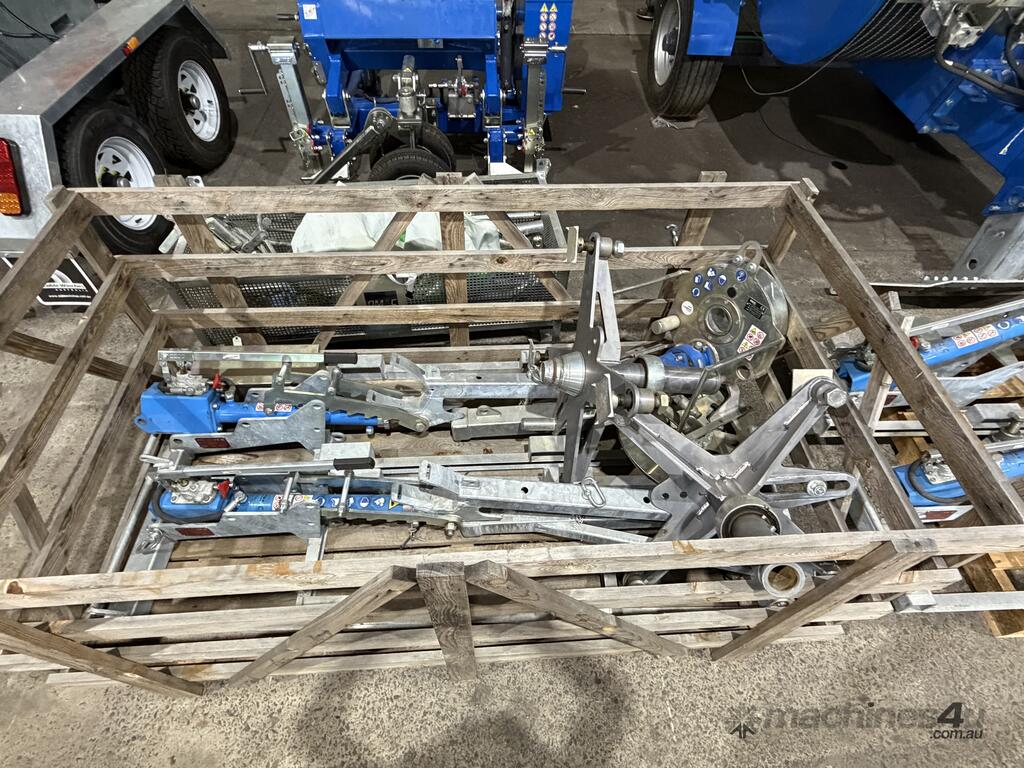

Metallic tool box for accessories included.

Devices fit for steel reels and bushes to centre the reel hole (diameter on demand).

Supplied in pairs for stable reel support; can be hydraulically driven by a power unit (optional).
