OMAC F157 Reel-Stand

OMAC F157 Reel-Stand — Reel cradle for lifting & unwinding steel rope reels

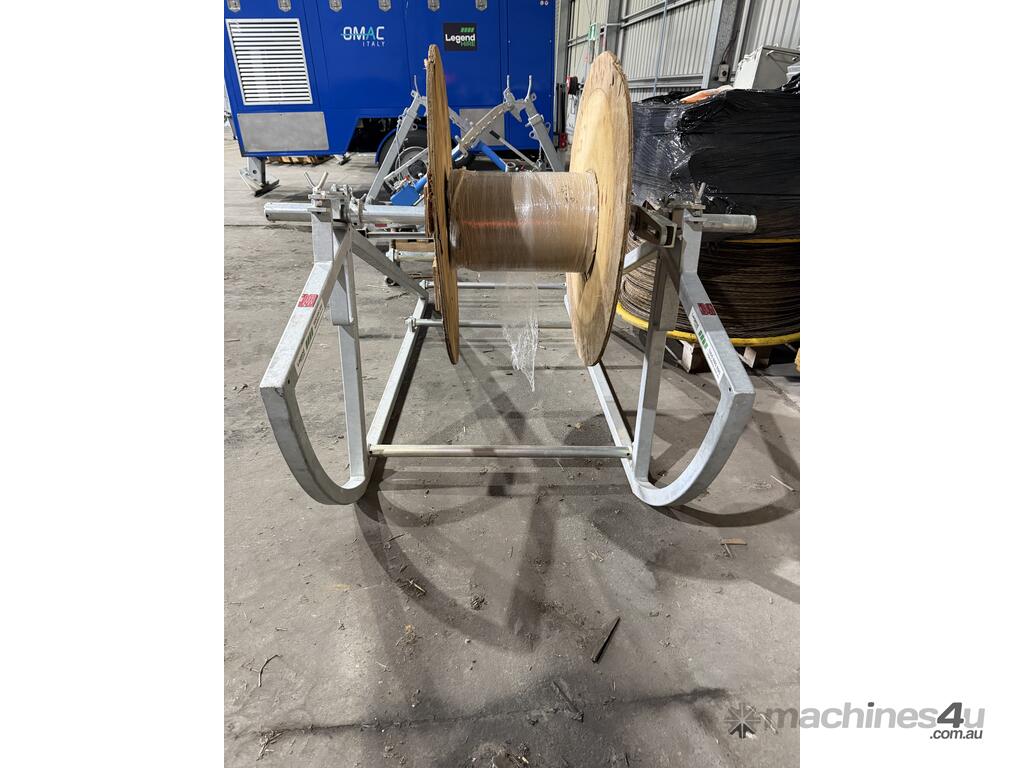

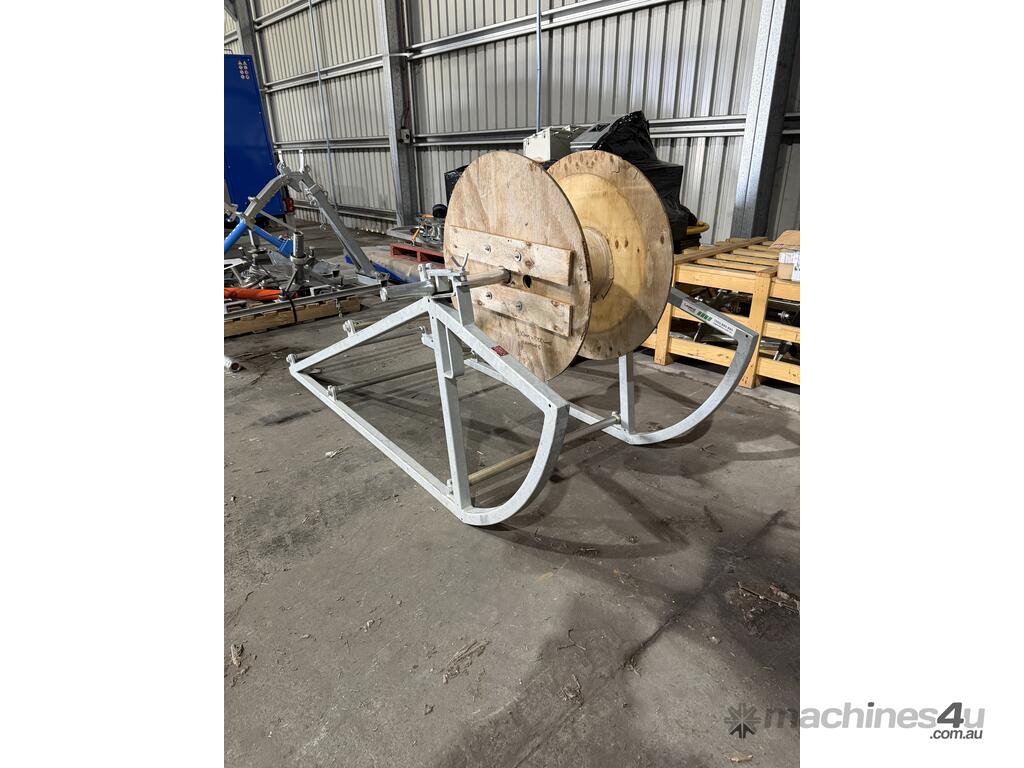

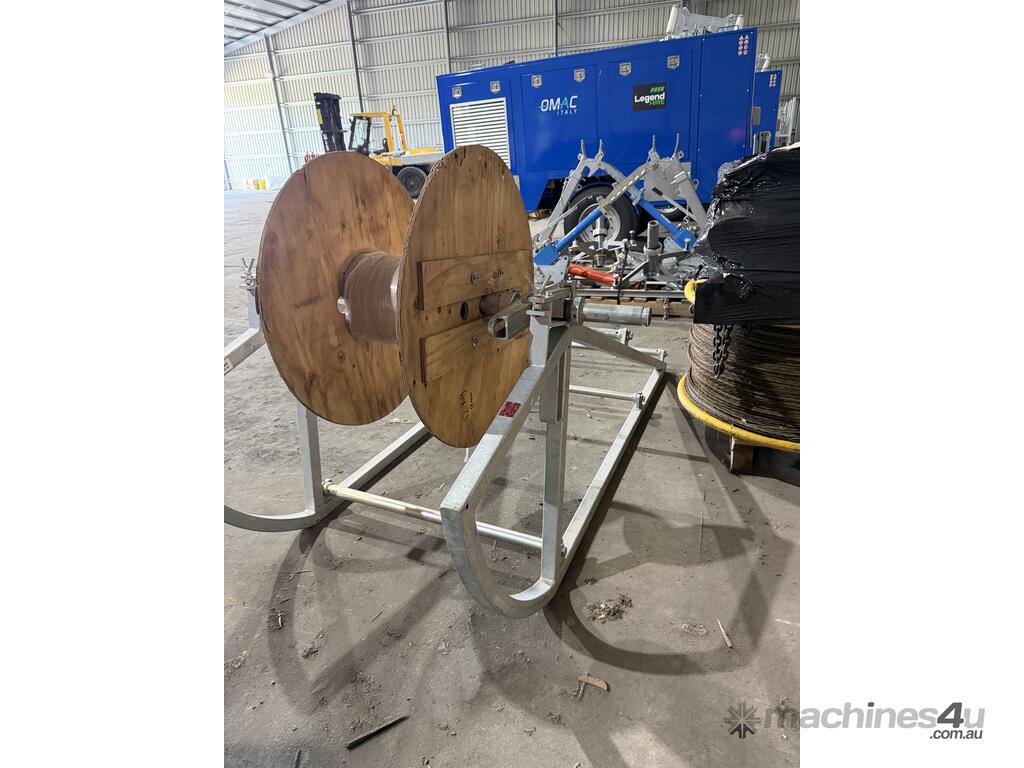

Reel-cradle fit for lifting and unwinding steel rope reels. Fully galvanised, completely demountable for easy transport. Complete with reel shaft. Ideal for stringing, cable handling and on-site unwinding.

Reel-cradle

Key features

Fully galvanised reel cradle — corrosion resistant and rugged for site use.

Demountable design for easy transport and fast on-site set up.

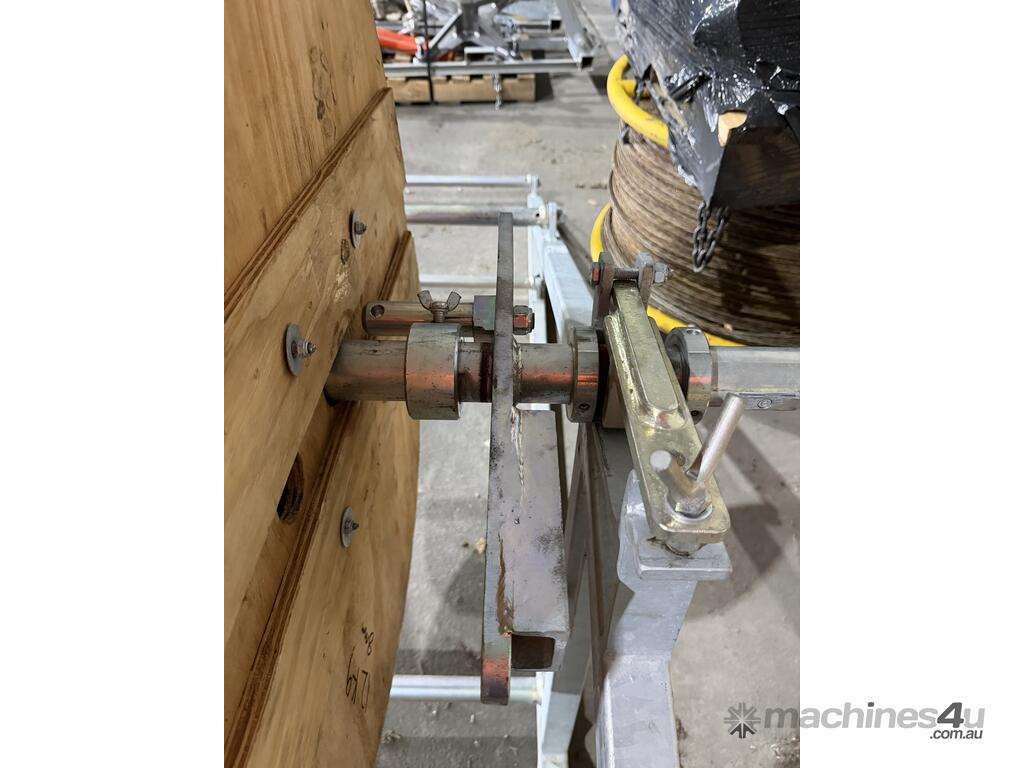

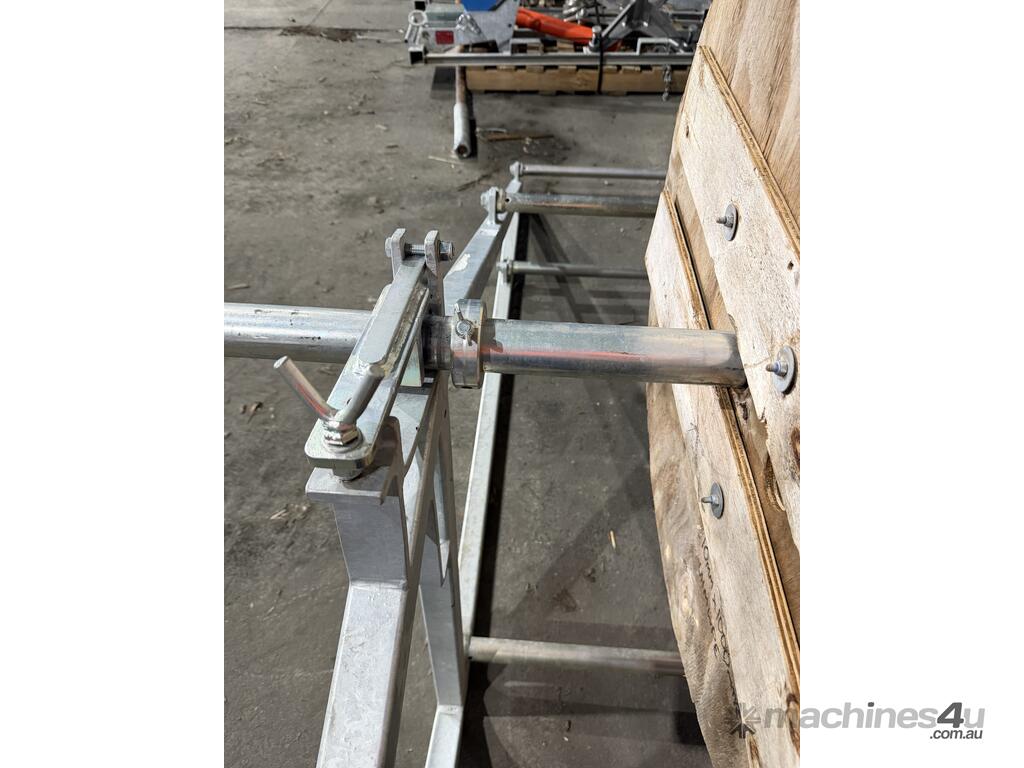

Supplied complete with reel shaft.

Suitable for steel rope reels in common stringing/unwinding sizes.

Strong, compact footprint for stable operation on site.

Models & technical data

F157.14.S

Reel diameter (min–max): 1.10 – 1.40 m

Overall dimensions (A × B × C): 2.50 × 1.10 × 0.95 m

Spindle Ø (D): 50 mm

Load: 2,000 daN

Weight: 72 kg

F157.19

Reel diameter (min–max): 1.40 – 1.90 m

Overall dimensions (A × B × C): 3.00 × 1.10 × 1.10 m

Spindle Ø (D): 50 mm

Load: 2,600 daN

Weight: 160 kg

(Dimensions & weights exclude optional devices — see options below.)

Reel-cradle

Optional devices

410.1 — Disc brake for braked unwinding (braking torque 150 daN·m)

410.4 — Disc brake with high brake capacity (F157.19 only — braking torque 280 daN·m)

Why buy this reel-stand?

Simple, robust and transportable — designed for heavy field use but easy to dismantle and move between sites.

Versatile reel range — two model sizes cover the vast majority of steel rope and conductor reel diameters.

Site safety & control — optional disc brakes provide controlled unwinding for heavier reels.

Applications

Conductor and rope stringing jobs

Cable handling and installation works

Site reel storage and unwinding for overhead or underground works
