OMAC PT100.22 Hydraulic Puller-Tensioner — 100 kN (2 x 50 kN)
Two-circuit puller/tensioner — tensioner and puller in one machine. Ideal for stringing single or double conductors and heavy rope pulls.
Key selling points
Max pull / tension: 1 × 100 kN or 2 × 50 kN (dual circuit)
Bull-wheels: 4 × Ø1500 mm (also available with Ø1800 mm bull-wheels)
High capacity conductor: up to 2 × 42 mm conductor (max rope Ø 21 mm)
Diesel powered: 135 hp / 100 kW with water cooling and 12 V electric plant
Rugged towable chassis: 4.50 × 2.25 × 2.80 m, 6,200 kg (without rope)
Overview
The PT100.22 is a heavy-duty hydraulic puller-tensioner built for demanding stringing and pulling jobs. Designed to operate as both a tensioner and a puller, it is suited to stringing one or two conductors/ropes with reliable electronic control and safety systems. The unit is engineered for site work with towing capability, hydraulic stabilisers and optional road circulation chassis.
Standard features

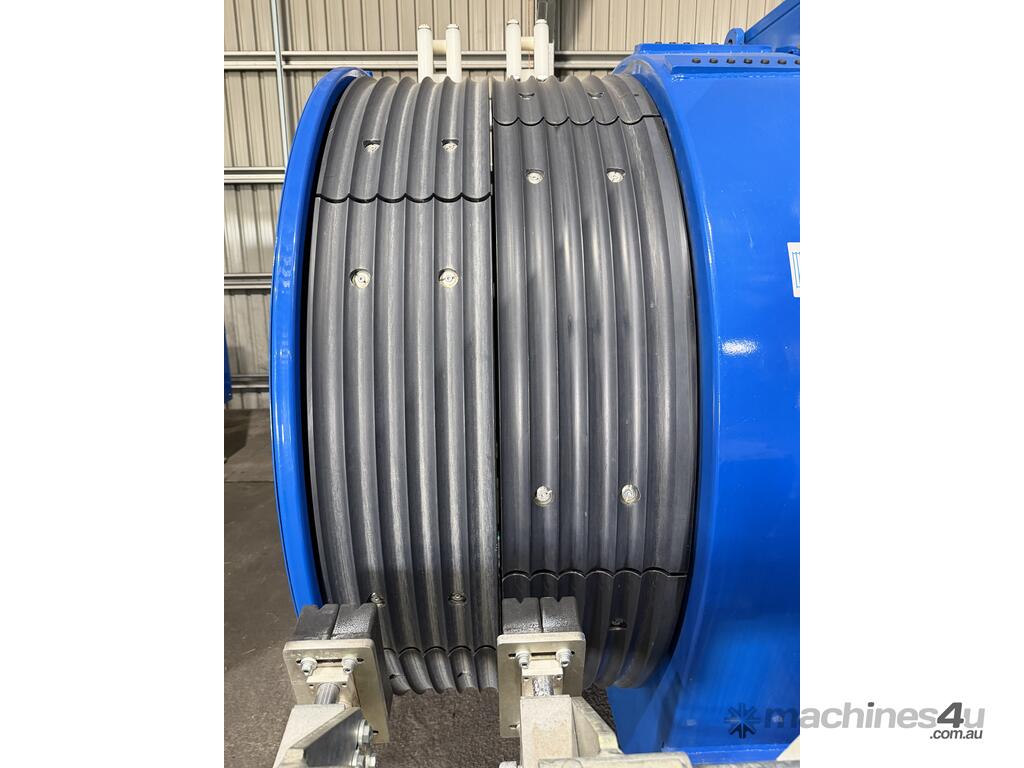

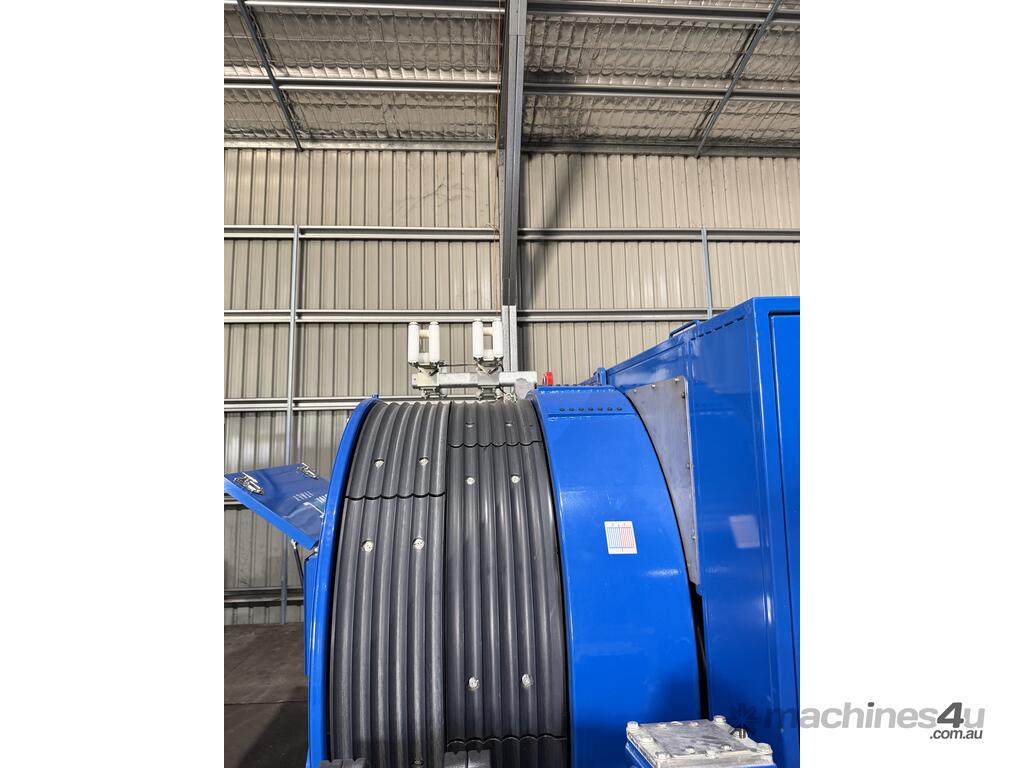

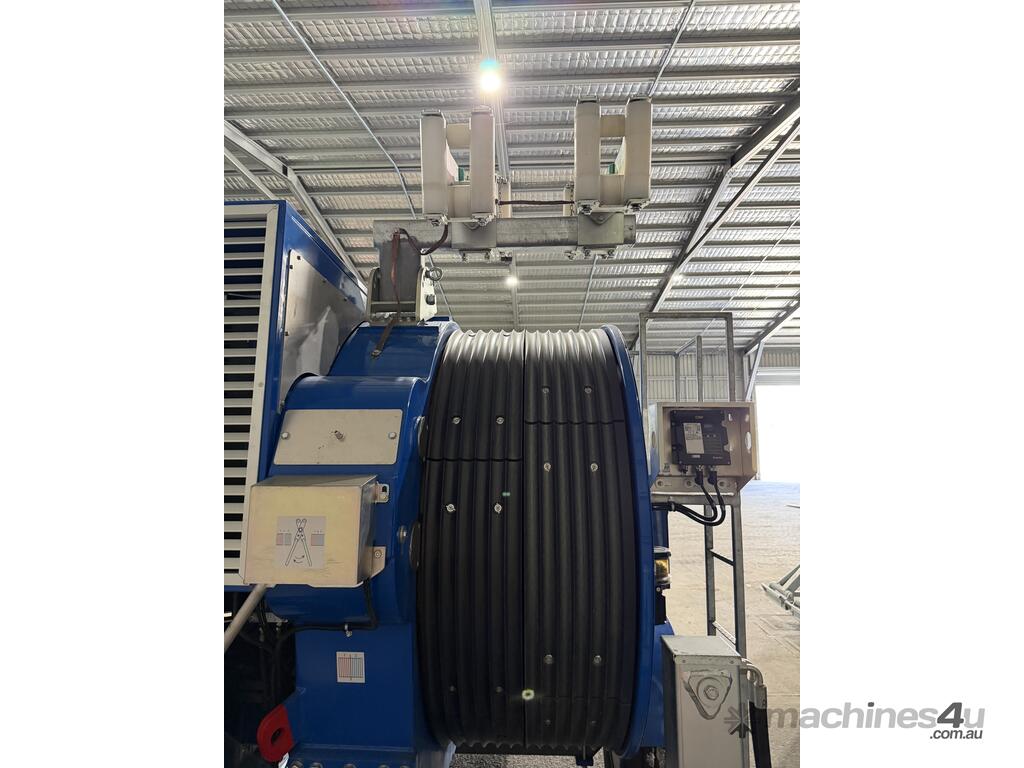

Two pairs of steel bull-wheels lined with multi-grooved nylon sectors

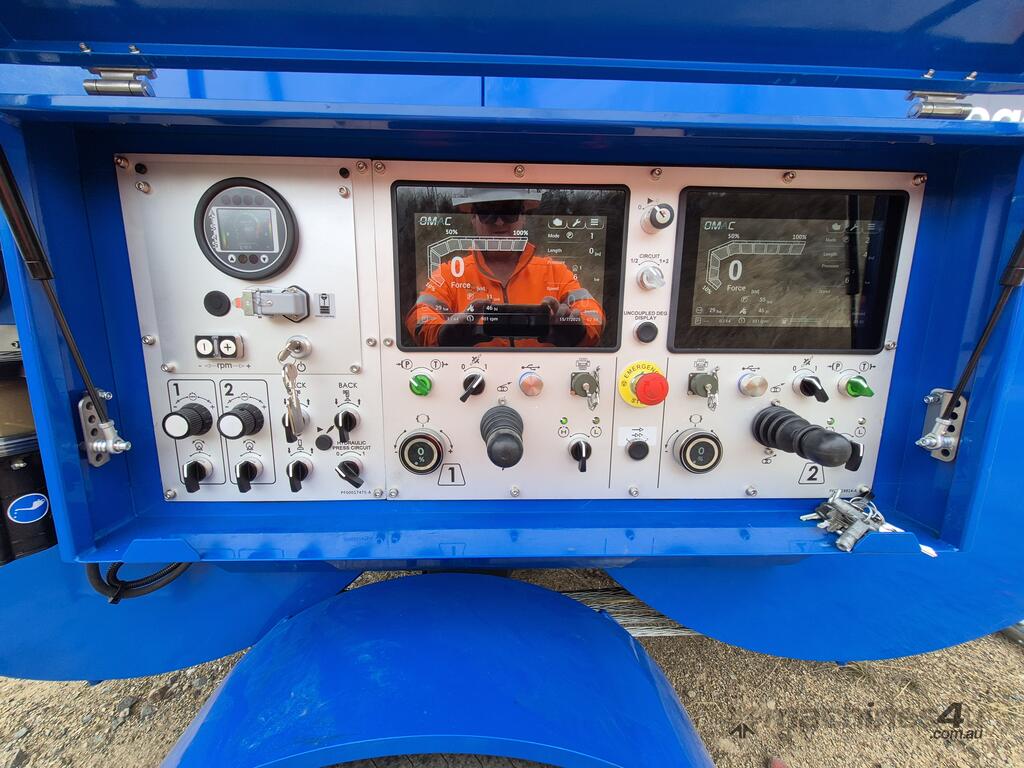

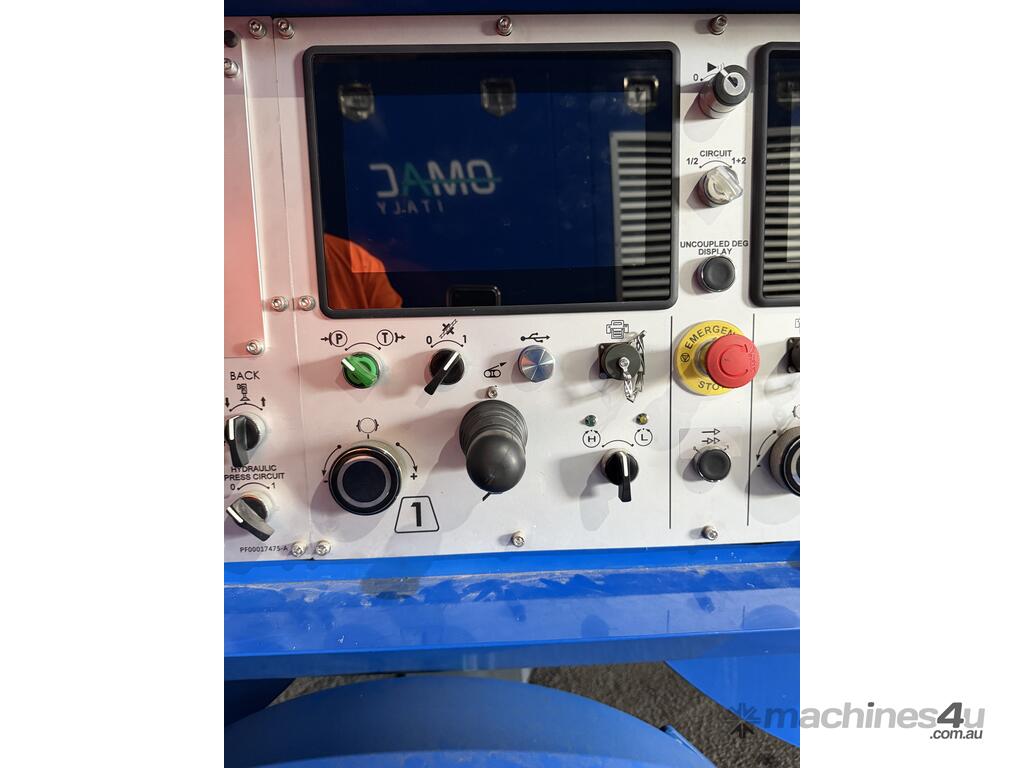

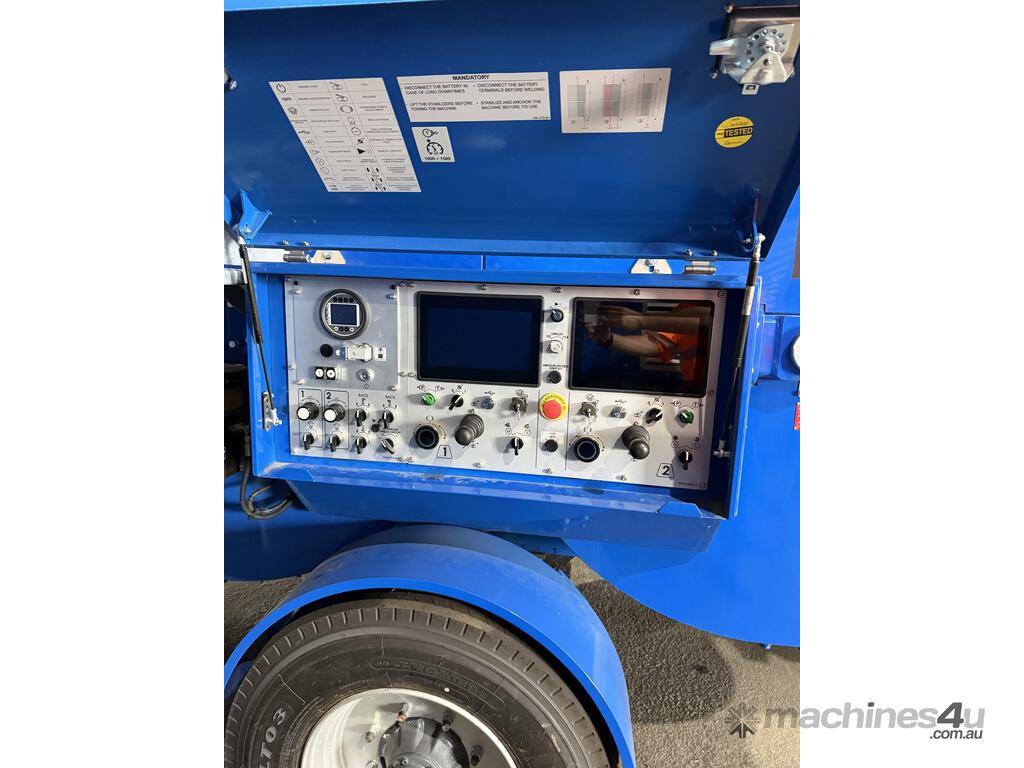

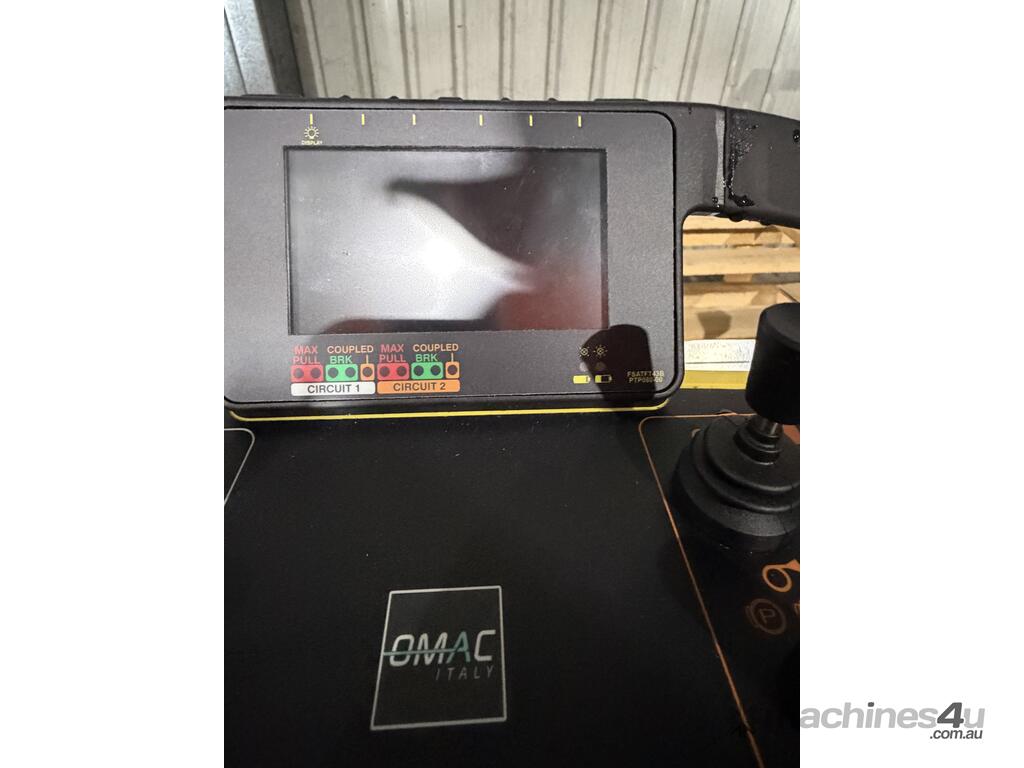

Machine control panel with DEG 10 electronic instrument (10? colour display + USB)
Maintenance-free load cell reading system and electronic instrument by-pass
Self-recovery device for sagging operations
Pull-force setting device (maintains preset force even at speed “0”)

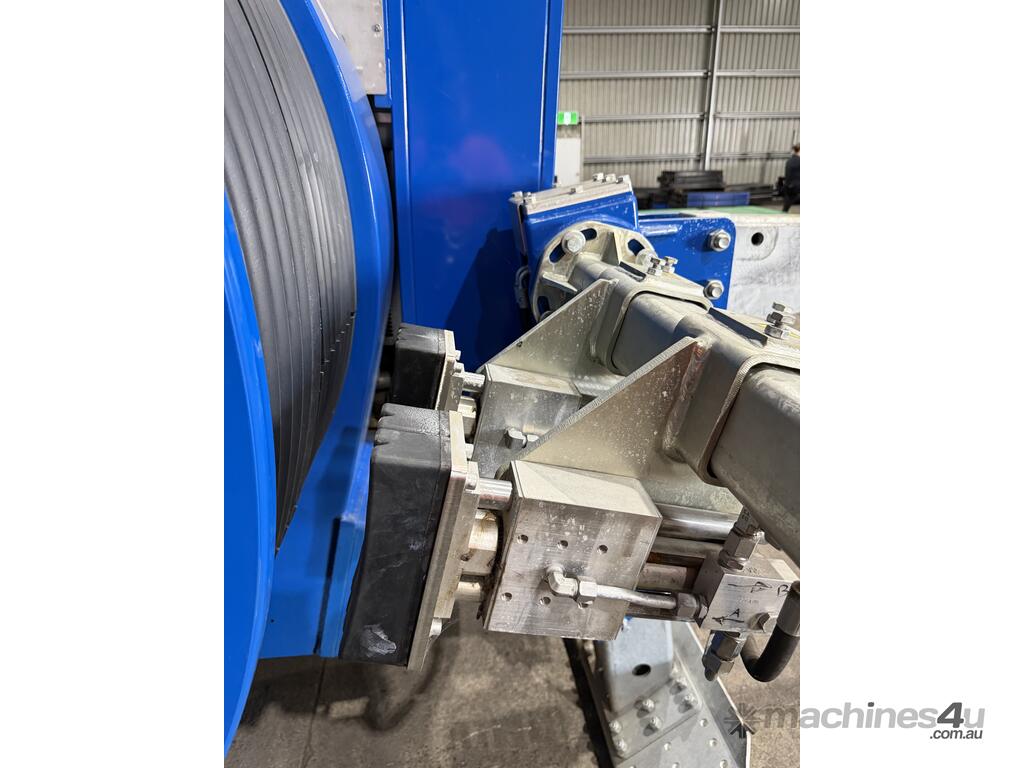

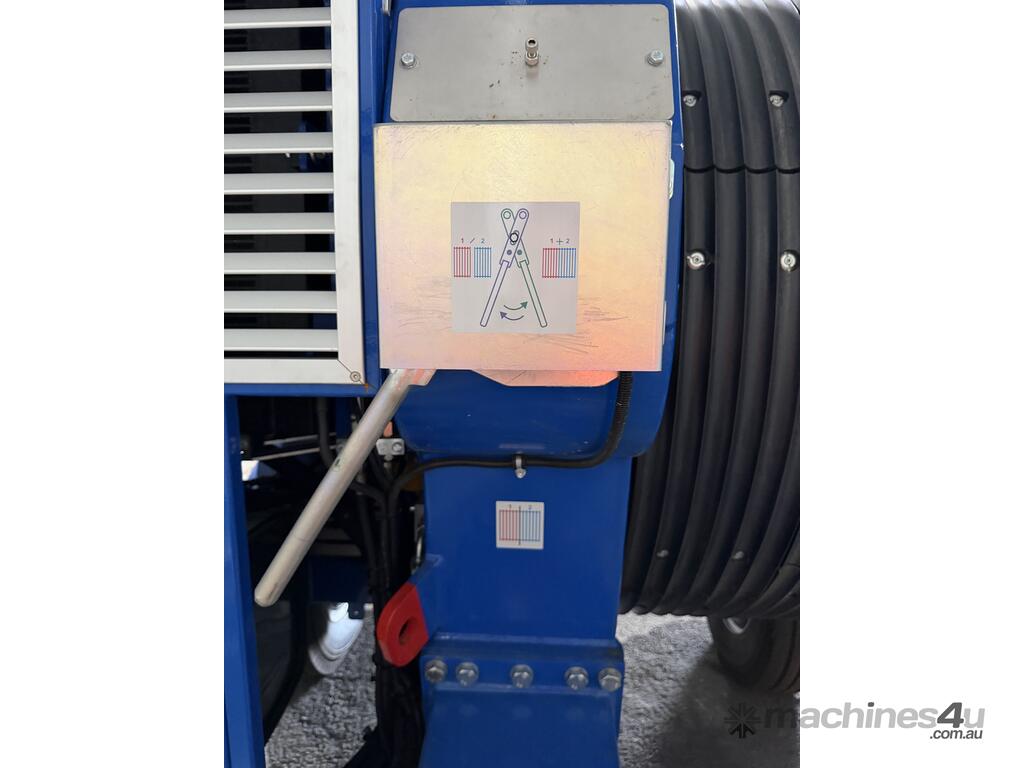

Manual clamp for 2 ropes/conductors & automatic clamp option available
Two safety negative hydraulic brakes and back-fix conductor-driver with nylon rollers

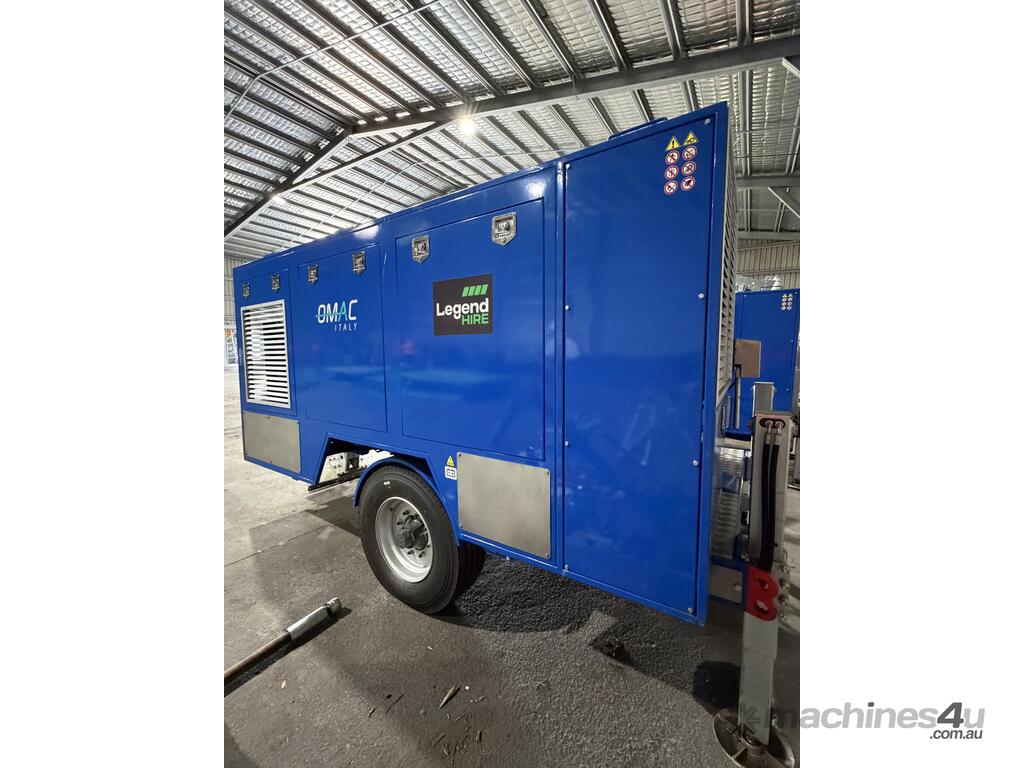

Chassis with rigid axle, manual brake and detachable drawbar for low-speed towing on job sites

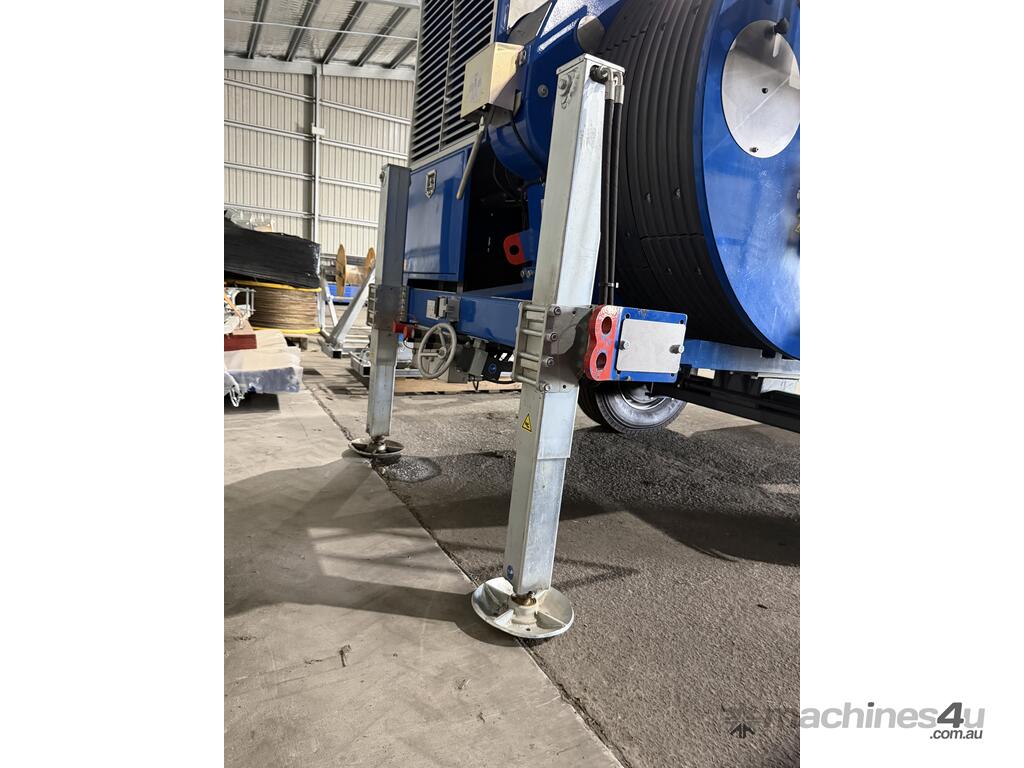

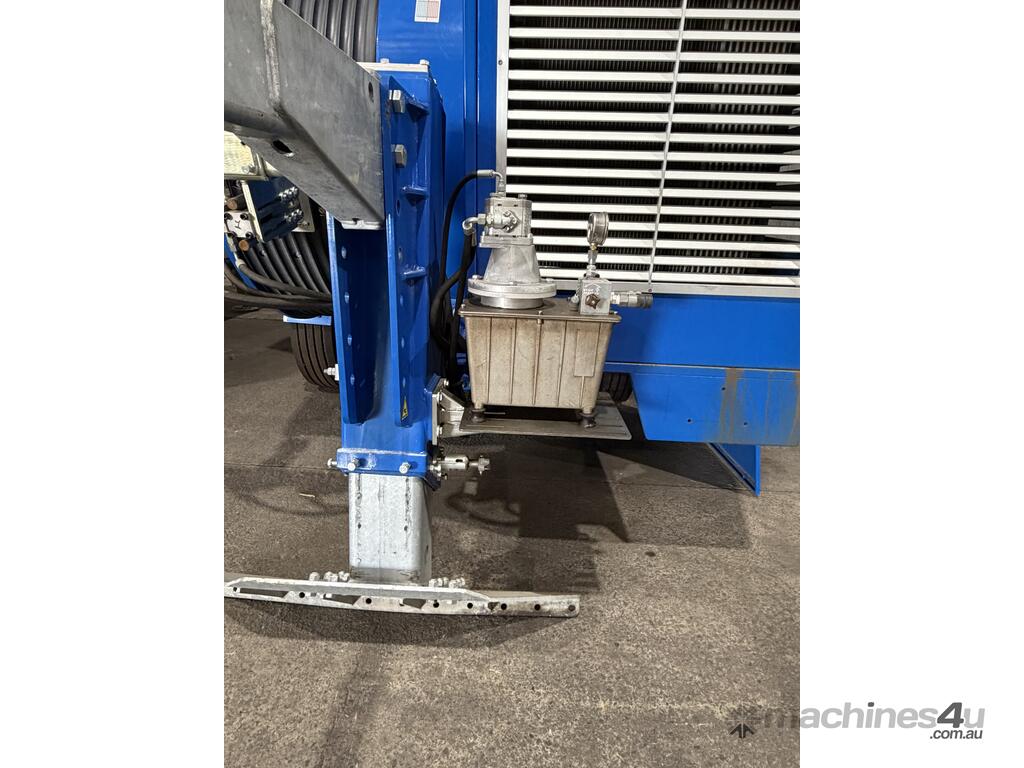

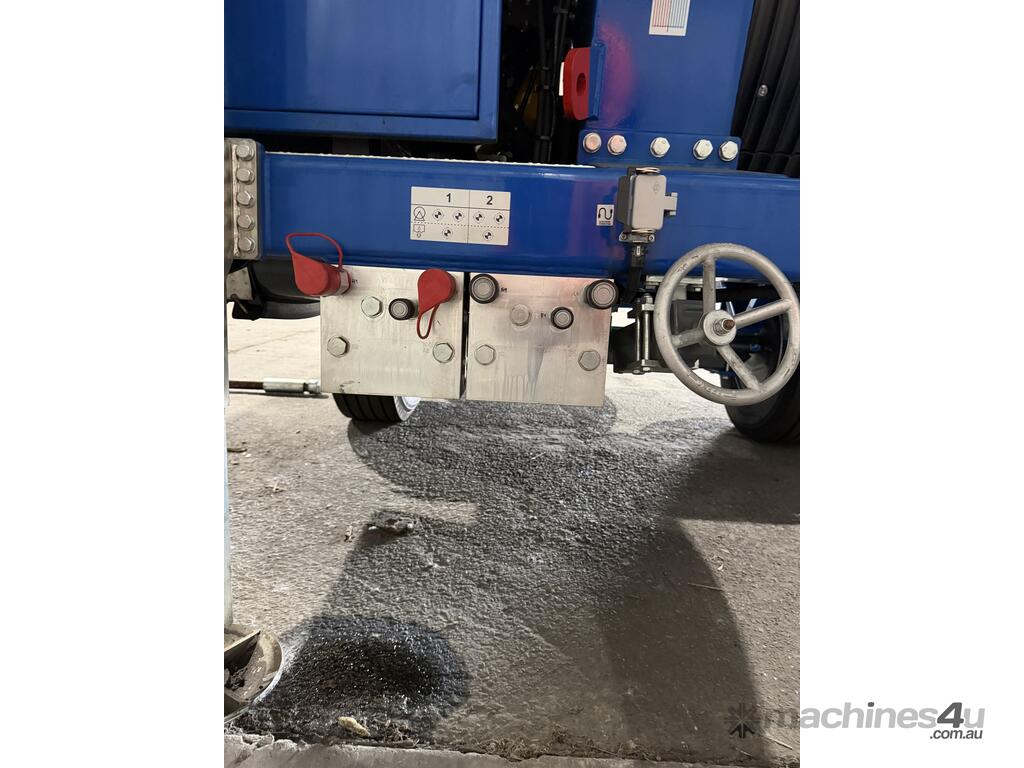

Hydraulic front plough, back stabilisers, grounding point and oil cooling system
Devices for coupling two pairs of bull-wheels and two auxiliary hydraulic circuits for additional equipment (reel-winders / reel-stands)
Performance
Max pull: 1 × 100 kN (or 2 × 50 kN)
Speed at max pull: 2.4 km/h
Max speed: 5 km/h
Pull at max speed: 50 kN / 50 kN (two-circuit)
Max conductor diameter: 2 × 42 mm
Max rope diameter: 21 mm
Dimensions & power
Dimensions (L×W×H): 4.50 × 2.25 × 2.80 m
Weight (without rope): 6,200 kg

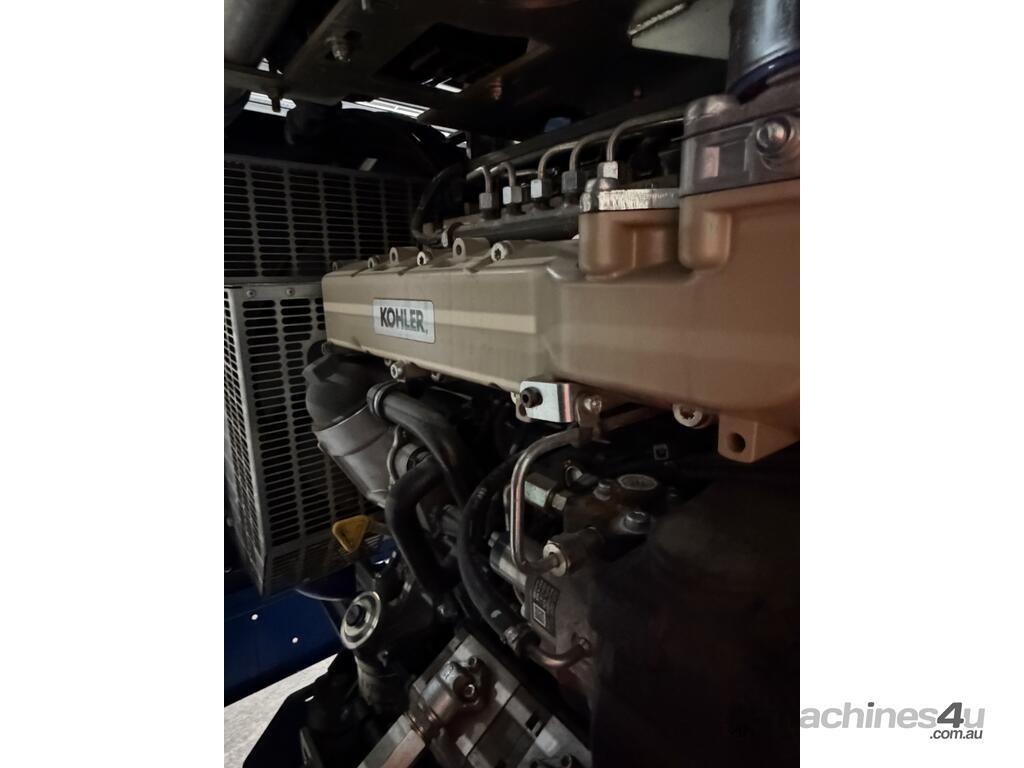

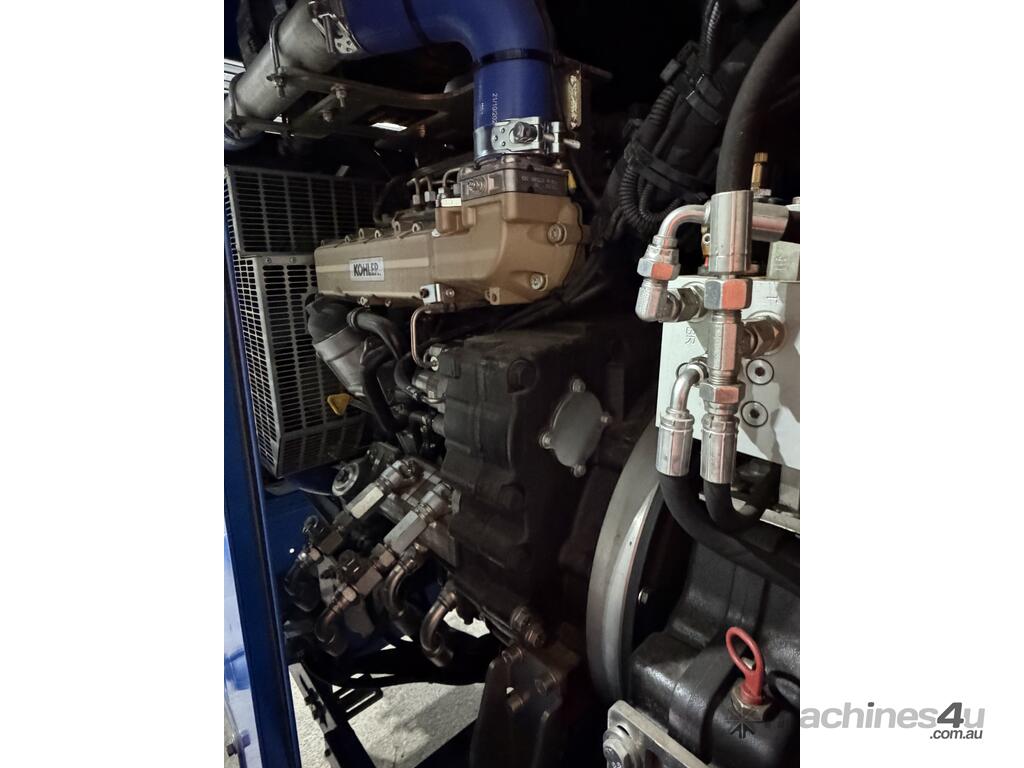

Engine / power: Diesel — 135 hp / 100 kW
Cooling: Water
Electrical plant: 12 V
Optional equipment / extras (select as required)
Tandem chassis with damped axles, air braking system & lights
Chassis homologation arrangement for road circulation
Hydraulic circuit to feed high-pressure press (up to 700 bar)
Device to control low tension values (2–15 kN) — fibre-optic stringing ready
Reel-winder arm for 1600 mm reels (1 or 2)
Cold-start device for operation to ?30°C

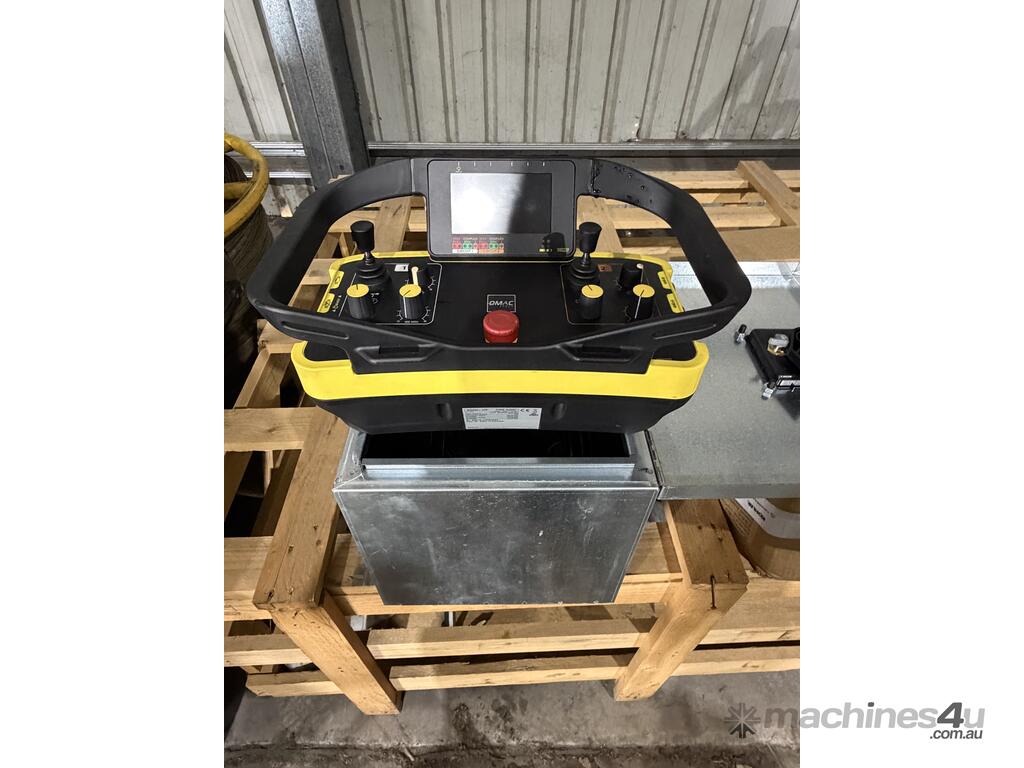

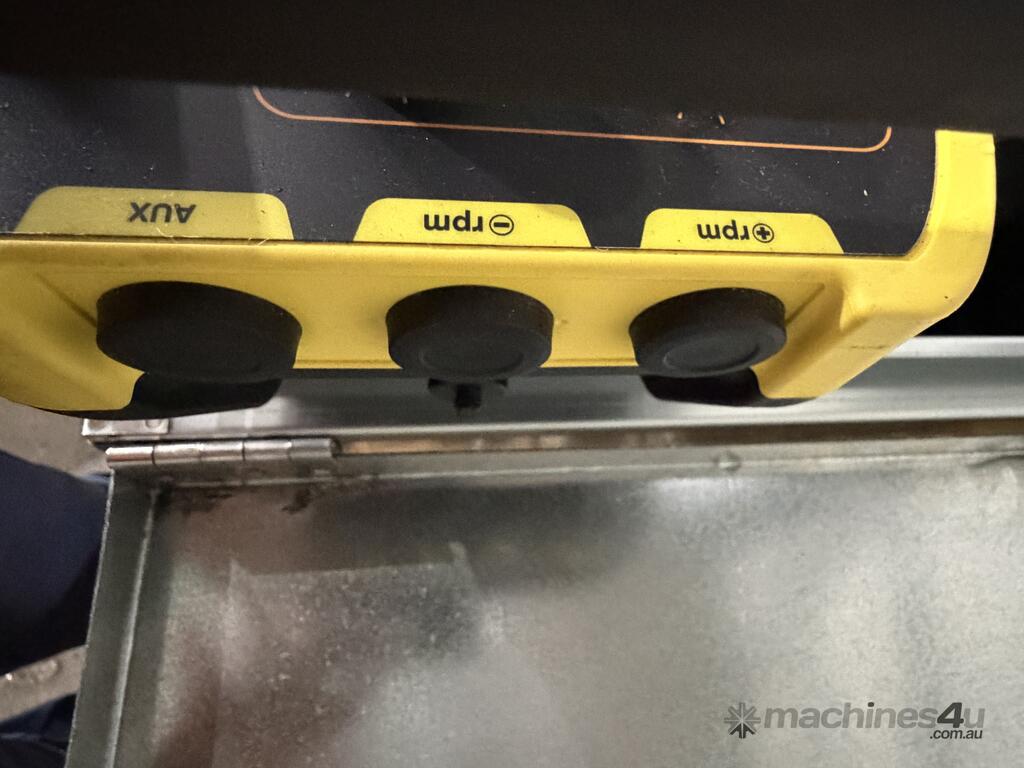

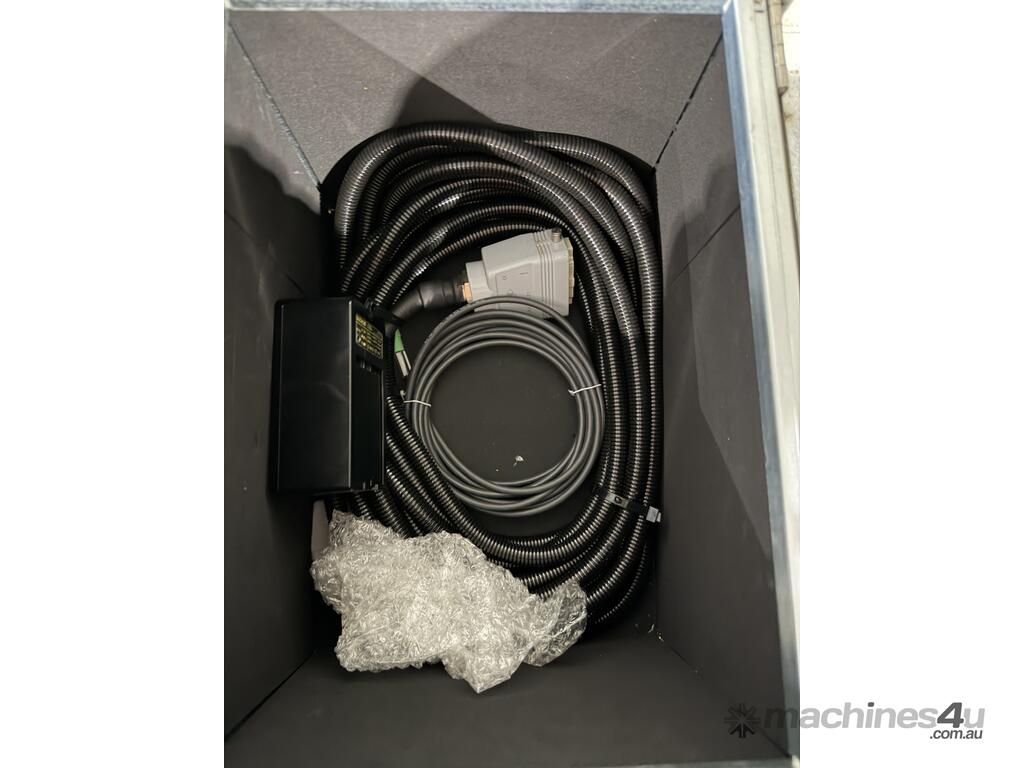

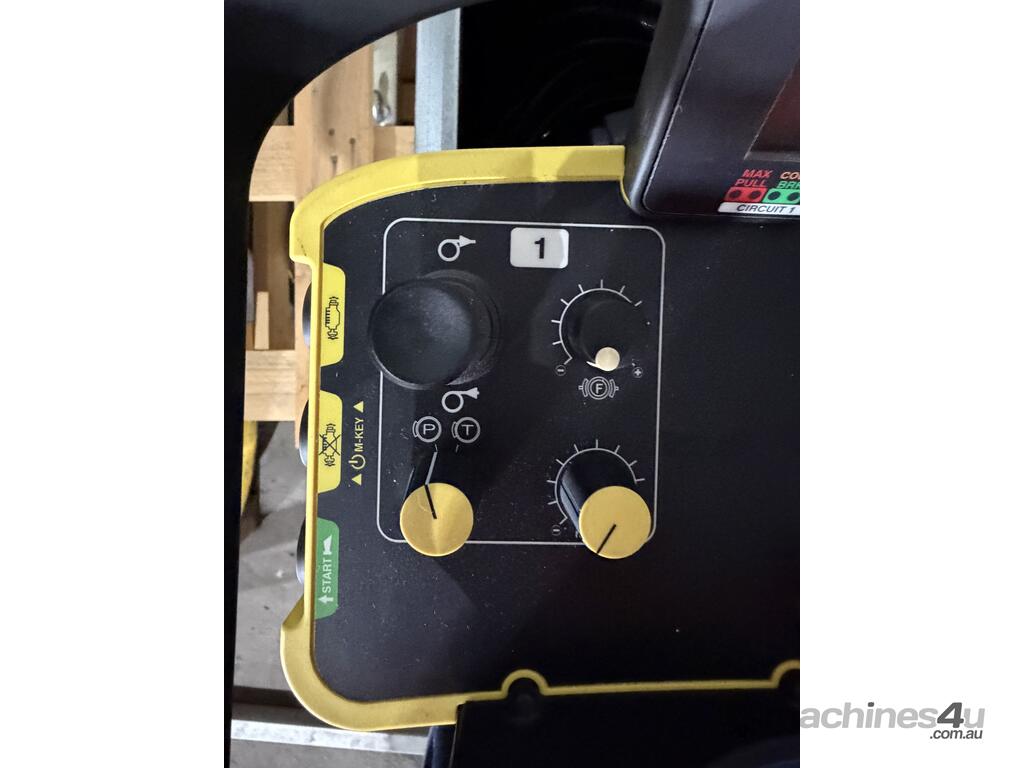

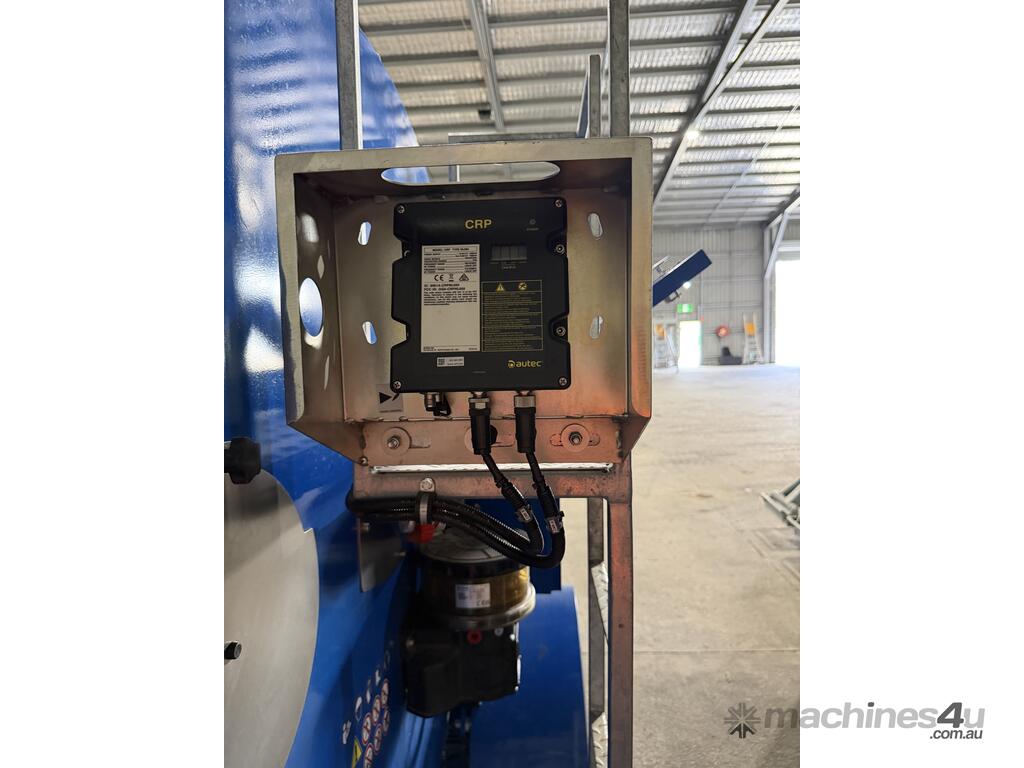

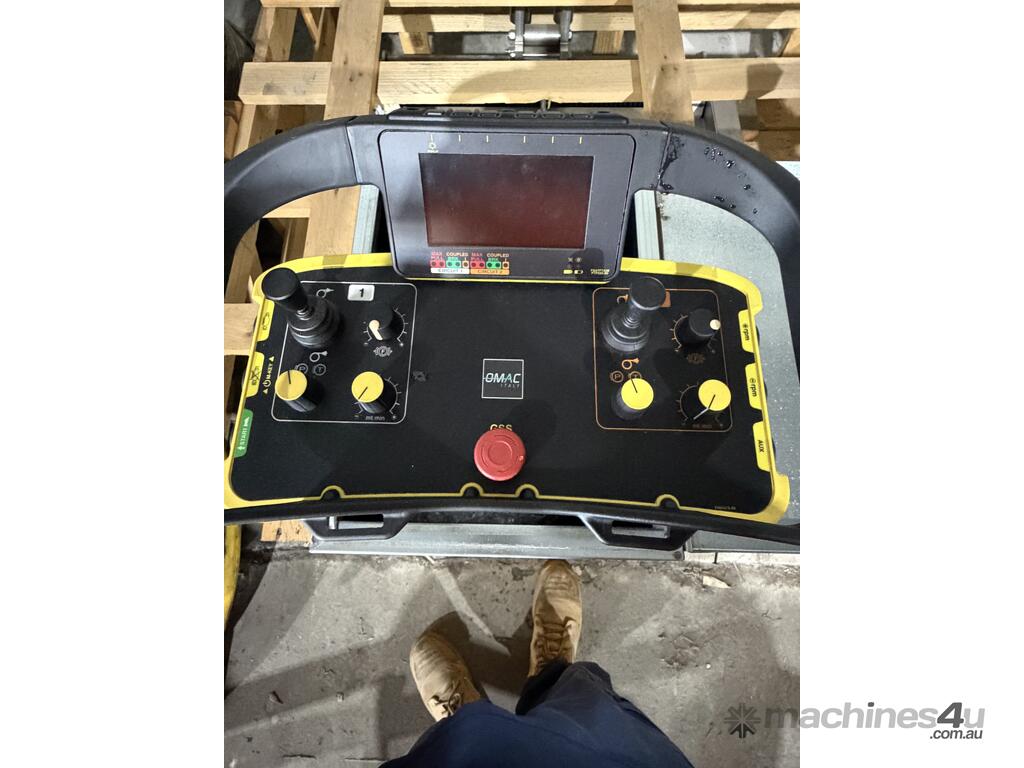

Remote control (cable 10 m) or radio control (max 100 m)
Automatic clamp for 2 ropes/conductors, printer for electronic recorder
Synchronising device for two machines (with cable remote)
Automatic lubricating system and chemical-treatment bull-wheels
Why buy this unit?
The PT100.22 is a purpose-built, site-ready machine for contractors who need robust pull/tension performance with modern electronic control, safety features and flexible configuration. Its dual circuits and optional synchronising device make it ideal for larger stringing jobs and for applications where redundancy and precision control are required.
