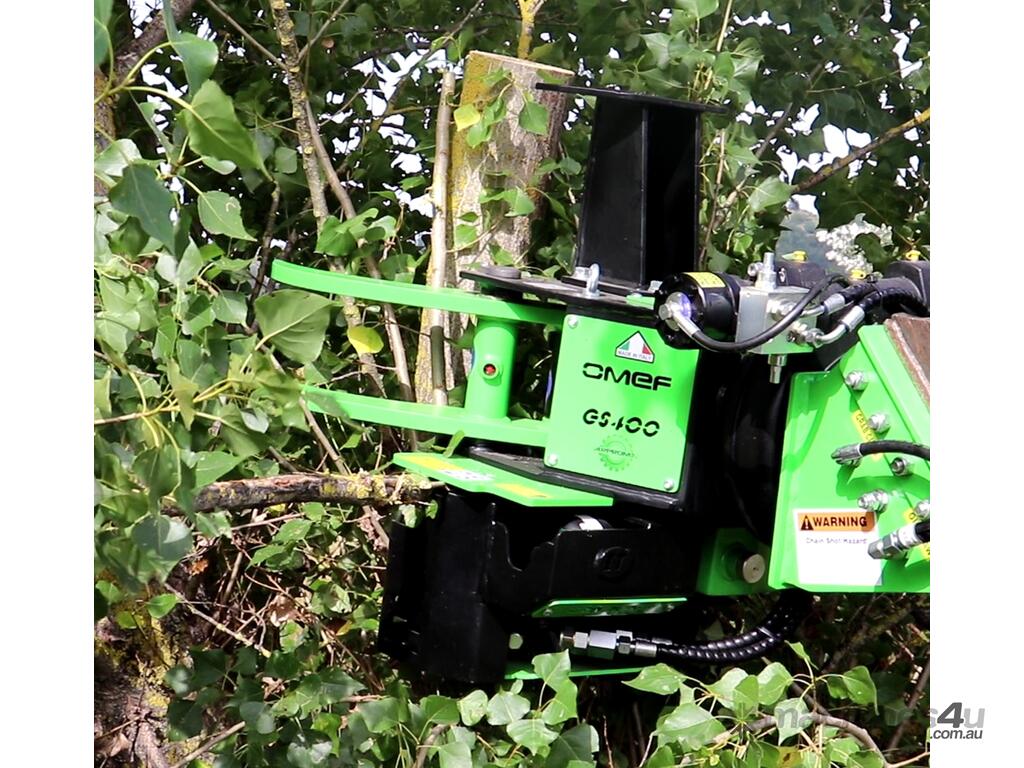

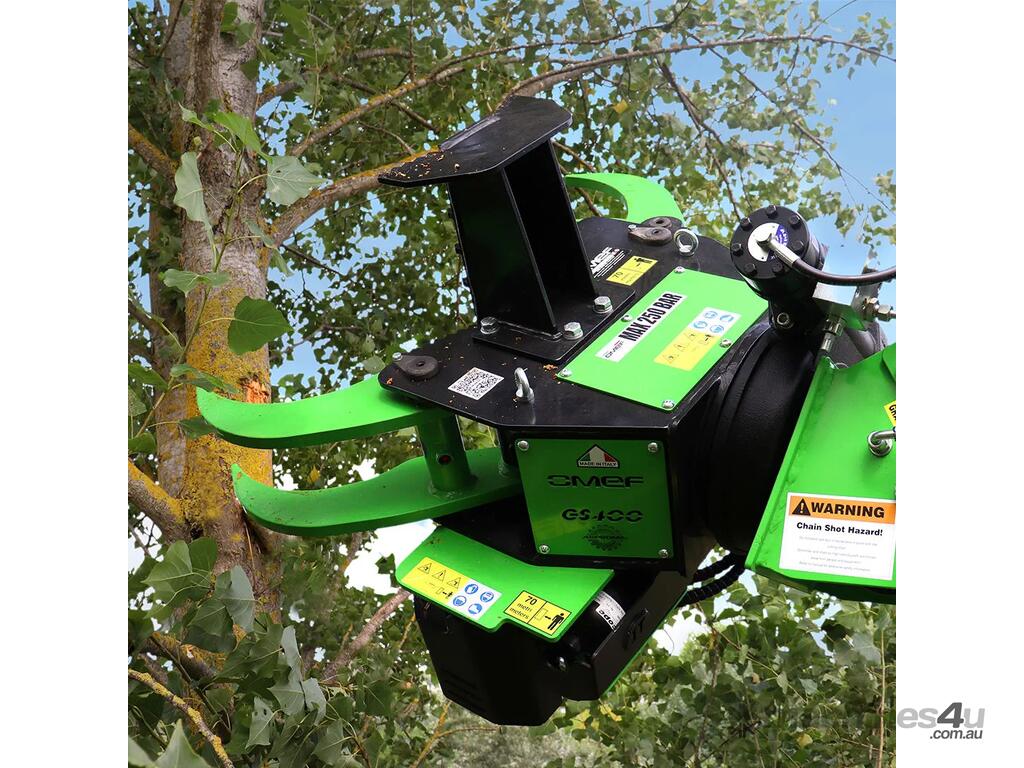

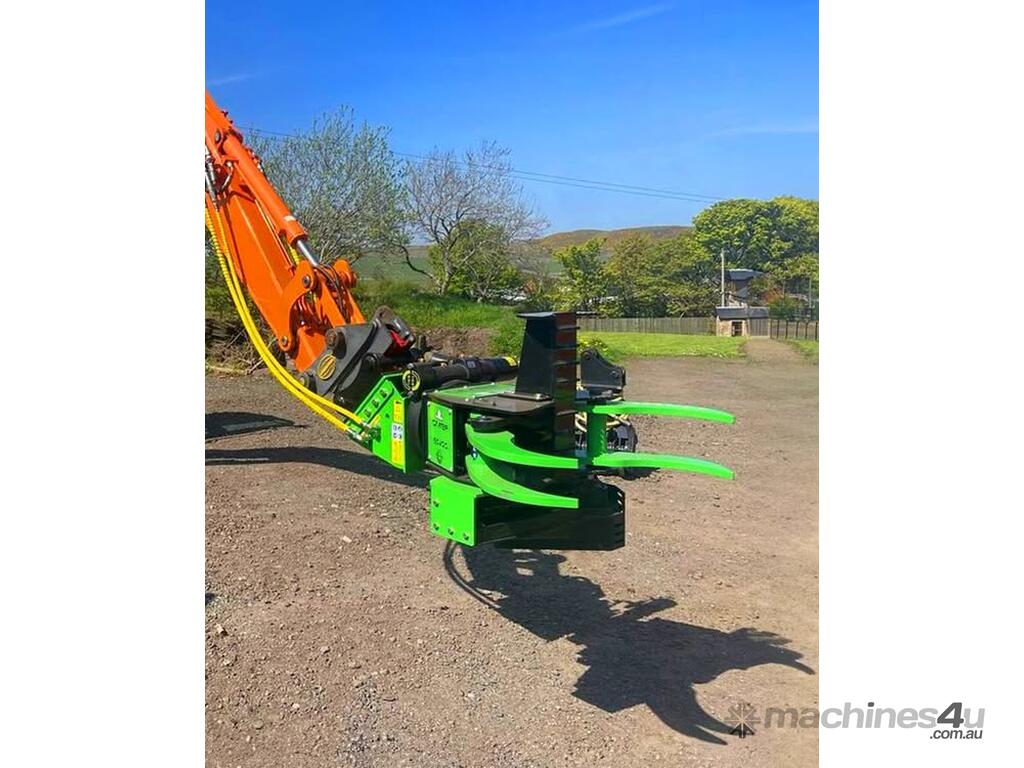

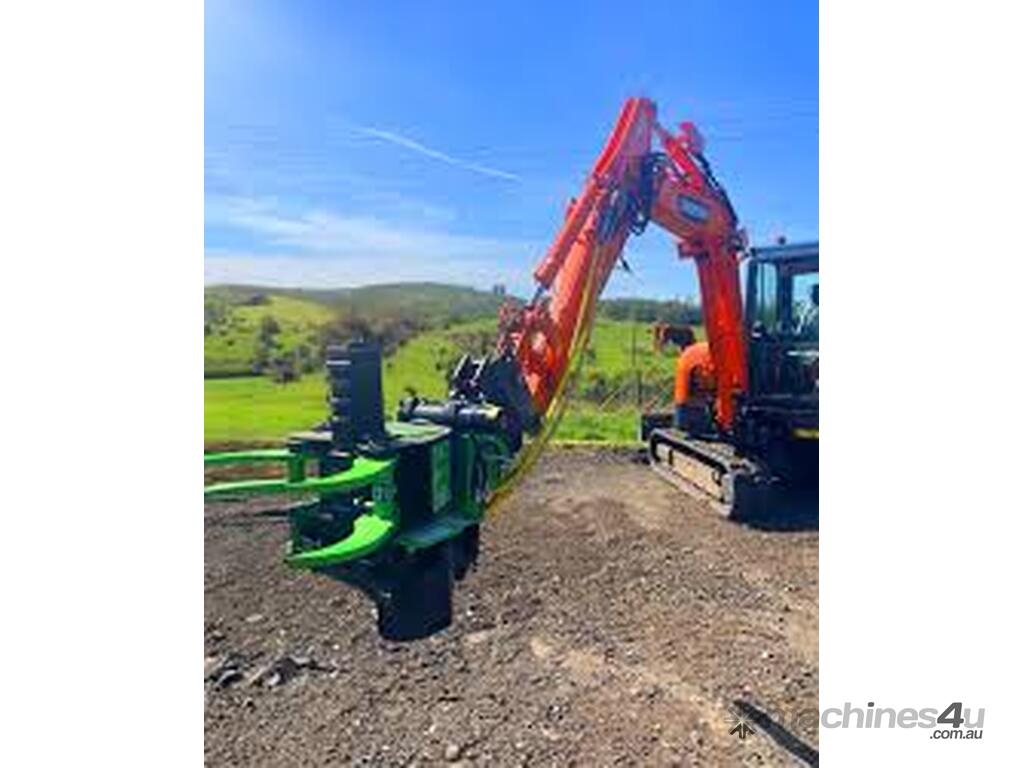

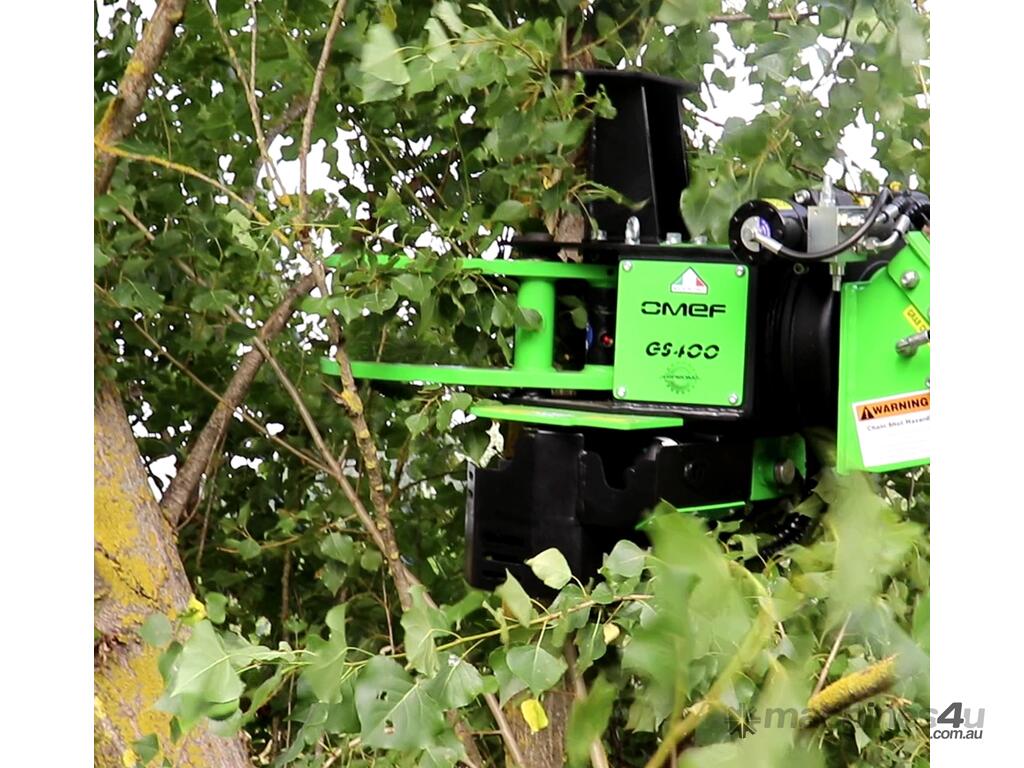

OMEF GS400 Grapple Saw for 8T+ Excavators

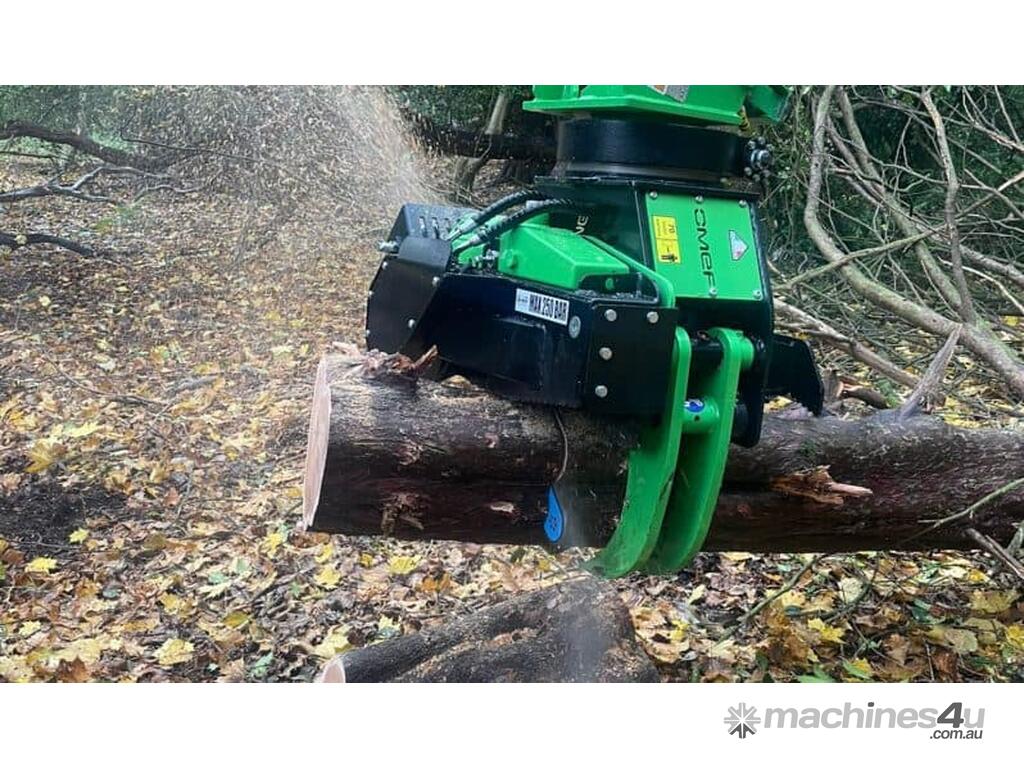

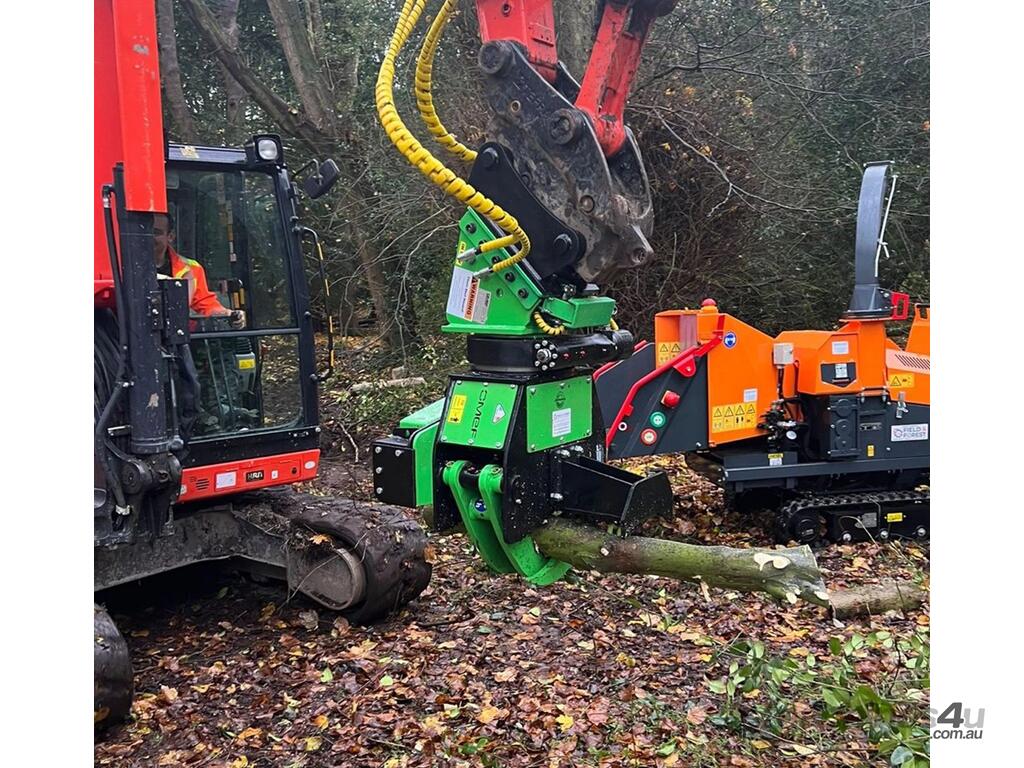

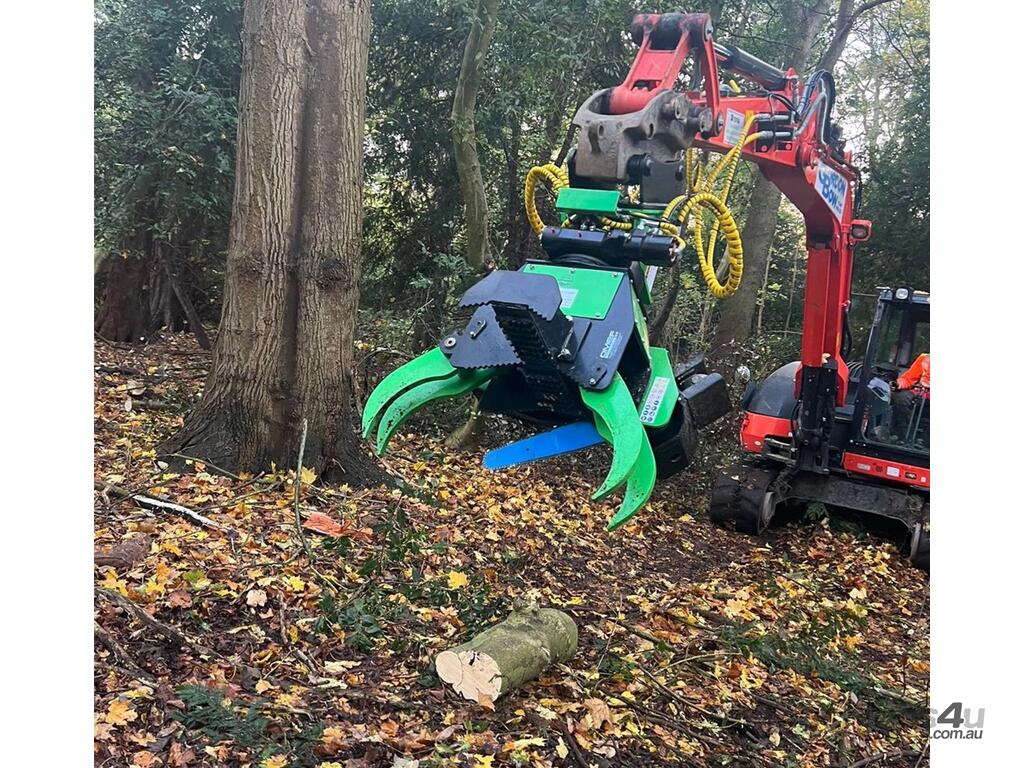

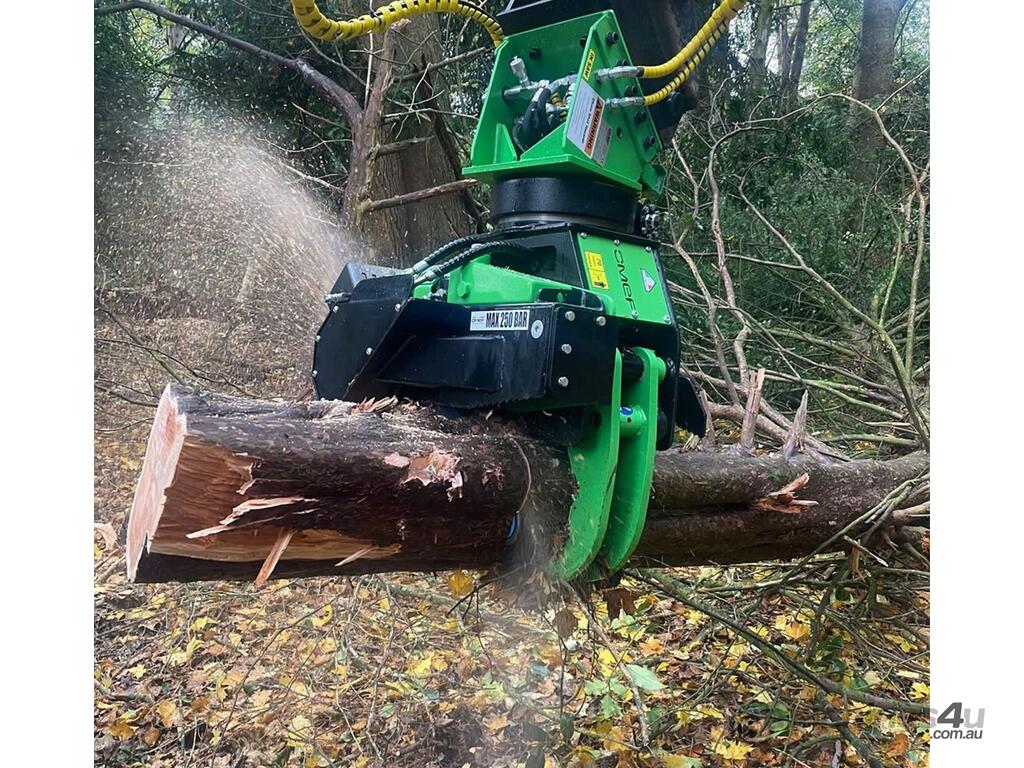

Designed to combine tree felling and handling into one attachment, the OMEF GS400 grapple saw acts as both a grapple for moving trees, and a cutter for sectioning logs into manageable pieces.

Features:
- Hydraulic Grapple
- 360 degree rotation
- Retractable chainsaw
- 2 Hydraulic circuits:
- a "one way flow" to saw blade
- a "two way flow" to rotation and grapple functions, toggled with a solenoid valve
- Safety lock valve on grapple hydraulic cylinder
- Inlet relief valve on saw blade
- Self braking motor with lock valve on rotation unit
- Automatic saw bar lubrication
- Manual mechanical chain tensioner
- Body made from wear-resistant steel
- Includes hitch, hoses and couplings

Specs:
- Weight: 390kg (standard equipment)
- Maximum Trunk Hold: 950mm
- Maximum Workload: 1500kg
- Maximum Cut Diameter: 400mm
- Saw Blade Length: 550mm
- Saw Chain: .404"
- Saw Motor: 6cc Piston Motor
- Oil Flow Required: 30 - 60L/min
- Oil Pressure Required: 180 - 250 Bar (2610 - 3625 PSI)

There is a larger model also available to suit 22T+ excavators (OMEF GS800)

Made custom to order in Italy by OMEF S.R.L.
Delivery Australia wide.
