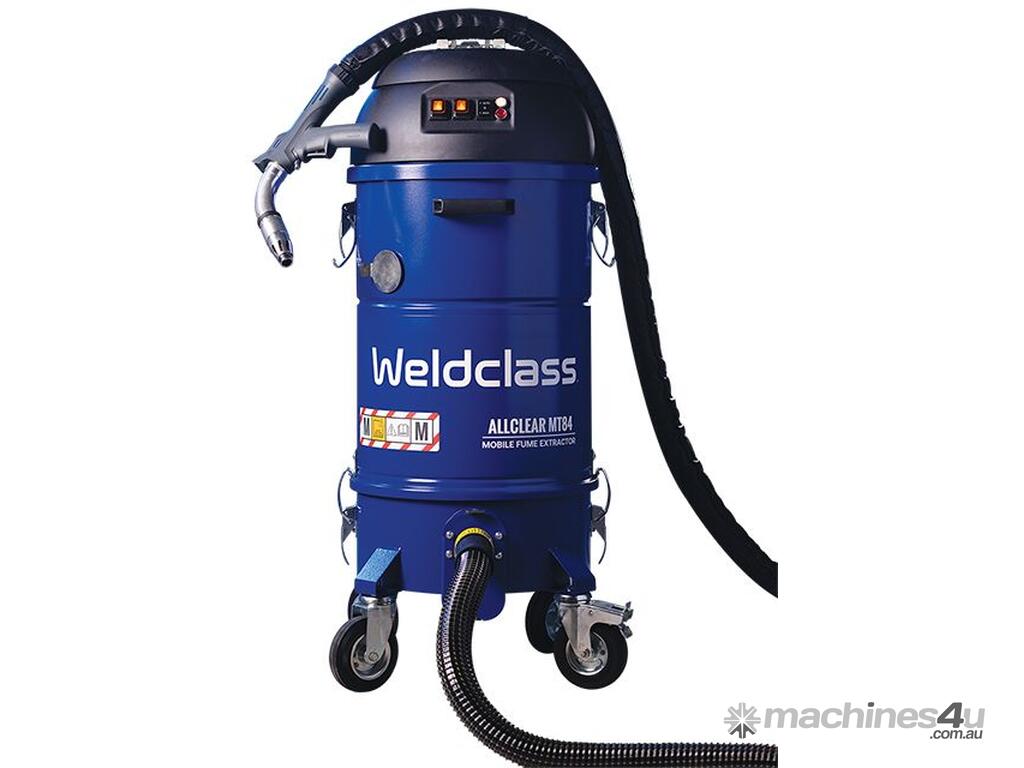

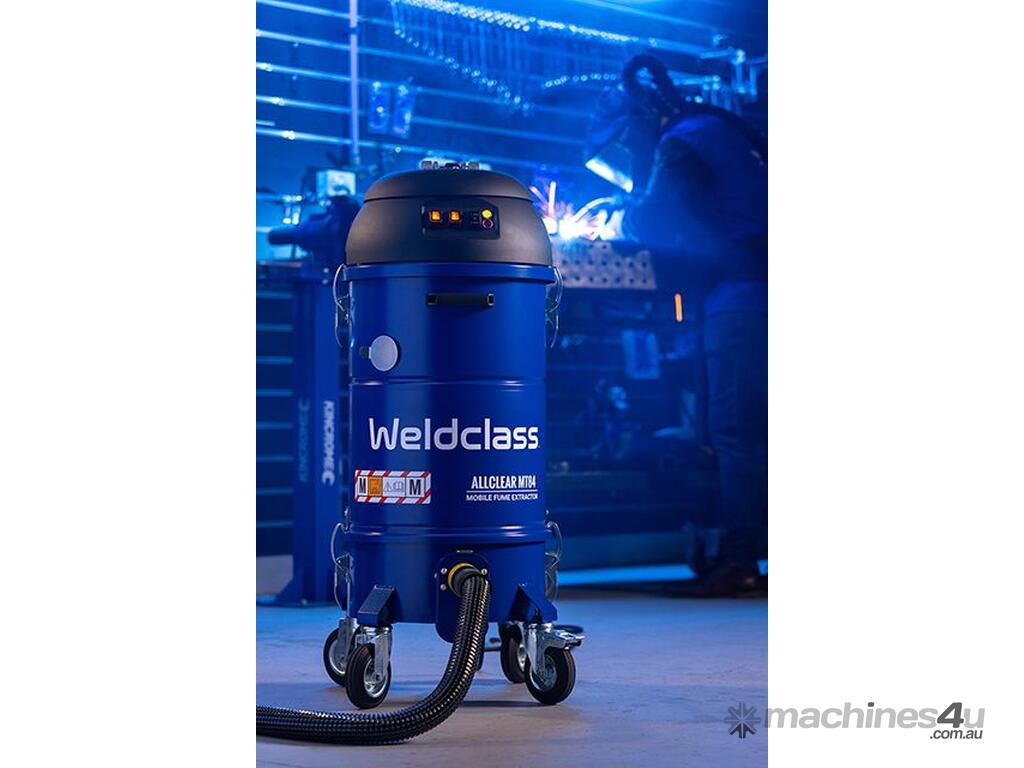

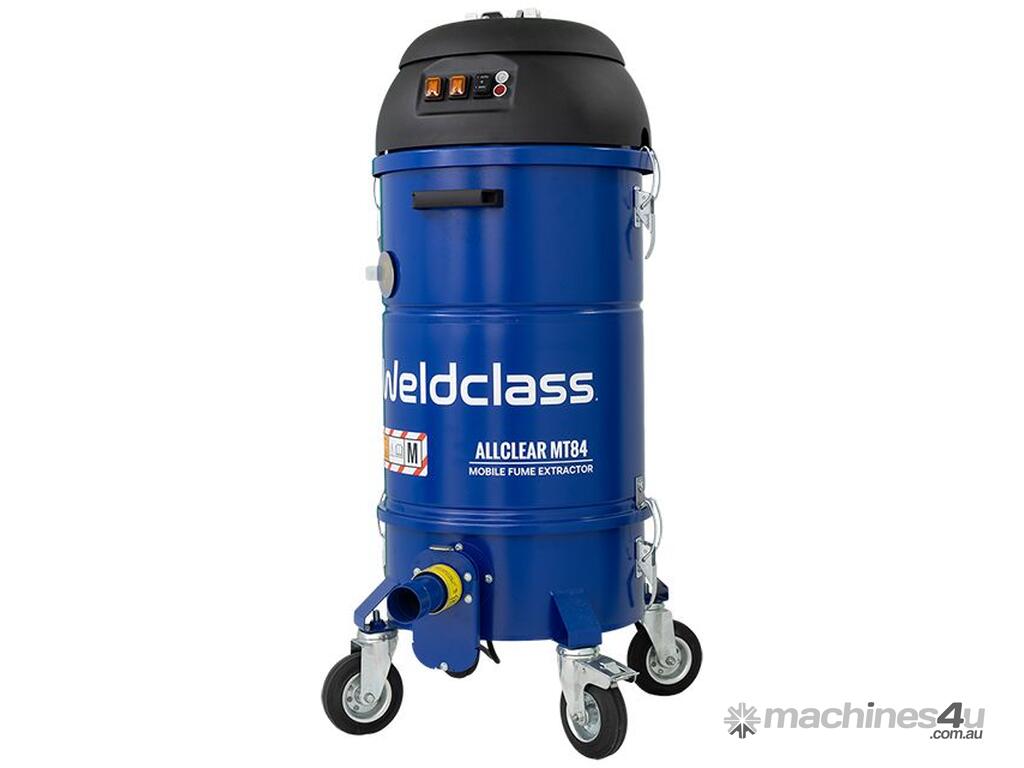

On-Torch Welding Fume Extractor ALLCLEAR MT84

The ALLCLEAR® MT84 is Australia’s most powerful on-torch welding fume extractor in it’s class. Made in Europe, the MT84 is a heavy-duty unit with powerful dual motors and high airflow/suction capacity, designed for high volume and frequent industrial use. Robust, portable, easy to use and maintain. Special anti-clog filter technology provides increased filter life, and jet clean function allows for easy and safe in-situ filter cleaning. Operates on 230V 15A single-phase power.

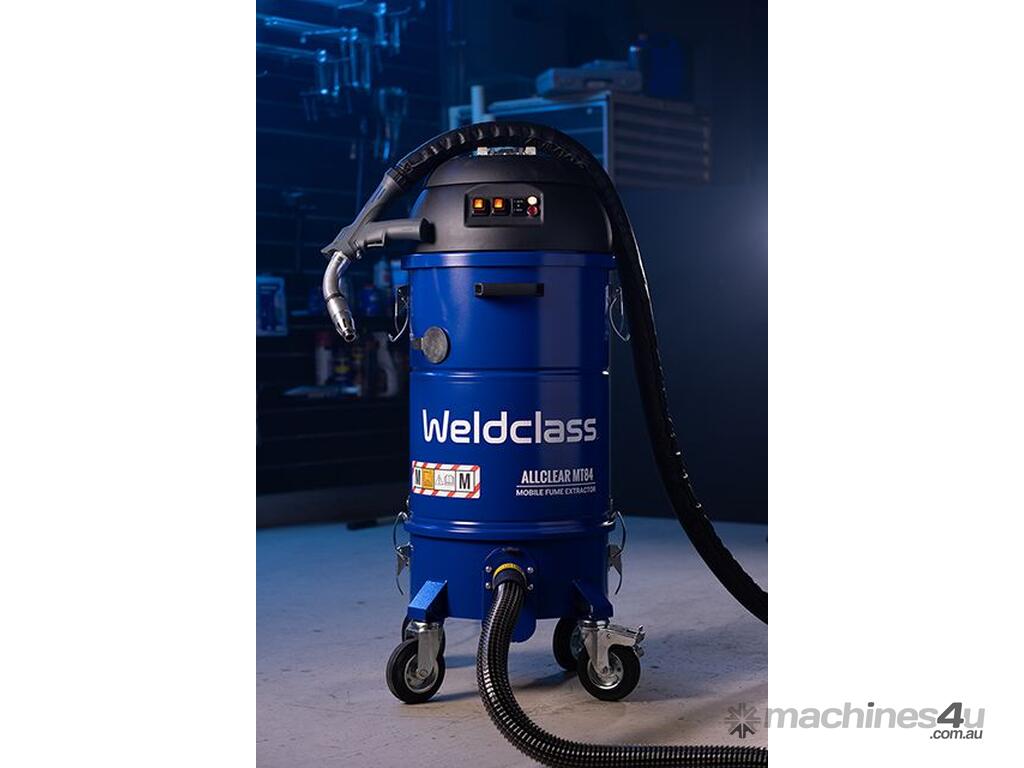

Available as a stand-alone unit, or as a package with ALLCLEAR® FT36E 4m MIG torch for the ultimate on-gun fume extraction package. Yet another ALLCLEAR® fume extractor that REALLY sucks!

AT A GLANCE:

Fume collection that follows your weld
Made in Europe
7 Year Warranty Offer*
Operates on ~230V 15A single phase power
Designed for high volume & frequent use: dual motors, large anti-clog filter, high airflow/suction
Australia’s most powerful on-torch extractor in it’s class
Fast, easy, and safe in-situ filter cleaning via jet-clean funtion
Compact and portable, with large heavy-duty wheels for rugged workshop use

APPLICATIONS

Gas MIG welding
Gasless and Flux-Core welding
NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

FEATURES

Made in Europe
Dual motors for powerful, best-in-class suction
High extraction performance: max suction pressure 25,000pa, max air flow 380m³/hour
Auto or Manual On/Off controls: Auto syncs with MIG torch trigger via current sensor*
Spark arrestor/filter shields filter from coarse/hot particles, and reduces fire risk**
Cleanable filter for extended service life & reduced operating cost

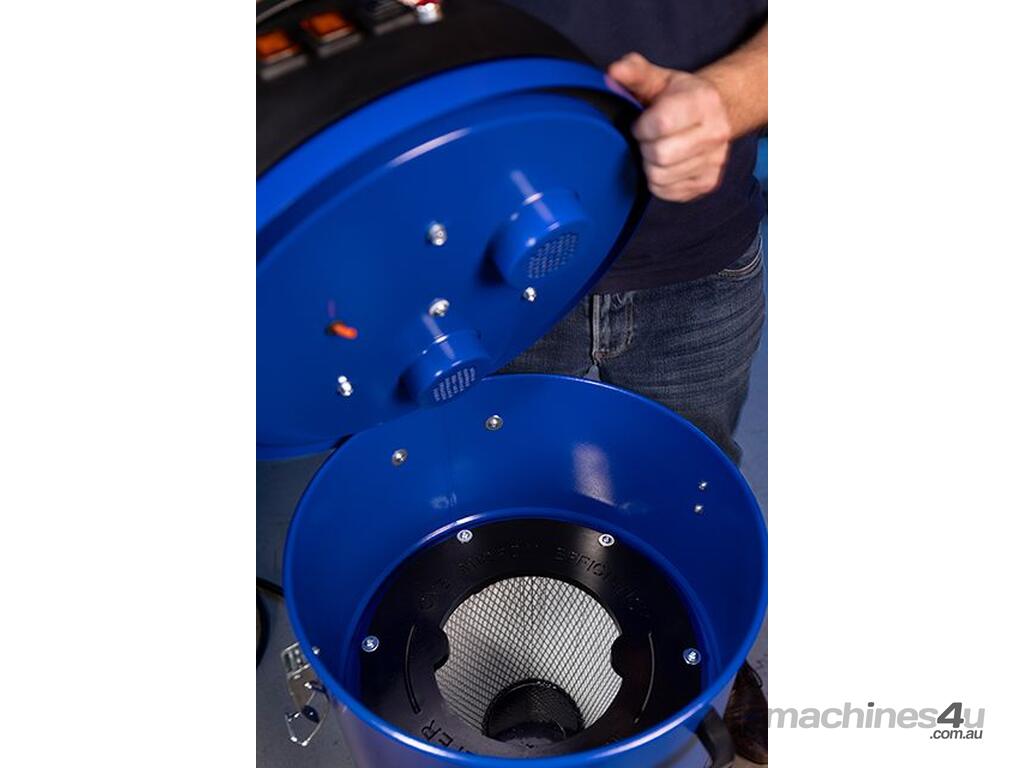

Unique Anti-Clog filter technology: Conical filter and upward airflow prevents debris buildup, boosting airflow and filter life
Large dust collection bin, allows safe removal of dust ejected from filter cleaning

PFTE-coated filter for ease of cleaning
Full filter warning

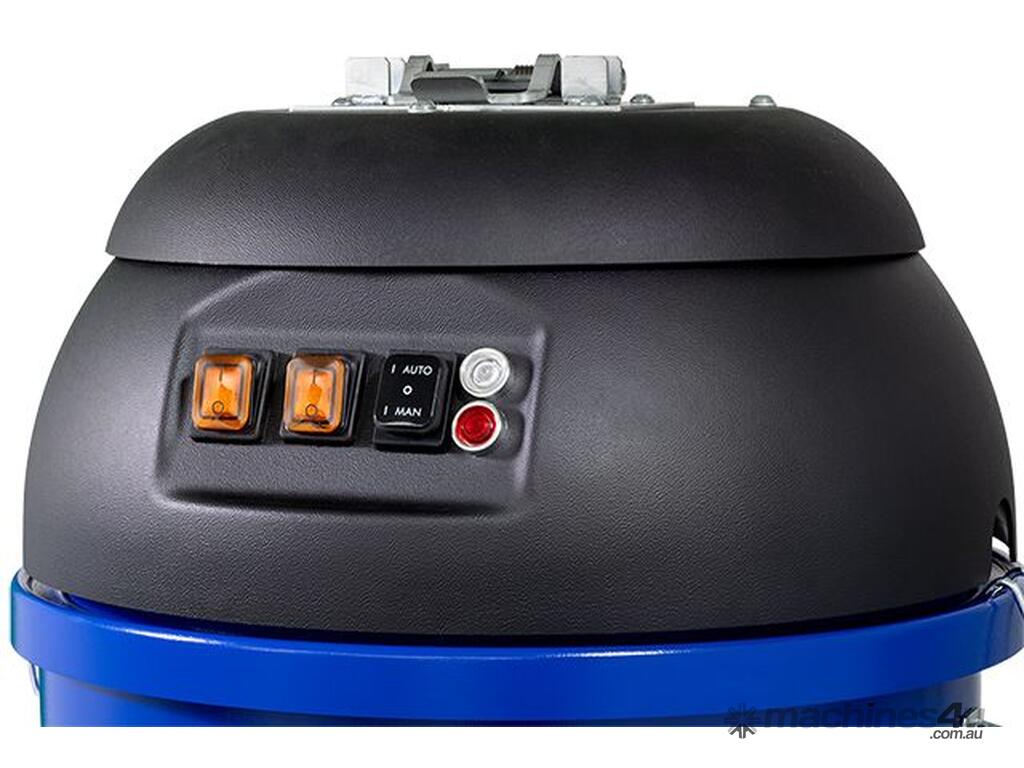

Individual on/off control of each motor (1 motor for standard suction power, 2 motors for maximum suction)


SPECIFICATIONS

Power supply: Single phase ~230V 15A
Dimensions (mm): H1070 x W470 x L485
Length 485mm excluding inlet tube, length 600mm including inlet tube
Weight: 34kg
Motor size: 2 x 1.3kw = total 2.6kw
Max air flow: 380m³ / hour
Max suction pressure: 25,000pa
Filter type: M Class PTFE 99.9% 0.3?m, conical cartridge
Filter surface area: 4m² with conical anti-clog technology
Filter cleaning: in-situ cleaning via jet-clean funtion, remove/clean filter and dust bin for periodic maitenance
Noise level: 72 dBA
Max suction hose length: 20m

MATCH WITH WELDCLASS FT36E MIG TORCH

Integrated fume extraction, ready to plug and play
Torch trigger syncs with extractor for auto on/off function

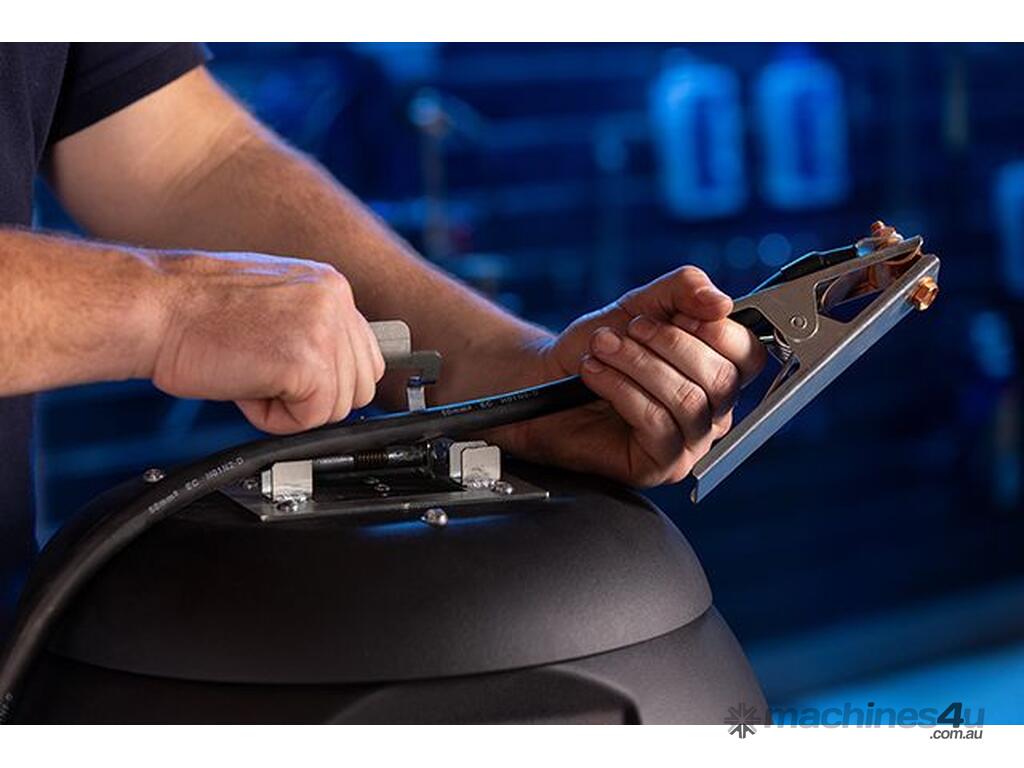

For auto on/off function, pass earth lead through current-sensing clip located on top of MT84 unit
Removable, fast changeover pistol grip
Uses common BZL 36 consumable parts
320A capacity

OPTIONAL ACCESSORES & COMMON SPARE PARTS

ALLCLEAR FT36E 4m Fume-Extraction MIG Torch (WC-06721)
Main Cartridge Filter M-class PTFE (WC-06726)

*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Fume extractors should not be used where aluminium dust (including grinding dust) is present, as this can be explosive when airborne. While aluminium welding fumes are safe to extract, most on-torch aluminium welding applications involve a high risk of dust presence. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
