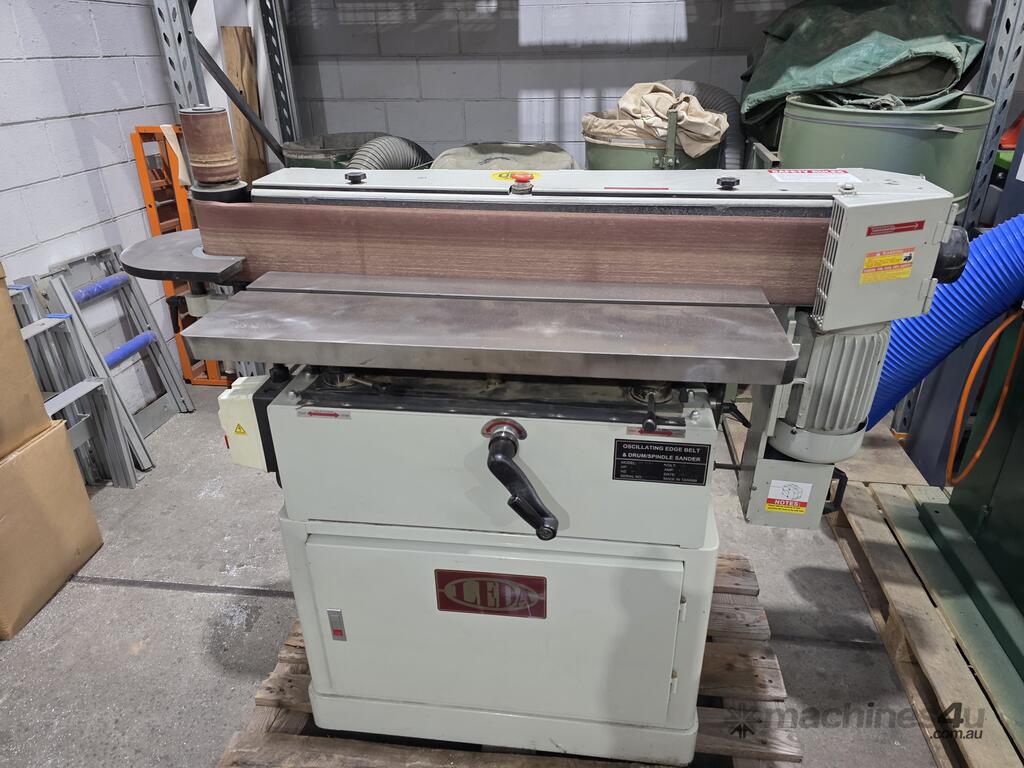

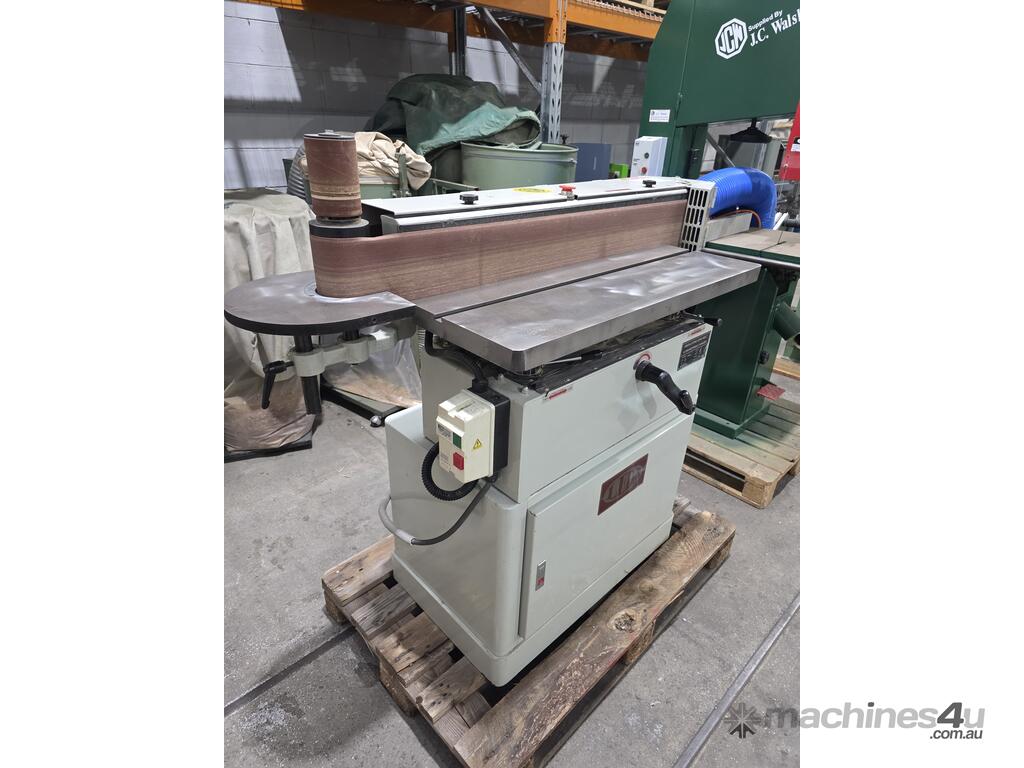

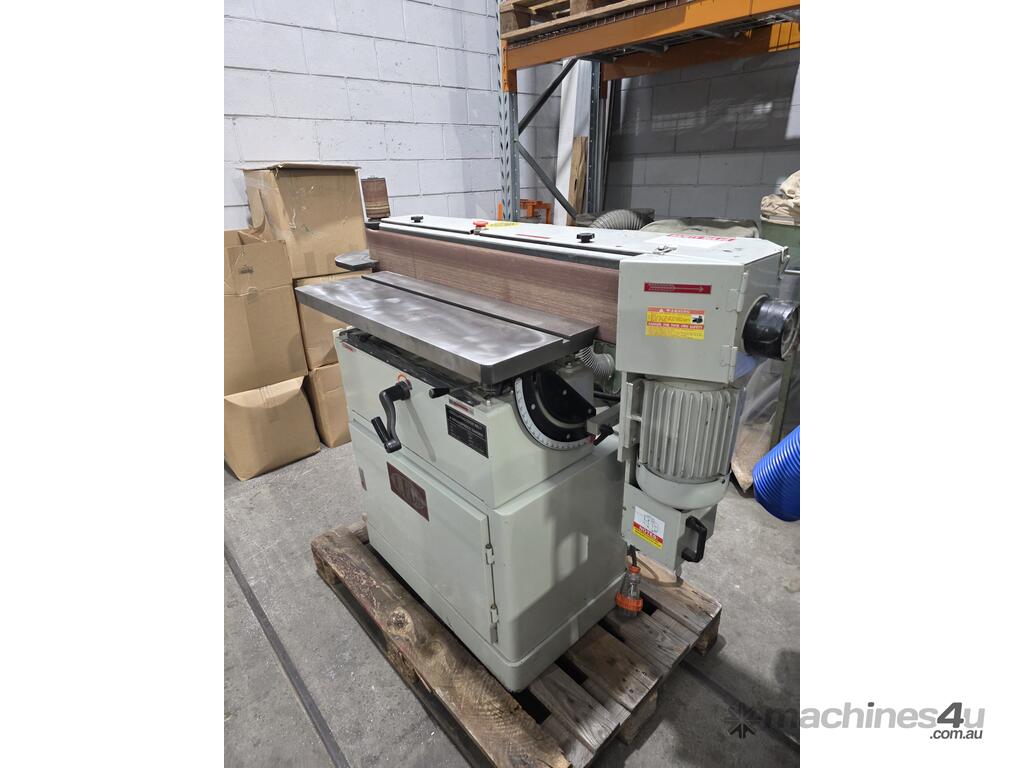

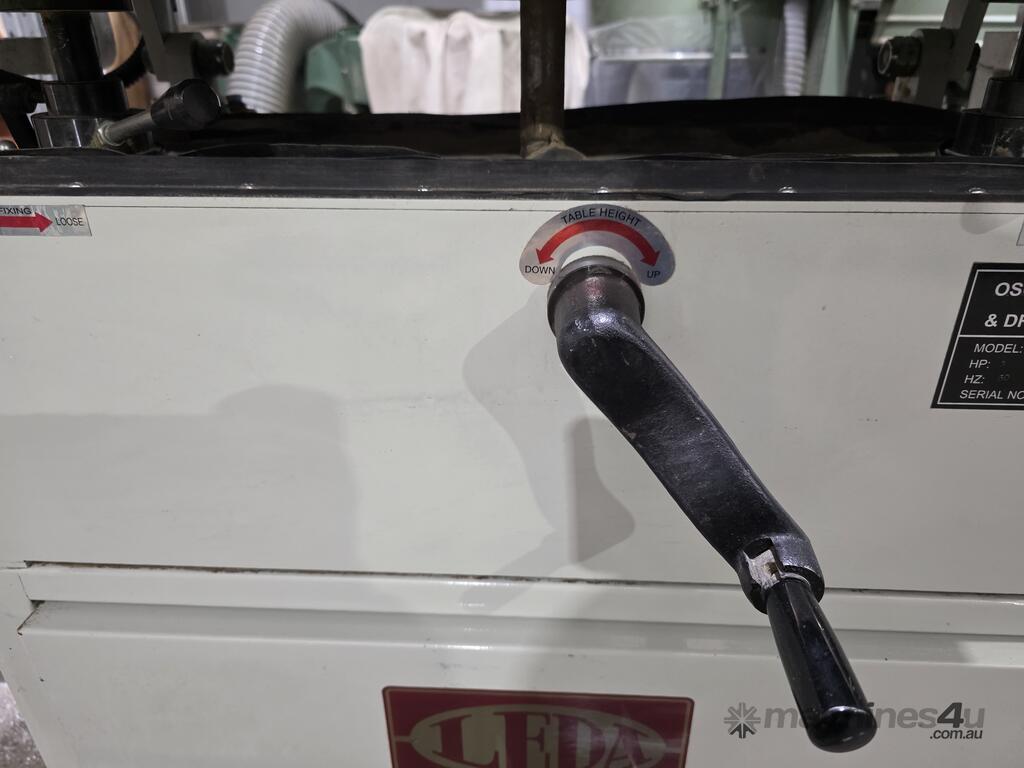

LEDA ES-6108 OSCILLATING BELT EDGE SANDER
Manufacturer: LEDA
Description
VERTICAL OR HORIZONTAL OSCILLATING BELT SANDING MACHINE
Specifications

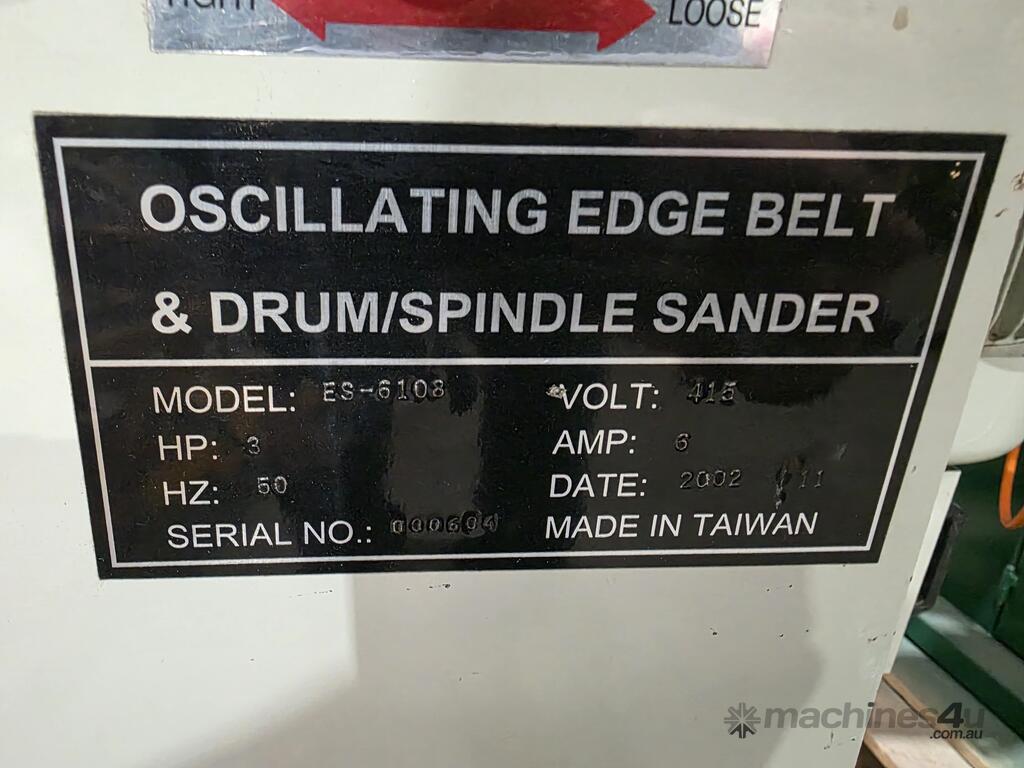

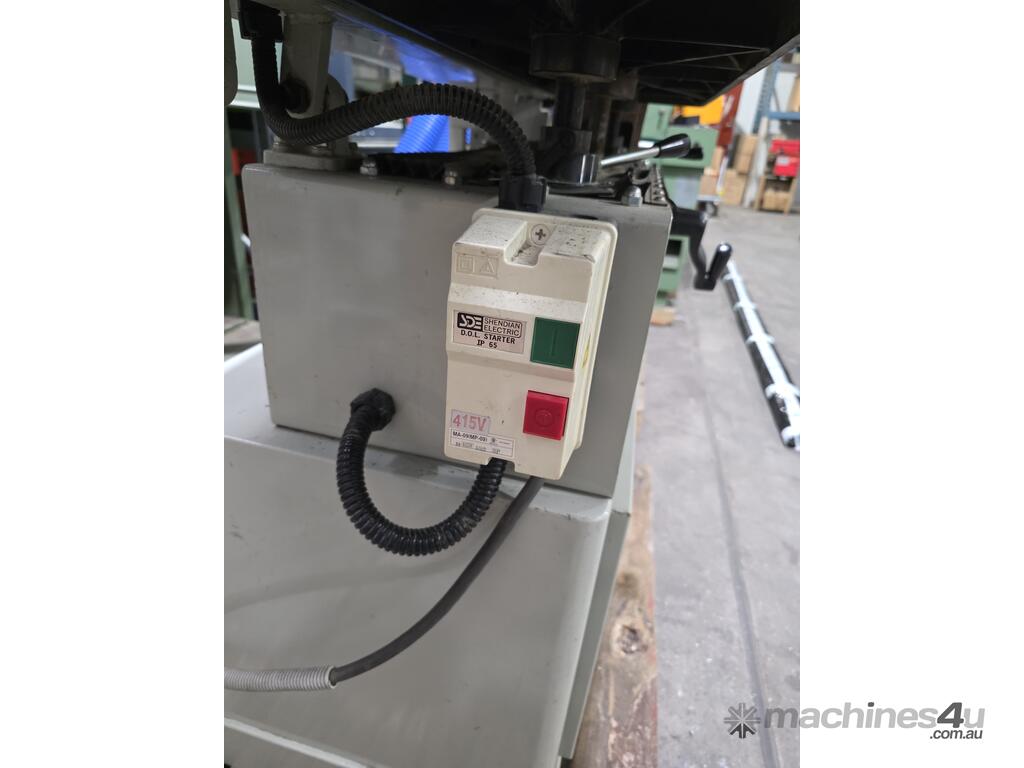

3hp three phase motor with push button on/off switch.
Complete sanding belt assembly tilts 90 degrees to work either horizontally or vertically as an edge sander, or at any angle in between.

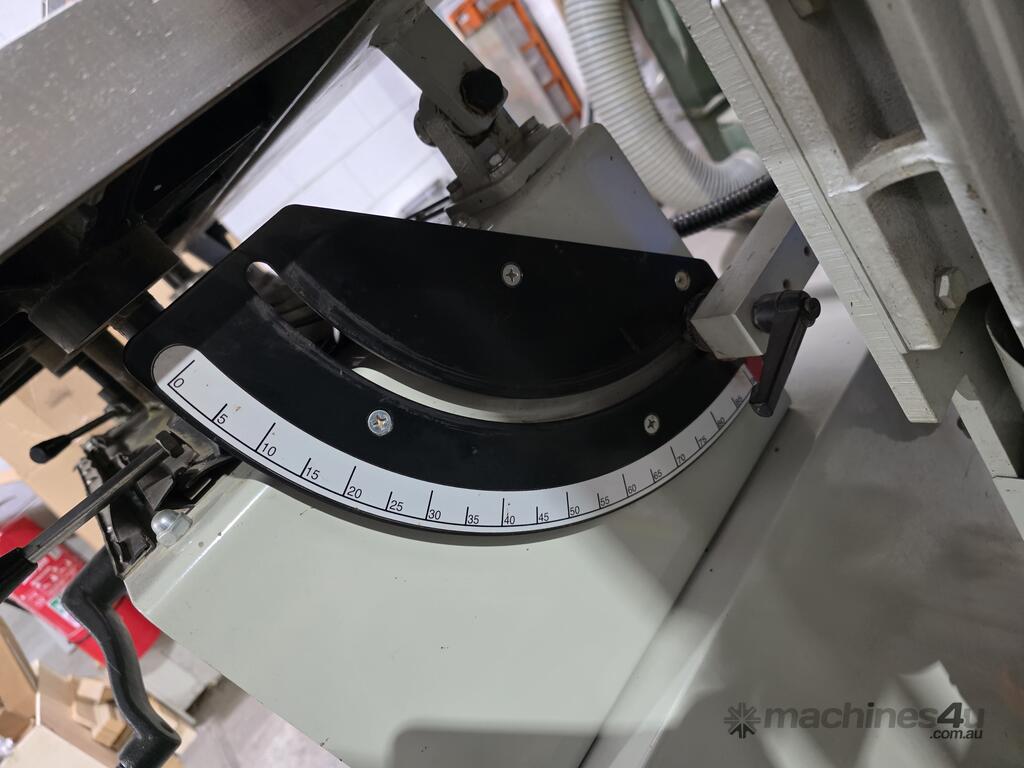

Cast iron work table with angle gauge at right hand end.
Fabricated sheet steel cabinet stand with wide base for good support.
Lever action quick tensioning of sanding belt.
Simple belt tracking adjustment to keep belt running on pulleys.

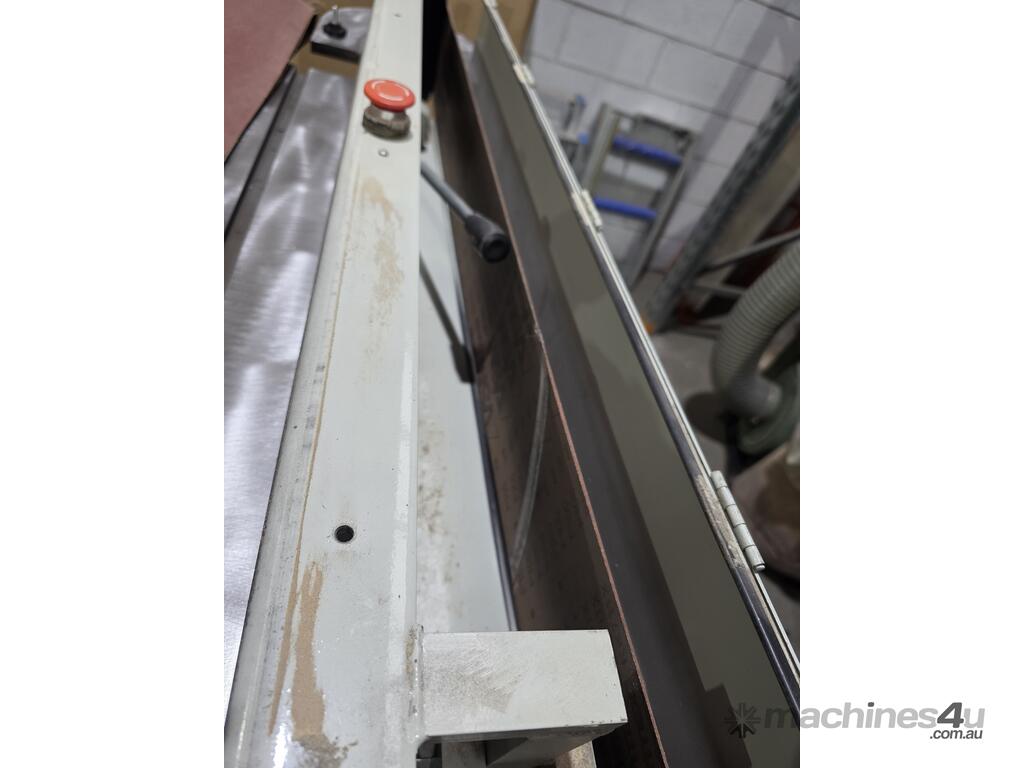

Cast iron work stop mounted across sanding belt.
Dust extraction take-off on both ends of sanding belt.
Cast iron support table on one end for curved work sanding.
One set of 3 sanding bobbins – 38, 51 and 76mm diameter.
Technical Data

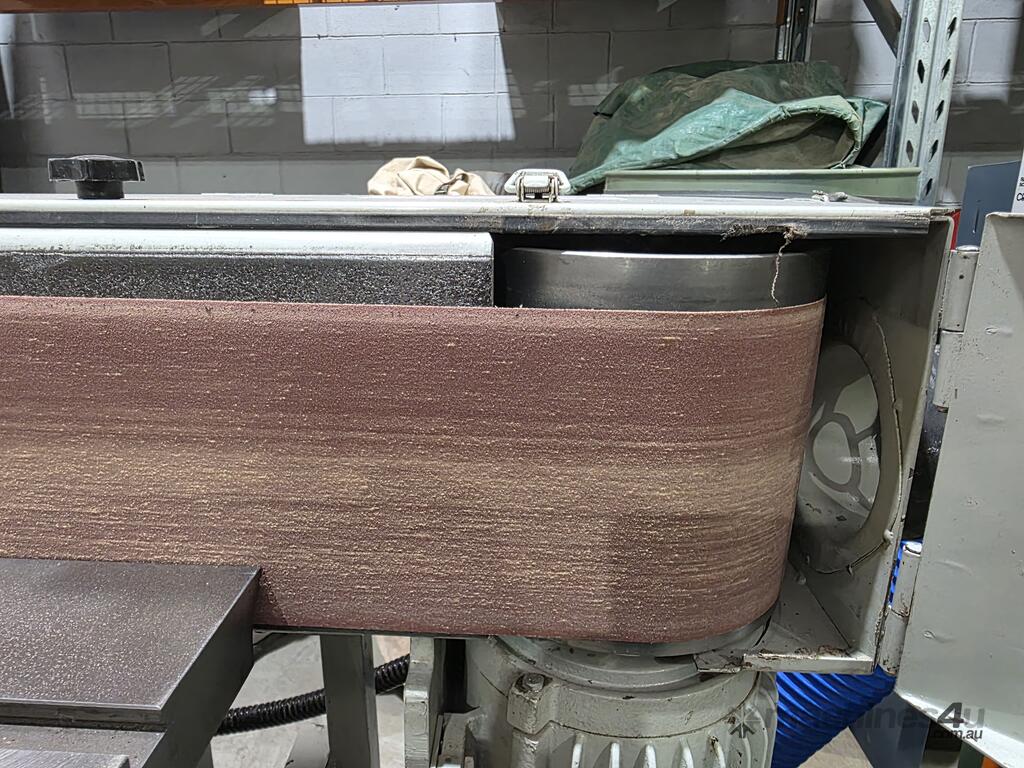

Width of sanding belt 152mm
Length of sanding belt 2743mm
Size of work table 900mm x 305mm
Length of working surface 1000mm
Speed of sanding belts 960 metres/minute
Nett weight of machine 220kgs
