Other BEDROCK 330D/336D /336E 4389383B

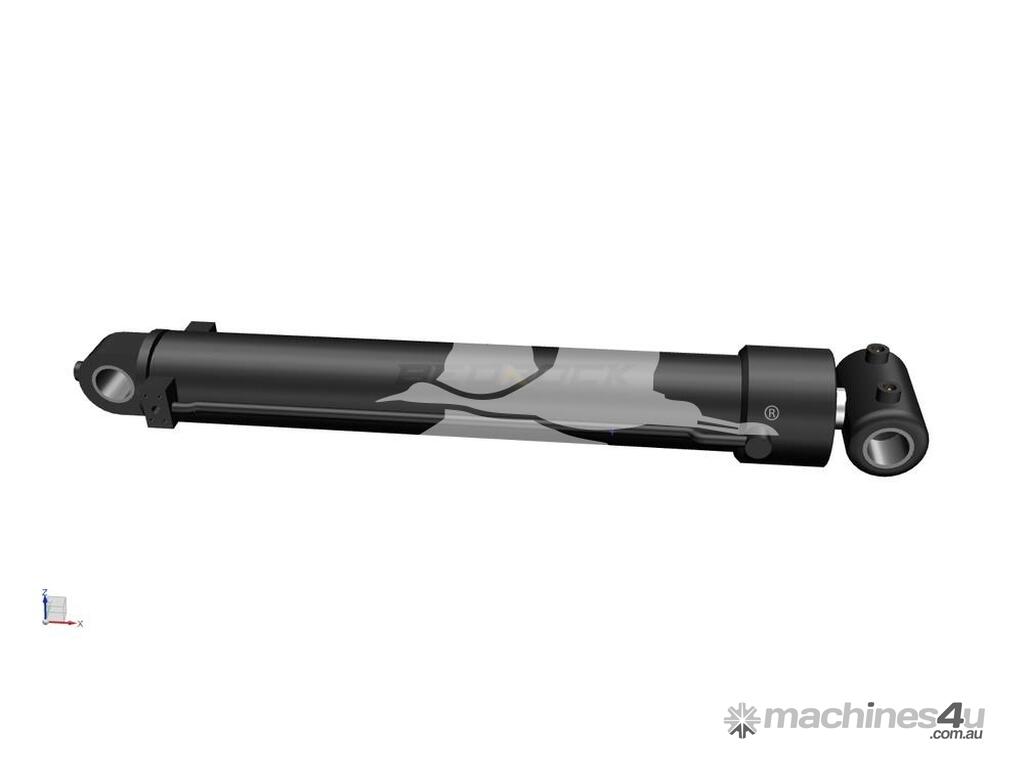

Cylinder for 330D/336D /336E PRO thumb

SKU: 4389383B

For thumb: 4430122, 4430124, 4430126, 4430128, 4430130, 4430132, 4430134, 4430136, 4430138, 4430140, 4430142, 4430144, 4430146, 4430150, 4430152, 4430154, 4430156, 4430194, 4430196, 4430198, 4765486, 6117413, 6174943

• Bore: 152.4mm / 6in
• Stroke: 1092.2mm / 43in
• Working pressure: 276 bar
• Test pressure: 345 bar
• Length range: 1750 – 2842.2 mm
• Pin sizes: 82.45mm (pin 4332100B, 4332098B excluded)

Shipping Specs:
• Dimension: 78.7in x 15.7in x 11.8in
• Weight: 463.1lbs, 210kg
