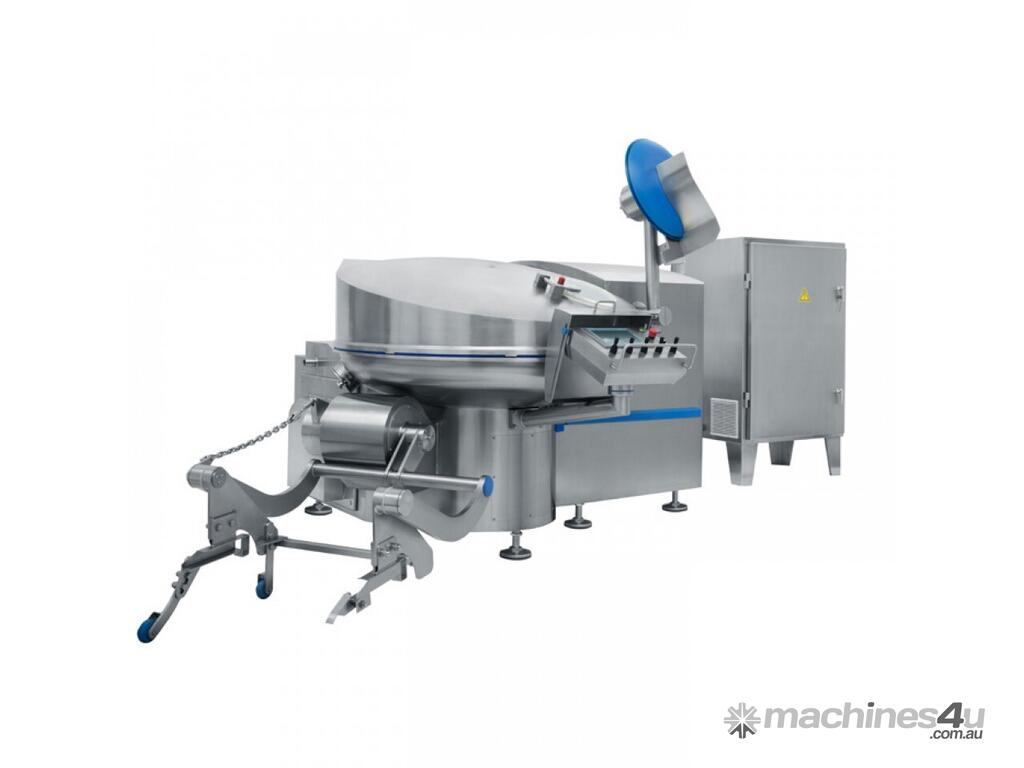

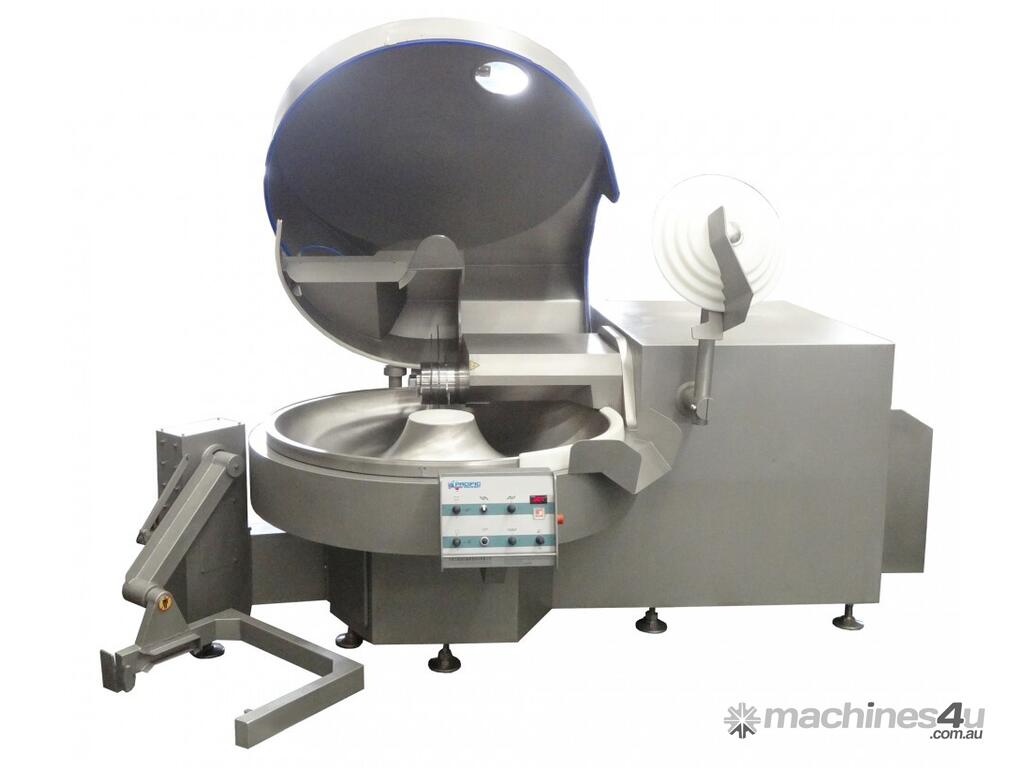

The Pacific 330L Vacuum Bowl Cutter is a high quality bowl cutter suitable for a wide range of applications in the small goods, butchery, nuts (such as peanuts, cashews etc) and fruit and vegetable industries, fitted with a powerful 106kw motor and capable of processing up to 260kg of meat per batch, it is also fitted with an integrated unloader ensuring ease of operation. This machine has 4 knife speeds and 2 bowl speeds and is fitted with German steel blades. It is very well designed and built, featuring over sized bearings on the main shafts that are precision machined to ensure smooth operation and a fully cast stainless steel bowl which also features an anti-overflow pan edge design.
Suitable for a wide variety of products from sausage, kranskys & hot dog emulsions, chorizo & salami, ground beef, pork or chicken, fresh sausage, summer sausage, liver pate, through to processed cheese, dried fruits, nut meal & butter and can also be used for salad mixes.

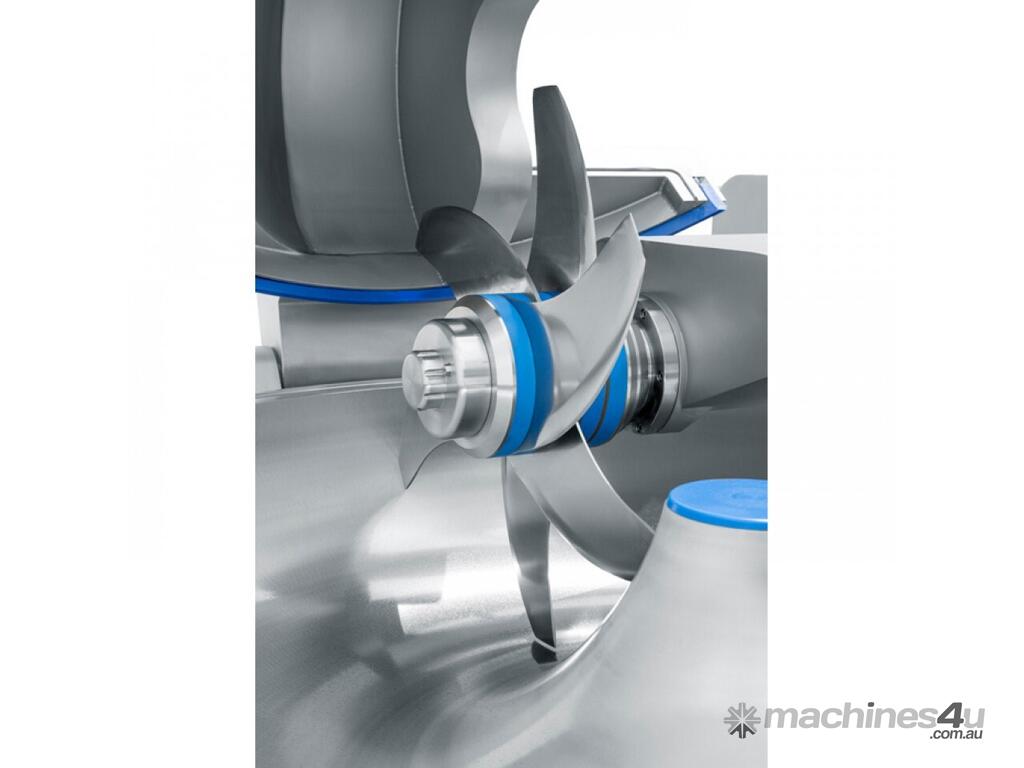

Sharp, curved high velocity knives are designed to chop rather than crush the product under pressure.
Stainless steel exterior & a solid stainless steel bowl
Multiple bowl & knife speeds allow you to fine tune the operation of the machine to suit your cutting requirements perfectly.
Powered un-loader saves time and money to unload product quickly and efficiently at the end of the cycle.
Reduce time by up to half spent grinding, mixing and re-grinding using a mincer/mixer.
Precision Machining: CNC-processed critical parts for exceptional tolerance.
VFD Control: Bowl cutter variable-frequency drive up to 3600 rpm.
Heavy-Duty Bearings: Ø 50 mm imported bearings with four-stage sealing.
High-Performance Knives: Six heat-treated, high-hardness blades with precision cutting.
Versatile Output: From coarse granules to fine paste; ideal for mixing meat with additives.
Vacuum Operation: Eliminates air pockets, reduces oxidation and microbial growth.
Enhanced Yield & Flavour: Superior cutting and mixing increases throughput and product quality.
Model: VBC330L
Bowl capacity: Up to 260 Kg (330L)
Bowl speeds: 7.5/14 Rpm
Knife speeds: 750/1500/3000/3600 Rpm
Voltage: 380-415V, 50hz. 3 Phase
Power output: 106kW
Construction: Stainless steel body & frame, Mirror finish polished stainless steel bowl
Total weight: 5140 kg
Overall dimensions (mm) 3950 × 2850 × 2200
