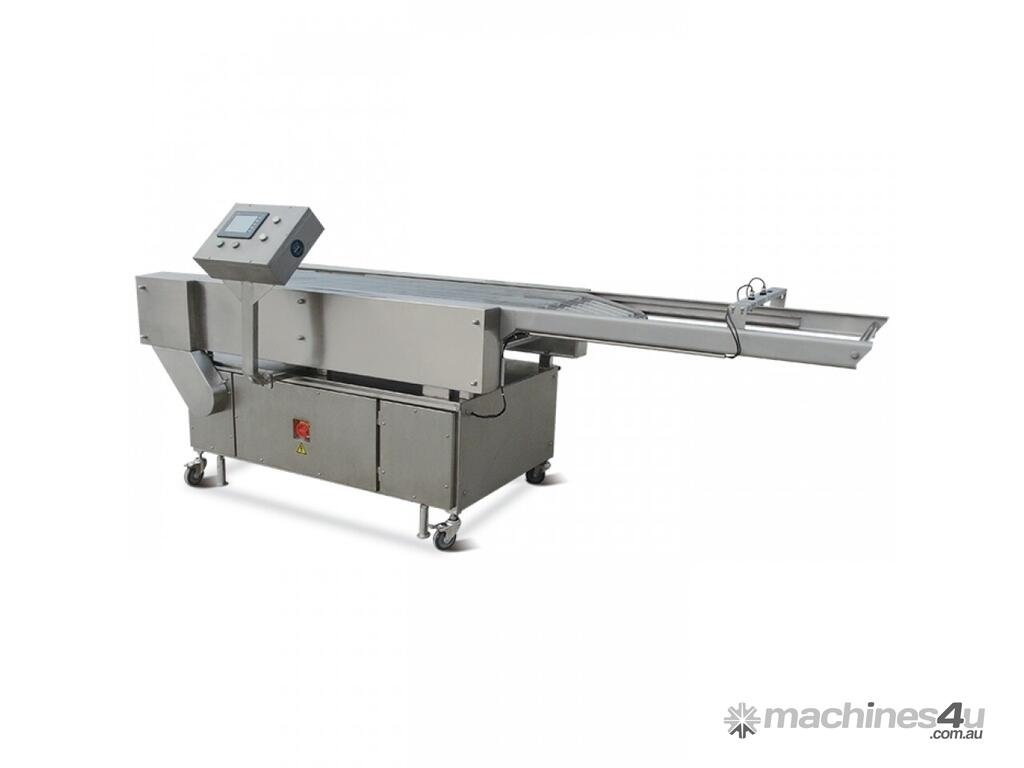

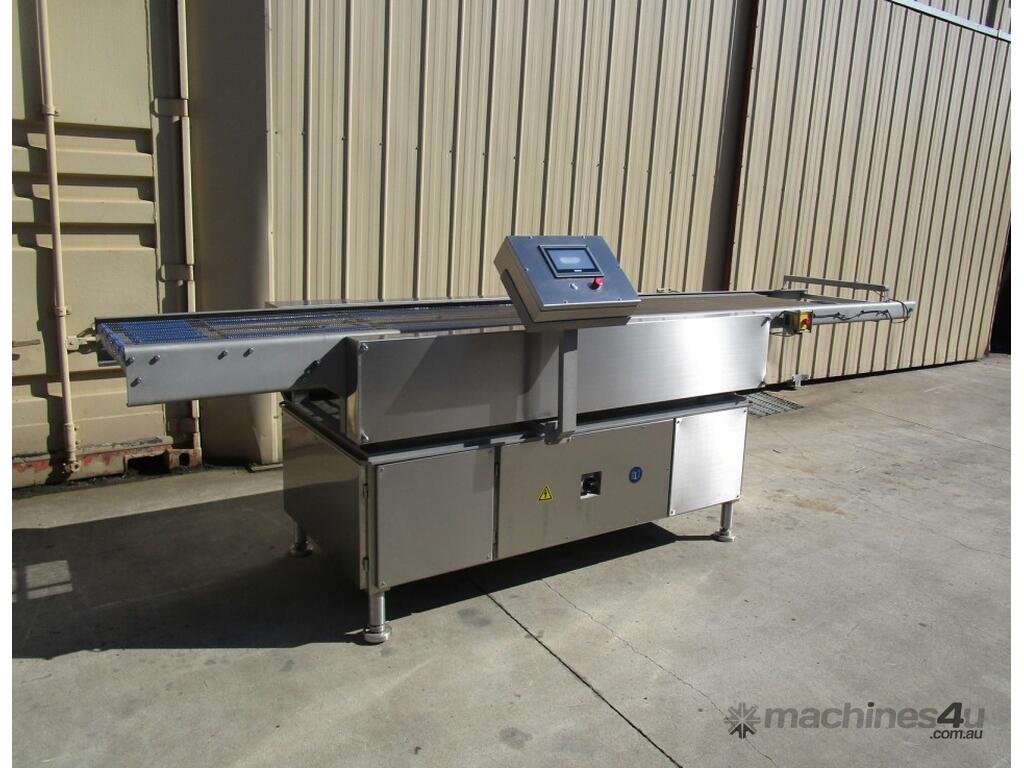

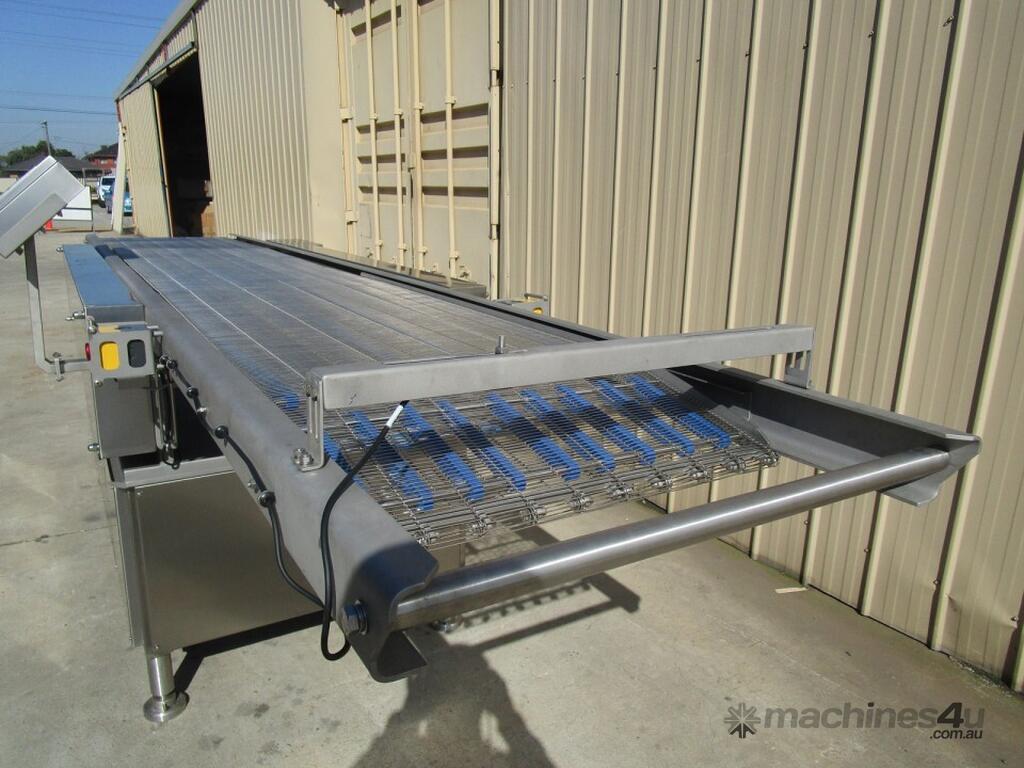

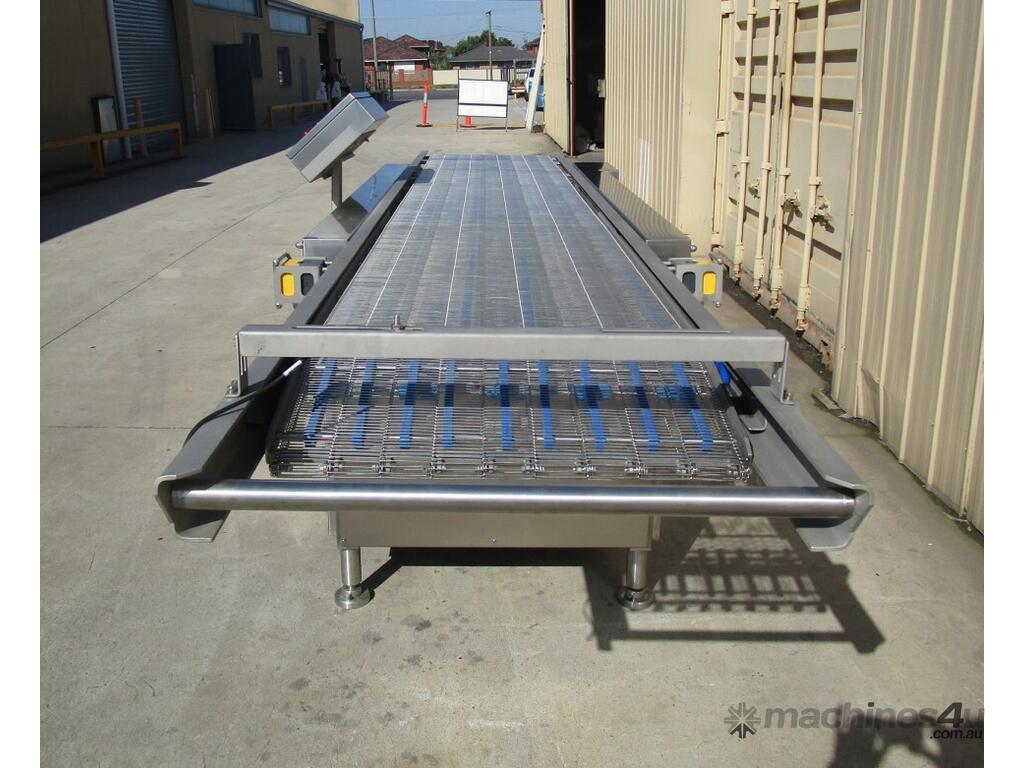

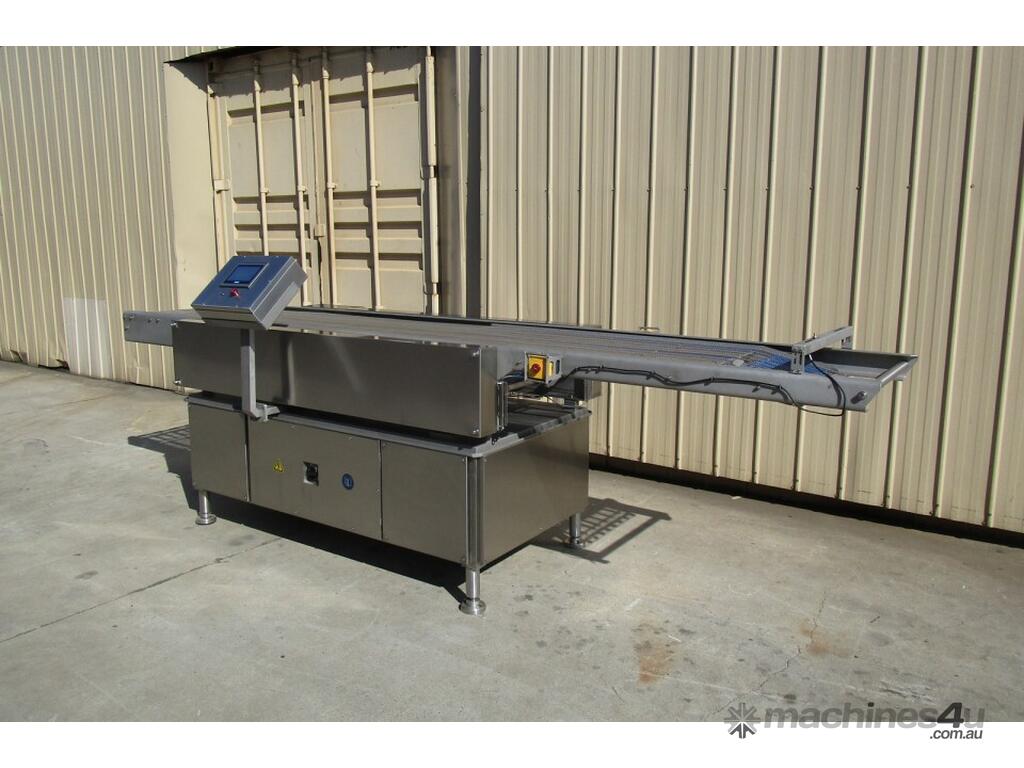

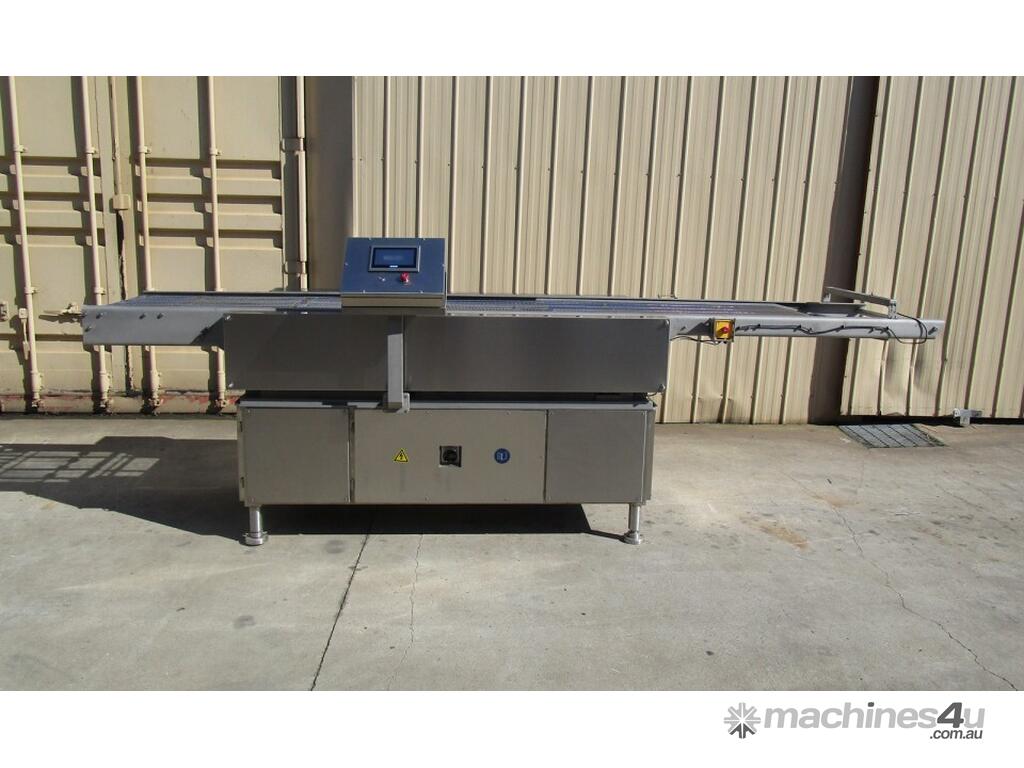

The PACIFIC 600mm Automatic Shuttle Conveyor Transfer System utilises s servo-driven Shuttle Transfer System to automatically change conveyor direction by 90° and also can convey from one line to multiple lines.
Servo-driven shuttle construction can ensure consistant and precise product placement.
Can be synchronized with the AMF400 former, AMF600 former or other conveyors.
Touch screen operating system.
Shuttle distance and portion size can be adjustable.
The whole machine is made of stainless steel and non-metal material, meets the HACCP standard.
Conveying Speed 3-15m/min (Variable Frequency Speed Control)
Input Height 1050±50mm
Output Height 1050±50mm
Belt Width 600mm
Power 2.05kW
Overall Dimension 3060×940×1400mm
