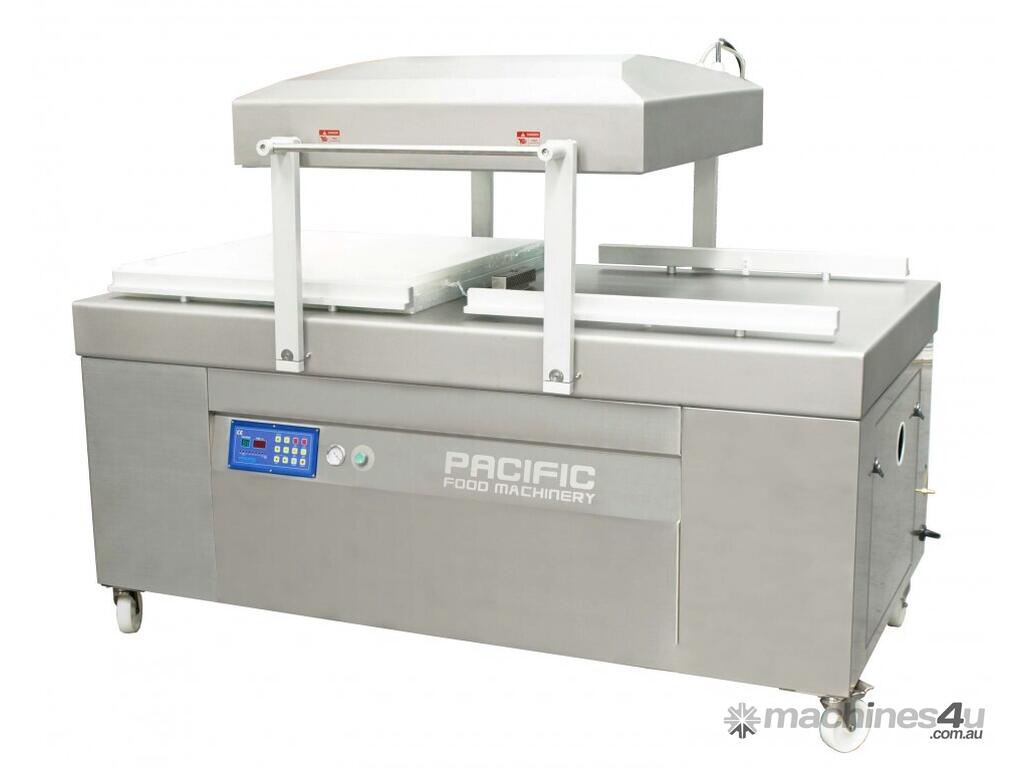

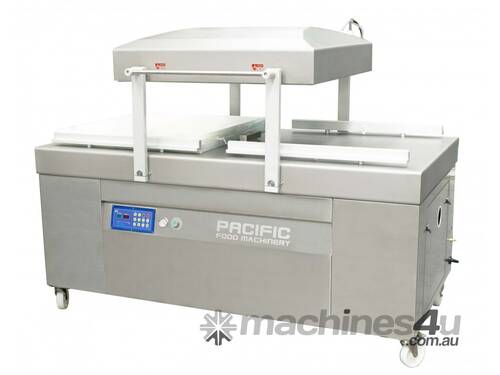

PACIFIC 850 Swing Lid Vacuum Packaging Machine With Busch 360m3 Pump

The Pacific 850 Swing Lid Vacuum Packer is our medium sized dual chamber vacuum packing machine, it is fitted with dual 850mm long seal bars in each chamber and is suited to medium to large industrial food processors, butcher shops or manufacturer who wishes to vacuum seal large quantities of product whilst maintaining single-operator efficiency during production. This machine also features our unique 10 second change seal bars, each machine is supplied with a spare set of seal bars which can be kept on the shelf ready to install in around 10 seconds per side saving you lost production time and money, it also features full stainless steel construction, IP65 water resistant machine body, computerised and programmable controller which can store up to 20 unique programs, 10mm wide seals, Busch 360m3/h vacuum pump ensuring rapid vacuum times, solid and durable construction, heavy-duty locking casters for ease of movement, high density plastic filler plates & air assist high pressure seal.


Stainless steel construction

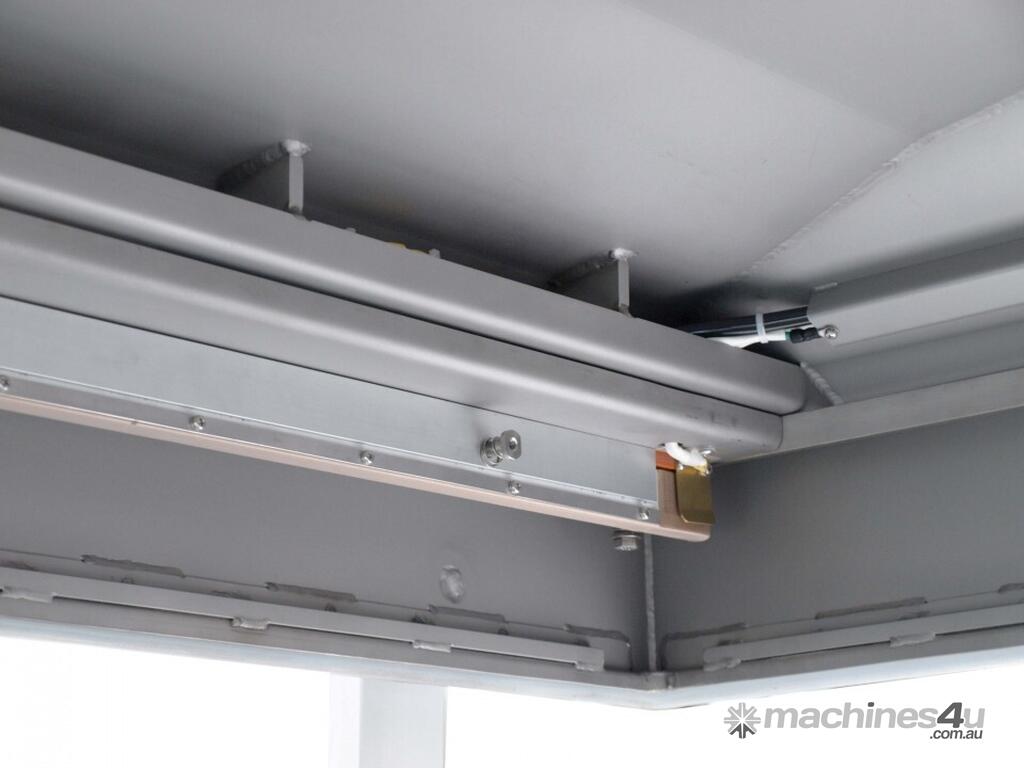

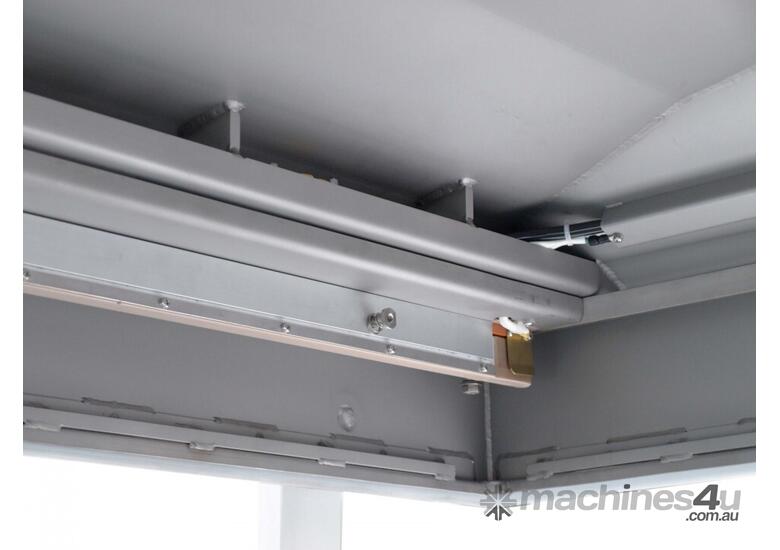

Quick and easy to remove seal bars with innovative clip in design, remove them in seconds to change tape & wire.
Flat chamber for easy cleaning

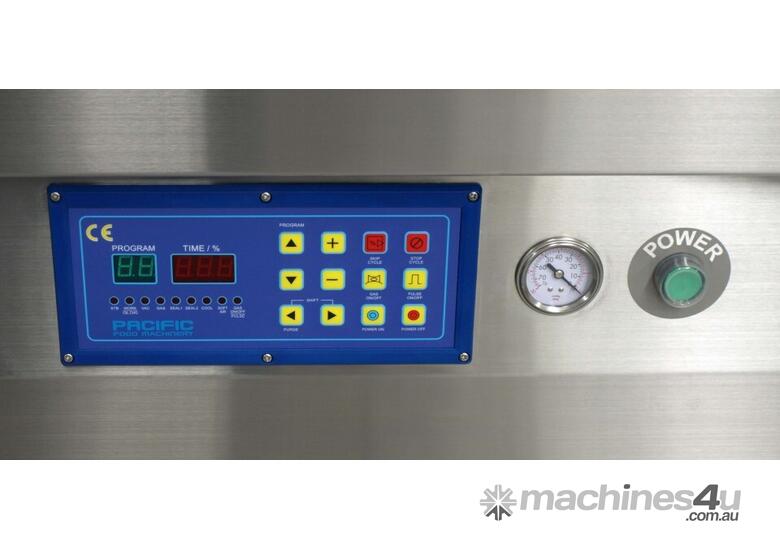

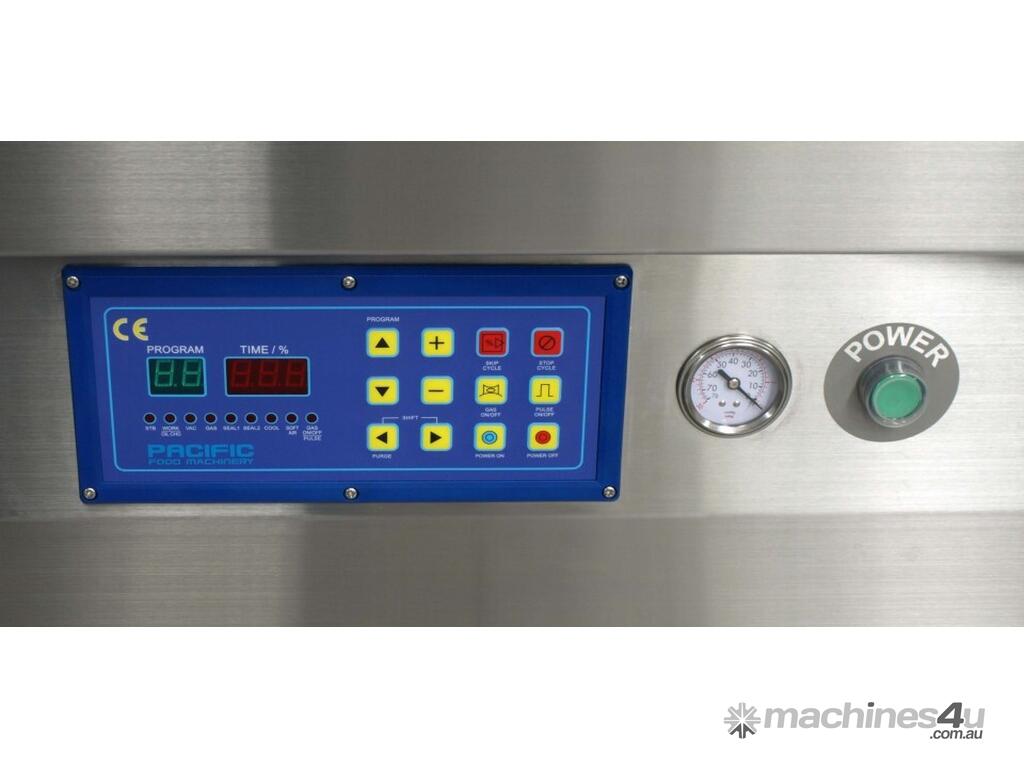

PNC-1 Computerized water resistant control panel
10mm wide seals
Bladder activated sealing
High-density plastic filler plates
Pump overload warning indicator
Oil change indicator
Heavy-duty casters
Air assist
Hide away control panel for easy wash down




OPTIONS

Single Phase motor available
Gas flush
Chamber height
Mechanical knife cut-off system
Automatic lid transfer
Voltage
Pump size
Gas flush
Air regulator
Mechanical knife cut-off
Top and bottom seal
Chamber size


Chamber size (F) 40.9/1040mm(F)
Chamber size (H) 40.7/1035mm (H)
Chamber depth (E) 10/255mm
Distance between seal bars (B) 33/838mm
Seal bar length (A) 850mm
Seal bar length (A, A1) 850mm
Vacuum pump capacity 360m3/h (12hp 10kw)
Voltage and Power Requirements 415V 3 phase 50Hz 30amp
C x G x D 2108 x 1295 x 1219mm
Machine weight 955 kg
