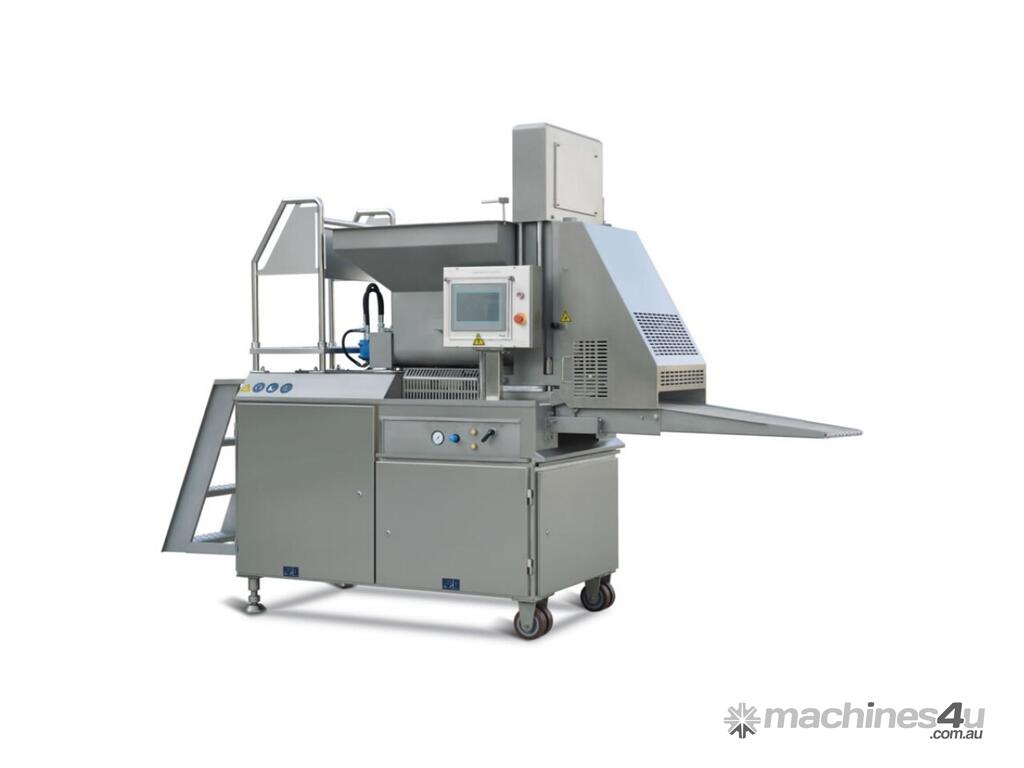

PACIFIC AMF600-IV Automatic Multi Forming Machine

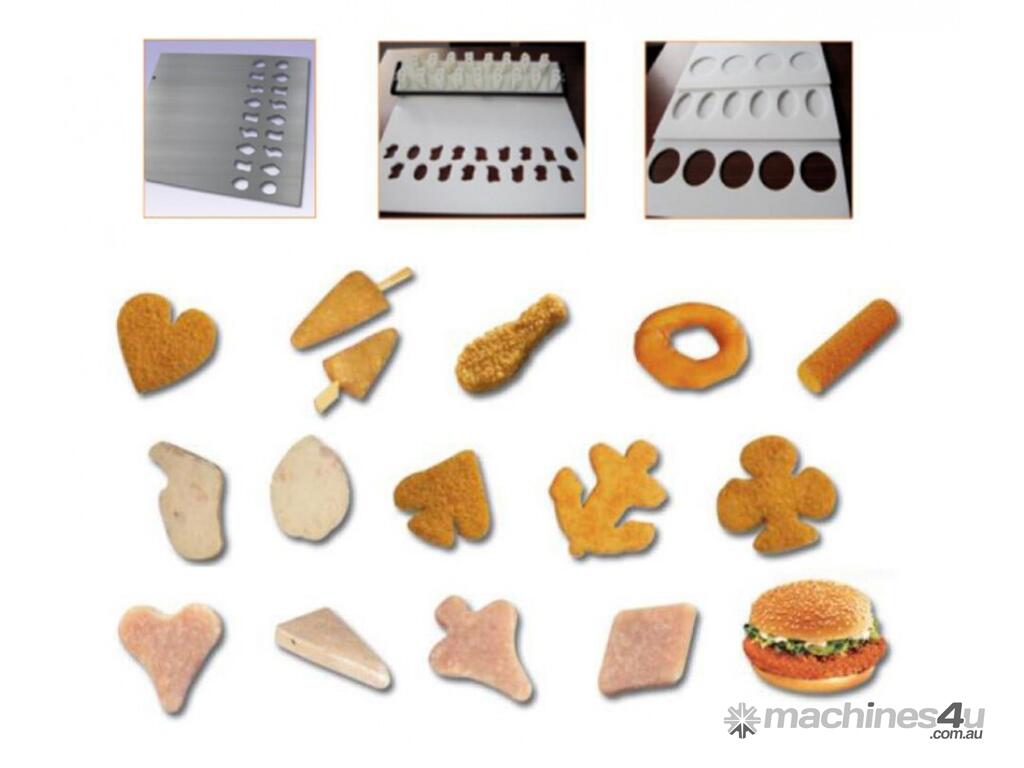

PACIFIC AMF600-IV Automatic Multi Forming Machine is a high capacity machine that can form a large range of custom shaped products. The machine can be  tted with a range of di erent forming dies including nuggets,  sh bites, meatballs, hamburgers, etc. Robust design and solid construction ensure machine reliability. A high quality servo drive system to drive the mould plate ensures accuracy and repeatability.

• Four screw feeding system reduces any cutting of the material, while allowing for higher production and better consistency
• Original German SIEMENS PLC processor with touch screen HMI
• Highly accurate with weight error of only ?1%
• Saftey interlock switches to ensure safe operation by operators
• Vickers, Stauff, Integrated hydraullic components
• FESTO pneumatic system
• Full stainless steel construction
• Conforms with HACCP
• CE Approved

Model: AMF600
Belt Width: 600mm
Pressure (Air/Water): 6 Bar / 2 Bar
Power: 15.1 kW
Throughput: 500-1000kg/hr
Strokes: 30-70
Product Thickness: 6-40mm
Max. Dia.: 150mm
Filling Pressure: 3-15MPa
Overall Dimensions: 3170 x 1176 x 2430mm
