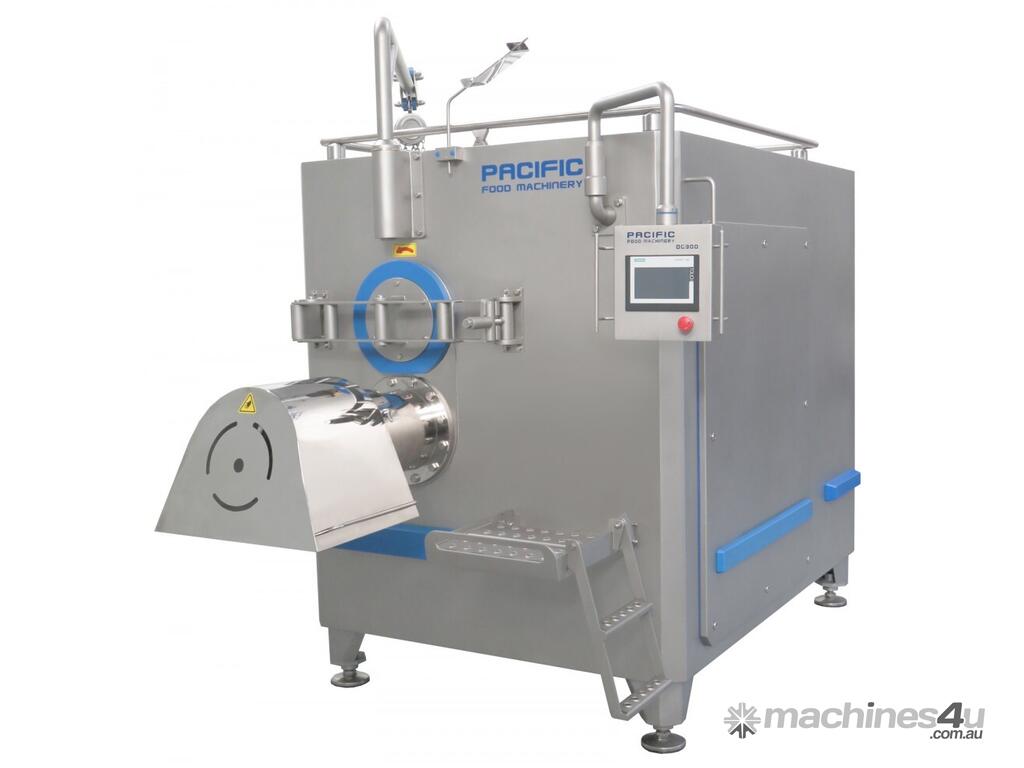

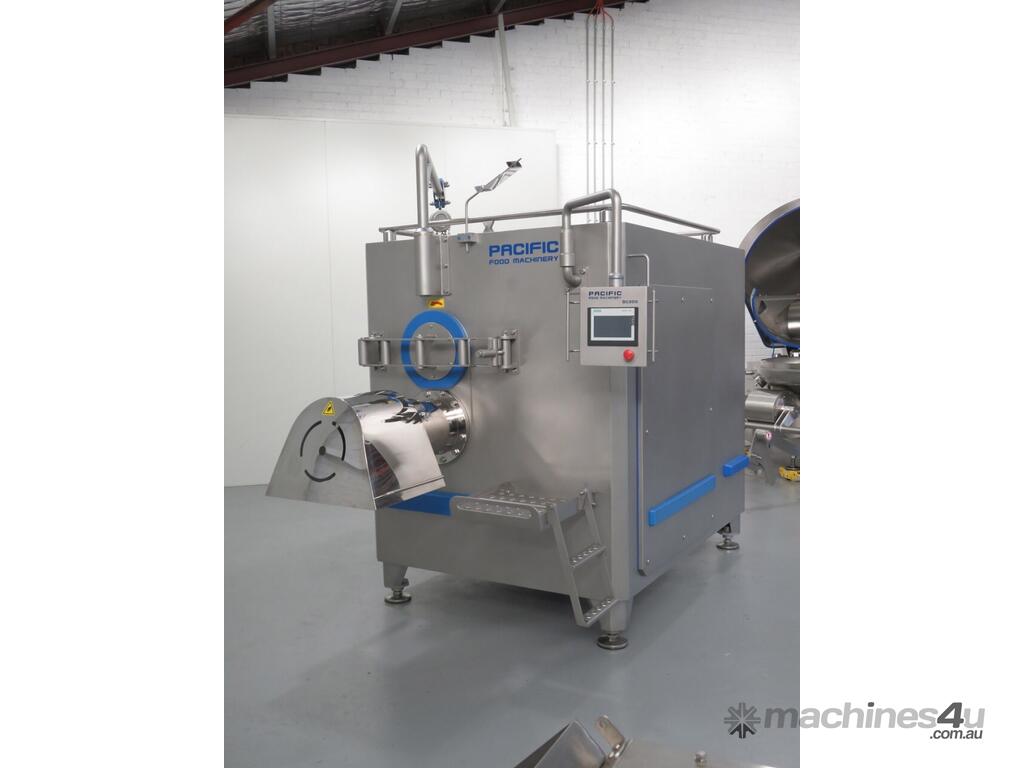

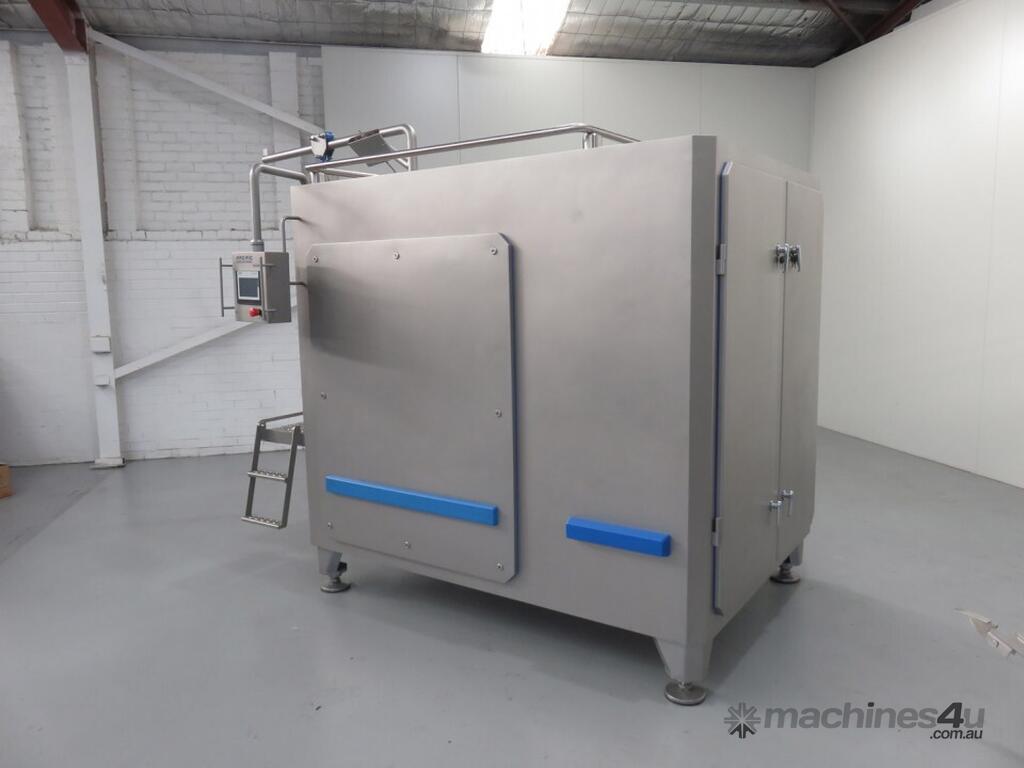

PACIFIC DG300 Frozen Block Grinder

Our state-of-the-art PACIFIC DG300 grinder is an industrial sized grinder specially designed for the effortless grinding of fresh, tempered or deep frozen blocks. The grinder features two worms/augers (feeding and grinding auger), providing high grinding performance and flexibility. Designed to be strong & robust, it is highly hygienic in its design. Our frozen meat grinder has been designed with many features to aid in its simple operation and quick & easy maintenance.

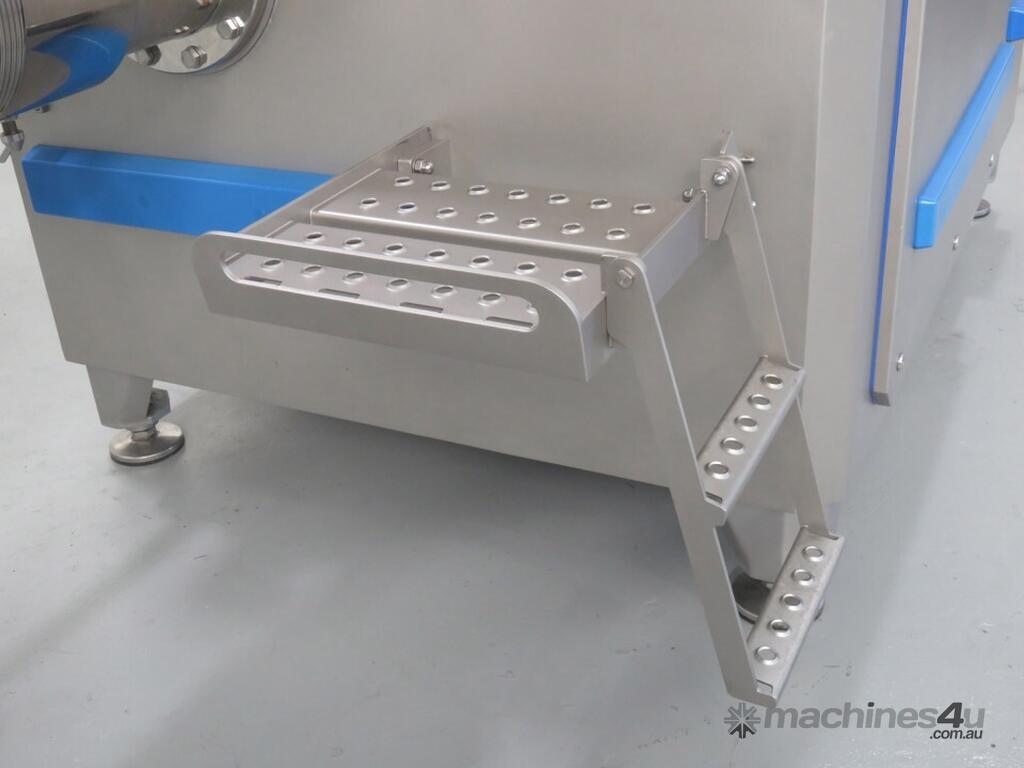

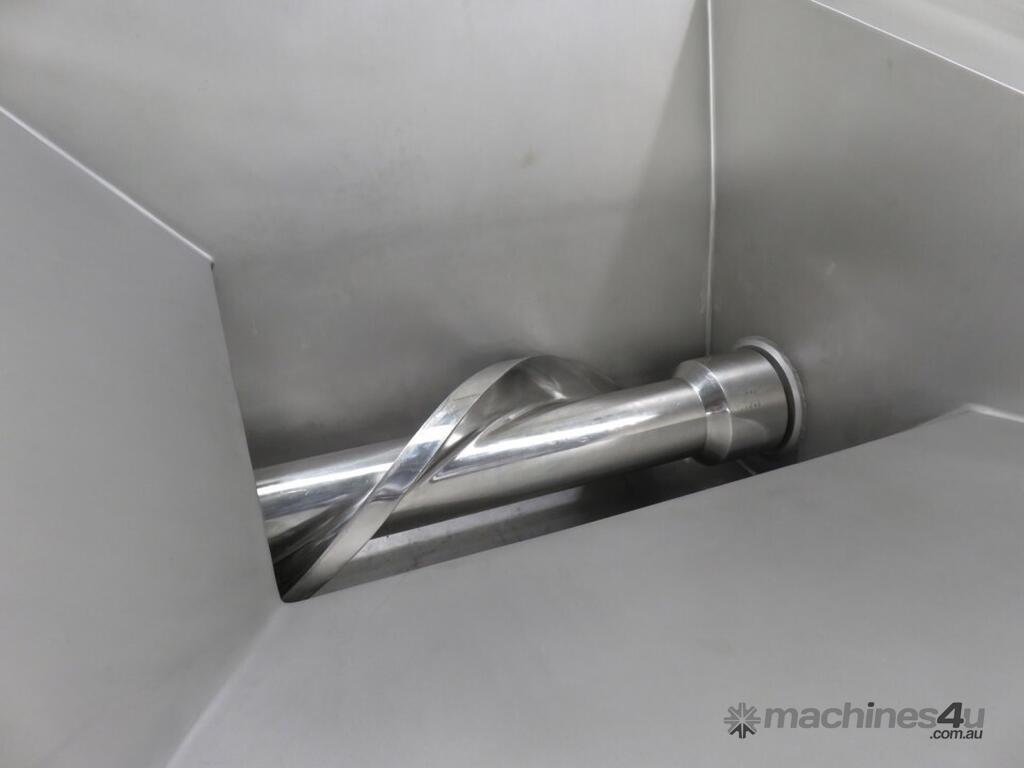

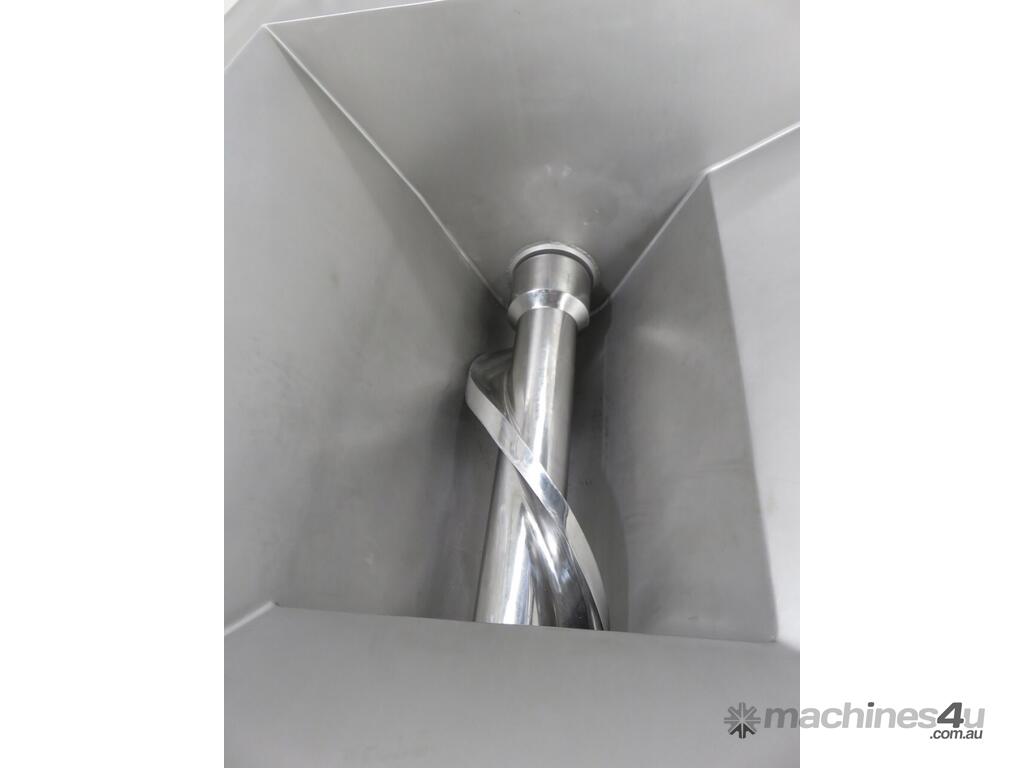

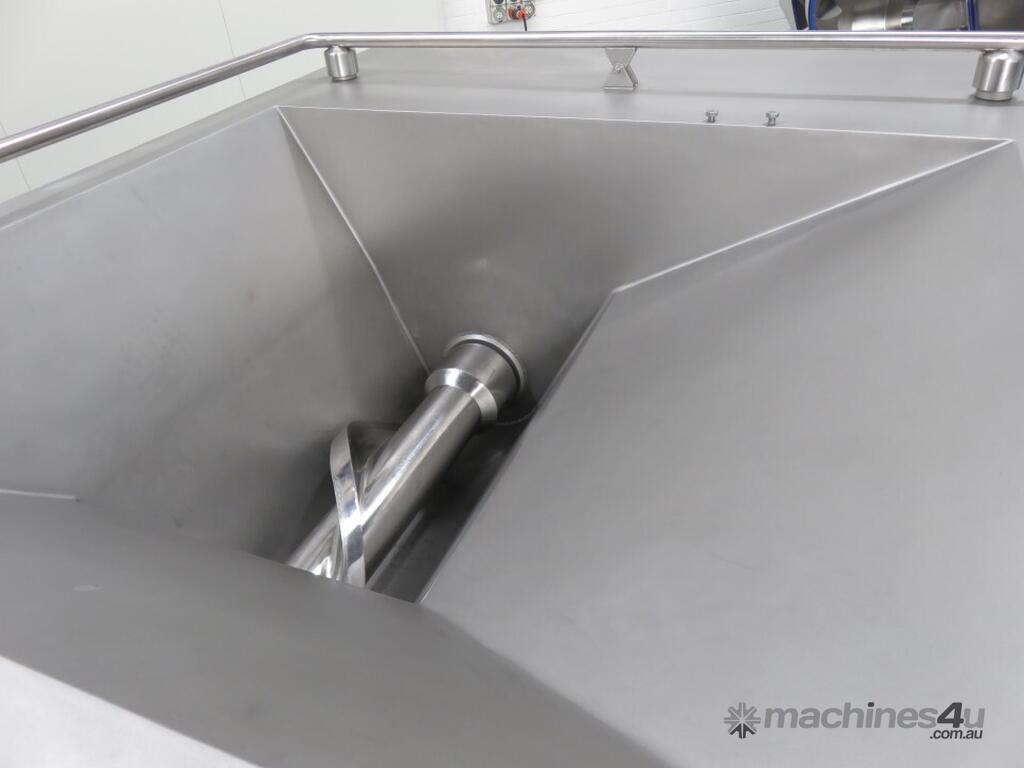

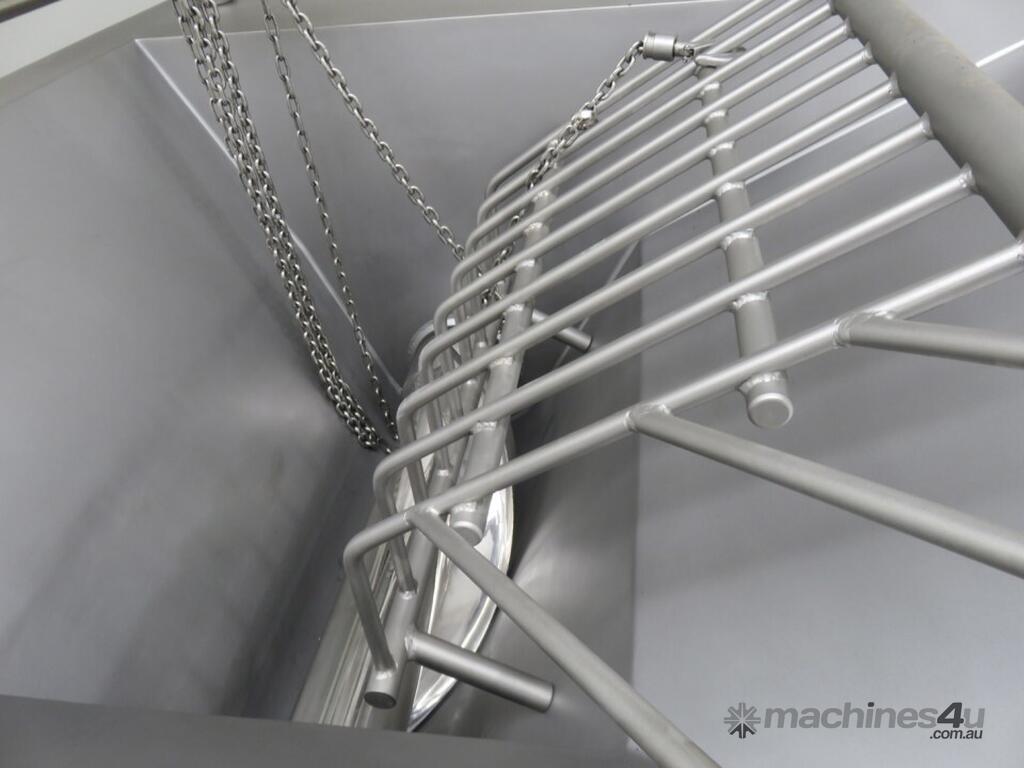

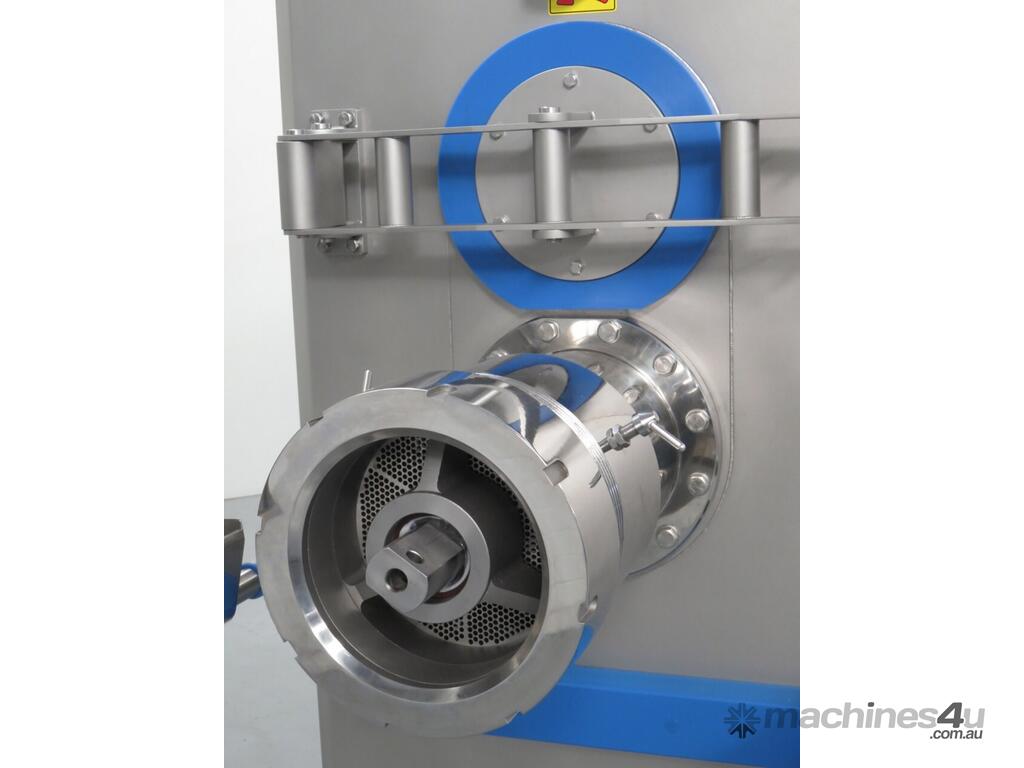

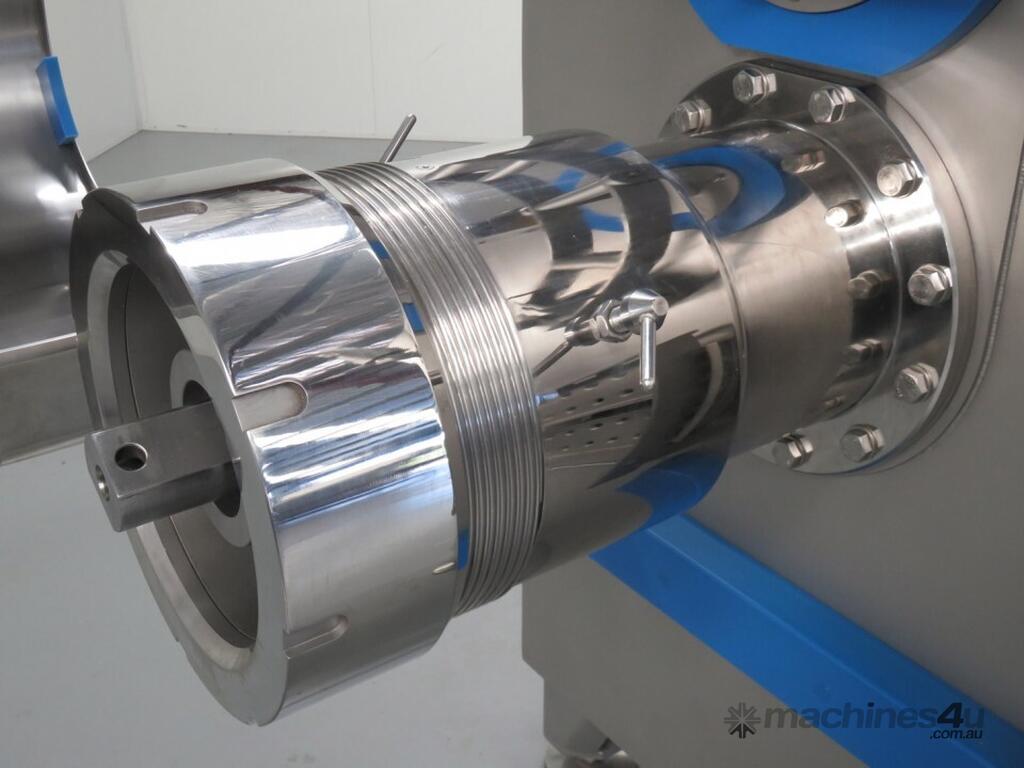

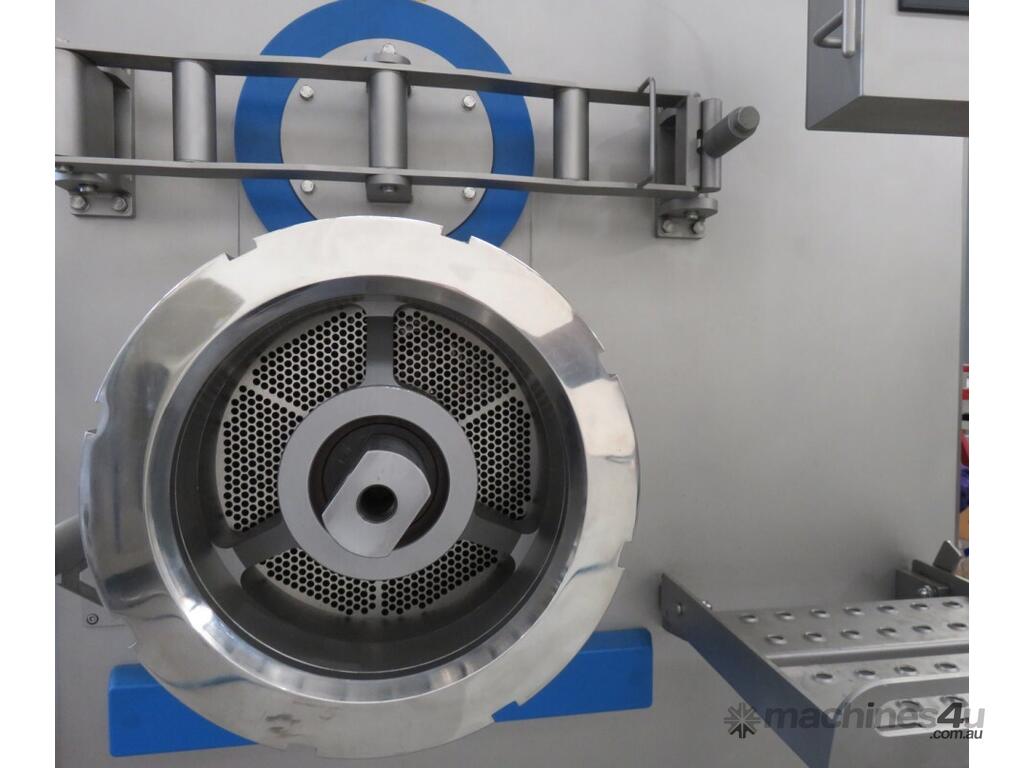

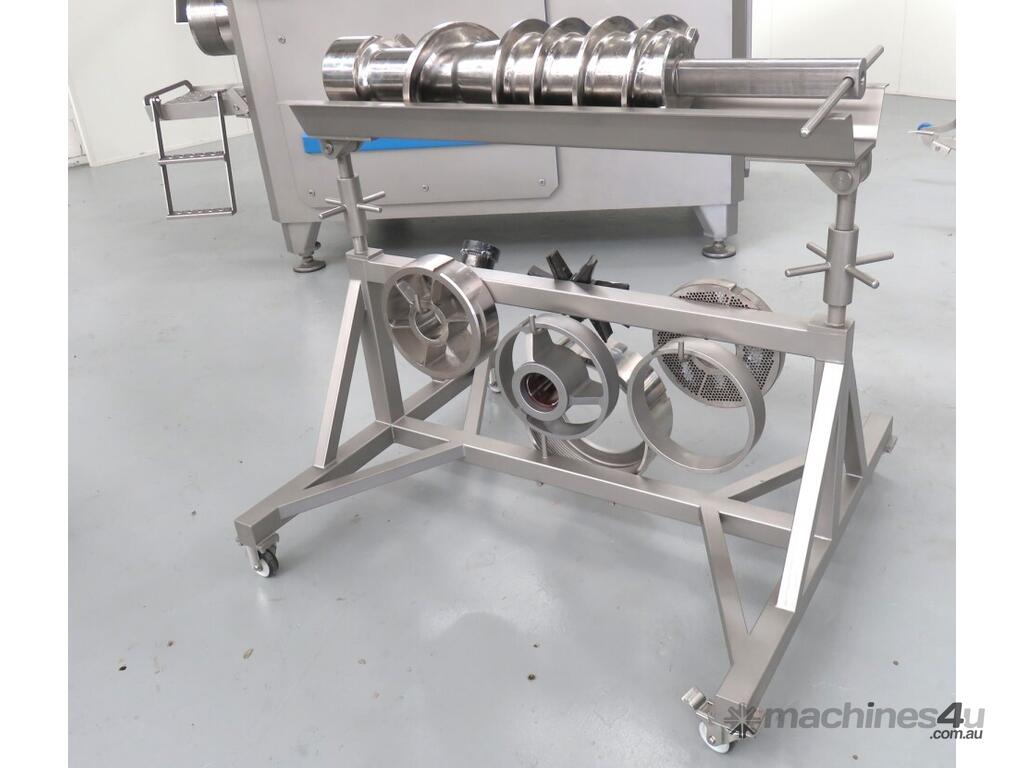

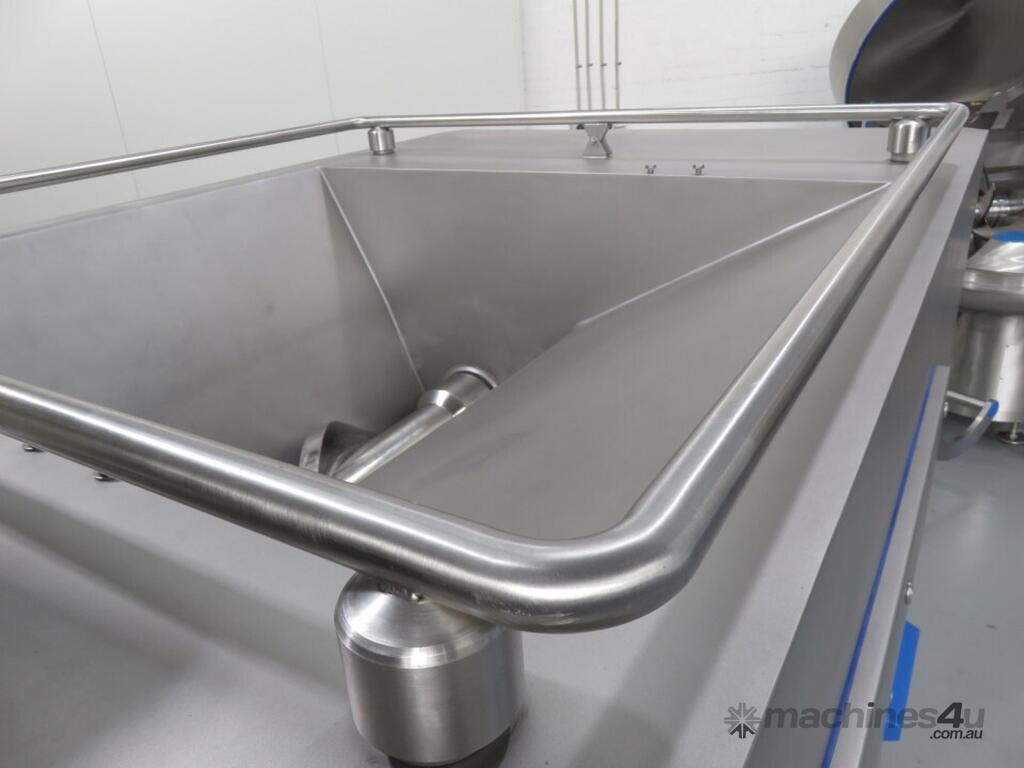

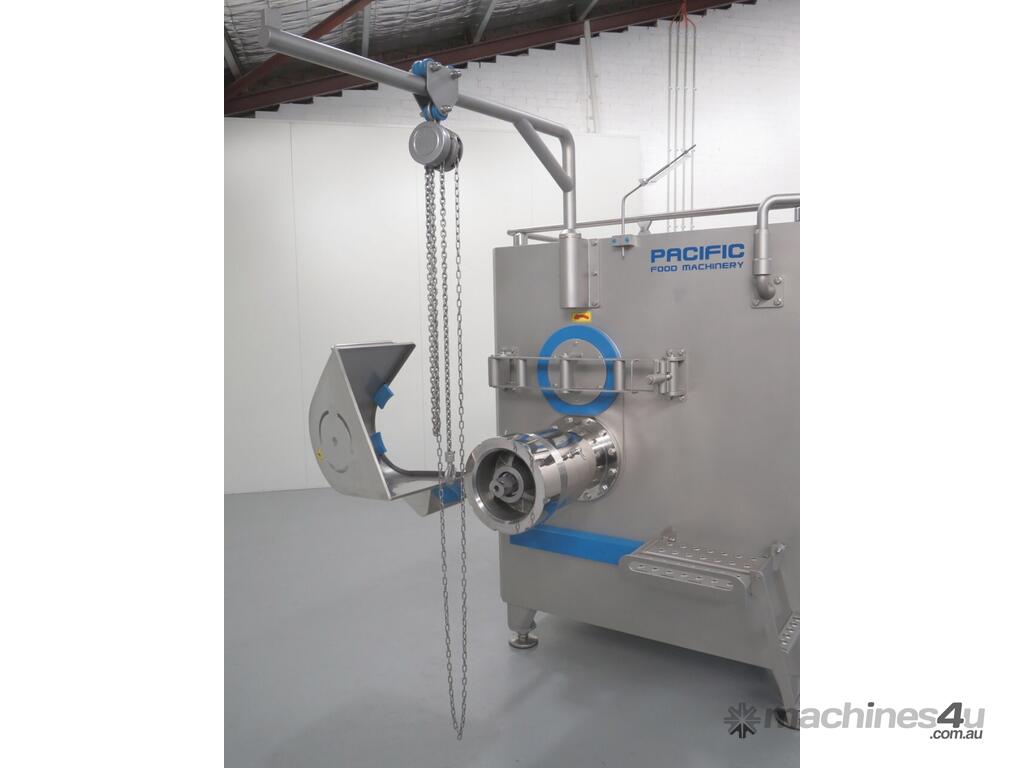

Worm ScrewVariable speed worm screw. Cuts blocks rather than breaking them up resulting in less fines and dust.Fresh, Tempered or FrozenCapable of effortlessly grinding both fresh meat and frozen blocks down to -18c in temperature.Knife Set ConfigurationsSingle or double knife set configurations possible. Crane DavitIntegrated crane davit for heavy duty lifting of machine tools.Hinged HatchProviding easy access for cleaning and maintenance.Trip BarHopper trip bar with rocker switch provides safety on the input of the machine. Inspection StepStep and mirror provide for easy inspection during maintenance and production.Accessory TrolleyTrolley for the easy storage and transportion of tools. Aids in handling while dismantling and for the cleaning of the parts.Optional: Incline ConveyorWe provide both bin lifters and incline conveyors to aid in the loading of blocks and products in to the hopper. Dual auger grinderFresh soft meats and fats, as well as tempered or hard frozen blocks are e?ectively processed together or separatelyVariable speed worm screwSingle or double knife setPulley chain hoist (crane davit) for ease of liftingHatch at front for accessiblity and cleaningSwing away arm with digital computer controlsPerfect fne and coarse grind, both fresh meat and frozen meat blocks15kW 27.4A motor on feeding screwPowerful 90kW, 150A large motor on grinding screwRobust designInspection step and mirrorAccessory trolleyOptional: Bone/sinew removal sytemOptional: Incline loading conveyorOptional: 200L/300L bin lifter

Model DG300
Power (Feed Screw) 15kW 27.4A
Power (Grinding Screw) 90kW, 150A
Plate Diameter 300mm
Product Temperature Fresh to -18c
Throughput (Fresh) 12t/h
Throughput (-18c) 6t/h
Overall Dimensions 2800 x 1680 x 2500mm
Weight 4500kg
