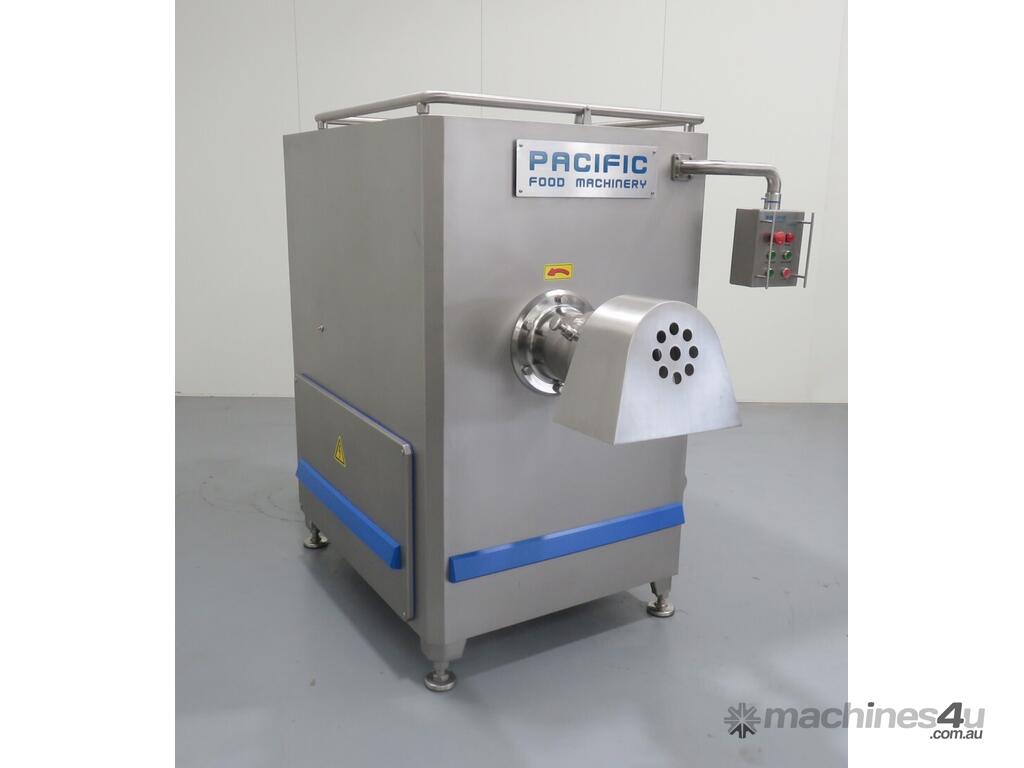

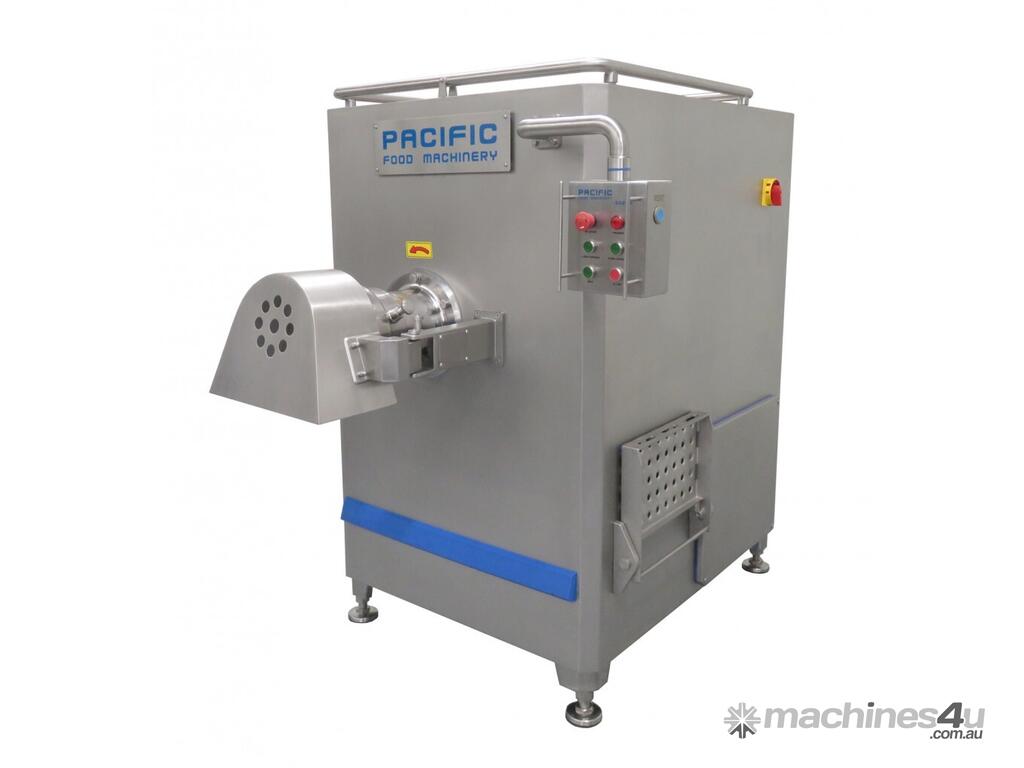

PACIFIC SG200 Industrial Meat Grinder

The PACIFIC SG200 is a state-of-the-art industrial meat grinder, it is a powerful and high volume machine capable of processing large batches of fresh or tempered meat. With a sturdy & highly accurate construction our industrial meat grinder has a long machine life with smooth, efficient & quick operation, a powerful motor, integrated safety features to protect operators, easy to use control panel.


Worm ScrewDouble speed worm mincing screw. Double speed 110 / 228 rpm.
Fresh, Tempered or FrozenCapable of effortlessly grinding both fresh meat and frozen blocks down to -18c in temperature.
Knife Set ConfigurationsSingle or double knife set configurations possible.
Powerful Motor34kW motor
Safety CoverSafety cover with interlock safety covering grinding tooling
Trip BarHopper trip bar with rocker switch provides safety on the input of the machine.
Inspection StepStep and mirror provide for easy inspection during maintenance and production.
Optional: Accessory TrolleyOptional trolley for the easy storage and transportation of tools. Aids in handling while dismantling and for the cleaning of the parts.
Optional: Incline ConveyorWe provide both bin lifters and incline conveyors to aid in the loading of blocks and products in to the hopper.
High output to meet increased production rate demandsFresh soft meats and fats, as well as tempered or hard frozen blocks are effectively processed together or separatelySingle or double knife setSwing away arm with control panelGrinds fresh, tempered and frozen meat34kW motor on grinding screwRobust design & constructionInspection step and mirrorOptional: Accessory trolleyOptional: Bone/sinew removal sytemOptional: Incline loading conveyorOptional: 200L/300L bin lifter

Model SG200
Power (Grinding Screw) 34kW
Voltage 380V 50Hz, 3Ph
Main Shaft Speed Double speed 110 / 228 rpm
Plate Diameter 200mm (Ø4-Ø30) (Ø4 only suitable for fresh meat)
Product Temperature Fresh to -18c
Throughput (Fresh) up to 7t/h
Throughput (-18c) up to 2t/h
Overall Dimensions 2600 x 1300 x 2000mm
Weight 2500kg
