PACKAGE - XN18 1.8t + 9 ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

RHINOCEROS XN18 + 9 X ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

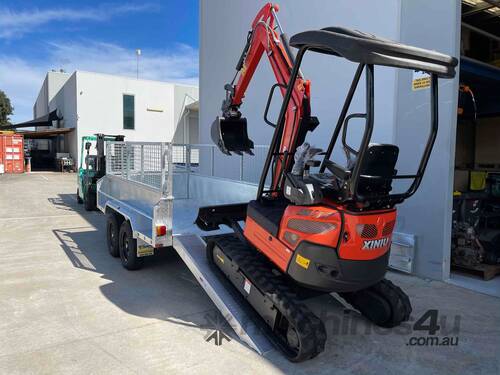

NEW RHINOCEROS XN18 1.8TON MINI EXCAVATOR INCLUDES PILOT CONTROLS, SWING BOOM, ADJUSTABLE RUBBER TRACKS AND A WORLD RENOWNED QUALITY BUILT JAPANESE YANMAR 3CYL DIESEL ENGINE.

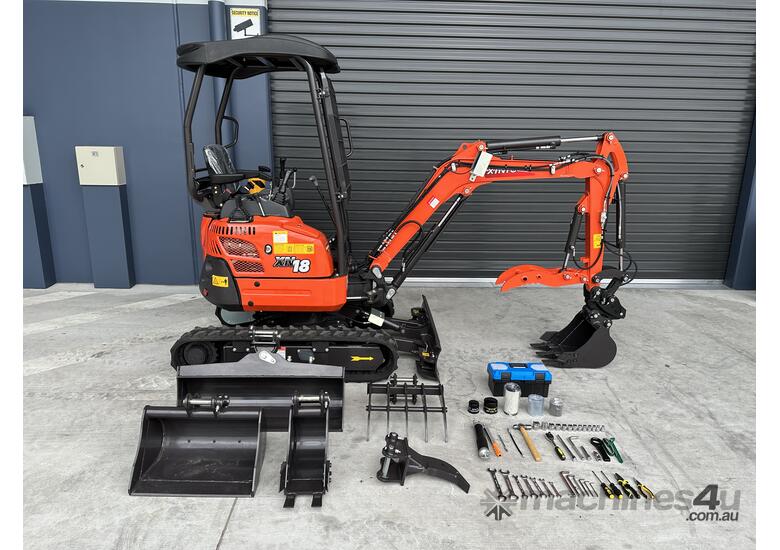

9 X ATTACHMENTS ( 200,300,600MM BUCKETS AND 1000MM TILTING MUD BUCKET, RIPPER, RAKE, HYDRAULIC THUMB GRAB HYDRAULIC QUICK HITCH POST HOLE DIGGER WITH 300MM AUGER )

NEW 3.5T 10X5 GAL HYDRAULIC TIPPING TRAILER 12 MONTHS REGO ALLOY LOADING RAMPS

# SOLD TO THE AUSTRALIAN MARKET FOR OVER 5 YEARS

# RELIABLE / POWERFUL / QUALITY MACHINE

The Rhinoceros Company is one of the original Chinese manufactures to produce mini excavator. The company is a major supplier of mini excavators world wide with many satisfied customers. Productions is well over the 5000 units per year ranging from .8ton to 9ton. The Rhinoceros XN18 model fitted with a genuine EPA approved Yanmar 3cyl Diesel engine, 2 speed tracking, swing boom, smooth servo controls, piped for breaker and auger. The Rhinoceros XN18 is Australia's smartest choice for a quality, reliable and most affordable 1.8 mini excavator.

Many components are imported from world leading manufacturing country's such as the hydraulic system - USA EATON swing motor, KOREAN DONGHYUAN traveling motors and Japanese YANMAR Diesel engine.

The Rhinoceros Company takes pride in only supplying the best quality mini excavators and understands the importance of after sales service. Happy Customers for the long term is the motto.


Buying a Rhinoceros XN18 will save you absolute thousands $$$ of a name brand mini excavator, so why pay more ? The 8 attachments listed below comes standard.


- 200mm Trench Bucket

- 400mm GP Bucket

- 600mm GP Bucket

- 1000mm Tilting Mud Bucket

- Hydraulic Quick Hitch

- Ripper

- Rake

- Hydraulic Thumb Grab

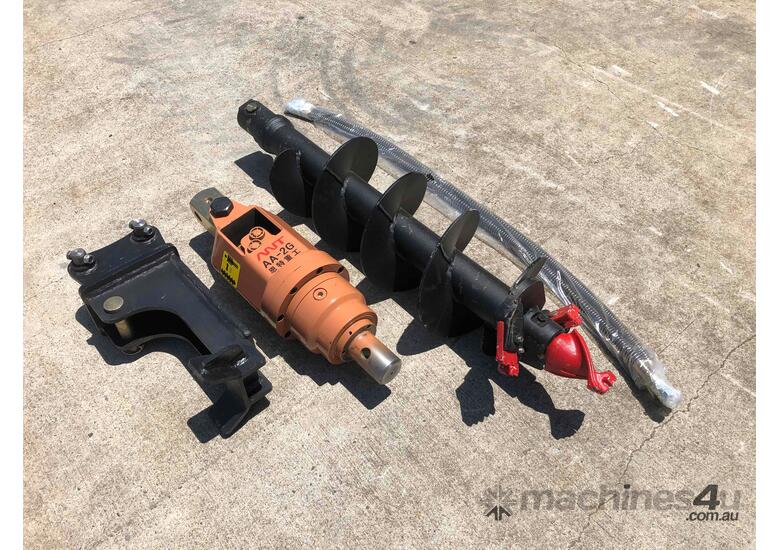

- Post hole digger with 300mm auger

- Filter set and tool box


Rhinoceros XN18 comes with warranty, spare Parts and after sales support for piece of mind.


Optional Attachments available :

- Hydraulic Hammer EDT200 : $2950.00

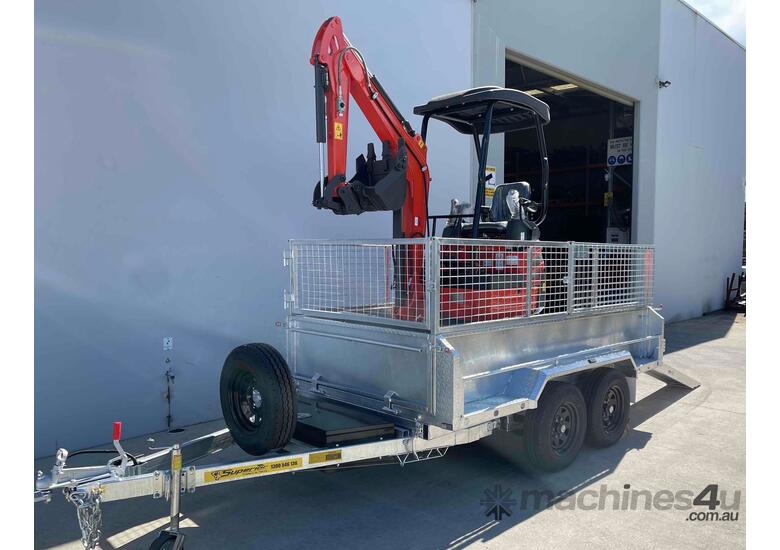

3.5T PLANT TRAILER SPECIFICATIONS:

ATM : 3500kg

Tare : 1150kg

Internal Size : 3040x1820mm

External Size : 5080x2350mm

Drawbar : 1900mm 100x50x3.0mm Tube

Finish : Hot Dipped Galvanized (Rust free)

Side : 500mm High (One Piece of Checker Plate Fold Up)

Floor : 2.66mm 2 Piece of Fully Welded Checker Plate

Mudguard : Triple Folded Mudguard with Full Length Footsteps

Jockey Wheel : 10" Steel Rim Swing up

Tyre : Brand New 15" 195/75R15C Light Truck

Wheel : Sunraysia Style with 5 Studs Ford Hub Pattern

Axle : 50x50mm Square Solid

Suspension : Heavy Duty Greasable Rocker Roller Suspension

Spring : Heavy Duty 7 Leaf Eye to Eye Spring 8mm Per Leaf

Coupling : 50mm ADR Approved Australia Standard with Grease Nipples

Trailer plug : Flat 7 Pin Plug

Safety Chain : 10mm

Brake : Electric Brake Upgrade

Light : LED Set



RHINOCEROS XN18 SPECIFICATION :

Operating Weight 1800kg

Adjustable Rubber Tracks ( 990mm - 1240mm )

Engine : GENUINE JAPANESE YANMAR 3TNV74F-SSY

Emissions Regulation : EPA Final Tier 4

Max Rated power : 19hp/3000rpm

Displacement : 0.993L

Bore stroke : 74mm x 77mm

Traveling motor : DONGHYUAN KOREAN

Swing Motor : EATON USA

Speed/Digging force

Max.travel speed?high/low? 3.4 / 1.9 km/h

swing speed 10.5 rpm

Max. Gradeability 30°?58%?

Bucket digging force 13.5KN

Bucket arm digging force 10.1 KN

Theoretical Maximum traction 17.5 KN

Ground specific pressure 32.8KPA

Working pressure 22 Mpa

Flow rate 39.6L/Min

Hydraulic oil tank capacity 15.3L

Engine oil tank capacity 2.8(1.3)L

Fuel tank capacity 19 L

Main dimension Unit (mm)

a Wheelbase 1230

b Total length of track 1590

c Platform ground clearance 473

d Counterweight turning radius 740

e Chassis 1220

f Track width 230

g Track height 360

h Length 3400

i Height (From seat to ground) 1660

j Total height 2350

k boom swing - left 390

I boom swing - right 510



A Max. Digging radius on ground 3610 mm

B Max. Digging radius 3700 mm

C Max. Digging depth 2150 mm

D Max. Digging height 3275 mm

E Max. Dumping height 2310 mm

F Max. Vertical digging depth 1740 mm

G Min. Rotation radius 1580 mm

H Max. Upgrade height of bulldozer blade 275 mm

I Max. Digging depth of bulldozer blade 180 mm

* Pictures for illustration purpose only - Specifications and prices are subject to change without notice
