PACKSERV 2Mtr Rubber Belt Conveyor * suitable for all container sizes & shapes *

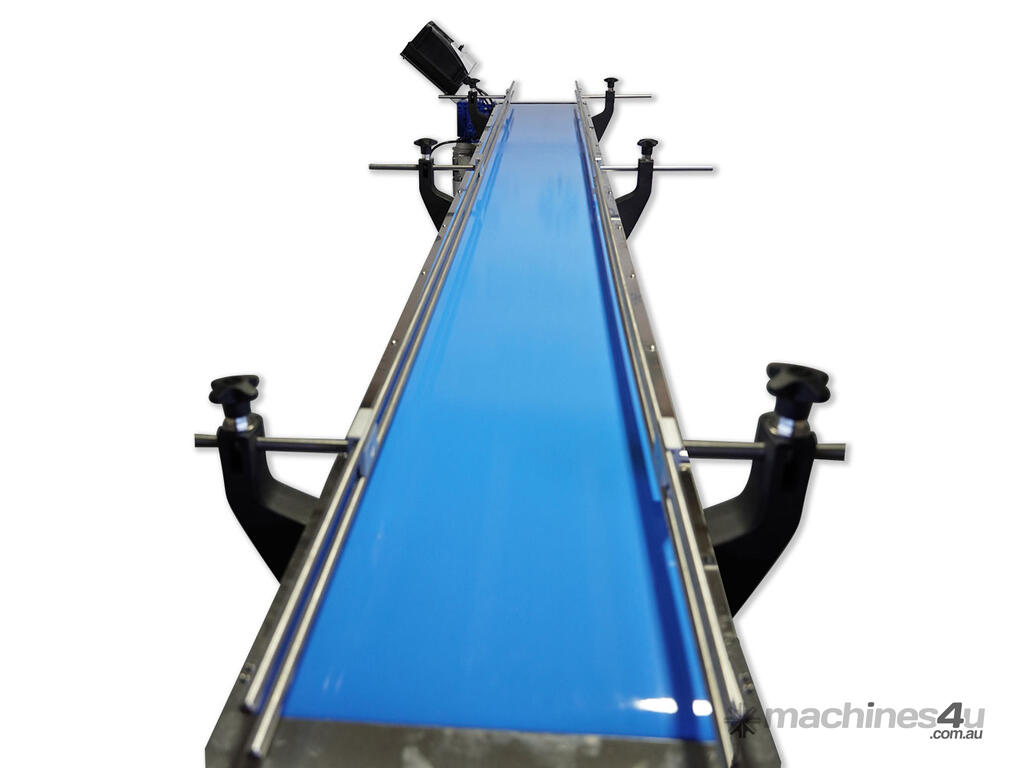

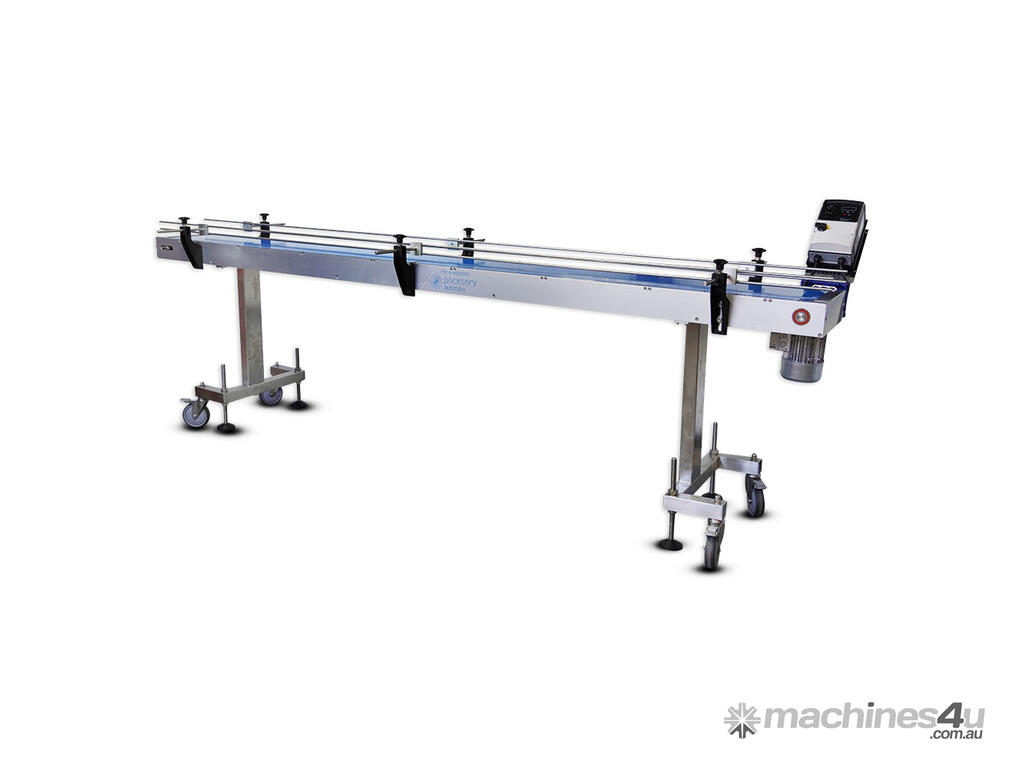

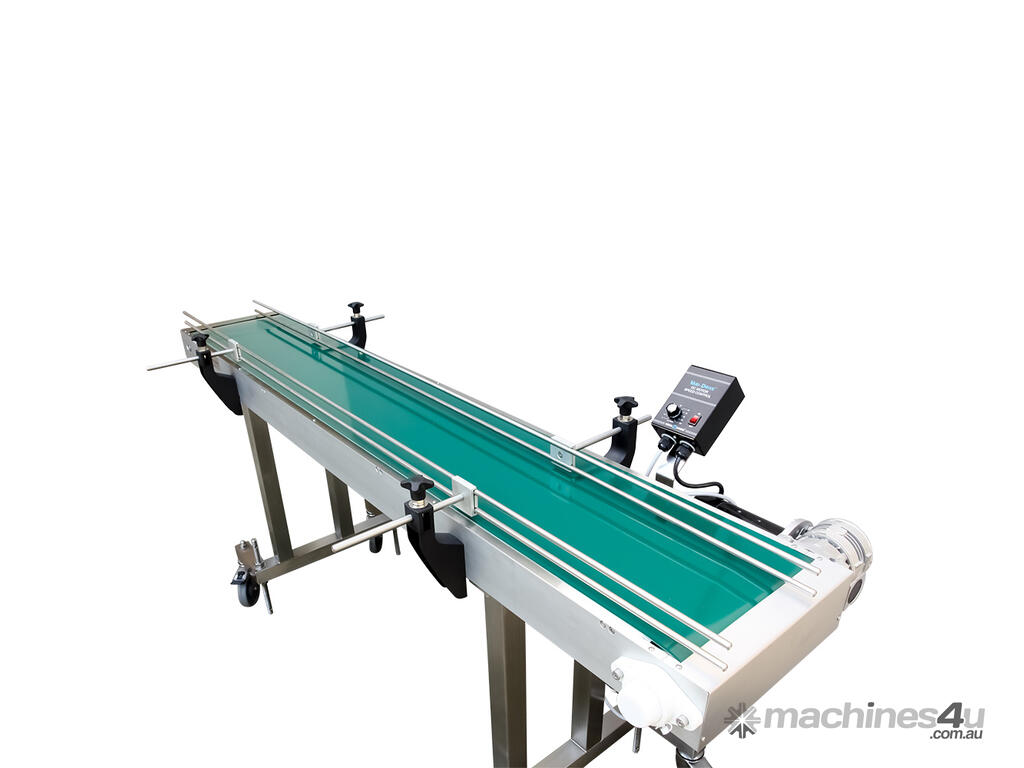

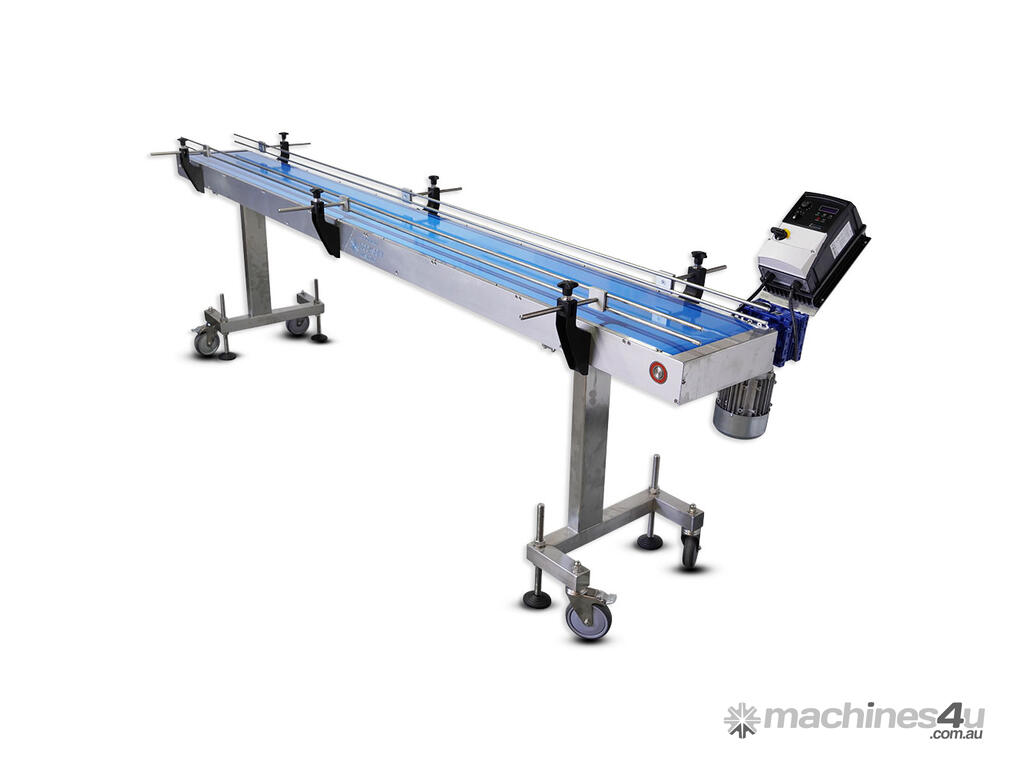

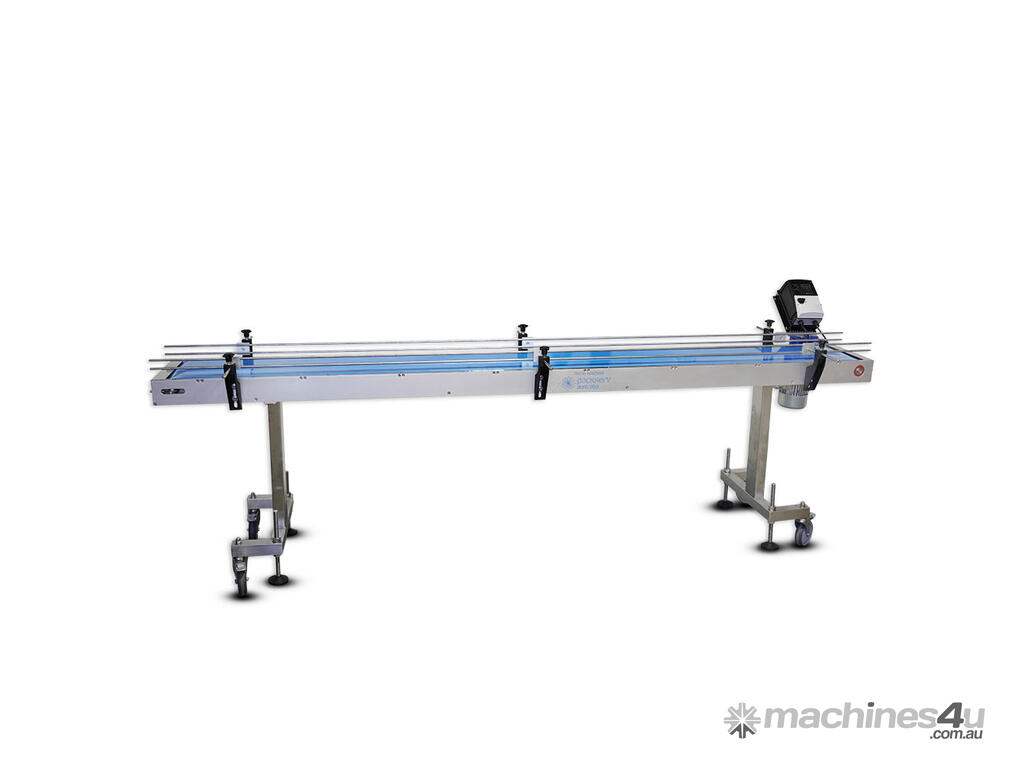

The Packserv PBC-6-2 Rubber Belt Conveyor measures 2000mm in length and is designed to handle large containers with it’s 300mm wide belt.

Suitable for containers of all shapes and material types.

Our PBC-6-2 rubber belt conveyor measures 2000mm in length and is designed for handling all types of containers regardless of shape or material; as long as they can stand of their own accord.
Containers are normally fed to the conveyor to assist with other production line systems such as filling, capping, labelling, marking and sealing. The belt of this conveyor is 300mm in width.

The Packserv conveyor systems are designed to be modular allowing for use with our entire suite of equipment as well as other manufacturers. All of our gating and sensor systems are designed to be utilised with the guide rails used by this conveyor.

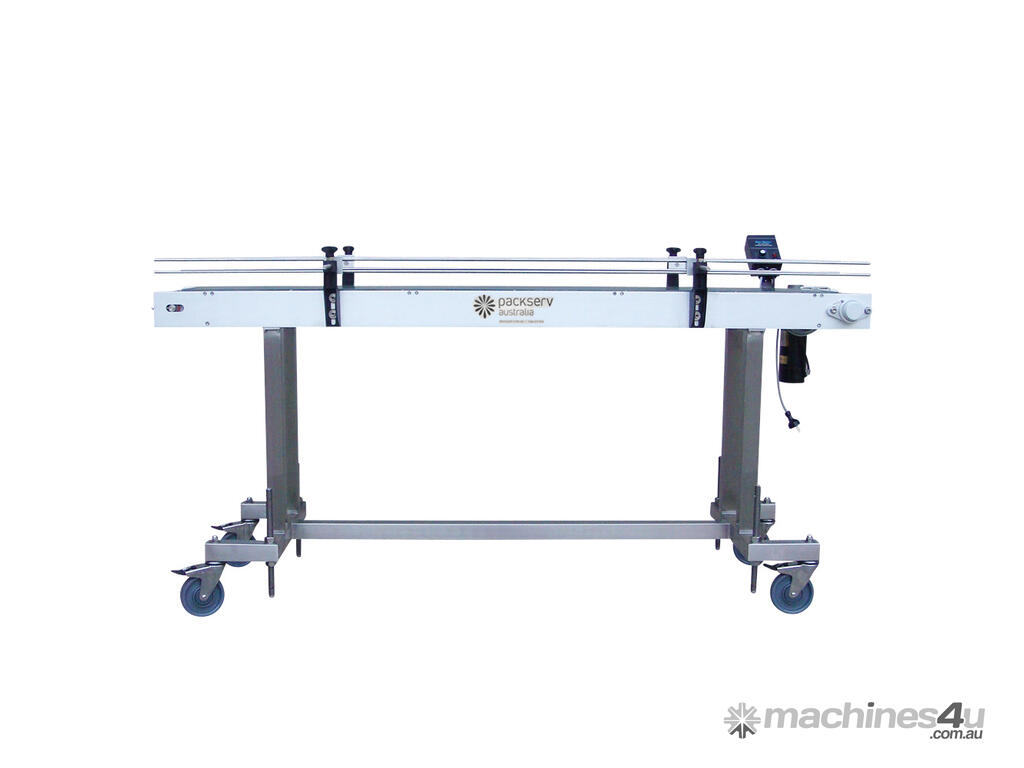

The 316 stainless steel frame is mounted on top of castors/wheels to allow for unparalleled manoeuvrability, furthermore this machine features levelling jacks on rubber feet to allow traction and height adjustment of the entire conveyor to suit any production line.

This conveyor utilises an AC motor with a VSD controller that allows the conveyor to be easily put into reverse at the touch of a button.


Weight 60 kilograms
Length 2000mm
Width 500mm
Height 1200mm
Operating Height 900mm belt height, adjustable on frame
Power Supply Single phase 240V, 10 Amp
Construction Type All 316 stainless steel, aluminium and engineering grade plastics
Container Type Boxes, bags, bottles, jars, tubs, containers that will stand on a conveyor
Mounting Lockable castors
Industries All food, pharmaceutical and industrial applications
Noise Low
Conveyor 300mm wide rubber belt
Speed Variable speed control
Guide Rails Fully adjustable, height and width
Reversible Yes

- Automatic Function
- Mounted on lockable castors for easier manoeuvrability
- Conveyor comes with height adjusting jacks
- Variable speed control
- Comes with adjustable guide rails
- Suitable for food and pharmaceutical use
- Fast changeover of containers

Mounting:
Frame featuring castors

Purchase Inclusions:

1 x base machine
4 x rubber feet and levelling jacks
4 x castors/wheels
1 x full set of adjustable guide rails
1 x reversible and variable speed controller
1 x 300mm rubber belt
