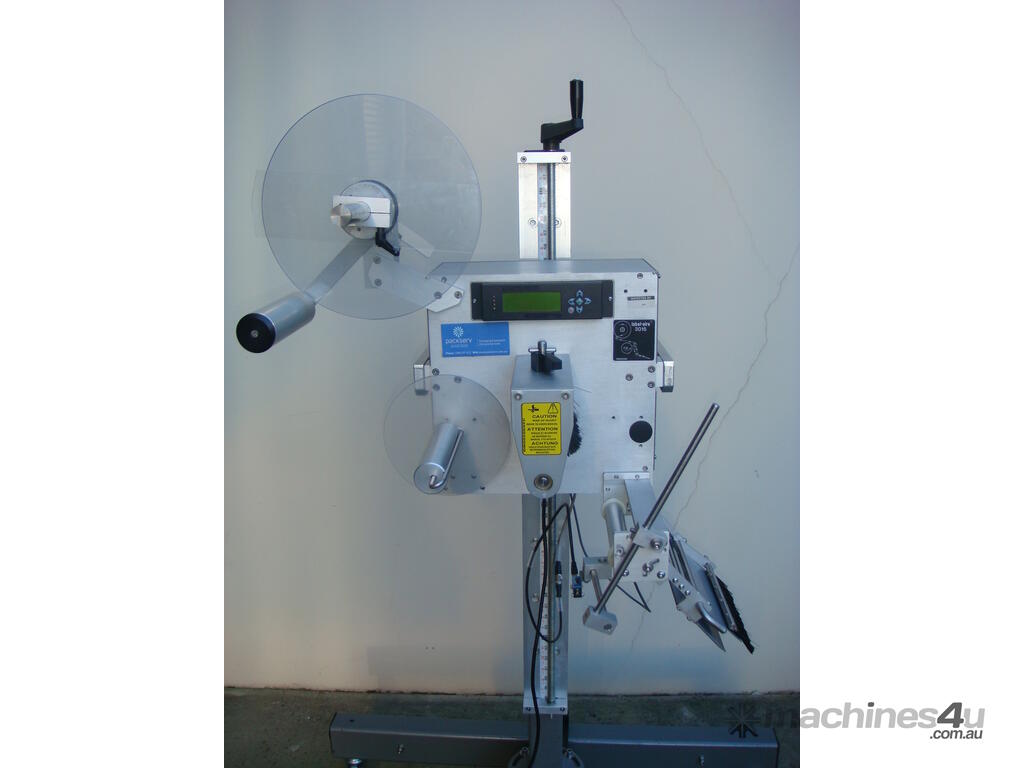

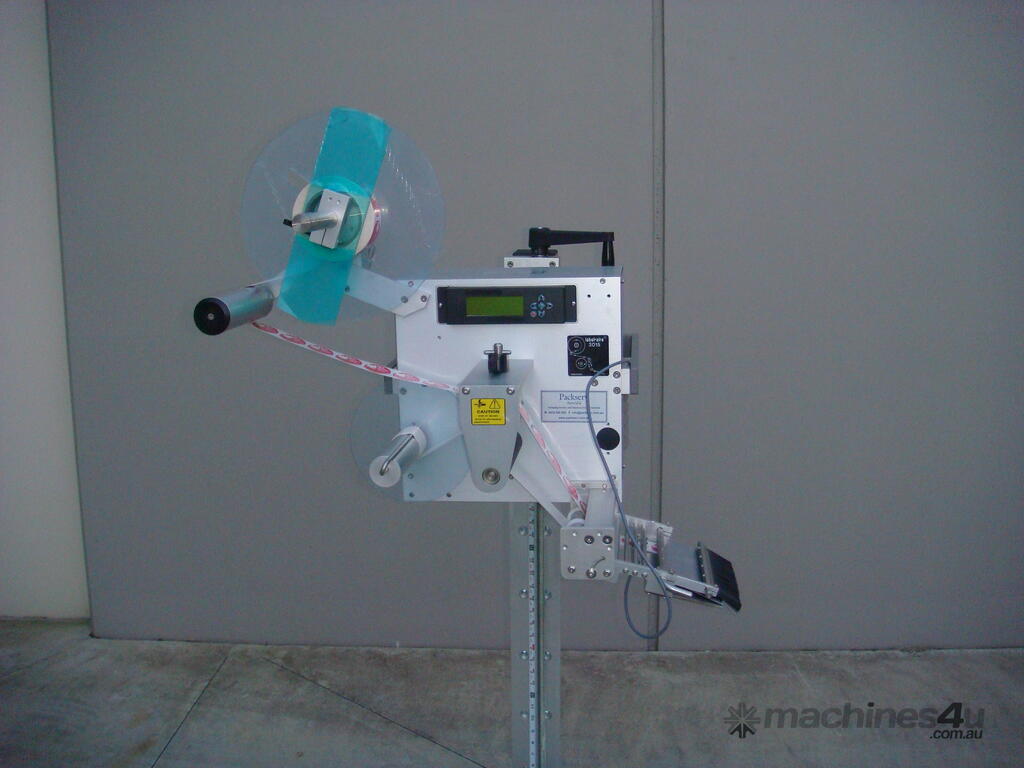

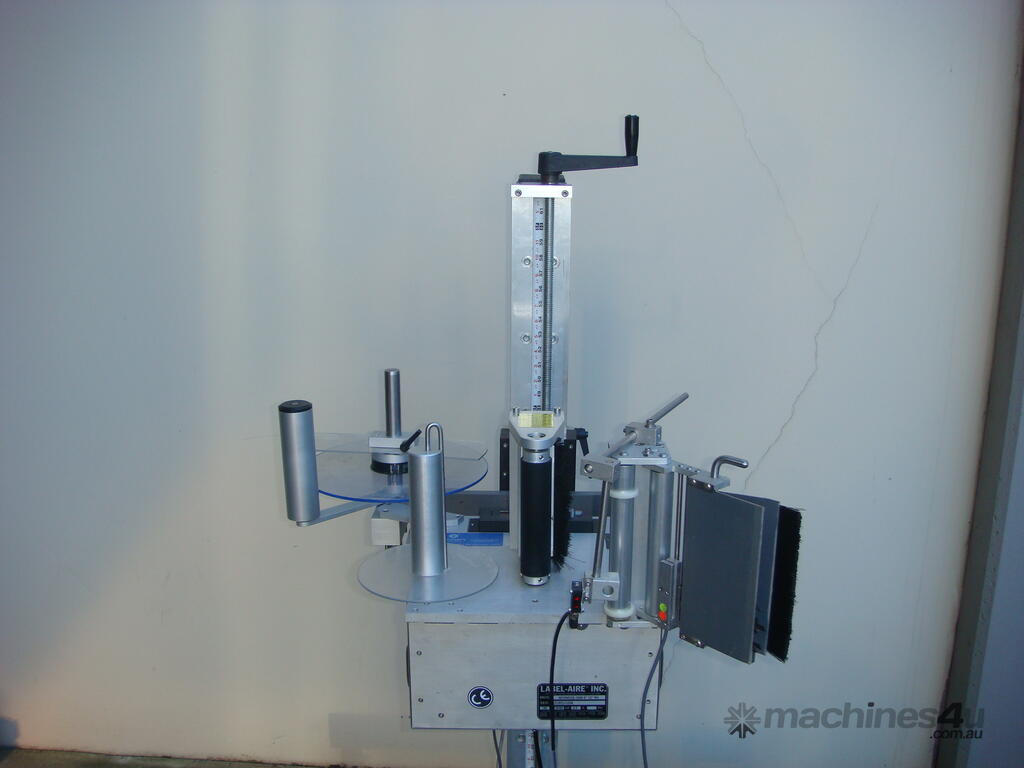

The LA-3015 is a stand alone fully automatic labelling machine capable of being wheeled into place on almost any production line.This machine can be used for wipe-on and wrap-around label applications using different accessories. Applications include: single side wipe on; double sided wipe-on; wrap around; top apply; base apply & corner wrap.
The LA-3015 is designed for simple wipe-on and wrap-around applications of single labels to containers of all materials, shapes and sizes. This machine can only dispense a single label at a time. If a pair of these machines is used in synch then a double sided label application can be achieved.
This machine can be utilised as either left or right hand application to suit both left and right edge lead labels. Please note machine is currently set up for right to left label application - this can be changed by our technicians prior to despatch for a fee if required.
The LA-3015 delivers in terms of speed, ease-of-use and consistency.
A fully automatic machine, this labeller can achieve significant speed with a label dispensing speed of up to 25 metres / minute.
- User-friendly control panel which is multi-functional and easy to use to reduce set up time
- Stepper motor drive – For precise starting / stopping, increased reliability, wider range speed variability, and lower - maintenance
- Microprocessor controlled – Repeatable settings and constant monitoring ensures reliable operation
- Added versatility – Applies labels to the top, side, or bottom of products
- Can be utilised for wipe-on or wrap-around label applications
- Ideally mounted next to a conveyor
- Can be used on all containers regardless of material, size or shape
- With multiple label sensors available can be used for opaque, clear or metallic labels
- Can print batch and expiry data in process with IJC
- Suitable for food and pharmaceutical use
- Quick change over of container or parts
- Stainless steel and aluminium construction
- Adjustable label position while running

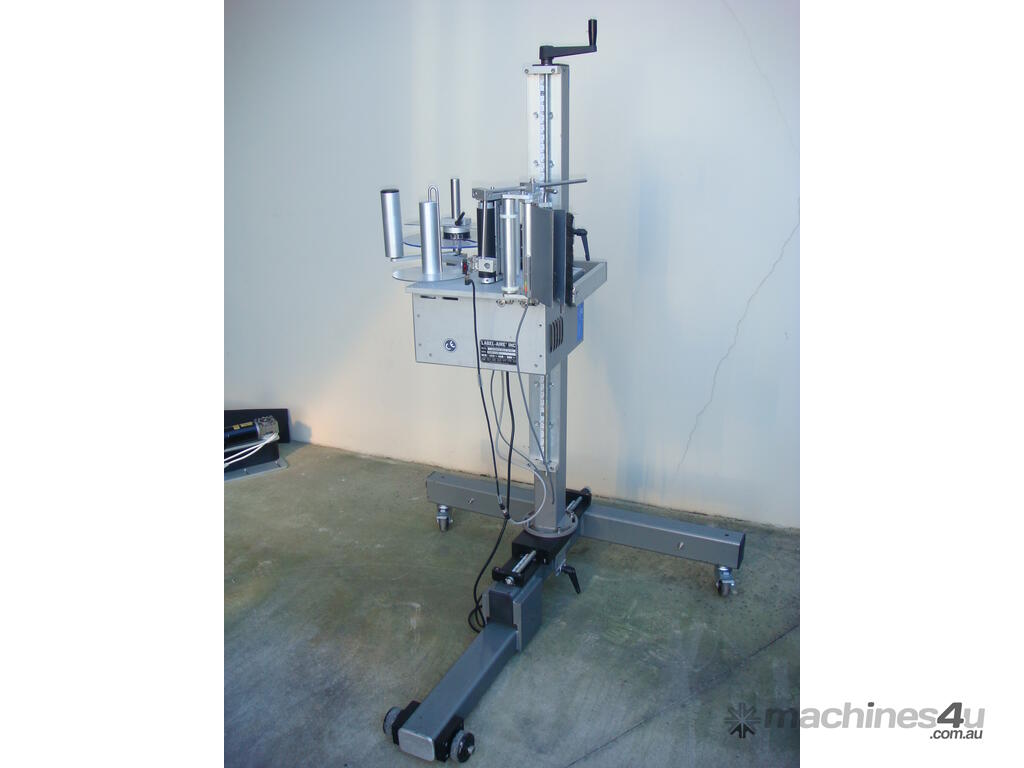

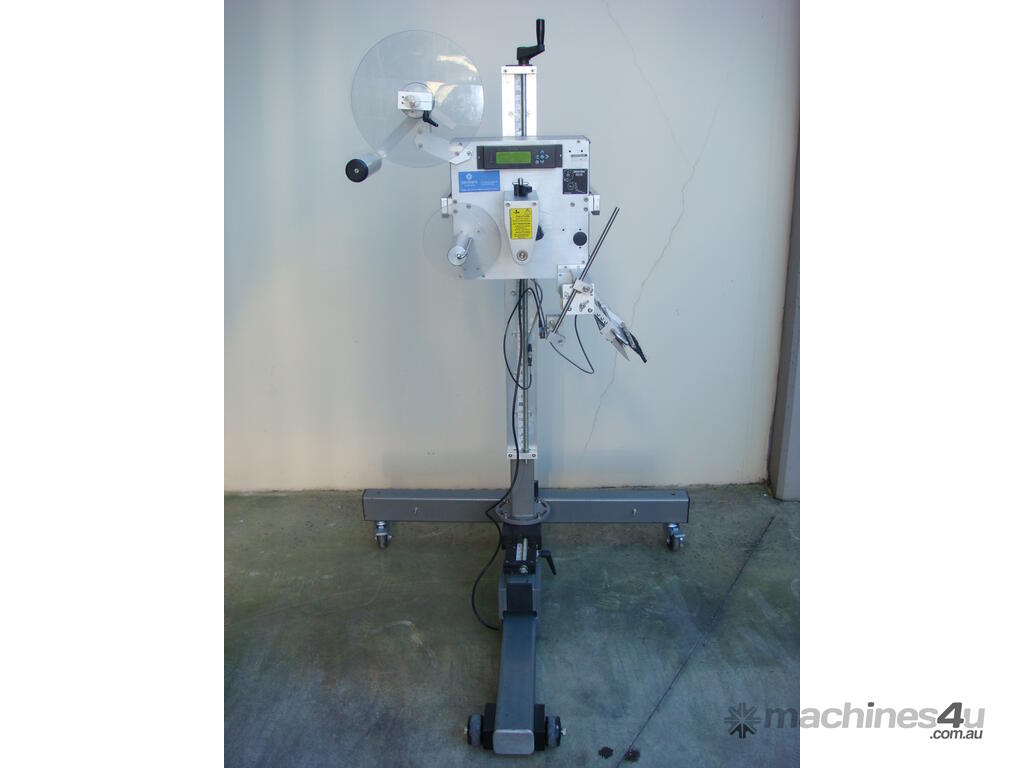

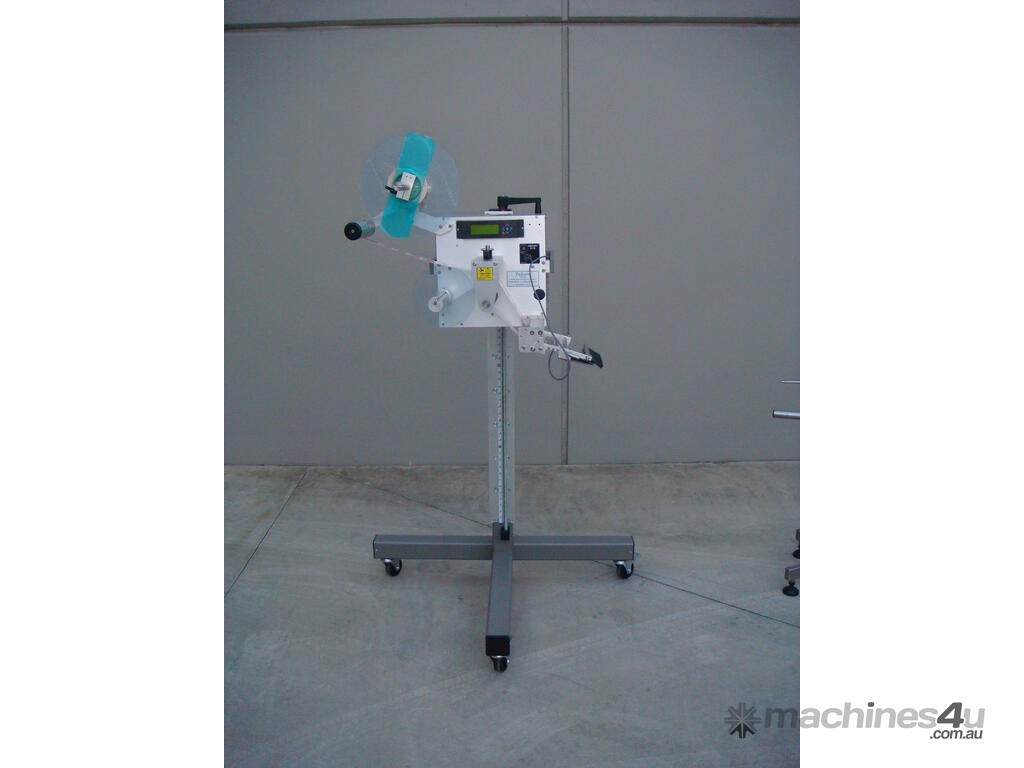

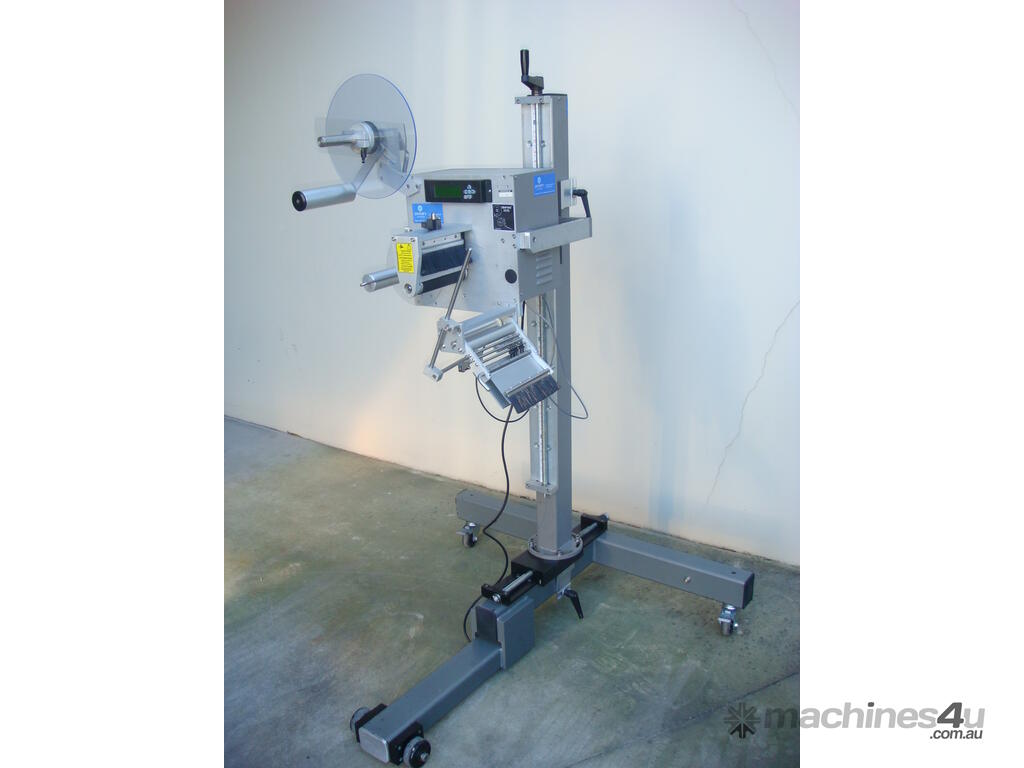

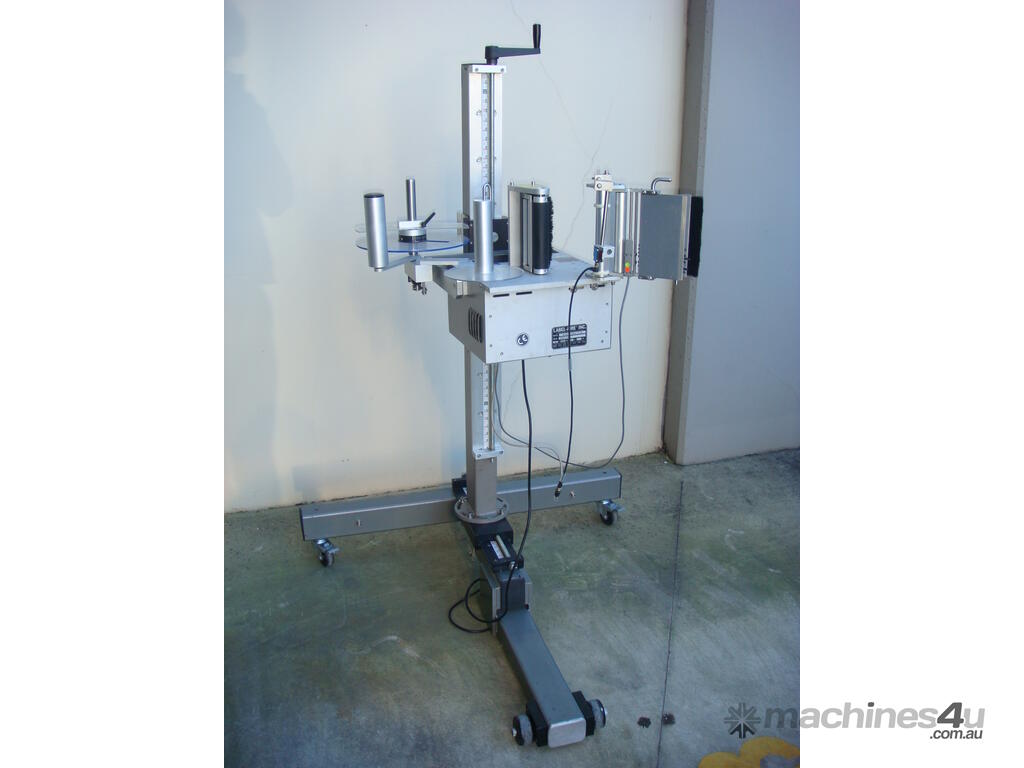

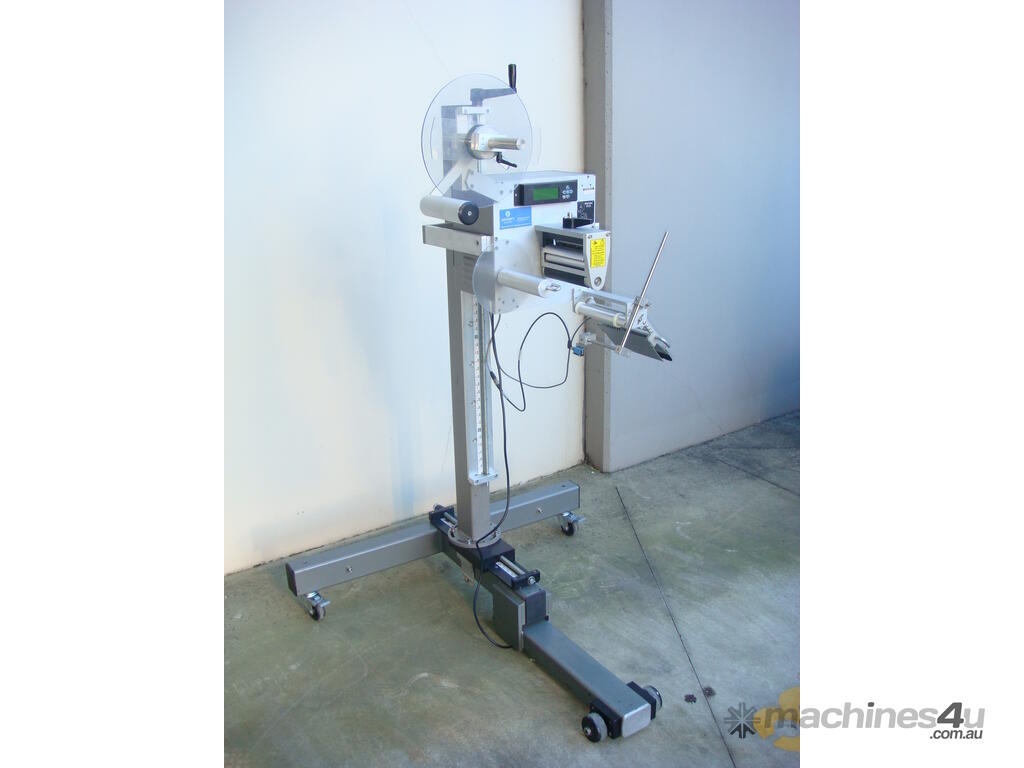

- Please note labelling head comes mounted on a fully adjustable T-frame which can be wheeled into position
Machine Weight 36kg (approx.)
Max label roll diameter 300mm
Max label height 150mm
Min label height 10mm
Machine Head Dimensions 670mmH x 700mmL x 350mmW
Output 20+ units per minute (maximum 150 units/min)
Power Supply 240V 10 Amp
Label Core Diameter 76mm
