PACKSERV Pillar Technologies Automatic Induction Sealer

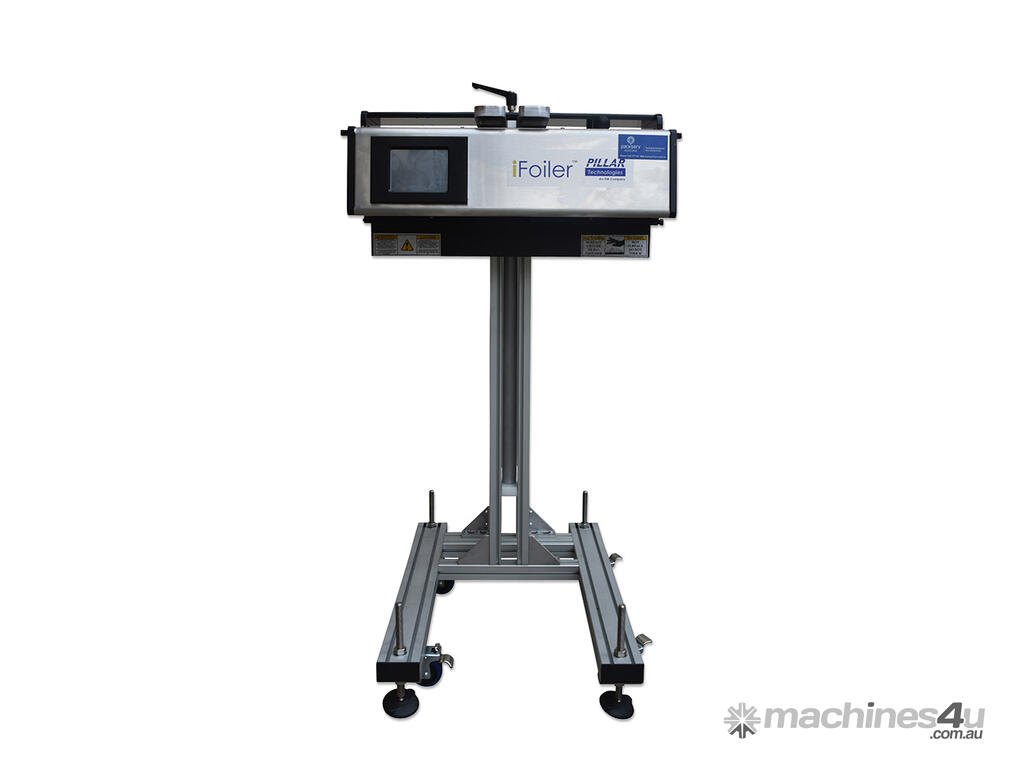

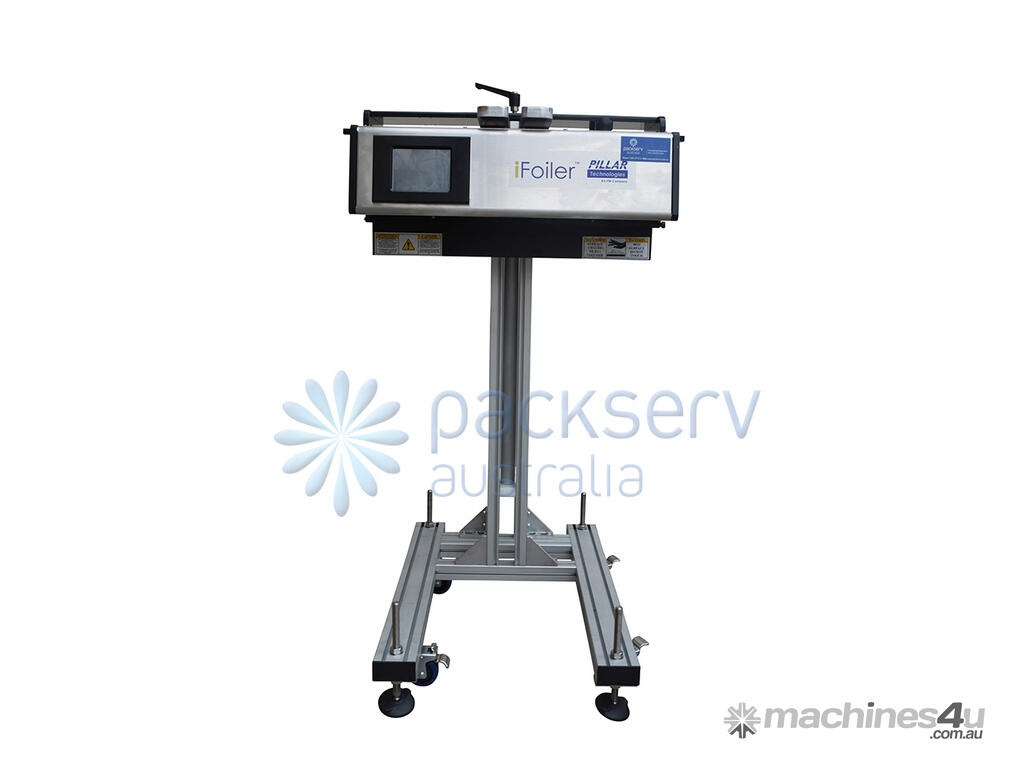

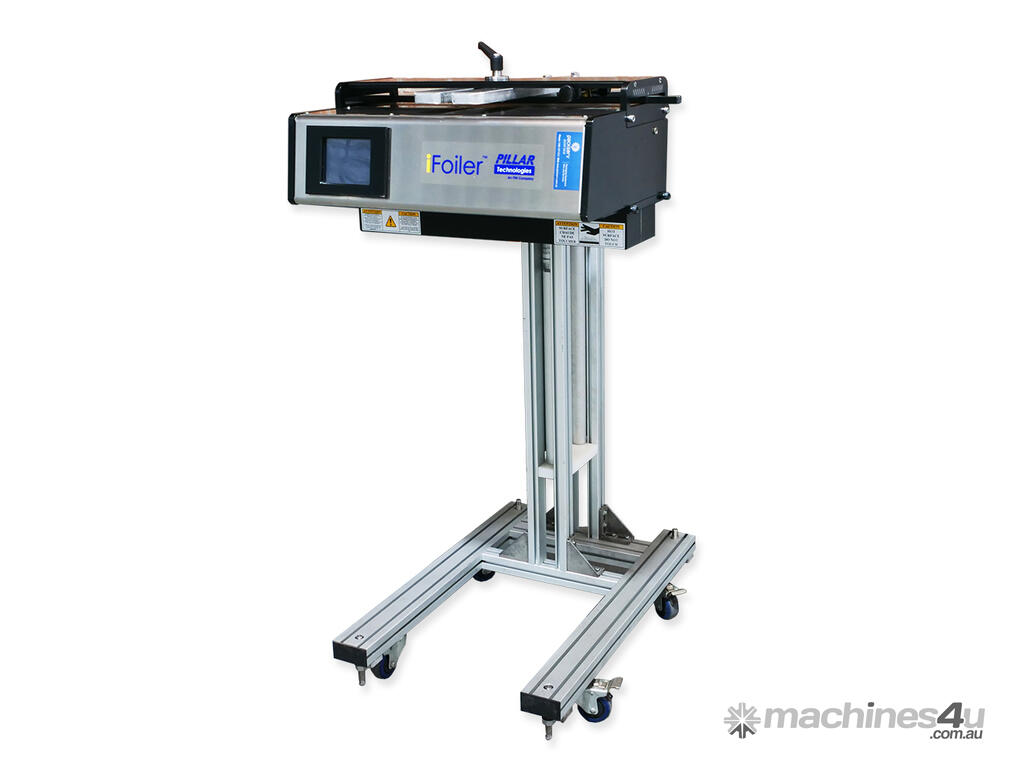

The Pillar Technologies INS-IF2.25-U is a 2.25kW iFoiler; a fully automatic stand mounted induction sealer – for use over a conveyor in a full production line. The level of performance is a result of world-class electronic engineering. It
delivers highly reliable, tamper-evident seals that prevent leakage and ensures high seal integrity for a wide range of products.

Designed with modularity in mind, the iFoiler features a highly functional touch screen interface, unsurpassed sealing efficiency, multiple language accessibility, and an optional, and highly-unique, seal calibration system which ensures seal integrity. There are more functions integrated into the microprocessor, such as memory functions for customer applications, which allows the iFoiler to operate independently.

Applications can be saved within the memory of the iFoiler, and can be called up independently with selected parameters. Sealing coils are removable from the generator without tools, which improves productivity.
Featuring additional extras such as a reject mechanism and an infeed bottle stop. The design of the new iFoiler is also significantly more compact, so it is easier to place it within the line and improve efficiency.

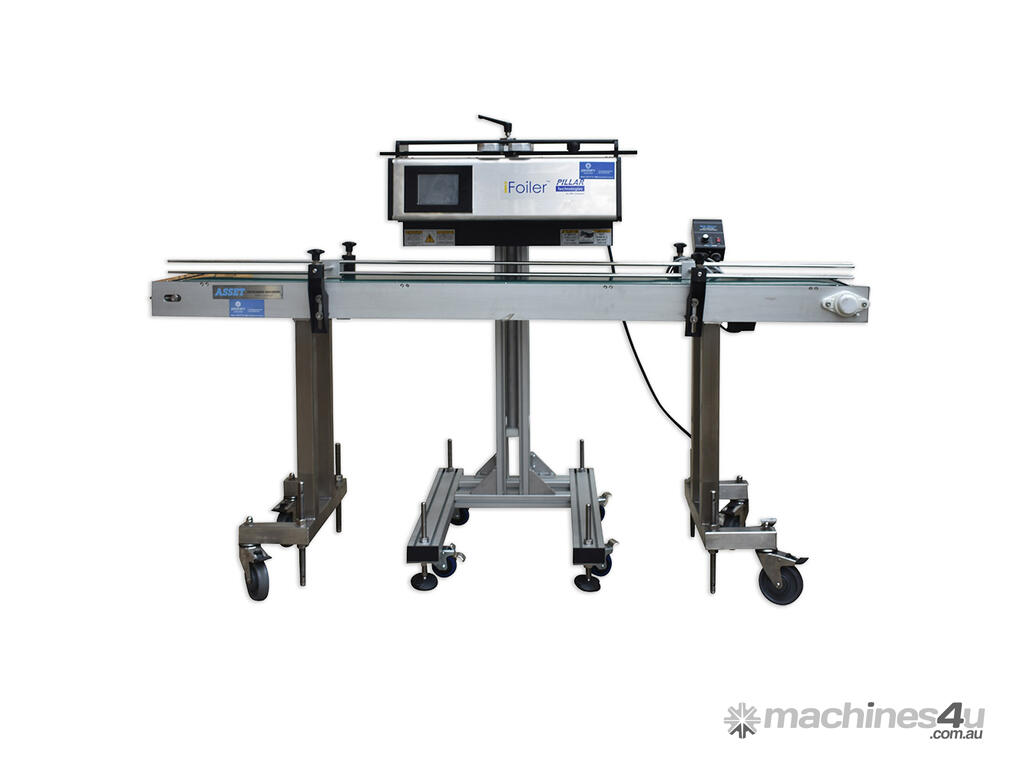

This machine is designed for use with a fully automated production line.

Weight 44Kg
Control Box Dimensions 660mm Width x 410mm Depth x320mm Height
Cooling Air-cooled
Max. ambient temperature 50° C
Power Supply Requires 240v 15Amp – converter for use with 240V 10Amp available
Cap Diameter Sizes 20mm to 150mm


- Automatic Function
- Constructed from durable Powder coated Stainless Steel and Anodised Aluminium.

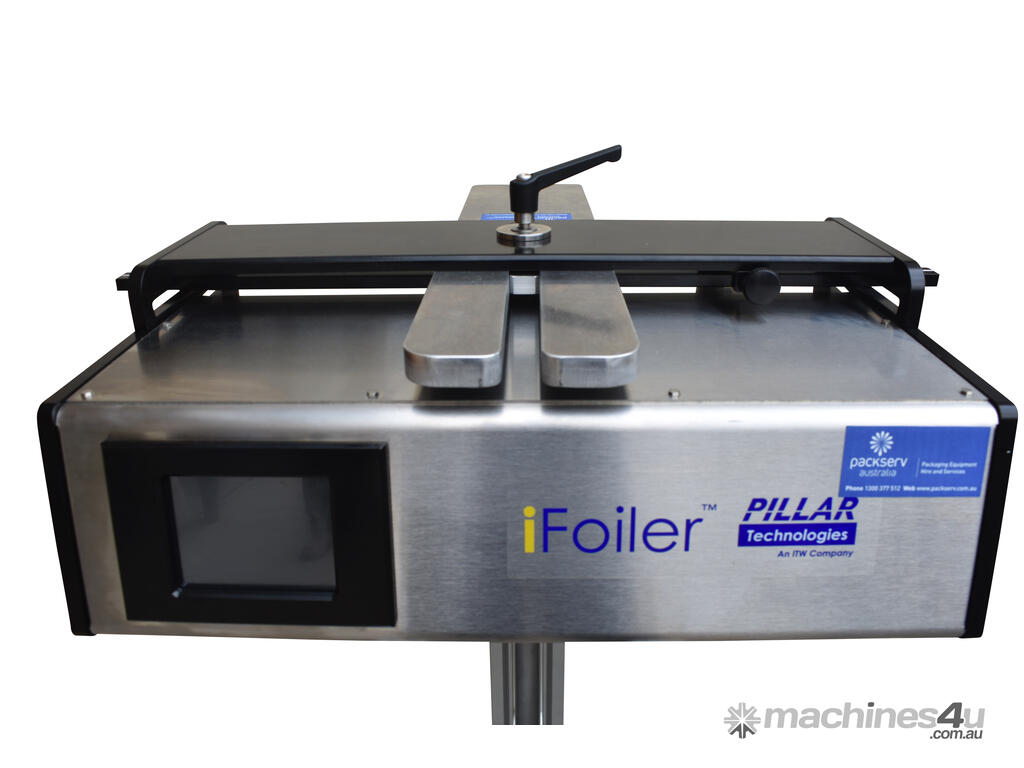

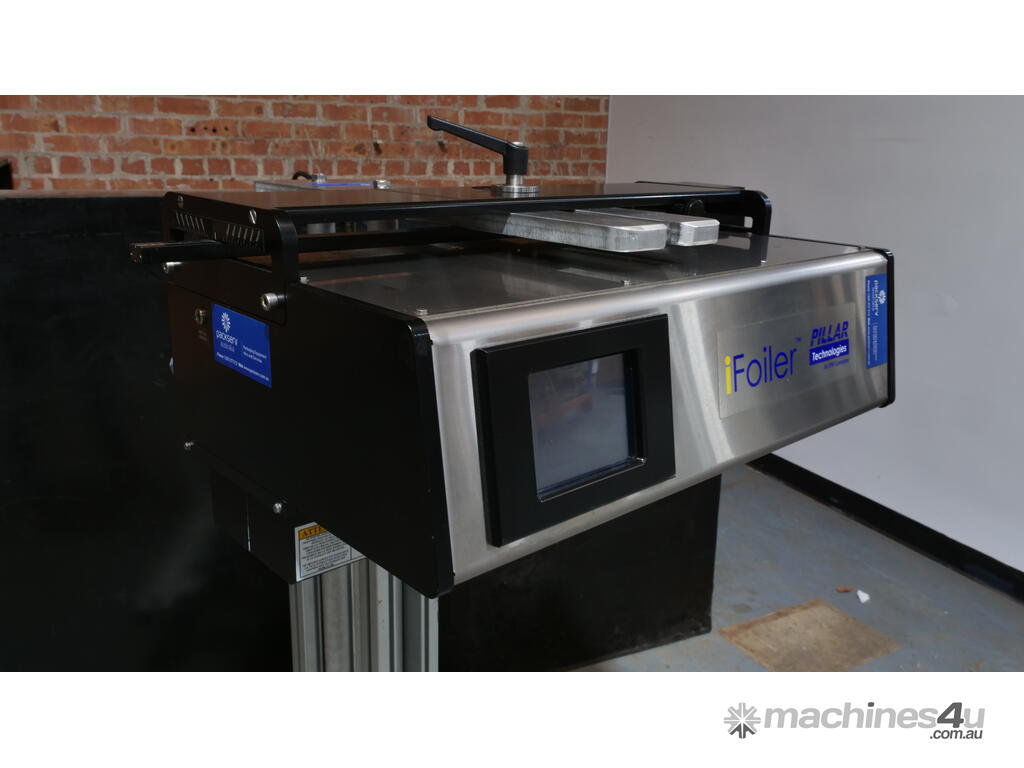

- High resolution full colour touch-screen control panel with simple, uncluttered display.
- Rugged IGBT technology and proprietary control circuitry ensure years of trouble-free operation.
- “Easy-turn” pivot adjustment and alignment gauge simplifies set-up for quick cap change over.
- Quick connect system allows for the full integration of optional accessories inside the machine cabinet.
- Patented, high efficiency design inverter saves energy and directs more power to where it’s needed most.
- Password protected supervisory settings, diagnostic help screens, recipe menus, event logs and intuitive setup screens with multi language support.

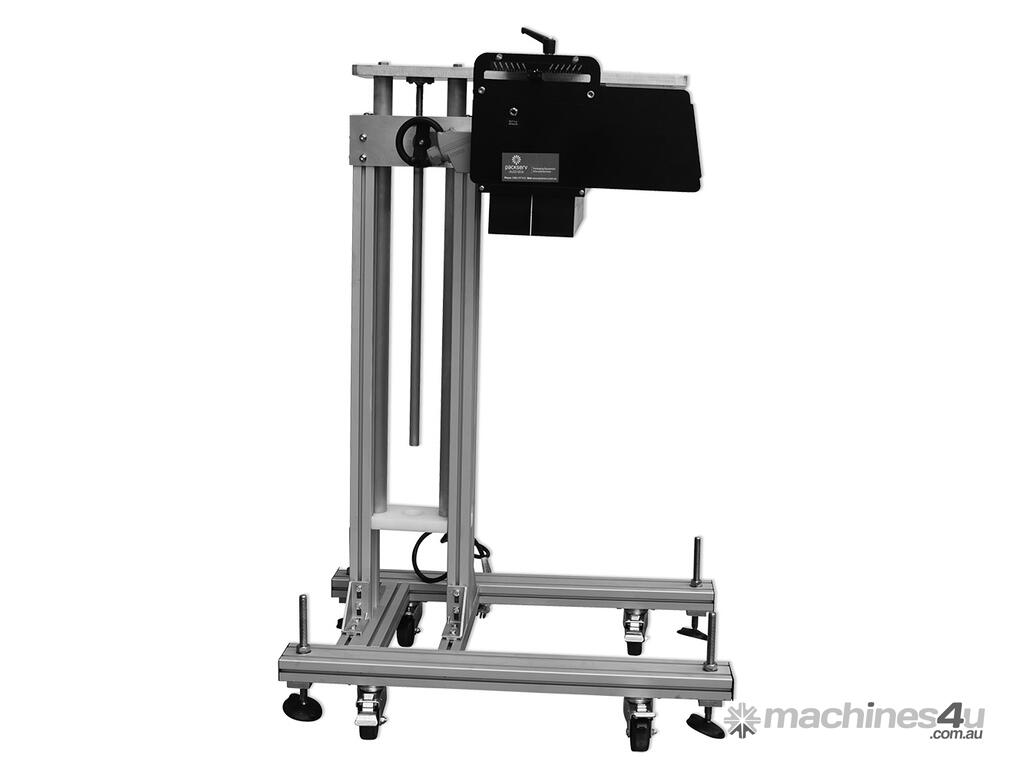

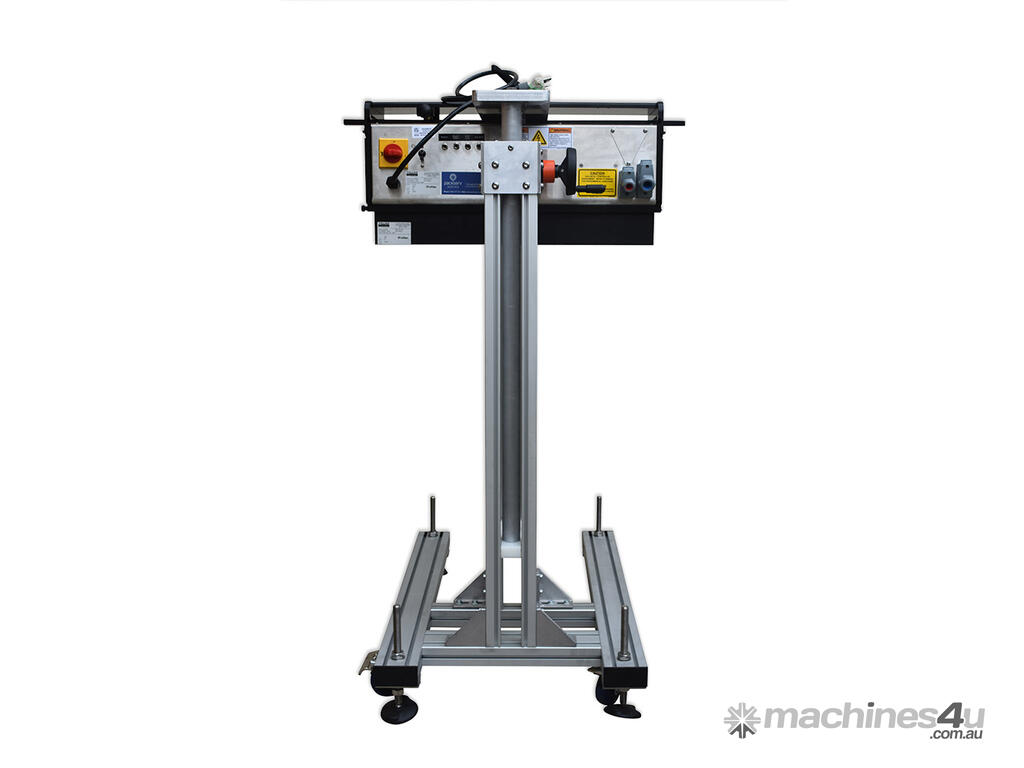

Mounting:
Frame featuring castors
