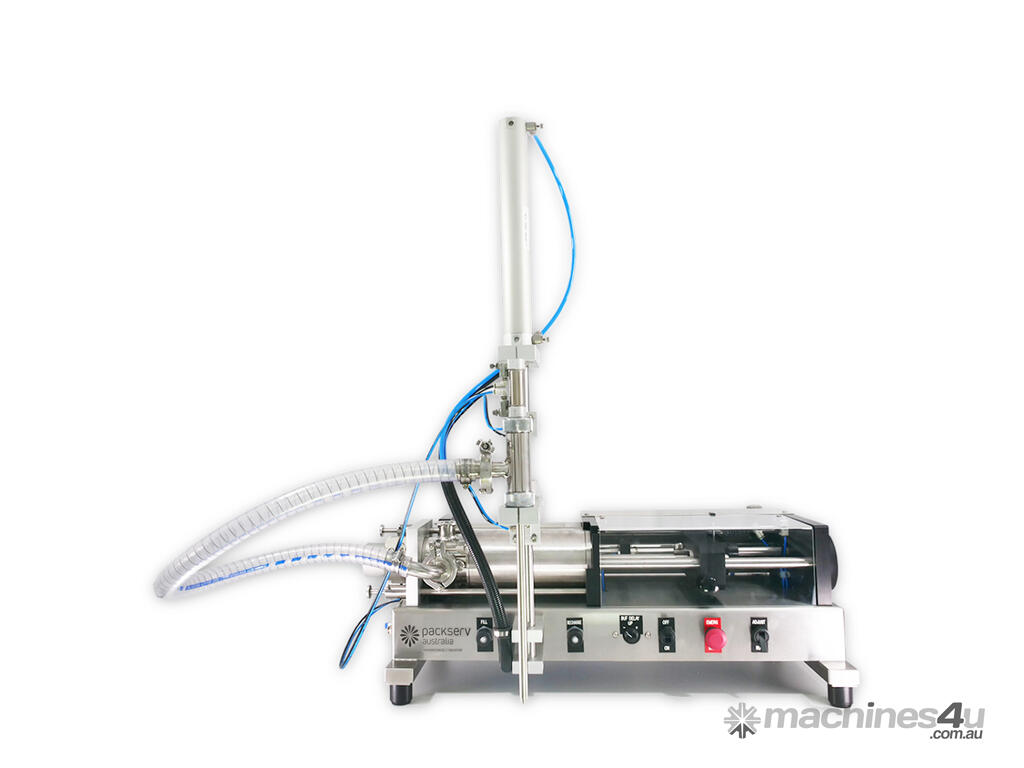

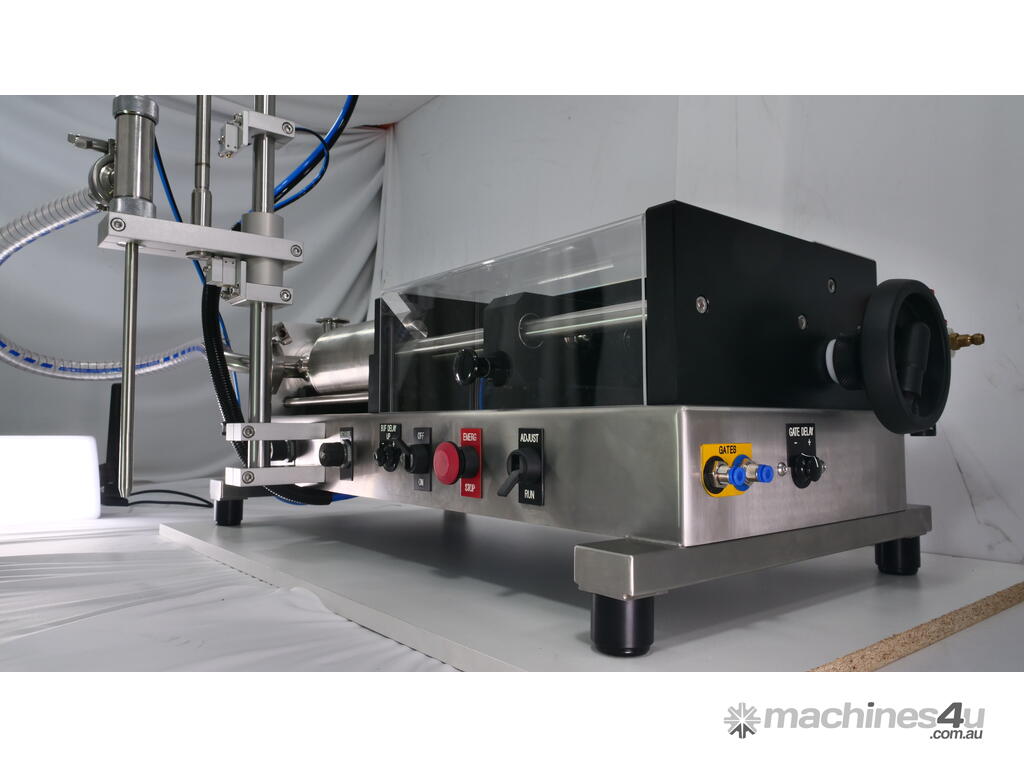

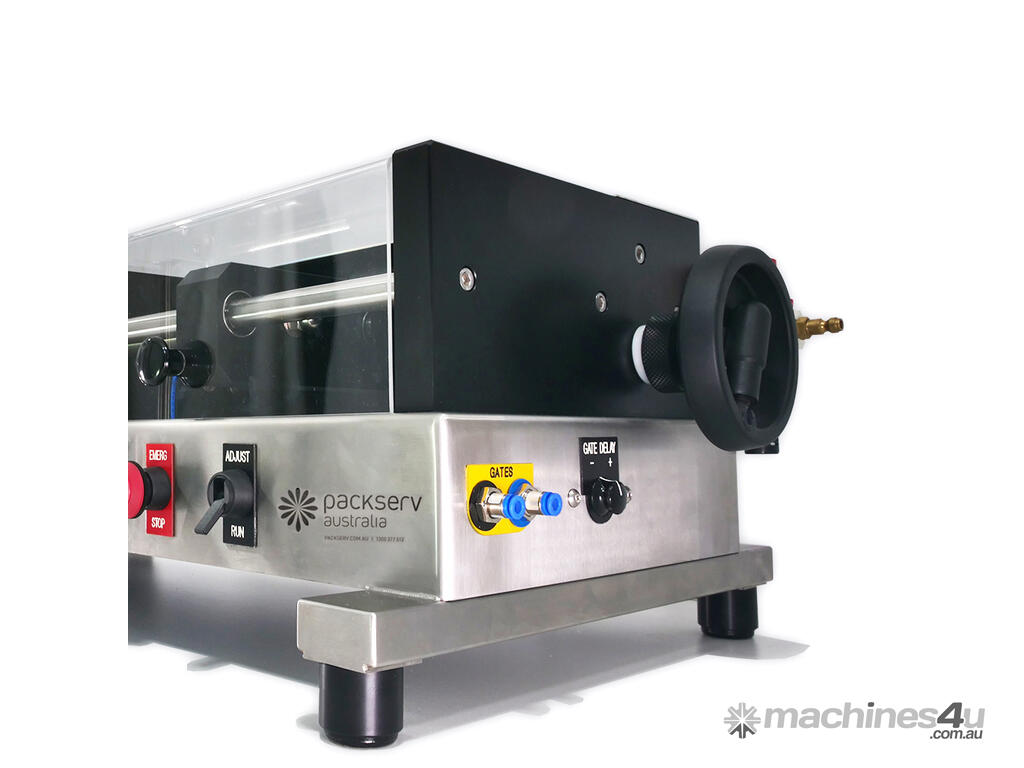

PACKSERV Single Head Auto BUF Filler * up to 20 units / minute *

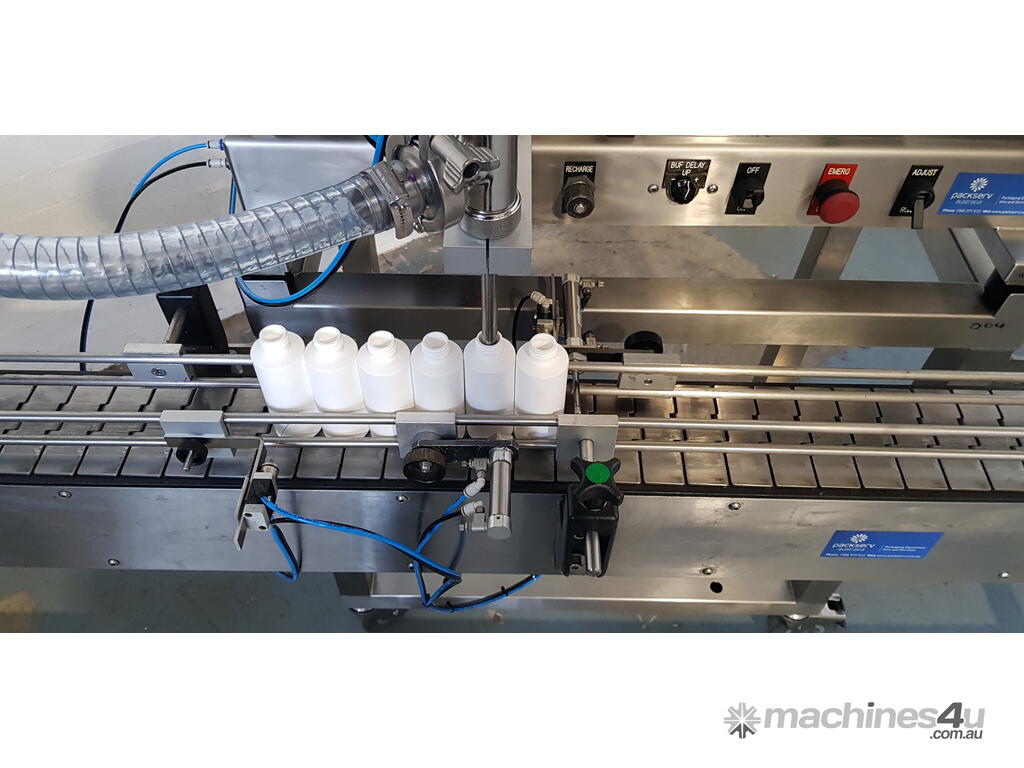

The Packserv PFM-3-BUF-A Auto Single Head Filler, is a fully automatic liquid, paste and cream bottom up filling machine that is both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-3 is compact, reliable and easy to clean. The PFM-3-BUF-A also comes standard with positive shut off nozzle and bottom up fill.

This filling machine will even package products with suspended solids; a task that usually requires two different types of filling machine or an expensive change of parts.
The cylinder design of the PFM-3-BUF-A enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be used according to the nature of product or customer preference e.g., close coupled hopper, suction hose inlet assembly, elevated or floor level tank, and low pressure feed from a pump.

Weight: 35 kilograms
Length: 820mm
Width: 330mm
Height: 800mm

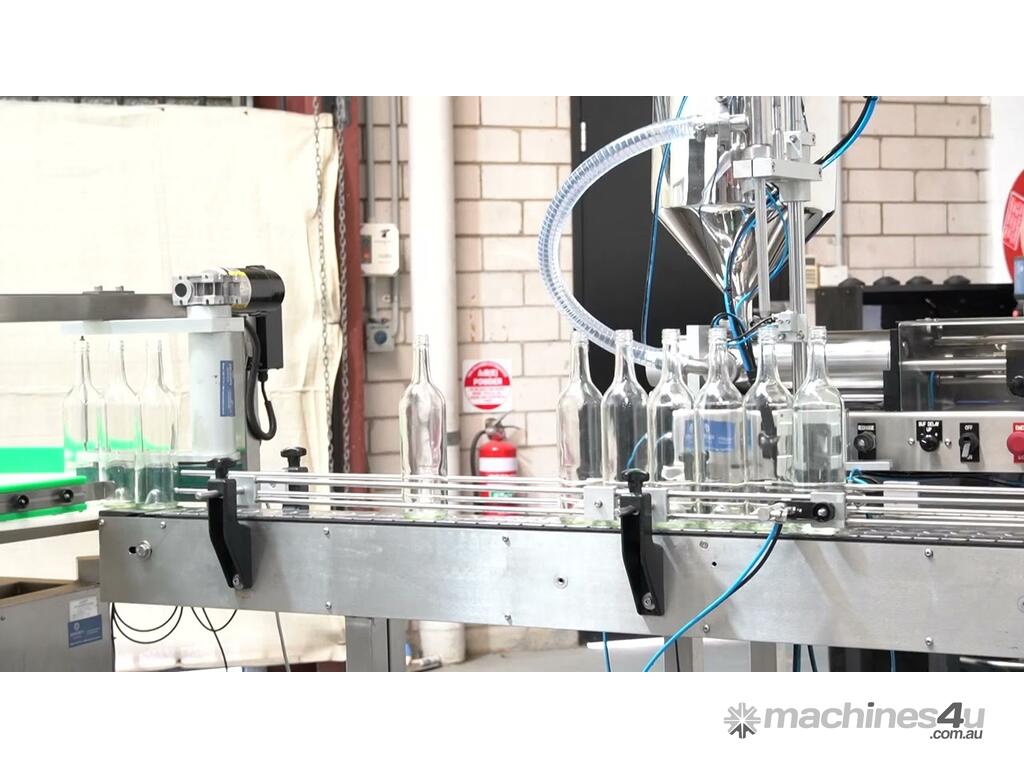

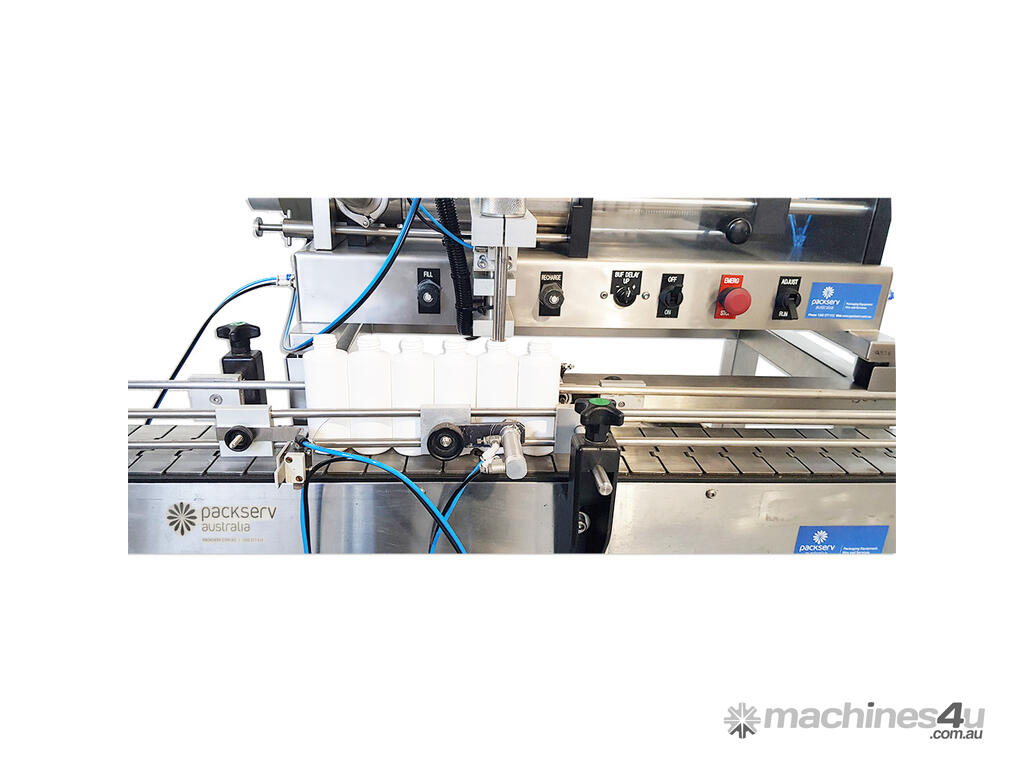

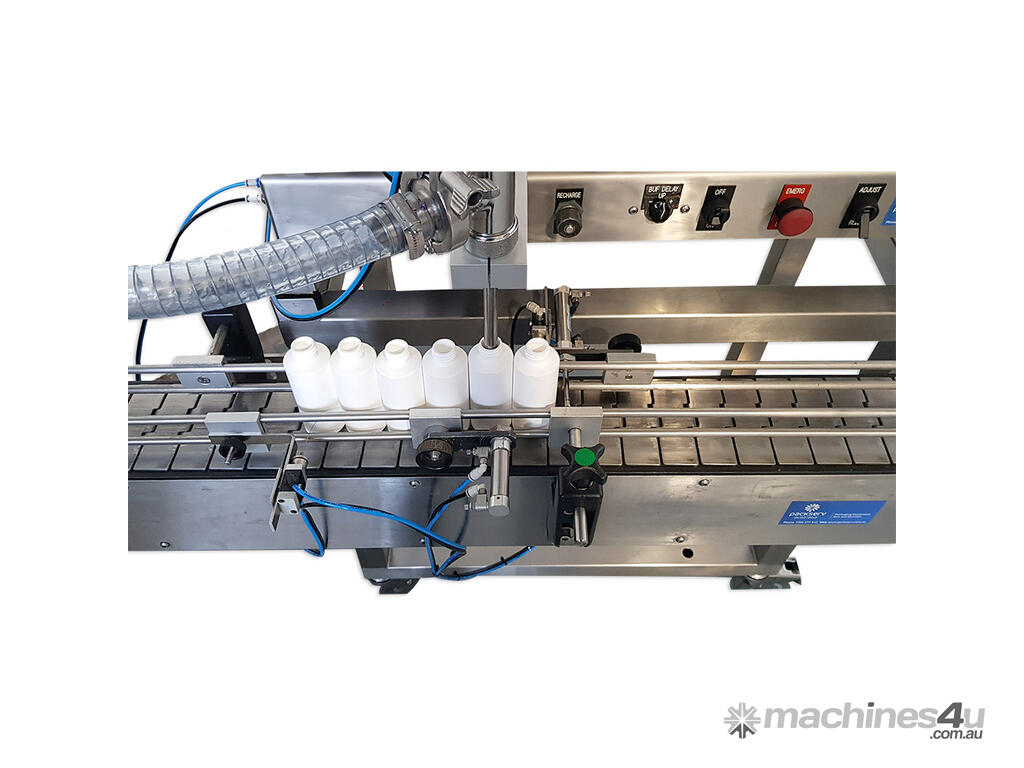

Mounting: Trolley mounted with lockable castors (mounts onto inline conveyor system)
Power Supply: Air compression
Noise: Medium
Air pressure: 600kpa (80psi)
Units per minute: 10-20UPM (guide only)

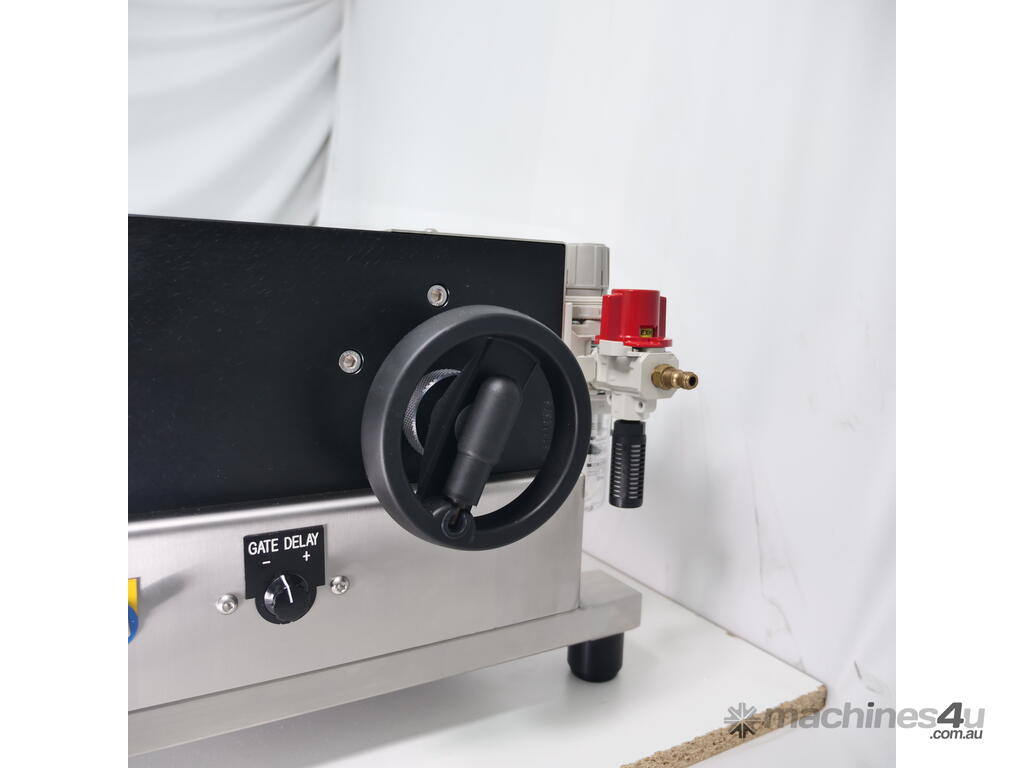

Speed: Totally speed adjustable for all functions
Timer Control: Pneumatic
Container type: Bottles, jars, tubs, containers that will stand on a conveyor
Industries: All food, pharmaceutical and industrial applications
Fill range: 2.5ml to 1250mls fill range, single shot
Construction type: 316 grade stainless steel wet parts
Fill temperature: Cold and hot fill
Fill type: Liquids, creams, lotions
Not suitable products: Powder and granules.
Benchtop: Yes/Trolley
Machine Cleaning: Easy to disassemble for full wash up
Flameproof: Yes
Volume: Fully adjustable
Filling accuracy: +/- 0.5 to 1% variance
Cylinder Sizes: 25, 50, 125, 250, 500, 750 or 1250ml
Automatic function: Yes, designed to be completely operator free

- Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation
- Easy volume adjustment while running
- Totally speed adjustable, fill and recharge stroke
- Once dismantled by hand the filler can be fully washed down
- Quick changeover of products and parts
- This bottom up filler is suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Individual fill speed and recharge speed controls

Mounting:
Benchtop (Trolley available)



Purchase Inclusions:

25L or 50L Hopper
Inlet assembly
Various interchangeable nozzles

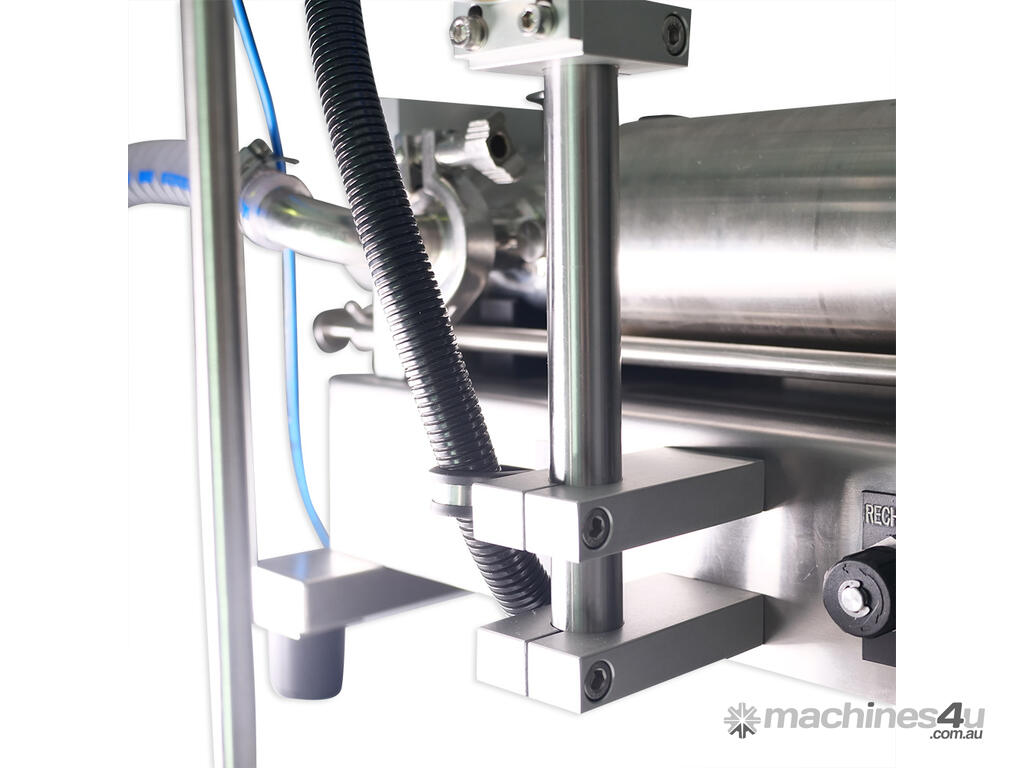

Positive shut-off nozzle
Suck-back nozzle
Plug or plunger nozzle
Spool valve
Stainless steel trolley (long term hire only)
Interchangeable cylinder sizes
Custom parts for special jobs
