PACKSERV Sorting Table * suitable for all food, pharma & industrial use *

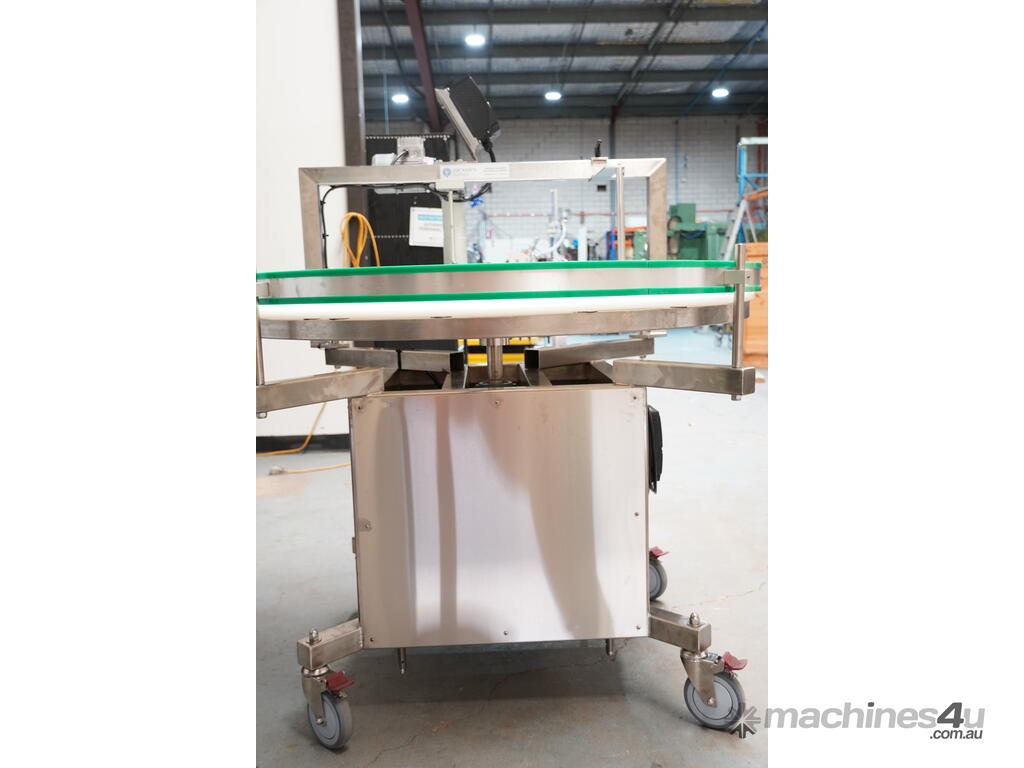

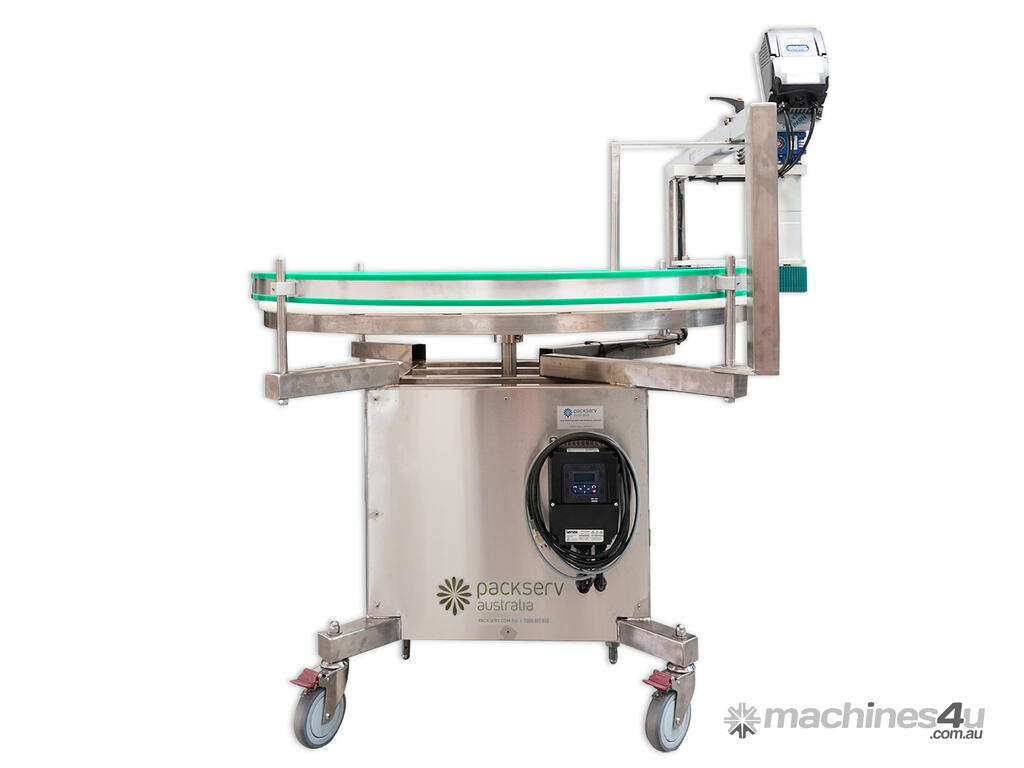

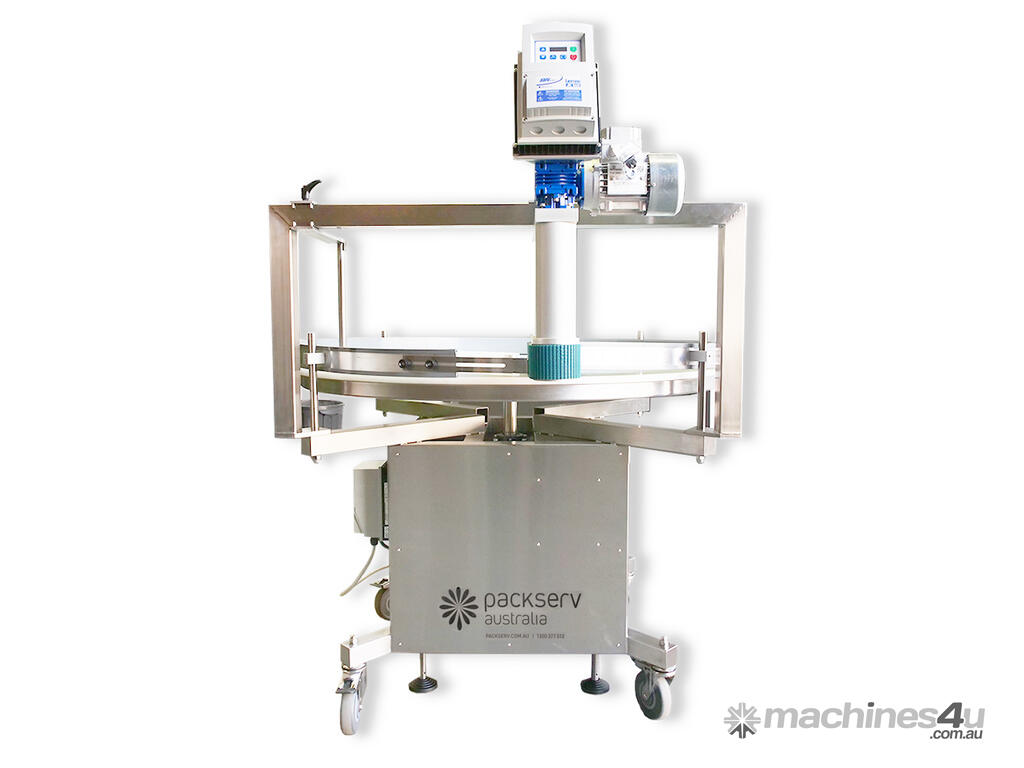

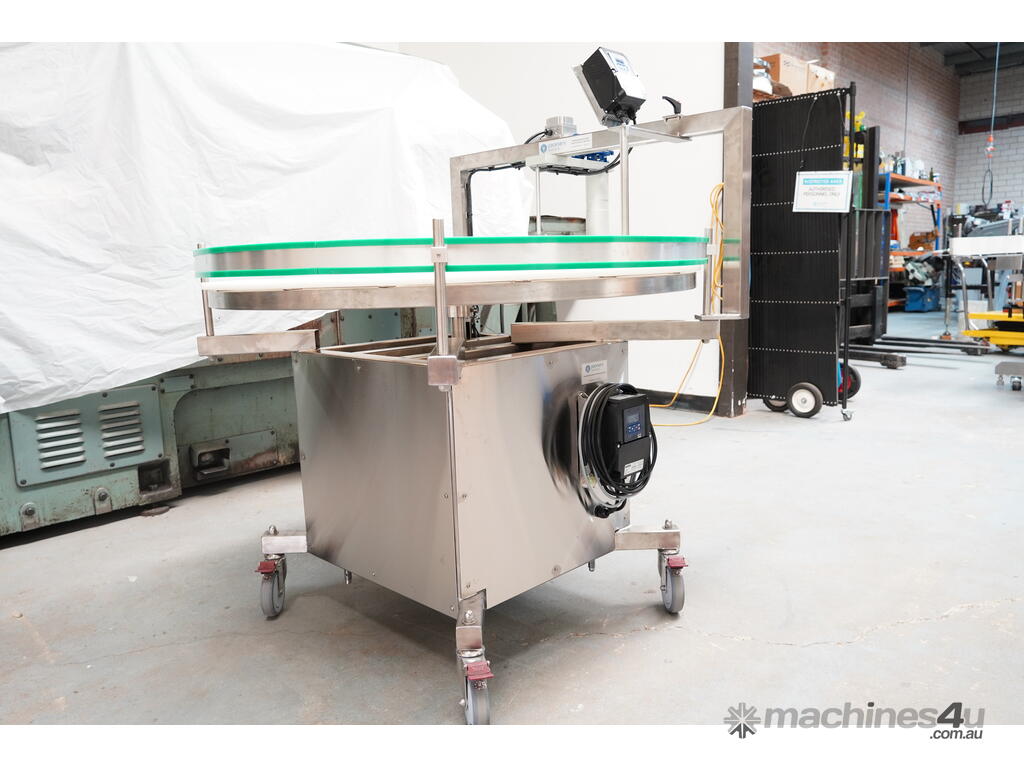

The Packserv PST-8 sorting/infeed table is designed to be the initial point on any production line. This table feeds containers in a single line onto conveyor system to allow the other production processes to take place.

Our PST-8 Sorting Table is designed to reduce the number of operators required to load and pack off from an automatic line. Containers can be randomly placed on the PST-8 sorting table where they are automatically fed to the conveyor for filling, capping or labelling.

This table features a robust and durable 316 stainless steel design to ensure an endurable product requiring minimal maintenance. This table features levelling jacks and rubber feet to ensure the correct height is applicable for any line. Additionally, the frame is atop of lockable castors/wheels to ensure simple installation onto any line.

The 1200mm HDPE table will cater to a large number of containers minimising operator input.

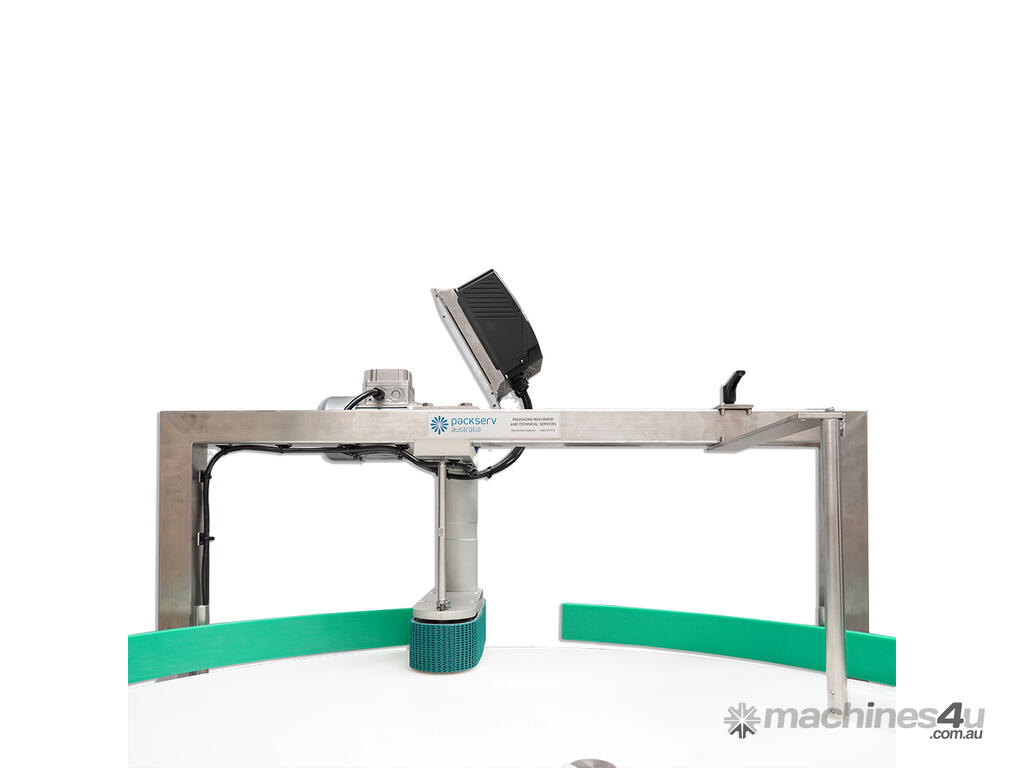

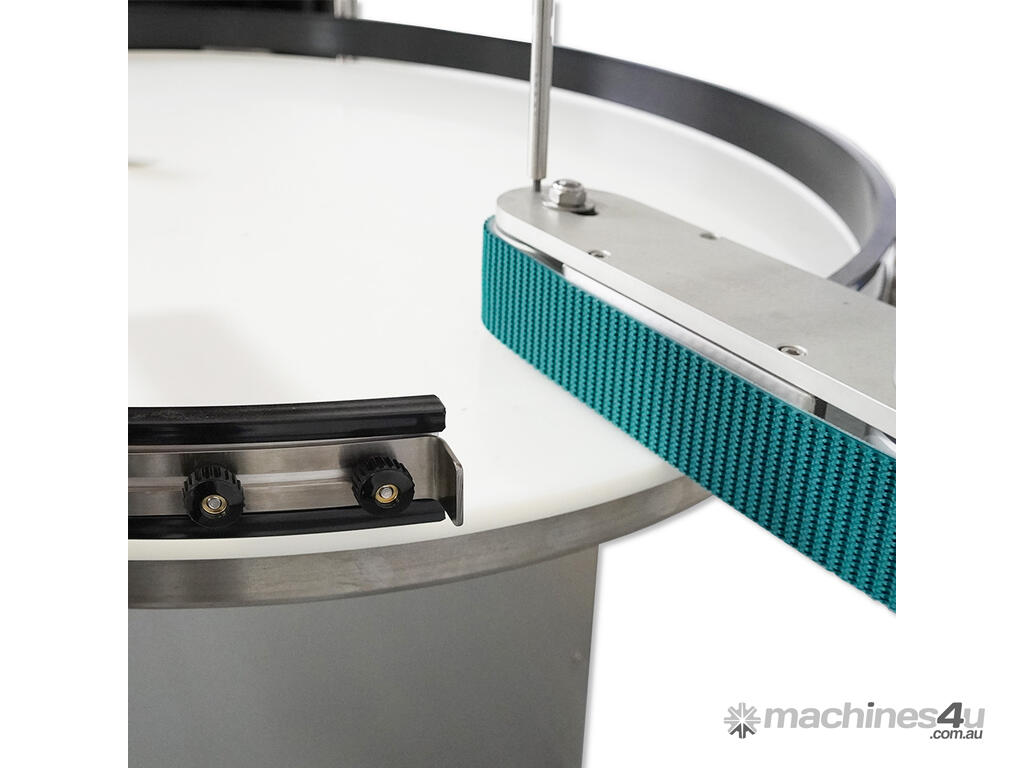

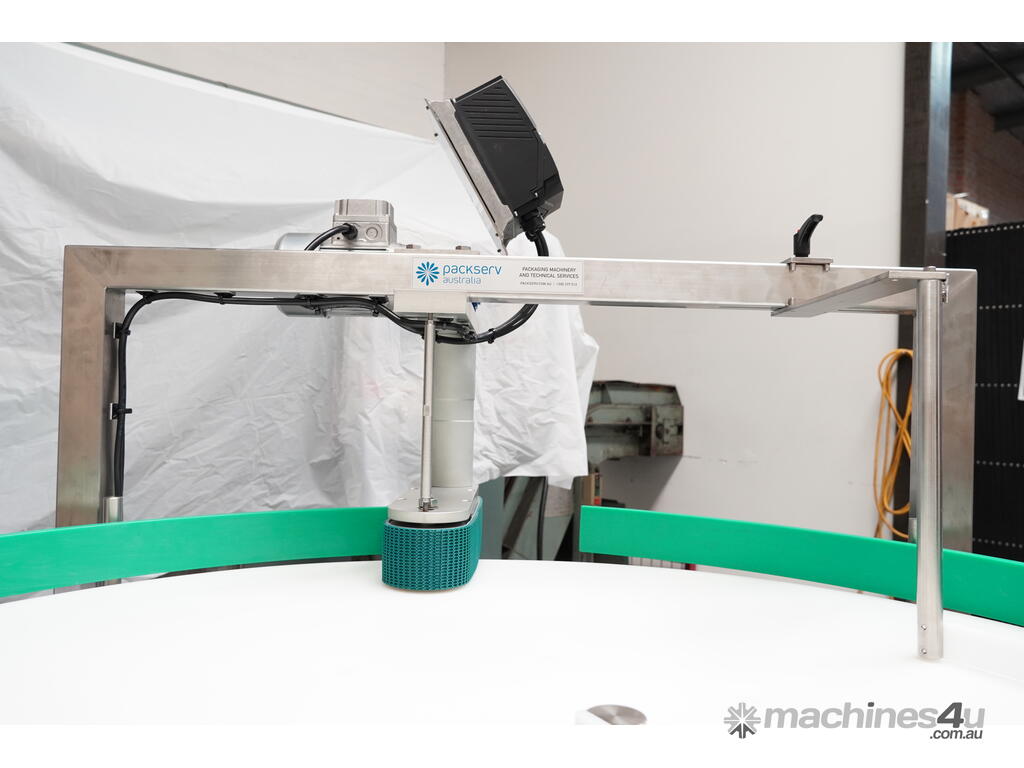

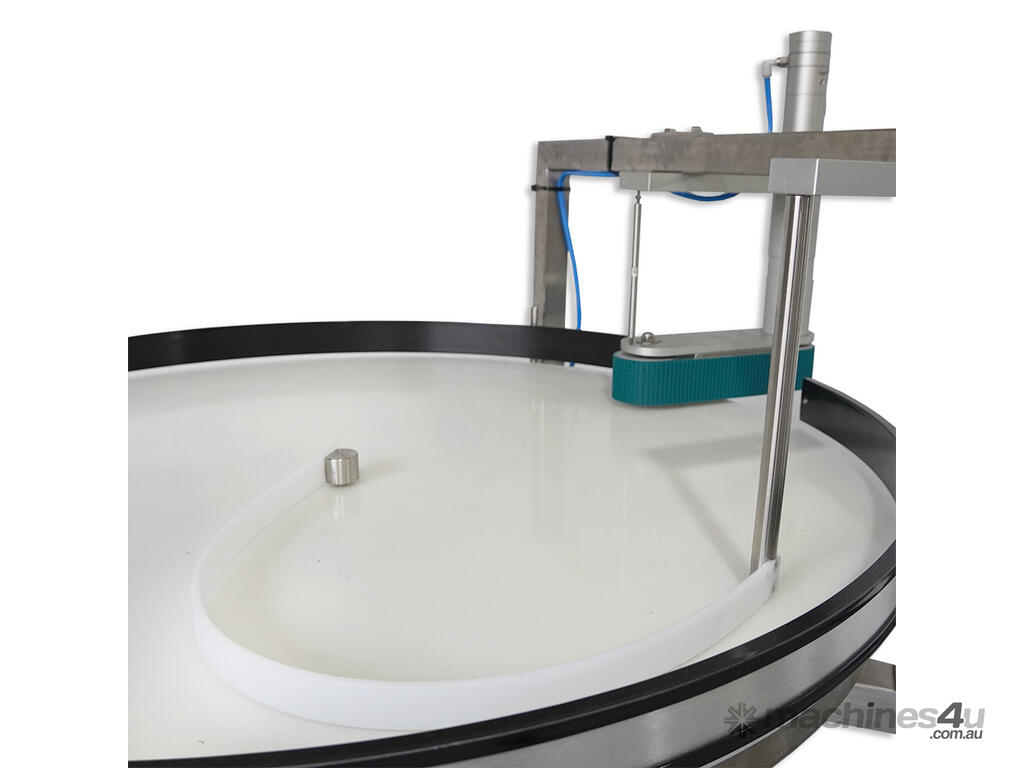

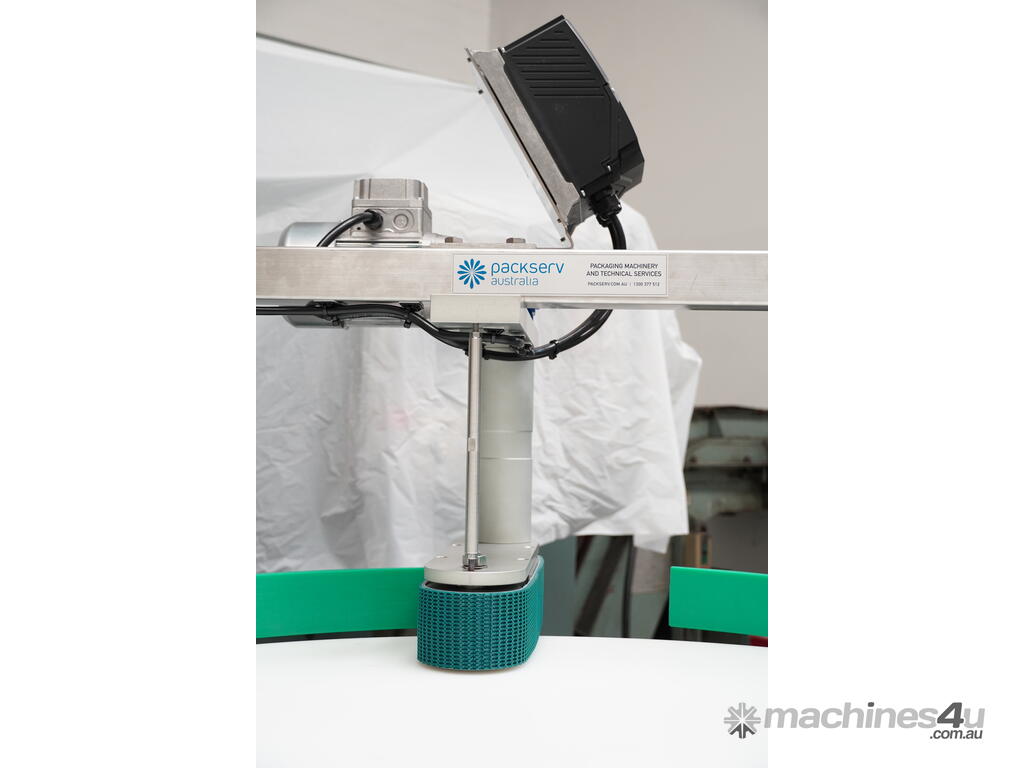

The sorting table features an transfer belt to assist with containers moving in a stable and consistent fashion onto the adjoining conveyor. This machine is designed to be either inline or side-mounted onto our range of conveyors to adapt to whatever room dimensions you may be working with.

Finally, the table features a photoelectric sensor which after a time-delay signals both the tabletop and transfer belt to stop operation to prevent a build-up of containers on your conveyor line.

Weight 120 kilograms
Length 1200mm
Width 1200mm
Height 900mm
Power Supply Single phase 240V, 10 Amp
Construction Type 316 stainless steel and HDPE table top
Mounting Lockable castors and levelling jacks
Industries All food, pharmaceutical and industrial applications
Noise Low
Speed Variable speed control

- Automatic Function
- Suitable for food and pharmaceutical use
- Totally speed adjustable
- Various accessories to suit applications
- Can be connected to a conveyor or stand-alone operation
- 316 stainless steel and aluminium construction
- Fast changeover of containers type
- Mounted on lockable castors (wheels)
- Fitted with threaded levelling jacks
- Driven by a variable speed AC motor and controller
- Fully guarded on edges with safety torque limiting device
- Photoelectric sensor to stop operation of table/belt when conveyor is full

Mounting:
Frame featuring castors

Purchase Inclusions:

4 x lockable castors and levelling jacks with feet
1 x photoelectic sensor with bracket
1 x transfer belt assembly
1 x fully variable speed drive
