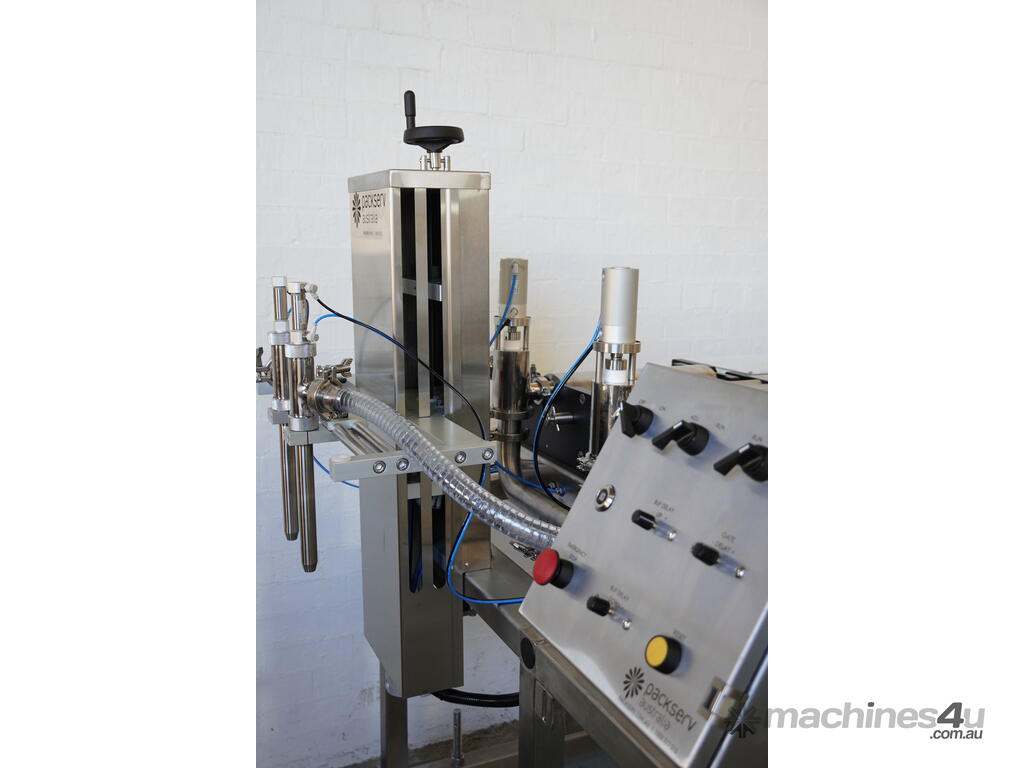

PACKSERV Twin Head 5Ltr Auto Filler

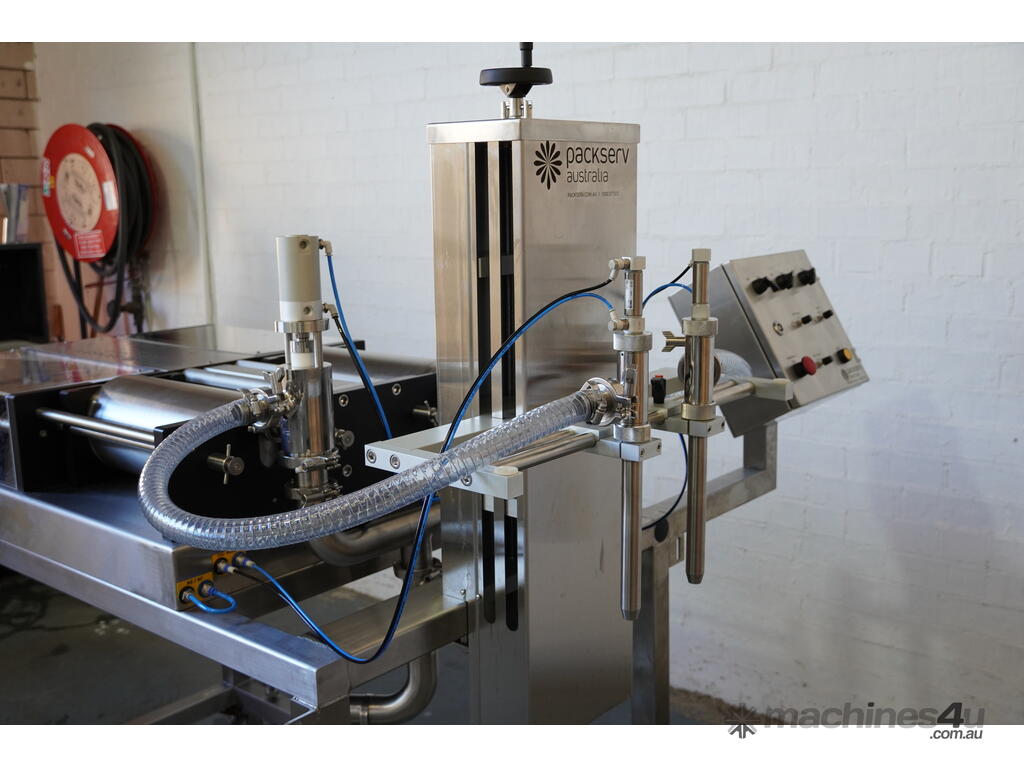

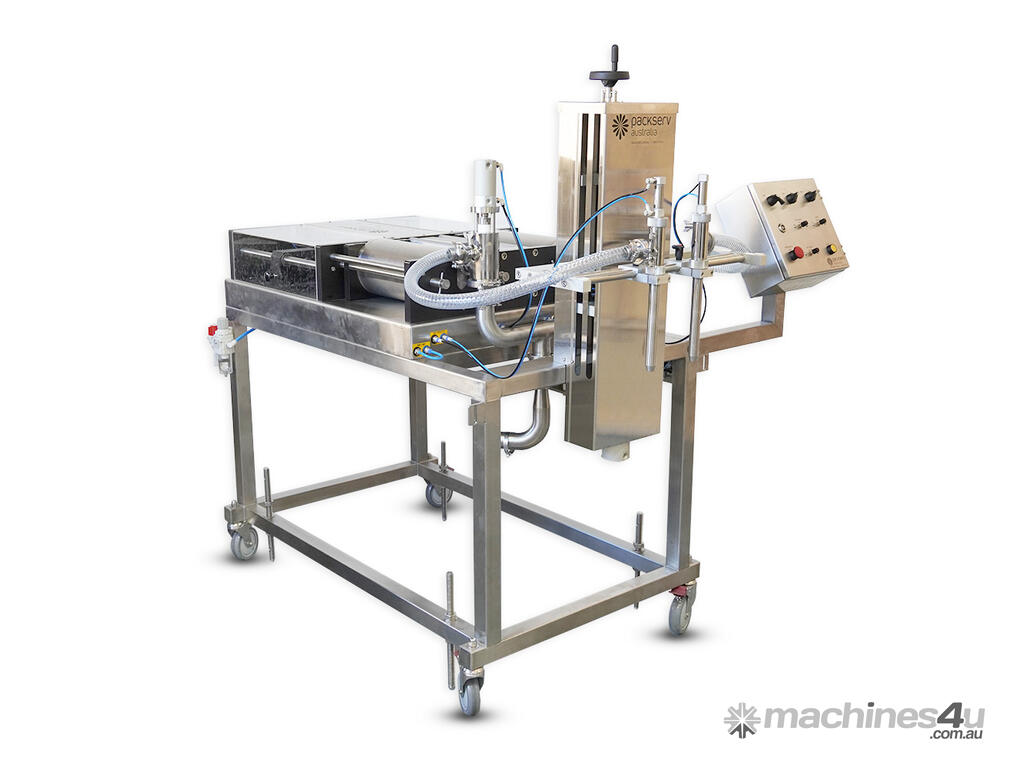

The Packserv PFM-5-2C Twin Head 5Ltr Auto Filler is a fully automatic liquid, paste and cream filling machine that is both user friendly and versatile and features a 5 litre product cylinder with twin nozzles.
It has been designed for use as a heavy duty, all pneumatic fully automatic inline bottom up filling machine which offers reliability and ease of use with tool-free cleaning and parts change-over.

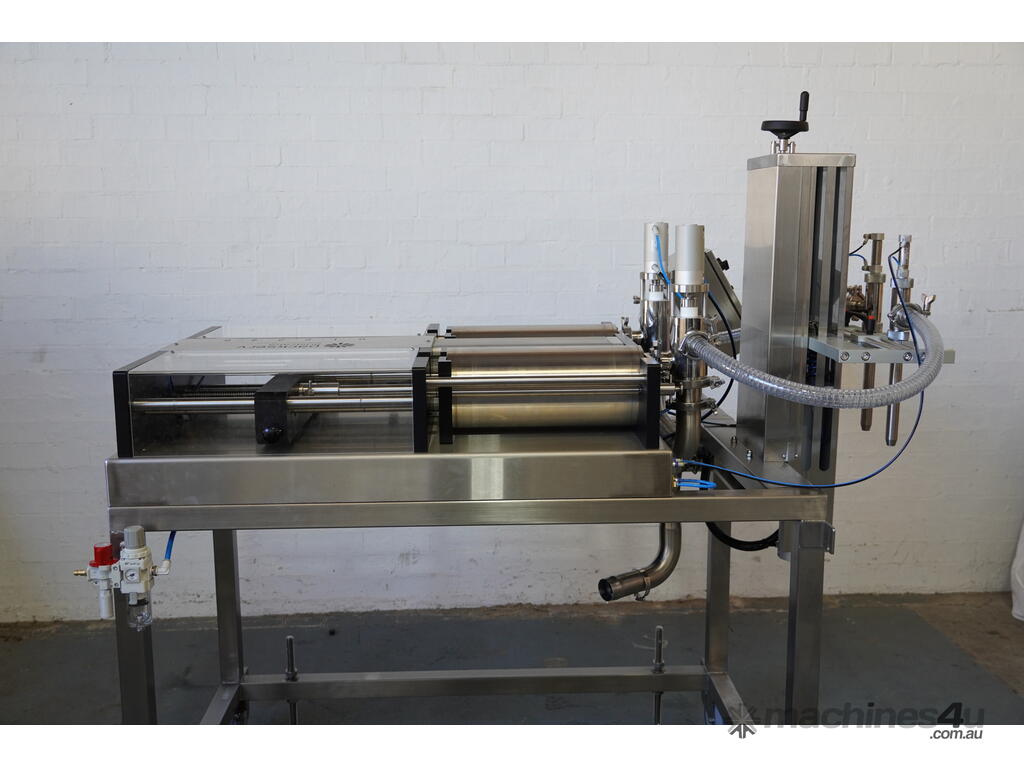

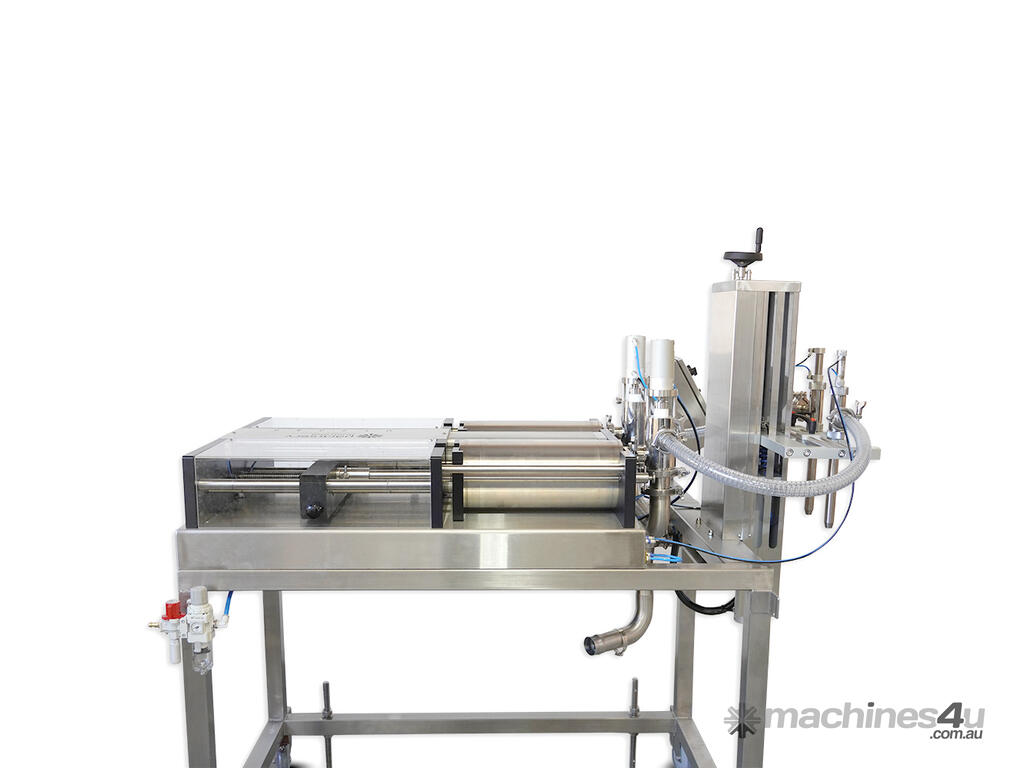

Our PFM-5-2C Twin Head 5 Ltr Bottom Up Filler is a fully automatic liquid, paste and cream filling machine that is both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-5-2C is compact, reliable and easy to clean and is designed for fully automatic inline function. This machine features two 5 litre product cylinders allowing for dual single-shot filling of containers anywhere from 500ml-5000ml.

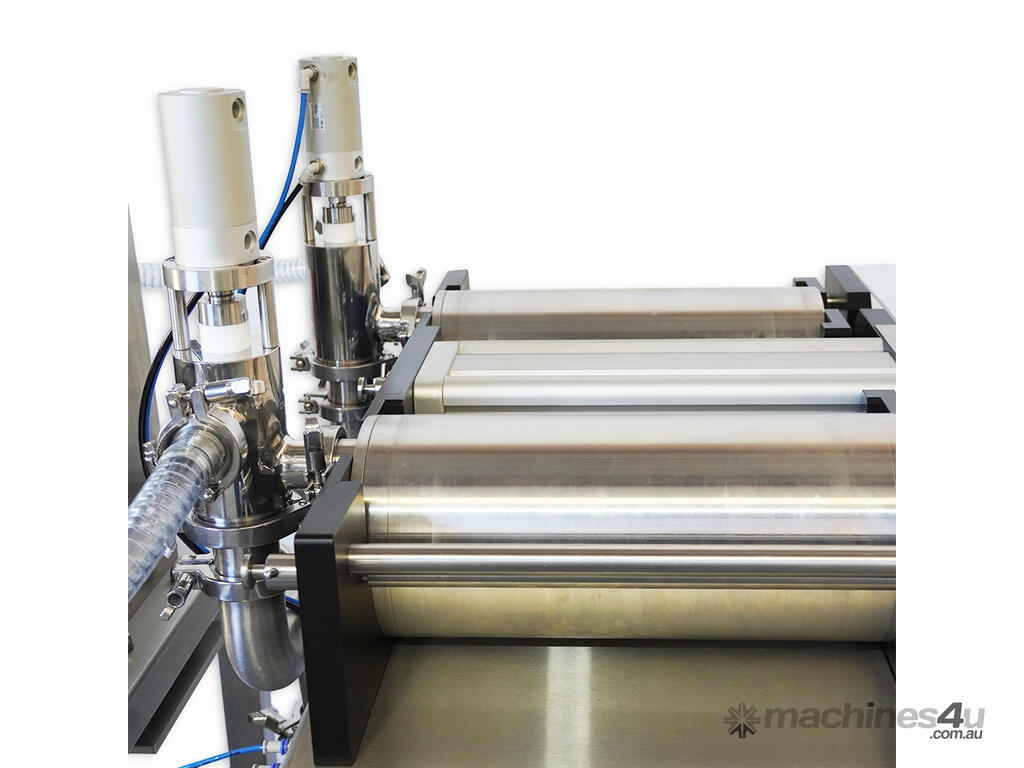

The PFM-5-2C also comes standard with a pair of positive shut-off nozzles and a bottom up fill assembly. The spool-valve system of the PFM-5-2C handles all types of bottling products from thin liquids to creams and thick pastes as well as hot and cold filling. It can handle temperatures up to 95°C with ease during the filling process.

The PFM-5-2C also comes complete with “no bottle no fill” safety device and container gating system.

The cylinder design of the PFM-5-2C enables quicker dismantling and easier, more thorough cleaning of wet parts. A number of product supply methods can be used to suit the nature of the product or our customers needs – examples include: hoppers and inlet assemblies

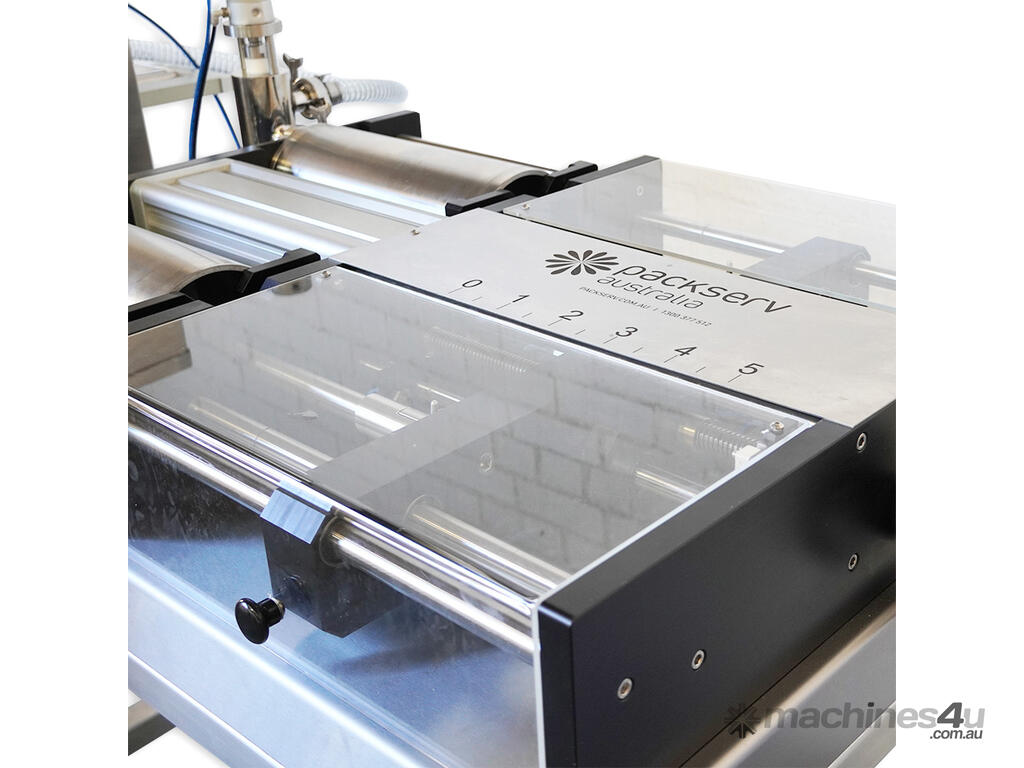

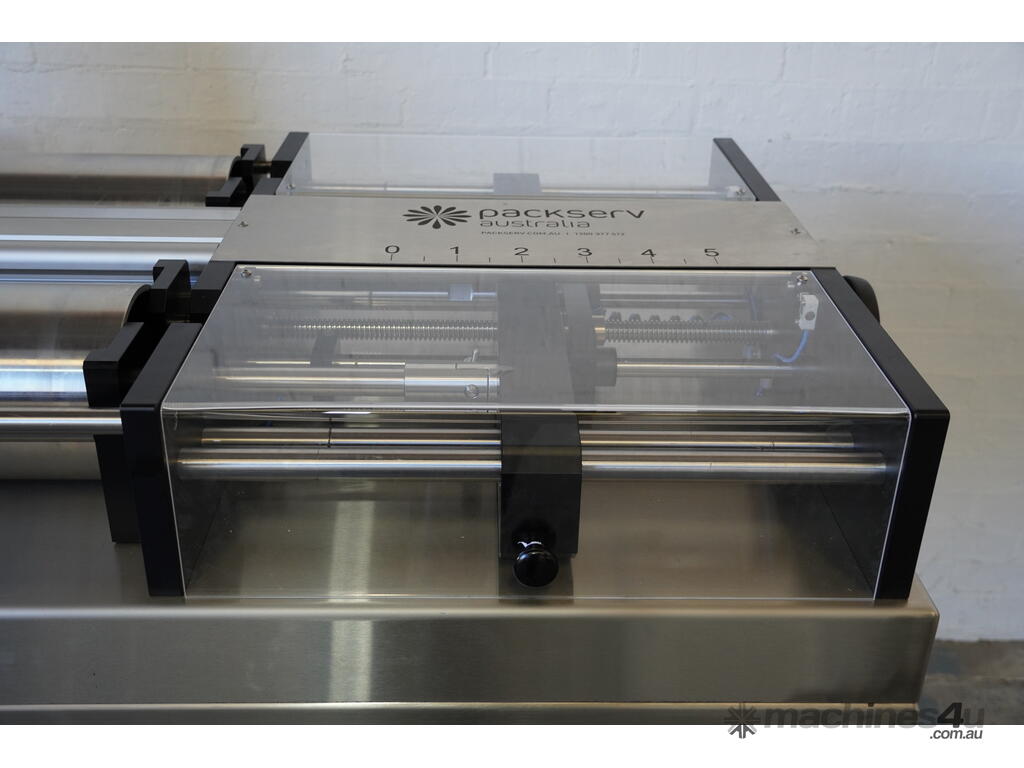

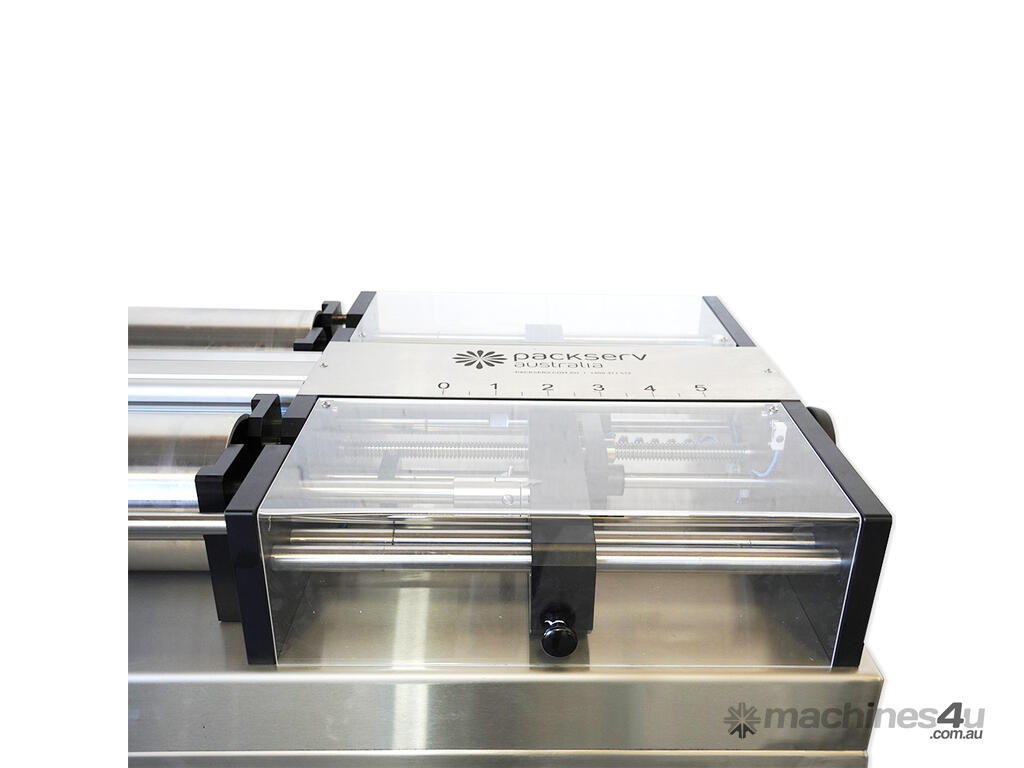

Finally we have enclosed the stroke adjuster and air/product cylinder drive assemblies with a safety interlocked poly-carbonate covers that shuts the machine off if an operator was to open the door during production.

Weight 250 kilograms
Length 1400mm
Width 1100mm
Height 1700mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type Bottles, jars, tubs, containers that will stand on a conveyor

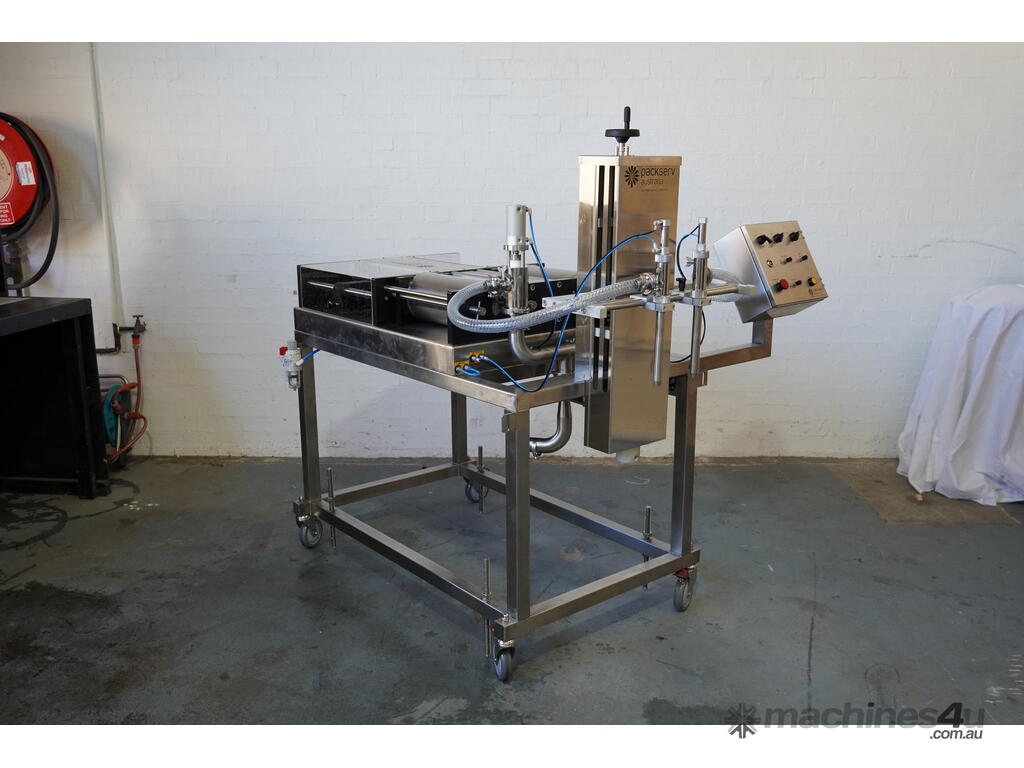

Mounting Trolley mounted with lockable castors (mounts onto inline conveyor system)
Industries Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure 600kpa (80psi)
Units Per Minute 20-30UPM (guide only)
Noise Medium
Flameproof Yes
Timer Control Pneumatic
Speed Totally speed adjustable for all functions
Fill Range 500ml – 5ltr
Fill Temperature Cold and hot fill
Fill Type Liquids, creams, lotions
Not Suitable Products Dry powders and granules
Machine Cleaning Fully washable
Volume Fully adjustable
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 5000ml
Automatic Function: Yes, designed to be completely operator free


- Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation suitable for use with flammable products
- Easy volume adjustment while operating
- Adjustable piston fill and recharge stroke speed
- Simple tool-free dismantling makes for easier cleaning
- Quick changeover of products and parts
- Suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Various methods to feed product to machine available

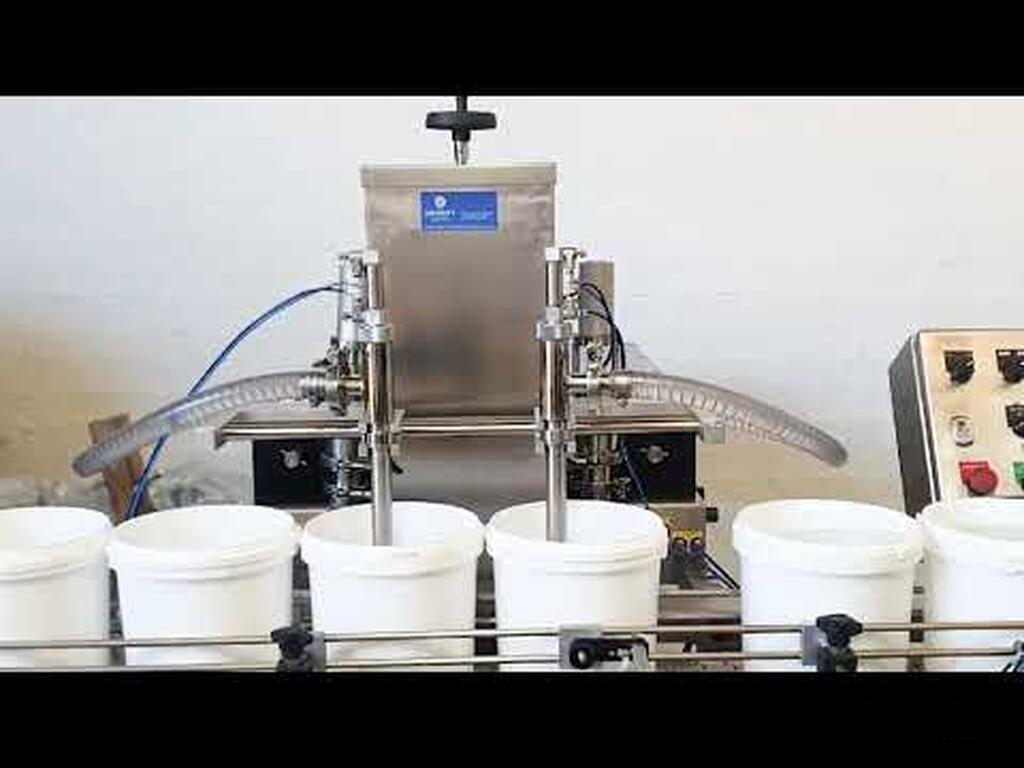

- Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
- Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot
- 316 Stainless Steel and anodised aluminium design

Mounting:
Frame featuring castors



Purchase Inclusions:


1 x base machine
1 x installed bottom up fill assembly
1 x positive shut off nozzle kit (includes 2 x positive shut off nozzles)
1 x set of automatic attachments GDS-A (includes 2 x gates, 2 x sensors and all associated brackets)
1 x set of 4 castors and levelling jacks
2 x spool valve (includes seals)
2 x curved outlets
2 x hose barb
6 x triclover clamps (including seals)
2 x product cylinder (5000ml)
2 x 1 inch transfer hose & fittings
1 x height adjusting handle
