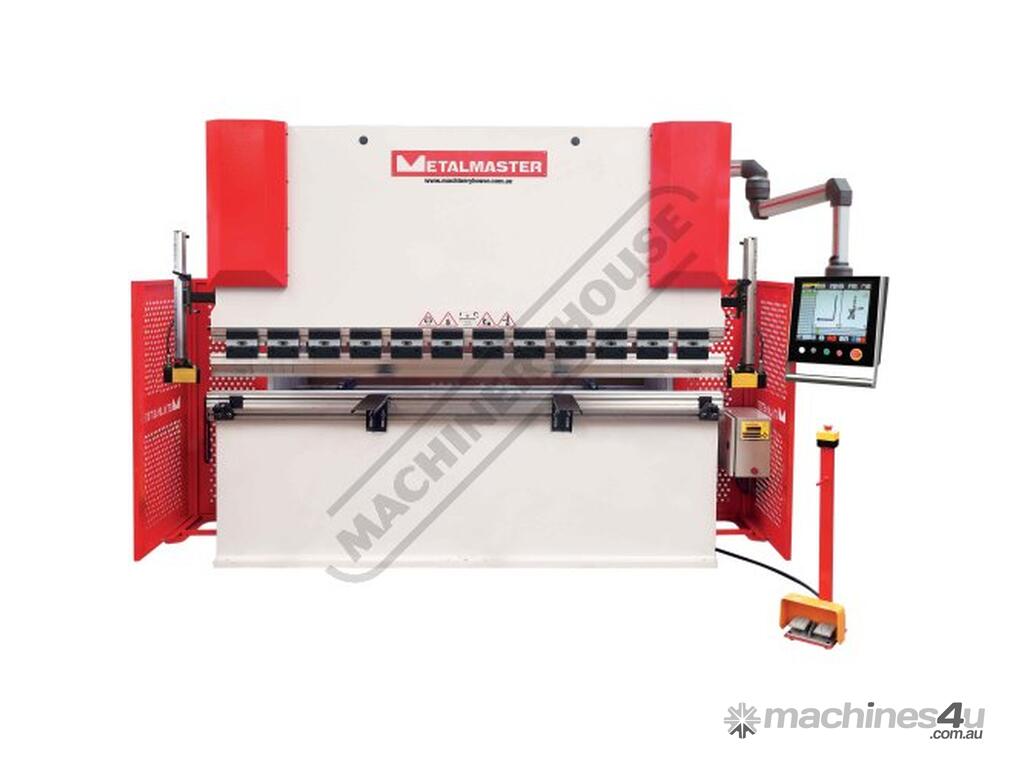

METALMASTER PB-135B Pressbrake with Touch Screen CNC Control - Ex Demo as NEW 135T x 3200mm - Includes Laser Safety Guarding CNC Fasfold 202 Control, 2-Axis SERVO DRIVEN with Ballscrew Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Z46199

FASFOLD 202 CNC Controller
Australian made and designed controller to maximise performance & increased production that leads to increased profits, so whether you are a production or a jobbing shop, Fasfold saves you lots of setup time. If you do one off, quickly draw your profile up in quickdraw.

Multi touch screen colour graphics on wide screen with smart phone style 2 finger zoom, pan, rotate and page flicking QuickDraw programming by hand on Touch screen.

QUICK DRAW - 5 Easy steps to programming

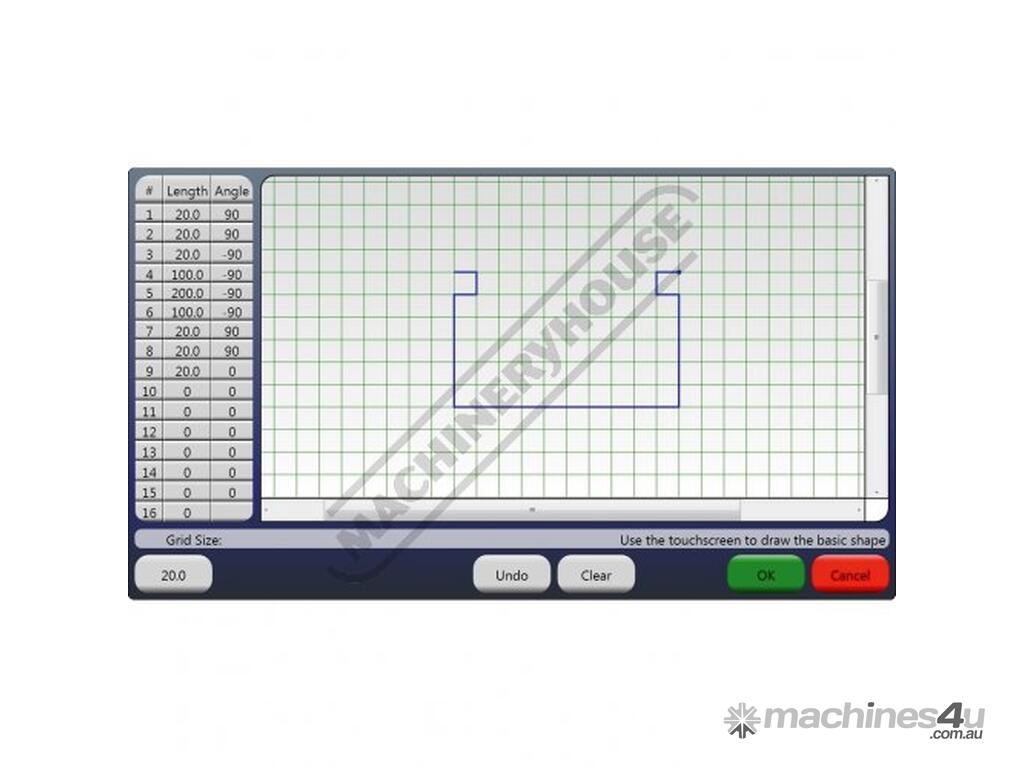

Step 1. Simply touch the corners on the grid to draw the box to the left Press OK to return to the main screen

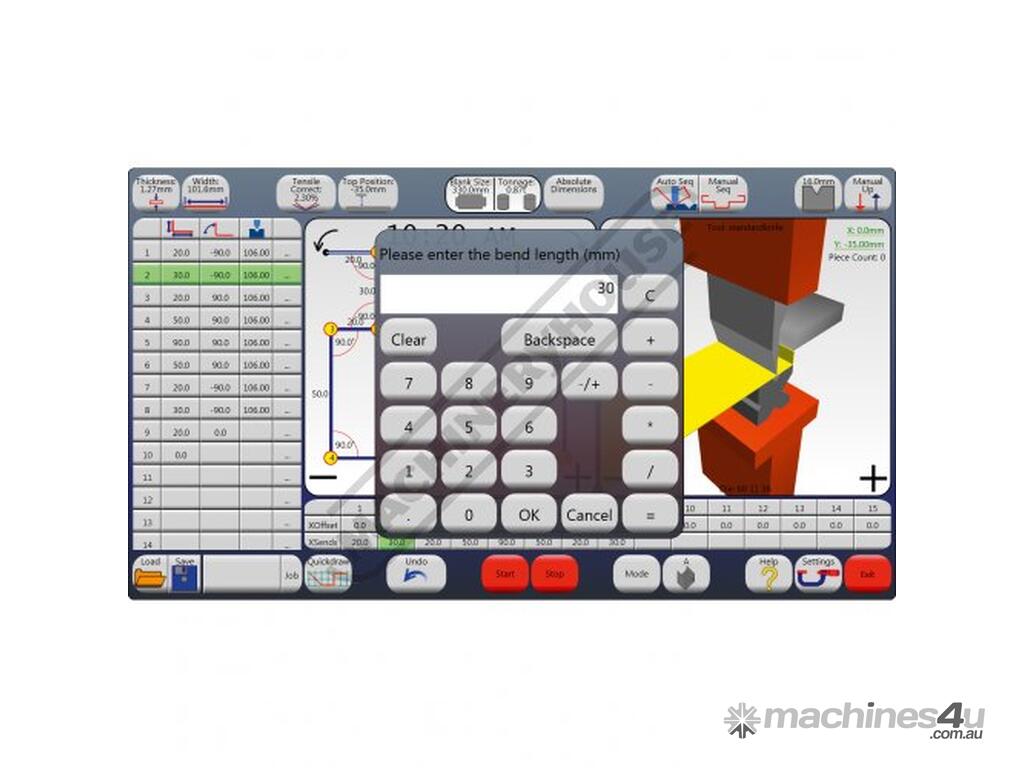

Step 2. Touch on the dimension or angle of the profile in the middle to edit the value on the pop-up keypad

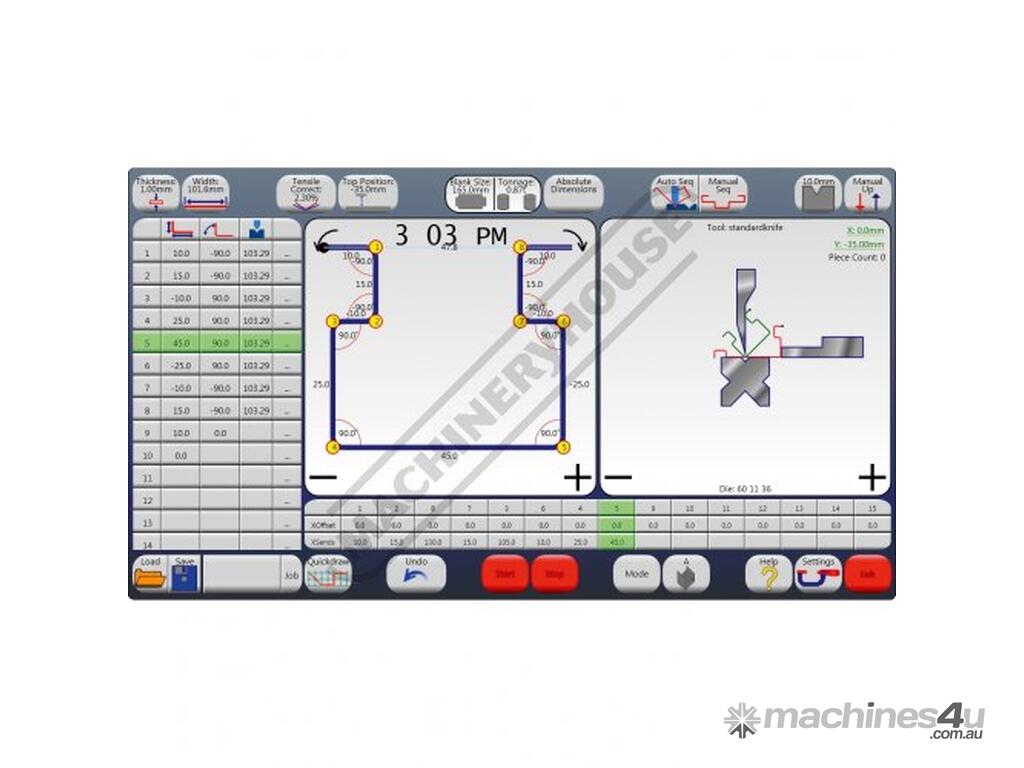

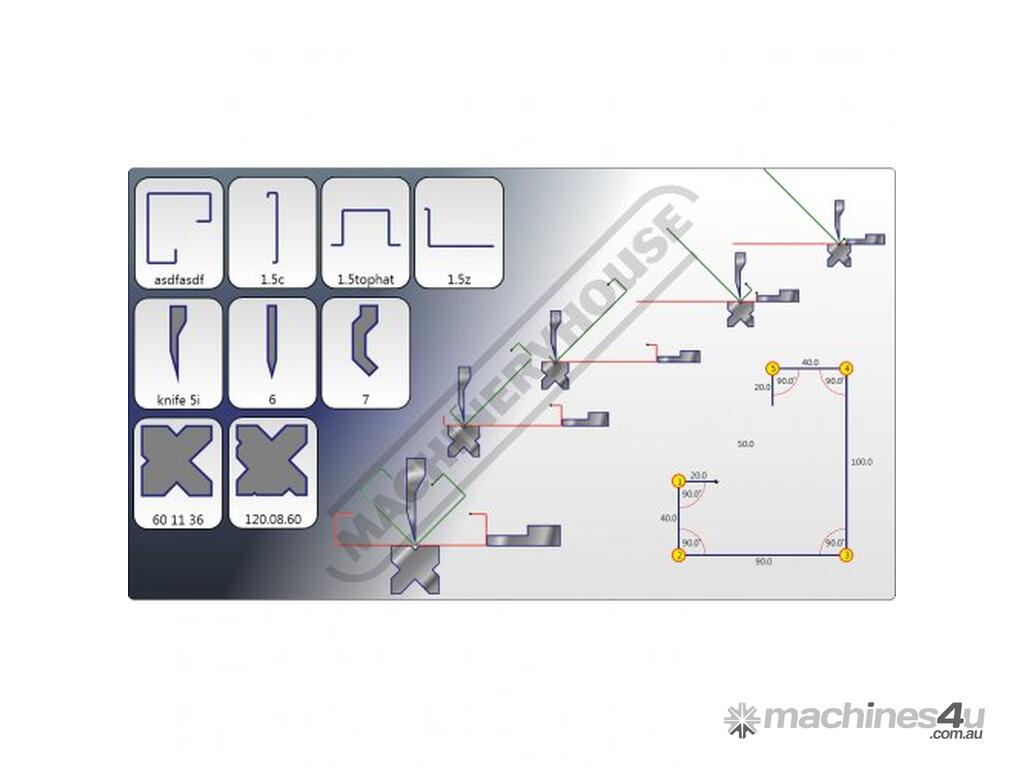

Step 3. See the profile on the left for easy editing.... and the folding simulation on the right!
View the actual folding sequence simulation on the graphic of a Press Brake as you fold in real time or animation mode
Change folds from front to rear to optimise production Step through the whole sequence without wasting time or material.
Touch the "Automatic fold sequence" button or set the fold sequence manually simply by entering the sequence ( 3 4 for the example on the left)

Step 4. Enter material thickness and bending width

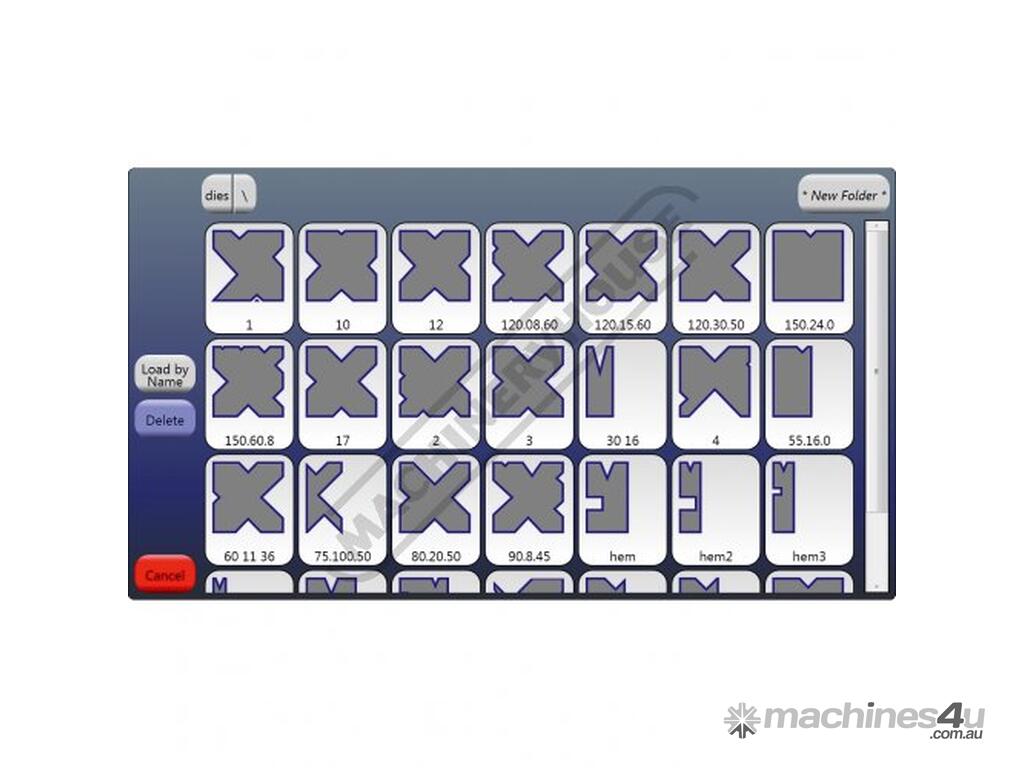

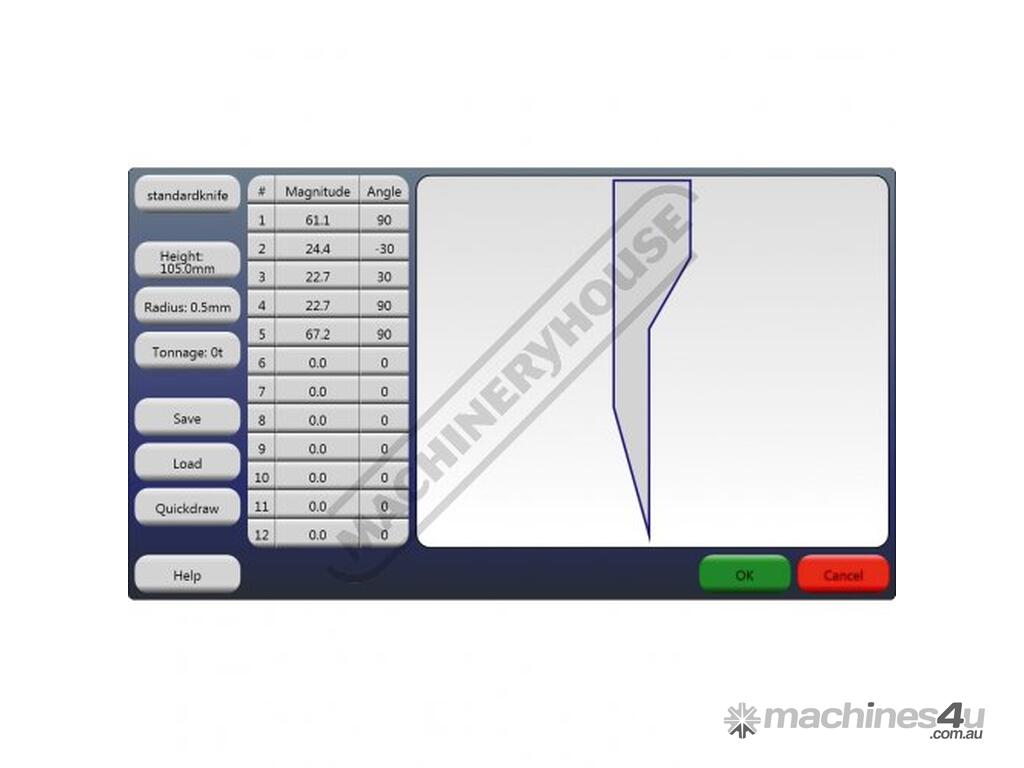

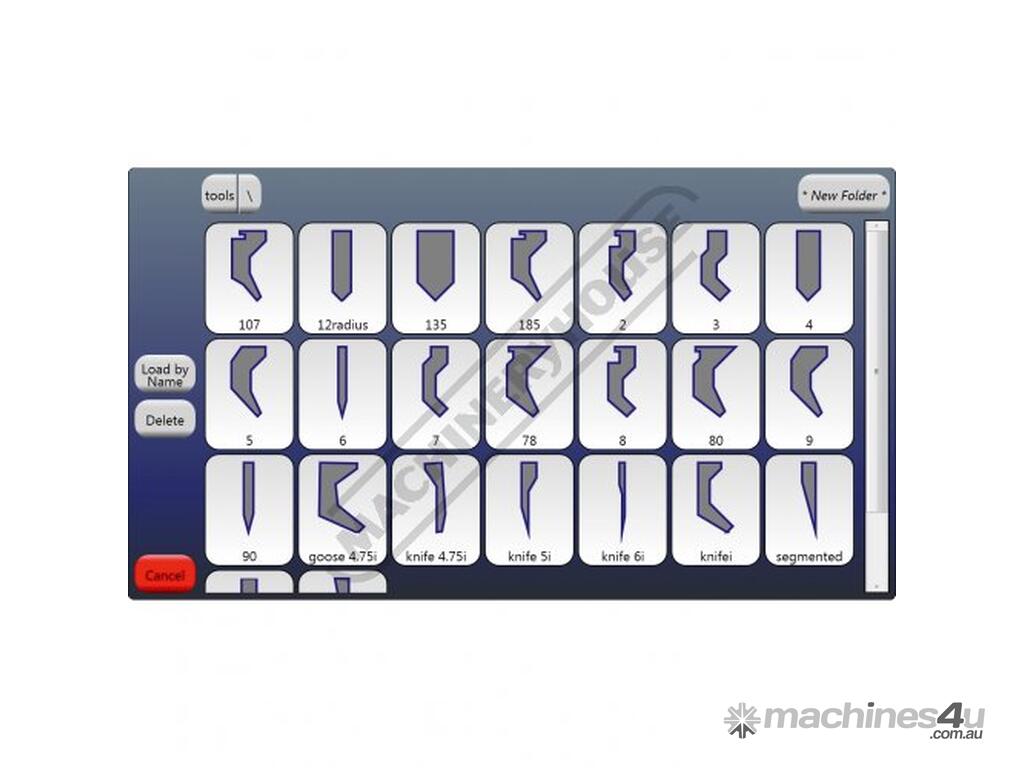

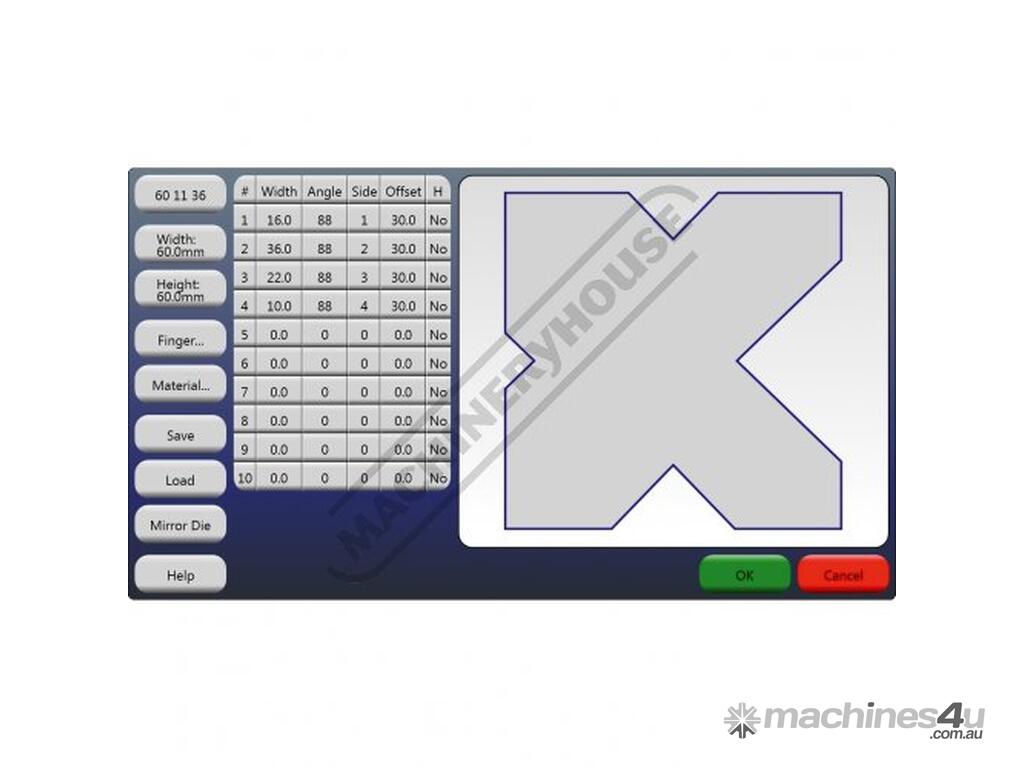

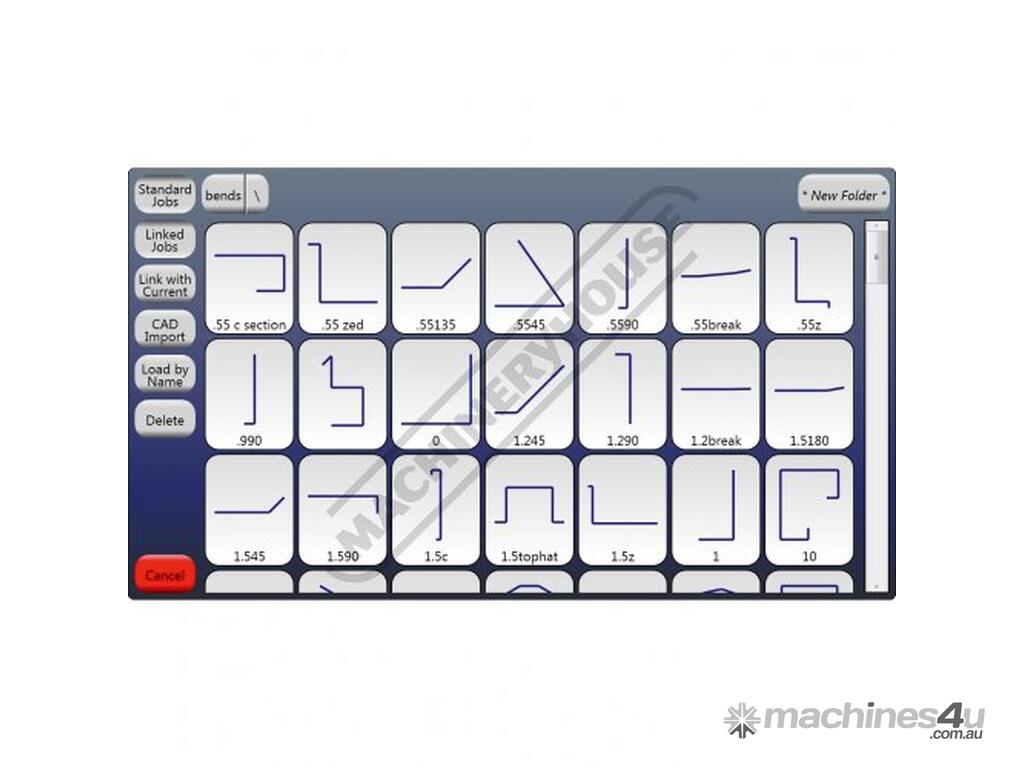

Step 5. Select the right tool and Die from the library and start production:

METALMASTER Pressbrakes
MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in an affordable price, representing value for money and quicker return on investment.

All electrical components are of European quality supplied by, Telemecanique, Merlin Gerin and ABB.

Features:
FASFOLD 202 CNC Controller
Free-Hand editing on profile as opposed to data block editing

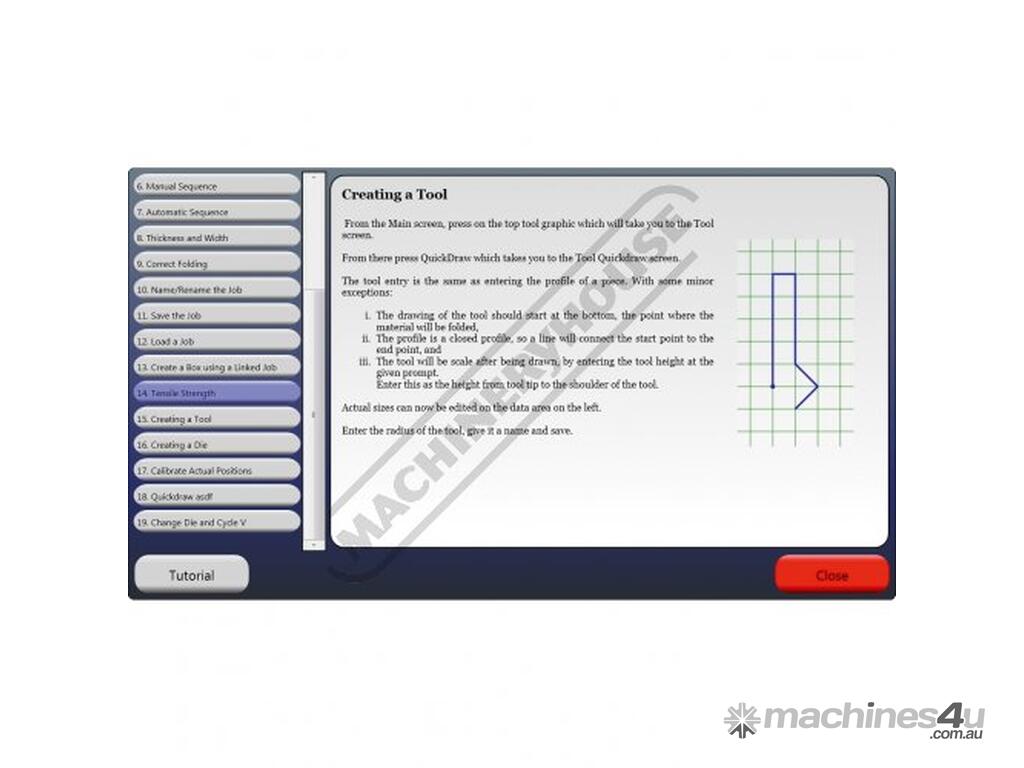

Self paced individualised On-screen tutorials
Automatic under-/over-Fold compensation
True Bend allowance on backstop (K factor)

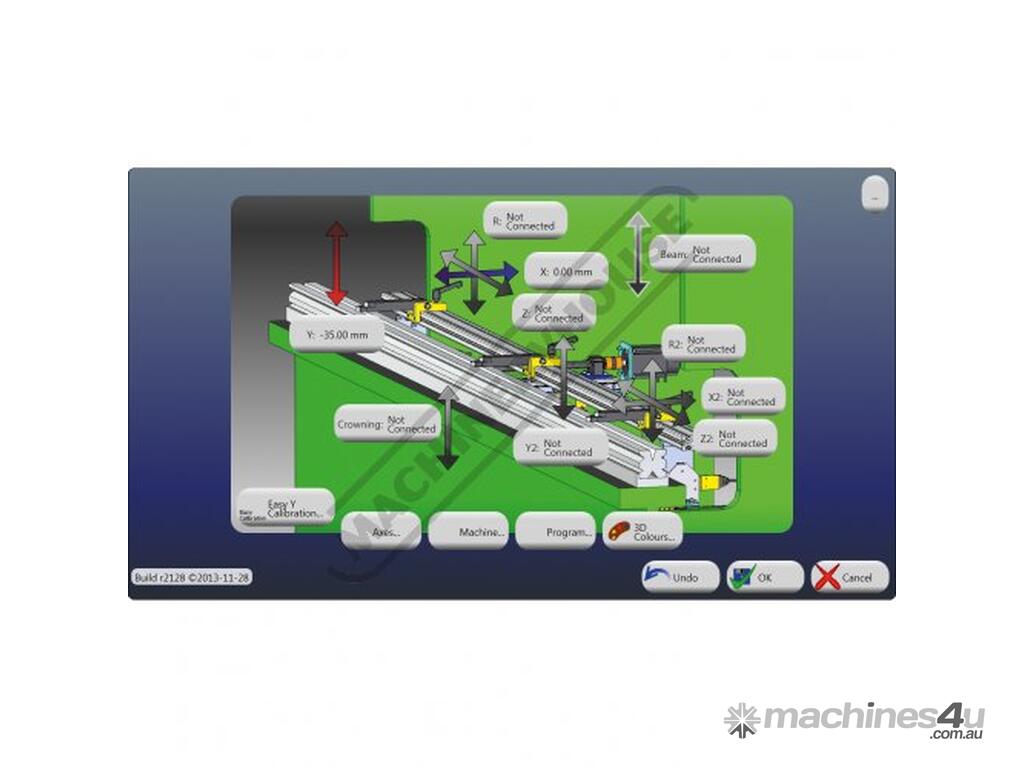

Dynamic Graphical Diagnostic
3D & 2D operation included as standard
Speed monitoring and stopping distance monitoring ensuring a safer pressbrake
Uses a 3rd axis called the beam axis which allows for variable beam openings to increase production cycle time
History Record function for diagnostic and training purposes by Help Desk

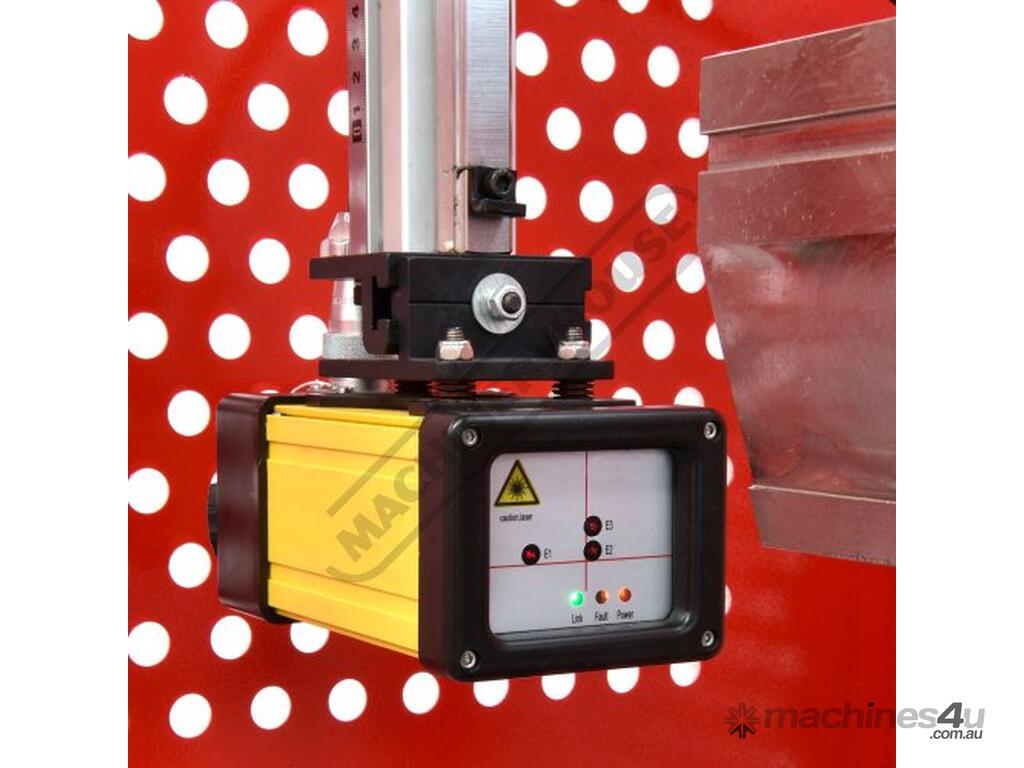

LASER GUARDING -
Laser guarding provides close proximity operator protection allowing faster bending cycles promoting higher productivity
The Laser system is compliant with requirements of EN61496-1 EN61496-2 ISO 13849-1 Ple as well as AS/NZS 4024.1503

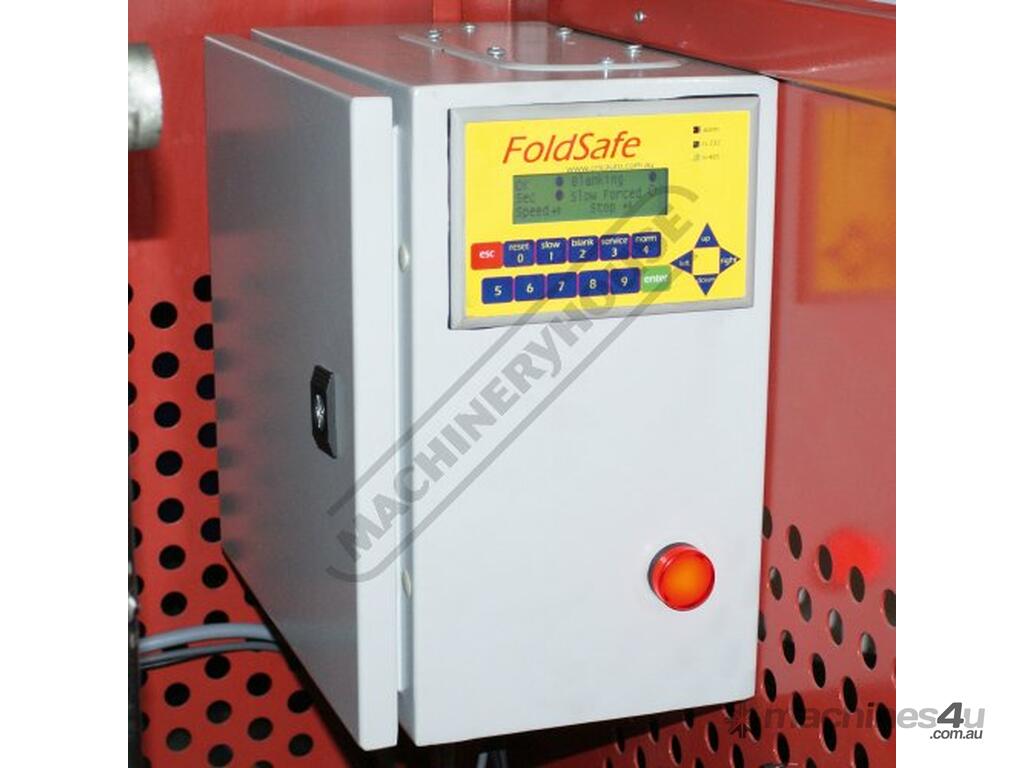

Australian designed electrical system featuring dual channel monitoring on all essential machine functions
Top beam speed & stopping performance are all real time monitored to ensure compliance with safety regulations

METALMASTER Pressbrakes -
Dual Hydraulic rams balanced by a heavy duty torsion bar Electronically controlled by the FASFOLD CNC control assuring accuracy & repeatability.
Servo driven Y Axis for quick and precise adjustment of angles for bending & corrections
Servo driven X Axis provides fast response & accuracy when positioning the backgauge

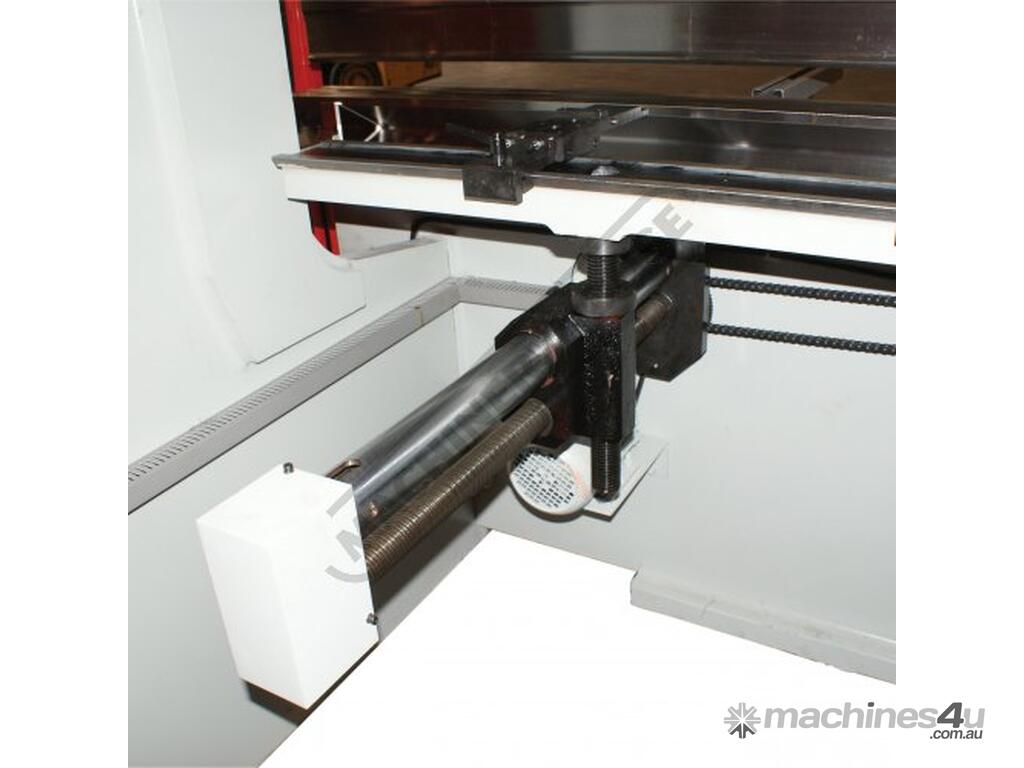

High performance back gauge with ballscrew provides fast and accurate positioning
Segmented heavy duty 86° top punch

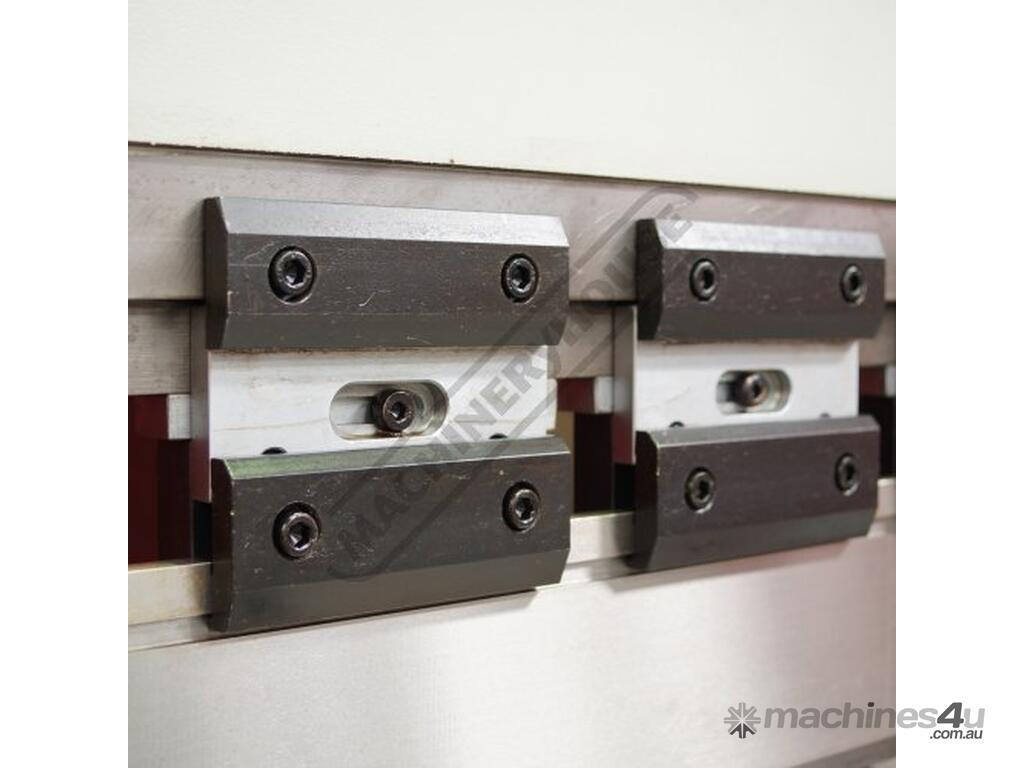

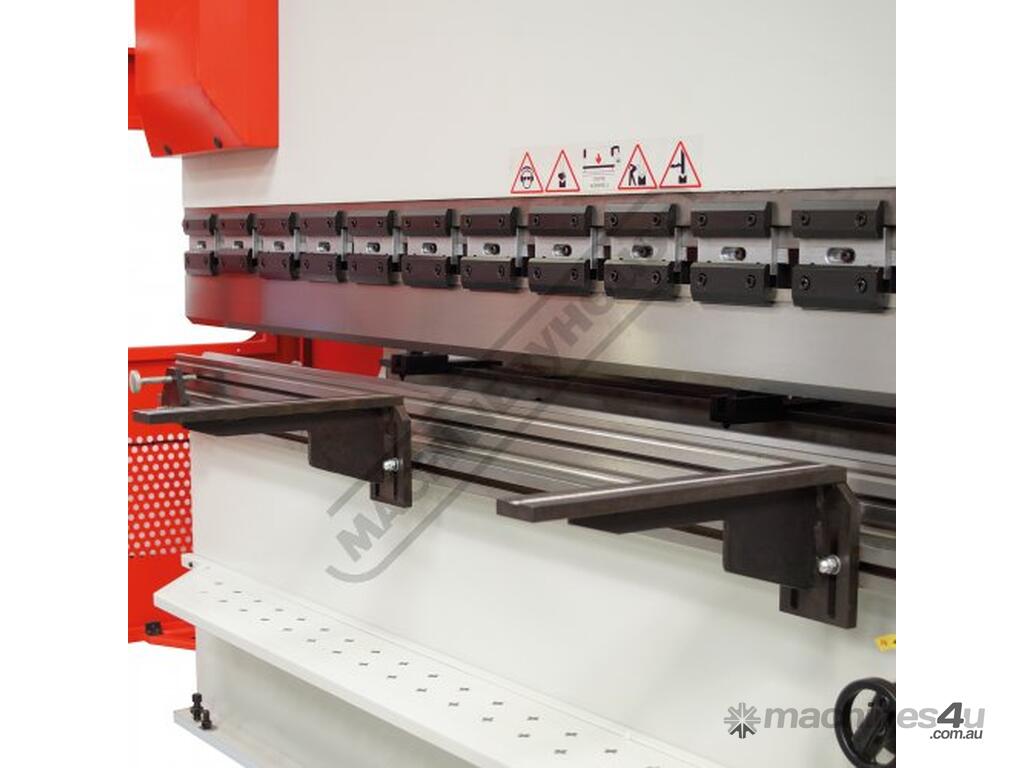

European style punch holder with an adjustable wedge clamping system for crowning

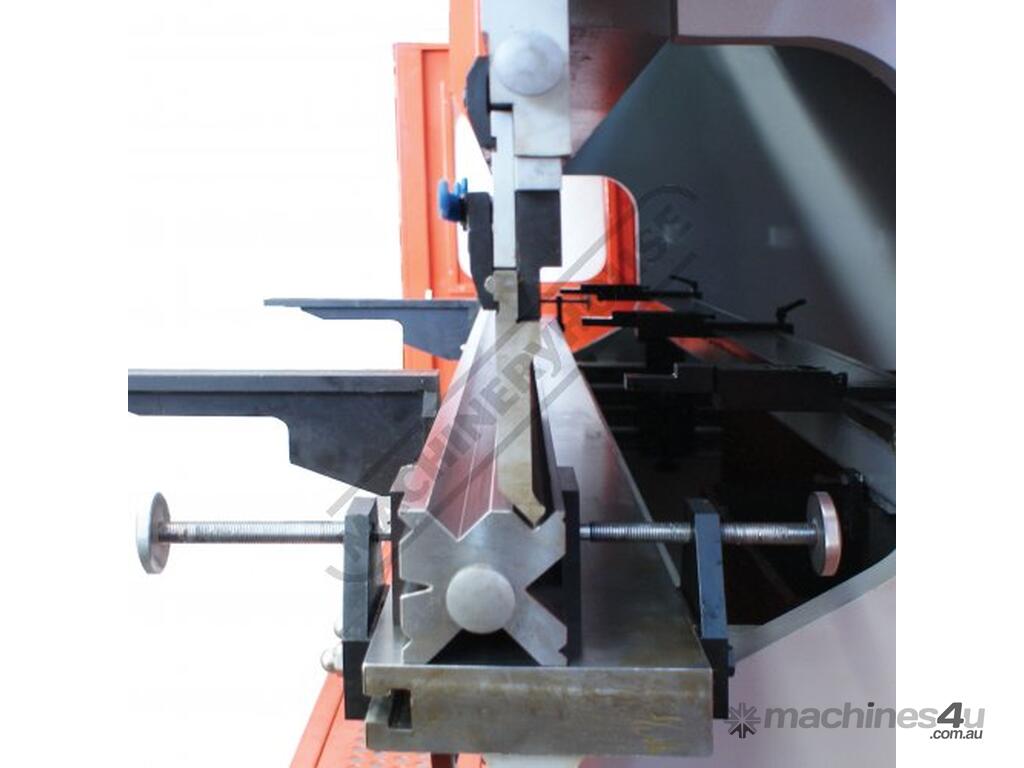

Multi vee ('V') bottom die is made from one solid 3200mm die block design to handle heavy plate safety edge vee ('V') is incorporated in bottom die block.

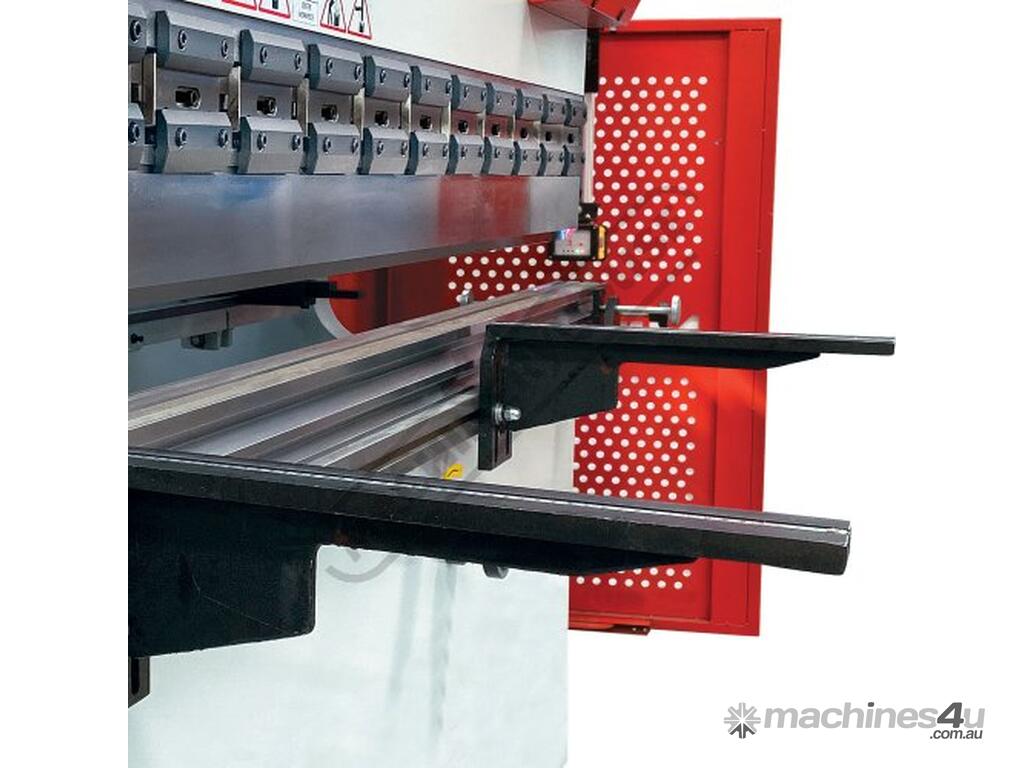

Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
Metal safety guarding surrounding the machine with rear sliding door fitted with micro switch ensuring operator safety.
Hydraulic pressure gauge with quick adjust pressure control & over pressure protection allows the operator to accurately set the pressure required for different material thickness.
The vertical supporting slides are treated to provide greater wear resistance and increased accuracy.
Includes laser guarding system
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Pressbrake is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- FASFOLD 2D Graphical CNC Control mounted on swivel pendant
- Touch Screen Quickdraw profile programming
- 86 Degree Top Punch with Segments (3x800 1x365 1x200 1x100 1x50 1x40 1x20 1x15 1x10)

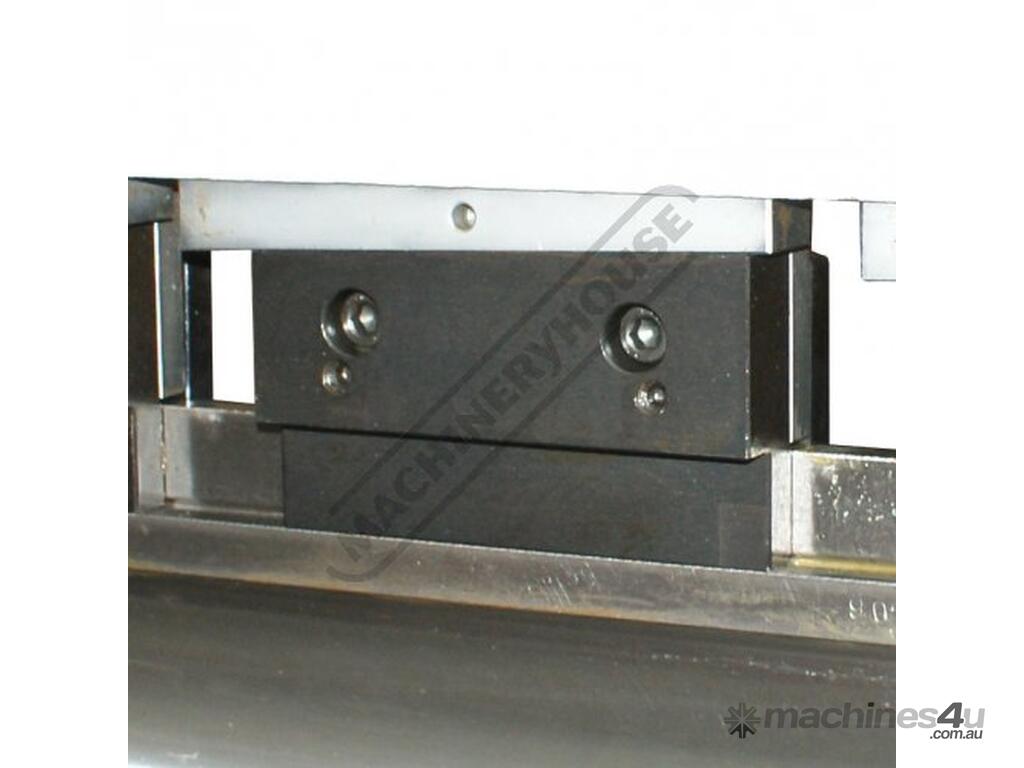

- Top tooling tool intermediate holder system with wedge type adjustment
- Multi V bottom die block 95 x 95mm with a range of V's between 4mm~65mm
- Laser guarding system
- Servo motor X & Y axis for ultimate speed & performance
- Sliding front sheet support arms
- High performance servo backgauge with ballscrew 520mm travel



Specifications:
ORDER CODE: Z46199
MODEL: PB-135B
Type: CNC FASFOLD 202
Brand: METALMASTER
Capacity: ~
Speed Range (rpm): ~
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Branch The Item is Located (Available): Sydney
