PDSR AC Walkie Reach Stacker With Power Steering

The Manoeuvrability Of A Walker Stacker Plus The Extended Reach Of A Pantograph!

1360KG capacity models with lift heights to 6000mm

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, side shift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

The PDSR Features:
• 24volt ZAPI transistor control with high torque AC drive motor.

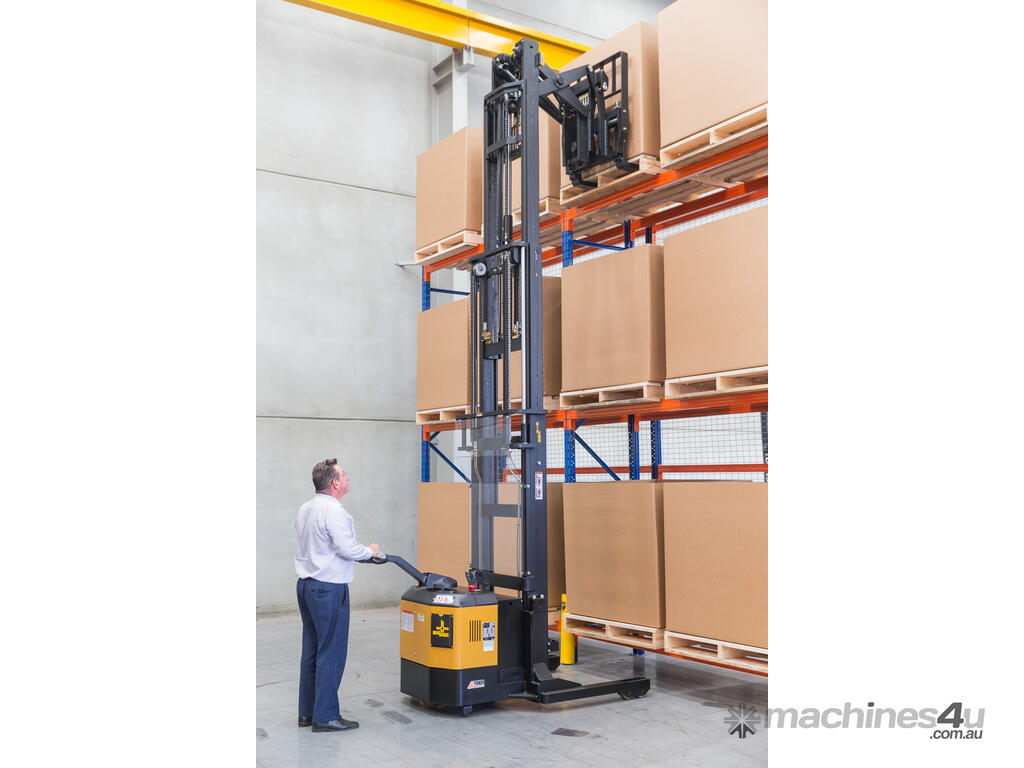

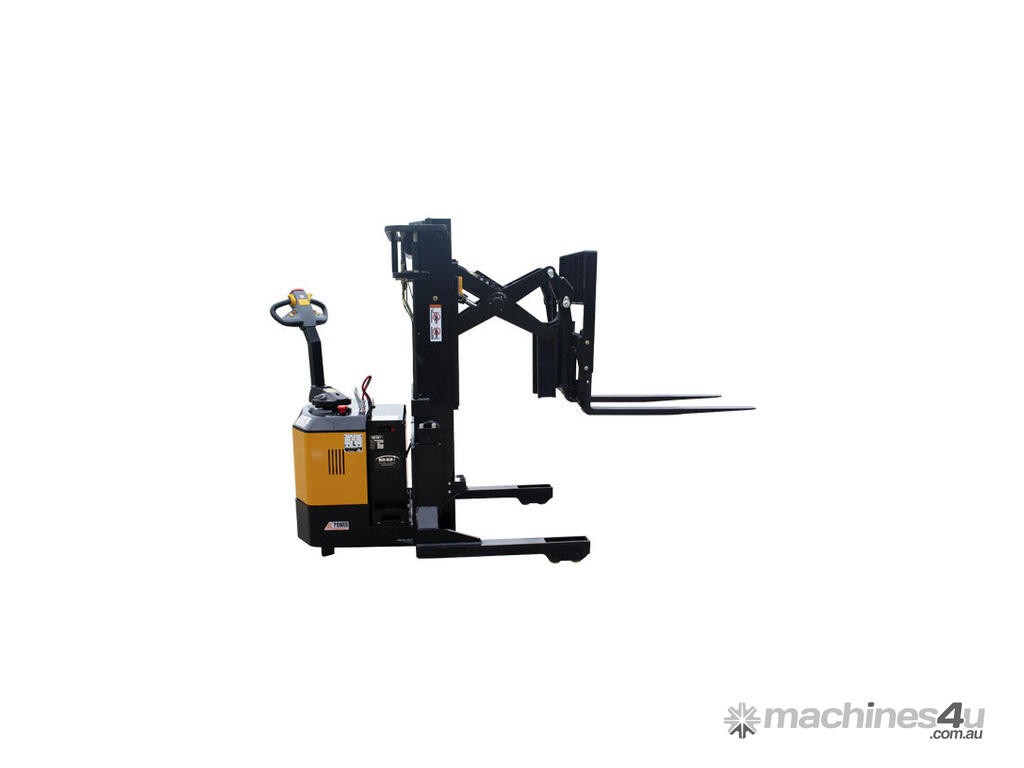

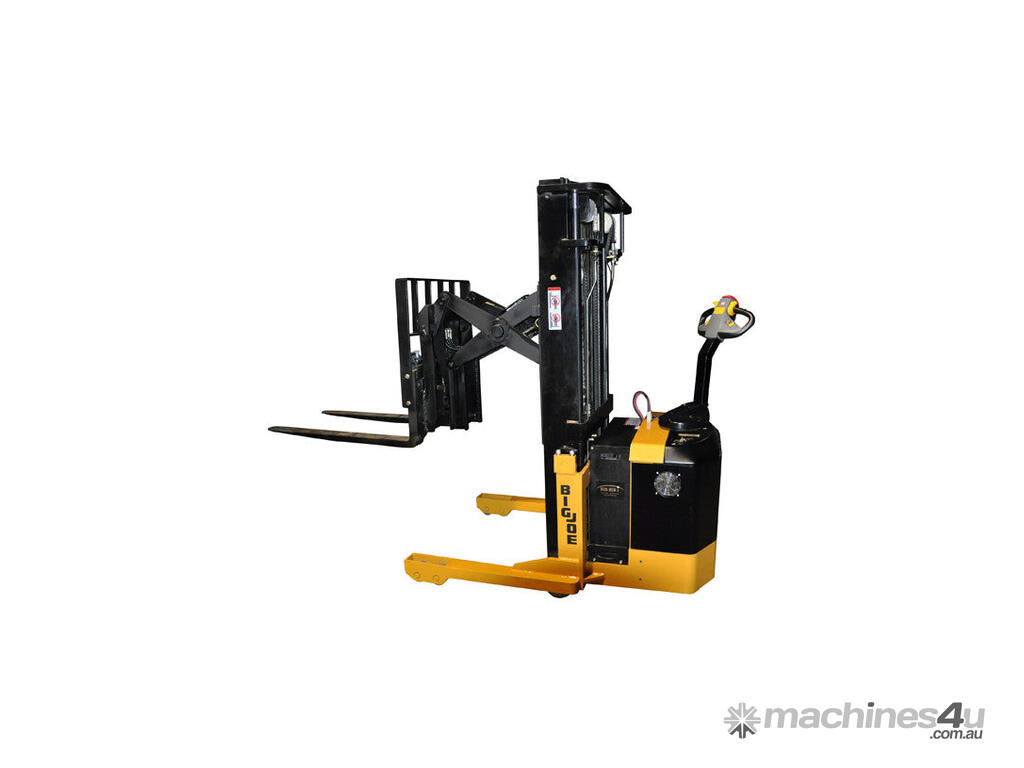

• Pantograph extends forks beyond straddle legs.
• Power steering, side shift, tilt and proportional lift, lower, extend & retract
• Choice of 865mm/1070mm or 1070mm/1270mm fixed straddle legs.
• Ergonomic control handle with safety reversing switch and horn
• 210 AH Lithium Ion battery and charger
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel

The PDSR Specifications:
• Vehicle Type - Walkie Reach Stacker
• Capacity - 1360KG. 600mm load centre
• Power - 24 volt AC electric with ZAPI controller
• Max Lift Height - Masts available up to 6000mm
• Collapsed Height - Masts available as low as 1943mm
• Fork Dimensions - 1070mm L x 100mm W x 38mm Thick
• Vehicle Dimensions - See specification sheet
• Turning Radius - See specification sheet
• Travel Speed - Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)

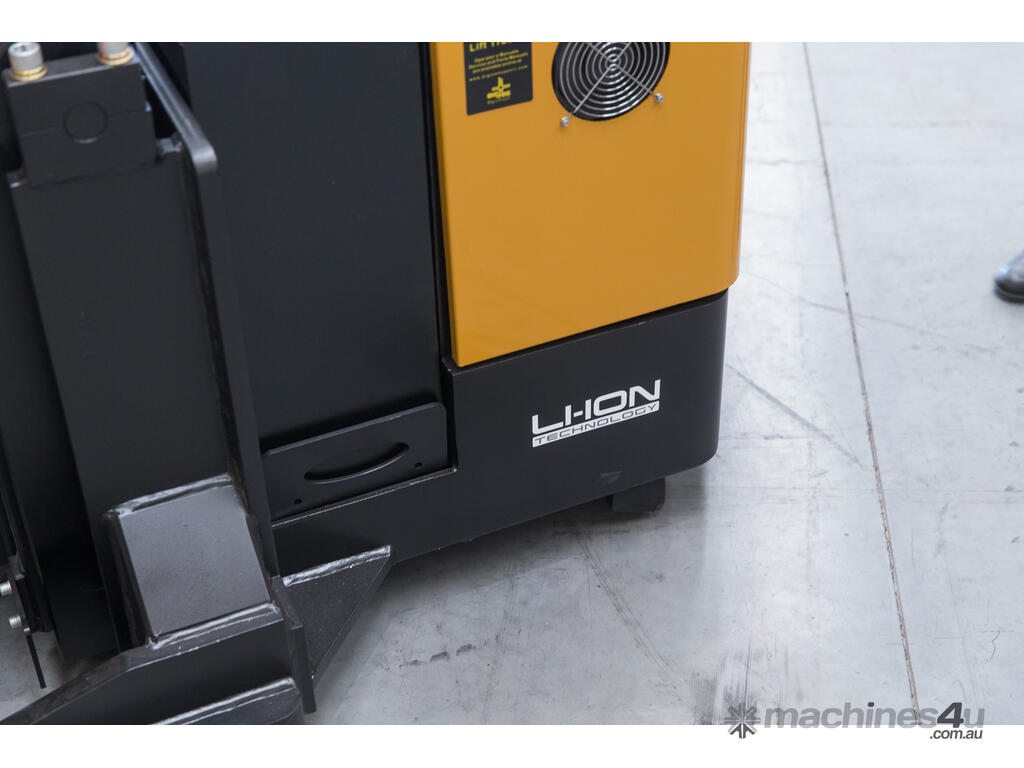

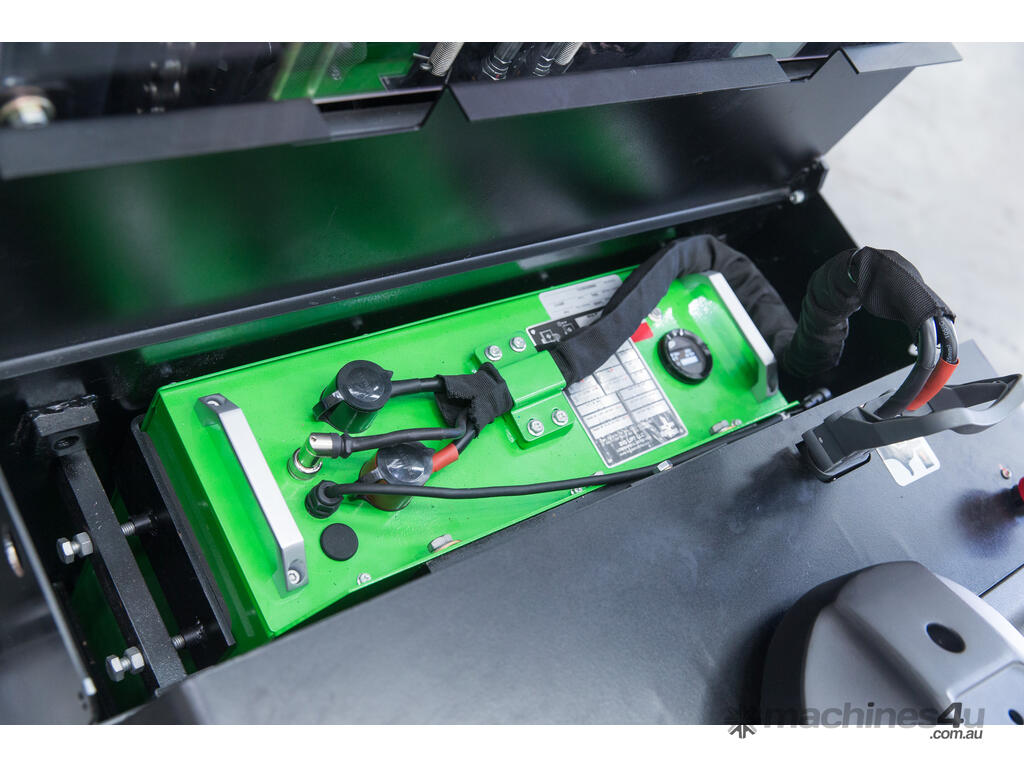

• Battery Capacity - 210 amp hour Lithium Ion maintenance free fast charge battery
• Charger - External 240v 10amp

ISS Equipment is a leading provider of high-quality material handling and warehouse solutions in Australia. Specializing in a wide range of equipment since 1993, including forklifts, stackers, and pallet trucks, ISS Equipment delivers innovative and cost-effective solutions to meet the demands of diverse industries. With a commitment to exceptional customer service, the company offers comprehensive sales, rental, and maintenance options, ensuring that businesses operate efficiently and safely. Backed by a team of experts with in-depth industry knowledge, ISS Equipment stands as a trusted partner, dedicated to delivering excellence and supporting the growth of its clients.

Go to the ISS Equipment showroom on Machines4u to see the range of machinery available for national delivery, send ISS Equipment a message about the item you are interested in or give ISS Equipment a call, we are more than happy to answer any of your questions.

* Click on the pdf spec sheet for more detailed information *
