PENTA 8030 FEED MIXER

Penta 8030 Feed Mixer are engineered to meet the high demands of farmers who require durable, reliable machinery capable of handling long hours and extreme usage conditions. These mixers are crafted to produce the best possible mix, ensuring that the quality of feed meets the high standards necessary for optimal livestock nutrition.

Design and Standard Features:
HURRICANE AUGER – SHAPE YOUR MIX

The largest challenge facing a TMR mixer is the ability to process forages with a variety of supplements such as salts and fine minerals. This process can prove to be time consuming and costly. Our patented Hurricane Auger has been designed to produce better mixes by allowing forages to circulate faster through the mix, resulting in quicker processing and mixing times.

Penta Hurricane Augers are equipped with patented cut outs that allow material to drop through the auger. The falling action complements the regular motion of the ingredients being rotated throughout the tub. This combination of mixing actions has proven effective in producing more consistent mix.

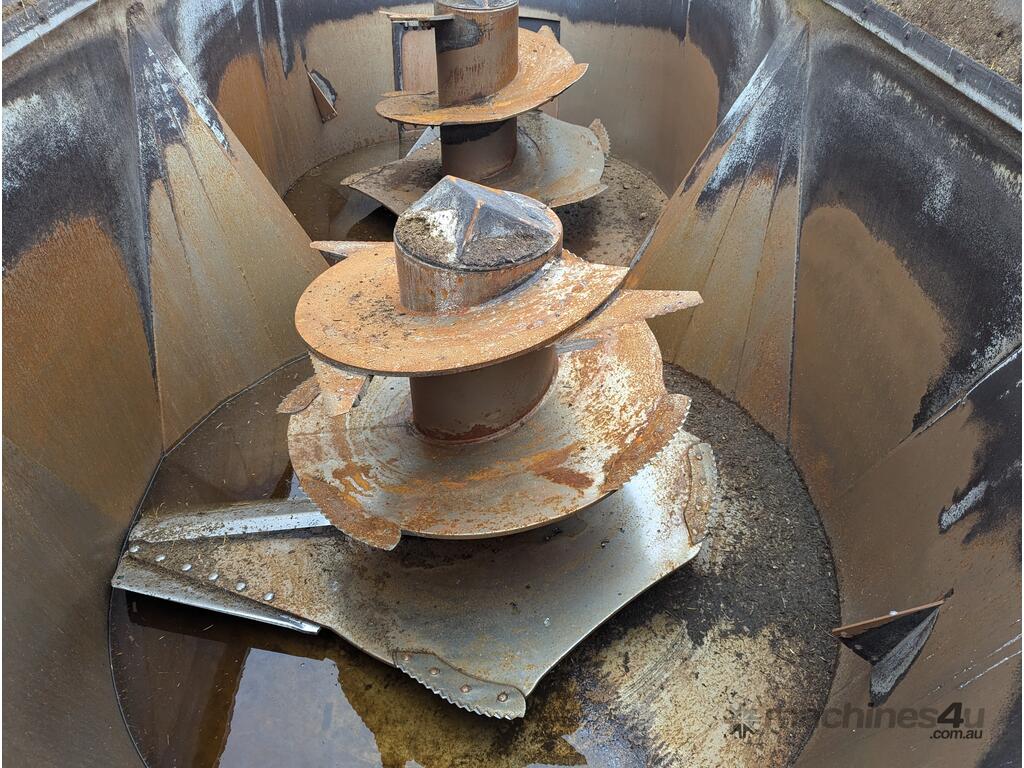

HURRICANE AUGER – EYE OF THE STORM

One look at our Hurricane augers and you will see their strength and power. Critical to our auger design is durability. With high-intensity forces encountered in the initial stages of cutting, the metal blades of the auger are subjected to severe pressure as the turning motion begins and the feed ingredients are pushed upwards. From the 3/4? steel that is cold pressed into shape for our flighting, to the massive 3/8? thick tube, the flighting is expertly welded. Developed over years of testing and design, you can clearly see this is our best, most rugged and reliable auger yet.

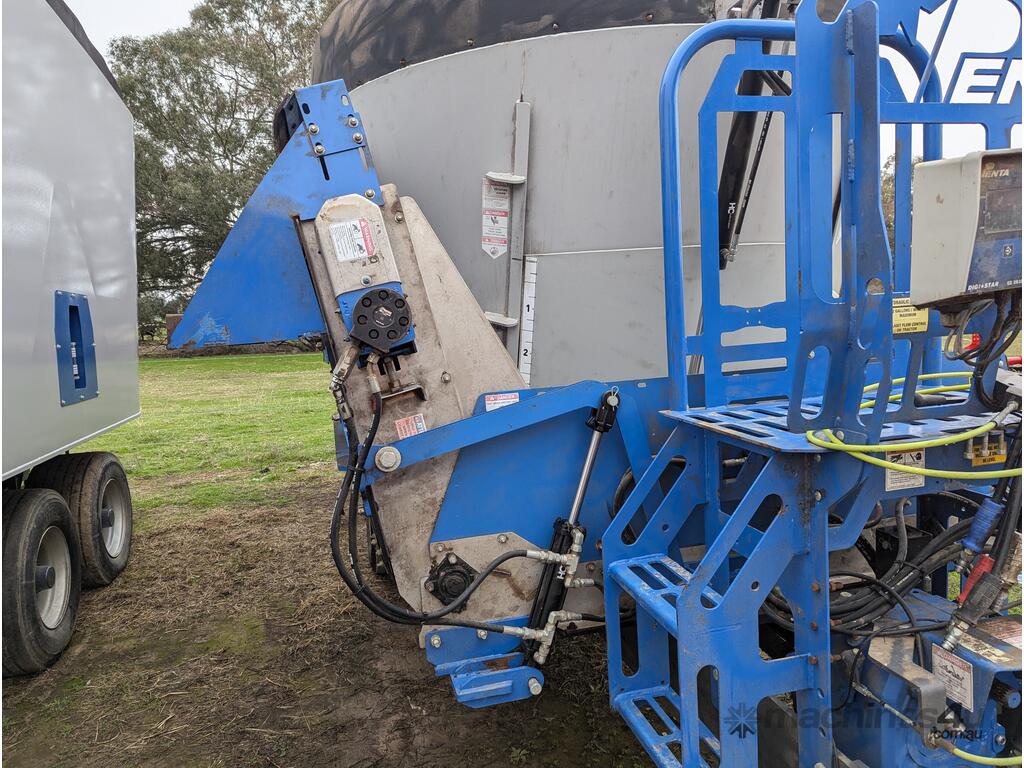

CONVEYOR SYSTEMS

Optional conveyors are configured to match the needs of your individual operations with a choice of either a Flip-up or Dual configuration. Built for long life and dependability, each system is equipped with C188 chain, the heaviest cast chain in the industry. This chain is driven using a very powerful North American made hydraulic motor.

Flip-up conveyors are configured for either left or right hand delivery, allowing you to reach up and out to get the feed into bunks. Our standard conveyor includes a stainless steel pan and rails. we offer many available options to customize these conveyor systems to feed into a variety of bulks and feed alleys.

KNIFE OPTIONS

Penta augers are equipped with 3 different styles of deep serrated, heat-treated, tungsten carbide knives. Different knife styles and mounting options give you the flexibility to process any type of feed (hay, haylage, silage, straw, by products, corn, and soybean stalks), making Penta mixers the best option for all operations, delivering results no matter what your nutritional needs.

OIL RESERVOIRS

Our high-visibility oil reservoirs are located as close as possible to the gear boxes for the best performance, ease of use, and maintenance. The high quality reservoirs are crystal clear for the easiest visual checks on oil level. On our multi-auger mixers the reservoirs are nestled between the augers for even greater visibility and protection. We use only full synthetic oil that will not break down during temperature fluctuations.

OVER PASS

Designed to give you a platform to monitor and evaluate the progress of your mix, our viewing platform provides much more. With access from the left and right of the mixer, not only is it easier to get where you need you be, but you can also have a safe passage from one side of the machine to the other without going all the way around. Built into the design are hand holds and mounts for oil reservoirs on single auger and scale mounts.

ROBUST FRAME

Our frames are made of 1/2? and 3/4? North American steel, not hollow tubes. This is a design borrowed from the industrial/construction industry. This provides not only extreme ruggedness to our platform, but also cuts down on the profile of the frame and helps with our clean, compact design. This design will also eliminate any condensation build up and allows a greater flexibility to add component options.

DESIGNED PRODUCTIVITY

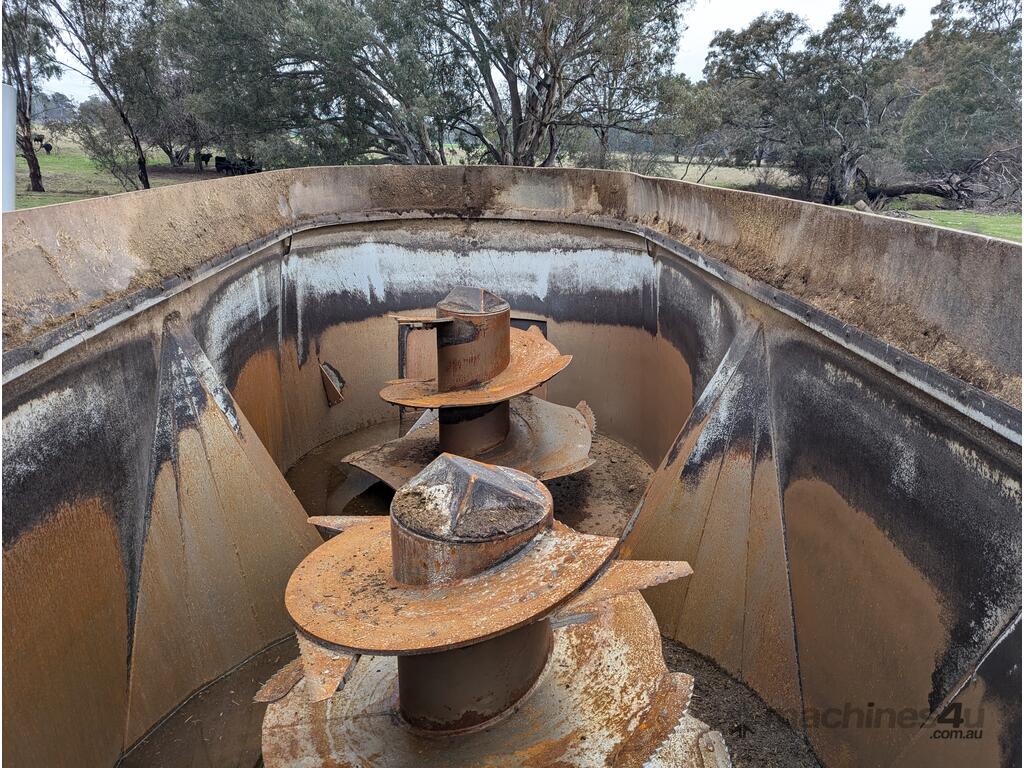

Our straight-walled tub is designed to reduce the compaction of your feed and will minimize over-processing by allowing more room for the material to aerate. The floor of the tub is subjected to high abrasion and heavy impacts. To ensure our mixers will endure long hours of extreme use, the floor is constructed out of a solid piece of 3/4? 44w high wear, acid resistant steel. The angled curve of the tub and baffles are designed to work with our Hurricane Augers for the best mix possible and provide an easy clean out. the tub ends are rolled formed and the robot welded for a smooth, consistent curve that resists material build up and has an incredibly strong bond to both sides. All the tubs can be manufactured with a stainless steel liner that will give on average 10 years of life to mixers that operate in very wet feed conditions. Liners are installed 30? high to ensure maximum protection.

SUSPENSION

Our 600 cu ft and up models come with an off road suspension, reducing wear and tear on the tractor and mixer.

We use only high quality, non-imported bearings in our axles. In addition there are different configurations that can incorporate brakes and steering options.

MASSIVE DOORS

For the most efficient unloading and complete clean out, our front and rear material doors are 44?-48? wide on all models.
