PETRO Solar Panel Kit 670 x 1005 x 35

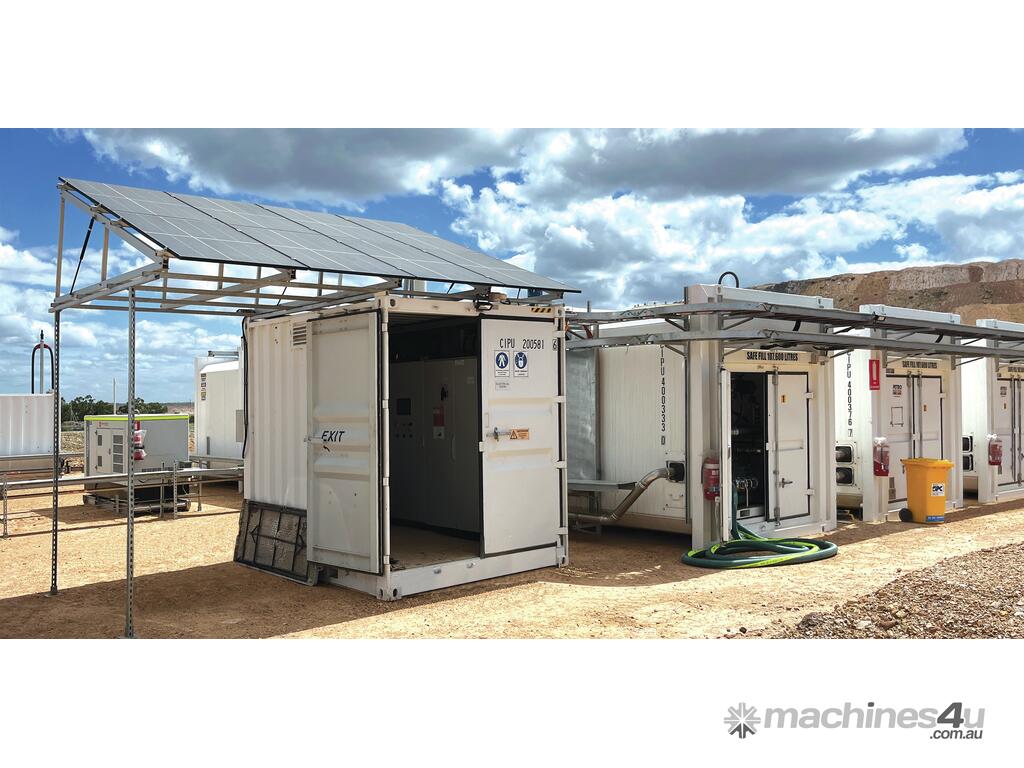

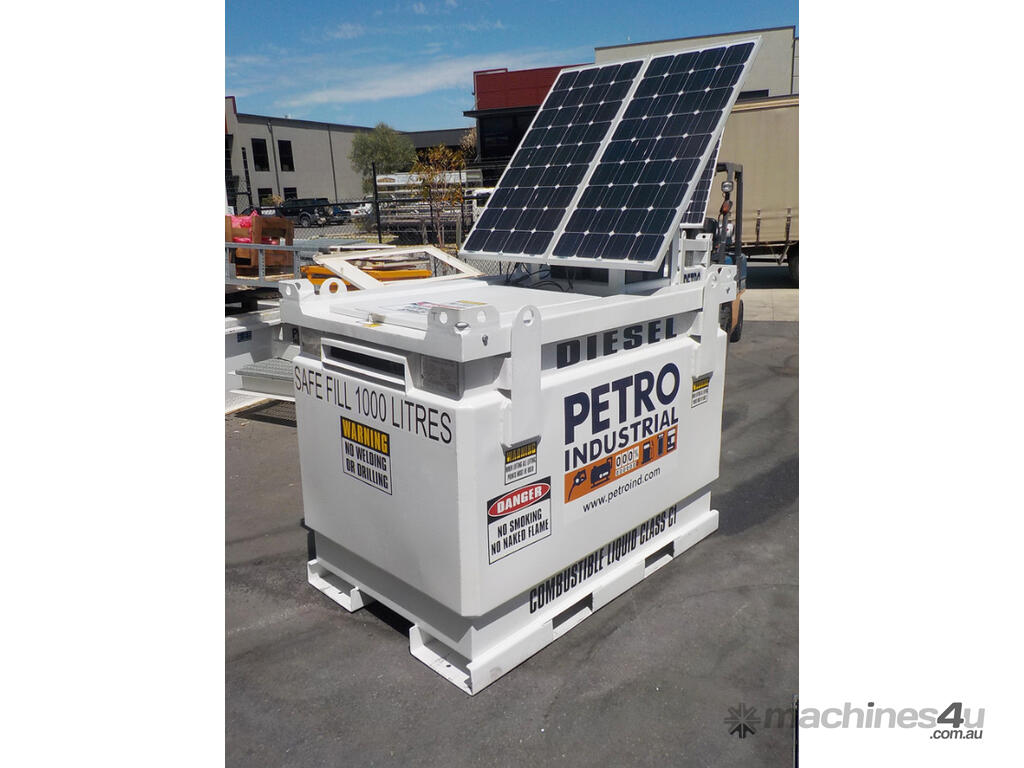

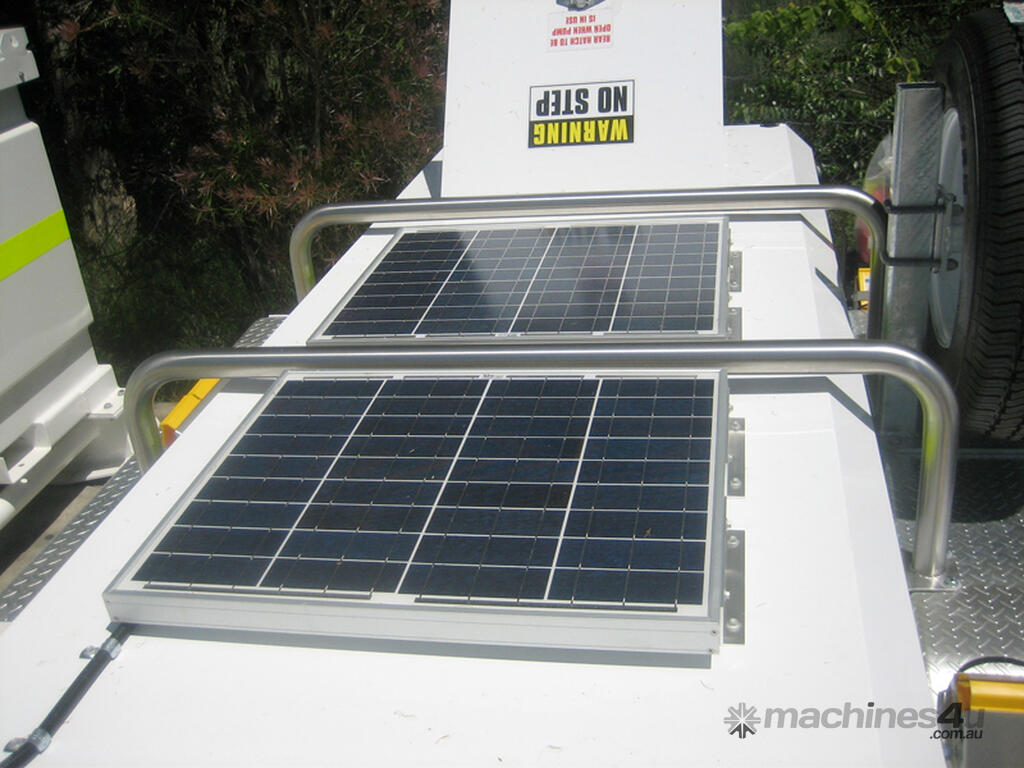

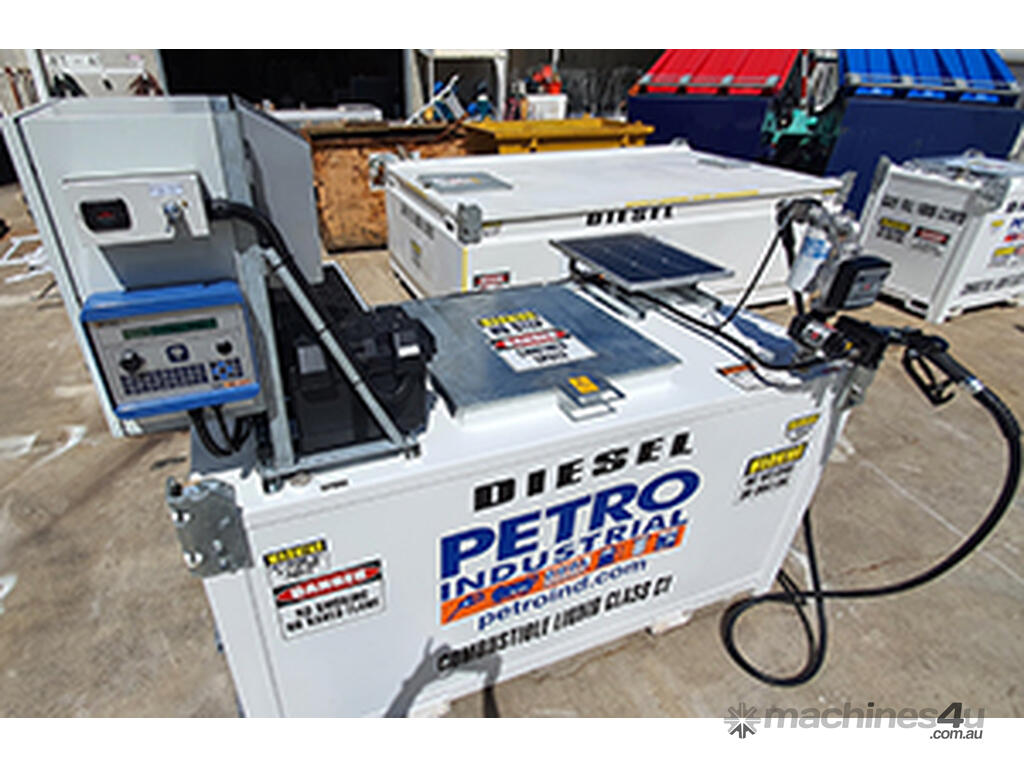

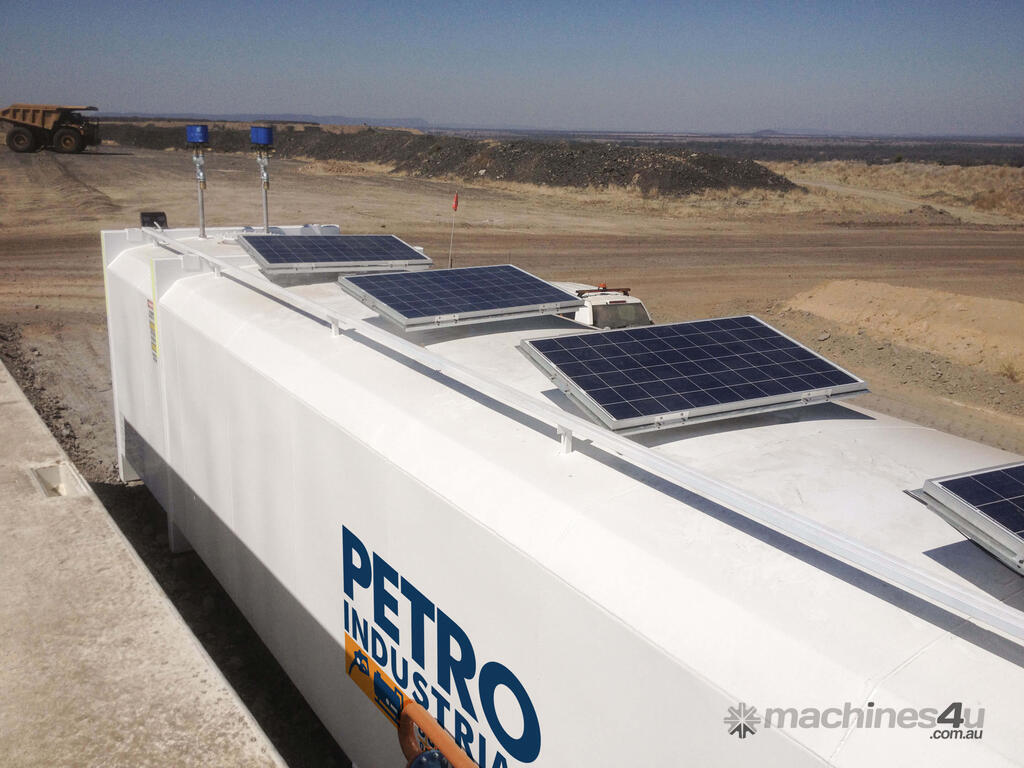

The PETRO Industrial Solar Panel Kit is designed to power a PETRO 12V DC Pump kit, suitable for use with PETRO Trailers or PETRO Self Bunded Tanks. This kit offers a reliable solution for generating solar power, ideal for remote or off-grid locations.

Kit Components:

- 2 x CNPV 50W 12V Solar Panels
- 1 x Regulator 12V 10amp - PWMLVD
- 1 x Volt Meter 10V-16V Expanded Scale
- 1 x 10amp Plastic Circuit Breaker
- 4 x Cable Gland 5-10mm Carroll
- 10 x Connectors
- 2 x Brackets for Solar Panels
- 4 x Cable 6mm Sq-C25
- 4 x Convoluted Tube 13mm - CT13
- 2 x 10amp Fuses
- 1 x Ritar 12V 120Ahr Deep Cycle Battery
- 1 x Large Battery Box
- 1 x 12V Automatic Battery Charger 2/4/8 AMP

Electrical Data (SGP-100W):

- Module Size: 670 x 1005 x 35 mm
- Weight: 8.5 kg
- Nominal Peak Power: 100W
- Nominal Voltage: 18V
- Nominal Current: 5.56A
- Open-Circuit Voltage (Voc): 21.6V
- Short-Circuit Current (Isc): 6A
- Cell Conversion Efficiency: 17.10%
- Operating Temperature: -40 to +85°C
- Max System Voltage: 1000V DC

Blue Smart IP65 12V Battery Charger:

- High efficiency with up to 95%, generating minimal heat
- Low power consumption after battery is fully charged (0.5 Watt)
- Durable, safe, and silent operation without cooling fans or moving parts
- Water, dust, and chemical-resistant
- Seven-step smart charge algorithm
- Recovery of fully discharged batteries
- Suitable for severe cold conditions (down to -30°C)
- Supports Li-ion batteries and has a low power mode for smaller batteries
- Configurable via the VictronConnect app for iOS and Android

RA12-1205 Ritar Battery (12V 115Ah):

- General purpose battery with a 10-year design life in float service
- Meets IEC, JIS, and BS standards
- Features AGM valve regulated technology and high purity raw materials
- Suitable for applications like UPS/EPS, medical equipment, emergency lighting, and security systems

MORNINGSTAR SUNSAVER SOLAR CONTROLLER:

Extremely High Reliability
Failure rate of less than 1 per 1,000 shipped (<0.1%).
100% solid state. Power MOSFET design.
Manufactured in an ISO 9000 factory.
100% pre-shipment functional testing.
Longer Battery Life

Advanced PWM charging.
Series design (not shunt) for cool operation.
4-stage charging: bulk, absorption, float, equalize.
Optimized sealed or flooded battery set points.
Temperature compensated charging.
Low voltage load disconnect on several versions.
Designed for Harsh Environments

Temperature rating of –40°C to +60°C.
Epoxy encapsulation for protection against humidity and dust ingress.
Corrosion protection: marine rated terminals and anodized aluminum case.
Certified for use in hazardous locations.
Easy to Install and Use

Factory pre-sets result in no required install settings.
Electronic protections prevent damage from wiring mistakes.
Fully automatic operation and fault recovery.
LED’s display extensive information about status, faults and battery condition.

For more information and to discuss how the PETRO Solar Panel Kit can meet your energy needs, contact PETRO Industrial's team of specialists today!
