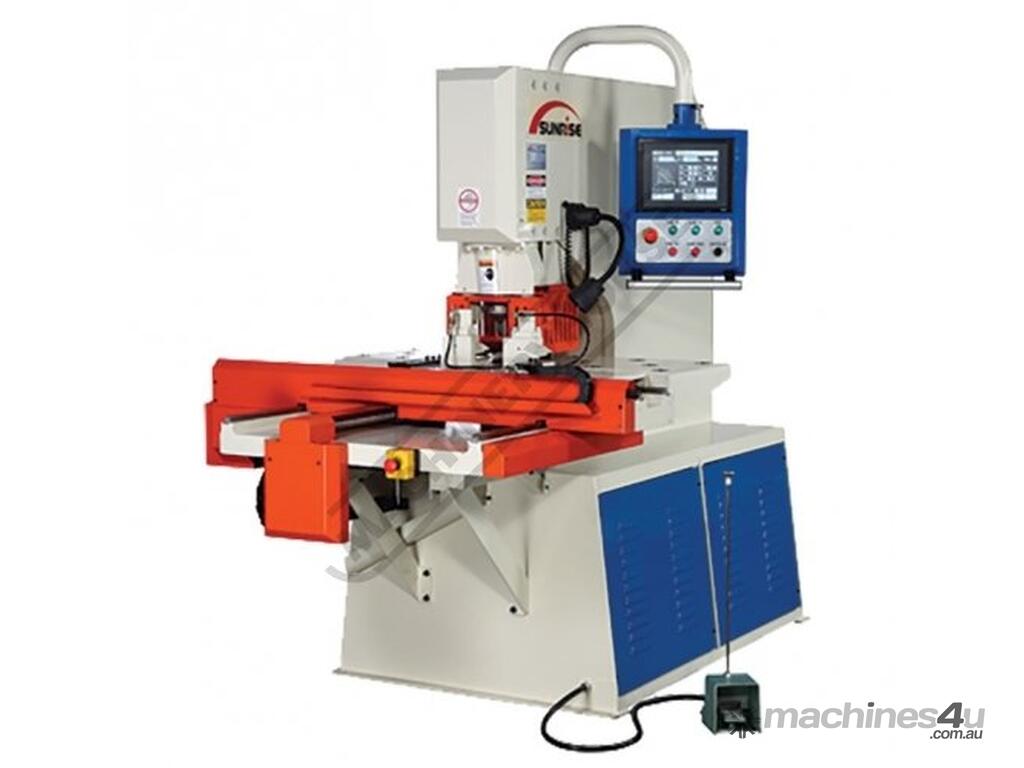

PM-80LT-CNC CNC Punching Machine 80 Tonne Includes CNC Programmable Positioning Table 1000 x 500mm

SUNRISE PM-80LT-CNC CNC Punching Machine 80 Tonne Includes CNC Programmable Positioning Table 1000 x 500mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P196F

The Sunrise Punching Machines are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

The fully-automatic CNC tables are highly efficient and accurate positioning devices to improve your productivity. The controller is easy to learn and operate, so you can start operating almost immediately. The hydraulic clamps with pressure sensor for strong grip of material are standard equipments on the CNC tables. Moreover, hydraulic stripper with exchangeable plates is also standard equipment on the CNC tables to suit various punching operations. Ball transfer units on the support table provide smooth movement of material, and cover with interlock switch ensures operation safety.

Features:
Specially designed hydraulic circuit system provides high performance efficiency and accuracy
CNC programmable positioning table 1000 x 500mm (X & Y-Axis)
CNC table drive by two 500-watt MITSUBISHI servo motors
Maximum material: 1000 x 500 x 18mm (LxWxT)
Maximum hole: Ø30x20mm
Sturdy frame construction and servo motors driven.

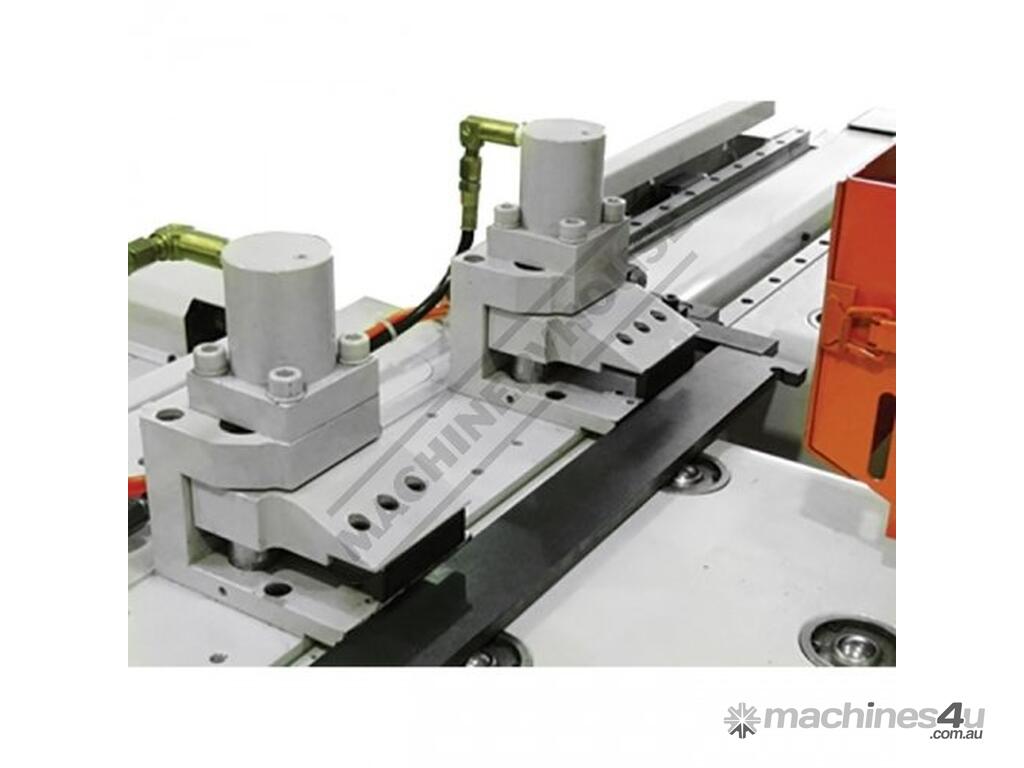

Hydraulic clamps for strong grip of material
Hydraulic stripper with exchangeable plates
Ball transfer units on the support table
Safety covers with interlock switch
Sensor for the air-oil booster to ensure clamping pressure
Adjustable servo motor speed for various material sizes

Pre-Commissioning:
1. Punching machine is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- Fully-automatic CNC table 1000 x 500mm (X & Y-Axis)



Specifications:
ORDER CODE: P196F
MODEL: PM-80LT-CNC
Punching Pressure (Tonne): 80
Punching Table Feed (Type): CNC Positioning
Punching Table Dimensions (mm): 1000 x 500 (X & Y-Axis)
Punching Ø x Thickness Capacity - Mild Steel (mm): Ø25 x 23, Ø50 x 12
Channel Flange Punching (h) (mm): 180
Throat Depth (mm): 510
Maximum Stroke Length (mm): 100
Cycle/min (20mm Stroke) (cpm): 28
Table Working Height (mm): 1050
Motor Power (kW / hp): 5.6 / 7.5
Voltage (V): 415
Nett Weight (kg): 2300
