Chevron and other styles, this line opens up possibilities in flooring. Consistency of dimension and angles means this line will turn short stock into a solid product range. Now short order jobbing in the flooring segment is here.
Powermax Chevron Features
High Capacity 10 boards/min
Unique production method
High Profile Accuracy

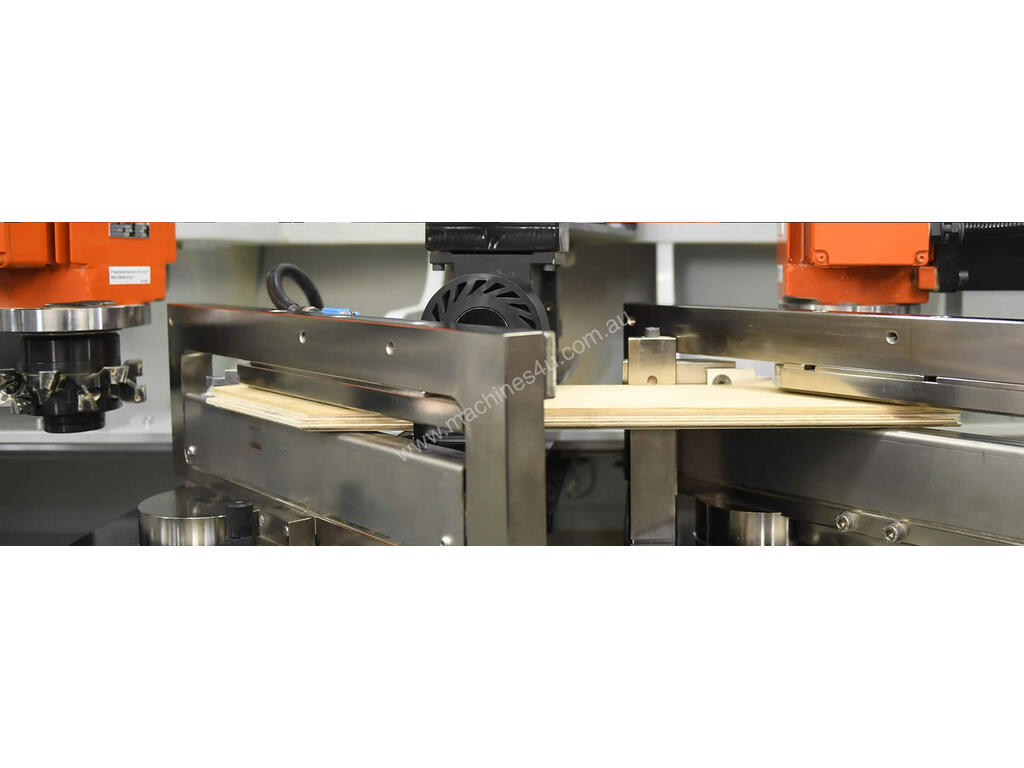

Absolute angle accuracy due to firm side-pusher
No Splintering/Blowouts

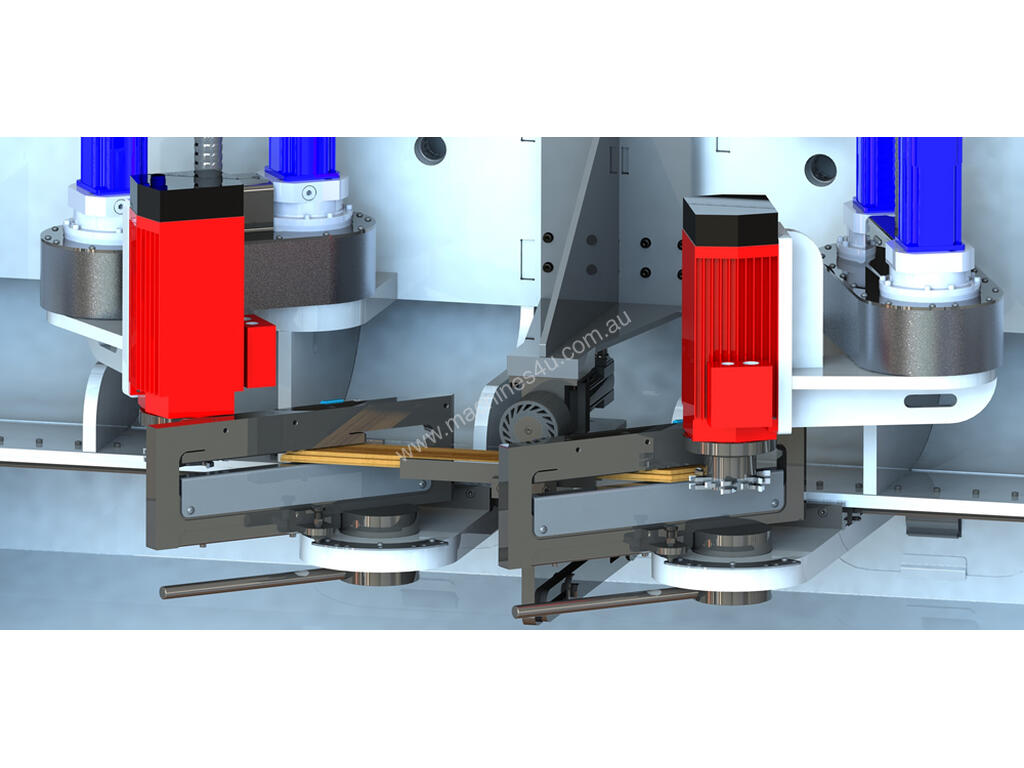

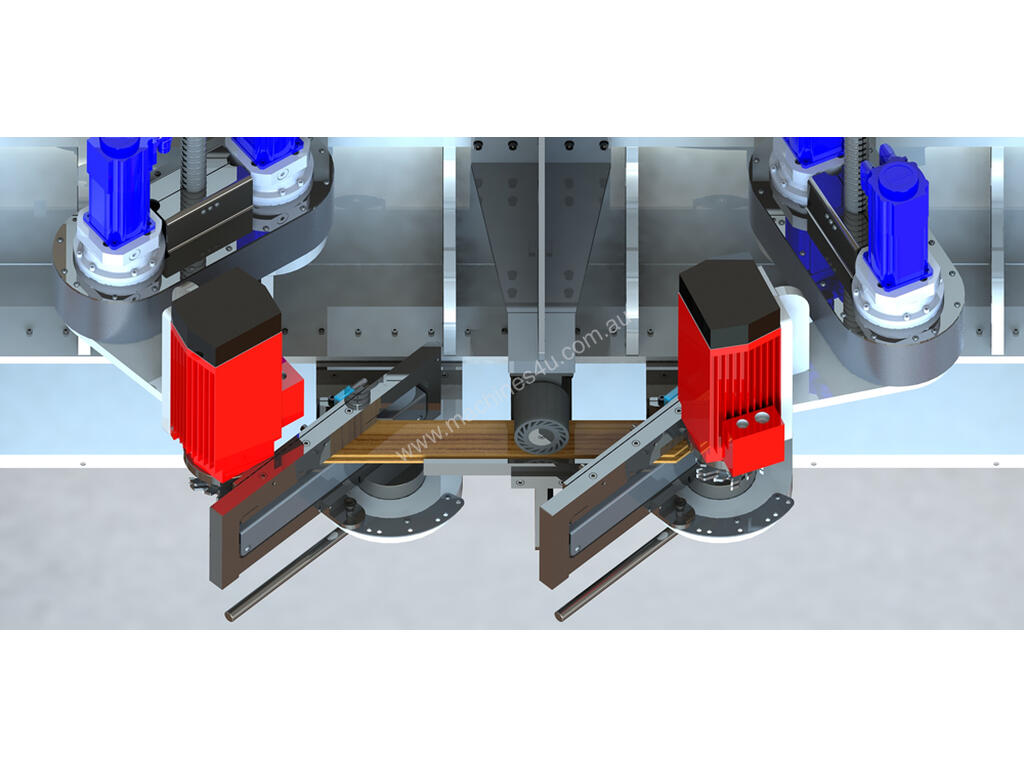

Unique profile tools - Tongue & Groove

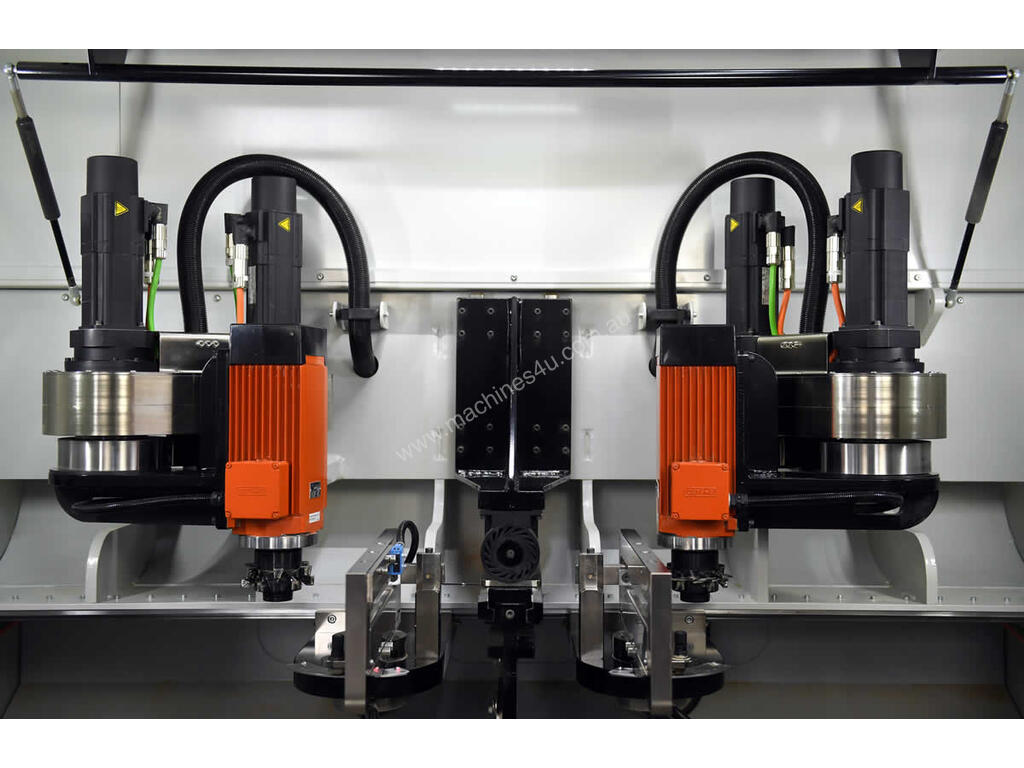

Advanced Servo Drive & Control Technique by Lenze
Belt conveyor with drive motor for waste
Technical Specifications
Description Value
Weight: 5000 kg
Power: 32 kW
Pressure: 6 bar
Dim. (LxHxW): 9650 x 2000 x 2500 mm
Cutter diameter: 125 mm
Dust connection: 1x Ø250 mm 1x Ø120 mm
Support Remote Management System
Functional Specifications
Description Value
Lengths: 350 - 1200 mm
Widths: 60 - 200 mm
Thicknesses: 8 - 30 mm
Capacity: Up to 10 pc/min
Length: Fixed
