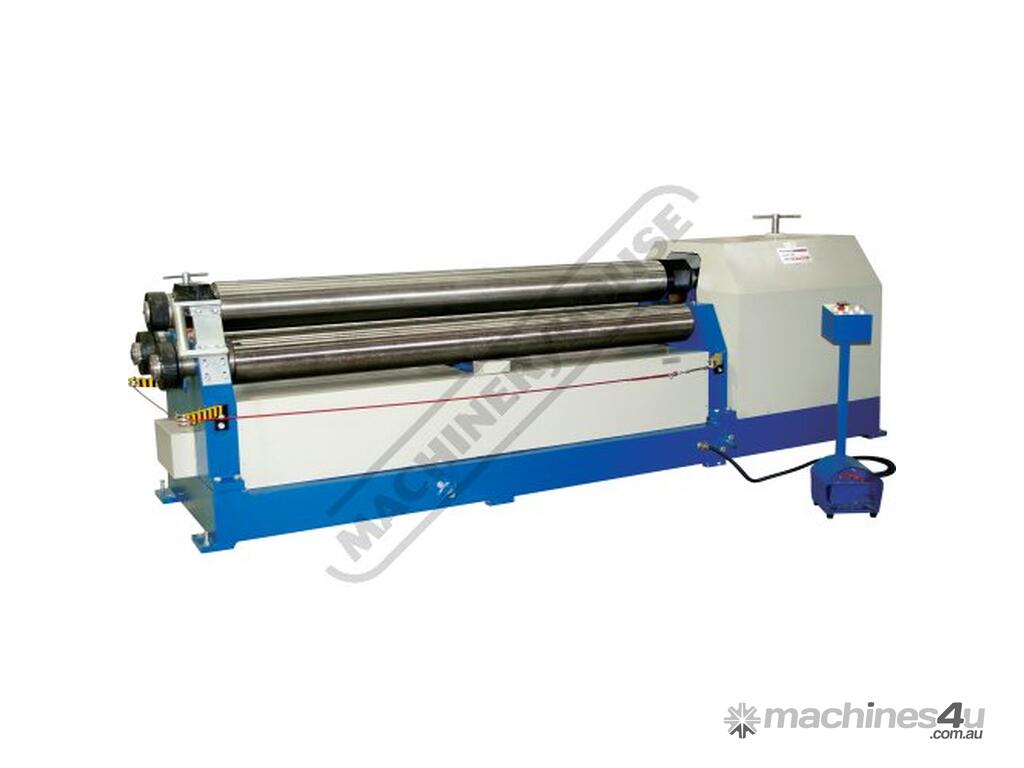

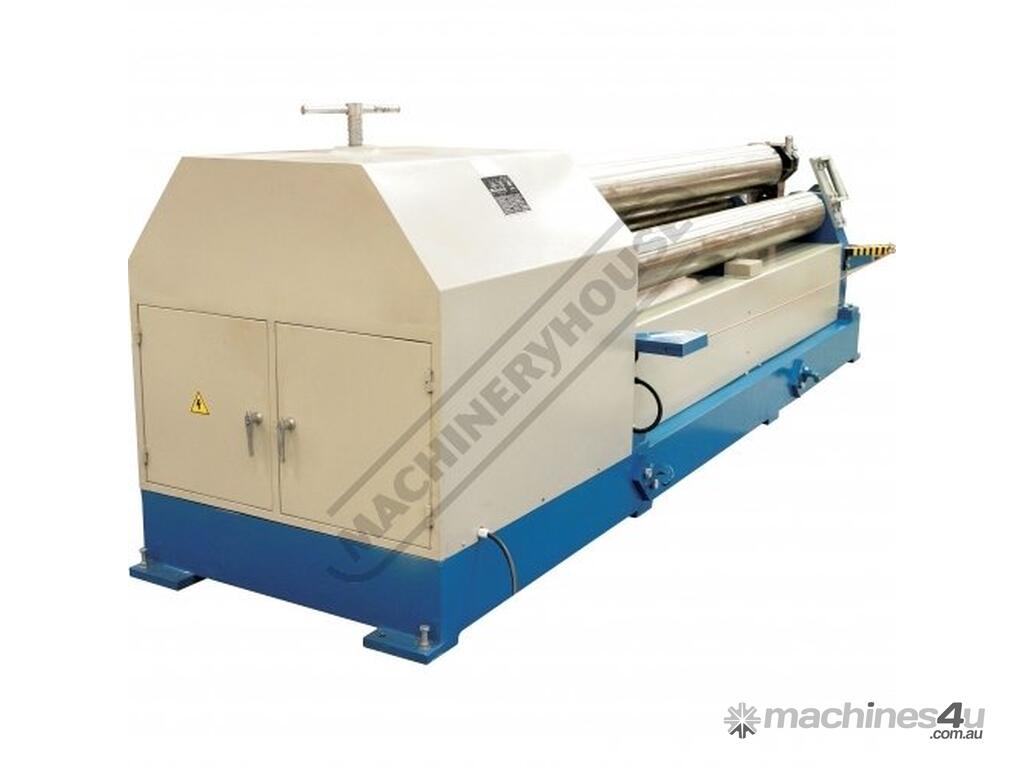

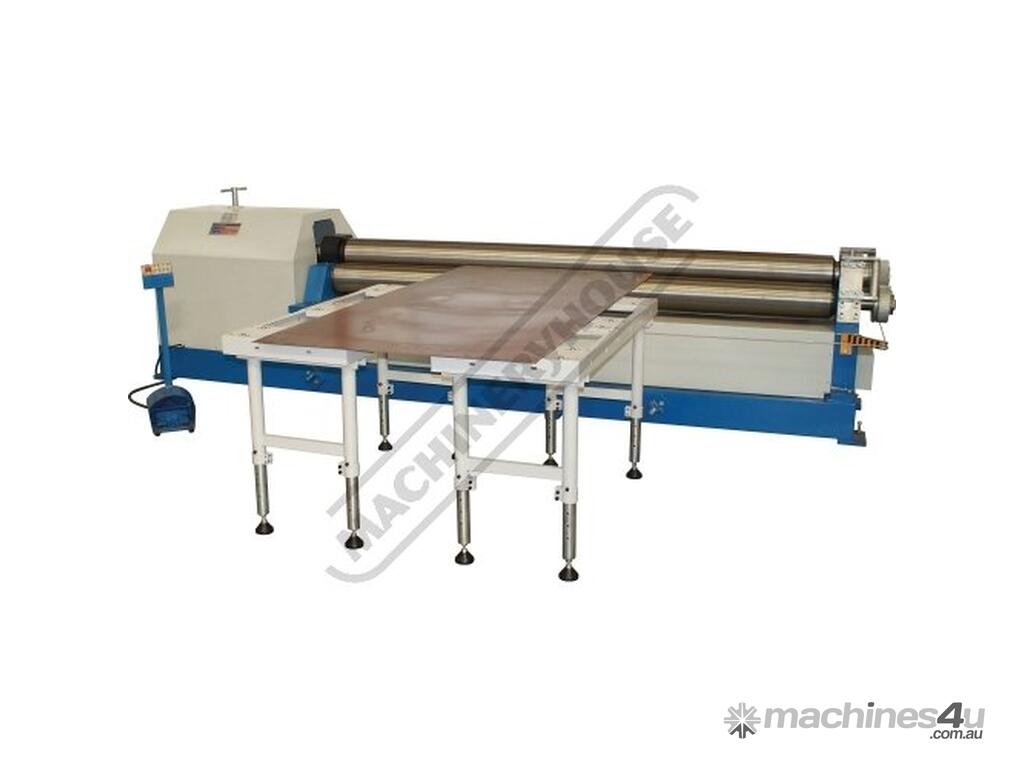

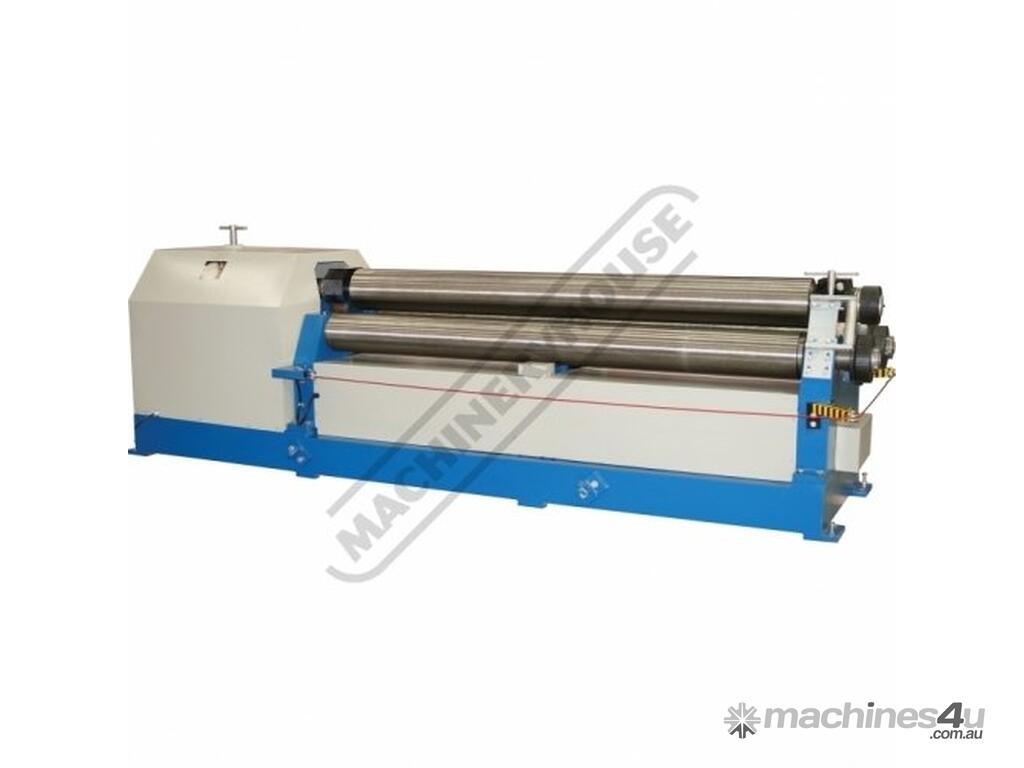

PR-2512 Motorised Plate Curving Rolls 2550 x 12mm Mild Steel Capacity Includes Section Rolls

HAFCO METALMASTER PR-2512 Motorised Plate Curving Rolls 2550 x 12mm Mild Steel Capacity Includes Section Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S769

Features:
Two rolls powered by gearbox and gear system
Swing out end enables complete cylinder to be removed
Heavy duty steel welded main frames

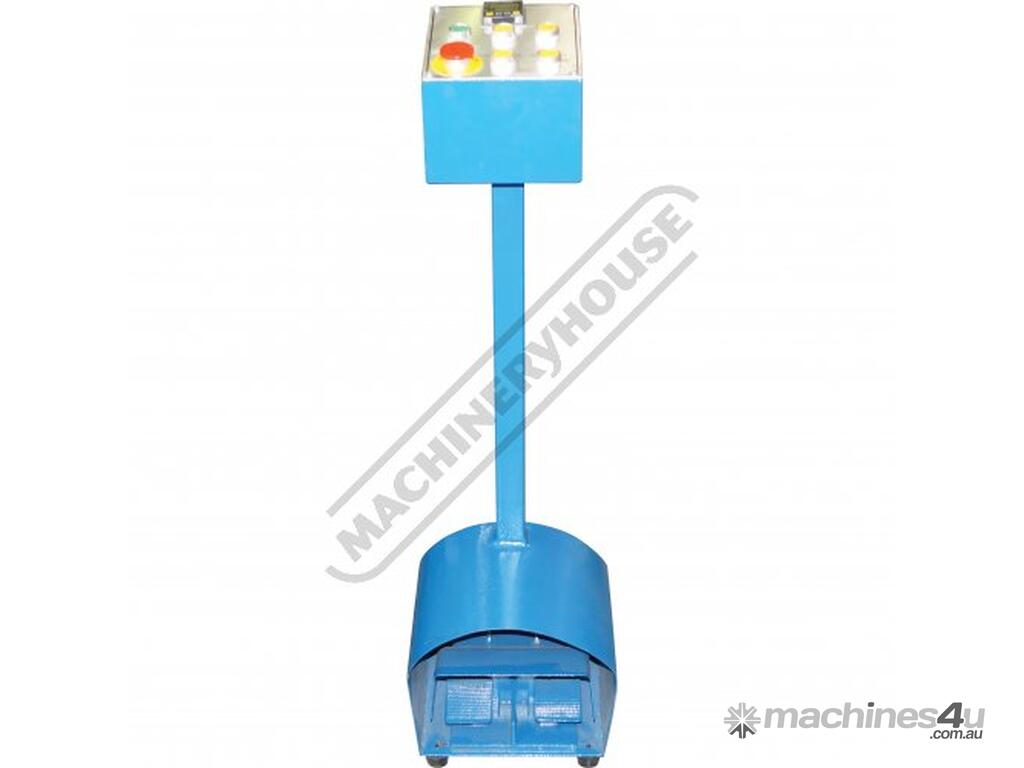

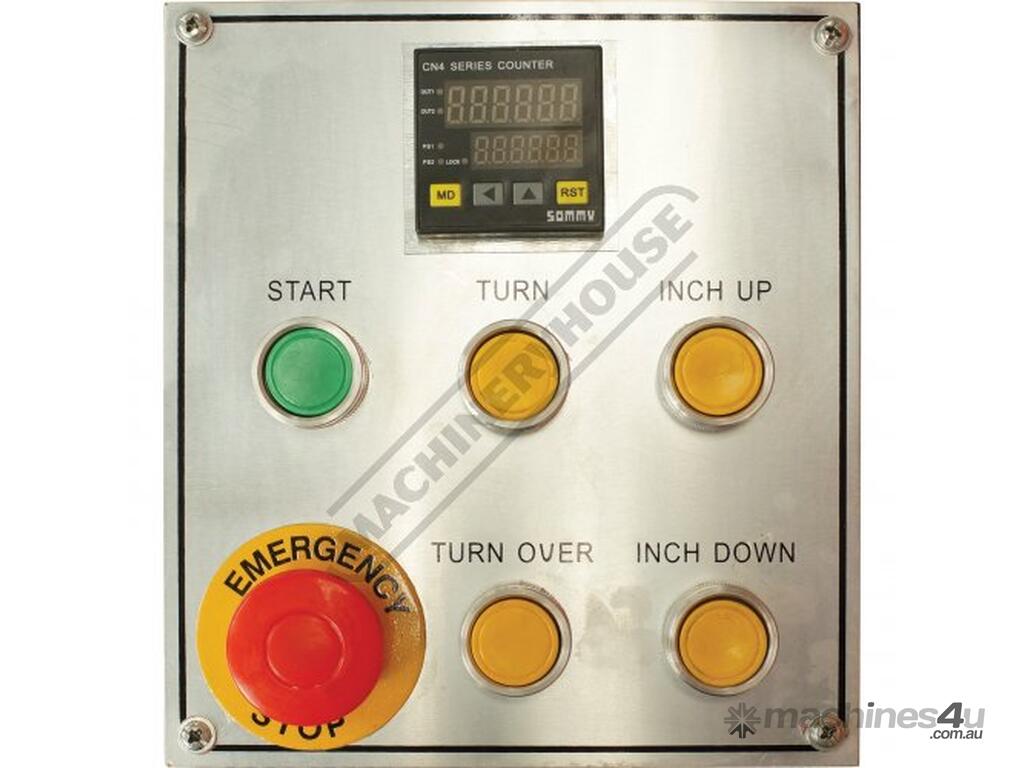

Mobile control panel with foot pedals

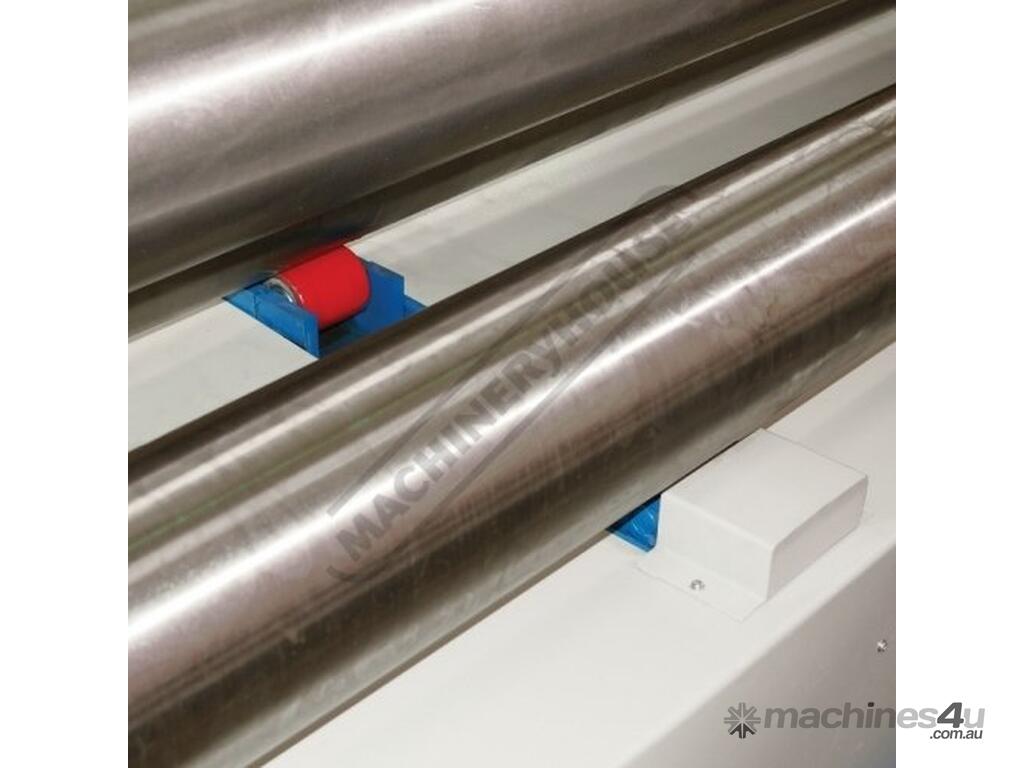

Precision ground rolls with wiring grooves

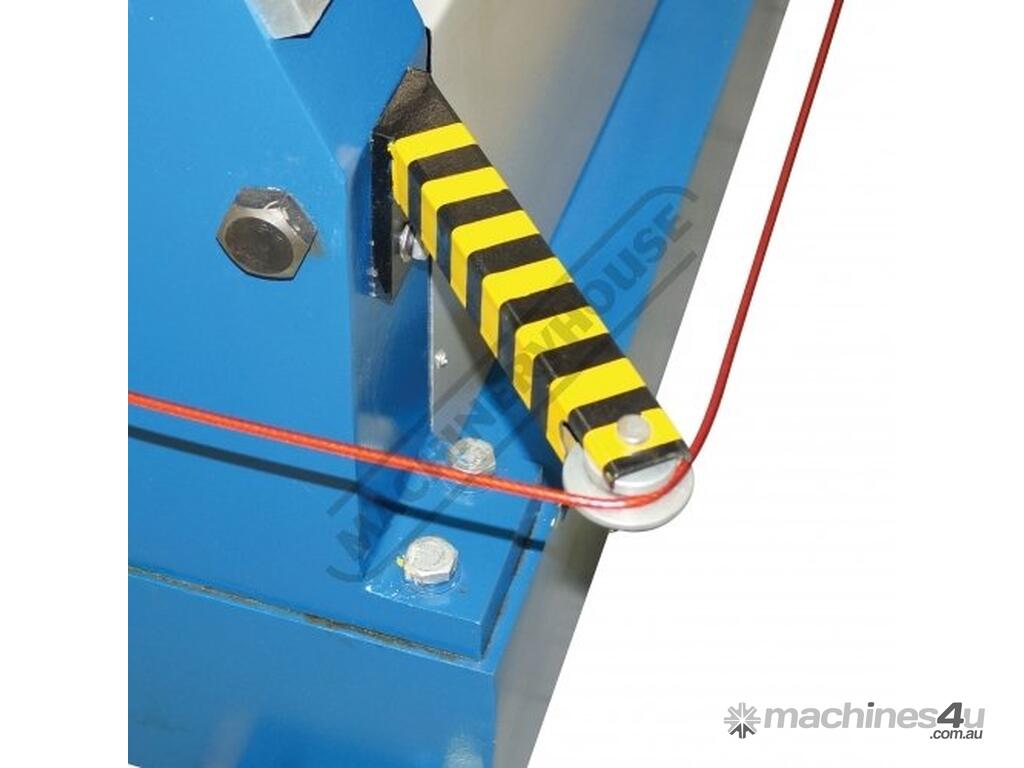

Safety wire interlock system with emergency shut-off
Motorised up & down top roll for curving adjustment

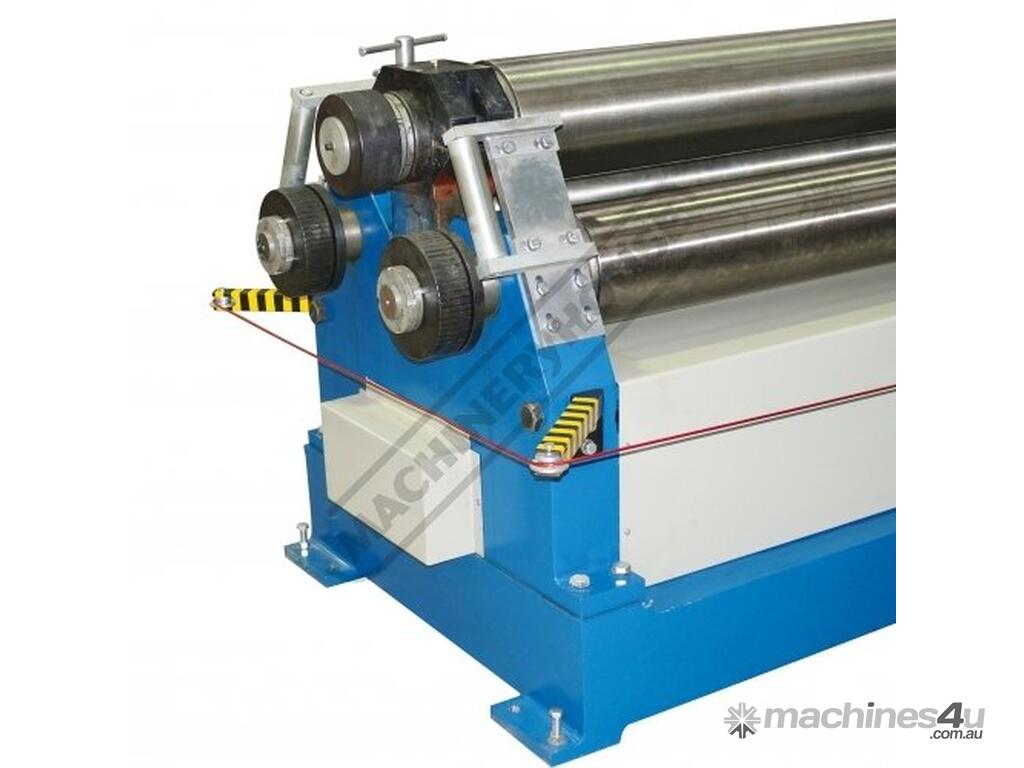

Includes Section roll system with flat bar and pipe dies

Mild steel capacity is rated on hot rolled material with 250MPA

Includes:

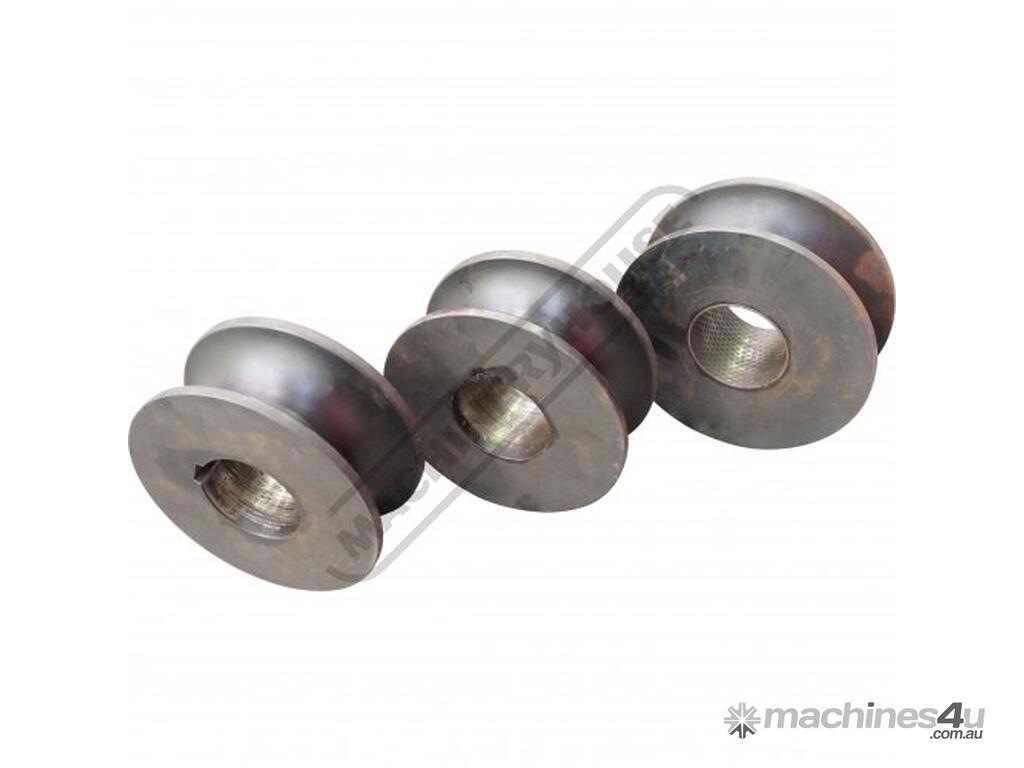

- 2" (50mm) NB pipe dies
- 60 x 5mm flat bar or 60 x 60 x 5mm angle dies



Specifications:
ORDER CODE: S769
MODEL: PR-2512
Curving System Type: Pyramid
Curving Material Length (mm): 2550
Curving Plate Thickness - Mild Steel (mm): 12
Minimum Rolling Diameter (mm): 600
Roll Diameter (mm): 240
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 4300 x 1300 x 1600
Floor Space (L x W x H) (mm): ~
Shipping Dimensions (L x W x H) (mm): 4300 x 1300 x 1600
Nett Weight (kg): 5200
