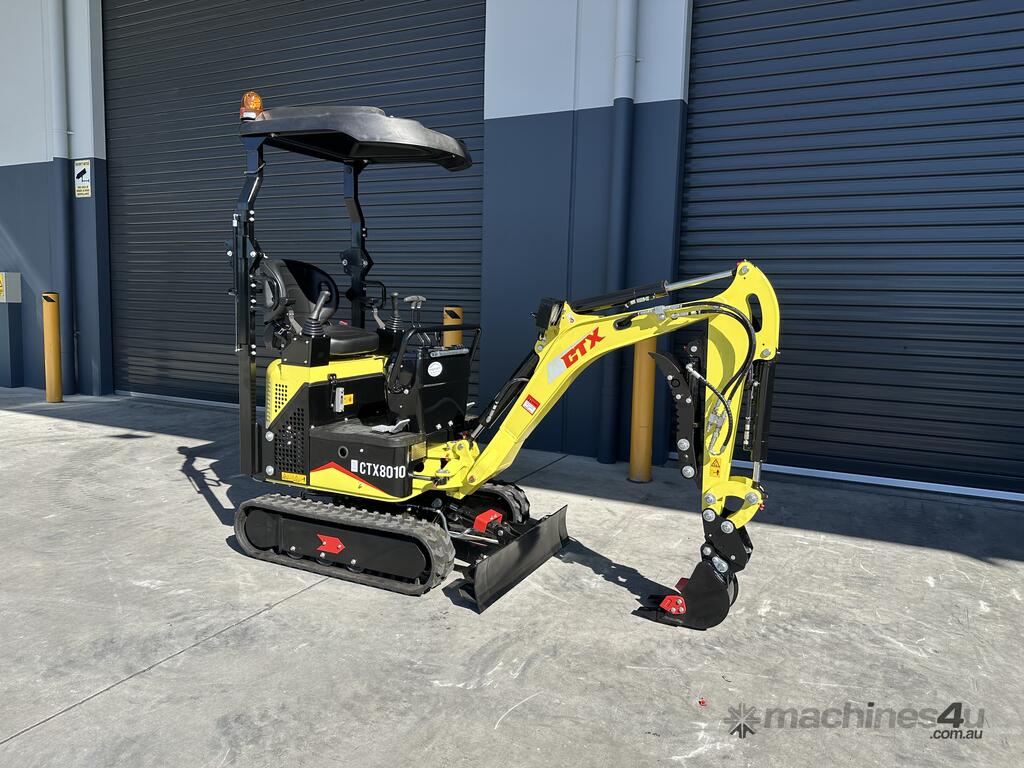

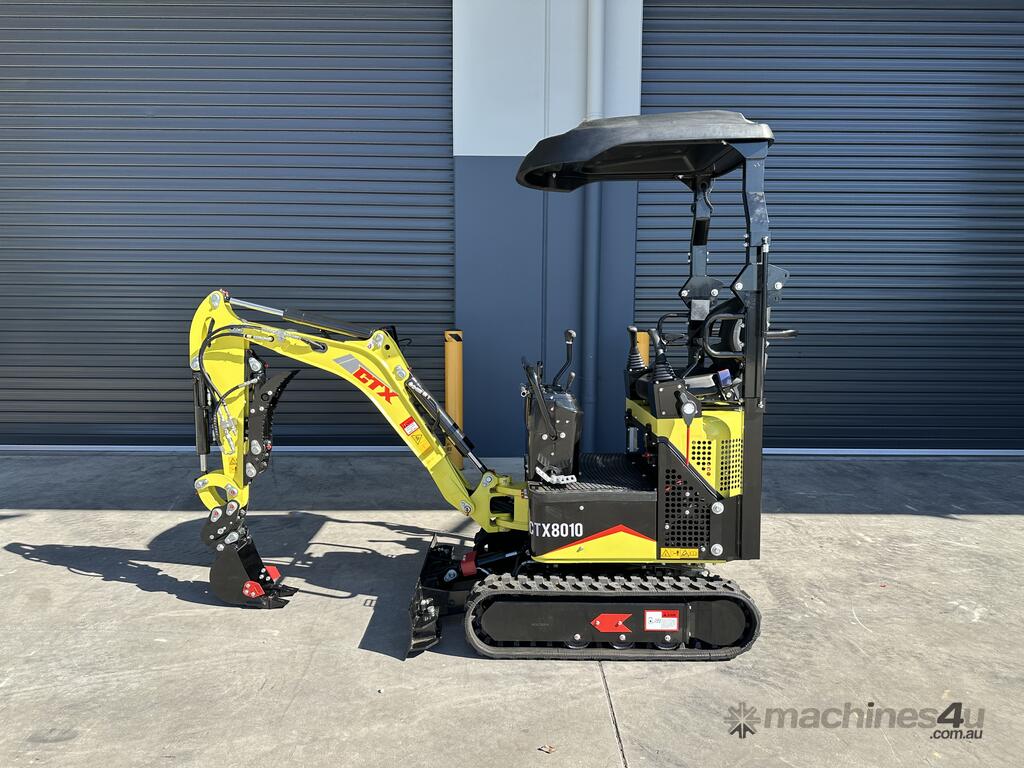

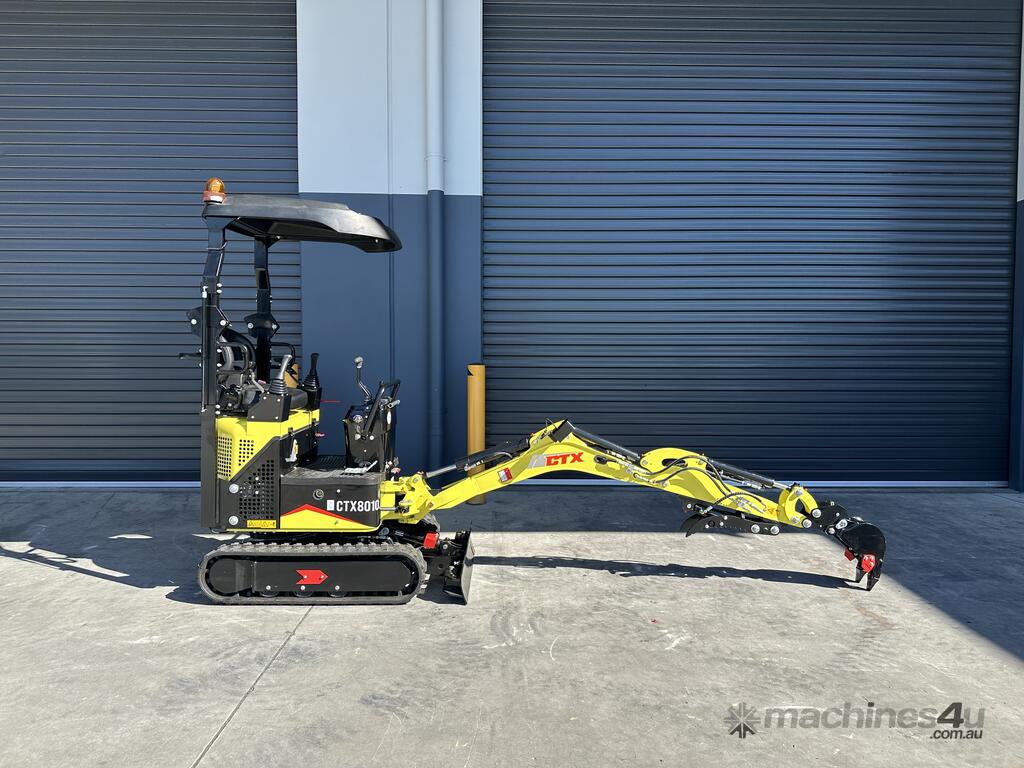

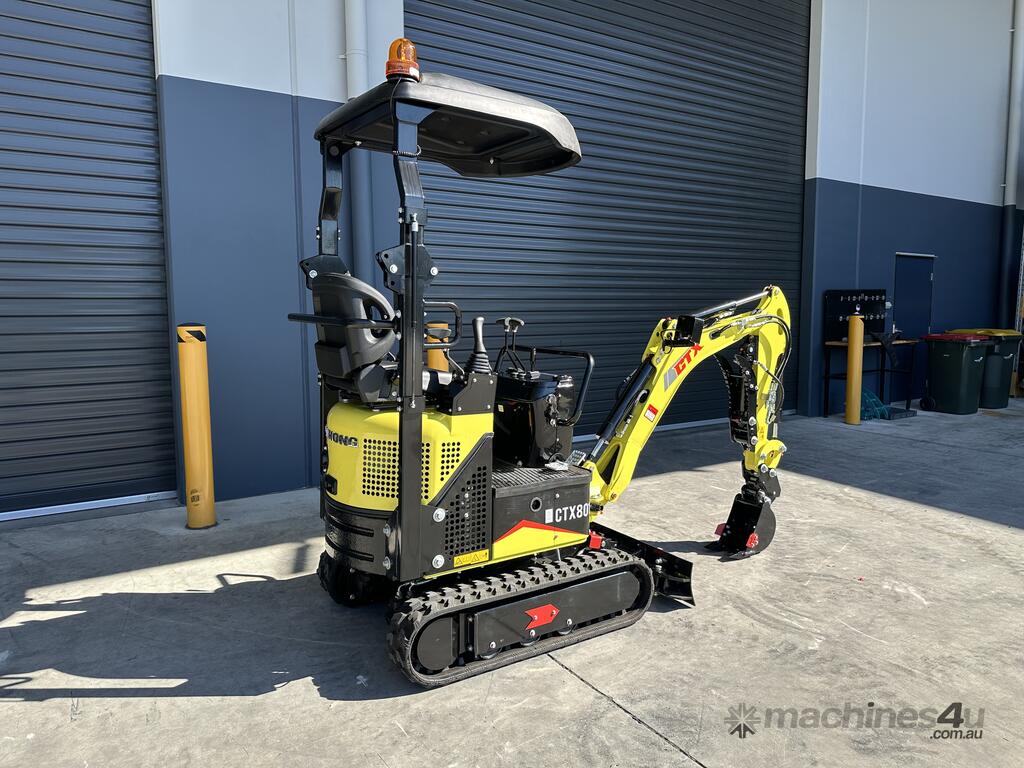

PREMIUM CTX8010 KOOP 1.2T JOYSTICK SWING BOOM ADJ TRACKS MINI EXCAVATOR

HAIHONG CTX8010 1.2T 1CYL KOOP DIESEL ENGINE


***** INCLUDES HYDRAULIC THUMB GRAB / 400MM BUCKET / QUICK HITCH ******


FEATURES INCLUDE :

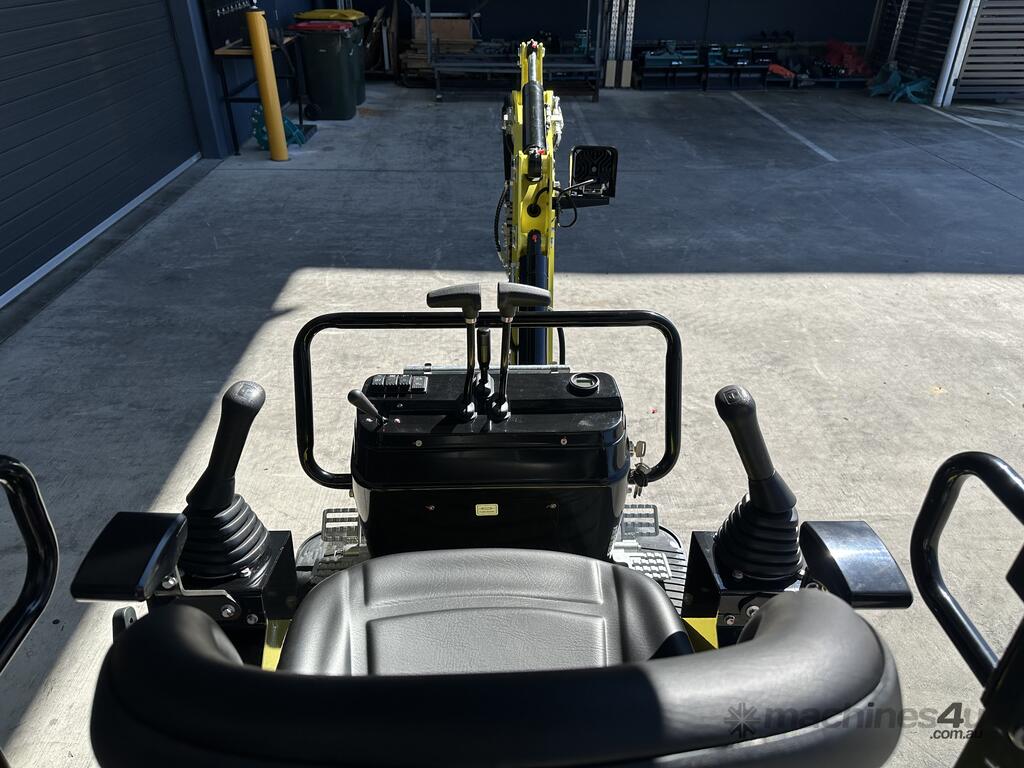

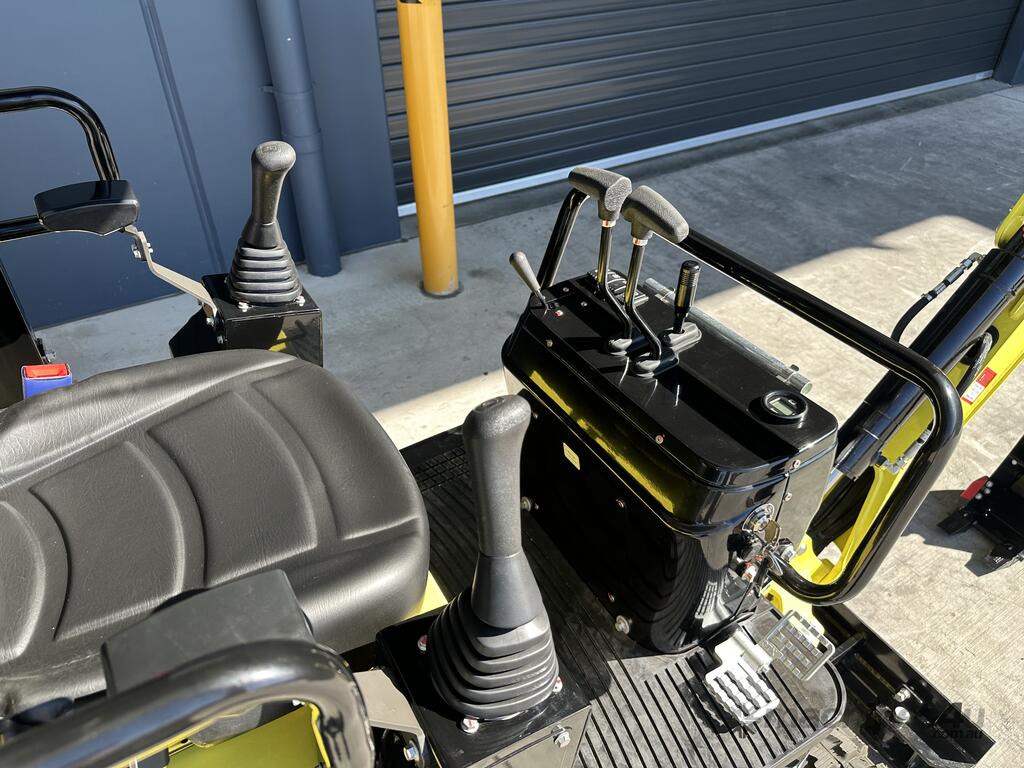

" DROP DOWN PILOT CONTROL JOYSTICKS - TWIN HYDRAULIC PUMPS "

" INDUSTRY LEADING MAX DIGGING DEPTH - 1943MM "

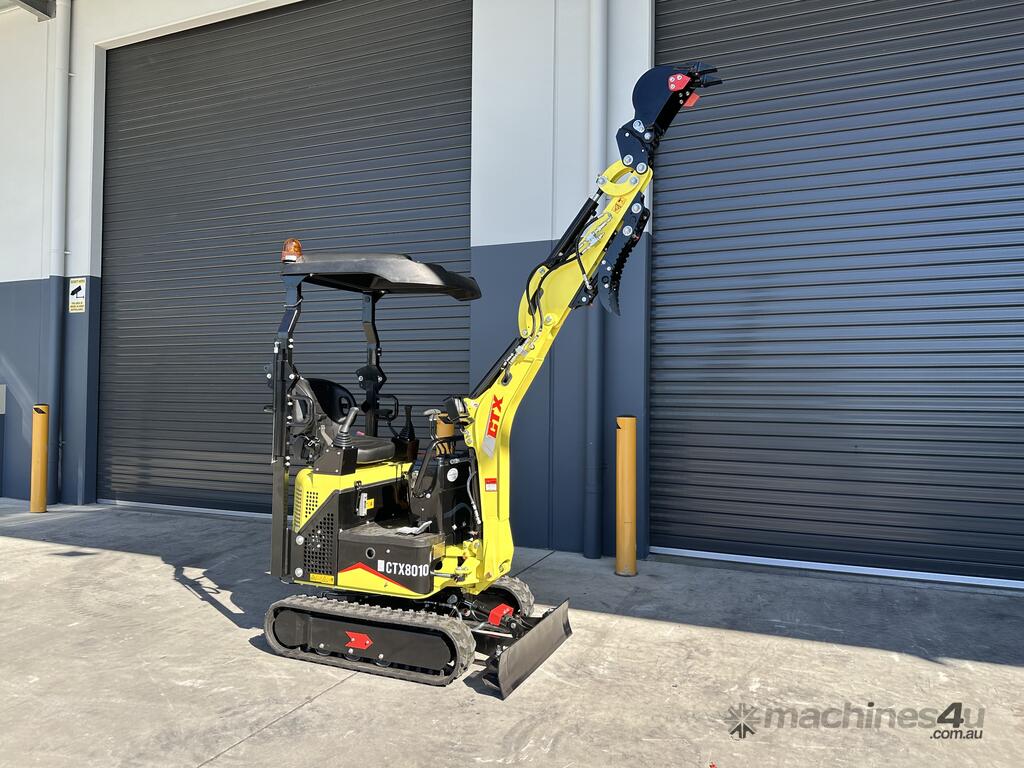

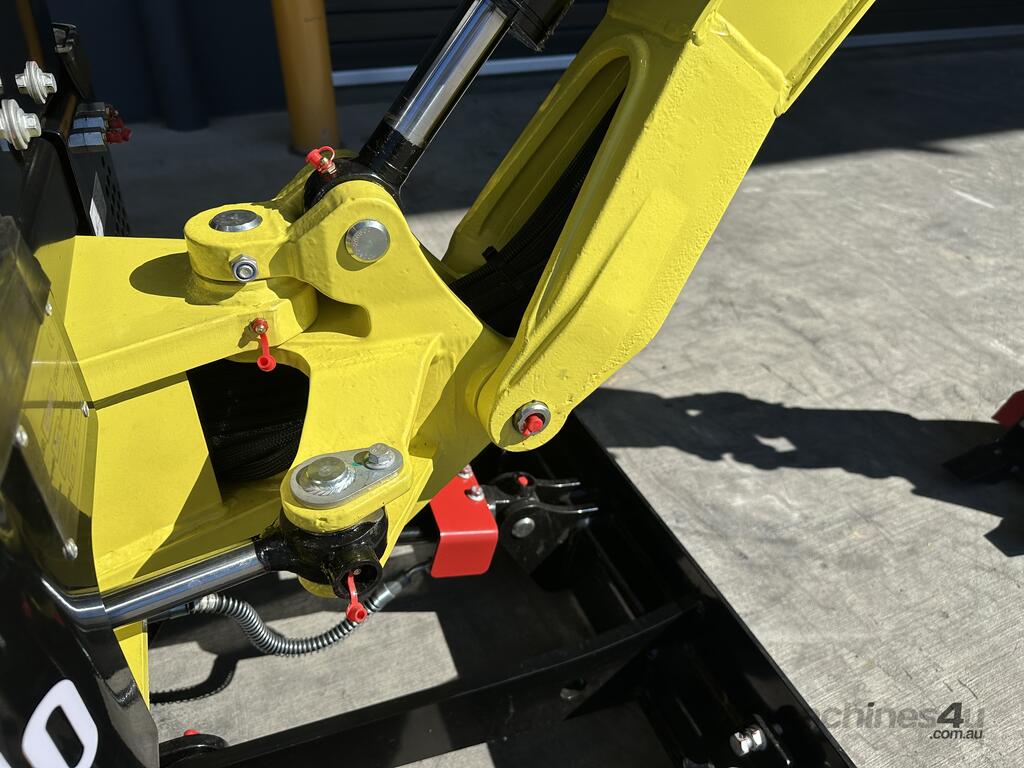

" SWING BOOM AND ADJUSTABLE TRACKS "

" OFFSET BOOM FOR SUPERIOR OPERATOR VISION "

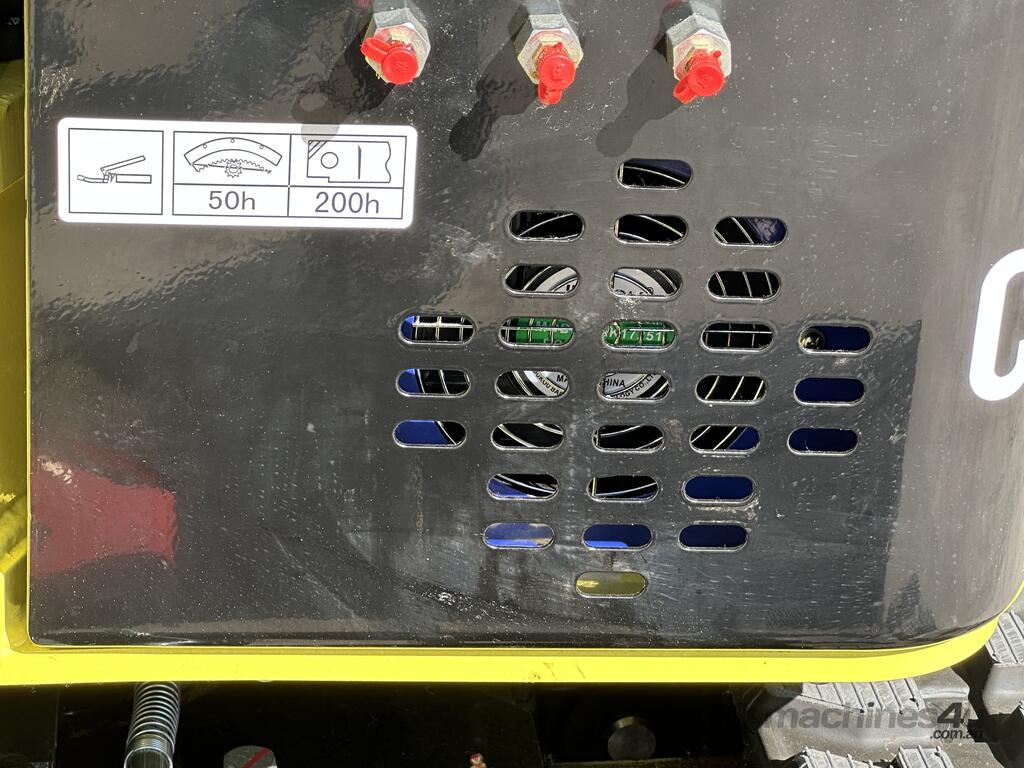

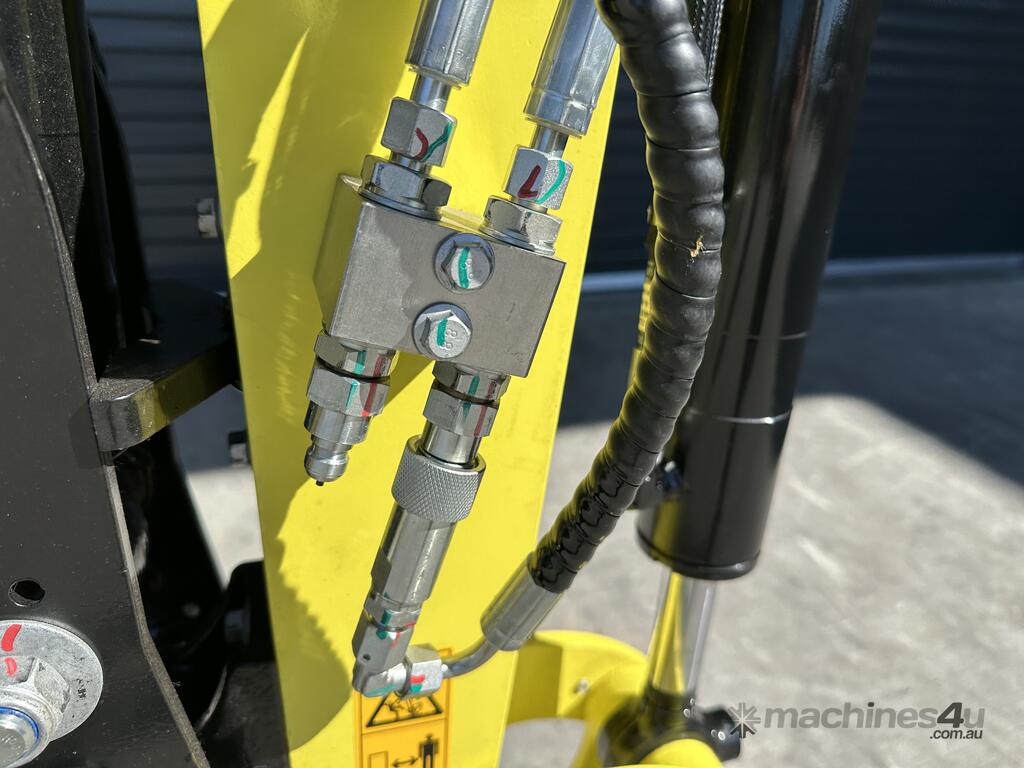

" 2 X AUXILARY HYDRUALIC REMOTES

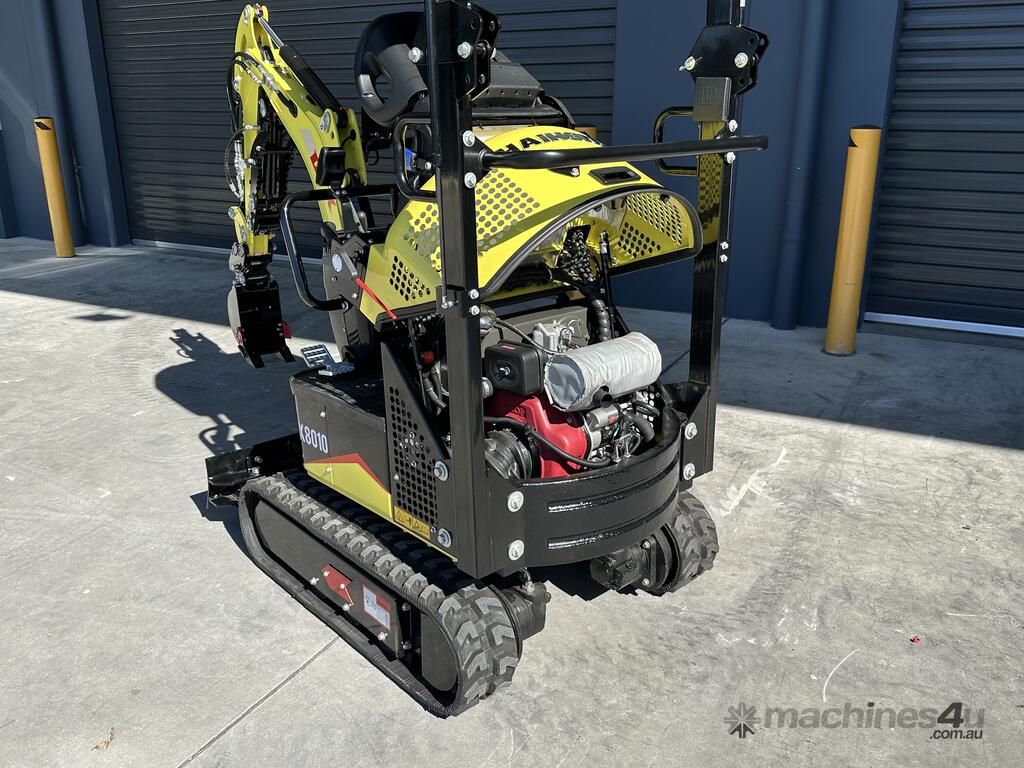

" 1CYL KOOP DIESEL ENGINE "

" 3 X RUBBER TRACK ROLLERS "

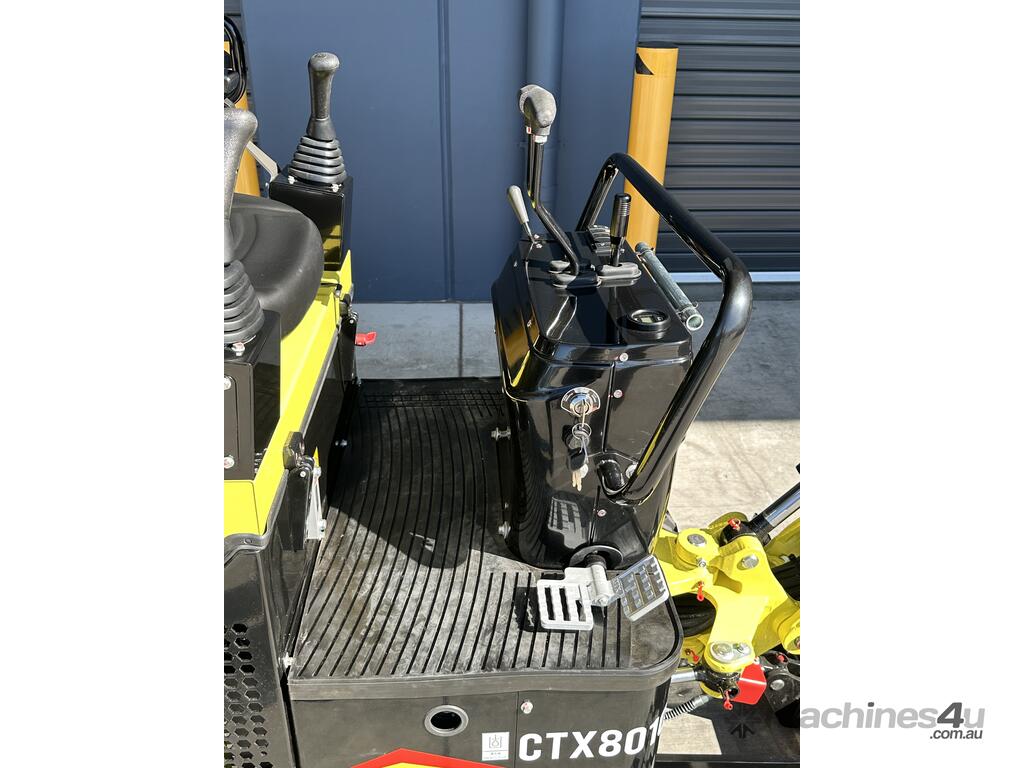

" LARGE OPERATORS PLATFORM "

" 6 YEARS IN THE AUSTRALIA MARKET "


OPTIONAL ATTACHMENTS :

- 200mm, 400mm, & 600mm Buckets
- 800mm Tilting Mud Bucket
- 900mm Sieve Bucket

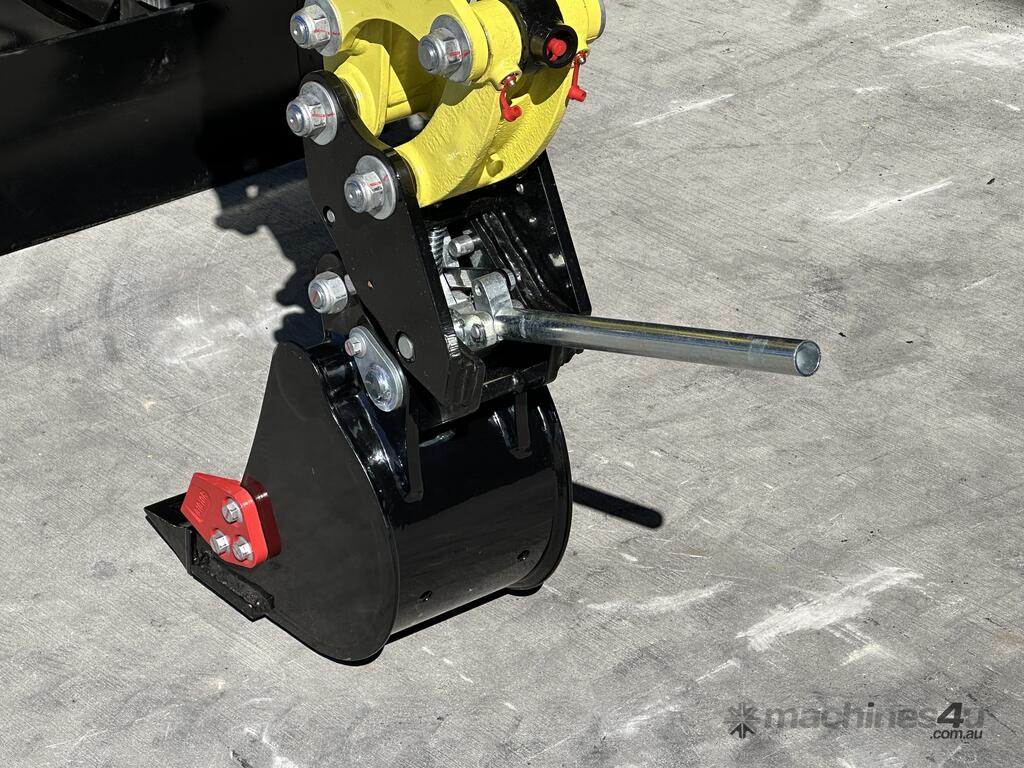

- Quick Hitch
- Ripper
- Hydraulic Thumb Grab
- Stick Rake
- 5 Finger Grab
- Post Hole Digger with 200 & 300mm Heavy Duty Augers
- Tilting Quick Hitch

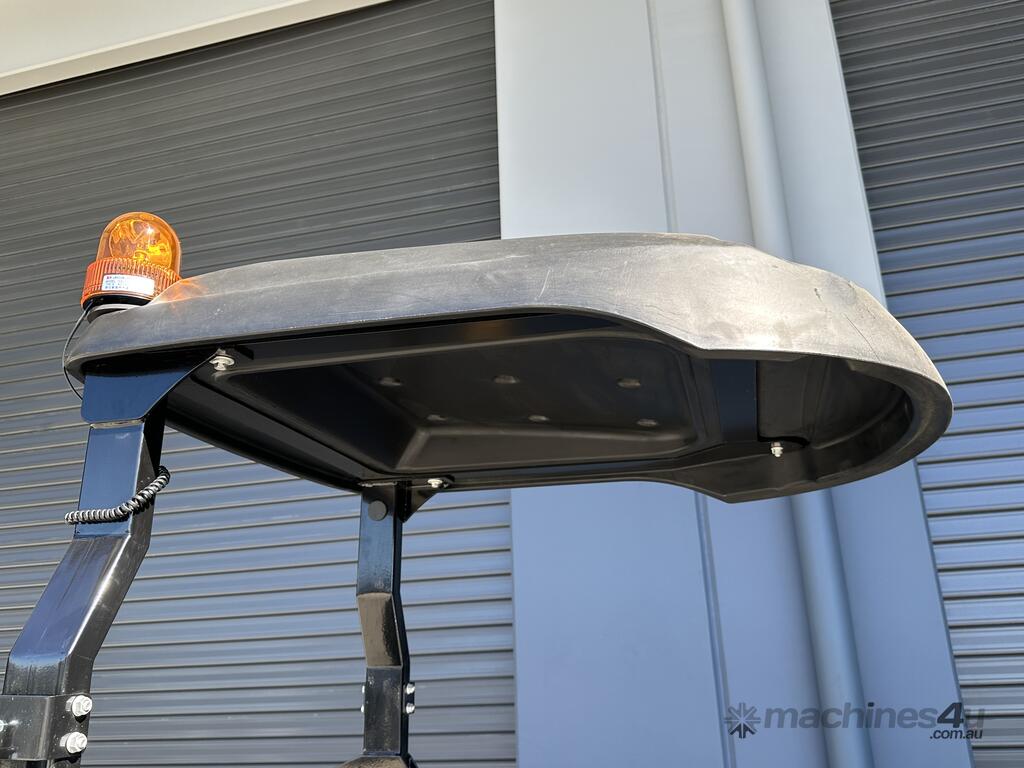

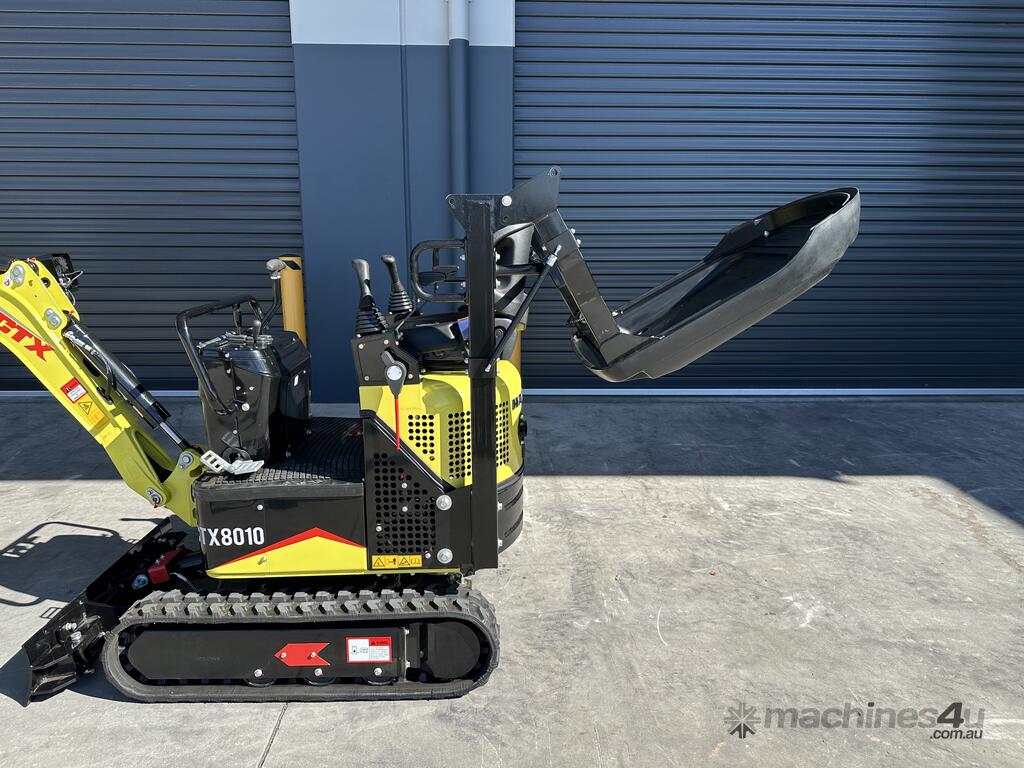

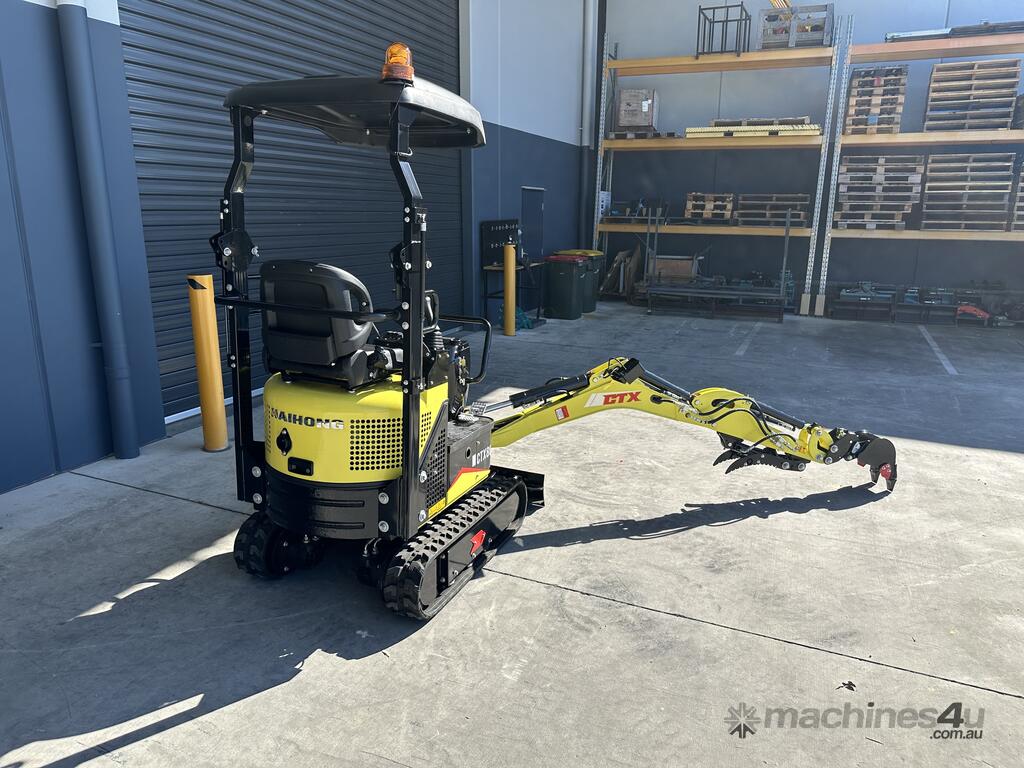

The HAIHONG CTX8010 is the Premium 1.2 ton mini excavator that has all the extra features that sets it apart from the rest. Adjustable tracks and swing boom, longer rubber tracks, protected hydraulic boom cylinder, Hydraulic hoses protected inside the boom, quick release couplings and large operators space are just some of the quality features that make this machine perform like no other. The HAIHONG CTX8010 is a quality solid machine with an over engineered chassis, boom and foldable roll bar with large canopy that will protect you from the sun.

The HAIHONG CTX8010 is the ideal machine to do all types of jobs such as : Landscaping, Concrete Shed Pad Preparation, Fencing, Cleaning out Dams and Ponds, Planting Trees, Laying Pipes and Power Cables, Footings, Construction Work, Clearing Over Grown Land, Motor Bike Tracks, Moving Logs and Large Rocks, Removing Stumps, Blade Work for Tracks and Paths, Small Acreage Maintenance, Gardening - The List is Endless ...........

Put your wheel burrow, pick and shovel away and let the HAIHONG CTX8010 do the work for you.
It is easy to operate and will save you money, time and most importantly save your Back !


SPECIFICATIONS

Model : CTX8010
Manufacturer : SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.
Brand : HAIHONG
Operating Weight : 1200kg

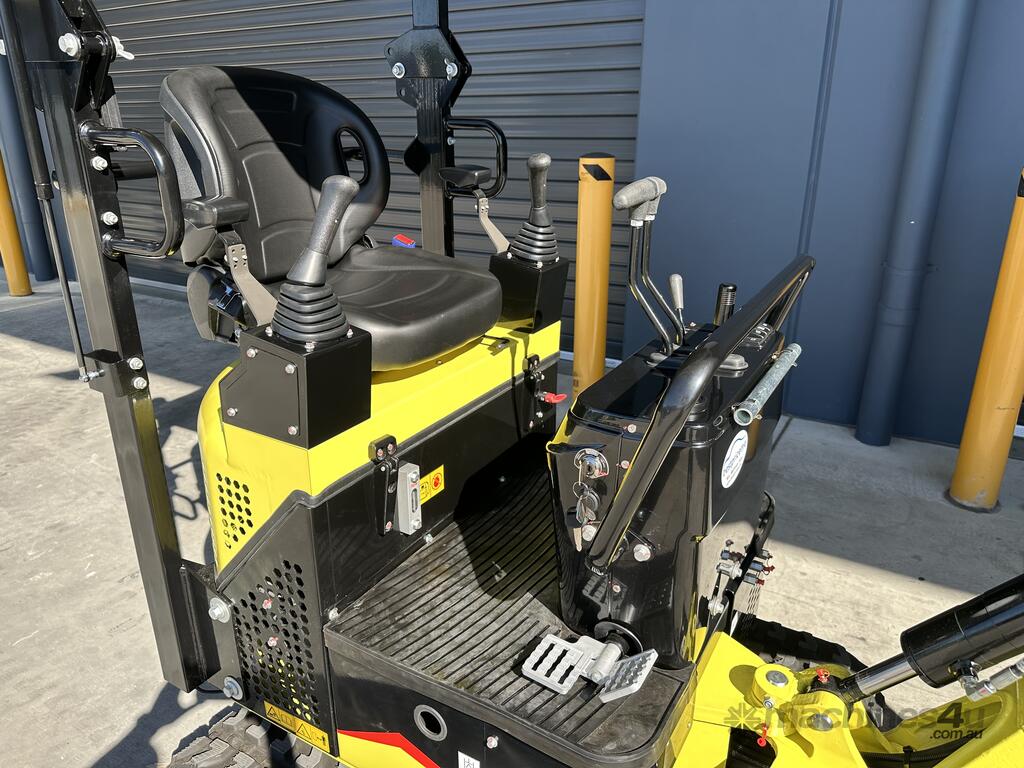

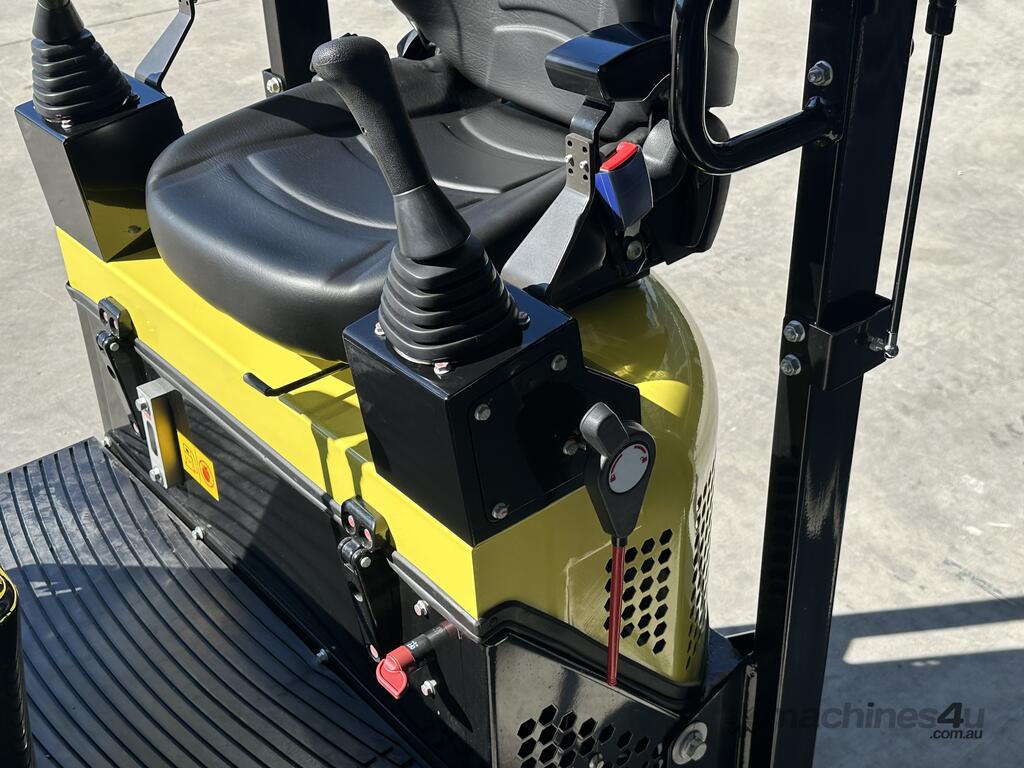

Seat Mounted Joystick Controls
Digging bucket capacity : 0.025cbm/100kg
Bucket width : 340mm

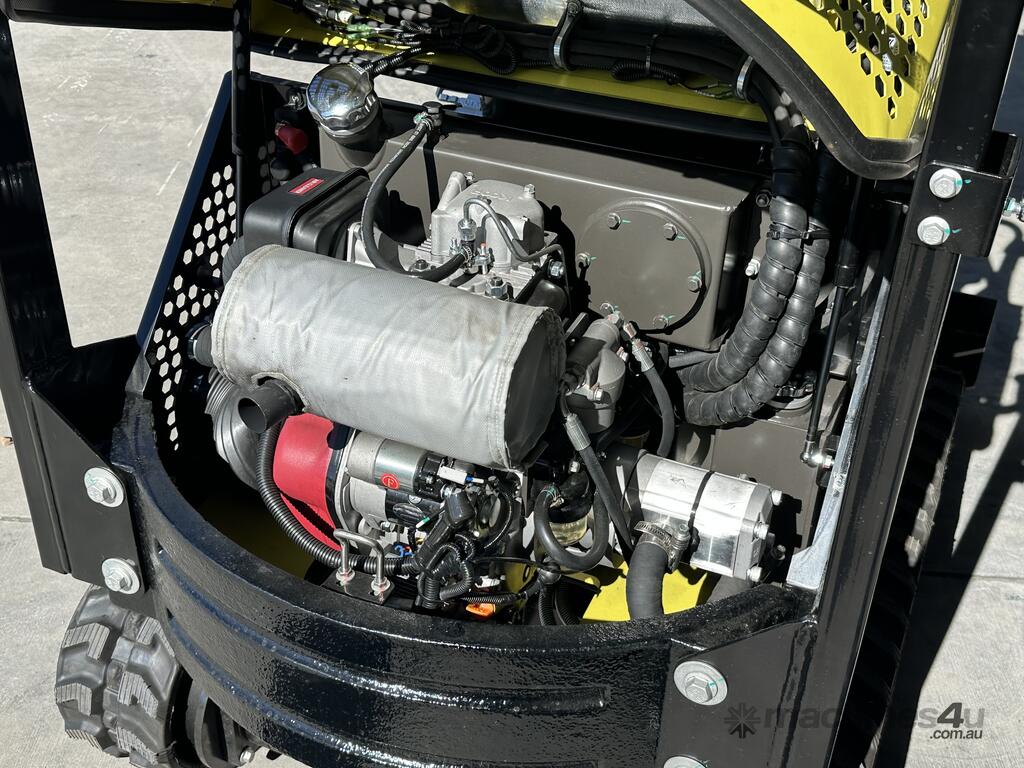

Engine : KOOP
Rated power : 12HP3600RPM
Displacement : 0.499 L
Bore stroke : 70x55

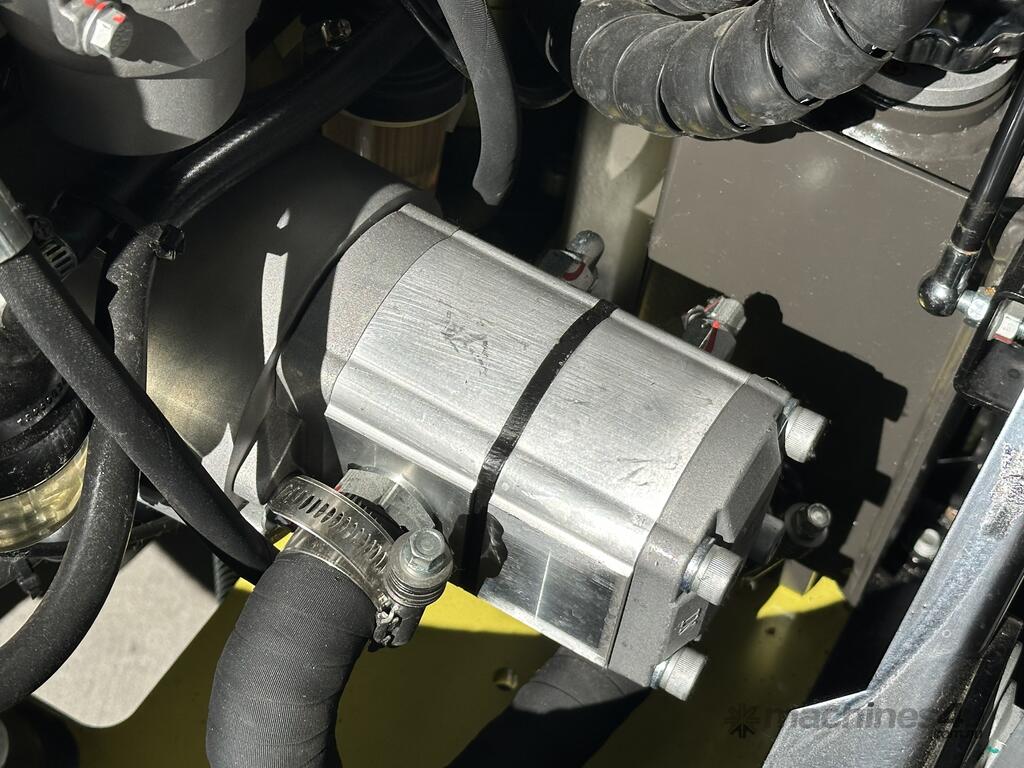

Main pump : CBK-F6.8
Pump Flow : 16L/min
Swing motor : SANYANG DMRS-200
Traveling motor : SANYANG 310
Travel speed : 2.2km/h

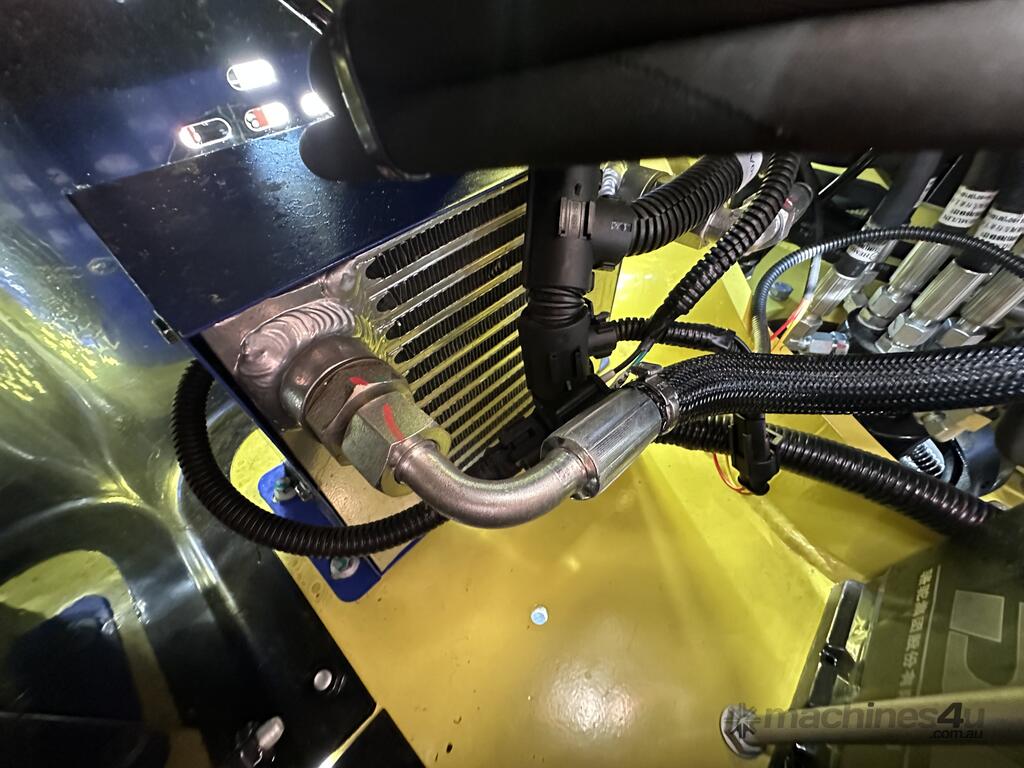

Hydraulic Oil Cooler


MAIN DIMENSIONS

Overall dimension( LxWxH) : 2550 x 896 x 2170 mm
Wheelbase : 770 mm
Standard Track width : 910mm
Optional Adjustable Track width : 860mm - 1050mm
Optional Swing Boom angle : 40 degree

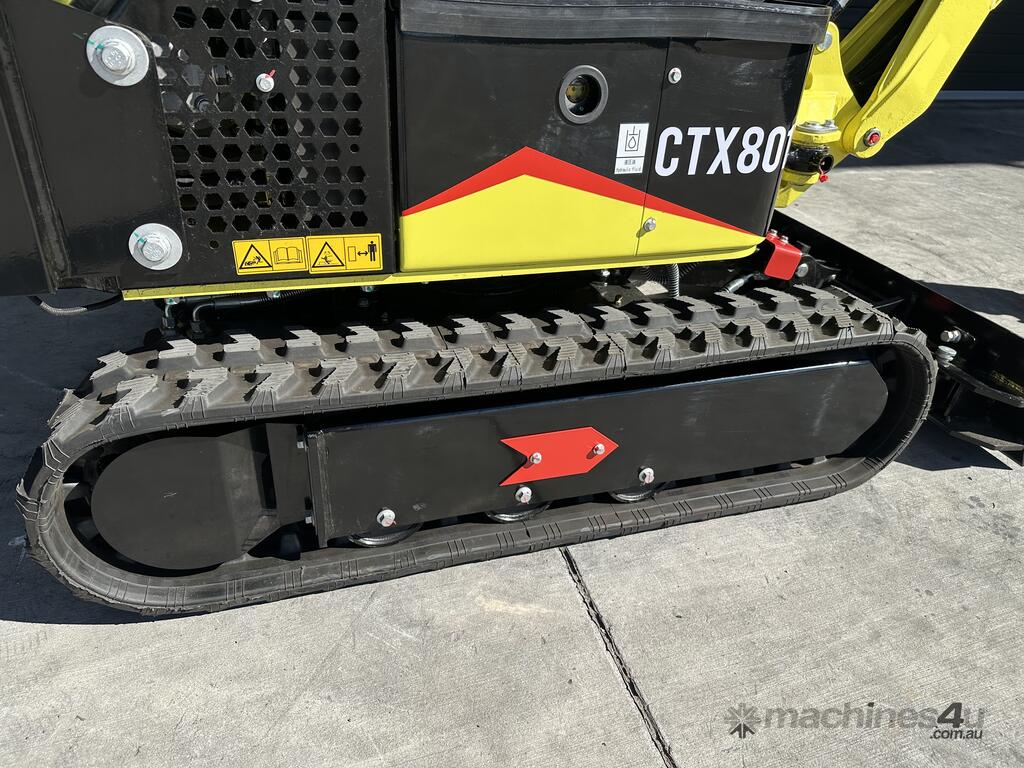

Total length of track : 1300mm
Individual Track width : 180 mm
Chassis ground clearance : 132 mm
Track height : 320 mm

OPERATING RANGE
Max. Vertical digging depth : 1948 mm
Max. Digging height : 2925 mm
Max. Dumping height : 2034 mm
Max. Digging radius on ground : 2703 mm
Max. Digging depth of bulldozer blade : 170 mm
Bucket Digging Force : 10.5kN

* Specifications and Prices are subject to change without notice.
