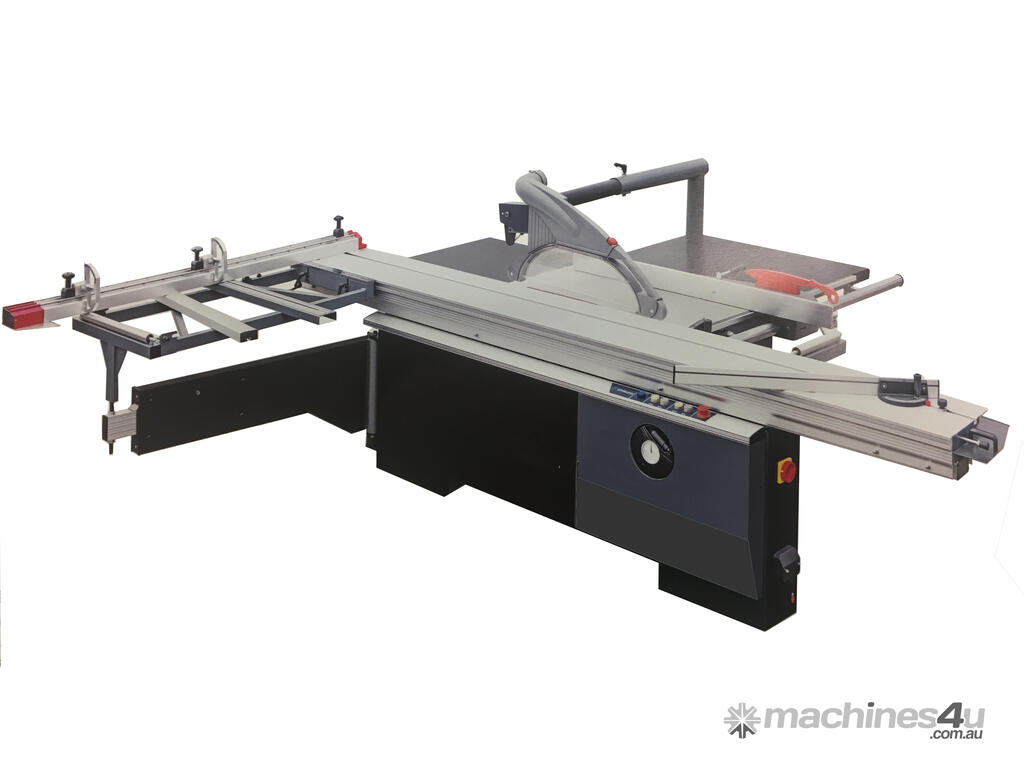

PRIMA 3200mm Three phase Sliding Table Panel Saw

PRIMA 3200 Sliding Table Panel Saw

Key Features:
Precision aluminium sliding table assembly, ensuring excellent accuracy.

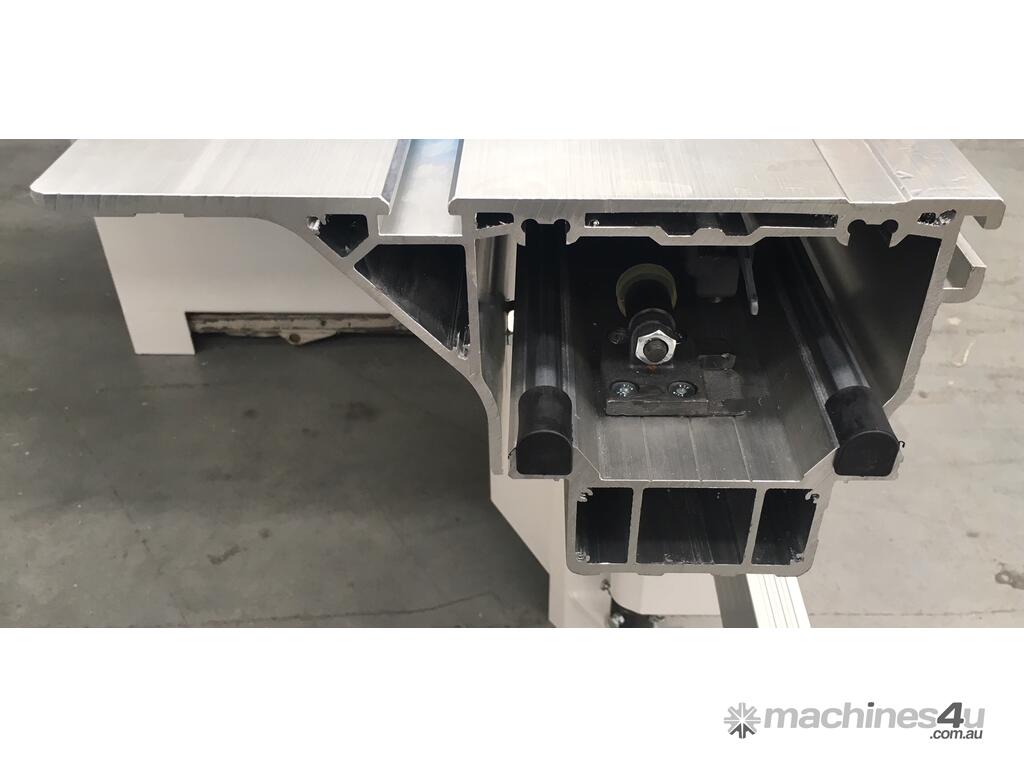

Smooth table movement on horizontally opposed V-slideways with rollers running between.
Heavy-duty outrigger frame locks firmly to sliding table.
Large section crosscut fence with two work stops and magnifying lens.

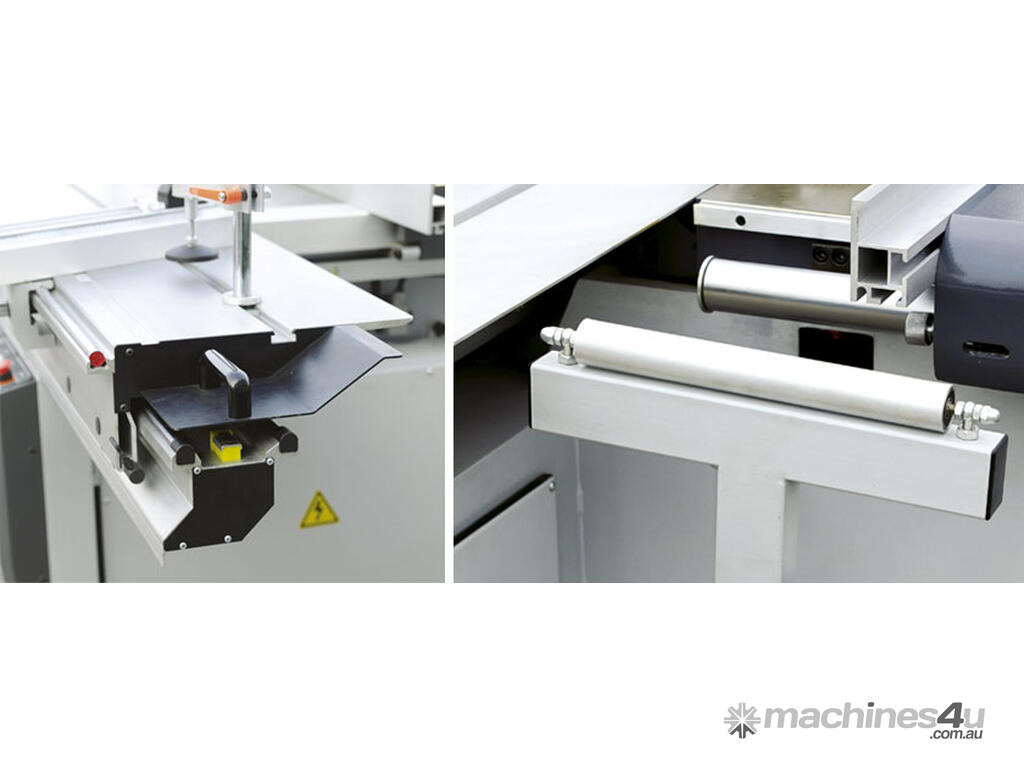

Heavy swinging support arm below outrigger frame, for easy panel support.
Manual rise and fall of the main saw blade using a handwheel below the rip fence.
Adjustable scoring blade with two knobs below the rip fence.

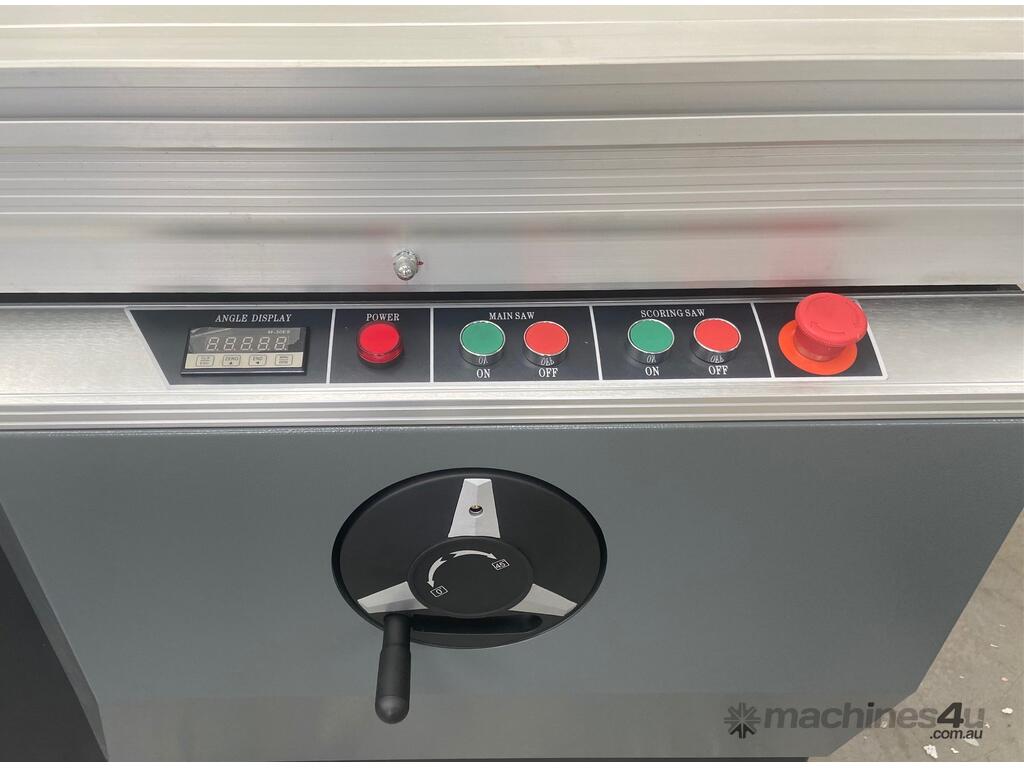

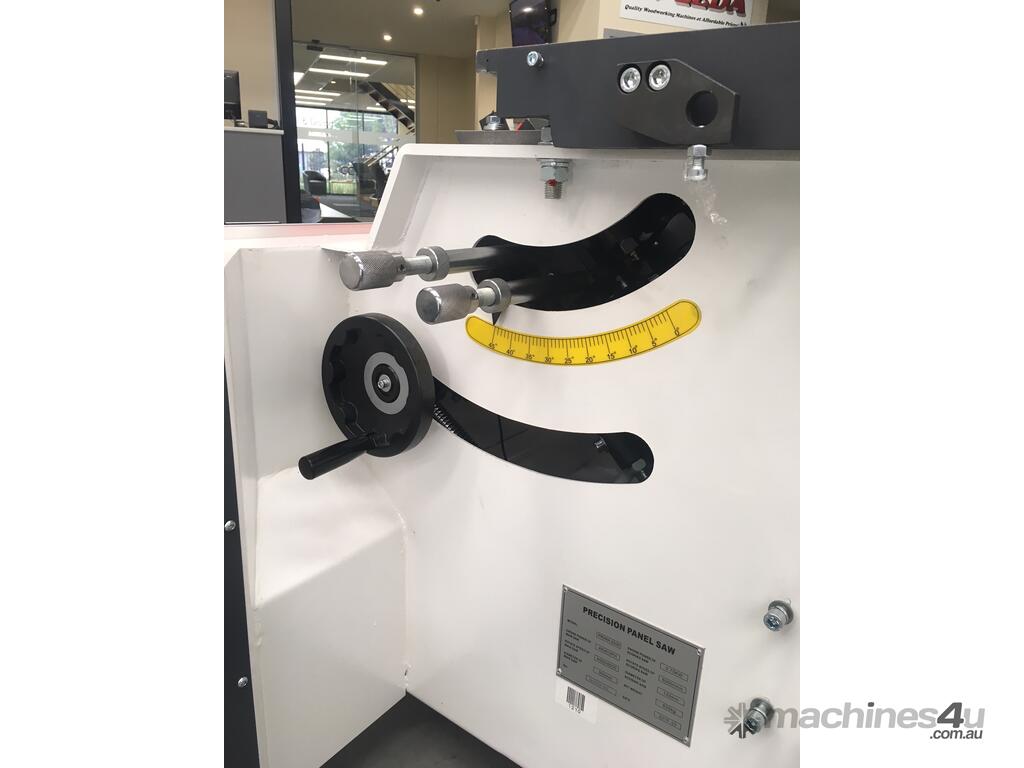

Saw blade assembly tilts from 0º to 45º with a handwheel, digital angle readout.
Heavy-duty ripping fence mounted on a 40mm diameter round bar.
Overhead frame-mounted safety guard with dust exhaust outlet.

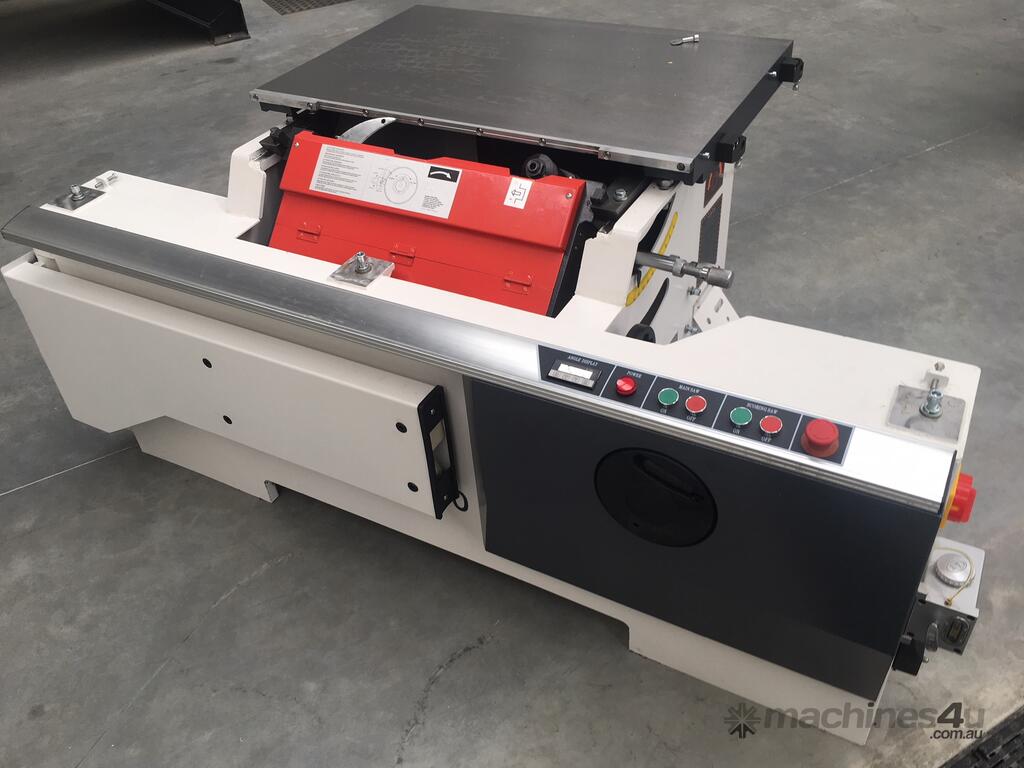

Cast iron main table, supported by a heavy-gauge pressed steel machine body.

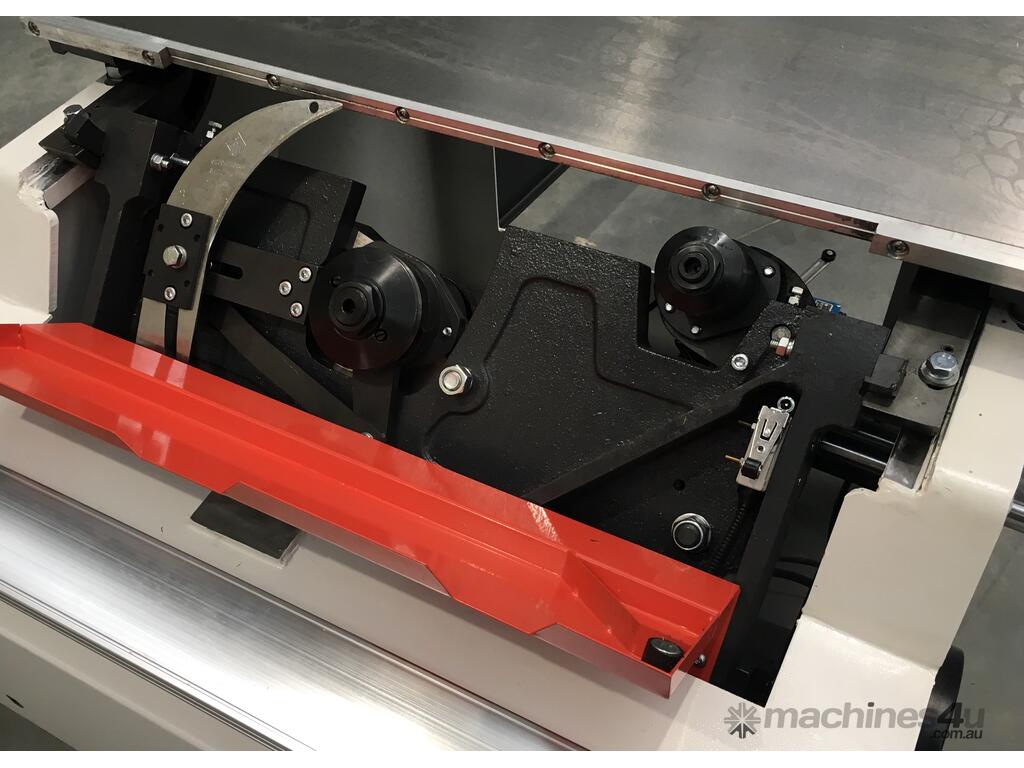

Sealed ball race bearings on saw blade arbors.

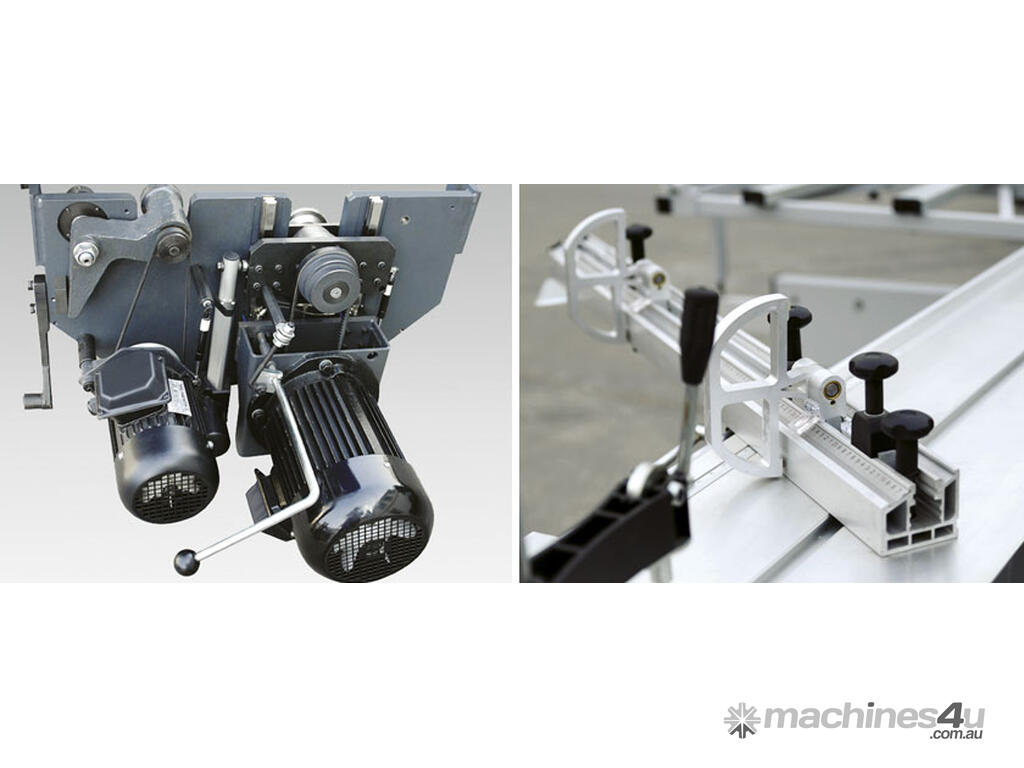

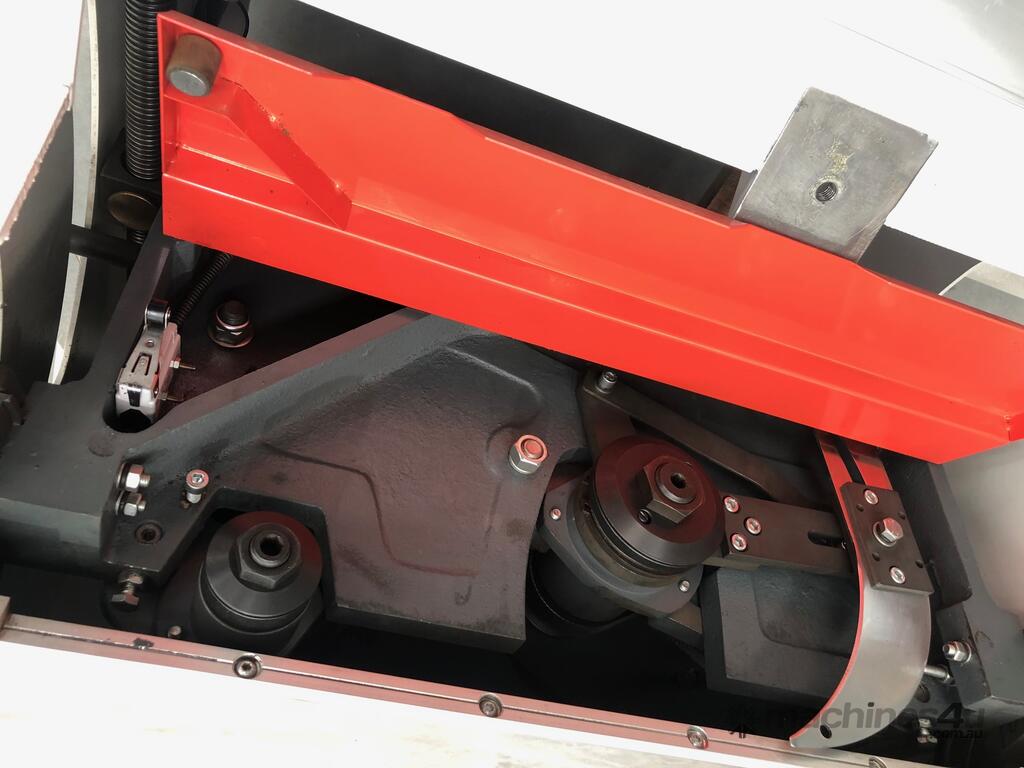

Two blade speeds (4000 rpm or 6000 rpm) by changing belts on pulleys.
Includes one Freud main saw blade and scoring blade.
Motor brake for added safety.

Technical Specifications:
Sliding Table Dimensions: 3200 mm x 360 mm
Maximum Saw Blade Diameter: 300 mm
Scoring Saw Blade Diameter: 120 mm
Saw Blade Tilt: 0º to 45º
Maximum Depth of Cut at 90º: 80 mm
Maximum Depth of Cut at 45º: 60 mm

Maximum Rip Fence Cut Width: 1250 mm
Net Weight: 640 kg
Pricing Information:

Pricing is ex the LEDA Warehouse Dandenong South VICTORIA
Delivery costs from the warehouse to your factory, commissioning costs, and GST are not included.
Additional Details:

Trade-ins are welcome.
Competitive finance options available, T.A.P.

Elevate your workshop with LEDA’s trusted machinery. Since 1992, LEDA has been providing high-performance edgebanders, CNCs, panel saws, and timber processing equipment, all backed by expert after-sales support. Choose LEDA for unbeatable value and reliability. Order now and take your business to the next level!
