PRIMARY JAW STATION, CONE CRUSHER STATION & MCC SWITCH ROOM

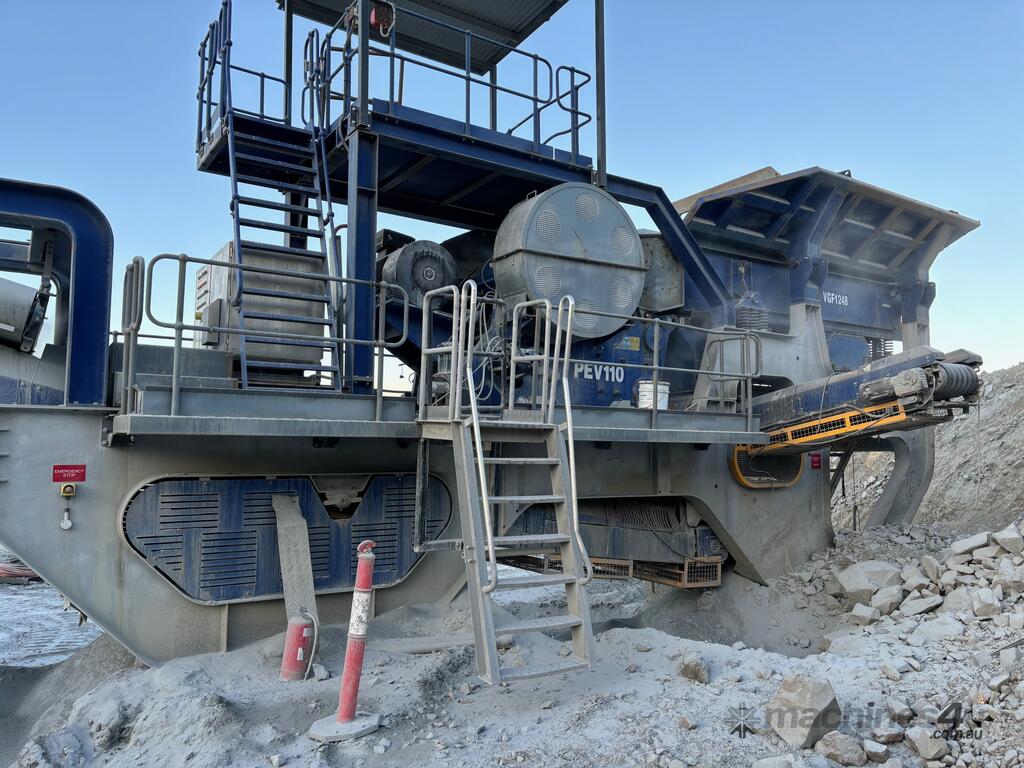

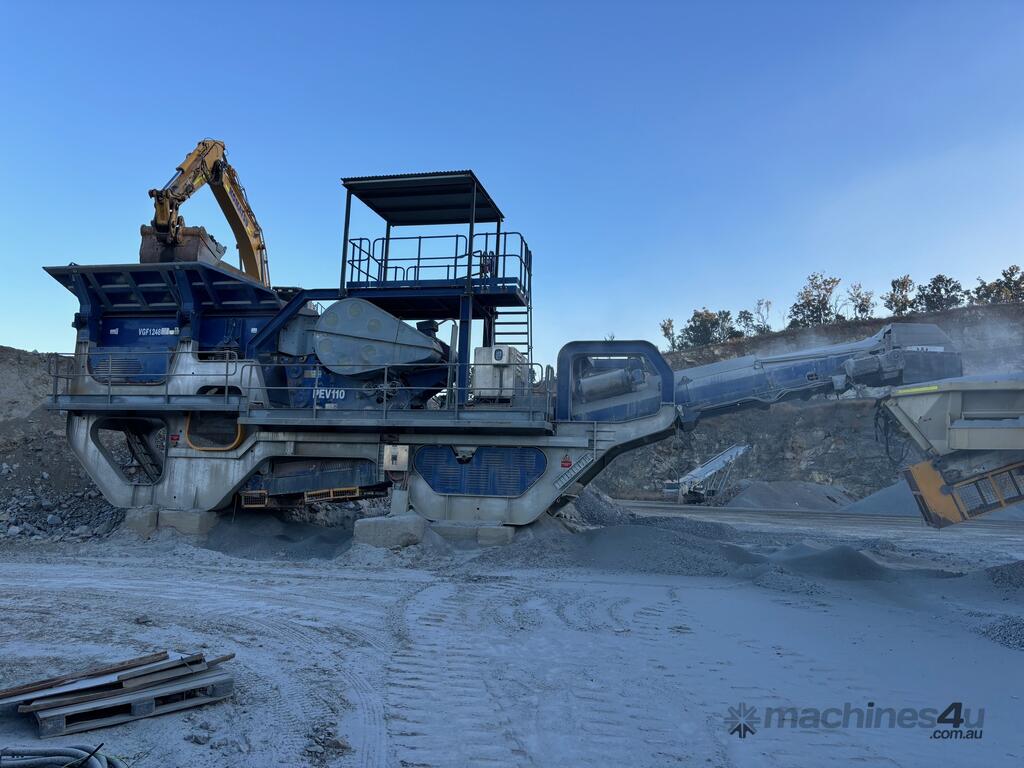

SKID MODULAR PRIMARY JAW CRUSHING PLANT JJ-110J- E/S
DESCRIPTION
- Y.O.M 2018
- Designed in United Kingdom and built by MW LTD in Shanghai
- Heavy duty static modular jaw crusher with following features:

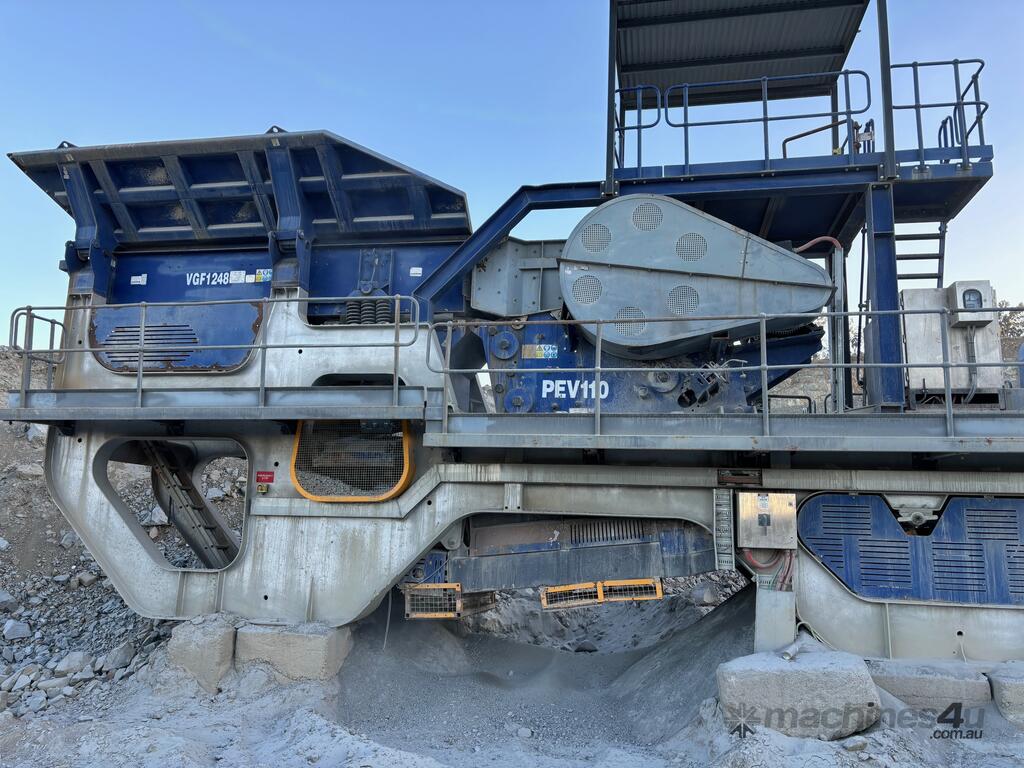

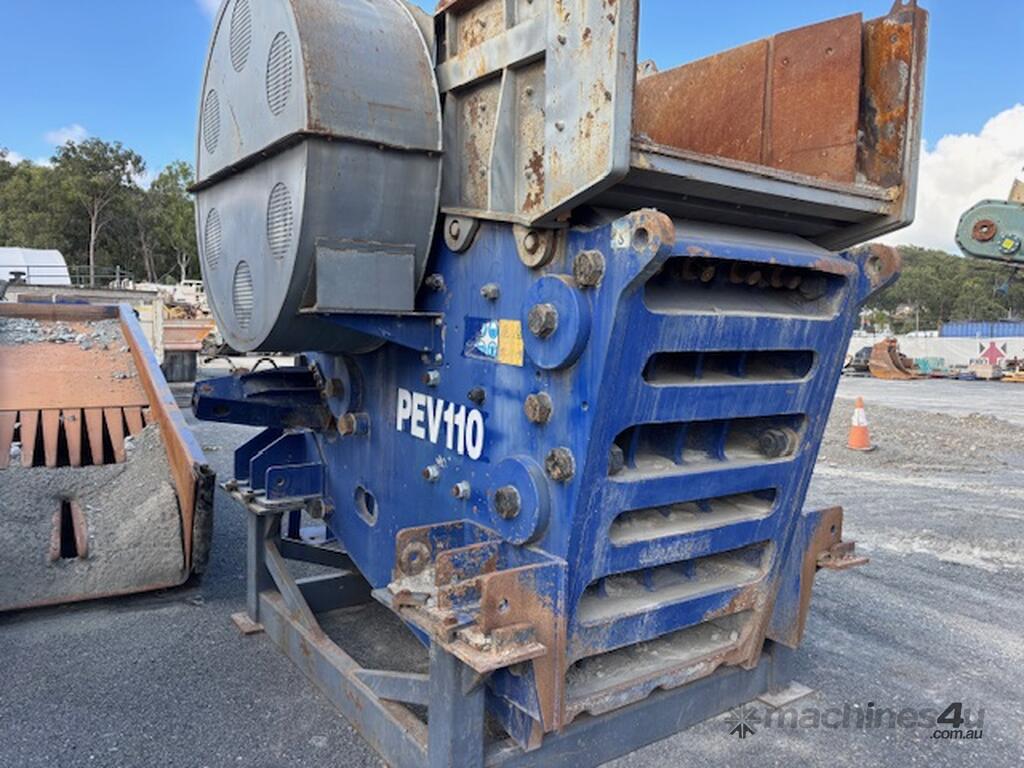

- Skid mounted / modular PEV-110 Primary Jaw Crusher Unit 44" x 34" / 1120mm x 865mm
- 9 m3 capacity main feed hopper with Hardox© liners
- Stepped bar vibrating grizzly feeder
- Side scalpings stockpile conveyor (4.5 M Long x 650 mm)
- Main discharge product stockpile conveyor (12.0 M Long x 1200 mm)
- Over-band magnet unit
- Main electrical control cabinet IP65

DIMENSIONS & WEIGHT
Length Working 17,691 m (58 0 ½)
Width Working 6,414 m (21 0 ½)
Height Working 5,867 m (19 3)
Length Transport 14,512 m (/8)
Width Transport 2,250 m (/8)
Height Transport 4,031 m (13 2 ¾)
Weight Operational 51,000 Kgs

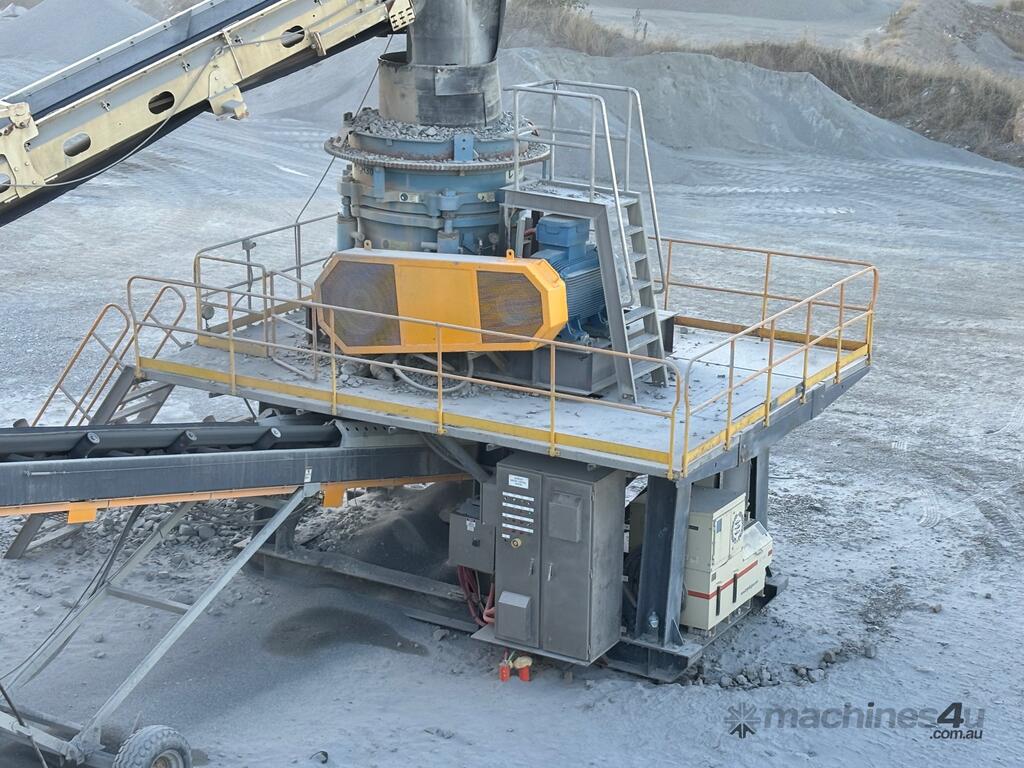

2018 SRH SCH3000 Cone Crusher Station
Crusher has only done approx 3,500hrs of operation and was recently refurbished with new bushes and seals.
Secondary / Tertiary Cone Crusher depending on liners fitted
Heavy Duty Skid Frame bolted together for ease of shipment and assembly on site
Frame mounted Oil Tank and Lubrication unit
Frame mounted Hydraulic Oil Tank and High Pressure control unit assembly
Drive motor and V Belts
Frame mounted Electrical control panel to Australian Standards
SRH is a subsidiary company of Metso and the crusher has 100% interchangeability with Metso HP300 parts

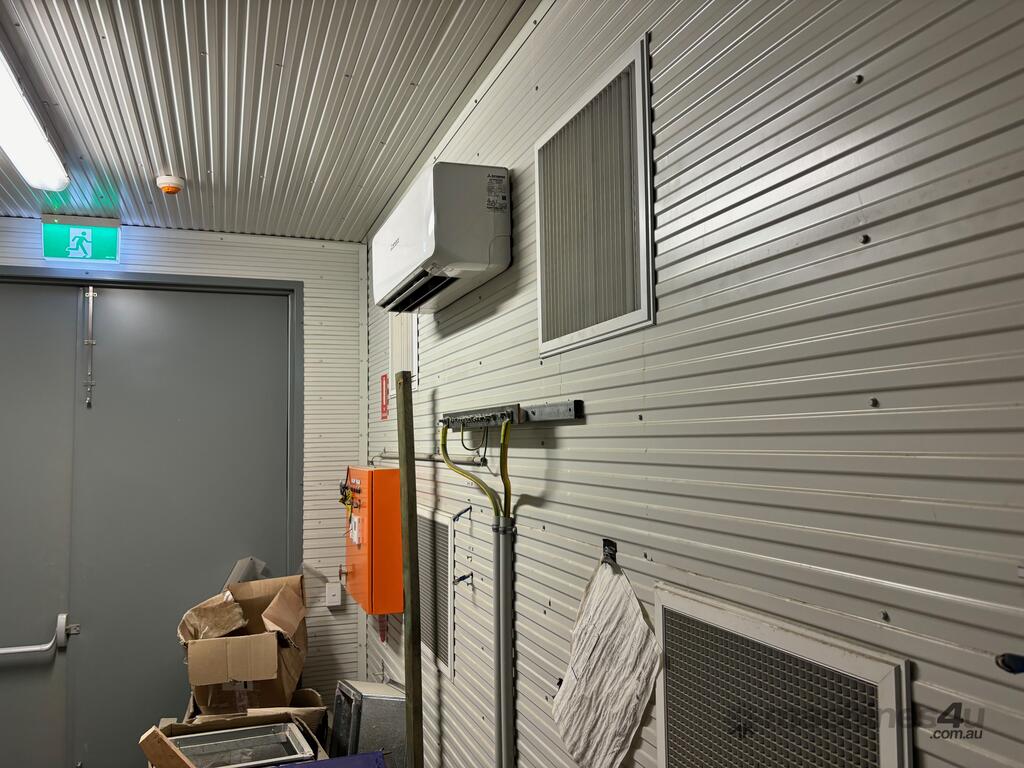

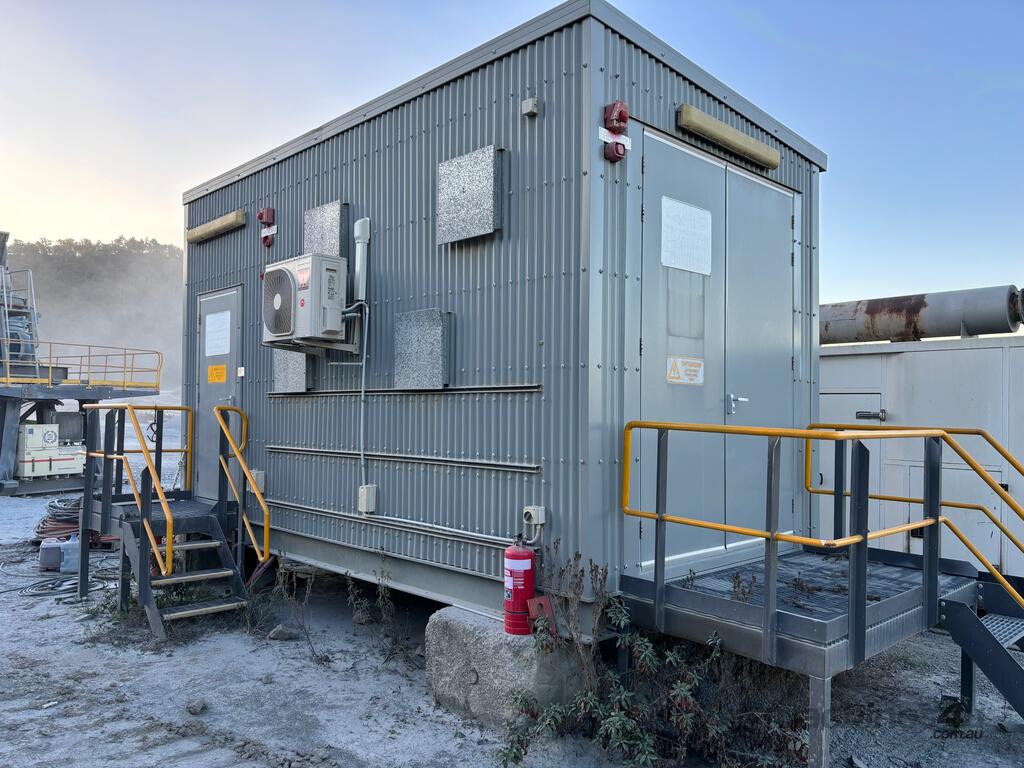

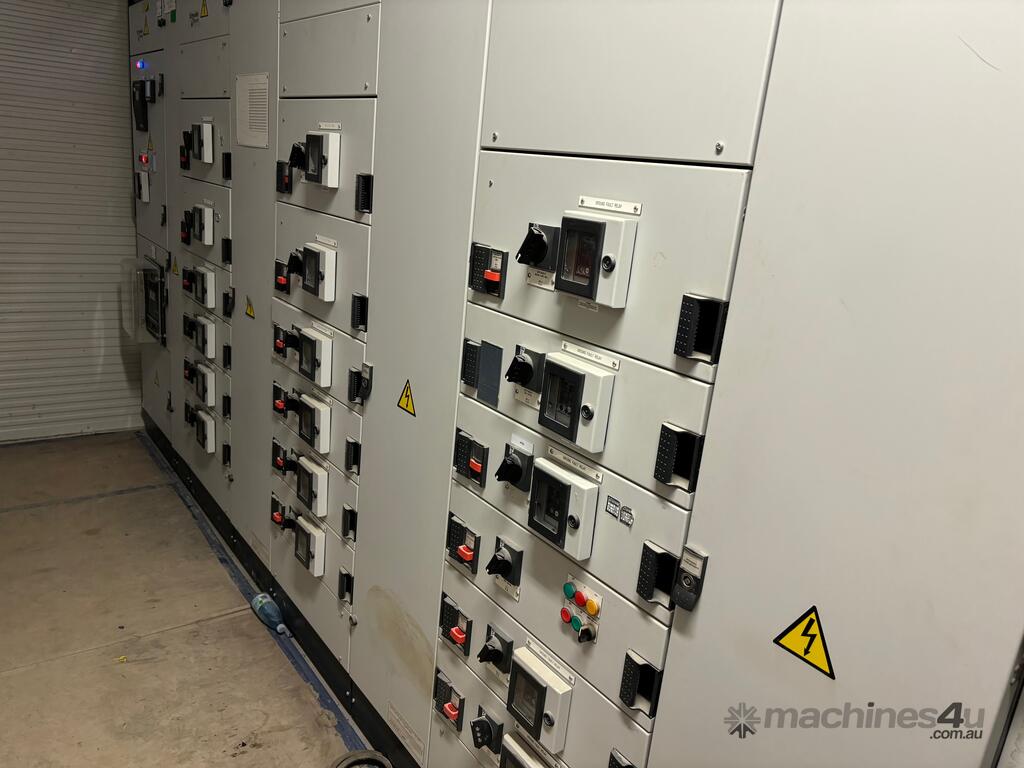

MCC CONTROL ROOOM with additional drives for Screen and Conveyors
