PRIMINER - 5-axis High-Speed Center U500-5X (Heidenhain) (2 Year Warranty)

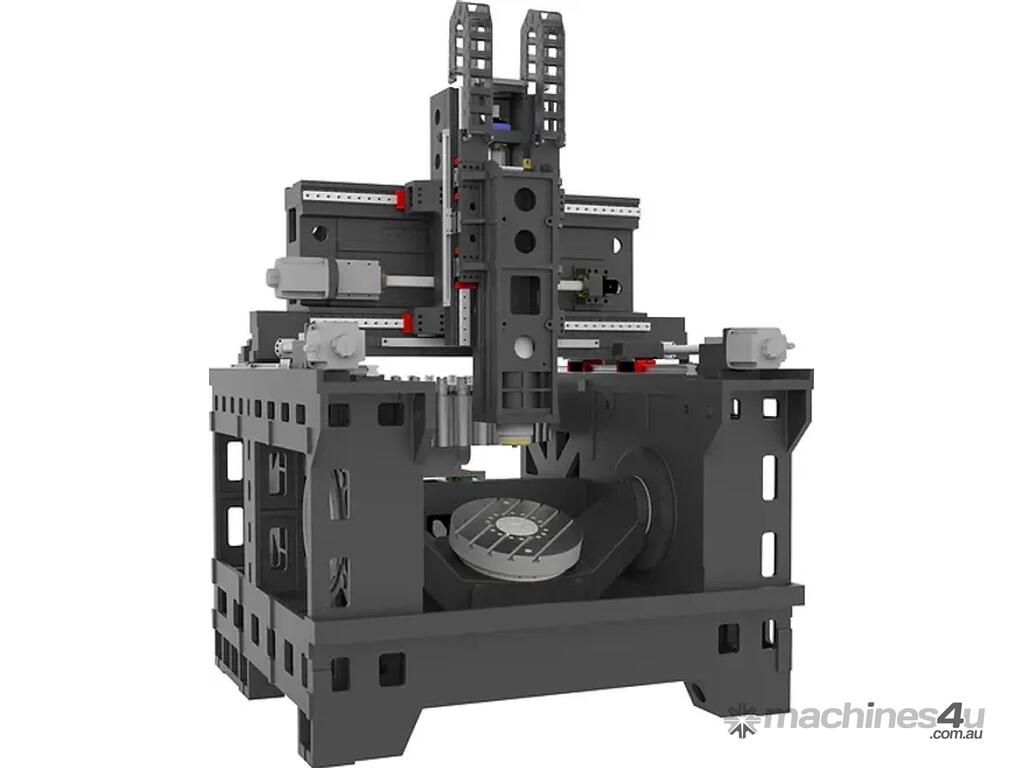

The U500-5X Priminer is a cutting-edge 5-axis vertical machining center (VMC) designed for precision engineering and complex machining tasks. Ideal for industries such as aerospace, automotive, and medical manufacturing, the U500-5X delivers exceptional performance, flexibility, and reliability, making it a vital asset for modern production environments.

U500-5X Priminer Technical Specifications:

Machine Type: 5-Axis Vertical Machining Center (VMC)

Axis Configuration:

X-Axis Travel: 1,000 mm
Y-Axis Travel: 800 mm
Z-Axis Travel: 600 mm
A-Axis Rotation: -120° to +120°
C-Axis Rotation: 360°
Spindle Speed: Up to 20,000 RPM

Spindle Power: 22 kW

Spindle Taper: BT40 / CAT40 (optional)

Tool Magazine Capacity: 30-40 tools (Automatic Tool Changer)

Max. Table Load: 1,000 kg

Table Size: 1,200 mm x 800 mm

Positioning Accuracy: ±0.005 mm

Repeatability: ±0.003 mm

Rapid Traverse Rate: 36 m/min (X, Y, Z axes)

Controller: Advanced CNC System with touchscreen interface

Power Supply: 400V / 50Hz / 3 Phase

Machine Weight: 12,000 kg

Footprint: 3,500 mm x 3,000 mm x 3,200 mm (L x W x H)

Coolant System: High-pressure through-spindle coolant

Air Supply: 6-8 bar (87-116 psi)

Who is Priminer

Priminer Company is a forward-thinking entity that's already shaping tomorrow's machining landscape today. With a burgeoning in-house R&D department staffed by seasoned engineers, Priminer consistently innovates its machine concepts, staying ahead of evolving trends in the machine tools industry.

360 Automation and Priminer Partnership.

Priminer Company has teamed up with us, 360 Automation, to make their advanced CNC solutions more accessible. As their representative, we provide full support from start to finish, ensuring businesses get the best technology and service. Together, we're committed to bringing top-notch precision machining to industries everywhere.

Please download the PDF for more information.
