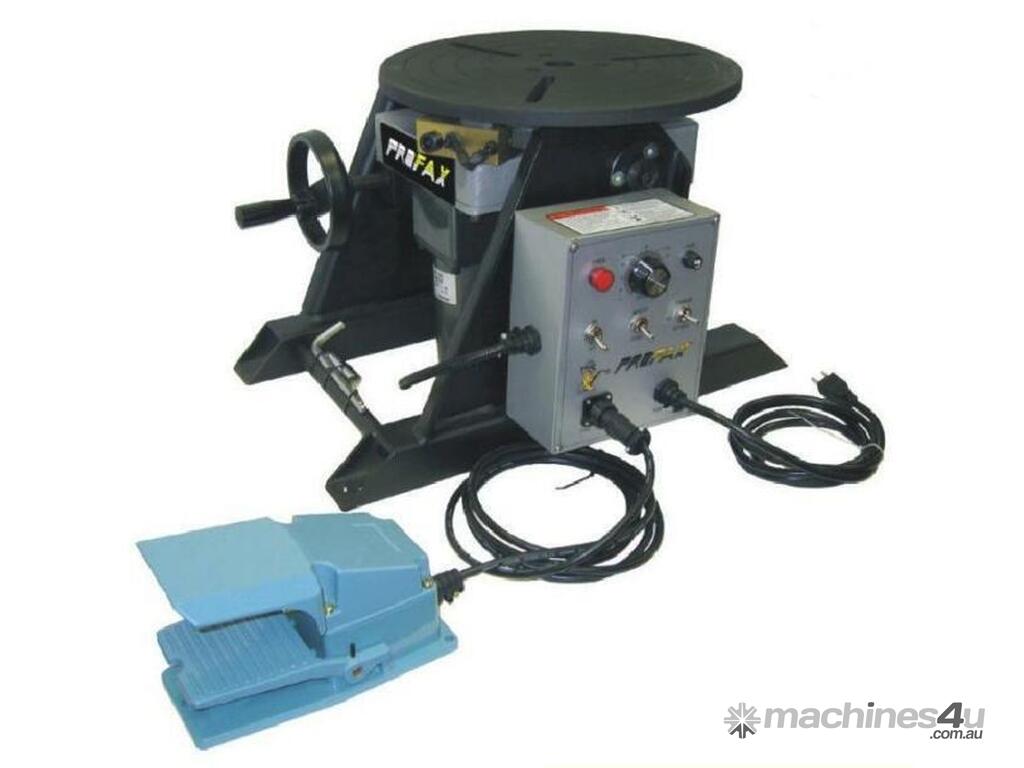

PROFAX WELDING POSITIONER 200KG CAPACITY

Perfect weld positioner for precise rotation control

Designed for rotation of lighter work pieces. Will hold 200kgs. in the horizontal position and 113kgs. in the vertical position.

Note: C/G of load not to be more than 4” from the center of the turntable and 4” from the face of the turntable.
Optional "quick release" chuck also available

Features:

340 mm Diameter Table
0 to 50 rpm Rotation Speed
Manual Tilt Adjustment
240 Volt
0 -90? Tilting Angle
High Frequency Protected
Standard with Foot Control
Shipping Weight 51 kgs
