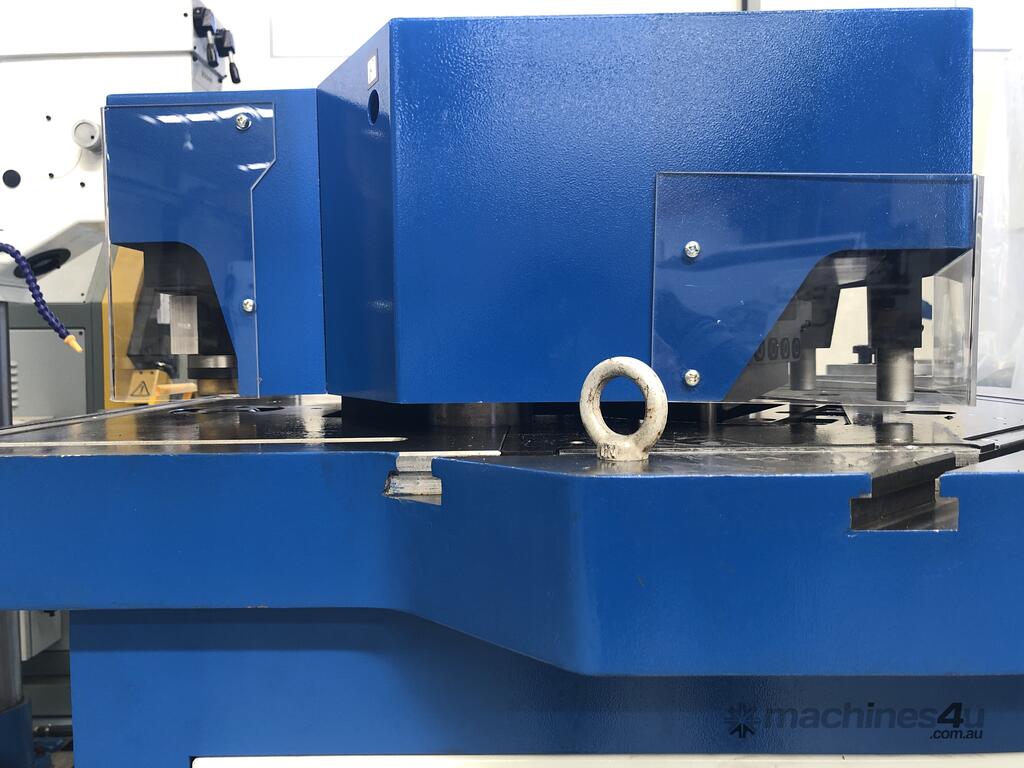

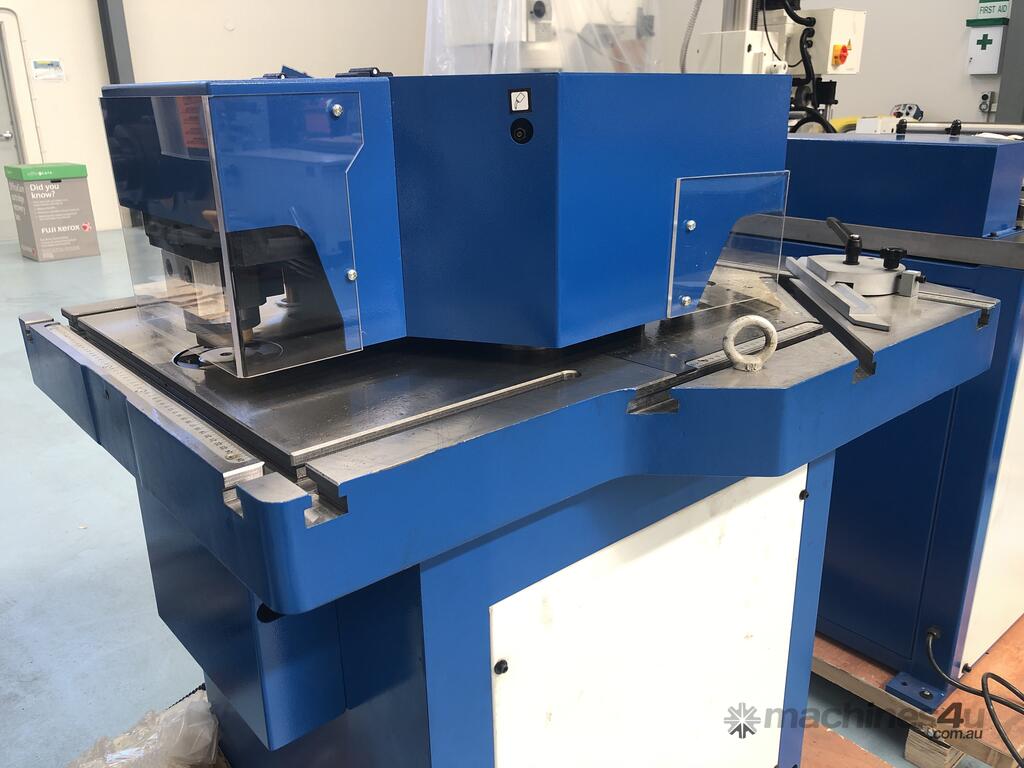

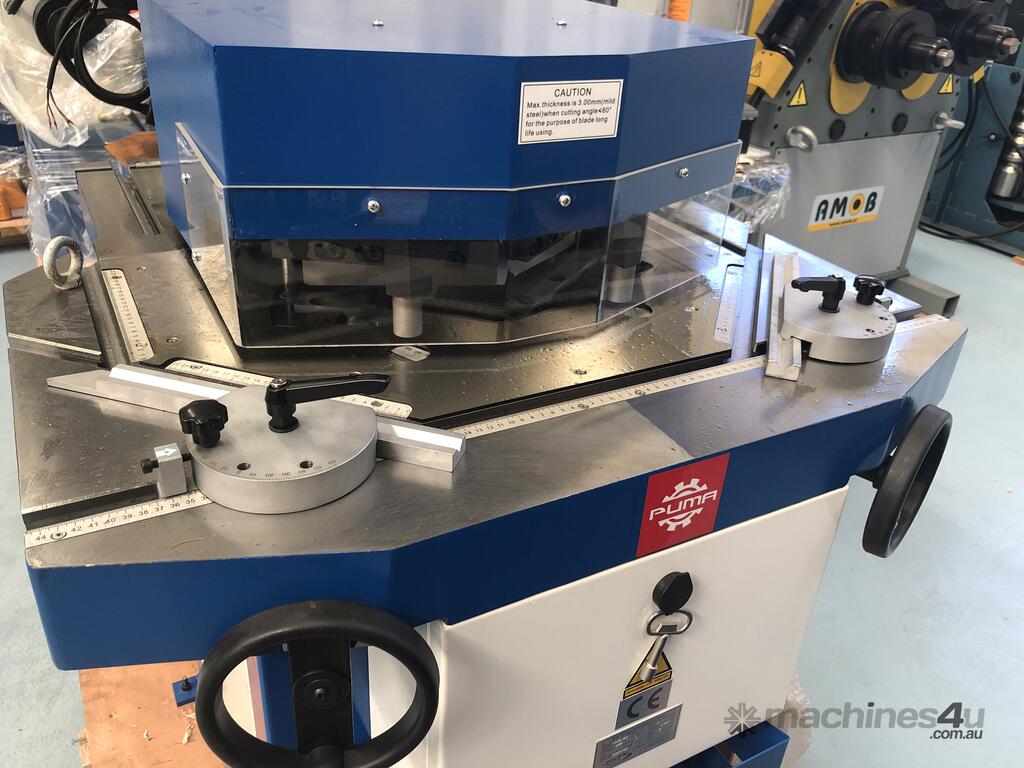

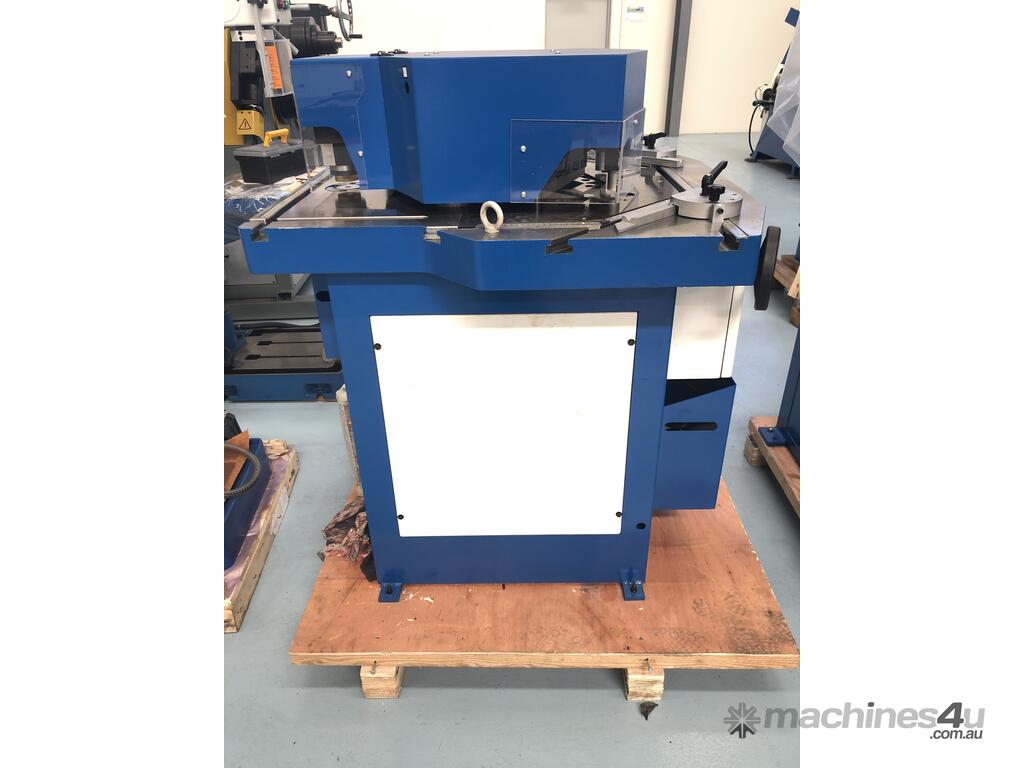

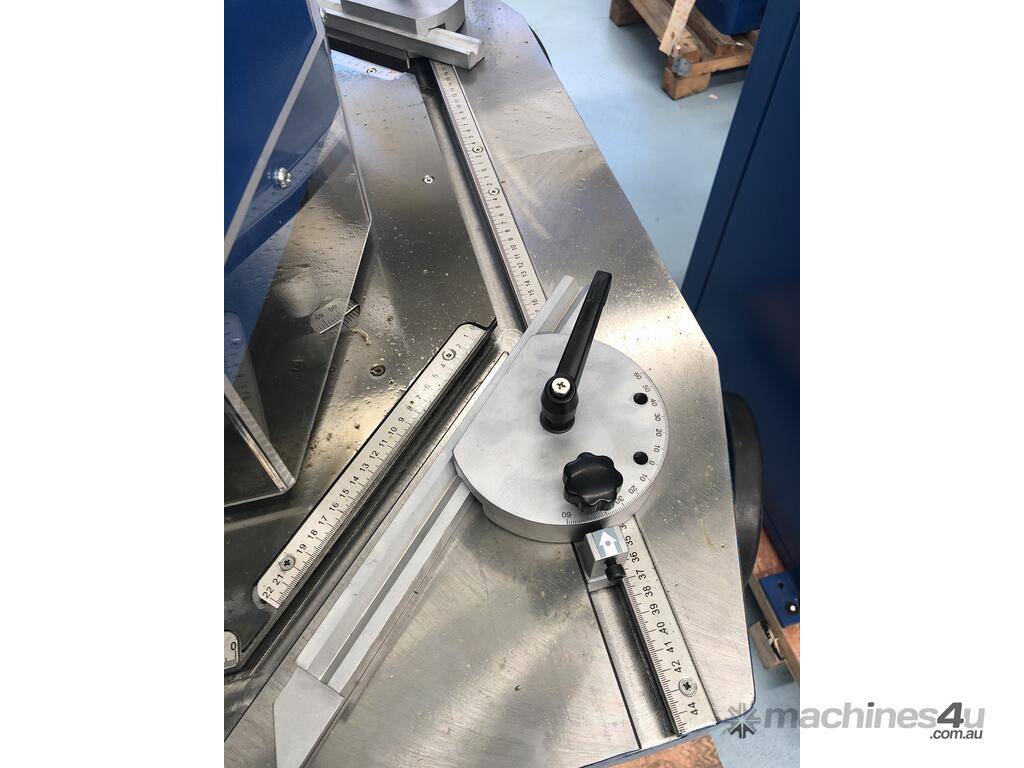

The Puma HNM-6A is a 2 in 1 heavy duty variable angle notcher and punching machine that has the ability to notch up to 6mm mild steel plate and punch up to 40mm holes. Comes with aluminium adjustable stops with a pin to lock in pre determined angles for quick setup.

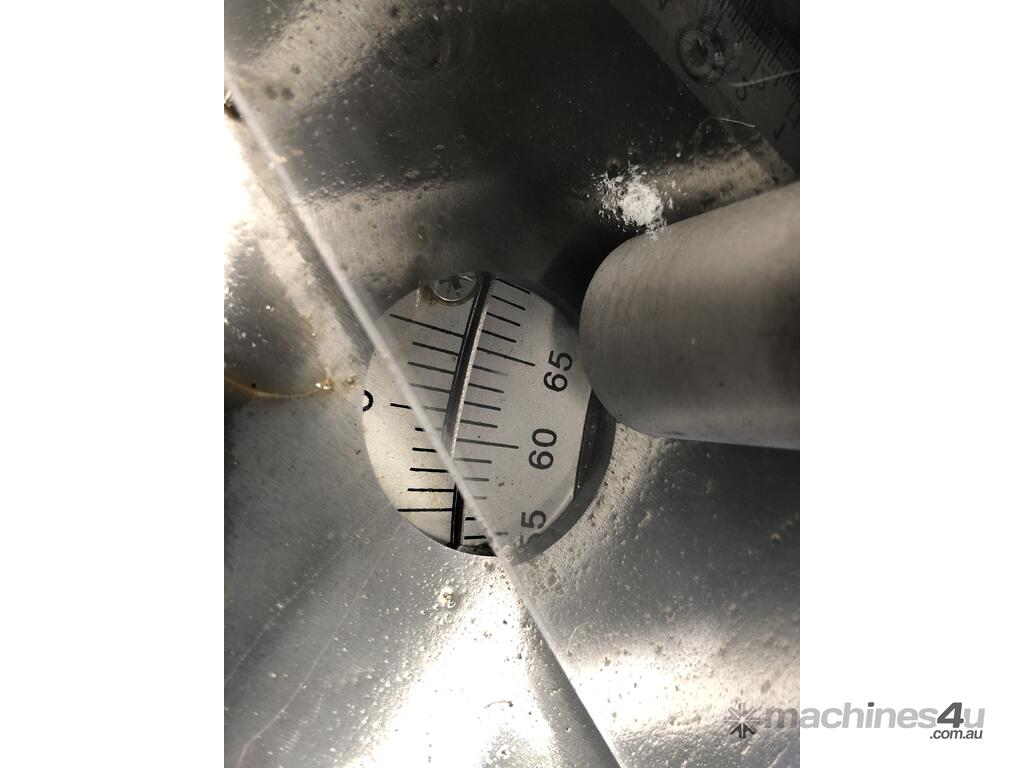

An inbuilt scale shows the exact angle of each blade to ensure accurate angle matching of blades.
Inbuilt rules and hold down clamps are standard with the machine.

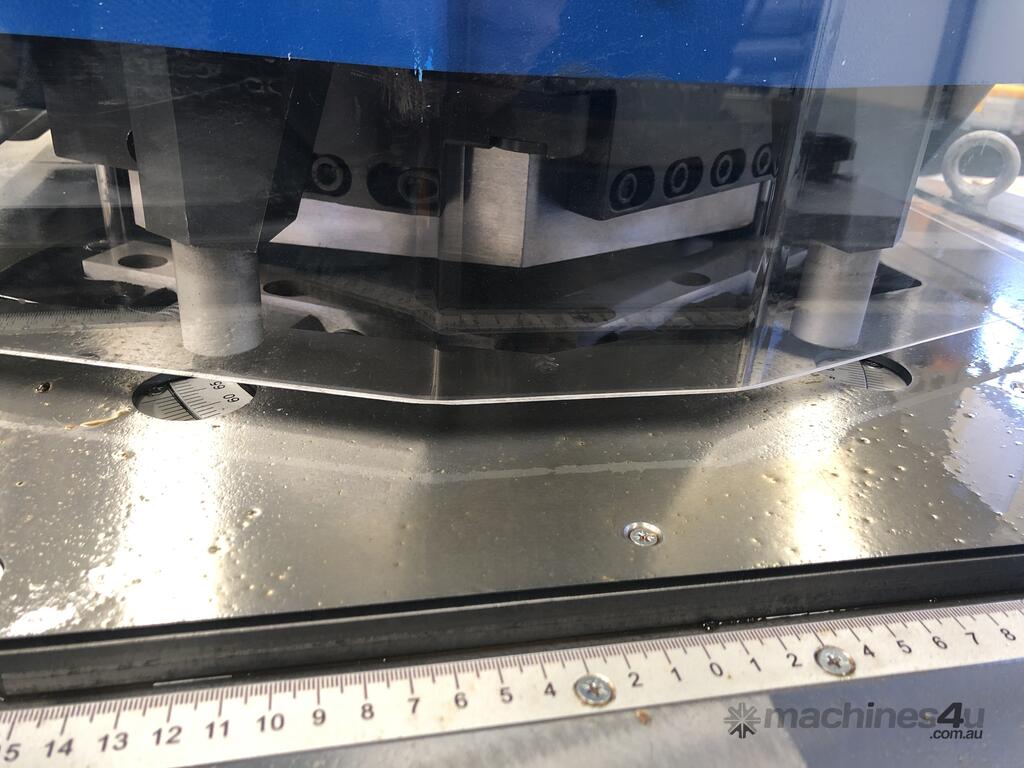

A see through perspex cover is supplied over the blade for added safety giving the
cutting area complete visibility.
Around the cutting area there is a sacrificial wear plate that can easily be removed and replaced adding an extra layer of quality for long term reliability and accurate cutting.
Angles from 30-140º

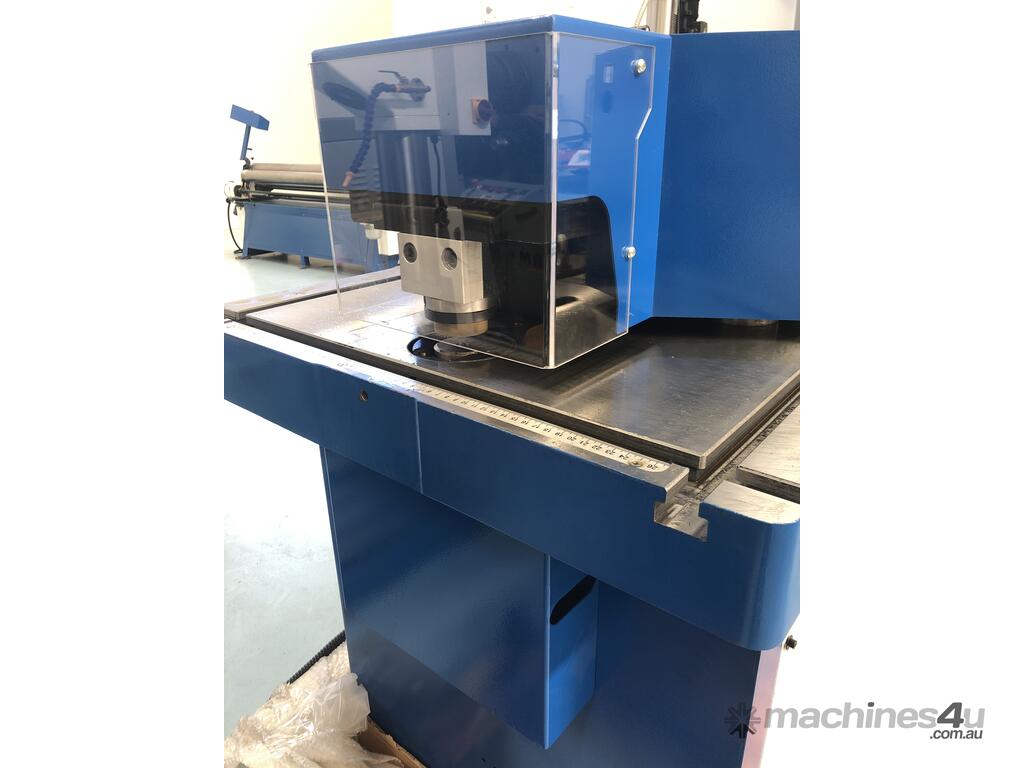

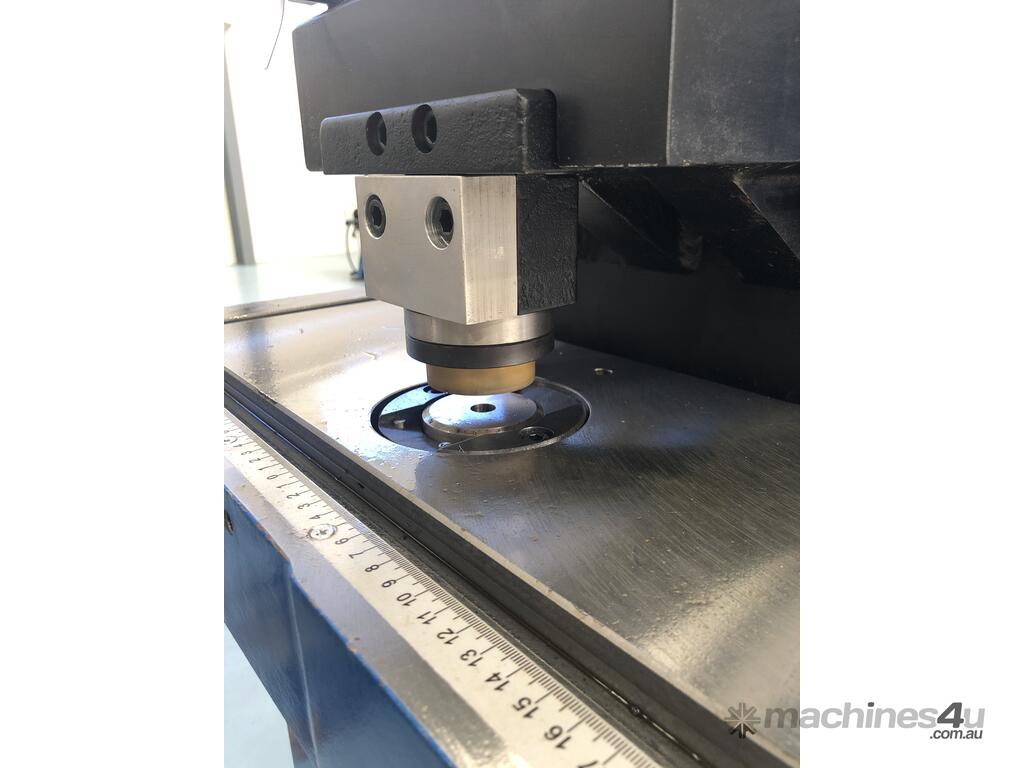

With punching function up to 40mm diameter
Auto adjusting for blade clearance
- 200mm Max Cutting Length
- 6mm Cutting Thickness
- 30-140º Cutting Angle
- 42mm Max Travel
- 40mm Max Punching Diameter

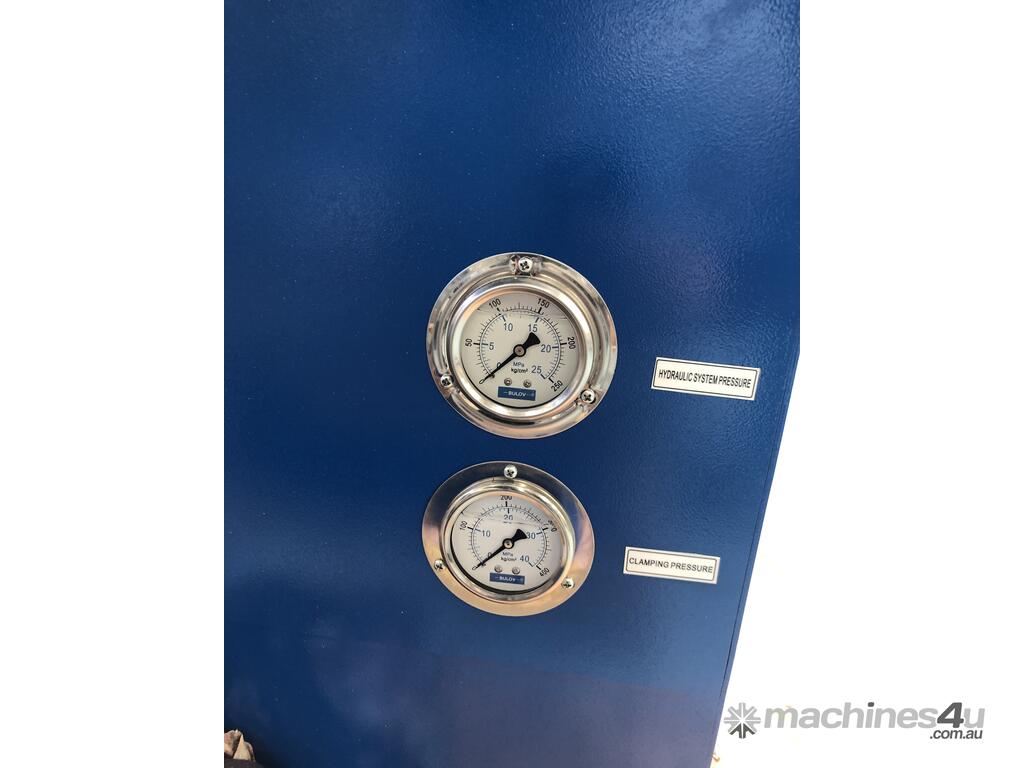

- 18mpa System pressure
- 4kW Motor
Complete Machine Tools have origins dating back to 1979 where the company was based in South Africa under the name of VS Machine Tool Center. In 1998 Complete Machine Tools was setup in Australia and set down its roots in Queensland where it has been operating since.
Now well into its 2nd decade of operation Complete Machine Tools has created a solid foundation which to build on for the future and gained a huge amount of knowledge in the supply of metal working machinery.
