Palmary Cylindrical Grinder Manual Series GU42 x 150S

Based on PALMARY's tradition of "Pursuing Quality Perfection", combined with human engineering design and peak performance concepts, each machine fully reflects PALMARY's unmatched design and technique. In addition, PALMARY's rigorous quality control gives added assurance of superior quality.

FEATURES

- Stable and rigid spindle head
The spindle runs on precision bearings, assuring maximum spindle stability. It guarantees outstanding grinding accuracy for external dia., internal dia. (optional) & end face.

-Special hydrostatic bearing
The wheel spindle runs by using a special hydrostatic bearing and is especially ideal for precision grinding work. It features high speed, no friction between metals, no heat generation, deformation-free, extra high accuracy and continual use

-Precision wheel head
The grinding wheel spindle is precision machined from high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precision ground and mirror-effect treated.

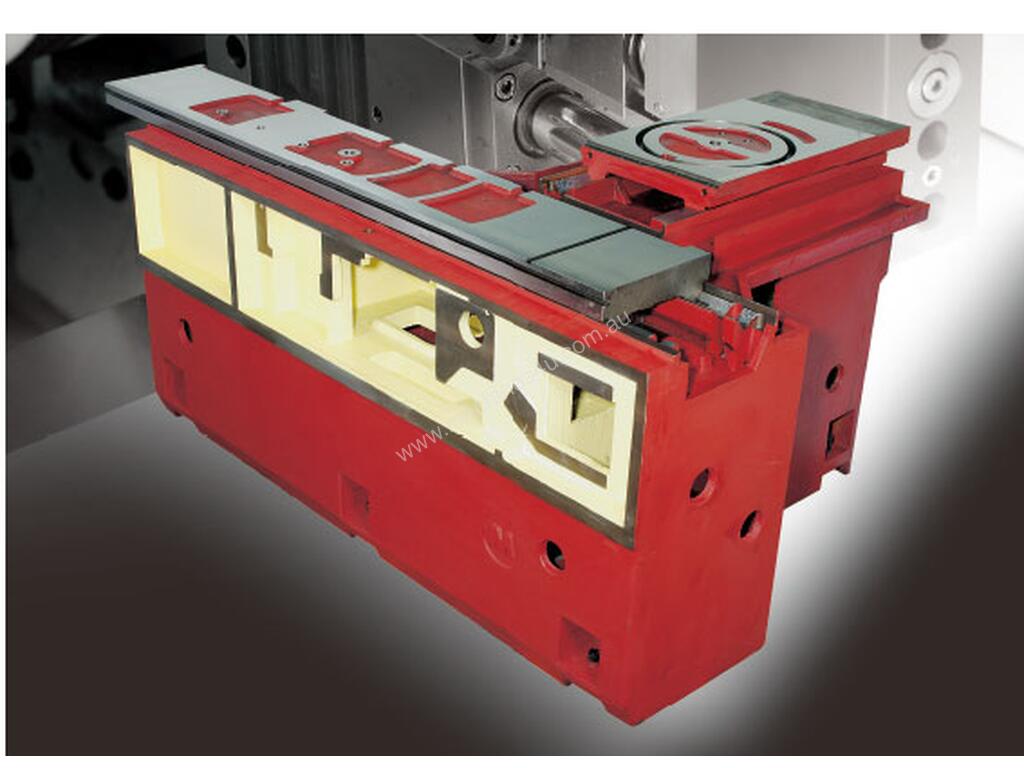

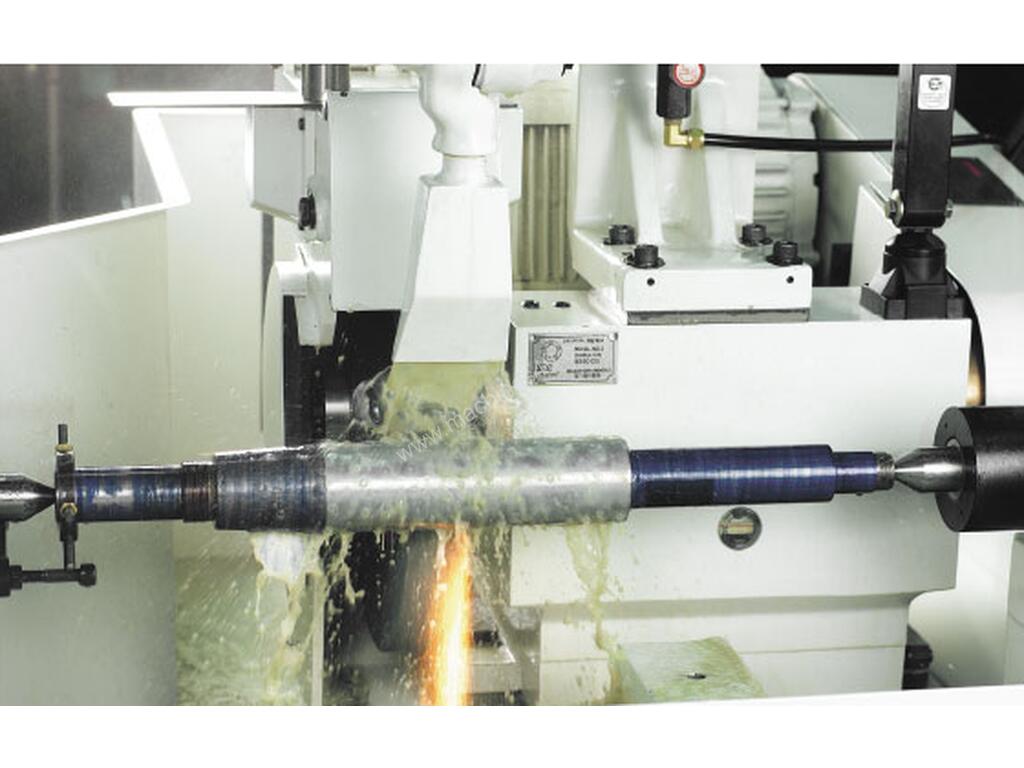

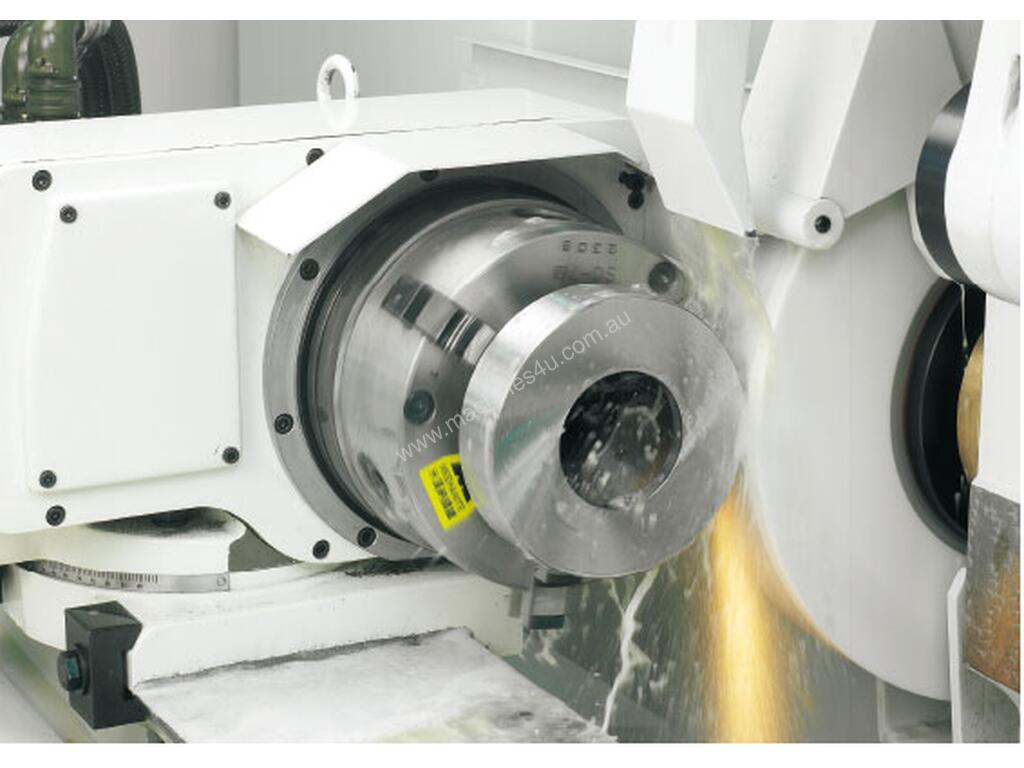

-Various grinding application
One grinder allows straight plunge grinding, shoulder grinding, traverse grinding, end face grinding, taper grinding & internal grinding (optional) functions for different machining purpose.




GU42x150S

Capacity
Distance between centers 1500 mm
Swivel over table Ø420 mm
Max. load of centers 150 kg
Max. external grinding diameter Ø400 mm

Wheel head
Swivel angle ±30°
Manual distance 160 mm
Auto. rapid advance 40 mm
Sliding seat supplementary displacement 95 (total 295) mm
Min. setting unit (micro-adjust) 0.001 mm
One turn of handwheel (graduation) 2 (0.005) mm

Grinding wheel
O.D. x width x I.D. Ø405 x 50 x Ø127 mm
Speed (belt type) 1783 r.p.m. (50 Hz) / 1940 r.p.m. (60 Hz)
Work spindle head
Swivel angle 120° (+90°, -30°)
Center taper MT. 4
Spindle speed (variable) 10~300 r.p.m.
Max. load of spindle (tool holder includer) 35 kg (max. length : 150 mm)

Tailstock
Taper center MT. 4
Stroke 25 mm

Table
Swivel angle -3° ~ +7°
Traverse speed 50 / 5400 mm/min
Auto. reciprocate min. stroke 8 mm
Feed of one turn of handwheel (2-step) 20 mm (2mm)

Motor
Wheel spindle 3.7 kW (4 P)
Workhead spindle 2.0 kW
Hydraulic pump 0.37 kW (4 P)
Wheel spindle lubrication pump 0.18 kW (4 P)
Coolant pump 0.18 kW (2 P)
Internal grinding spindle (opt.) 0.75 kW (2 P)

Tank
Wheel spindle lubricant tank 9 L
Hydraulic tank 63 L
Coolant tank 110 L

Machine weight
Net weight 4300 kg
