Panel Flipper - Surplus to need. Never been used.

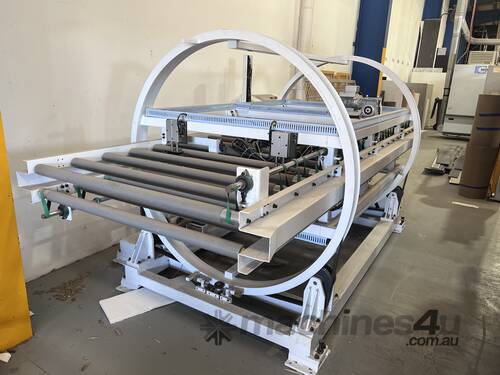

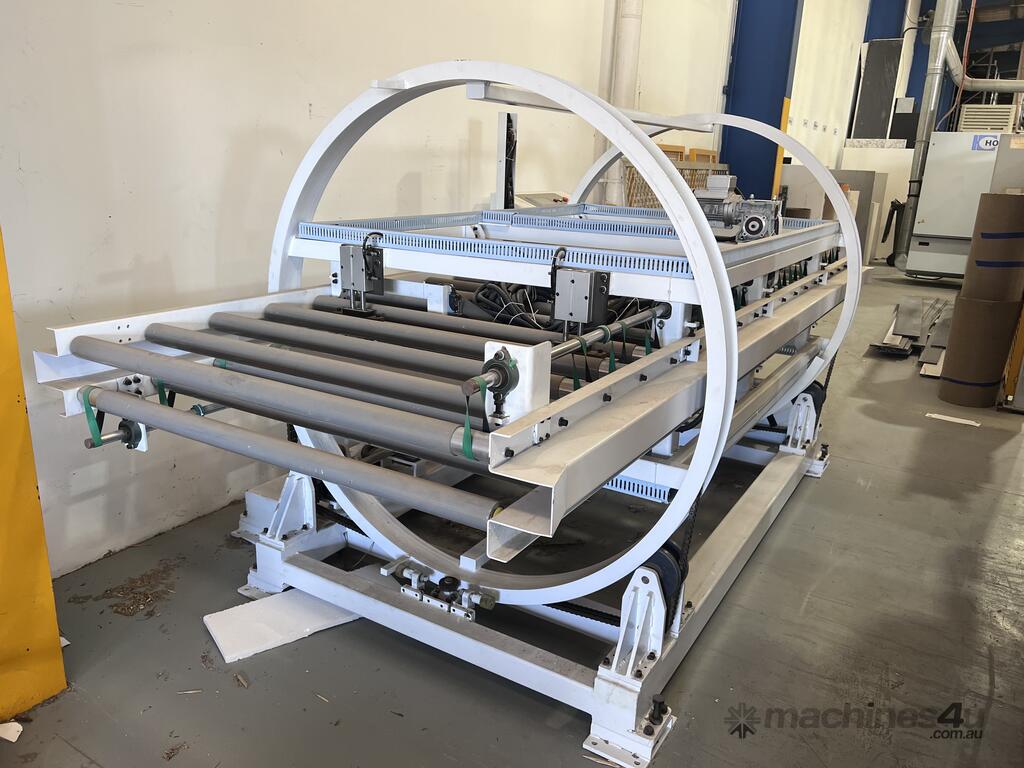

Automatic Panel Turn-Over Machine, designed for fast, safe and reliable flipping of large-format panels in woodworking and board processing environments.

Ideal for furniture manufacturers, cabinet makers, joinery shops and panel processing facilities, this machine streamlines production by automating the turnover process between machining, sanding, laminating or secondary operations.

Key Features

Fully Automatic Panel Flipping – Smooth, controlled turnover cycle for consistent and repeatable operation

Heavy-Duty Construction – Built for industrial use

High Load Capacity – Handles panels up to approximately 80kg

Large Panel Capability – Suitable for boards up to approx. 2800mm x 1250mm

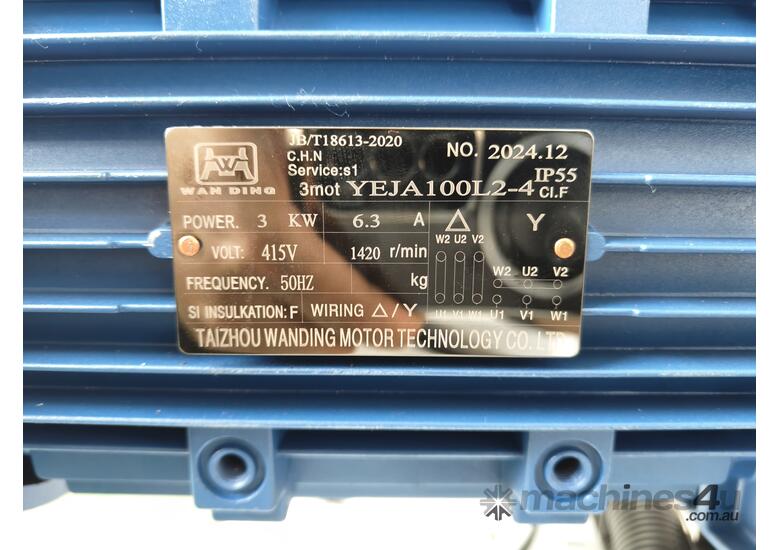

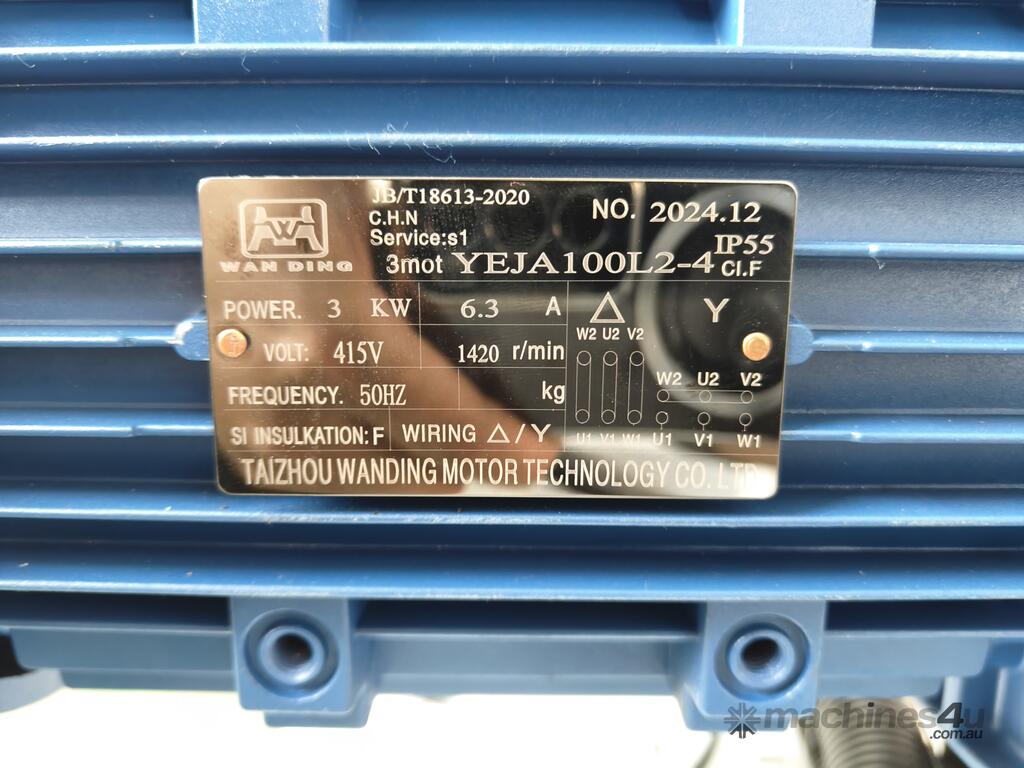

3kW Drive System – Reliable motor power for stable and efficient turnover

Cylindrical Rotation Design – Ensures secure and balanced flipping of large panels

User-Friendly Controls – Simple operation for integration into existing workflows

Improves Workplace Safety – Reduces manual lifting and risk of panel damage

Approximate Specifications

Maximum Panel Size: 2800mm (L) x 1250mm (W)

Maximum Panel Weight: 80kg

Motor Power: 3kW

Machine Dimensions: Approx. 2800mm (L) x 1500mm (W) x 1800mm (H)

Operation Type: Automatic turnover cycle

Important Notes

Flipper is surplus to requirements. Never been used.

Requires electrical work for Australian compliance.

Note: Video shows automated rollers. Device does not come with feed-in automated rollers.
