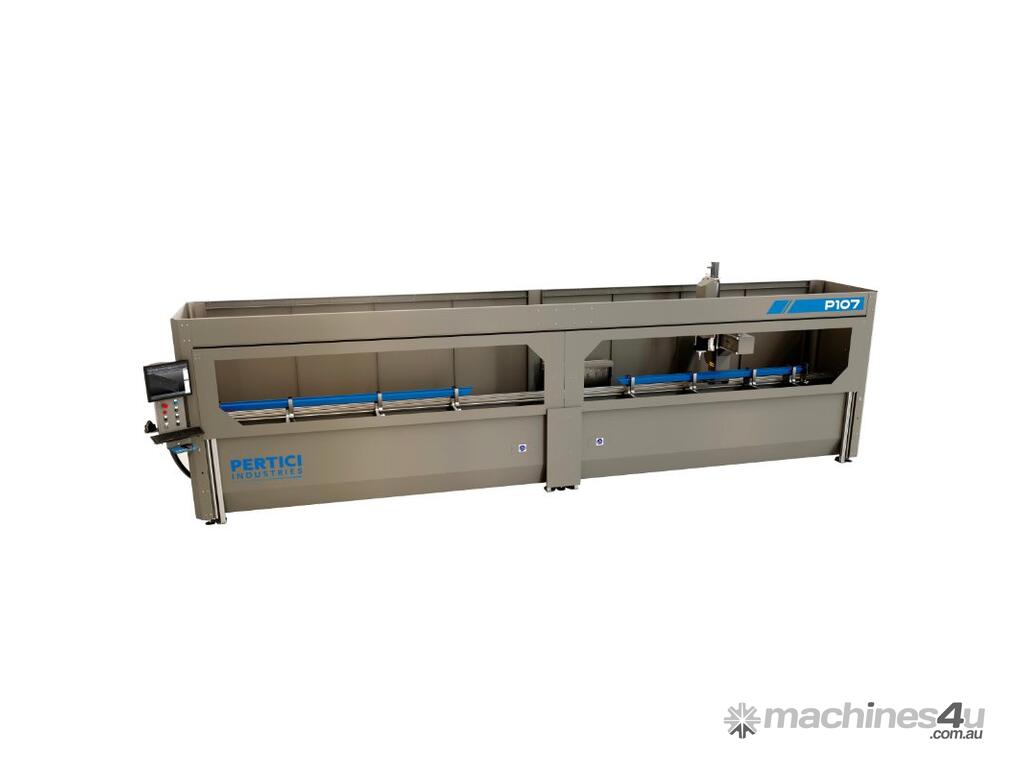

Pertici P107 (7m) CNC Aluminium Profile Router

Currently In Stock in WA and Available for Demo.

Aluminium CNC Profile Machining Centres are designed for drilling, milling, taping and end notching operations in several materials including:

• Aluminium Extrusions
• Light Gauge Steel Profiles
• uPVC Profiles
• Composite Profiles

Technical

Spindle Power RPM - 5KW (max) / 18'000 (max)
Volt/Freq/Amp - 415v (4A+E) /50/16
Axis X Travel/Speed (longitudnial) - 7225mm / 50m p/min
Axis Y Travel/Speed (transversal) - 790mm / 50m p/min
Axis Z Travel/Speed (vertical) - 400mm / 15 p/min

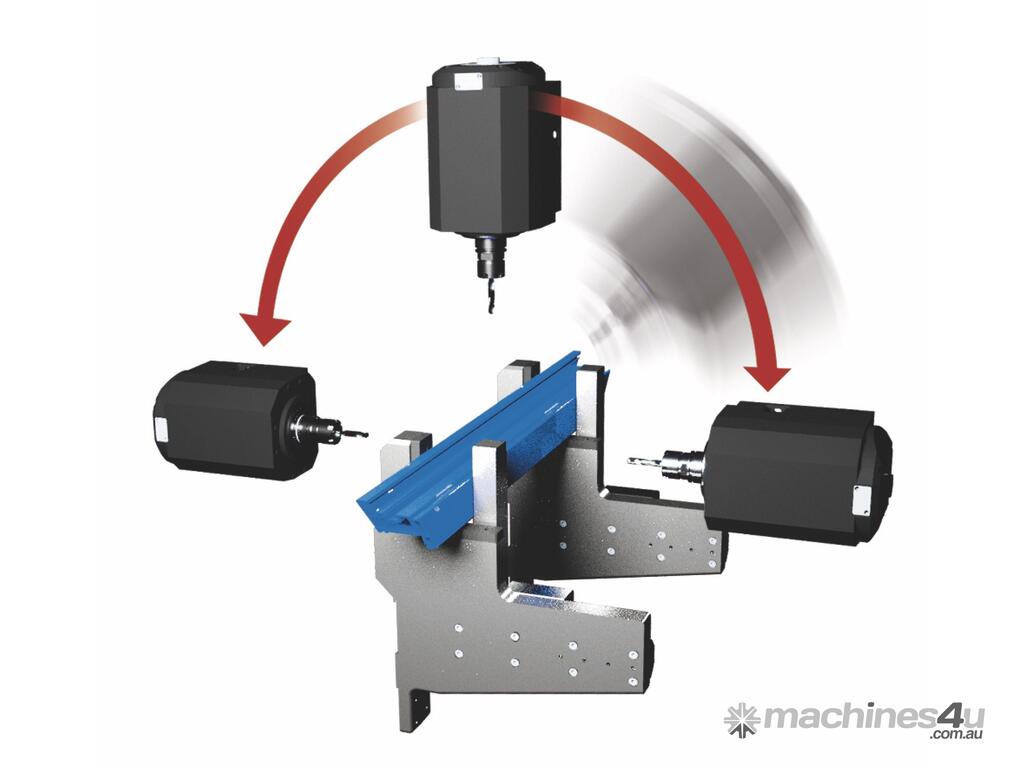

Axis A Travel (rotation) - 0-180 Degrees
Tool Holder - HSK-50F

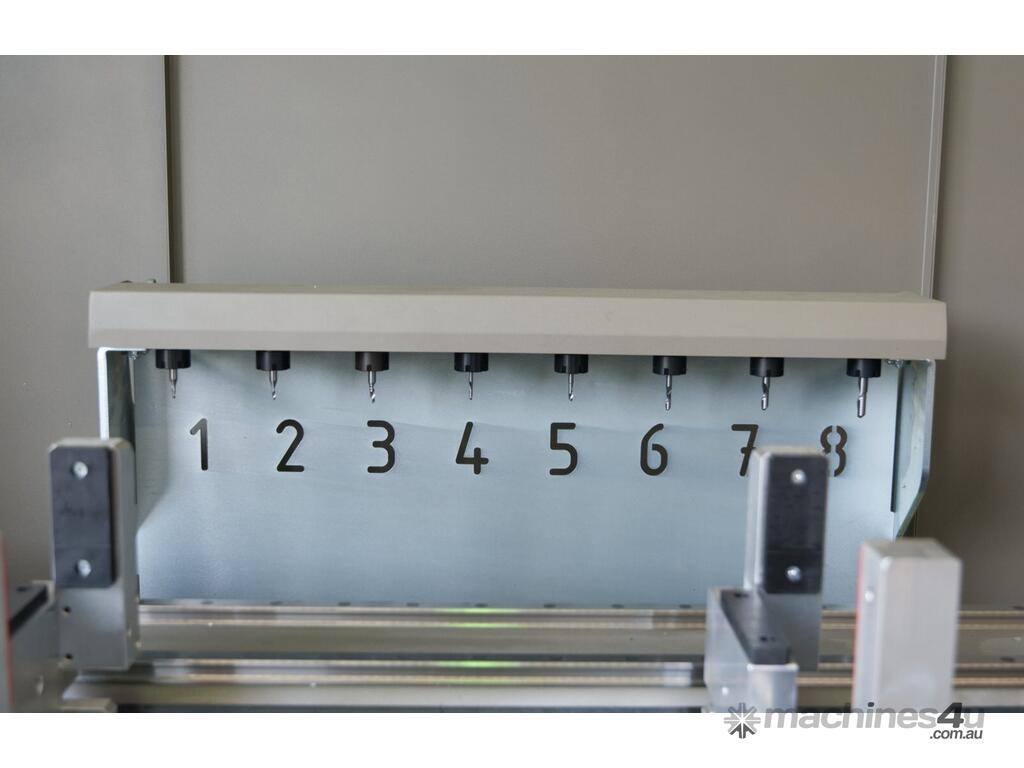

Number of Tools in Holder - 8
Additional Information

Weight : 1800 KG
Dimensions : 8100 x 1750 x 2400 mm
