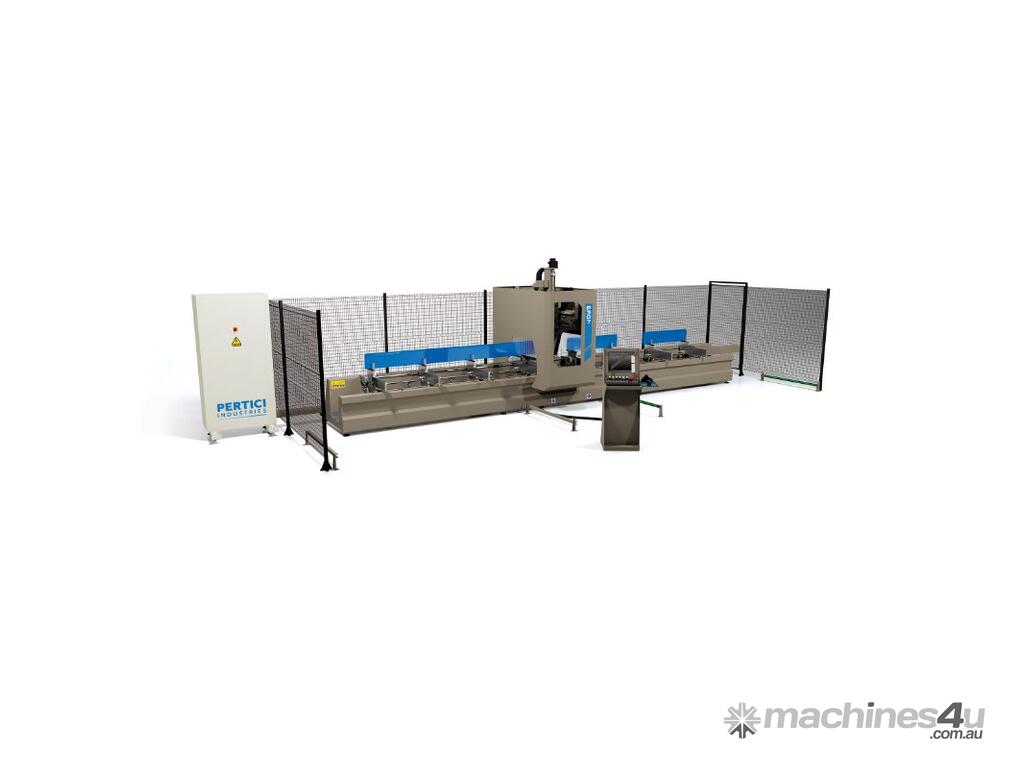

The P307 CNC Routing Machine has 4 controlled axis, designed to execute the operations of milling, drilling, threading, cuttng, end milling on bars or pieces of aluminium, Pvc, light alloys and steel.

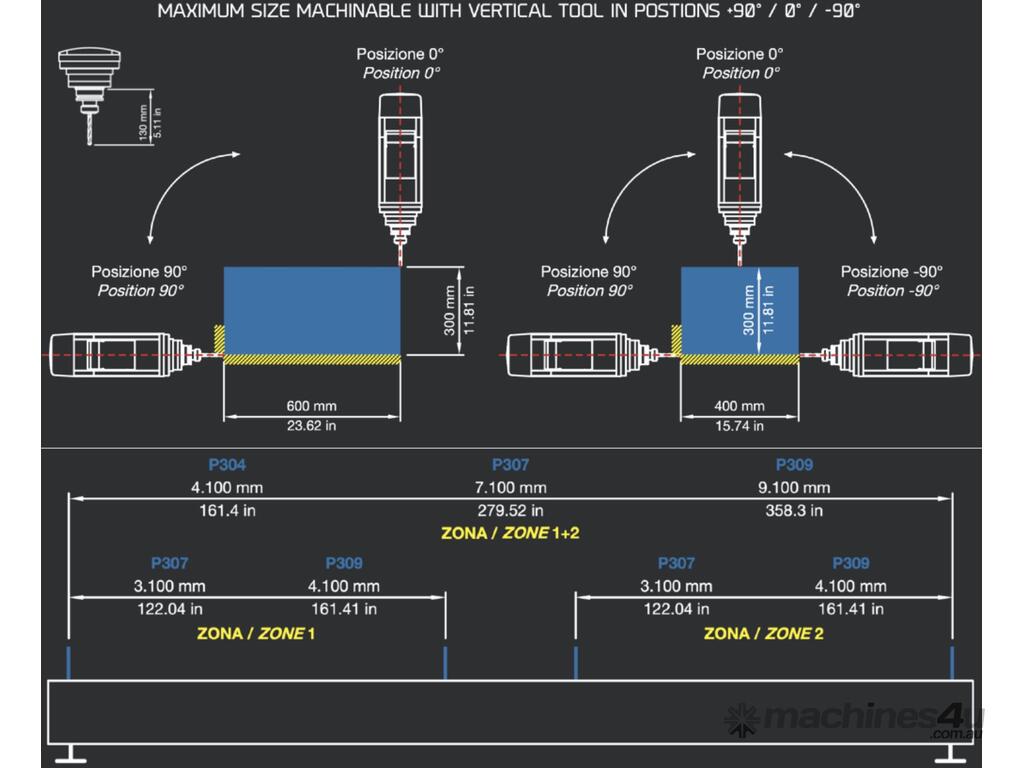

The 7m (P307) and 9m (P309) version allows two different working methods: one full working area or the pendular mode with two independent working areas.
Technical
Spindle Power RPM - 8.5KW (max) / 24'000 (max)
Volt/Freq/Amp - 415v (4A+E) /50/16
Axis X Travel/Speed (longitudnial) - 7960mm / 80m p/min
Axis Y Travel/Speed (transversal) - 1170mm / 50m p/min
Axis Z Travel/Speed (vertical) - 610mm / 30 p/min
Axis A Travel (rotation) - 0-180 Degrees
Tool Holder - HSK-50F
Number of Tools in Holder - 10
Additional Information
Weight : 5200 KG
Dimensions : 11260 x 3129 x 2680 mm
