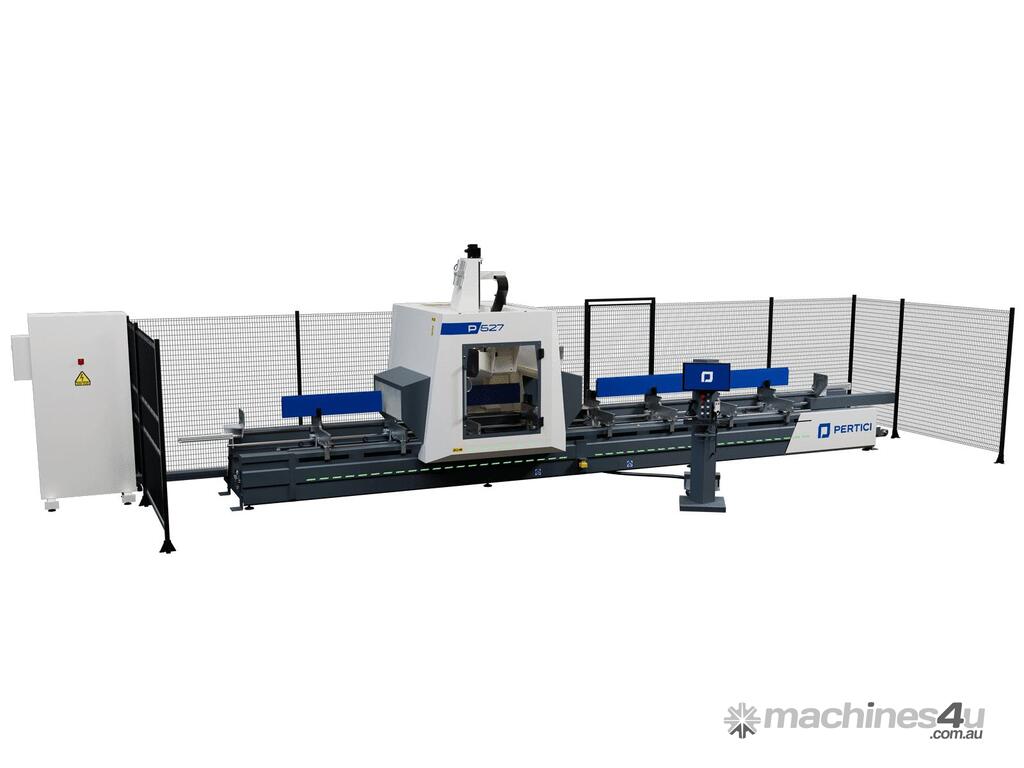

CNC machining center with 5 controlled axes, designed to perform milling, drilling, threading, cutting and end milling operations on bars or workpieces, even large ones, made of aluminium, PVC, light alloys and steel. Choose your machining center to your specific needs, guaranteeing flexibility and maximum efficiency!
CNC Machining Centres are designed for drilling, milling, taping and end notching operations in several materials including:
• Aluminium Extrusions
• Light Gauge Steel Profiles
• uPVC Profiles
• Composite Profiles
Technical
Spindle Power RPM - 10KW (max) / 24'000 (max)
Volt/Freq/Amp - 415v (4A+E) /50/16
Axis X Travel/Speed (longitudnial) - 8150mm / 100m p/min
Axis Y Travel/Speed (transversal) - 1170mm / 50m p/min
Axis Z Travel/Speed (vertical) - 565mm / 30 p/min
Saw Blade Diameter - 450mm
Tool Holder - HSK-50F
Number of Tools in Holder - 10
Additional Information
Weight : 5200 KG
Dimensions : 11790 x 3120 x 2900 mm
