Book a demonstration today.
Lift Industries & Platform Sales are proud National Distributors of all CTE Machines.

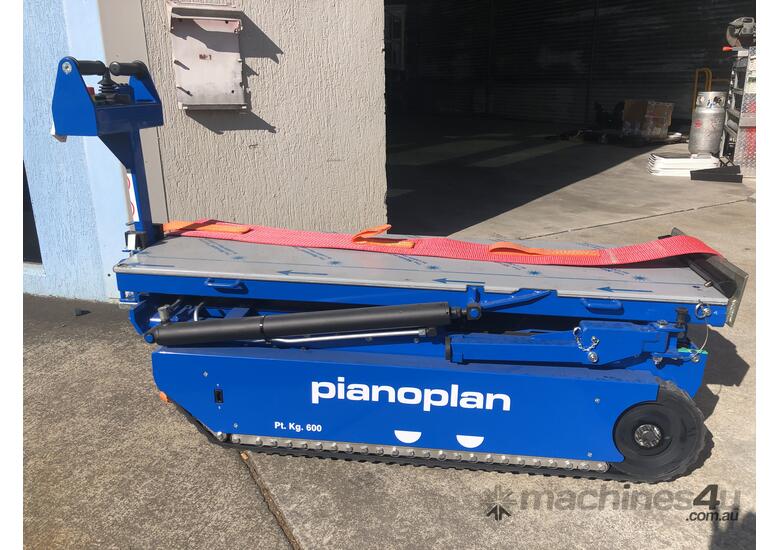

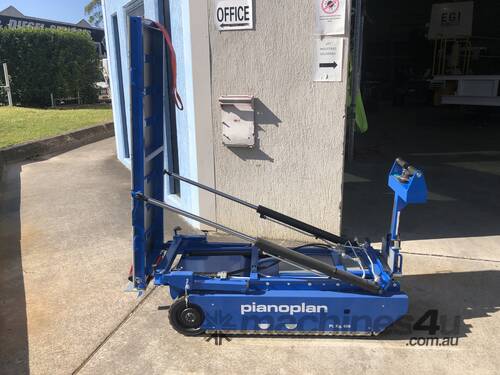

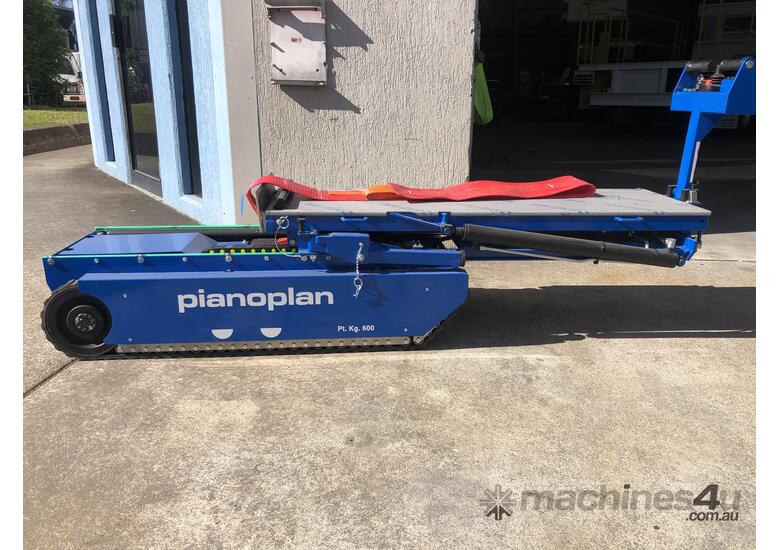

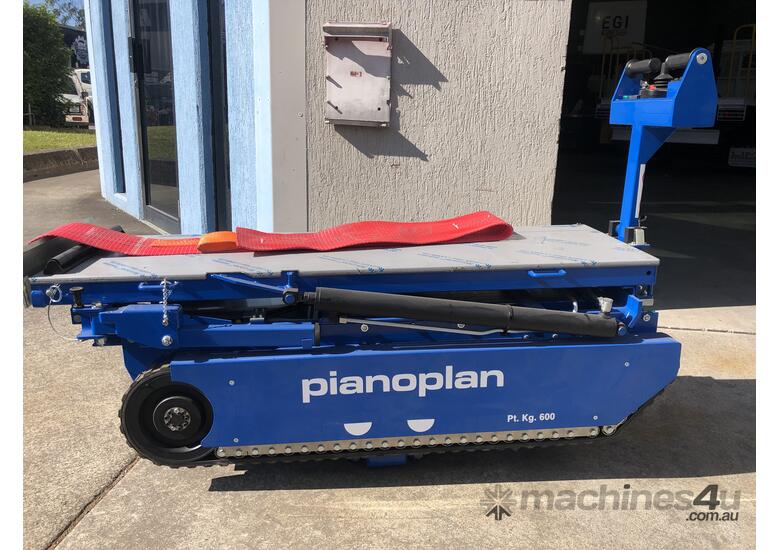

Move heavy objects with easy. Piano Plan 600 Speedy vertical. Tracked stair climbing object mover.
The Piano Plan Lift by CTE makes light work of even the toughest tasks. Reach out to Philip today for industry knowledge and know-how you can trust.
Initially designed to move Piano's up the stairs the Piano plan speedy 600 Vertical has now become an indispensable partner for people moving bulky objects such as: furniture, fridges, photocopiers, air compressors, household appliances and
lift motors.
TECHNICAL DATA
• Main structure fabricated and electro-welded sheet steel on chassis after welding
• Transmission dual electrical drive motors working in direct current operate through reduction gears on each driving wheel
• Hydraulic system powered by electric motor in direct current.
• All versions are equipped with an actuator that moves the lifting “platform” to use in case of change of direction or when you turn on very narrow spaces (change of direction).
All cylinders are equipped by lock valves.
• Equipped with protection fuses, key selector, emergency stop-button, marked cables, pilot light and a curtis battery charge indicator.
• Controls depending on which model of Pianoplan consists of the following:
- Potentiometric handle control (twist grip) to adjust drive speed
- Switch to select the direction (forward/backward)
- Main steel platform movement control push button (forward/backward), (all versions)
- Platform vertical position control push button (vertical version only)
- Lifting platform control push button, to lower or retract the rollers under the body of the Pianoplan
(with buzzer during the lifting period/phase/step) (all versions)
- Right and left individual track drive steering push button
•Colour Blue.
CLICK VIEW BROCHURE FOR FULL MACHINE SPECIFICATIONS
