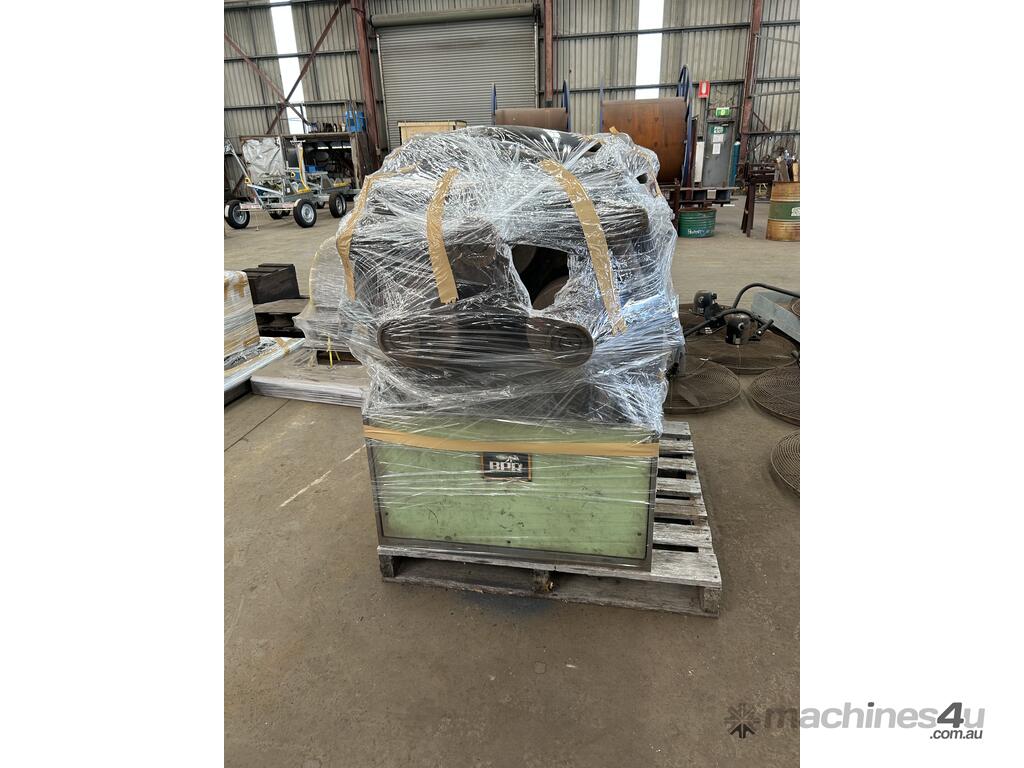

Plate bending machine

CPD 80 RI
S/N 2001A078

MODEL: CPD-80

EAGLE CPD80 HEAVY WEIGHT, High Capacity Bender
All have The Model CPD80 is a Double Pinch Fully Hydraulic

Angle Roll. This high capacity bender has fully hydraulic

rotation, dual LED programmable readouts, horizontal /

vertical operation, fully universal modular telescoping

rolls, long cylinder stroke, full protective covers and a

host of other beneficial features as standard.

MATERIAL: CAPACITY: MIN ROLLING DIAMETER:
FLATBAR -HARDWAY: 3-1/2 x 5/8 32"
FLATBAR - EASYWAY: 5 x 1 26"
SQUARE BAR: 2 32"
ANGLE IRON LEG IN: 3 x 3/8 40"
ANGLE IRON LEG OUT: 3 x 5/16 40"
T-IRON LEG IN: 3 x 3/8 32"
T-IRON LEG OUT: 3 x 3/8 36"
CHANNEL LEG IN: 5 x 2 40"
CHANNEL LEG OUT: 5 x 2 40"
ROUND BAR: 2 24"
PIPE: 3 48"
ROUND TUBING: 4 x 12ga. O50"
SQUARE TUBING: 2-1/2 x 5/32 80"
RECTANGULAR TUBING: 3 x 1-1/2 x 0.120"

Bending Adjustment: Dbl. Pinch Hyd.
Driven Rolls: 3 Hyd Drive
Rolling speed: 16 fpm
Working plane: Vert./Horiz
Repeat control: Auto-Repeat
Motor: 6.5 HP
Approx. Dimensions: 37" x 51" x 50"H
Approx. Weight: 4,000 lbs.

STANDARD FEATURES
* Dual LED Display w/ memory to monitor lower roll positions
* Rugged, rigid, one piece heavy steel weldment body,
20% heavier than some competitive models. Innovative
modular design is stress relieved & precision machined
* Large, hi-strength steel shafts, heat treated and ground,

journaled in dual selfaligning Spherical roller bearings

with forced lubrication for optimum performance, and

efficiency.
* Main Shafts are 15% larger than nearest competitive

model, heavier duty, higher capacity
* Independent hydraulic adjustment of both lower rolls, w/

long stroke for double pre-bending
* All 3 rolls driven by radial piston hydraulic motor and

high torque planetary speed reducergroup and planetary gear

final drive
* Multi axis lateral guides, adjustable in all 3 planes for

bending angle iron leg-in or out
* Universal bending rolls with modular telescoping
components, hardened and wear resistant
* Forced lubrication providing full security under harsh

working conditions
* Machine operates in both vertical and horizontal

positions, lifting rings included
* Satellite mobile control desk with pushbuttons and

programmable digital readouts withauto repeat control on

both rolls affords maximum operator mobility as well as

precision repeatability.
* Controls in low v oltage 24V with multi-point safety

Available Eagle Farm Brisbane
Buyer to arrange removal and transport
